Seating Impact Tester TZ-FSI100

Testoz Sofa Durability Tester ensures sofa durability, safety, and functionality with precise seat, backrest, and armrest testing. Equipped with 3 servo-loading systems, PLC control, and test software, it offers real-time monitoring, deformation checks, and height measurements.

monroelillie
Download Presentation

Seating Impact Tester TZ-FSI100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

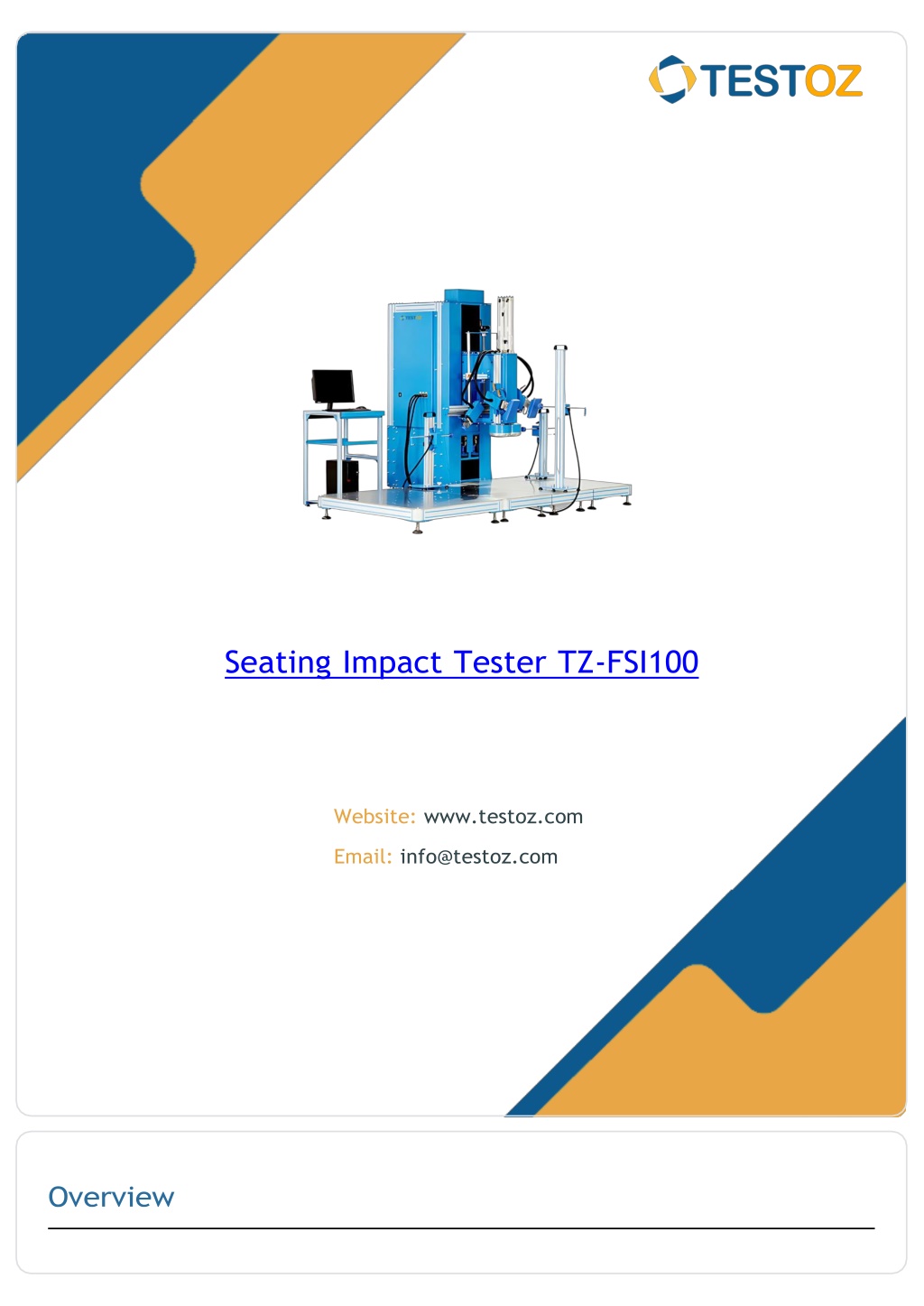

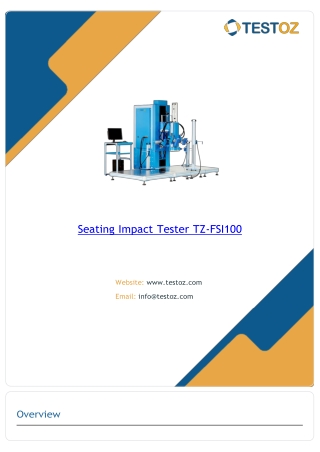

  1. Seating Impact Tester TZ-FSI100 Website: www.testoz.com Email: info@testoz.com

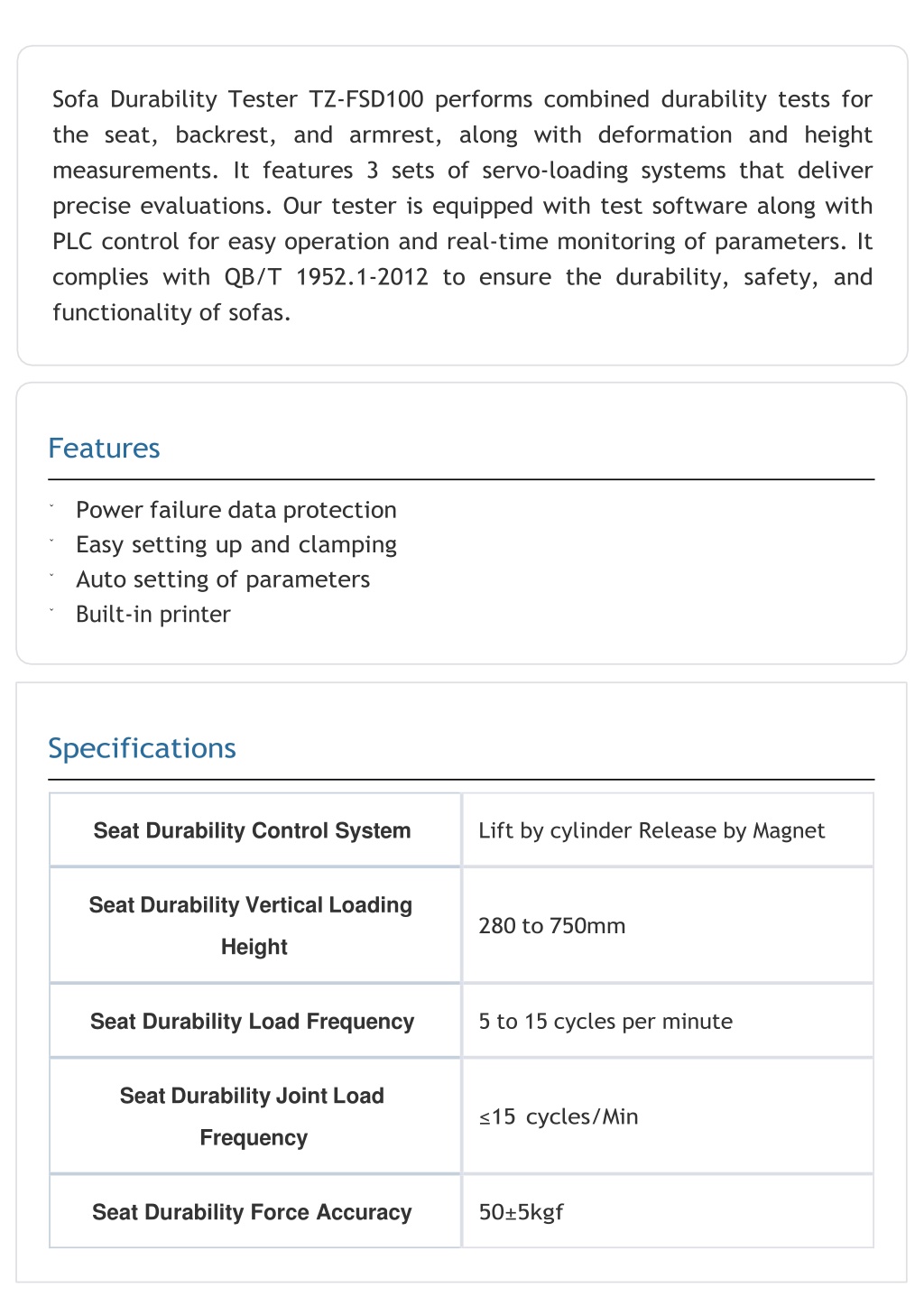

  2. ˇ ˇ ˇ Built-in printer ˇ Seat Durability Control System Lift by cylinder Release by Magnet Seat Durability Vertical Loading 280 to 750mm Height Seat Durability Load Frequency 5 to 15 cycles per minute Seat Durability Joint Load ≤15 cycles/Min Frequency Seat Durability Force Accuracy 50±5kgf

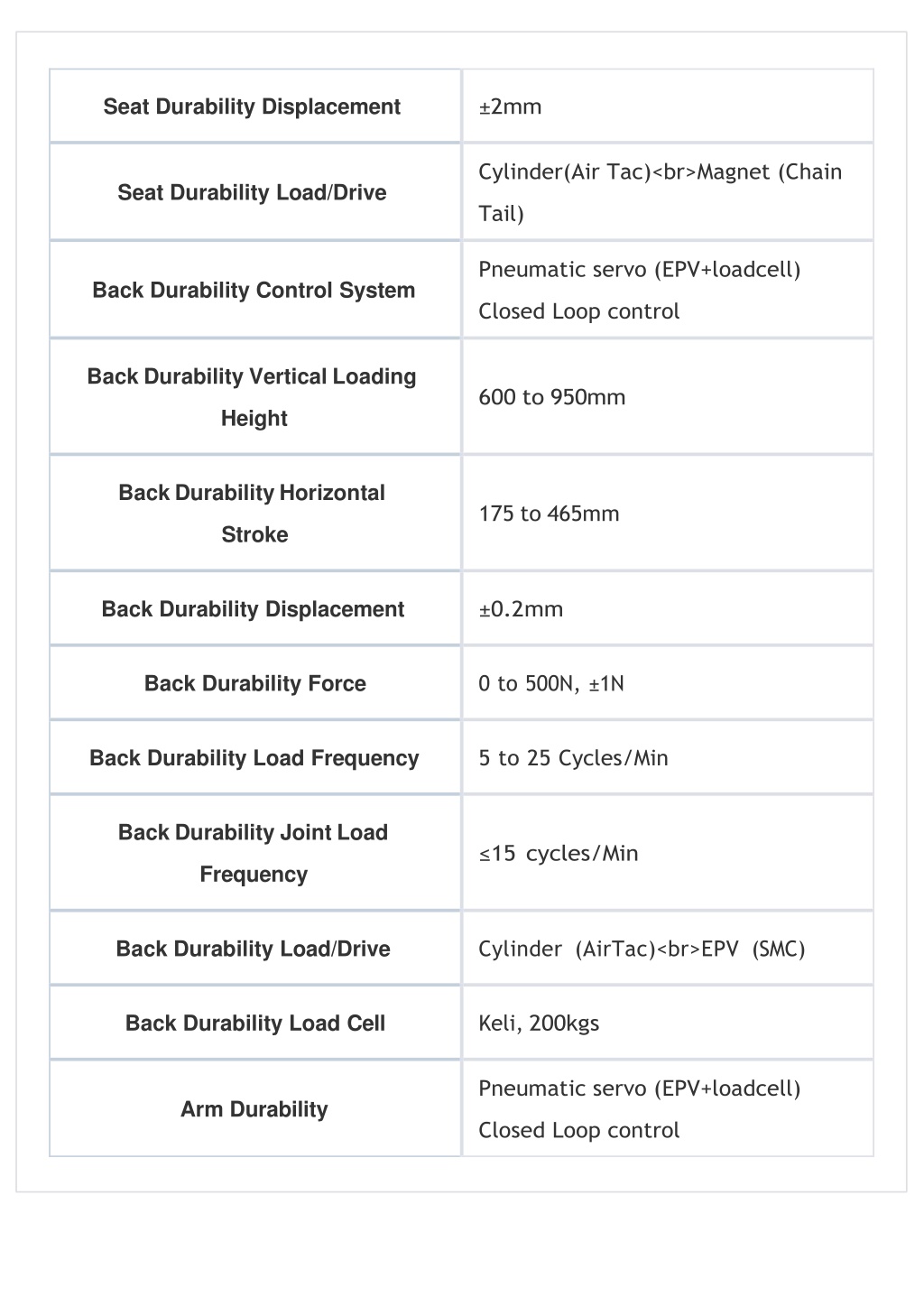

  3. Seat Durability Displacement ±2mm Cylinder(Air Tac)<br>Magnet (Chain Seat Durability Load/Drive Tail) Pneumatic servo (EPV+loadcell) Back Durability Control System Closed Loop control Back Durability Vertical Loading 600 to 950mm Height Back Durability Horizontal 175 to 465mm Stroke Back Durability Displacement ±0.2mm Back Durability Force 0 to 500N, ±1N Back Durability Load Frequency 5 to 25 Cycles/Min Back Durability Joint Load ≤15 cycles/Min Frequency Back Durability Load/Drive Cylinder (AirTac)<br>EPV (SMC) Back Durability Load Cell Keli, 200kgs Pneumatic servo (EPV+loadcell) Arm Durability Closed Loop control

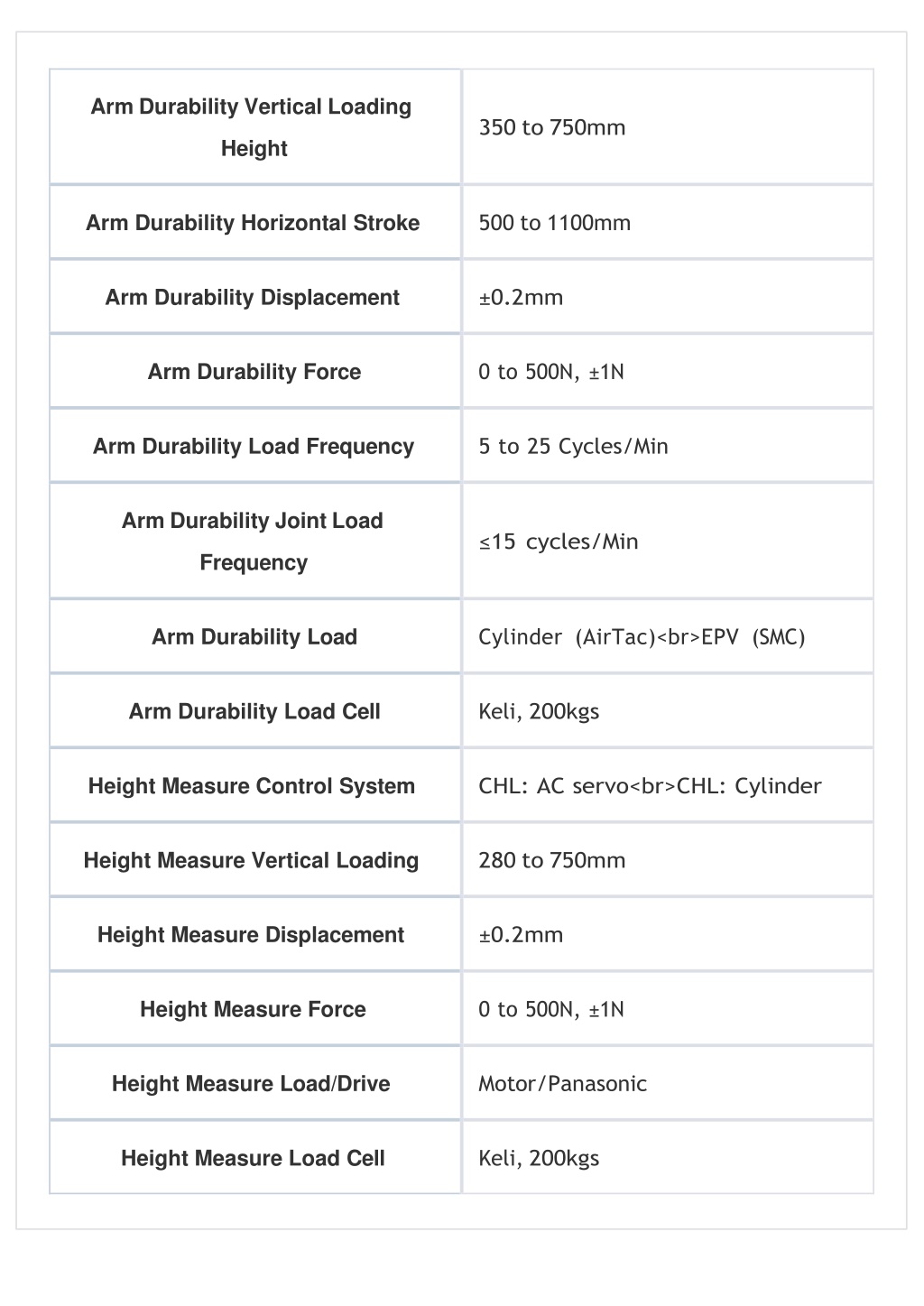

  4. Arm Durability Vertical Loading 350 to 750mm Height Arm Durability Horizontal Stroke 500 to 1100mm Arm Durability Displacement ±0.2mm Arm Durability Force 0 to 500N, ±1N Arm Durability Load Frequency 5 to 25 Cycles/Min Arm Durability Joint Load ≤15 cycles/Min Frequency Arm Durability Load Cylinder (AirTac)<br>EPV (SMC) Arm Durability Load Cell Keli, 200kgs Height Measure Control System CHL: AC servo<br>CHL: Cylinder Height Measure Vertical Loading 280 to 750mm Height Measure Displacement ±0.2mm Height Measure Force 0 to 500N, ±1N Height Measure Load/Drive Motor/Panasonic Height Measure Load Cell Keli, 200kgs

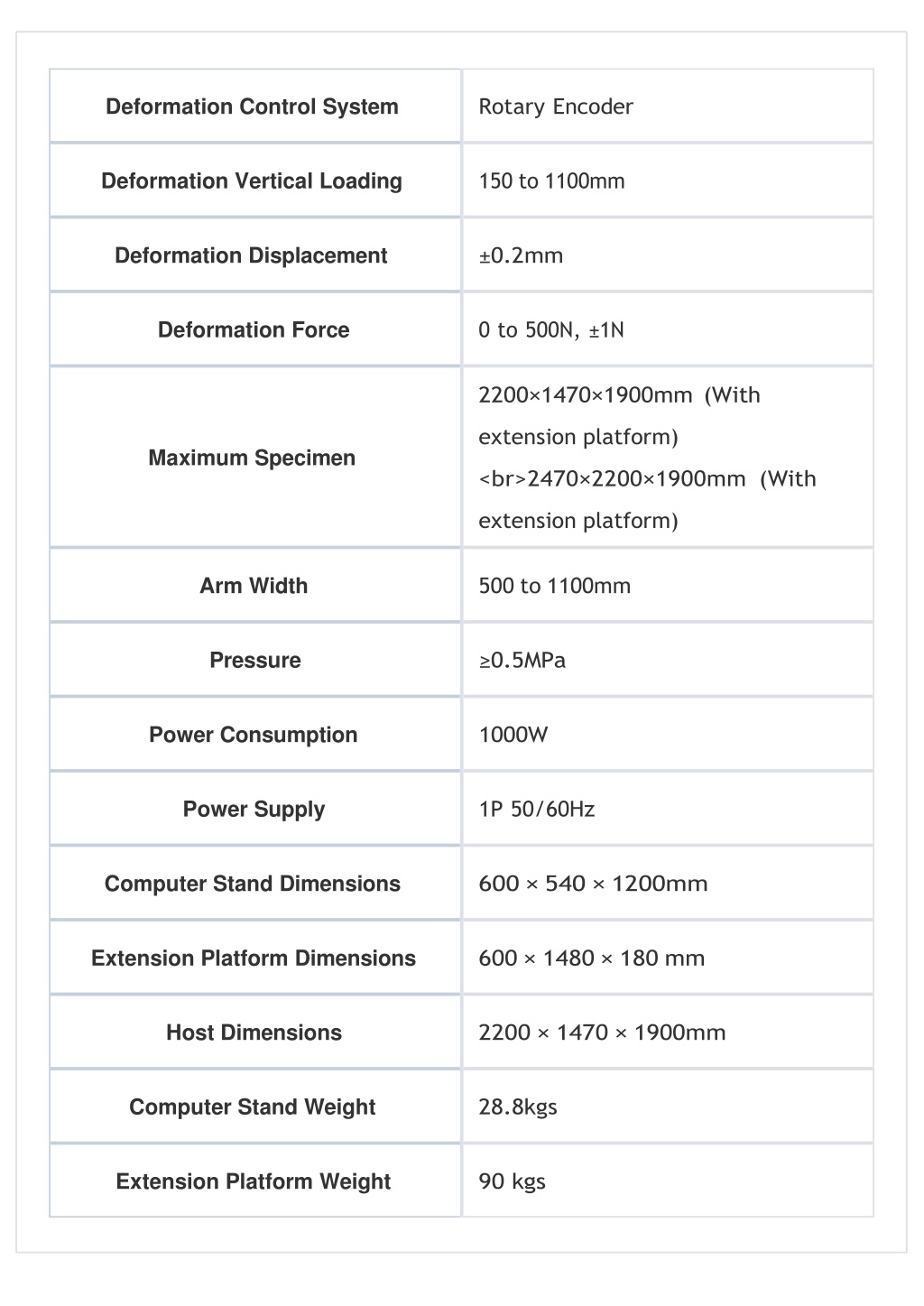

  5. Deformation Control System Rotary Encoder Deformation Vertical Loading 150 to 1100mm Deformation Displacement ±0.2mm Deformation Force 0 to 500N, ±1N 2200×1470×1900mm (With extension platform) Maximum Specimen <br>2470×2200×1900mm (With extension platform) Arm Width 500 to 1100mm Pressure ≥0.5MPa Power Consumption 1000W Power Supply 1P 50/60Hz Computer Stand Dimensions 600 × 540 × 1200mm Extension Platform Dimensions 600 × 1480 × 180 mm Host Dimensions 2200 × 1470 × 1900mm Computer Stand Weight 28.8kgs Extension Platform Weight 90 kgs

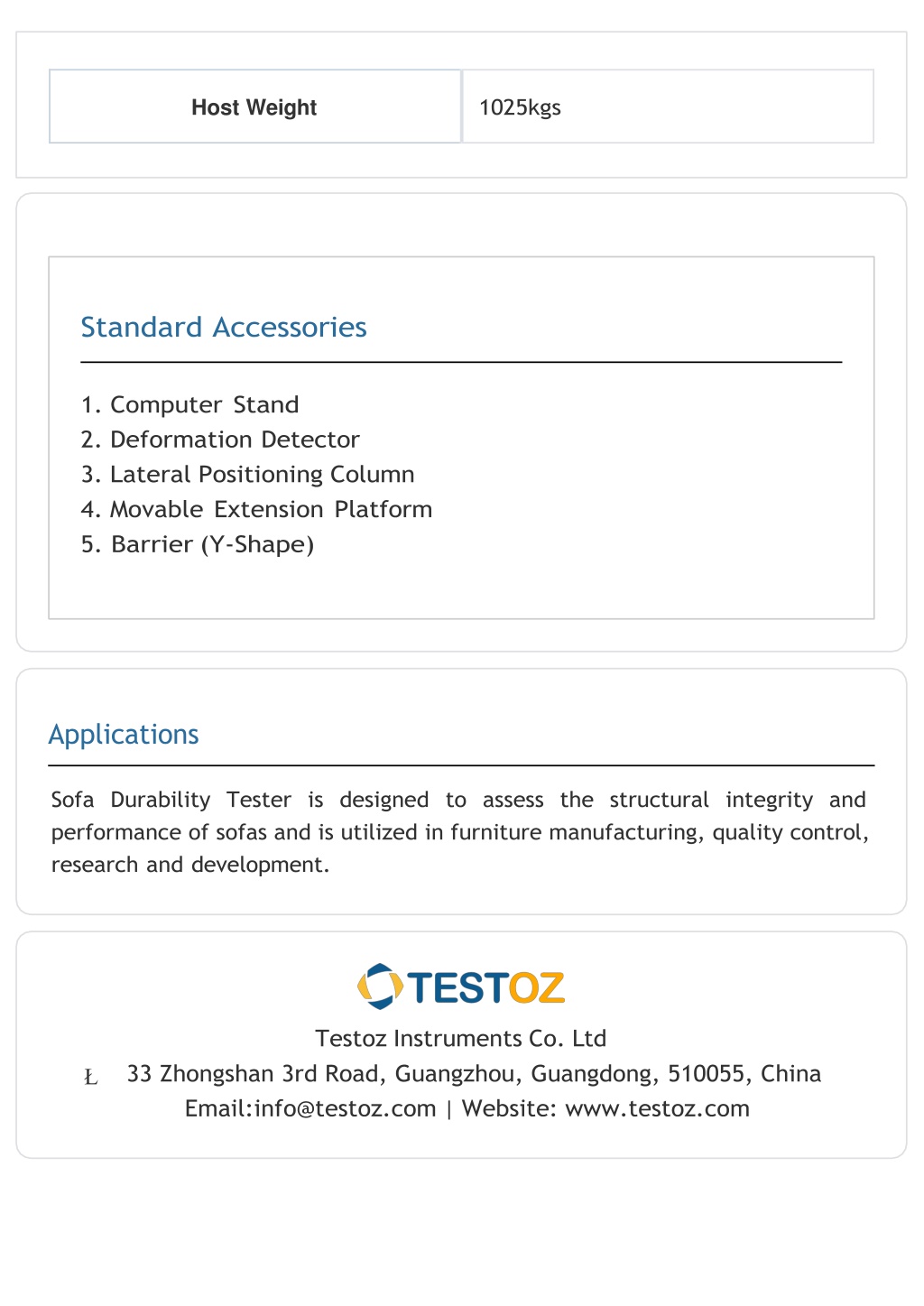

  6. Host Weight 1025kgs Applications Ł |
