  1. The Moons of the Gas Giants Astronomy 311 Professor Lee Carkner Lecture 20

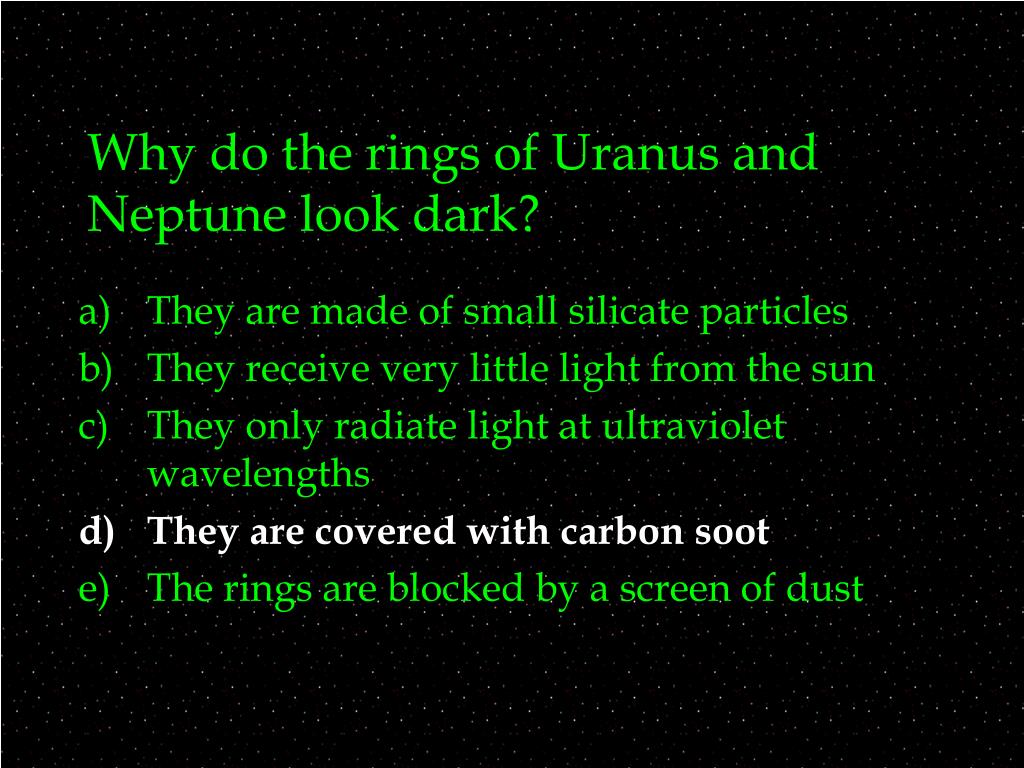

  2. Why do the rings of Uranus and Neptune look dark? • They are made of small silicate particles • They receive very little light from the sun • They only radiate light at ultraviolet wavelengths • They are covered with carbon soot • The rings are blocked by a screen of dust

  3. The blue and white colors we see in the atmospheres’ of Uranus and Neptune are due to, • gaseous helium and water clouds • ammonia clouds and sulfur clouds • gaseous methane and methane clouds • gaseous methane and carbon dioxide clouds • the fact that light is sometimes absorbed and sometimes scattered off ice crystals in the atmosphere

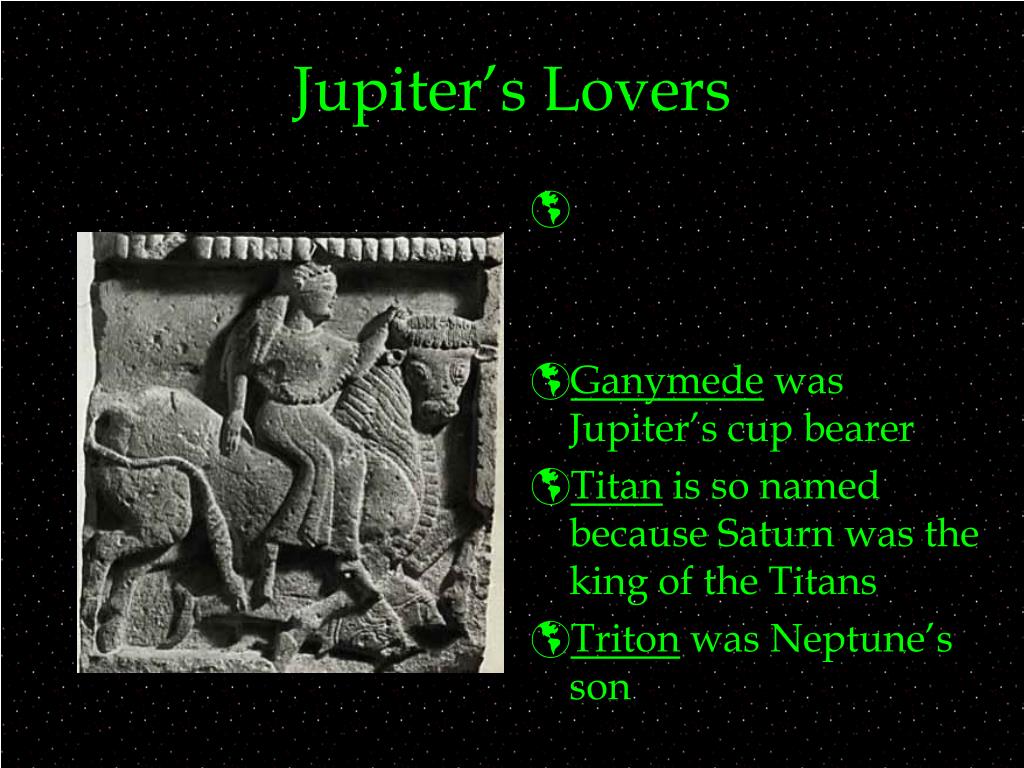

  4. Jupiter’s Lovers • Ganymede was Jupiter’s cup bearer • Titan is so named because Saturn was the king of the Titans • Triton was Neptune’s son

  5. The Galilean Moons • The 1st, 3rd, 4th and 6th largest moons in the solar system • Made from rock and ice

  6. Orbits of the Galilean Moons • 1 rotation on its axis per 1 revolution around Jupiter • This is due to the small separation between the inner moons

  7. Formation of the Galilean Moons • The inner parts of the nebula were hotter than the outer • The inner satellites (Io and Europa) formed mostly from rock • The inner 3 satellites experienced tidal heating and differentiated into a rocky core and an icy crust • Much of the energy that powers the large moons of the solar system comes from tidal heating

  8. The Interiors of the Galilean Moons

  9. Galileo Visits the Galilean Moons • Made several passes by each moon • Galileo refused to die and kept taking data up to Sept 2003 deliberate crash into Jupiter • Galileo has achieved imaging resolutions up to 50 times better than Voyager

  10. Io • Io has an elliptical orbit, so the tidal forces on it vary with time • The hot interior produces massive volcanism and a differentiated interior • Io has a iron core surrounded by a molten rocky mantle

  11. Volcanism on Io • Io has no impact craters • Volcanoes produce plumes of material that extend up to 280 km above the surface • Volcanoes can be very long lived • Some have been observed for 20 years

  12. Io’s Plasma Torus • Ions are atoms that have lost an electron giving them a net electrical charge • As Jupiter rotates its changing magnetic field produces an electrical current through the torus and interior of Io

  13. Europa • Under the ice is water or warm fluid ice • Tidal heating produces the internal energy • Tidal flex may also crack the surface

  14. Evidence for Warm Oceans on Europa • Galileo has imaged faults where the ice has pulled apart and water as flowed up • Galileo magnetometer measurements indicate that Europa has a variable magnetic field • On Earth simple life forms evolved under water at warm deep ocean vents • Could something similar have happened on Europa?

  15. Models for the Interior of Europa

  16. Ganymede • Ganymede is the largest moon in the solar system • Slightly larger than Mercury • But, Ganymede shows evidence for surface alteration • Did it once have a more eccentric orbit?

  17. The Surface of Ganymede • Old dark terrain • Dark due to the ice being covered with dust from meteoroid impacts • New bright terrain • Bright due to fracturing of the icy surface

  18. Callisto • It has experienced the least tidal heating • Callisto shows few signs of interior or surface activity • Large impact basin Valhalla • 3000 km in diameter • impact occurred about 4 billion years ago

  19. Titan • Most distant planet sized solid body • Thick atmosphere make the surface impossible to see • Titan is large enough to have a reasonably strong gravitational field

  20. Titan’s Atmosphere • Titan has a thicker atmosphere than the Earth • Titan’s atmosphere may have originally been composed of ammonia (NH3) and methane (CH4) • 90% of the atmosphere is N2 • Much of the rest is methane

  21. Chemicals in Titan’s Atmosphere • Titan’s atmosphere also contains hydrocarbons (composed of H and C) and polymers (long chains of H, N and C) • Methane can rain from atmosphere and form streams and maybe lakes • Titan is very cold (95 K=-288 F) and so it would be difficult for life to form

  22. Triton • It is probably a captured Kuiper belt object • Triton shows evidence of geologic activity • Few craters • Plumes of outgassing material • When Triton was first captured it was probably in a highly eccentric orbit which resulted in tidal heating

  23. Triton’s Atmosphere • Triton is very cold (37 K) and thus nitrogen is mostly frozen on the surface • A little bit of nitrogen evaporates to produce the atmosphere

  24. Next Time • Read Chapter 14.3

  25. Summary • The six large moons of the gas giants resemble the terrestrial planets of the inner solar system • They can have volcanoes, atmospheres, and evidence of resurfacing • In general they are cold and have rocky interiors and icy exteriors • Some produce internal energy through tidal heating • Europa and Titan may possibly have the conditions for life to exist

  26. Summary: Io and Europa • Io • Strong tidal heating produces massive volcanism • Volcanism produces powerful outgassed plumes, sulfurous surface and plasma torus of ions • Europa • Icy surface shows evidence for water flowing up from interior • May have a warm subsurface ocean due to tidal heating

  27. Summary: Ganymede and Callisto • Ganymede • Shows both old dark terrain and bright new terrain • Must have had more internal heat to drive geologic activity in the past • Callisto • No tidal heating results in no differentiation • Fairly uniform mixture of icy and rock with many craters

  28. Summary: Titan and Triton • Titan • Large size and low temperatures results in an thick atmosphere • Atmosphere composed of nitrogen, methane, hydrocarbons and polymers • Triton • Has a decaying, inclined retrograde orbit • Thin atmosphere and surface activity
