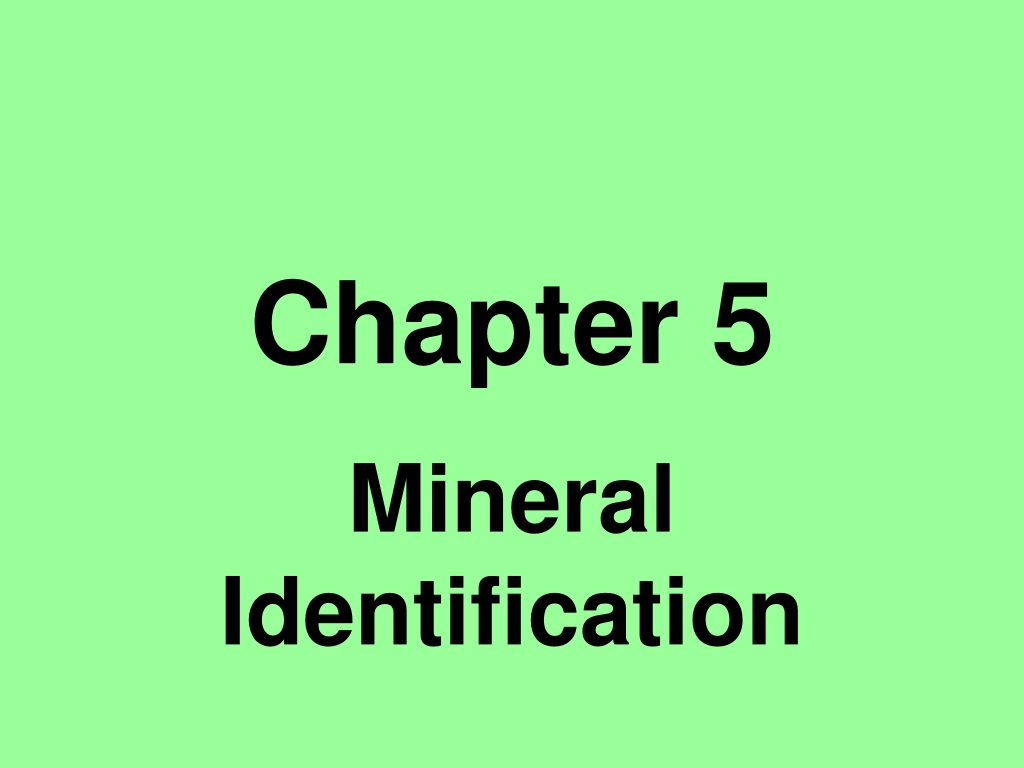

  1. Chapter 5 Mineral Identification

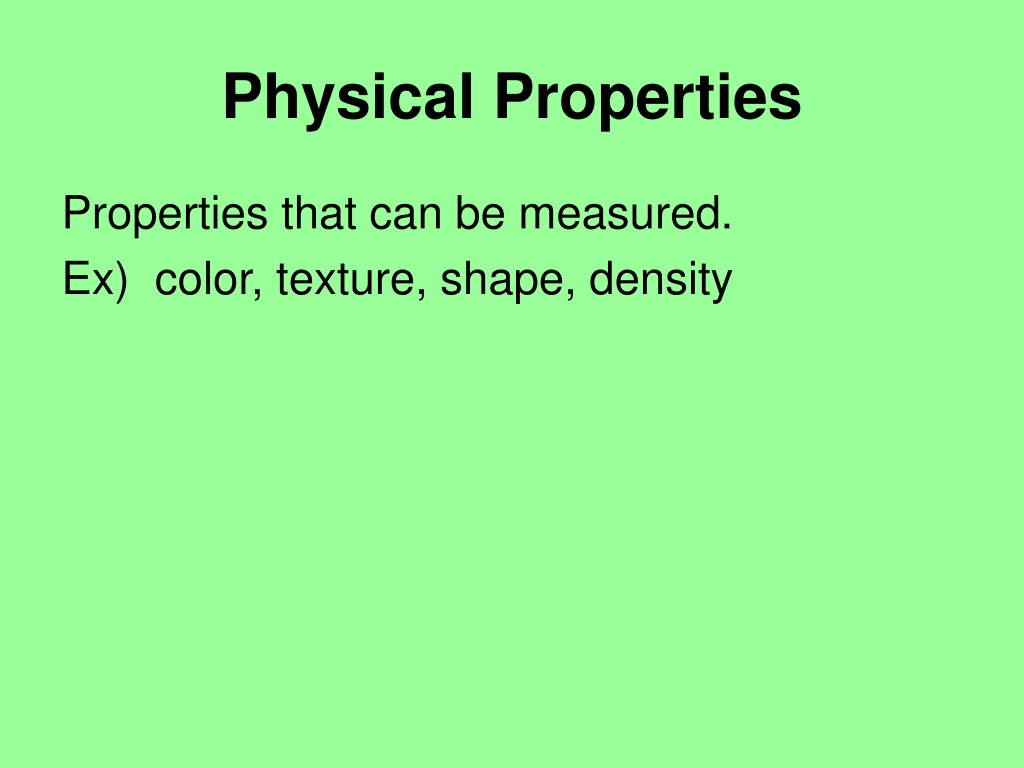

  2. Physical Properties Properties that can be measured. Ex) color, texture, shape, density

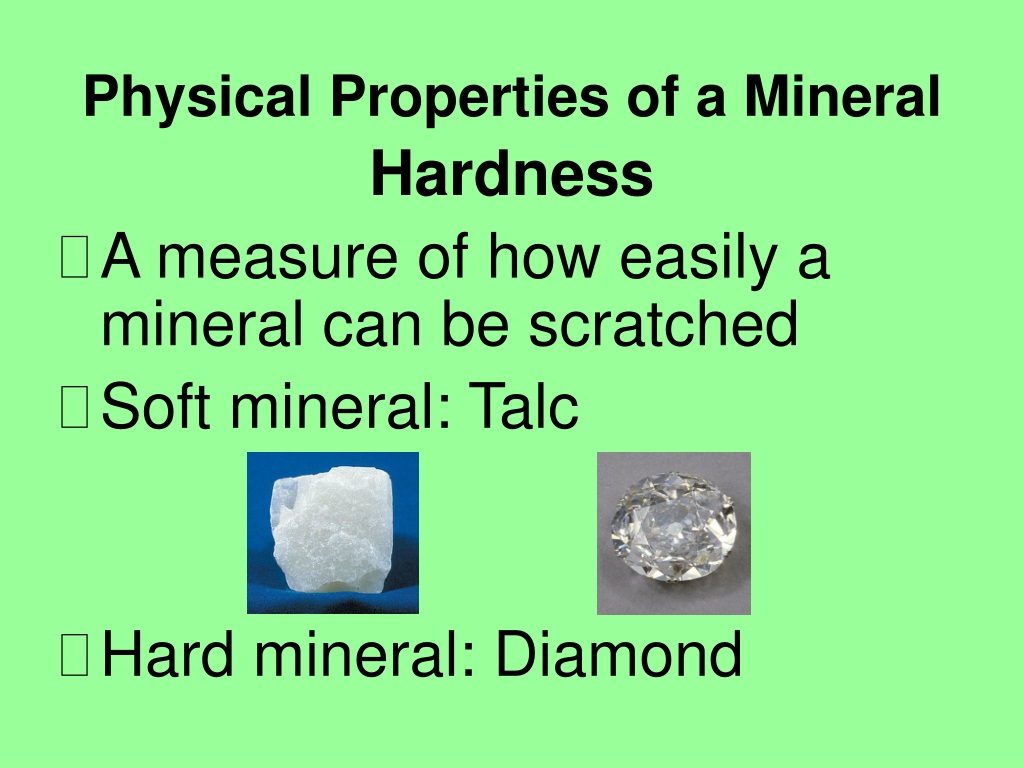

  3. Physical Properties of a Mineral Hardness • A measure of how easily a mineral can be scratched • Soft mineral: Talc • Hard mineral: Diamond

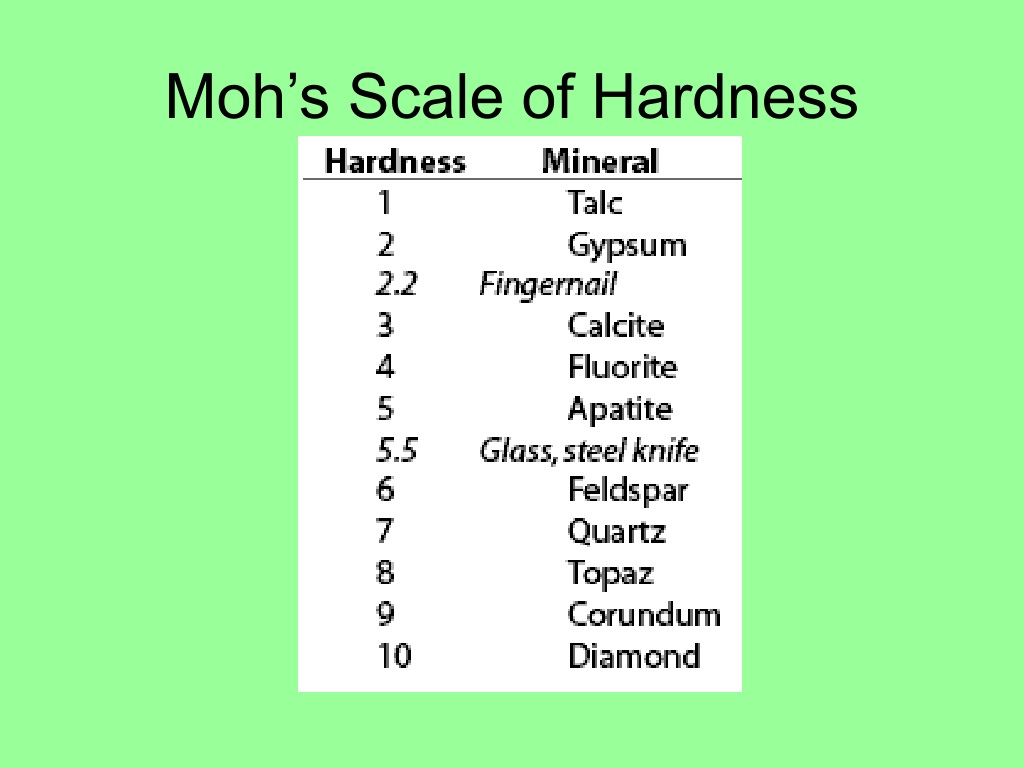

  4. Moh’s Scale of Hardness

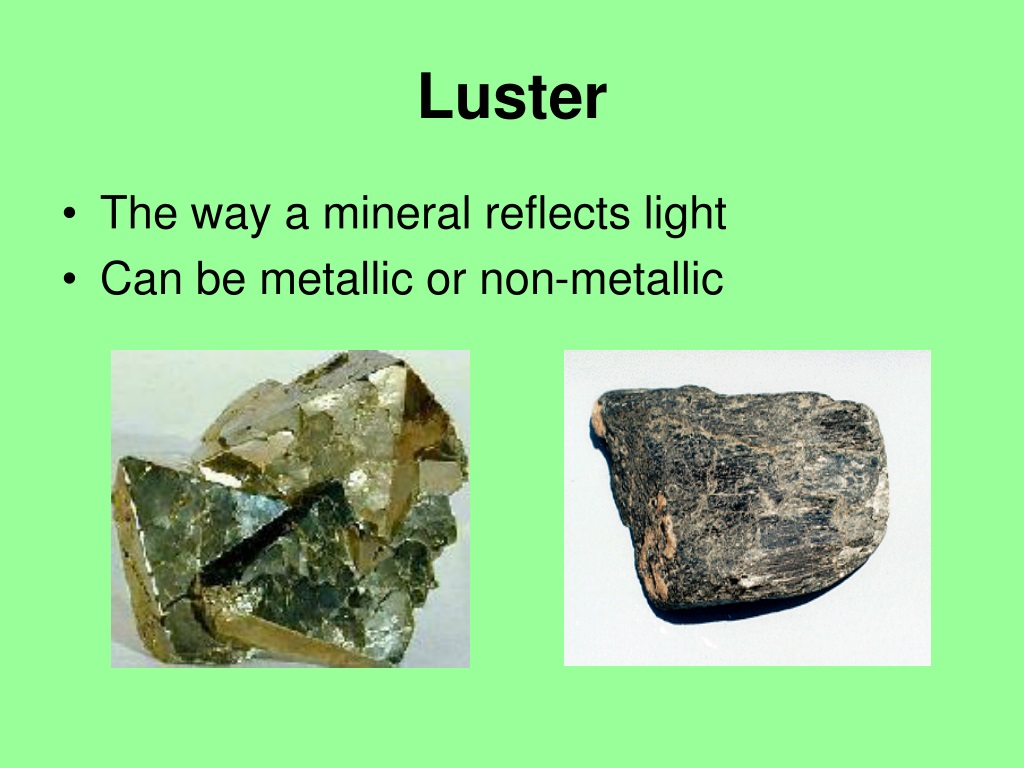

  5. Luster • The way a mineral reflects light • Can be metallic or non-metallic

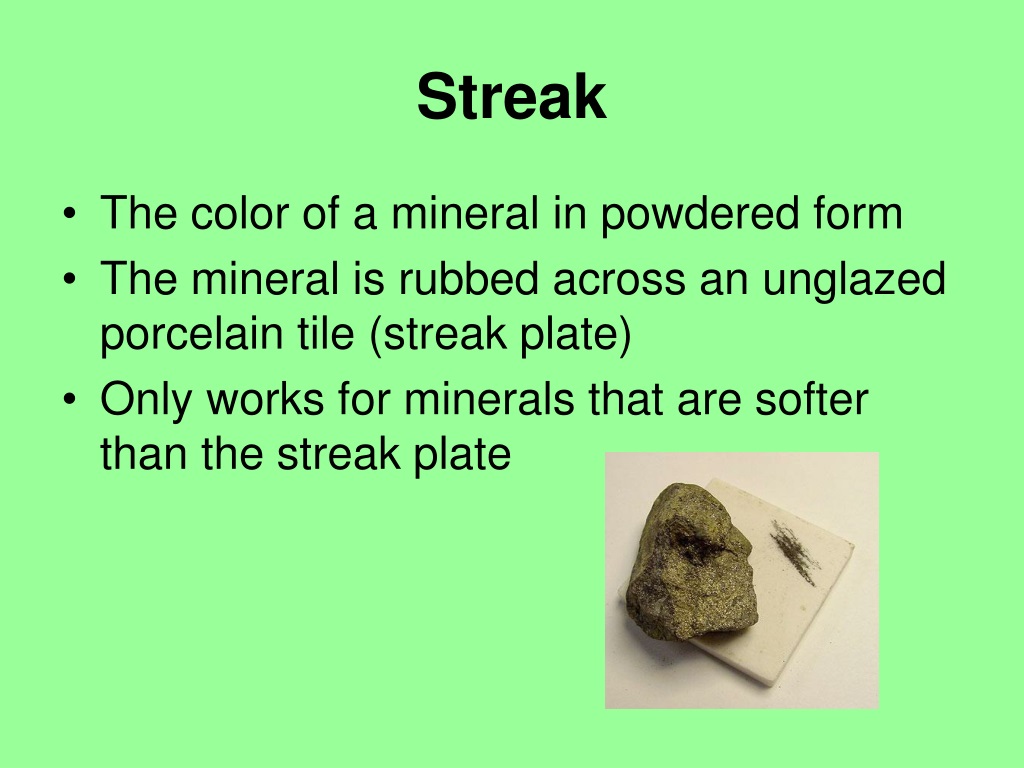

  6. Streak • The color of a mineral in powdered form • The mineral is rubbed across an unglazed porcelain tile (streak plate) • Only works for minerals that are softer than the streak plate

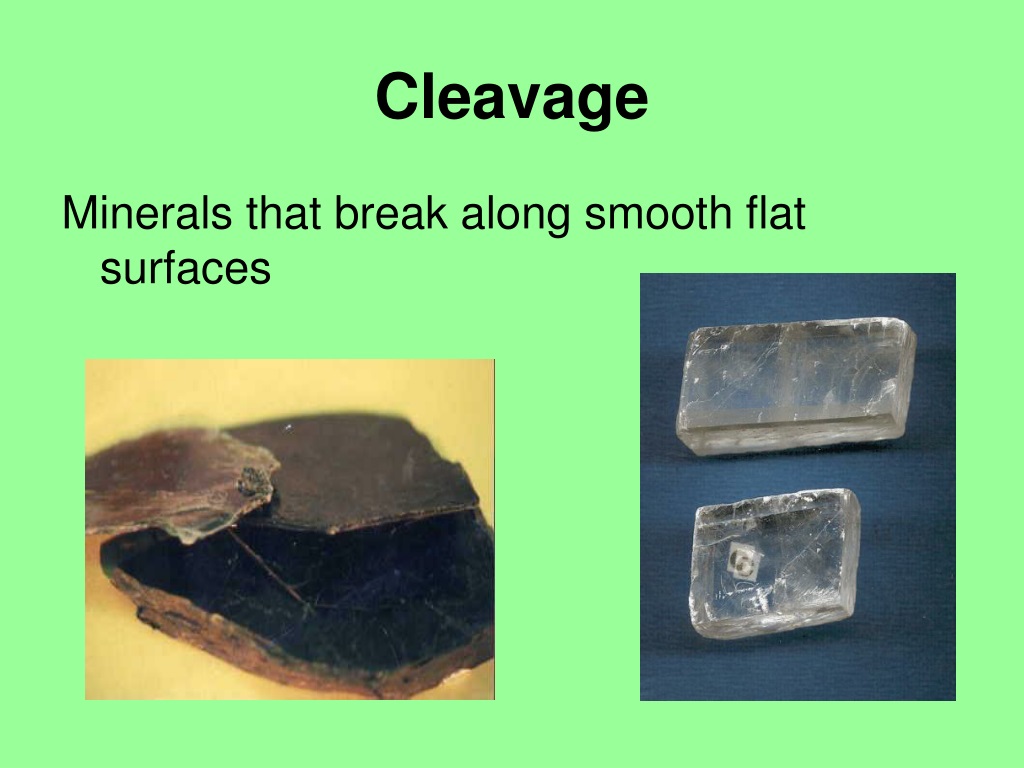

  7. Cleavage Minerals that break along smooth flat surfaces

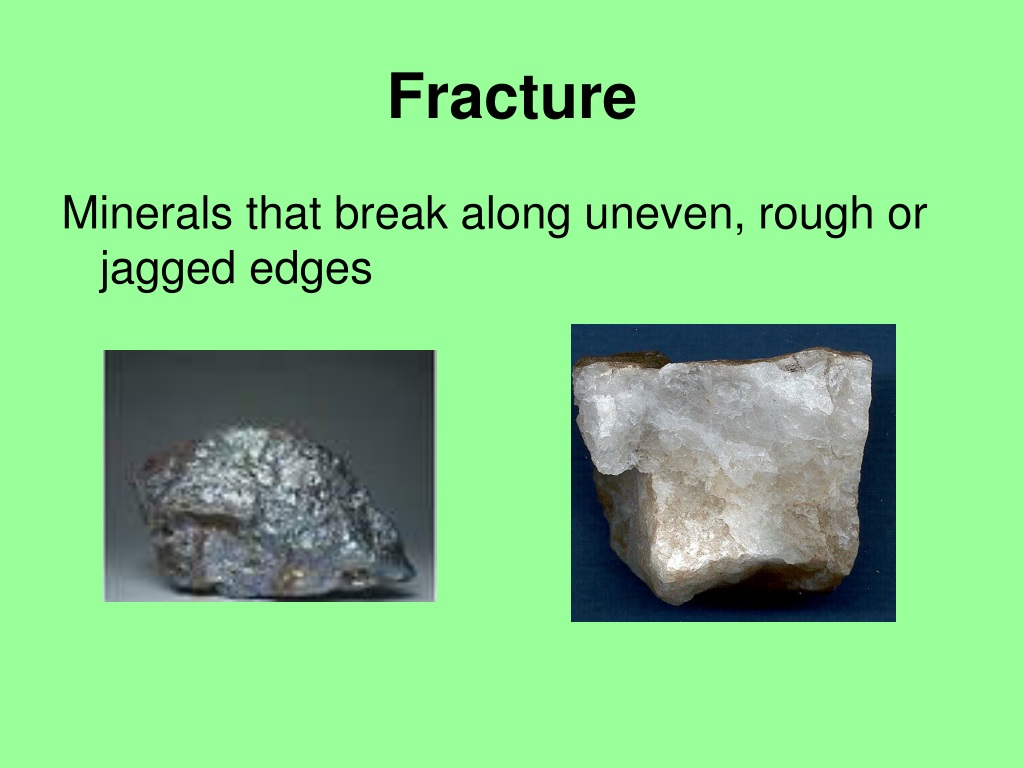

  8. Fracture Minerals that break along uneven, rough or jagged edges

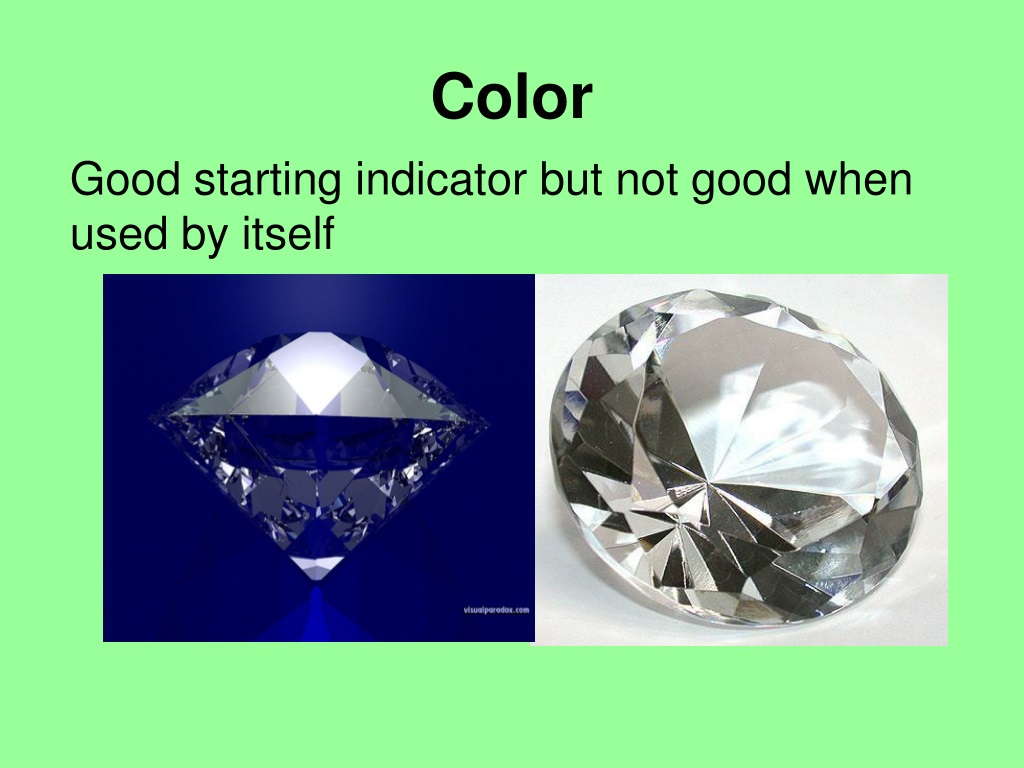

  9. Color Good starting indicator but not good when used by itself

  10. OtherProperties • Some minerals have special properties • Magnetite- attracted to magnets • Calcite- produces a double image fizzes when HCl is applied

  11. Other Properties • Fluorescence • Glow when viewed under ultraviolet light • Examples: fluorite, calcite • Phosphorescence • Will continue to glow even after the ultraviolet light is removed • Examples: sphalerite, Willemite

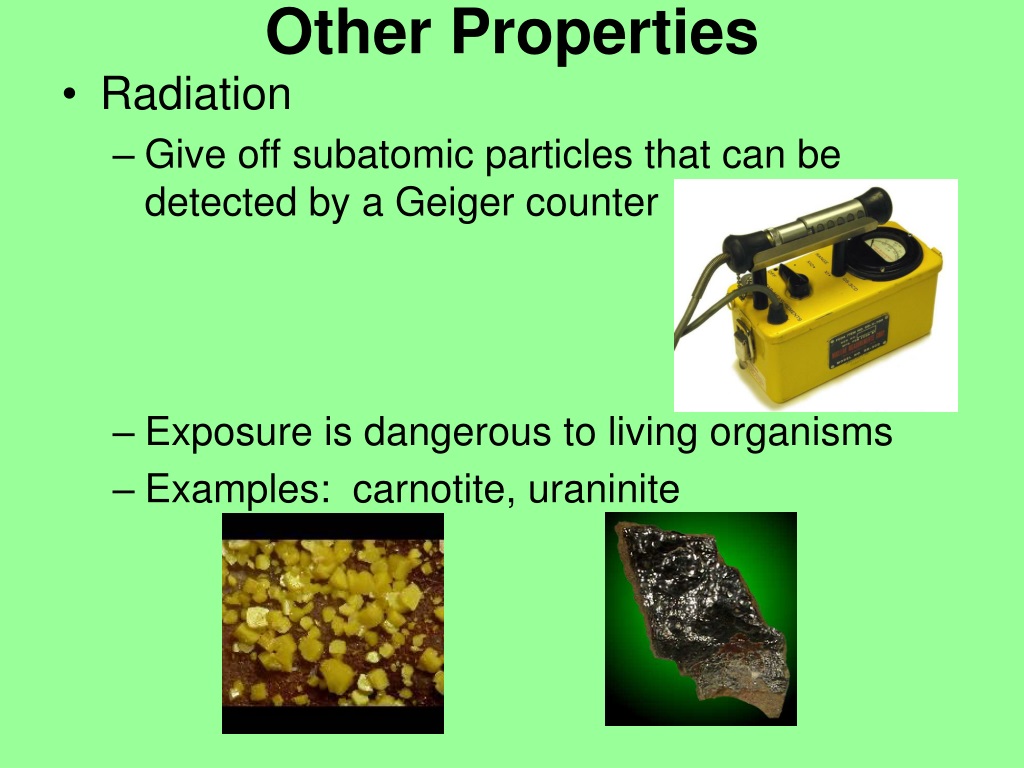

  12. Other Properties • Radiation • Give off subatomic particles that can be detected by a Geiger counter • Exposure is dangerous to living organisms • Examples: carnotite, uraninite
