New Method Steel Stamps, Inc. is the world leader in manufacturing Automatic Roll Marking Attachments for OD and End Face marking. The Best Way to Mark.
E N D
New Method Steel Stamps, Inc.is the world leader in manufacturing Automatic Roll Marking Attachments for OD and End Face marking
The Best Way to Mark • All New Method automatic roll marking attachments, whether designed for use in OD or END-FACE marking, eliminate secondary marking operations, for they are engineered to work as an integral part of the machine - advancing, marking the part and clearing it during the machine cycle. Avoid extra tooling and setup time as well as production time. • Secondary marking operations of parts are costly. • The most economical and efficient way to identify products is to do it prior to, or during the manufacturing cycle automatically, making it a primary operation.
Automatic AttachmentsPART BREAKDOWN AVAILABLE UPON REQUEST CNC Turning Centers Available in Outside Die Mount or Throated Die Mount End Face Marking Tools

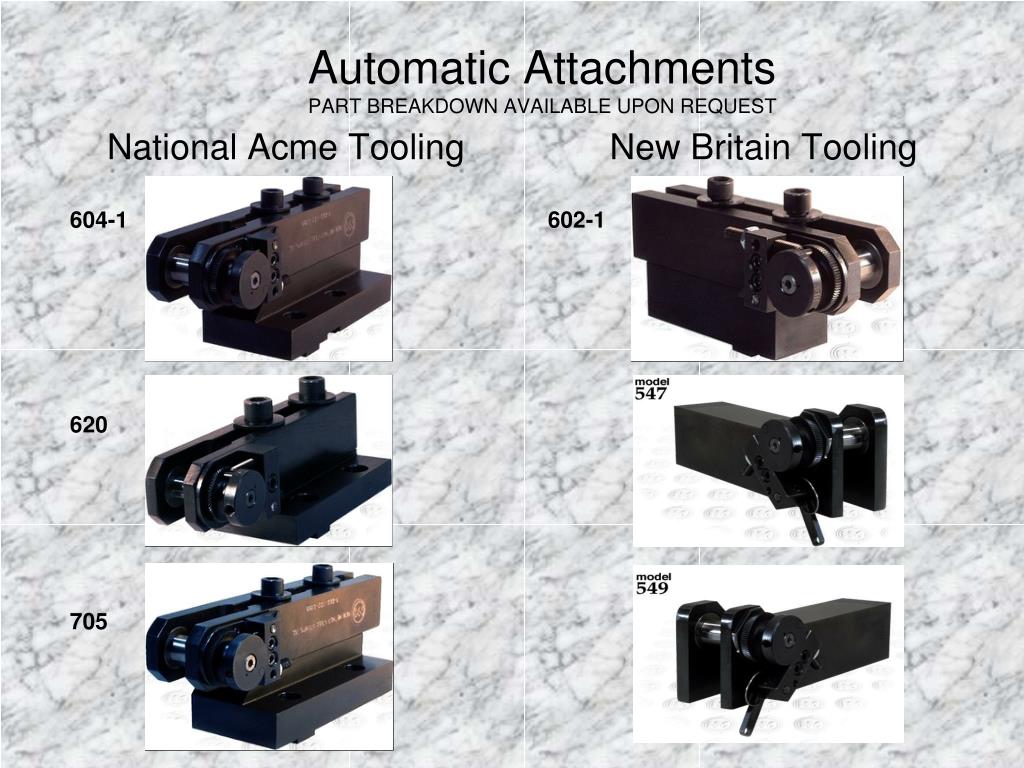

Automatic AttachmentsPART BREAKDOWN AVAILABLE UPON REQUEST National Acme Tooling 604-1 620 705 New Britain Tooling 602-1

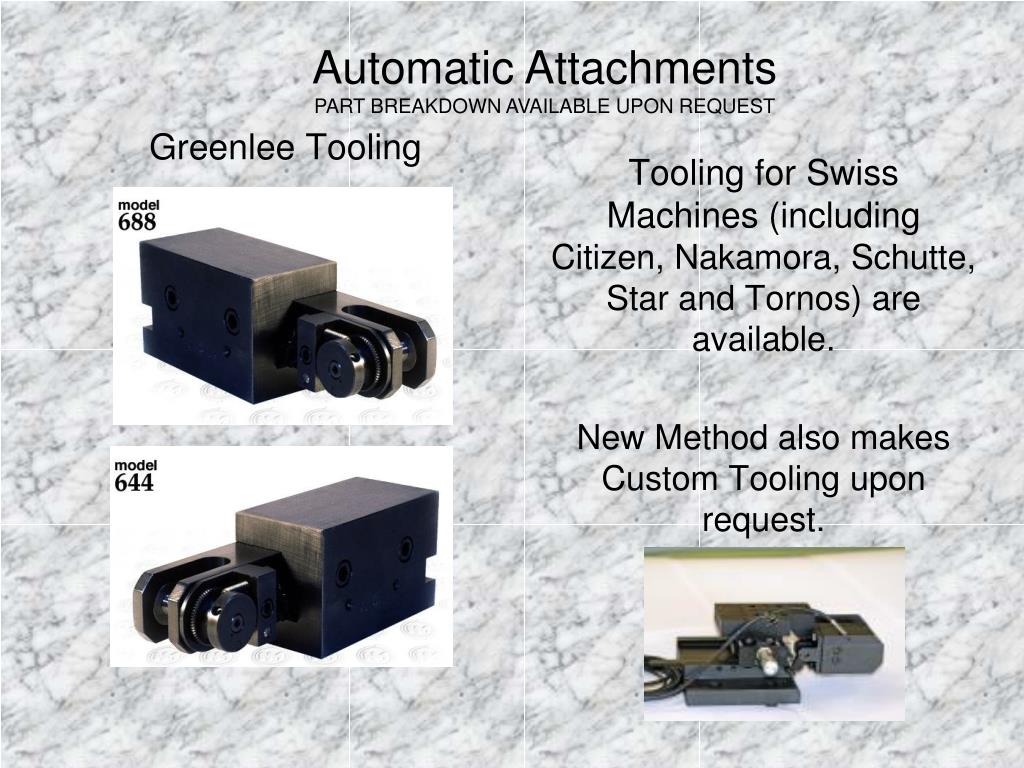

Automatic Attachments PART BREAKDOWN AVAILABLE UPON REQUEST Greenlee Tooling Tooling for Swiss Machines (including Citizen, Nakamora, Schutte, Star and Tornos) are available. New Method also makes Custom Tooling upon request.

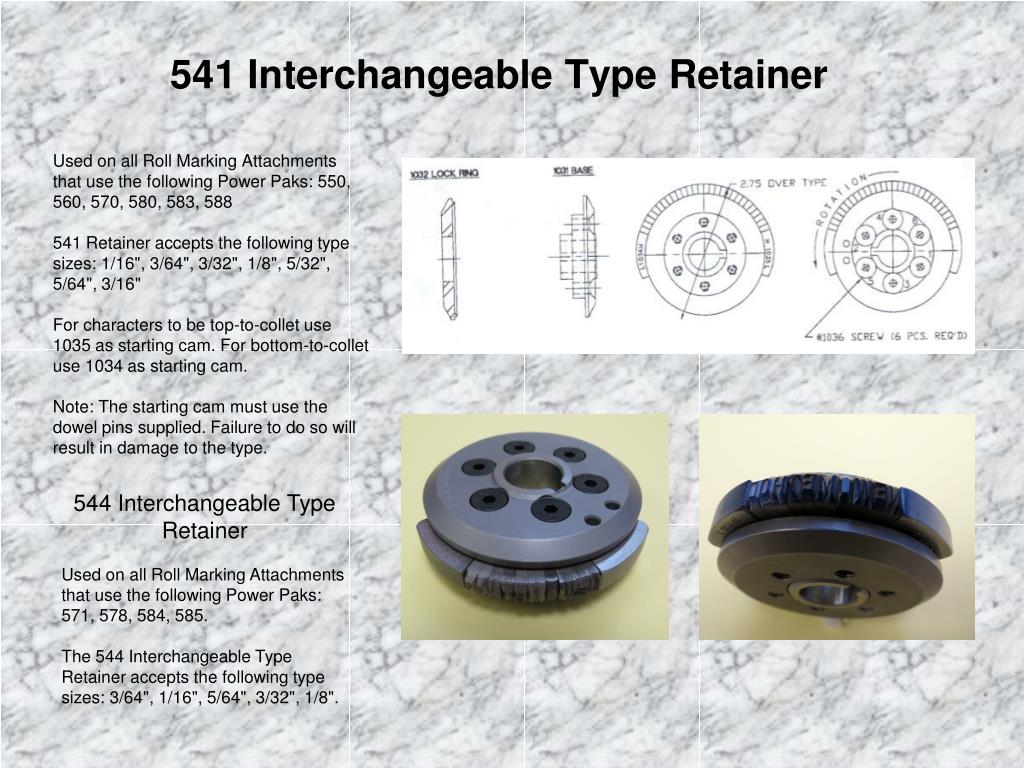

541 Interchangeable Type Retainer Used on all Roll Marking Attachments that use the following Power Paks: 550, 560, 570, 580, 583, 588541 Retainer accepts the following type sizes: 1/16", 3/64", 3/32", 1/8", 5/32", 5/64", 3/16"For characters to be top-to-collet use 1035 as starting cam. For bottom-to-collet use 1034 as starting cam.Note: The starting cam must use the dowel pins supplied. Failure to do so will result in damage to the type. 544 Interchangeable Type Retainer Used on all Roll Marking Attachments that use the following Power Paks: 571, 578, 584, 585. The 544 Interchangeable Type Retainer accepts the following type sizes: 3/64", 1/16", 5/64", 3/32", 1/8".
Bar Marking Machines Bar stock marking means marking the full bar length of hex, round or square stock before machining parts from the bar in a Screw Machine or Turning Center. Typical parts include fittings, spud orifices, and flow controllers. Bars can be marked on 1,2,3,4,5, or 6 sides either while being straightened or from coil or after cutting to bar lengths.
6000 Bar Marking Machine • Manual load, with auto feed at 2-feet per second • Handles Hex & Square stock from ½ to 2 in. • Interchangeable Bar Marking Dies made to your specification • Adjustable marking depths • Eliminates wasted floor space
Contact Information Charles D. L. Brown President Email – cb@newmethod.com Quotes, sales, customer service, technical issues Kellee M. Warren Office Manager Email – kw@newmethod.com Quotes, sales, billing inquires Office Phone +1 (586) 293-0200 Toll Free +1 (800)-582-0199Office Fax +1 (586) 296-1900 Website – www.newmethod.com Mailing Address: P.O. Box 338 Fraser, MI 48026 Physical Address: 31313 Kendall Fraser, MI 48026 Located approximately 10 miles north of Detroit, Michigan
