1.1 Exit Ticket: Part 1 Answers

CB and CD. 2. A point on BC. Possible answer: BD. 1.1 Exit Ticket: Part 1 Answers. 1. Two opposite rays. Possible answer: B,C, D. 3. The intersection of plane N and plane T. 4. A plane containing E , D , and B. Plane T. Exit Ticket: Part II Answers.

mohammad-ramsey
Download Presentation

1.1 Exit Ticket: Part 1 Answers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

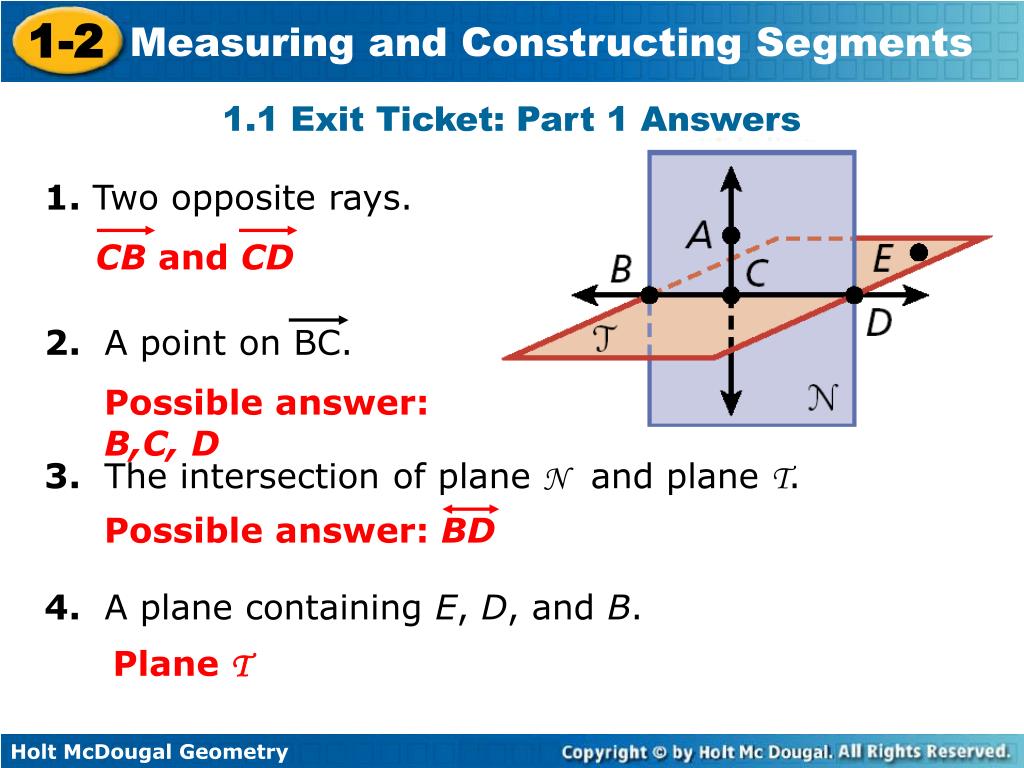

  1. CB and CD 2. A point on BC. Possible answer: BD 1.1 Exit Ticket: Part 1 Answers 1. Two opposite rays. Possible answer: B,C, D 3. The intersection of plane N and plane T. 4. A plane containing E, D, and B. Plane T

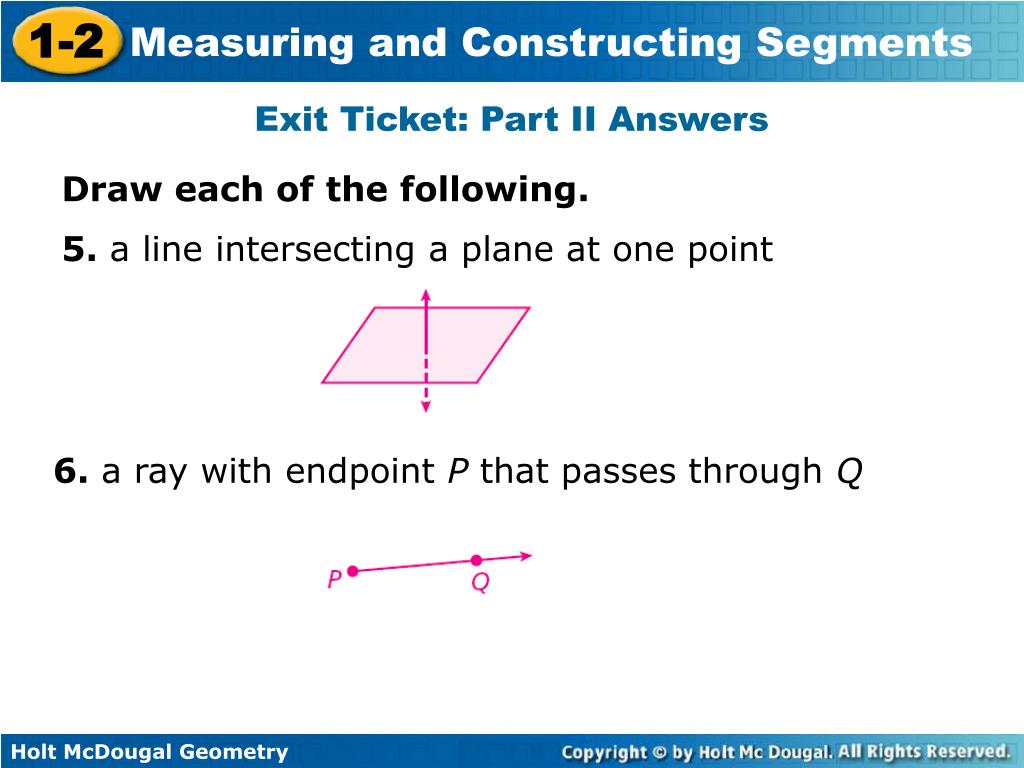

  2. Exit Ticket: Part II Answers Draw each of the following. 5. a line intersecting a plane at one point 6. a ray with endpoint P that passes through Q

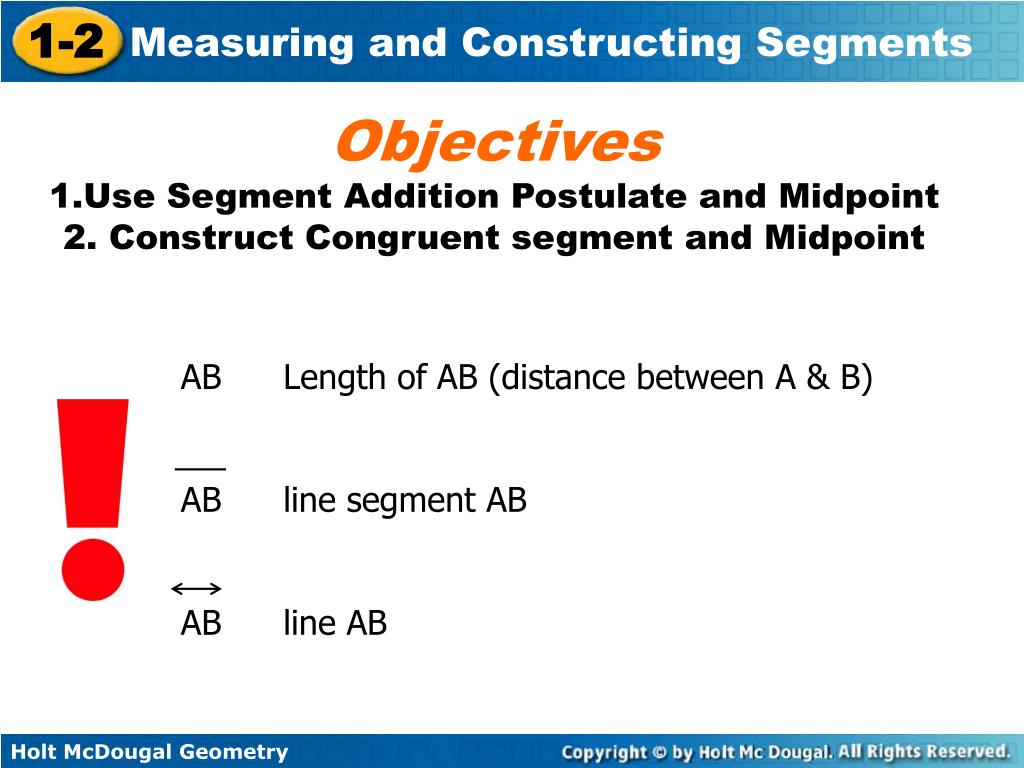

  3. Objectives • Use Segment Addition Postulate and Midpoint • Construct Congruent segment and Midpoint AB Length of AB (distance between A & B) AB line segment AB AB line AB

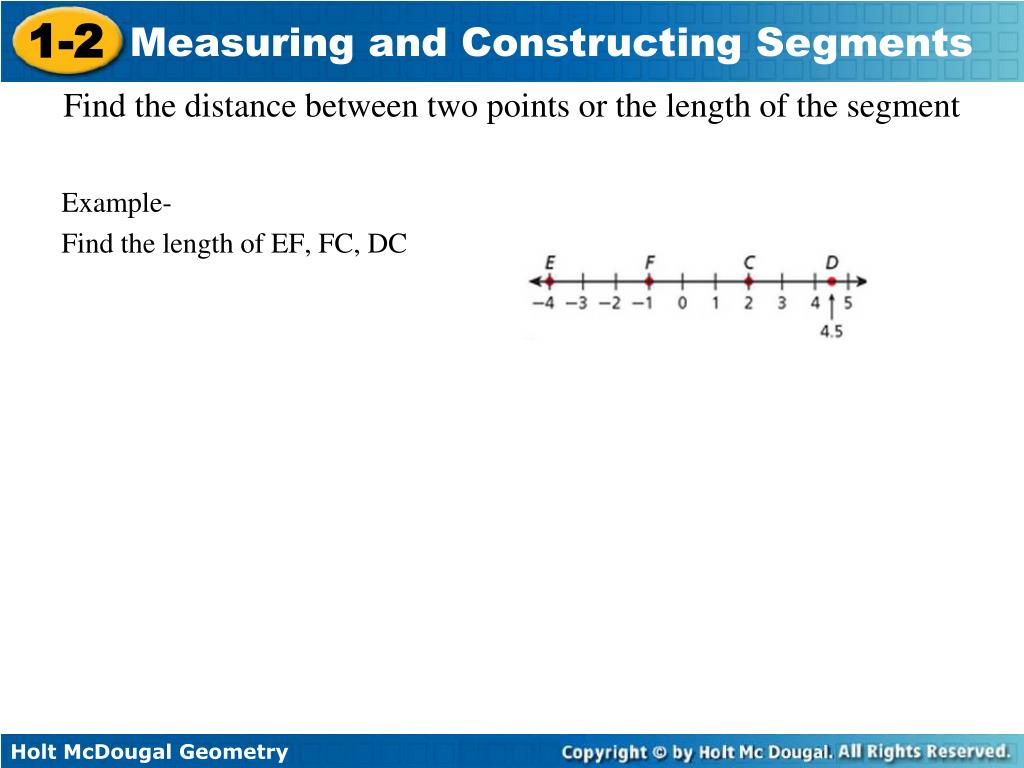

  4. Find the distance between two points or the length of the segment Example- Find the length of EF, FC, DC

  5. Find the distance between two points or the length of the segment You Practice- Find the length of DB and DC

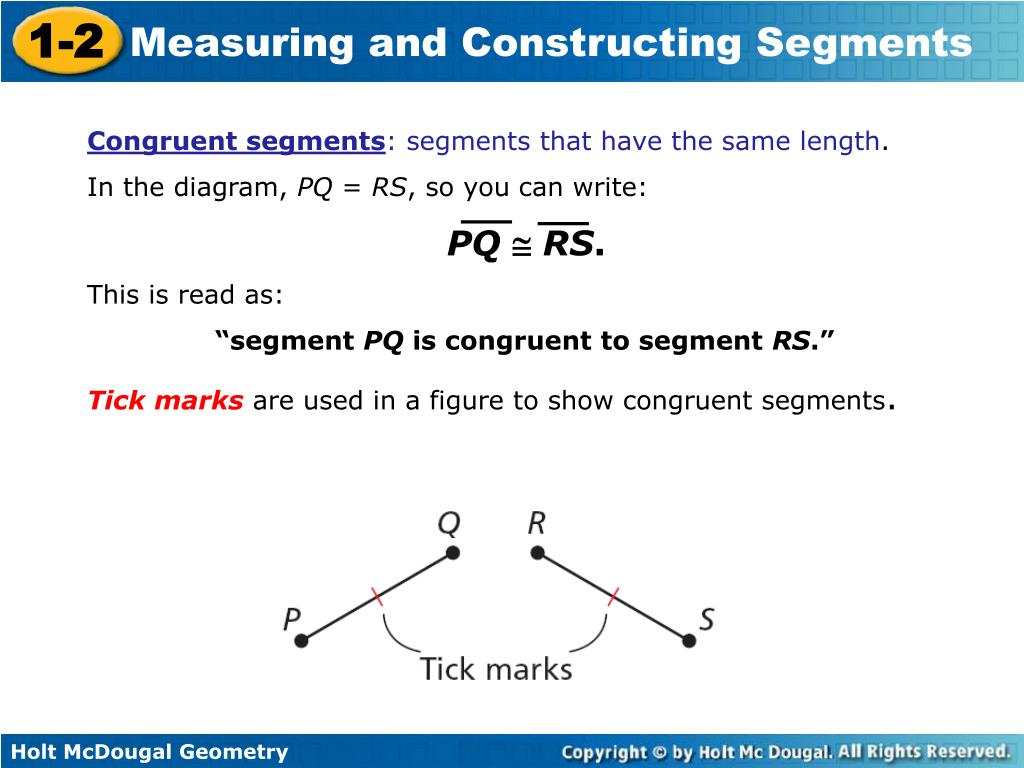

  6. Congruent segments: segments that have the same length. In the diagram, PQ = RS, so you can write: PQRS. This is read as: “segment PQ is congruent to segment RS.” Tick marks are used in a figure to show congruent segments.

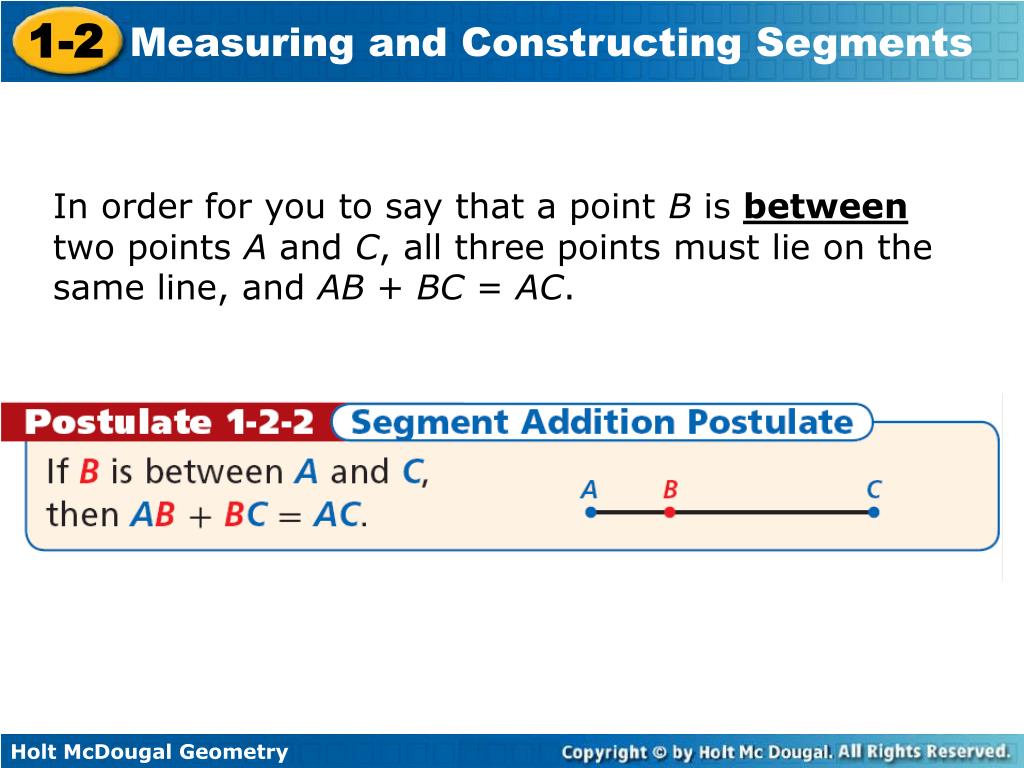

  7. In order for you to say that a point B is between two points A and C, all three points must lie on the same line, and AB + BC = AC.

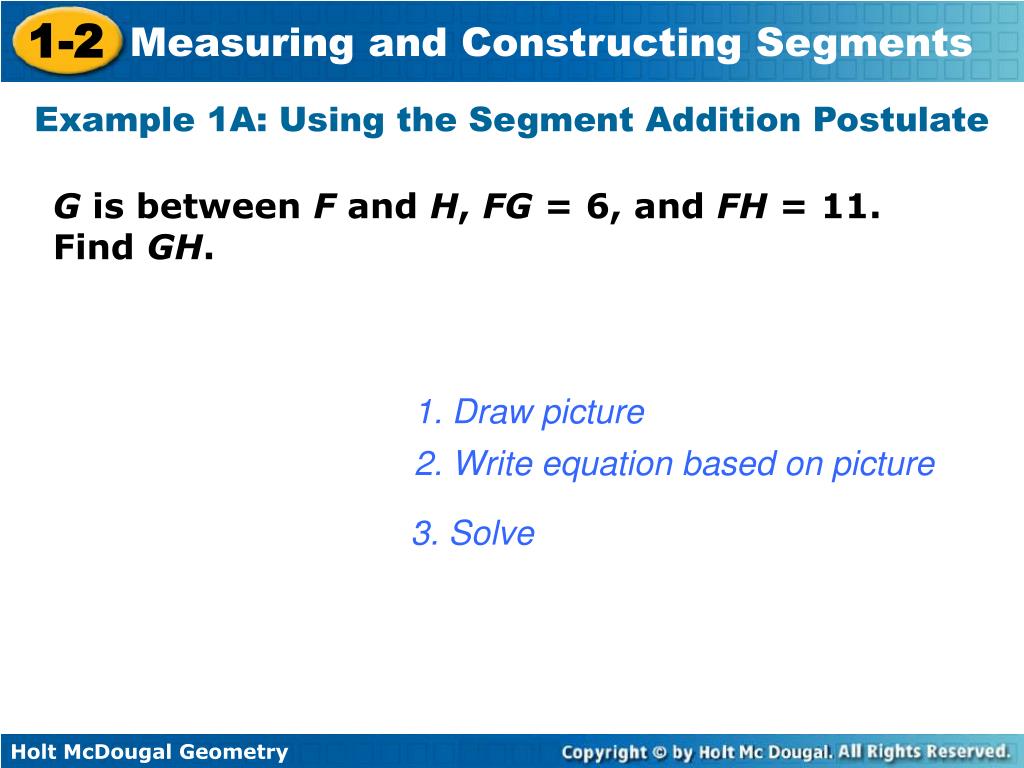

  8. Example 1A: Using the Segment Addition Postulate G is between F and H, FG = 6, and FH = 11. Find GH. 1. Draw picture 2. Write equation based on picture . 3. Solve

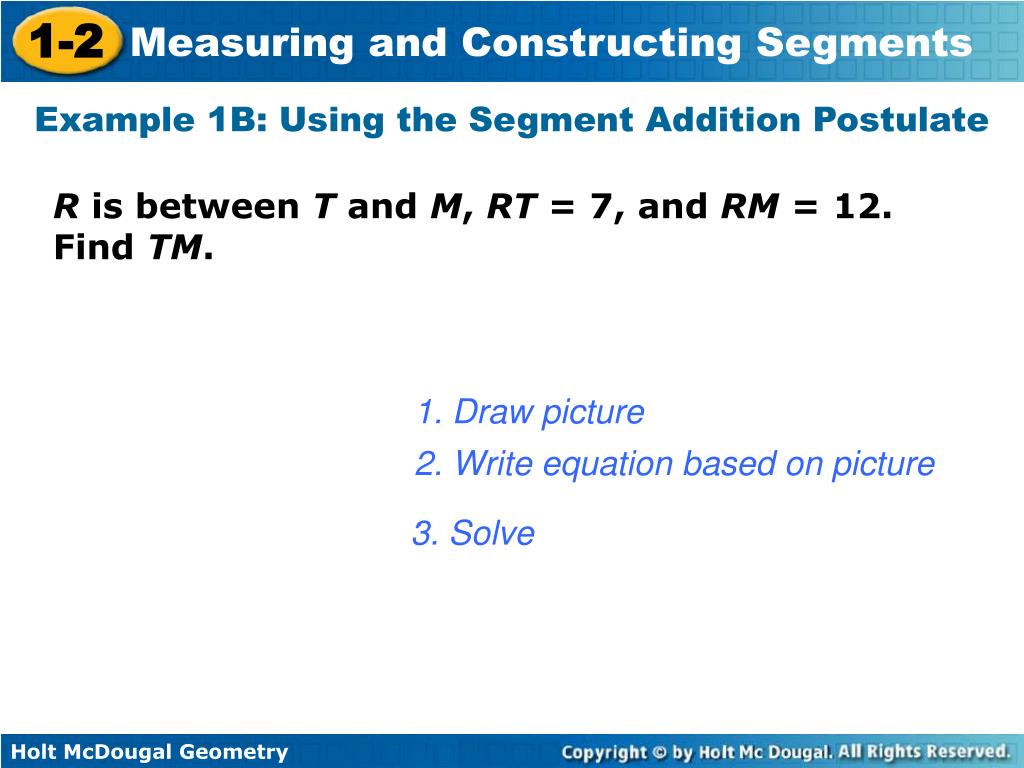

  9. Example 1B: Using the Segment Addition Postulate R is between T and M, RT = 7, and RM = 12. Find TM. 1. Draw picture 2. Write equation based on picture . 3. Solve

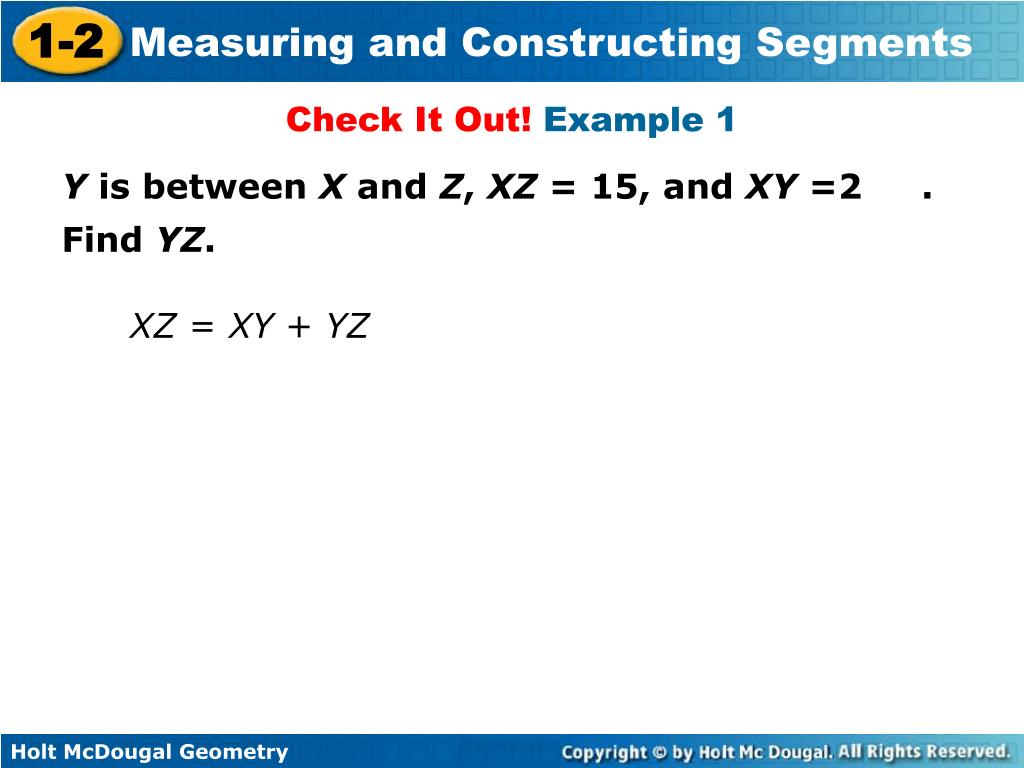

  10. Check It Out! Example 1 Y is between X and Z, XZ = 15, and XY =2 . Find YZ. XZ = XY + YZ

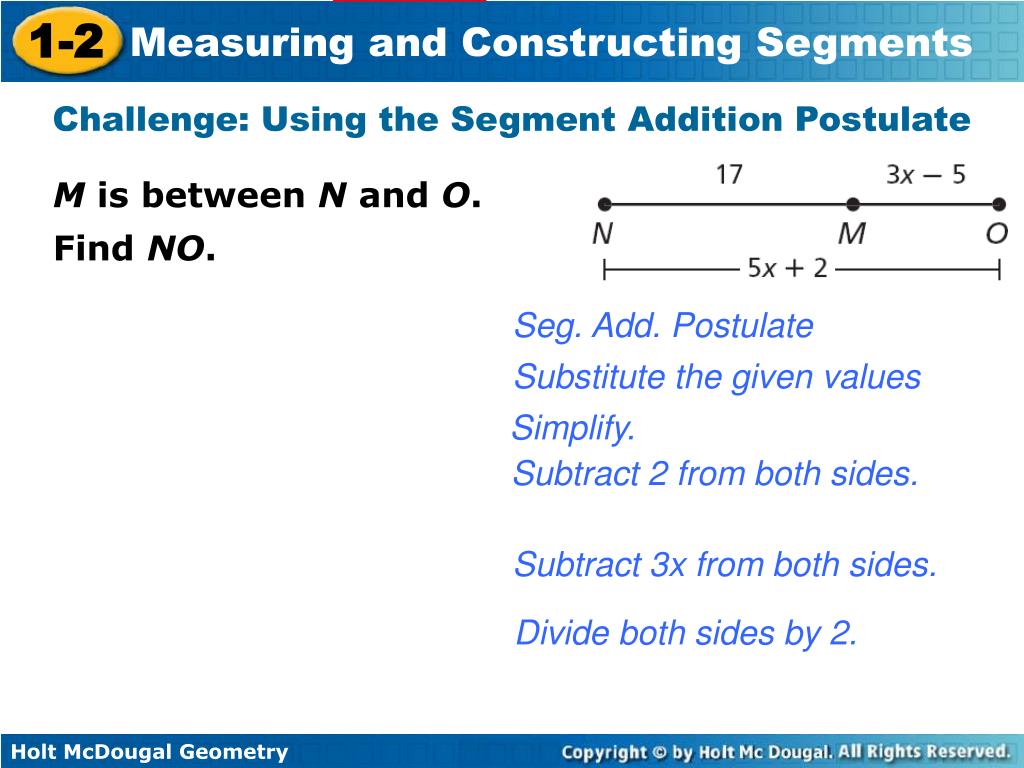

  11. Challenge: Using the Segment Addition Postulate M is between N and O. Find NO. Seg. Add. Postulate Substitute the given values Simplify. Subtract 2 from both sides. Subtract 3x from both sides. Divide both sides by 2.

  12. Challenge: Using the Segment Addition Postulate E is between D and F. Find DF. Seg. Add. Postulate Substitute the given values Simplify. Subtract 3x from both sides. Divide both sides by 3.

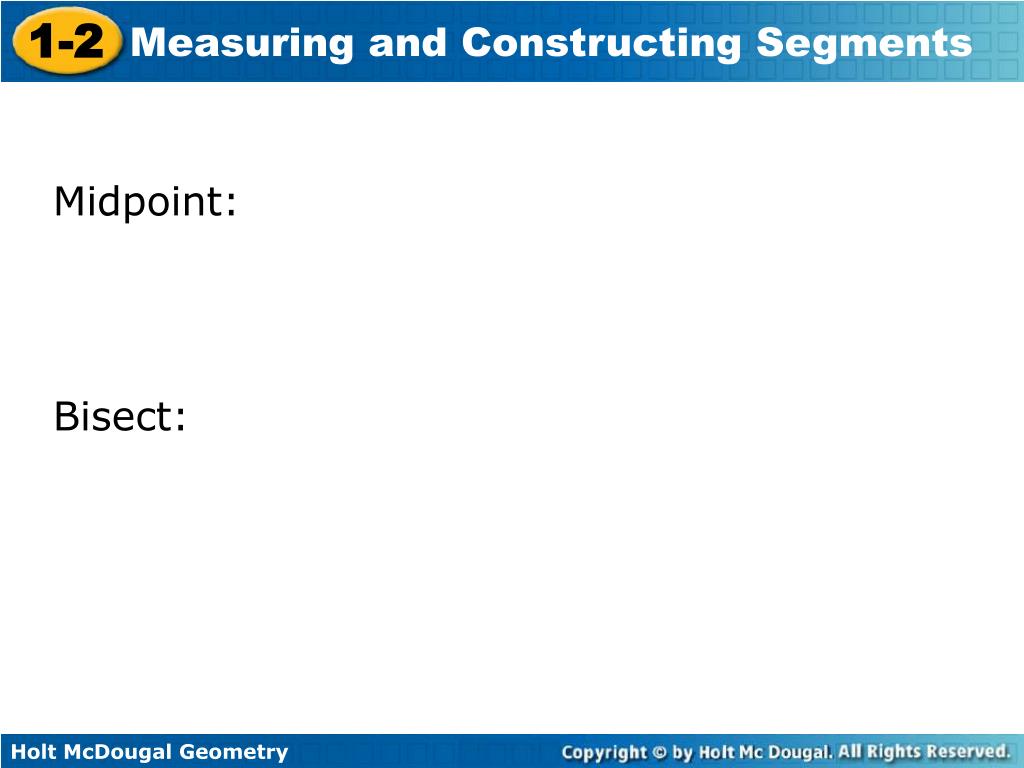

  13. Midpoint: Bisect:

  14. The midpointM of AB is the point that bisects, or divides, the segment into two congruent segments. If M is the midpoint of AB, then AM = MB. So if AB = 6, then AM = 3 and MB = 3.

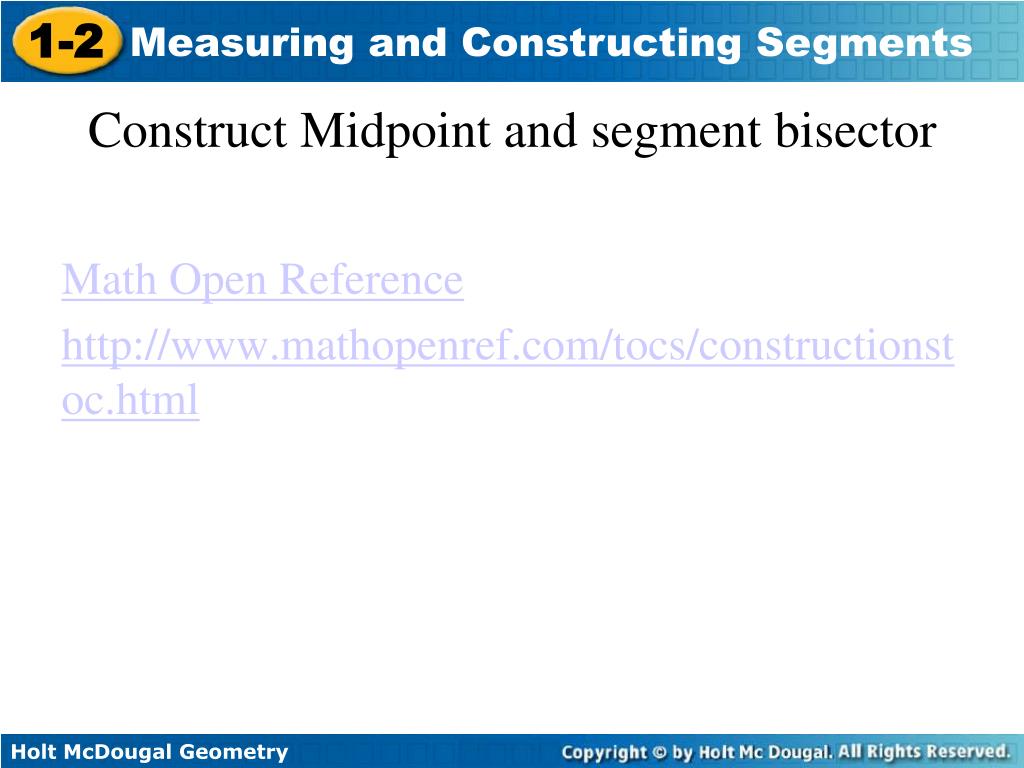

  15. Construct Midpoint and segment bisector Math Open Reference http://www.mathopenref.com/tocs/constructionstoc.html

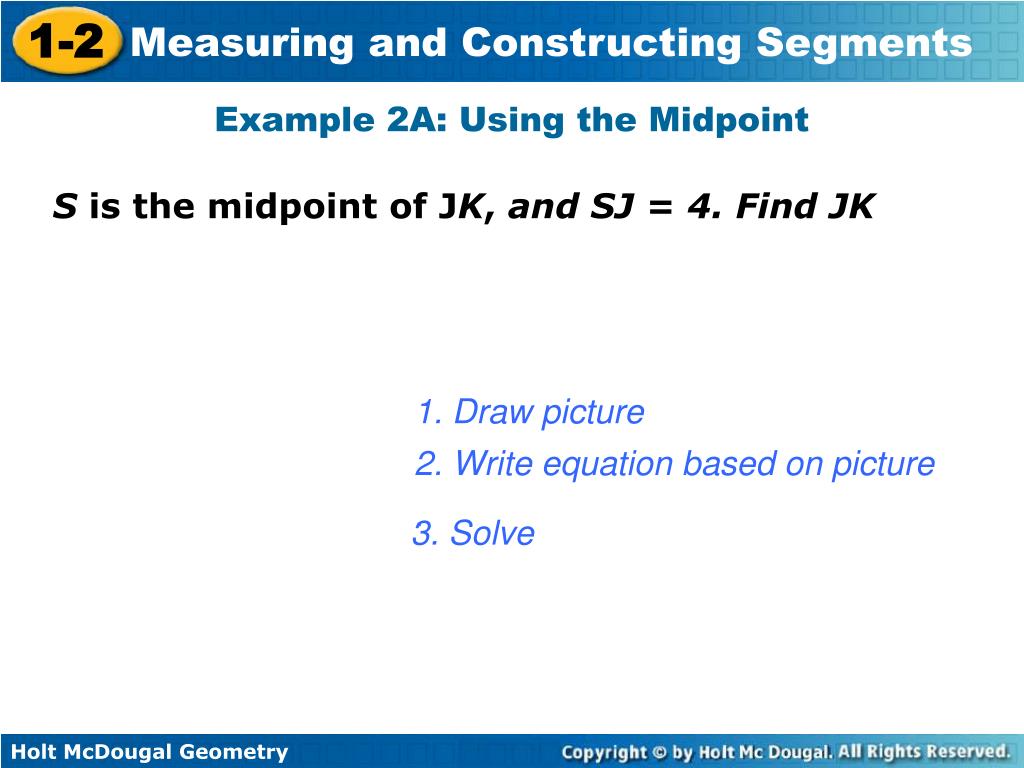

  16. Example 2A: Using the Midpoint S is the midpoint of JK, and SJ = 4. Find JK 1. Draw picture 2. Write equation based on picture . 3. Solve

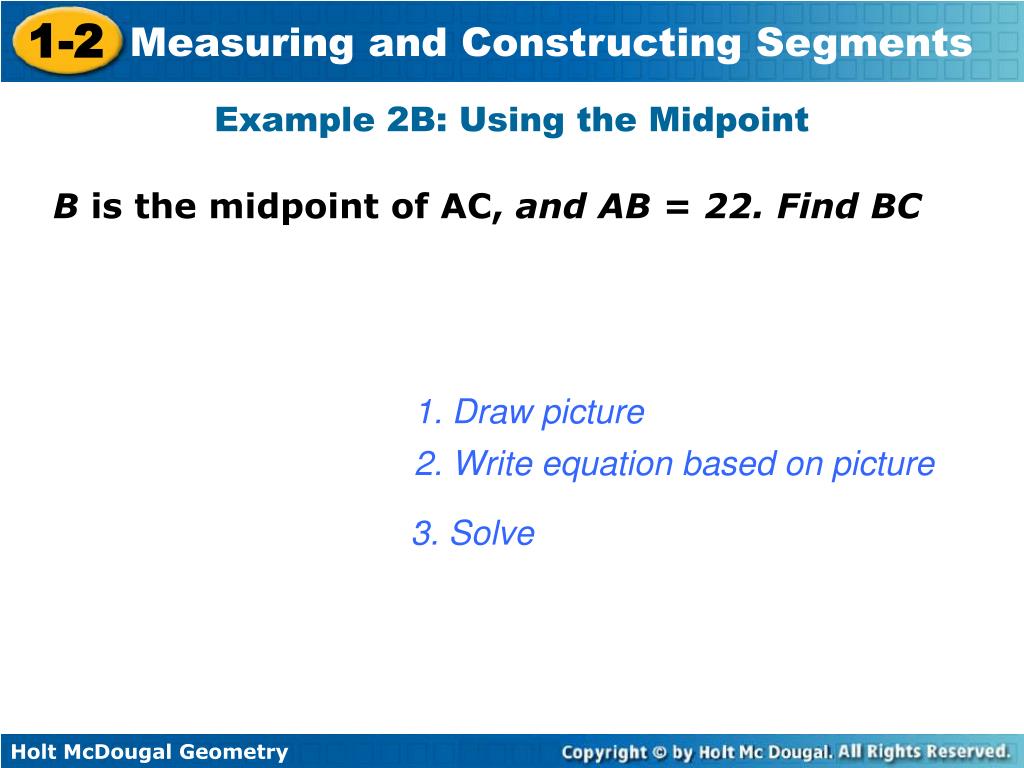

  17. Example 2B: Using the Midpoint B is the midpoint of AC, and AB = 22. Find BC 1. Draw picture 2. Write equation based on picture . 3. Solve

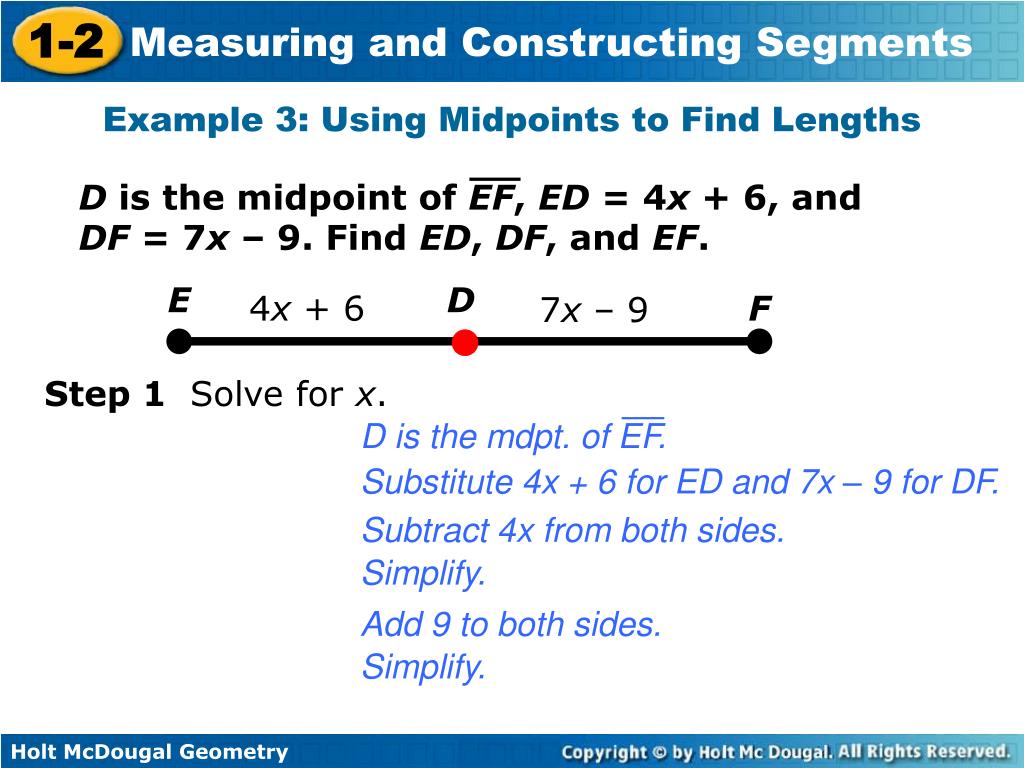

  18. D is the midpoint of EF, ED = 4x + 6, and DF = 7x – 9. Find ED, DF, and EF. D is the mdpt. of EF. Example 3: Using Midpoints to Find Lengths E D 4x + 6 F 7x – 9 Step 1 Solve for x. Substitute 4x + 6 for ED and 7x – 9 for DF. Subtract 4x from both sides. Simplify. Add 9 to both sides. Simplify.

  19. D is the mdpt. of EF. Example 3: Using Midpoints to Find Lengths D is the midpoint of EF, ED = 4x + 6, and DF = 7x – 9. Find ED, DF, and EF. E D 4x + 6 F 7x – 9 Step 1 Solve for x. Substitute 4x + 6 for ED and 7x – 9 for DF. Subtract 4x from both sides. Simplify. Add 9 to both sides. Simplify.

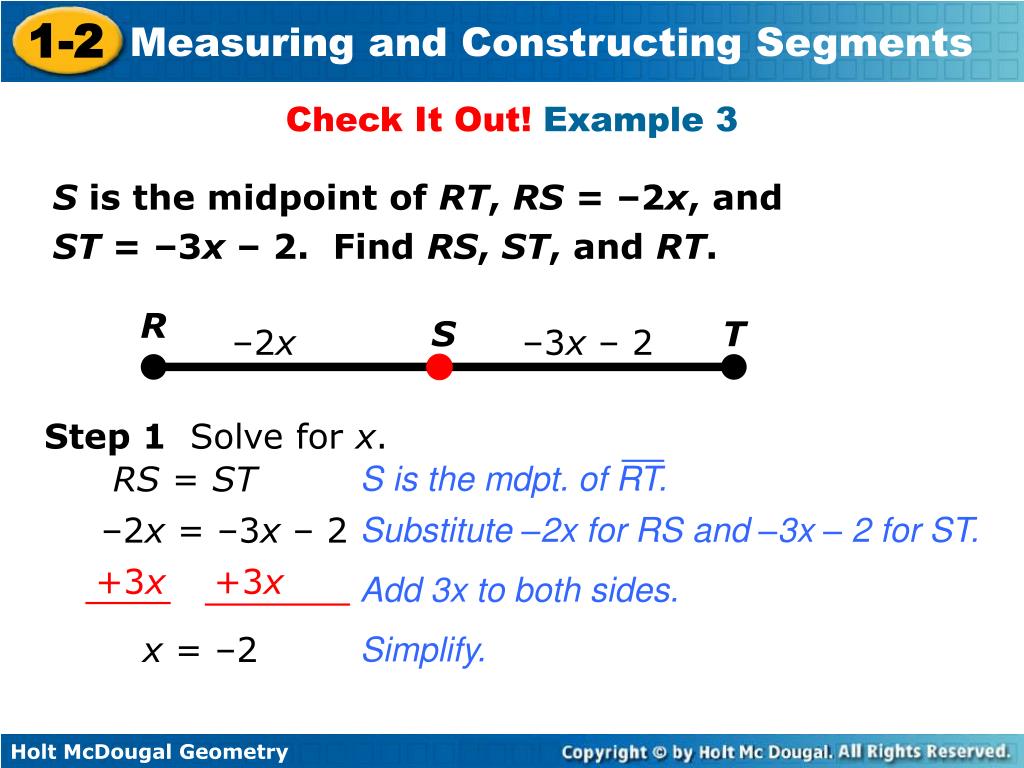

  20. S is the mdpt. of RT. +3x +3x Check It Out! Example 3 S is the midpoint of RT, RS = –2x, and ST = –3x – 2. Find RS, ST, and RT. R S T –2x –3x – 2 Step 1 Solve for x. RS = ST –2x = –3x – 2 Substitute –2x for RS and –3x – 2 for ST. Add 3x to both sides. x = –2 Simplify.

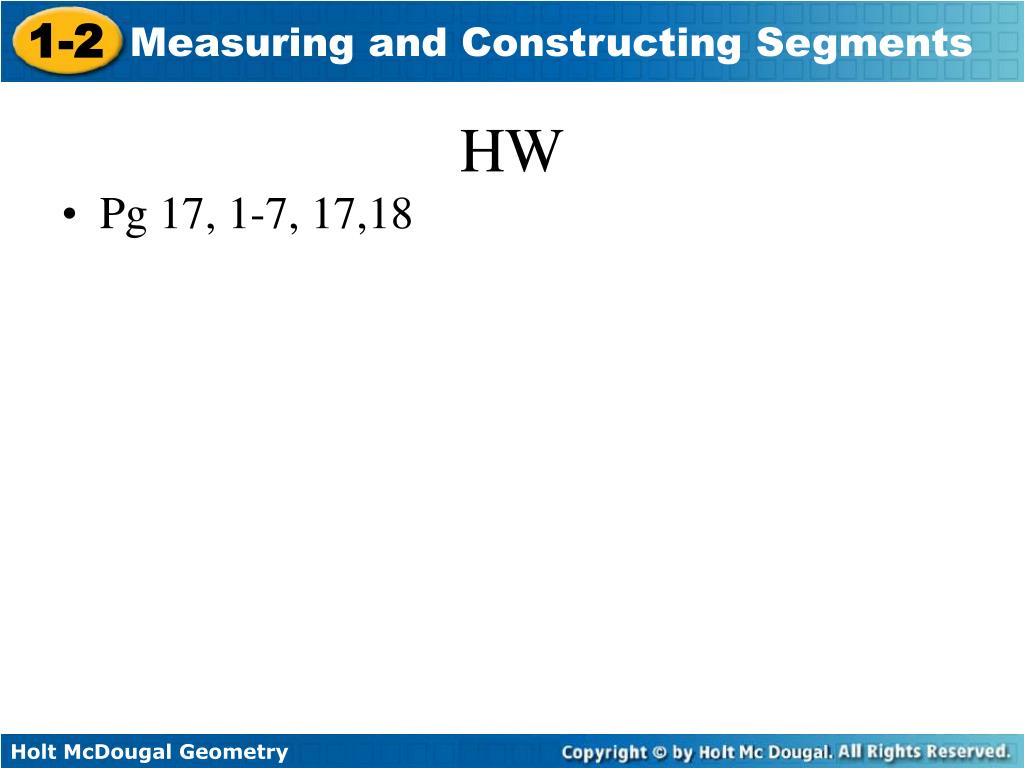

  21. HW • Pg 17, 1-7, 17,18
