hidden process models

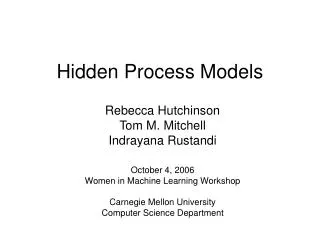

Hidden Process Models

Rebecca Hutchinson

Tom M. Mitchell

Indrayana Rustandi

October 4, 2006

Women in Machine Learning Workshop

Carnegie Mellon University

Computer Science Department

introduction
Introduction
  • Hidden Process Models (HPMs):
    • A new probabilistic model for time series data.
    • Designed for data generated by a collection of latent processes.
  • Potential domains:
    • Biological processes (e.g. synthesizing a protein) in gene expression time series.
    • Human processes (e.g. walking through a room) in distributed sensor network time series.
    • Cognitive processes (e.g. making a decision) in functional Magnetic Resonance Imaging time series.
fmri data
fMRI Data

Hemodynamic Response

Features: 10,000 voxels, imaged every second.

Training examples: 10-40 trials (task repetitions).

Signal Amplitude

Neural

activity

Time (seconds)

study pictures and sentences
Study: Pictures and Sentences

Press Button

View Picture

Read Sentence

  • Task: Decide whether sentence describes picture correctly, indicate with button press.
  • 13 normal subjects, 40 trials per subject.
  • Sentences and pictures describe 3 symbols: *, +, and $, using ‘above’, ‘below’, ‘not above’, ‘not below’.
  • Images are acquired every 0.5 seconds.

Read Sentence

Fixation

View Picture

Rest

t=0

4 sec.

8 sec.

goals for fmri
Goals for fMRI
  • To track cognitive processes over time.
    • Estimate process hemodynamic responses.
    • Estimate process timings.
      • Allowing processes that do not directly correspond to the stimuli timing is a key contribution of HPMs!
  • To compare hypotheses of cognitive behavior.
hpm modeling assumptions
HPM Modeling Assumptions
  • Model latent time series at process-level.
  • Process instances share parameters based on their process types.
  • Use prior knowledge from experiment design.
  • Sum process responses linearly.
hpm formalism
HPM Formalism

HPM = <H,C,F,S>

H = <h1,…,hH>, a set of processes (e.g. ReadSentence)

h = <W,d,W,Q>, a process

W = response signature

d = process duration

W = allowable offsets

Q = multinomial parameters over values in W

C = <c1,…, cC>, a set of configurations

c = <p1,…,pL>, a set of process instances

      • = <h,l,O>, a process instance (e.g. ReadSentence(S1))

h = process ID

        • = timing landmark (e.g. stimulus presentation of S1)

O = offset (takes values in Wh)

  • = <f1,…,fC>, priors over C

S = <s1,…,sV>, standard deviation for each voxel

slide8

Process 1: ReadSentence

Response signature W:

Duration d: 11 sec.

Offsets W: {0,1}

P(): {q0,q1}

Process 2: ViewPicture

Response signature W:

Duration d: 11 sec.

Offsets W: {0,1}

P(): {q0,q1}

Processes of the HPM:

v1

v2

v1

v2

Input stimulus :

sentence


Timing

landmarks :

Process instance:2

Process h: 2

Timing landmark: 2

Offset O: 1

(Start time: 2+ O)

1

2

One configuration c of process instances 1, 2, … k: (with prior fc)

1

2

Predicted mean:

+ N(0,s1)

v1

v2

+ N(0,s2)

hpms the graphical model
HPMs: the graphical model

Constraints from experiment design

Timing Landmark l

Process Type h

Offset o

Start Time s

S

p1,…,pk

observed

unobserved

Yt,v

t=[1,T], v=[1,V]

algorithms
Algorithms
  • Inference
    • over configurations of process instances
    • choose most likely configuration with:
  • Learning
    • Parameters to learn:
      • Response signature W for each process
      • Timing distribution Q for each process
      • Standard deviation s for each voxel
    • Expectation-Maximization (EM) algorithm to estimate W and Q.
    • After convergence, use standard MLEs for s.
viewpicture in visual cortex
ViewPicture in Visual Cortex

Offset q = P(Offset)

0 0.725

1 0.275

readsentence in visual cortex
ReadSentence in Visual Cortex

Offset q = P(Offset)

0 0.625

1 0.375

decide in visual cortex
Decide in Visual Cortex

Offset q = P(Offset)

0 0.075

1 0.025

2 0.025

3 0.025

4 0.225

5 0.625

comparing cognitive hypotheses
Comparing Cognitive Hypotheses
  • Use cross-validation to choose a model.
    • GNB = HPM w/ ViewPicture, ReadSentence w/ d=8s.
    • HPM-2 = HPM w/ ViewPicture, ReadSentence w/ d=13s.
    • HPM-3 = HPM-2 + Decide

Accuracy predicting

picture vs. sentence

(random = 0.5)

Data log likelihood

are we learning the right number of processes
Are we learning the right number of processes?
  • Use synthetic data where we know ground truth.
    • Generate training and test sets with 2/3/4 processes.
    • Train HPMs with 2/3/4 processes on each.
    • For each test set, select the HPM with the highest data log likelihood.
conclusions
Conclusions
  • Take-away messages:
    • HPMs are a probabilistic model for time series data generated by a collection of latent processes.
    • In the fMRI domain, HPMs can simultaneously estimate the hemodynamic response and localize the timing of cognitive processes.
