the cardiovascular system

November 2012

The Cardiovascular System

Dr. Mona Soliman, MBBS, MSc, PhD

Department of Physiology

College of Medicine

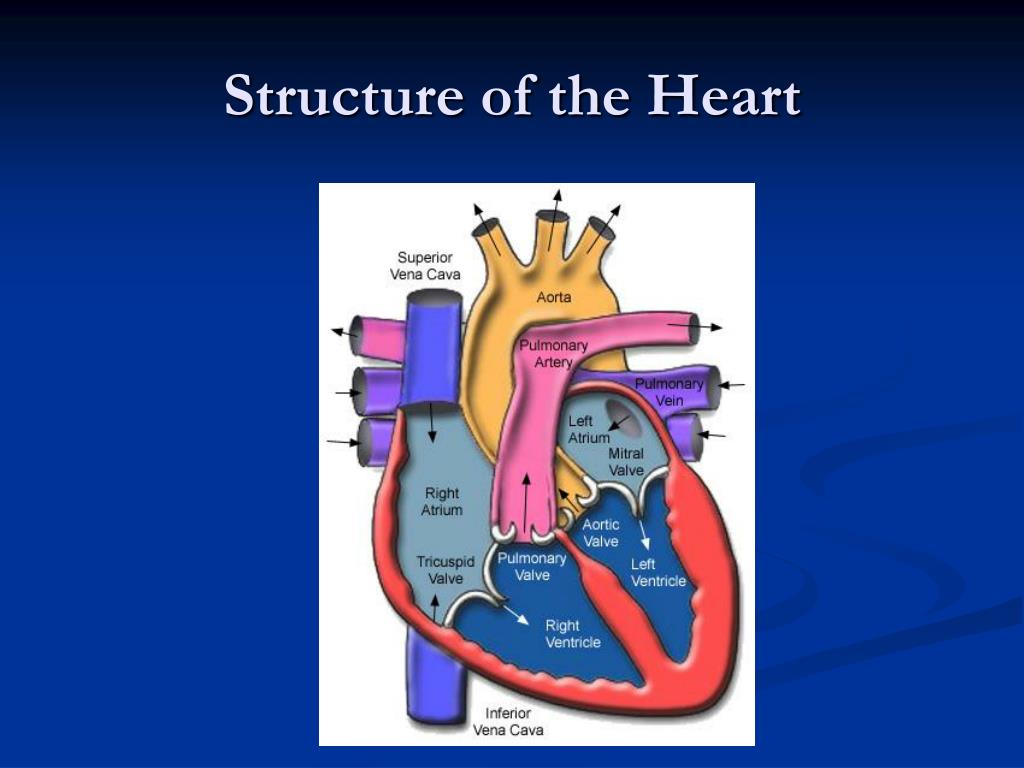

Structure of the Heart

The Atria

  • Thin walled
  • Receives blood from:
    • the systemic circulation (right atrium)
    • the pulmonary circulation (left atrium)
  • Open into the ventricles via the:

Atrioventricular valves

(AV valves)

structure of the heart1
Structure of the Heart

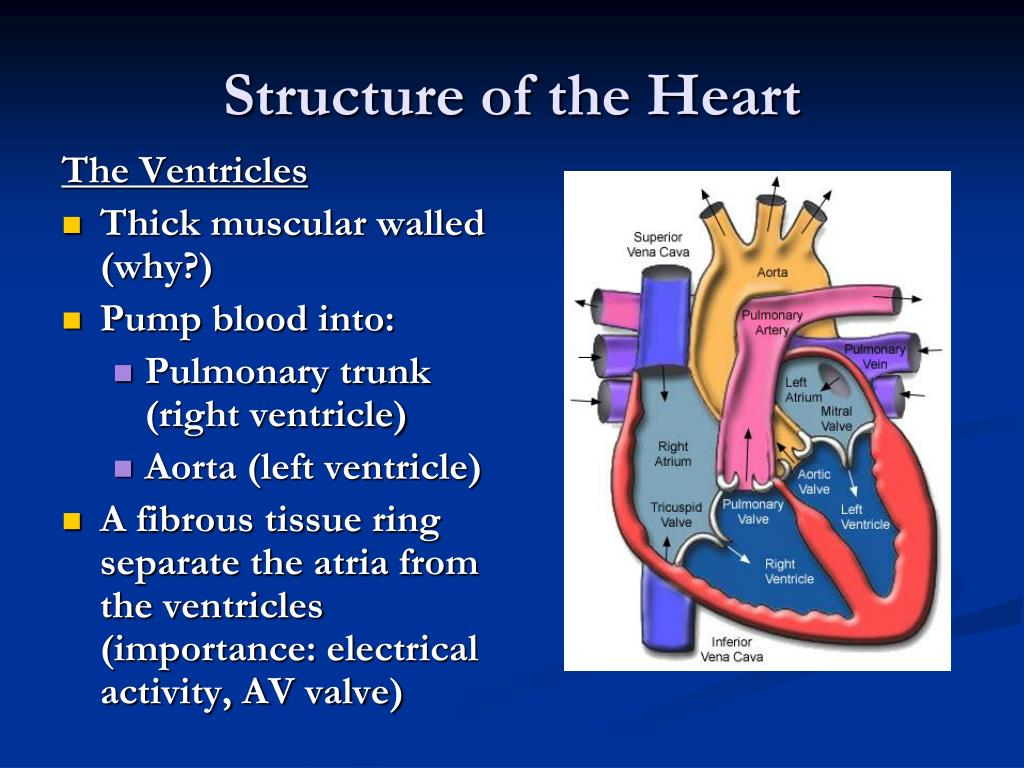

The Ventricles

  • Thick muscular walled (why?)
  • Pump blood into:
    • Pulmonary trunk (right ventricle)
    • Aorta (left ventricle)
  • A fibrous tissue ring separate the atria from the ventricles (importance: electrical activity, AV valve)
the valves of the heart the atrioventricular valves
The Valves of the HeartThe Atrioventricular Valves
  • The Tricuspid Valve… between the right atrium and the right ventricle, 3 cusps
  • The Mitral Valve (bicuspid valve) … between the left atrium and the left ventricle, 2 cusps
the valves of the heart the atrioventricular valves1
The Valves of the HeartThe Atrioventricular Valves
  • Prevent back flow of blood from the ventricles to the atria
  • Held by chordae tendineae to papillary muscle
  • Contraction of papillary muscle…
the valves of the heart the semilunar valves
The Valves of the HeartThe Semilunar Valves
  • Located at the origin of the pulmonary artery and aorta
  • Open during ventricular contraction…why?
  • Close during ventricular relaxation…why?
  • The Aortic Valve
  • The Pulmonary Valve
cardiac muscle cell2
Cardiac Muscle cell
  • Striated
  • Contain actin and myocin filaments arranged in sarcomeres…contract by sliding mechanism
  • Branch and interconnect
cardiac muscle cell3
Cardiac Muscle cell
  • Gap junctions
    • Trans-membrane channel proteins, connecting the cytoplasm of the cells
    • Allow spreading of the action potential from one fiber to another
    • Allow cardiac muscle to function as a syncytium“all or none law”: stimulation of a single muscle fiber results in contraction of all the muscle fibers
    • Intercalated discs
electrical activity of the heart1
Electrical Activity of the Heart
  • Automaticity: capable of originating action potential
myocardial action potential
Myocardial action potential
  • Resting membrane potential in myocardial cells -90 mV

Stimulation of myocardial cell

Myocardial action potential

conduction of impulses
Conduction of Impulses
  • The sinoatrial node (SA node):
    • Located in the right atrium
    • Pacemaker of the heart
    • Is capable of originating action potentials
    • Highest frequency
  • The atrioventricular (AV) node

Located at the junction of the atria and the ventricles

    • Delay in the conduction of impulses so the atrium can contract before the ventricle
conduction of impulses1
Conduction of Impulses
  • The atrioventricular (AV) bundle (Bundle of His)
  • The right and left bundle branches
  • Purkinje fibers
    • Spread within the muscle of the ventricular walls
    • Highest speed of conduction
  • Contractility is the ability of cardiac muscle to convert chemical energy into mechanical work

Depolarization of myocardial cell

Opening of Ca2+ channels

Ca2+ increase in the cytoplasm

Ca2+ binds to troponin




Repolarization of myocardial cell

Ca2+ OUT

Ca2+ decrease in the cytoplasm


  • Absolute refractory period
    • Cardiac muscle cannot be excited while it is contracting
    • Long ARP
    • Time: depolarization & 2/3 of repolarization
  • Relative refractory period
    • Time: last 1/3 repolarization
    • Strong stimulus can give rise to contraction
