  1. AME 513Principles of Combustion Lecture 9 Premixed flames II: Extinction, stability, ignition

  2. Outline • Flammability limits • Chemical considerations • Aerodynamics (i.e. stretch effects) • Lewis number • Heat losses to walls • Buoyancy • Radiative heat losses • Flame instabilities • Flame ignition • Simple estimate • Effects of Lewis number • Effects of ignition source AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  3. Flammability / extinction limits • Too lean or too rich mixtures won’t burn - flammability limits • Even if mixture is flammable, still won’t burn in certain environments • Small diameter tubes • Strong hydrodynamic strain or turbulence • High or low gravity • High or low pressure • Understanding needed for combustion engines & industrial combustion processes (leaner mixtures  lower Tadlower NOx); fire & explosion hazard management, fire suppression, ... AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  4. Flammability limits - basic observations • Limits occur for mixtures that are thermodynamically flammable - theoretical adiabatic flame temperature (Tad) far above ambient temperature (T∞) • Limits usually characterized by finite (not zero) burning velocity at limit • Models of limits due to losses - most important prediction: burning velocity at the limit (SL,lim) - better test of limit predictions than composition at limit AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  5. Premixed-gas flames – flammability limits 2 limit mechansims, (1) & (2), yield similar fuel % and Tad at limit but very different SL,lim AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  6. Flammability limits in vertical tubes Upward propagation Downward propagation • Most common apparatus - vertical tube (typ. 5 cm in diameter) • Ignite mixture at one end of tube, if it propagates to other end, it’s “flammable” • Limit composition depends on orientation - buoyancy effects AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  7. Chemical kinetics of limits • Recall crossover of H + O2 OH + O vs. H + O2 + M  HO2 + M at low T – but this just means that at low Tad, flame will propagate very slowly due to absence of this branching route • Computations show no limits without losses – no purely chemical criterion (Lakshmishaet al., 1990; Giovangigli & Smooke, 1992) - for steady planar adiabatic flames, SL decreases smoothly towards zero as fuel concentration decreases (domain sizes up to 10 m, SL down to 0.02 cm/s) • …but as SL decreases, d increases - need larger computational domain or experimental apparatus • Also more buoyancy & heat loss effects as SL decreases …. Giovangigli & Smooke, 1992 Left: H2-air Right: CH4-air AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  8. Chemical kinetics of limits Ju, Masuya, Ronney (1998) Ju et al., 1998 AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  9. Aerodynamic effects on premixed flames • Aerodynamic effects occur on a large scale compared to the transport or reaction zones but affect SL and even existence of the flame • Why only at large scale? • Re on flame scale ≈ SL/ ( = kinematic viscosity) • Re = (SL/)() = (1)(1/Pr) ≈ 1 since Pr ≈ 1 for gases • Reflame ≈ 1  viscosity suppresses flow disturbances • Key parameter: stretch rate () • Generally  ~ U/d U = characteristic flow velocity d = characteristic flow length scale AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  10. Aerodynamic effects on premixed flames • Strong stretch ( ≥  ~ SL2/ or Karlovitz number Ka /SL2 ≥ 1) extinguishes flames • Moderate stretch strengthens flames for Le < 1 Buckmaster & Mikolaitis, 1982a SL/SL(unstrained, adiabatic flame) ln(Ka) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  11. Lewis number tutorial • Le affects flame temperature in curved (shown below) or stretched flames • When Le < 1, additional thermal enthalpy loss in curved/stretched region is less than additional chemical enthalpy gain, thus local flame temperature in curved region is higher, thus reaction rate increases drastically, local burning velocity increases • Opposite behavior for oppositely curved flames AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  12. TIME SCALES - premixed-gas flames • Chemical time scale tchem ≈ /SL≈ (a/SL)/SL≈ a/SL2 a = thermal diffusivity [typ. 0.2 cm2/s], SL = laminar flame speed [typ. 40 cm/s] • Conduction time scale tcond ≈Tad/(dT/dt) ≈ d2/16a d = tube or burner diameter • Radiation losstime scale trad ≈Tad/(dT/dt) ≈ Tad/(L/rCp) (L = radiative loss per unit volume) Optically thin radiation: L = 4sap(Tad4 – T∞4) ap = Planck mean absorption coefficient [typ. 2 m-1 at 1 atm] • L ≈ 106 W/m3 for HC-air combustion products • trad ~ P/sap(Tad4 – T∞4) ~ P0, P = pressure • Buoyant transport time scale t ~ d/V; V ≈ (gd(Dr/r))1/2 ≈ (gd)1/2 (g = gravity, d = characteristic dimension) Inviscid: tinv ≈ d/(gd)1/2 ≈ (d/g)1/2 (1/tinv ≈ Sinv) Viscous: d ≈ n/V Þtvis ≈ (n/g2)1/3 (n = viscosity [typ. 0.15 cm2/s]) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  13. Time scales (hydrocarbon-air, 1 atm) • Conclusions • Buoyancy unimportant for near-stoichiometric flames (tinv & tvis >> tchem) • Buoyancy strongly influences near-limit flames at 1g (tinv & tvis < tchem) • Radiation effects unimportant at 1g (tvis << trad; tinv << trad) • Radiation effects dominate flames with low SL (trad ≈ tchem), but only observable at µg • Small trad (a few seconds) - drop towers useful • Radiation > conduction only for d > 3 cm • Re ~ Vd/n ~ (gd3/n2)1/2Þ turbulent flow at 1g for d > 10 cm AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  14. Flammability limits due to losses • Golden rule: at limit • Why 1/b not 1? T can only drop by O(1/b) before extinction - O(1) drop in T means exponentially large drop in , thus exponentially small SL. Could also say heat generation occurs only in /bregion whereas loss occurs over region AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  15. Flammability limits due to losses • Heat loss to walls • tchem ~ tcond SL,lim ≈ (8)1/2a/d at limit or Pelim SL,limd/a ≈ (8)1/2 ≈ 9 • Actually Pelim ≈ 40 due to temperature averaging - consistent with experiments (Jarosinsky, 1983) • Upward propagation in tube • Rise speed at limit ≈ 0.3(gd)1/2 due to buoyancy alone (same as air bubble rising in water-filled tube (Levy, 1965)) Pelim ≈ 0.3 Grd1/2; Grd = Grashof number gd3/n2 • Causes stretch extinction (Buckmaster & Mikolaitis, 1982b): tchem ≈ tinv or 1/tchem ≈ Sinv Note f(Le) < 1 for Le < 1, f(Le) > 1 for Le > 1 - flame can survive at lower SL (weaker mixtures) when Le < 1 AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  16. Difference between S and SL • long flame skirt at high Gr or with small f (low Lewis number, Le) (but note SL not really constant over flame surface!) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  17. Flammability limits due to losses • Downward propagation – sinking layer of cooling gases near wall outruns & “suffocates” flame (Jarosinskyet al., 1982) • tchem ≈ tvisÞSL,lim ≈ 1.3(ga)1/3 • Pelim ≈ 1.65 Grd1/3 • Can also obtain this result by equating SL to sink rate of thermal boundary layer = 0.8(gx)1/2 for x =  • Consistent with experiments varying d and a (by varying diluent gas and pressure) (Wang & Ronney, 1993) and g (using centrifuge) (Krivulin et al., 1981) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  18. Flammability limits in vertical tubes Upward propagation Downward propagation AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  19. Flammability limits in tubes Upward propagation - Wang & Ronney, 1993 AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  20. Flammability limits in tubes Downward propagation - Wang & Ronney, 1993 AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  21. Flammability limits – losses - continued… • Big tube, no gravity – what causes limits? • Radiation heat loss (trad ≈ tchem) (Joulin & Clavin, 1976; Buckmaster, 1976) • What if not at limit? Heat loss still decreases SL, actually 2 possible speeds for any value of heat loss, but lower one generally unstable AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  22. Flammability limits – losses - continued… • Doesn’t radiative loss decrease for weaker mixtures, since temperature is lower? NO! • Predicted SL,lim (typically 2 cm/s) consistent with µg experiments (Ronney, 1988; Abbud-Madrid & Ronney, 1990) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  23. Reabsorption effects • Is radiation always a loss mechanism? • Reabsorption may be important when aP-1 < d • Small concentration of blackbody particles - decreases SL (more radiative loss) • More particles - reabsorption extend limits, increases SL Abbud-Madrid & Ronney (1993) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  24. Reabsorption effects on premixed flames • Gases – much more complicated because absorption coefficient depends strongly on wavelength and temperature & some radiation always escapes (Ju, Masuya, Ronney 1998) • Absorption spectra of products different from reactants • Spectra broader at high T than low T • Dramatic difference in SL & limits compared to optically thin AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  25. Stretched flames - spherical • Spherical expanding flames, Le < 1: stretch allows flames to exist in mixtures below radiative limit until flame radius rf is too large & curvature benefit too weak (Ronney & Sivashinsky, 1989) • Adds stretch term (2S/R) (R = scaled flame radius; R > 0 for Le < 1; R < 0 for Le > 1) and unsteady term (dS/dR) to planar steady equation • Dual limit: radiation at large rf, curvature-induced stretch at small rf (ignition limit) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  26. Stretched flames - spherical Theory (Ronney & Sivashinsky, 1989) Experiment (Ronney, 1985) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  27. Stretched counterflow or stagnation flames • Mass + momentum conservation, 2D, const. density () (u, v= velocity components in x, y directions) admit an exact, steady (∂/∂t = 0) solution which is the same with or without viscosity (!!!):  = rate of strain (units s-1) • Similar result in 2D axisymmetric (r, z) geometry: Very simple flow characterized by a single parameter , easily implemented experimentally using counter-flowing round jets… AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  28. z Stretched counterflow or stagnation flames • S = duz/dz – flame located where uz = SL • Increased stretch pushes flame closer to stagnation plane - decreased volume of radiant products • Similar Le effects as curved flames AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  29. Premixed-gas flames - stretched flames • Stretched flames with radiation (Ju et al., 1999): dual limits, flammability extension even for Le >1, multiple solutions (which ones are stable?) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  30. Premixed-gas flames - stretched flames • Dual limits & Le effects seen in µg experiments, but evidence for multivalued behavior inconclusive Guo et al. (1997) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  31. Stability of premixed flames • Many types, e.g. • Thermal expansion (Darrieus-Landau, DL) – always occurs due to lower density of products than reactants • Rayleigh-Taylor (buoyancy-driven, RT) – upward propagating flames unstable (more dense reactants on top of products), downward propagating stable • Diffusive-thermal (DT) (Lewis number, already discussed) • Viscous fingering (Saffman-Taylor, ST) in confined geometries when viscous fluid (e.g. oil) displaced by less viscous fluid (e.g. water) – occurs in flames because products are more viscous than reactants AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  32. Effects of thermal expansion • Darrieus-Landau instability - causes infinitesimal wrinkle in flame to grow due simply to density difference across front Williams, 1985 Bernoulli: P+1/2u2 = const Aflame , u , P  Aflame, u, P FLOW  Aflame , u , P  Aflame, u, P AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  33. Apparatus for studying flame instabilities • Aluminum frame sandwiched between Lexan windows • 40 cm x 60 cm x 1.27 or 0.635 or 0.32 cm test section • CH4 & C3H8 fuel, N2 & CO2 diluent - affects Le, Peclet # • Upward, horizontal, downward orientation • Spark ignition (3 locations, ≈ plane initiation) • Exhaust open to ambient pressure at ignition end - flame propagates towards closed end of cell AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  34. Results - video - “baseline”case, DL-dominated 6.8% CH4-air, horizontal, 12.7 mm cell AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  35. Upward propagation – RT enhanced 6.8% CH4-air, upward, 12.7 mm cell AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  36. Downward propagation – RT suppressed 6.8% CH4-air, downward, 12.7 mm cell AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  37. High Lewis number 3.0% C3H8-air, horizontal, 12.7 mm cell (Le ≈ 1.7) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  38. Low Lewis number 8.6% CH4 - 32.0% O2 - 60.0% CO2, horizontal, 12.7 mm cell (Le ≈ 0.7) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  39. Horizontal, but ST not DL dominated 9.5% CH4 - 90.5% air, horizontal, 3.1 mm cell AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  40. Ignition - basic concepts • Experiments (Lewis & von Elbe, 1987) show that a minimum energy (Emin) (not just minimum T or volume) required to ignite a flame • Emin lowest near stoichiometric (typ. 0.2 mJ) but minimum shifts to richer mixtures for higher HCs (why? Stay tuned…) • Prediction of Emin relevant to energy conversion and fire safety applications Minimum ignition energy (mJ) AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  41. Basic concepts • Emin related to need to create flame kernel with dimension () large enough that chemical reaction () can exceed conductive loss rate (/2), thus  > (/w)1/2 ~ /(w)1/2 ~ /SL ~  • Emin ~ energy contained in volume of gas with T ≈ Tad and radius ≈ ≈ 4/SL AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  42. Predictions of simple Emin formula • Since  ~ P-1, Emin ~ P-2 if SL is independent of P • Emin ≈ 100,000 times larger in a He-diluted than SF6-diluted mixture with same SL, same P (due to  and differences) • Stoichiometric CH4-air @ 1 atm: predicted Emin ≈ 0.010 mJ ≈ 30x times lower than experiment (due to chemical kinetics, heat losses, shock losses …) • … but need something more (Lewis number effects): • 10% H2-air (SL ≈ 10 cm/sec): predicted Emin ≈ 0.3 mJ = 2.5 times higher than experiments • Lean CH4-air (SL ≈ 5 cm/sec): Emin ≈ 5 mJ compared to ≈ 5000mJ for lean C3H8-air with same SL - but prediction is same for both AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  43. Lewis number effects • Ok, so why does min. MIE shift to richer mixtures for higher HCs? • Leeffective = effective/Deffective • Deff = D of stoichiometrically limiting reactant, thus for lean mixtures Deff = Dfuel; rich mixtures Deff = DO2 • Lean mixtures - Leeffective = Lefuel • Mostly air, so eff ≈ air; also Deff = Dfuel • CH4: DCH4 > air since MCH4 < MN2&O2 thus LeCH4 < 1, thus Leeff < 1 • Higher HCs: Dfuel < air, thus Leeff > 1 - much higher MIE • Rich mixtures - Leeffective = LeO2 • CH4: CH4 > air since MCH4 < MN2&O2, so adding excess CH4 INCREASES Leeff • Higher HCs: fuel < air since Mfuel > MN2&O2, so adding excess fuel DECREASES Leeff • Actually adding excess fuel decreases both  and D, but decreases  more AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  44. Effect of spark gap & duration • Expect “optimal” ignition duration ~ ignition kernel time scale ~ RZ2/ • Duration too long - energy wasted after kernel has formed and propagated away - Emin ~ t1 • Duration too short - larger shock losses, larger heat losses to electrodes due to high T kernel • Expect “optimal” ignition kernel size ~ kernel length scale ~ RZ • Size too large - energy wasted in too large volume - Emin ~ R3 • Size too small - larger heat losses to electrodes Sloane & Ronney, 1990 Kono et al., 1976 Detailed chemical model 1-step chemical model AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

  45. Effect of flow environment • Mean flow or random flow (i.e. turbulence) (e.g. inside IC engine or gas turbine) increases stretch, thus Emin Kono et al., 1984 DeSoete, 1984 AME 513 - Fall 2012 - Lecture 9 - Premixed flames II

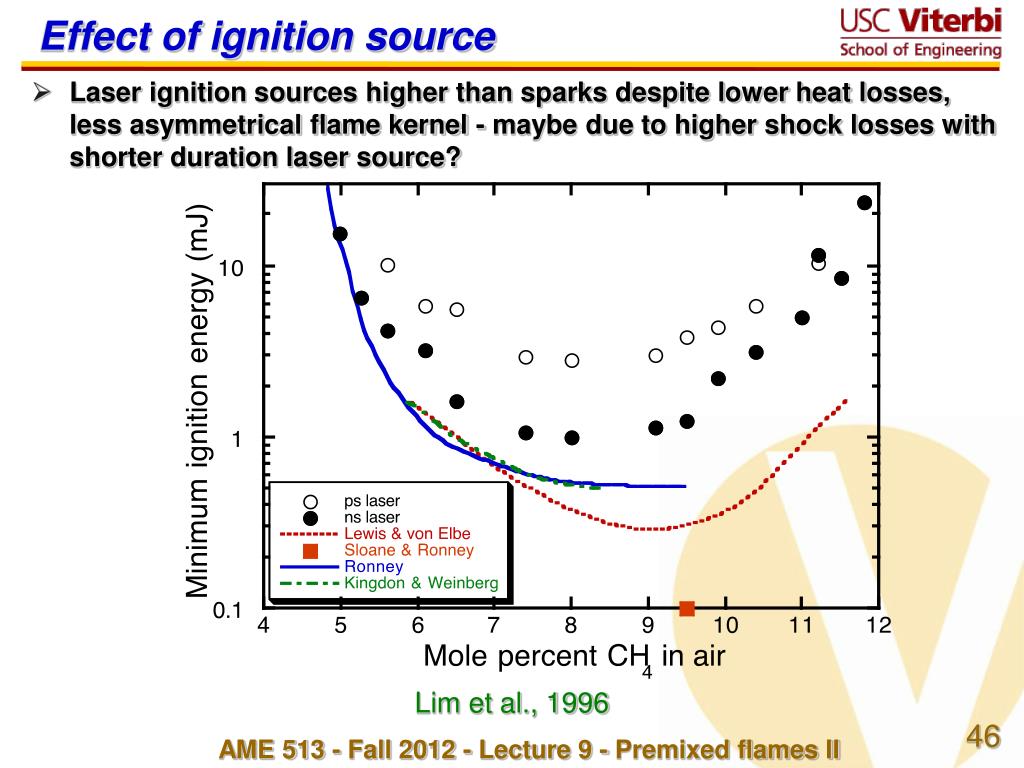

  46. Effect of ignition source • Laser ignition sources higher than sparks despite lower heat losses, less asymmetrical flame kernel - maybe due to higher shock losses with shorter duration laser source? Lim et al., 1996 AME 513 - Fall 2012 - Lecture 9 - Premixed flames II
