mesh services architecture and concepts

BB06

Mesh Services Architecture And Concepts

 Abolade Gbadegesin

Principal Software Architect

Microsoft Corporation

live services user centric data and services with more than 460m users
Live ServicesUser-centric data and services with more than 460M Users

Users

Devices

Applications

Synchronization

Mesh Services

Identity

Directory

Storage

Communications and Presence

Search & Geospatial

agenda
Agenda
  • User Experiences
  • Concepts
  • Architecture
  • Planning and Deployment
  • Implementation
  • Operations, Experiences, Lessons Learned
  • Future Work
key capabilities
Key Capabilities
  • Provisioned state
    • User, devices, applications, relationships
  • User-data storage
    • Feeds and content
    • Feed synchronization and content replication
  • Communications and presence
    • Device presence and remote UI access
    • Peer connectivity
  • Notifications
    • Single channel for asynchronous push
    • Signaling channel for session establishment

Accounts

User-data storage

Communications

& Presence

Notifications

p rovisioning in the mesh conceptual elements
Provisioning In The MeshConceptual elements

builds on Live ID authentication to

capture user-device relationships

provisioned during web sign-up

,

identity

1

device

claim

3

device

2

provisioned during software install

understanding rest in the mesh resources collections and links
Understanding REST In The MeshResources, collections and links

scope for grouping resources

and tracking changes

2

collection

Uri

EntityTag

SubscriptionUri

3

represented as feeds and items

resource

Uri

LastUpdateTime

resource

1

metadata common to all resources

link

Uri

Label

primitive for representing &

navigating relationships

resource

4

provisioned state services conceptual view and building blocks
Provisioned State ServicesConceptual view and building blocks

HTTP

Live ID

Client Runtime Library

Live ID Service

Mesh Service

Live Mesh Client

Accounts

Accounts

HTTP

(local cache)

users, devices, apps

folder synchronization in the mesh conceptual elements
Folder Synchronization In The MeshConceptual elements

items in data feed

represent files

1

local

file

system

mesh object

mesh

data

feed

data feed mapping

,

mesh object defines permission scope for sharing feeds

3

2

‘maps’ data feed to a file system location

u nderstanding feedsync in the mesh enabling bidirectional feed synchronization
Understanding FeedSync In The MeshEnabling bidirectional feed synchronization

<rss version="2.0">

<channel>

<title>To Do List</title>

<description>A list of items to do</description>

<link> http://example.com/partial.xml </link>

<item>

<title>Buy groceries</title>

<description>Get milk, ... </description>

<sx:sync id="item_1_myapp_2005-05-21T11:43:33Z" updates="3">

<sx:history sequence="1" when="2005-05-21T09:43:33Z" by="a9"/>

<sx:conflicts ...>

<item>

...

</item>

</sx:conflicts>

</sx:sync>

</item>

</channel>

</rss>

version vector and conflicts for each feed item

synchronized user data storage services conceptual view and building blocks
Synchronized User-Data Storage ServicesConceptual view and building blocks

Mesh Service

Live fx Client

User-data storage

010010010100111100

User-data storage

HTTP, FeedSync

(local replica)

feeds, content,

permissions

Mesh folders app

handles mesh folders

,

local

file

system

Scalable storage

mesh services architecture
Mesh Services Architecture

Mesh Service

Mesh UX

Live ID Service

Accounts

Live fx Client

Notifications

Accounts

Live ID

Client Runtime Library

Messenger

Relay

Service

Communications

& Presence

Notifications

User-data storage

Communications

& Presence

Messenger

NAT

Traversal

010101

User-data storage

Scalable storage

Local file system

Services fabric

Microsoft Update

mesh services architecture getting from concepts to implementation
Mesh Services ArchitectureGetting from concepts to implementation
  • Derive workloads from dominant application flows
  • Identify key scalability factors
  • Decide on the partitioning of state
  • Assign machine roles across tiers
mesh services planning workload analysis startup and file updates
Mesh Services PlanningWorkload analysis: Startup and file updates

Live fx Client

Mesh Accounts

Mesh User-Data Storage

Startup

update local cache

subscribe for change notifications

synchronize local replicas

subscribe for change notifications

File change

synchronize feed

upload updated files

mesh services planning workload analysis content replication
Mesh Services PlanningWorkload analysis: Content replication

Live fx Client

Mesh Notifications

Mesh User-Data Storage

File change

continued

fire change notifications

deliver change notifications

Content

replication

synchronize local replica

query availability of updated files

Mesh Communications and Presence

query availability of peers

fetch updated files from peers

relay or direct connection

mesh services planning scale out strategy
Mesh Services PlanningScale-out strategy
  • Partition by user, device, and mesh object
  • Use soft state to minimize I/O load
  • Leverage HTTP 1.1 semantics for caching, change notification, and incremental state transfer
  • Leverage client-side resources for holding state
  • Leverage peer connectivity for content replication
mesh services planning partitioning resources
Mesh Services PlanningPartitioning resources

each resource lives in a ‘home’ datacenter

each resource has a stable canonical URI based on its resource identifier

mapping a resource identifier to its ‘home’ datacenter requires a lookup in a replicated database

https://accounts.mesh.com/Identities/FKEXBSLJR3VUXEXMTPSSOVO6GM/DeviceClaims/CSOW2TEBYUSE5BD3I5QOS724UU

https://accounts.clus9.bay.mesh.com/Identities/FKEXBSLJR3VUXEXMTPSSOVO6GM/DeviceClaims/CSOW2TEBYUSE5BD3I5QOS724UU

each resource has a location URI that routes requests directly to its ‘home’ datacenter

requests to the ‘wrong’ datacenter get redirected, and clients cache the redirect URI for future use

mesh services planning general service design principles
Mesh Services PlanningGeneral service design principles
  • Commodity hardware
  • Partitioning for scaling out, redundancy for availability
  • Loose coupling across roles
  • Xcopy deployment and configuration
  • Fail-fast, recovery-oriented error handling
  • Self-monitoring and self-healing
mesh services deployment infrastructure and roles
Mesh Services DeploymentInfrastructure and roles

Front end role

Back end role

Building block

Account APIs

front end

roles

Services fabric

User-Data Storage

Content upload & download

Web Desktop

Scalable storage

Services fabric SKU:

2P Dual Core

8GB RAM

4x 500GB SATA II HDD

Windows Server

Device presence store

scale

unit

partitioning units

Subscription store

back end

roles

Notification

queue store

Dictionary state store

commodity hardware

xcopy deployment

automated rollback

self-monitoring

fail-fast recovery

self-healing

Partitioning & Recovery Manager

infrastructure

roles

Watchdogs

mesh services deployment scale unit layout
Mesh Services DeploymentScale unit layout

Front end role

Back end role

Building block

soft state stores

Subscription store

Accounts Scalable Storage

Partitioning & Recovery Manager

User-Data Structured Storage

User-Data Blob Storage

reliable state stores

Watchdogs

Dictionary state store

Device presence store

Notification

queue store

soft state stores

Web Desktop

User-Data Storage API

Content upload & download

Accounts API

Communications & Presence

Notifications API

Services fabric

building block services

Live ID

Messenger Relay

Hotmail

mesh services implementation soft state partitioning and recovery
Mesh Services ImplementationSoft state partitioning and recovery

hash nodes & resources

to the same output space

node ‘nearest’ a resource

is responsible for it

Node 1

Node 2

{ECCA8793-3208-48A9-A1A1-038D0AD704C5}

/MeshObjects/FJ3GZXUNDC4EPPPPUMQ2QNCG6I/Subscriptions/GLW6BC6HRWFU5LEW7HTX5FPC3Y

consistent hashing

node loss tracking

Device presence store

Partitioning & Recovery Manager

Notification

queue store

resource owner nodes

Owner library

Owner library

Communications and Presence

Notifications API

Lookup library

Lookup library

resource client nodes

owner library obtains leases

lookup library queries assignments

mesh services implementation common software stack
Mesh Services ImplementationCommon software stack

Mesh service code

Building block code

multiple processes

mesh service process

singleton process

Mesh services runtime

Mesh service application

Tracing & log collection

Services fabric controller

AP configuration

Mesh services host process

NETFX 3.5 SP1

Windows Server

SMB.sys

mesh services implementation front end software stack
Mesh Services ImplementationFront end software stack

Mesh service code

Building block code

multiple processes

mesh service process

singleton process

TLS/TCP

handlers

Mesh resource handlers

Mesh content handlers

Mesh services runtime

Tracing & log collection

Services fabric controller

Accounts

Notifications

TCP notification streaming

Communications & Presence

Soft state lookup

User-data content upload & download

Scalable storage client

User-data storage

TLS/TCP stream dispatcher

Subscriptions

HTTP request dispatcher

AP configuration

Mesh services host process

NETFX 3.5 SP1

WCF syndication

Windows Server

HTTP.sys

sockets

SMB.sys

mesh services implementation back end software stack
Mesh Services ImplementationBack end software stack

Mesh service code

Building block code

multiple process

mesh service process

singleton process

Mesh resource managers

Mesh services runtime

Tracing & log collection

Services fabric controller

Device presence manager

Notification queue manager

Soft state owner/lookup

Dictionary store manager

Scalable storage client

Subscription manager

Subscriptions

Partitioning and recovery manager

Work queues

Sockets dispatcher

AP configuration

Mesh services host process

NETFX 3.5 SP1

Windows Server

sockets

SMB.sys

mesh services operations experiences and lessons learned

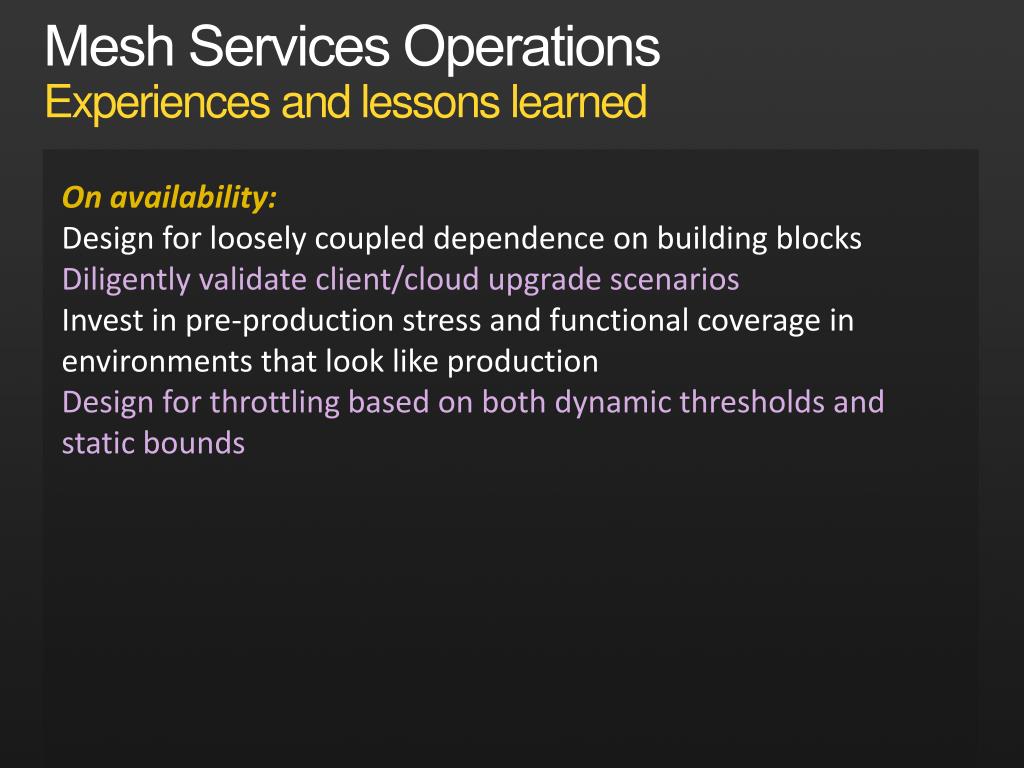

Mesh Services OperationsExperiences and lessons learned

On availability:

Design for loosely coupled dependence on building blocks

Diligently validate client/cloud upgrade scenarios

Invest in pre-production stress and functional coverage in environments that look like production

Design for throttling based on both dynamic thresholds and static bounds

mesh services operations experiences and lessons learned27
Mesh Services OperationsExperiences and lessons learned

On monitoring:

Continuously refine performance counters, logs, and log processing tools

Monitor end-user-visible operations (Keynote)

Build end-to-end tracing across tiers

Self-healing is hard: Invest in tuning watchdogs and thresholds

mesh services operations experiences and lessons learned28
Mesh Services OperationsExperiences and lessons learned

On deployment:

Deployments every other week, client upgrades every month

Major functionality roughly each quarter

Took advantage of gradual ramp to learn lessons early

mesh services futures extending the mesh cloud
Mesh Services FuturesExtending the mesh cloud

personal and enterprise user-data storage offerings:

on-premises software and online service

federate user authentication with other identity providers (e.g. Active Directory)

You saw this working today: Microsoft Services Connector

Stay tuned!

synchronize user-data storage with non-Microsoft services (e.g. Smugmug)

You saw this in the Sync Framework session

microsoft services connector federating identity
Microsoft Services ConnectorFederating identity

and policy

Azure Platform Services

Enterprise

Apps

ISV Apps

Live Services

Online Services

Windows Azure

Live

Mesh

CRM Online

Live Identity Provider

Microsoft Federation Gateway

Soon: enterprise credentials in Live Mesh

Future: enterprise policy on Mesh Services

Microsoft

Services

Connector

Enterprise On-Premises

Active

Directory

Live Mesh

Desktop

Your Apps

Sharepoint

Exchange

sync framework and live framework synchronizing clouds
Sync Framework and Live Framework Synchronizing clouds

Mesh Services

Mesh Services

SyncFX store providers

Future: Mesh Services as a sync hub for your apps

Cloud

Sync

Accounts

Notifications

Communications

& Presence

Live Framework

Sync apps

User-data storage

010101

summary
Summary
  • The Mesh Services deliver a comprehensive and compelling suite of key capabilities
  • You can build on the Mesh Services today using the Live Framework and Sync Framework
  • Your feedback will help define the roadmap for delivering personal and enterprise offerings of the Mesh Services
related sessions and resources

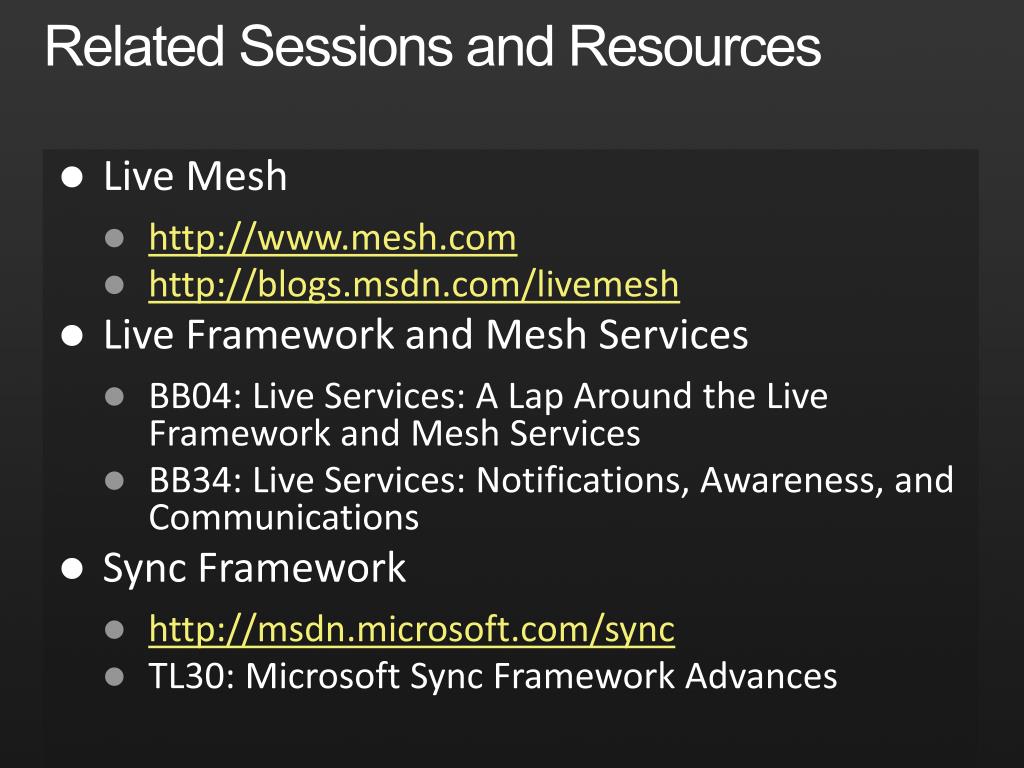

Related Sessions and Resources
  • Live Mesh
    • http://www.mesh.com
    • http://blogs.msdn.com/livemesh
  • Live Framework and Mesh Services
    • BB04: Live Services: A Lap Around the Live Framework and Mesh Services
    • BB34: Live Services: Notifications, Awareness, and Communications
  • Sync Framework
    • http://msdn.microsoft.com/sync
    • TL30: Microsoft Sync Framework Advances
evals recordings
Evals & Recordings

Please fill out your evaluation for this session at:

This session will be available as a recording at:

www.microsoftpdc.com

slide36

© 2008 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
