Presentation Transcript

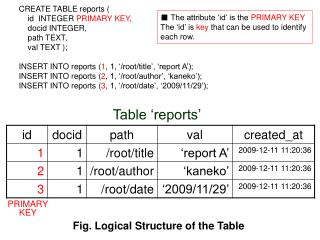

slide1

CREATE TABLE reports (

id INTEGER PRIMARY KEY,

docid INTEGER,

path TEXT,

val TEXT );

INSERT INTO reports (1, 1, ‘/root/title’, ‘report A’);

INSERT INTO reports (2, 1, ‘/root/author’, ‘kaneko’);

INSERT INTO reports (3, 1, ‘/root/date’, ‘2009/11/29’);

■ The attribute ‘id’ is the PRIMARY KEY

The ‘id’ is key that can be used to identify

each row.

Table ‘reports’

PRIMARY

KEY

Fig. Logical Structure of the Table

slide2

Table ‘reports’

PRIMARY

KEY

Logical Structure

Associated Records

Keys

link

1

Record(1, ‘/root/title’, ‘report A’, ‘2009-12-11 11:20:36’)

link

2

Record(2, ‘/root/author’, ‘kaneko’, ‘2009-12-11 11:20:36’)

link

3

Record(3, ‘/root/date’, ‘2009/11/29’, ‘2009-12-11 11:20:36’)

Each key is associated with each record.

Physical Structure

Fig. Logical Structure and Physical Structure

slide4

Record Header

Record Data

Database Image

slide5

Database Header

SQLite Database File

slide6

SQLite 3 データベースヘッダ

に格納されている情報の例

Page size: 04 00

Database encoding: 00 00 00 01

※ UTF-8: 01

little-endian UTF-16: 02

big-endian UTF-16: 03

slide7

Associated Records

Keys

link

1

Record(1, ‘/root/title’, ‘report A’)

link

2

Record(2, ‘/root/author’, ‘kaneko’)

link

3

Record(3, ‘/root/date’, ‘2009/11/29’)

Each key is associated with each record.

Fig. Physical Structure of the Table

Record Length (Note that record length is variable)

Fig. Database File Layout Example (SQLite 3)
