Dust-Monitor-LDMR-A10

Labtron Dust Monitor uses light scattering to count and measure particulate mass concentration. It features a screen displaying battery levels, flow rate, and pump details. With an SD card slot and USB port for data storage and transfer, itu2019s ideal for labs, research, industries, and quality control

millyyates
Download Presentation

Dust-Monitor-LDMR-A10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

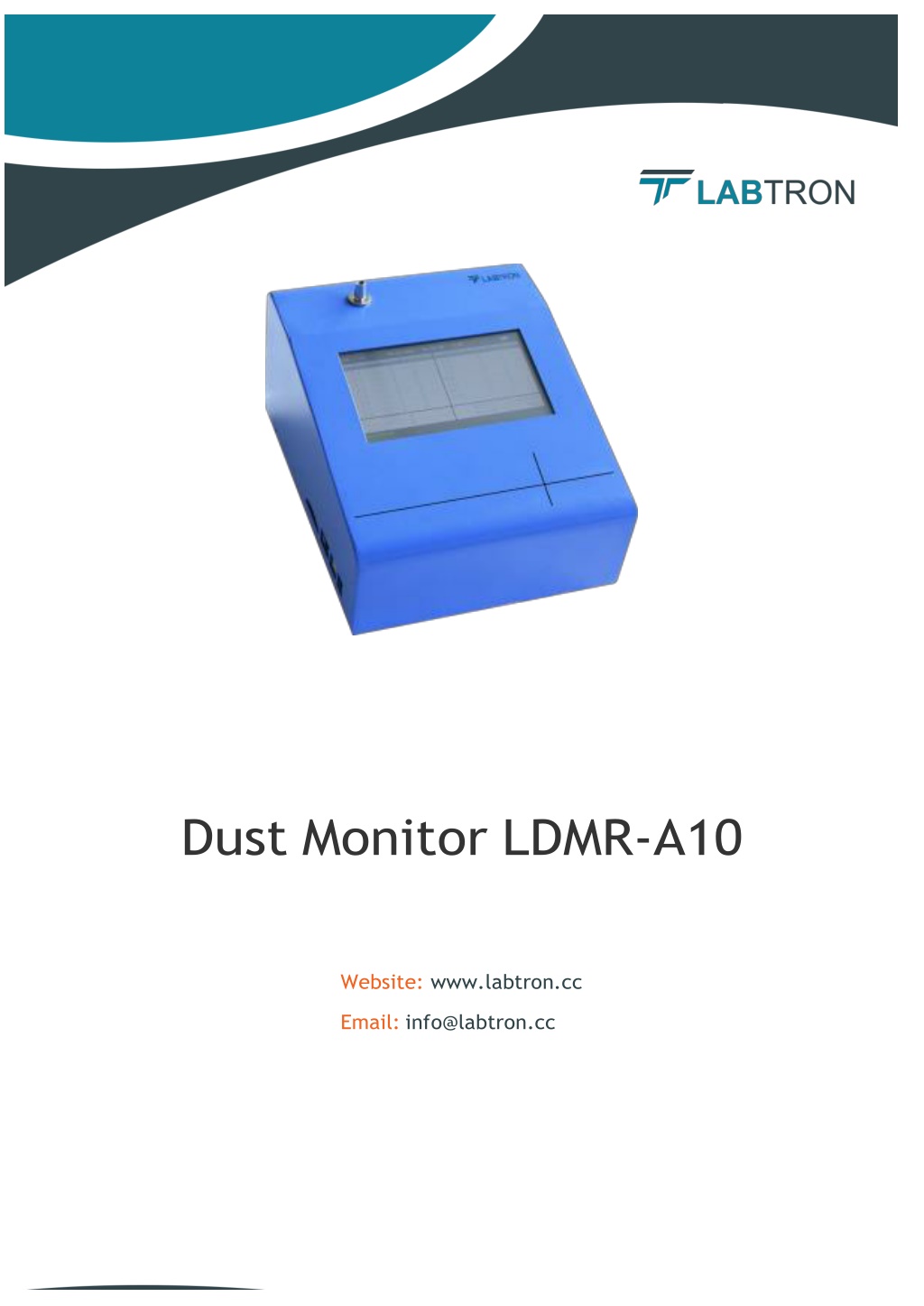

  1. Dust Monitor LDMR-A10 Website: www.labtron.cc Email: info@labtron.cc

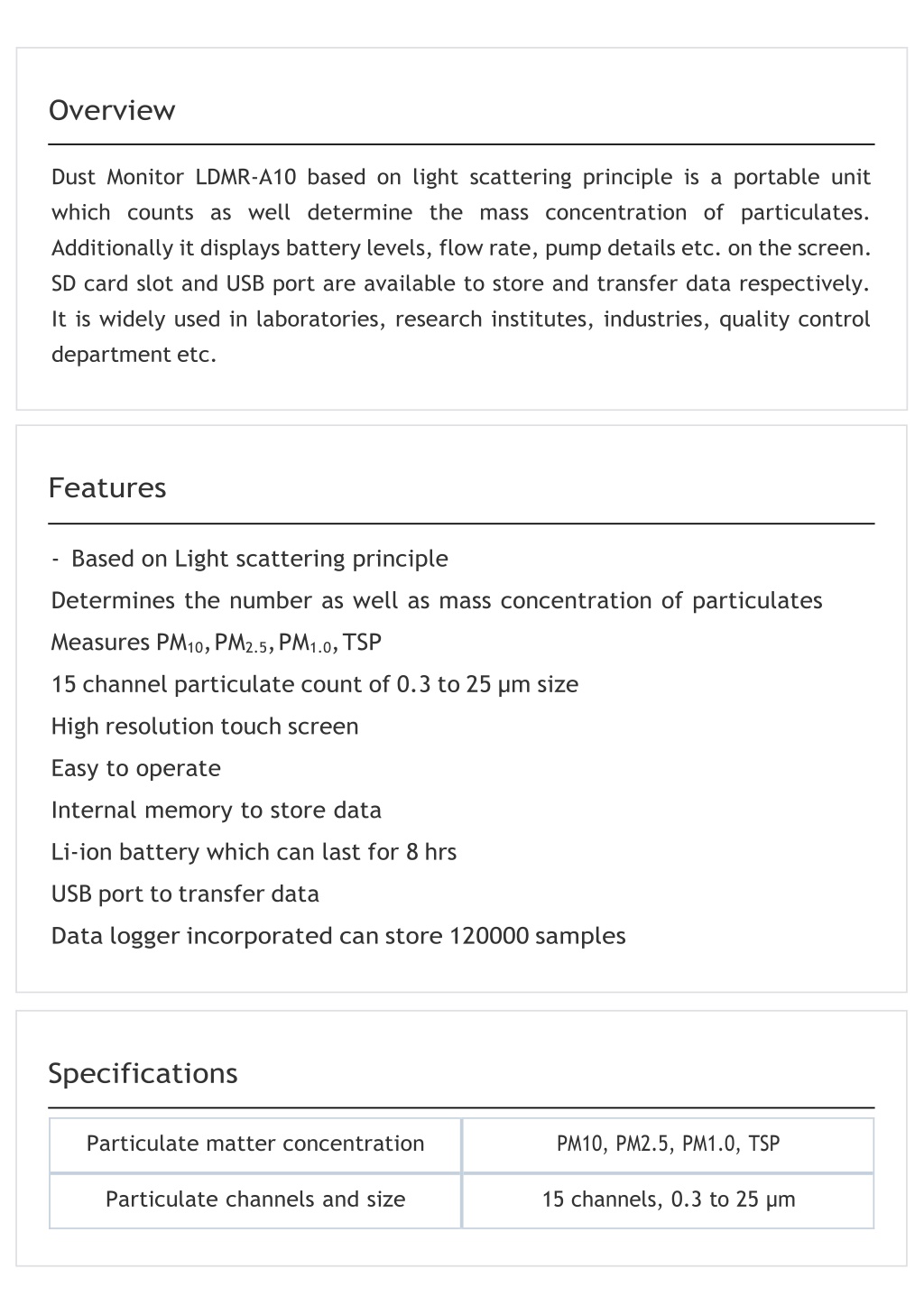

  2. Overview Dust Monitor LDMR-A10 based on light scattering principle is a portable unit which counts as well determine the mass concentration of particulates. Additionally it displays battery levels, flow rate, pump details etc. on the screen. SD card slot and USB port are available to store and transfer data respectively. It is widely used in laboratories, research institutes, industries, quality control department etc. Features - Based on Light scattering principle Determines the number as well as mass concentration of particulates Measures PM10, PM2.5, PM1.0, TSP 15 channel particulate count of 0.3 to 25 µm size High resolution touch screen Easy to operate Internal memory to store data Li-ion battery which can last for 8 hrs USB port to transfer data Data logger incorporated can store 120000 samples Specifications Particulate matter concentration PM10, PM2.5, PM1.0, TSP Particulate channels and size 15 channels, 0.3 to 25 µm

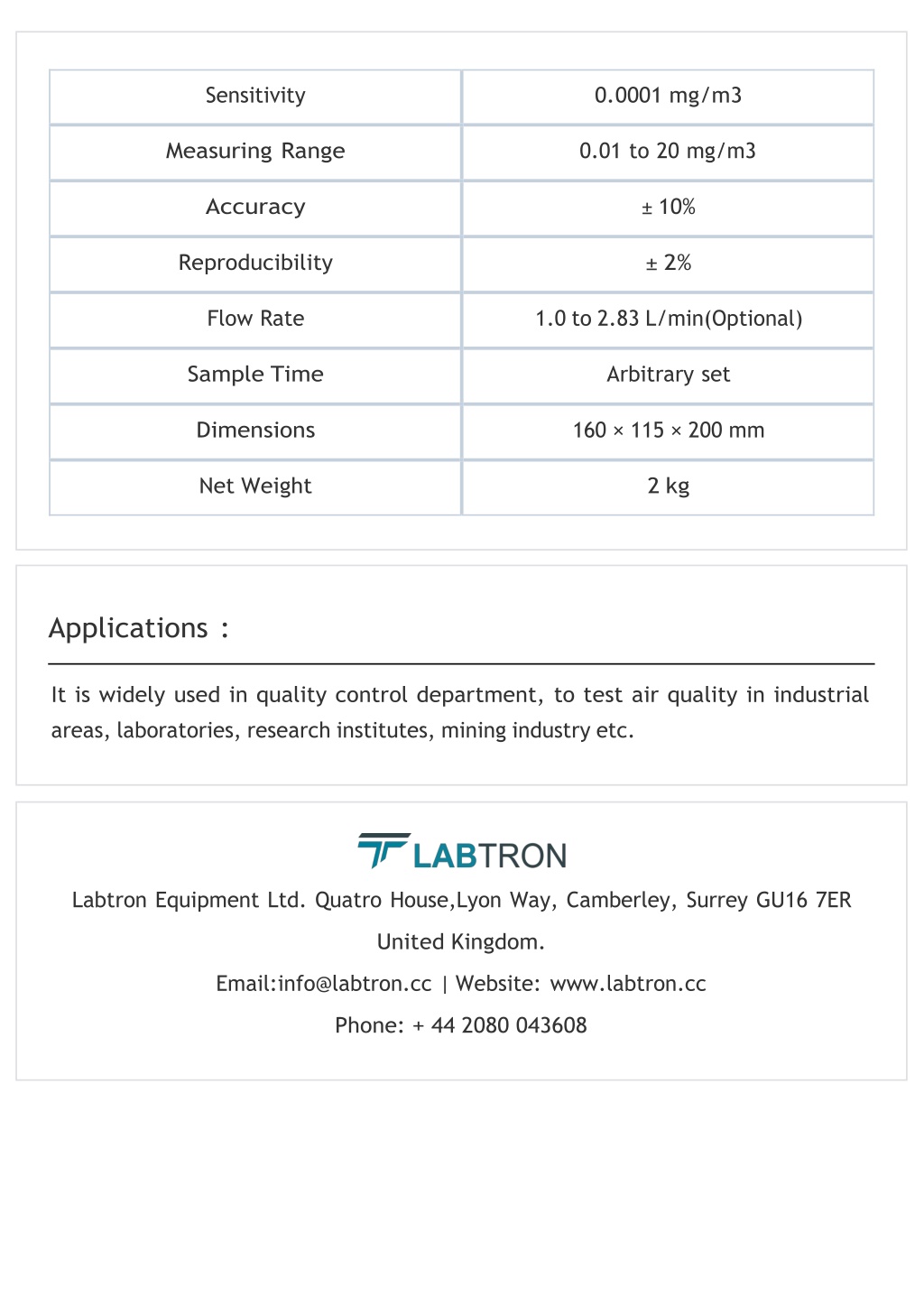

  3. Sensitivity 0.0001 mg/m3 Measuring Range 0.01 to 20 mg/m3 Accuracy ± 10% Reproducibility ± 2% Flow Rate 1.0 to 2.83 L/min(Optional) Sample Time Arbitrary set Dimensions 160 × 115 × 200 mm Net Weight 2 kg Applications : It is widely used in quality control department, to test air quality in industrial areas, laboratories, research institutes, mining industry etc. Labtron Equipment Ltd. Quatro House,Lyon Way, Camberley, Surrey GU16 7ER United Kingdom. Email:info@labtron.cc | Website: www.labtron.cc Phone: + 44 2080 043608
