  1. How to Set Up a System for Teaching Files, Conferences, and Clinical Trials Medical Imaging Resource Center

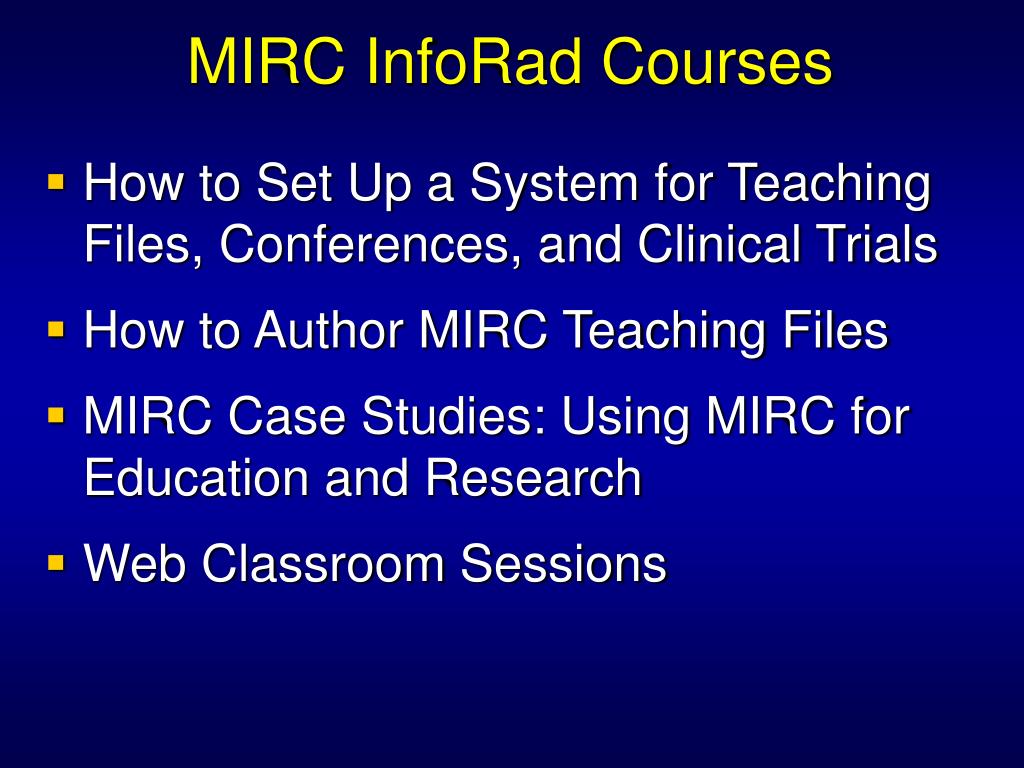

  2. MIRC InfoRad Courses • How to Set Up a System for Teaching Files, Conferences, and Clinical Trials • How to Author MIRC Teaching Files • MIRC Case Studies: Using MIRC for Education and Research • Web Classroom Sessions

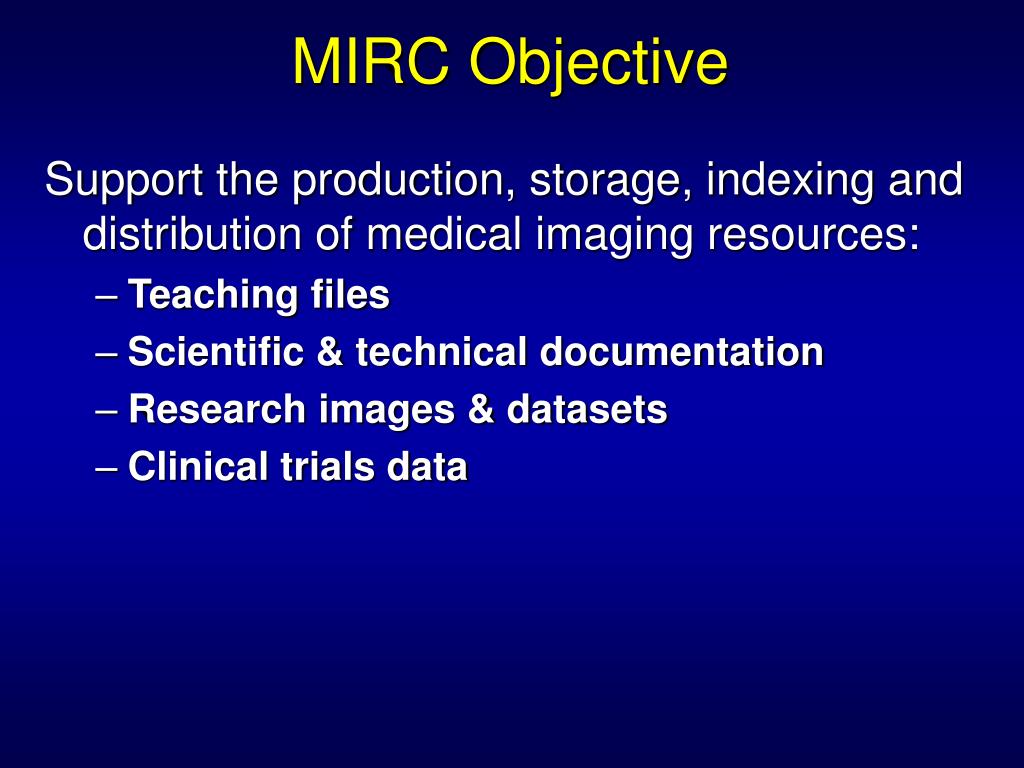

  3. MIRC Objective Support the production, storage, indexing and distribution of medical imaging resources: • Teaching files • Scientific & technical documentation • Research images & datasets • Clinical trials data

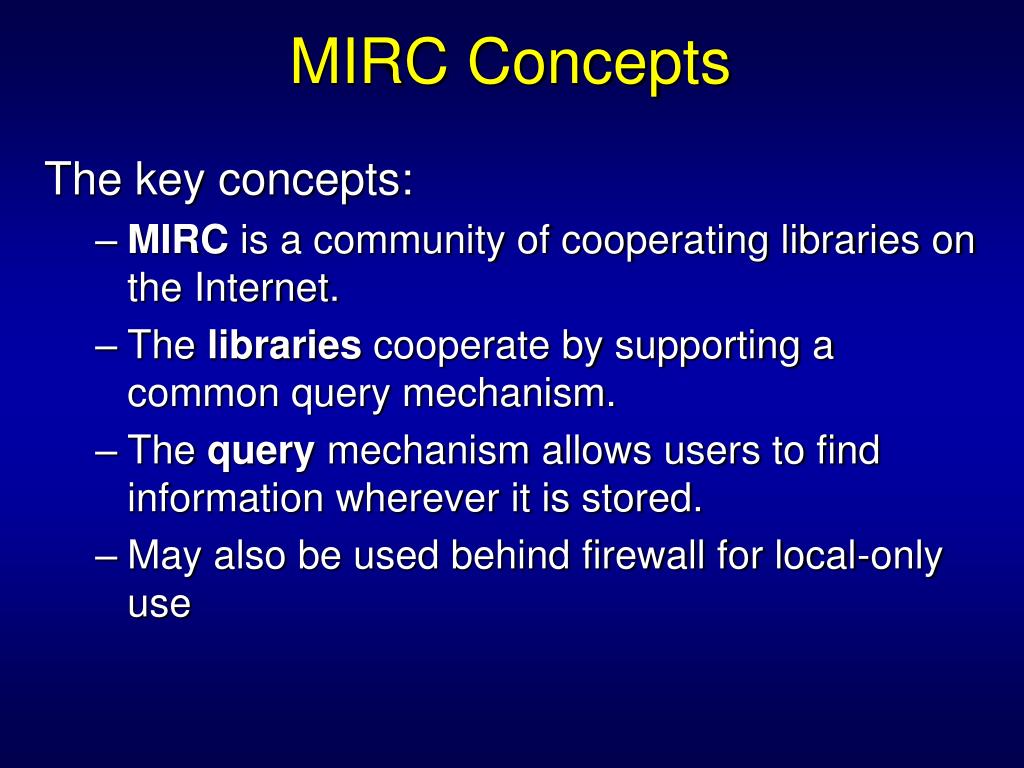

  4. MIRC Concepts The key concepts: • MIRC is a community of cooperating libraries on the Internet. • The libraries cooperate by supporting a common query mechanism. • The query mechanism allows users to find information wherever it is stored. • May also be used behind firewall for local-only use

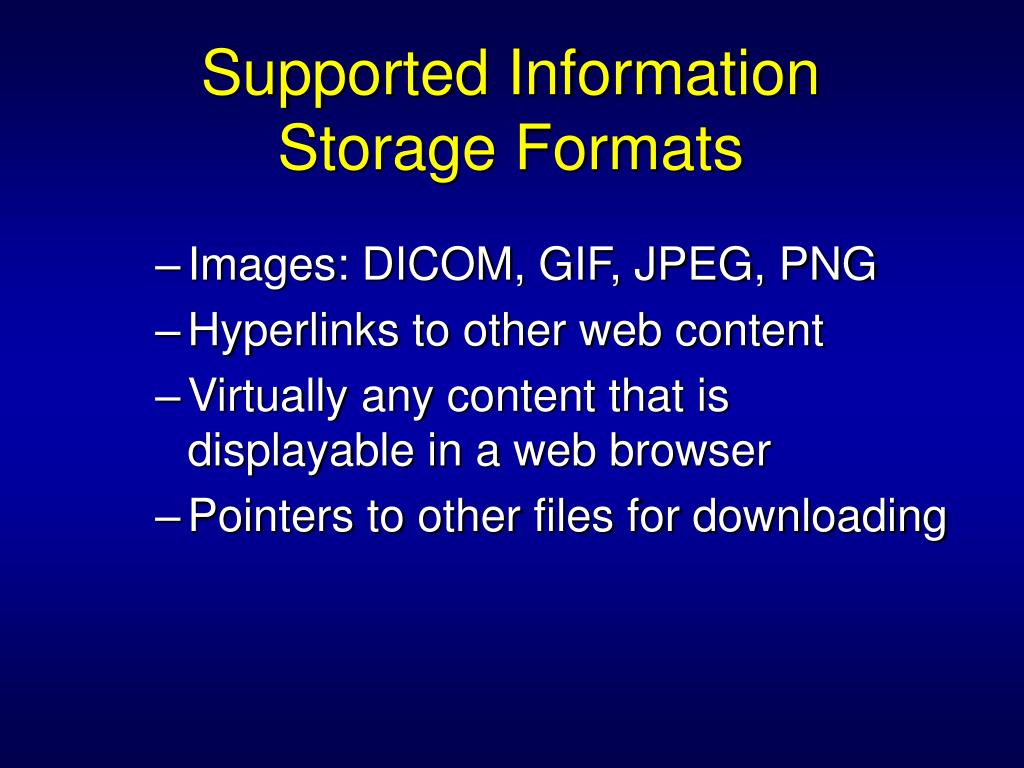

  5. Supported Information Storage Formats • Images: DICOM, GIF, JPEG, PNG • Hyperlinks to other web content • Virtually any content that is displayable in a web browser • Pointers to other files for downloading

  6. MIRC Index Server User Query Service RSNA Internet Index Server MIRC Sites Index Server

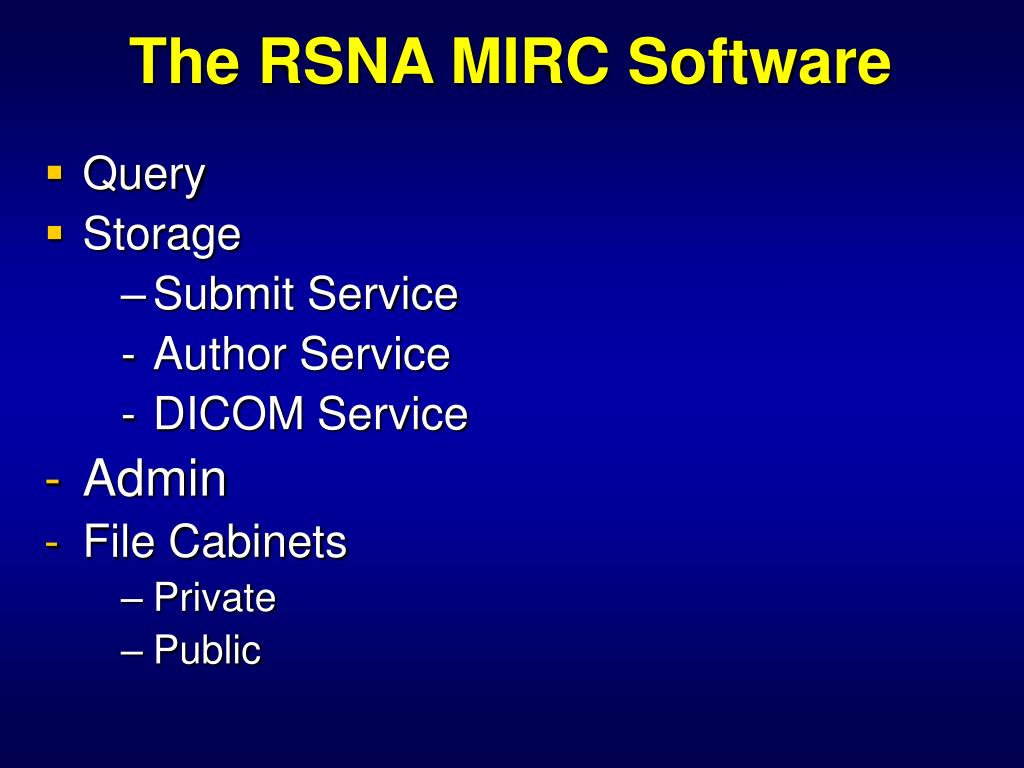

  7. The RSNA MIRC Software • Query • Storage • Submit Service • Author Service • DICOM Service • Admin • File Cabinets • Private • Public

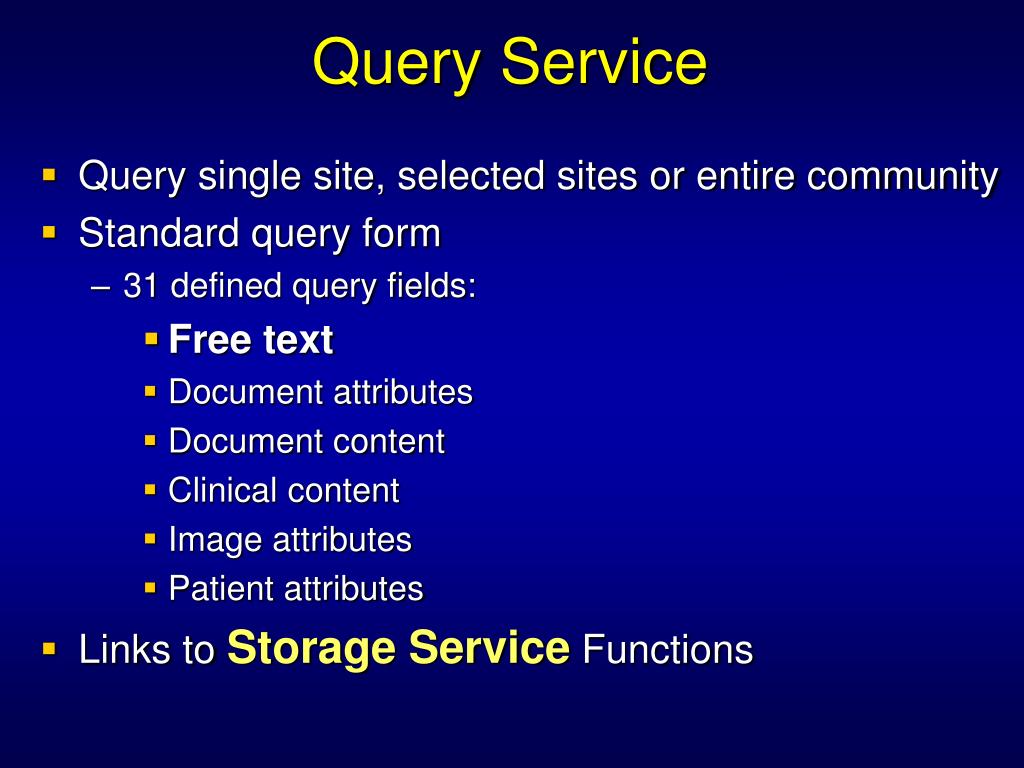

  8. Query Service • Query single site, selected sites or entire community • Standard query form • 31 defined query fields: • Free text • Document attributes • Document content • Clinical content • Image attributes • Patient attributes • Links to Storage Service Functions

  9. Query Form

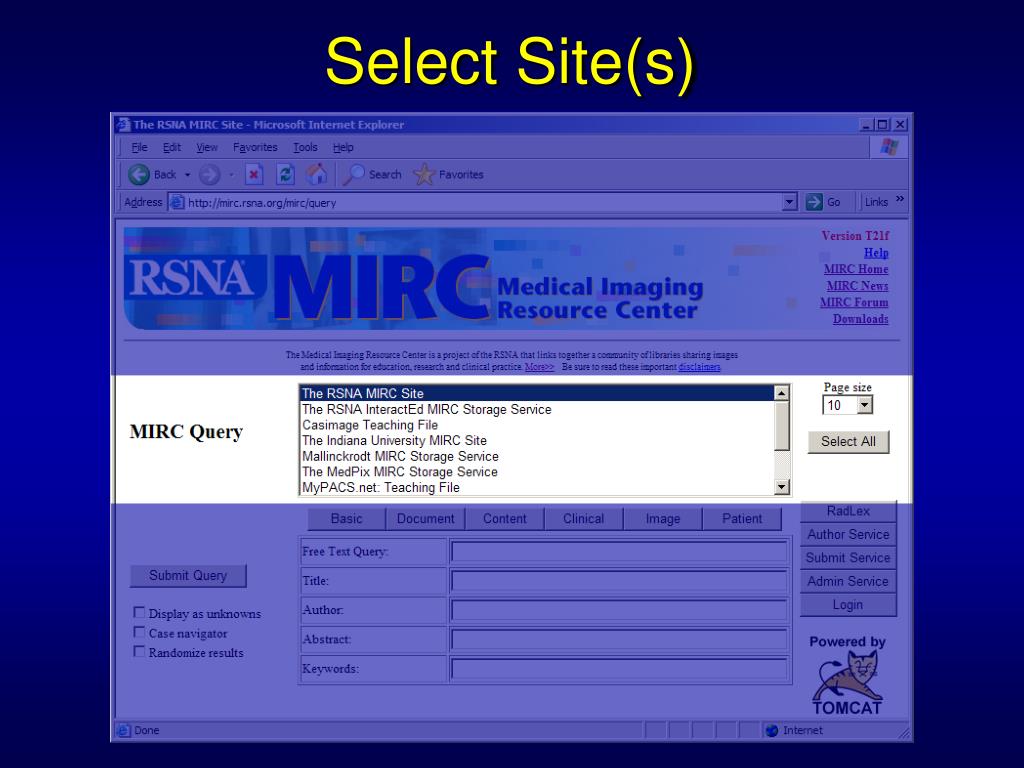

  10. Select Site(s)

  11. Enter Search Terms

  12. Admin / Submit / Author

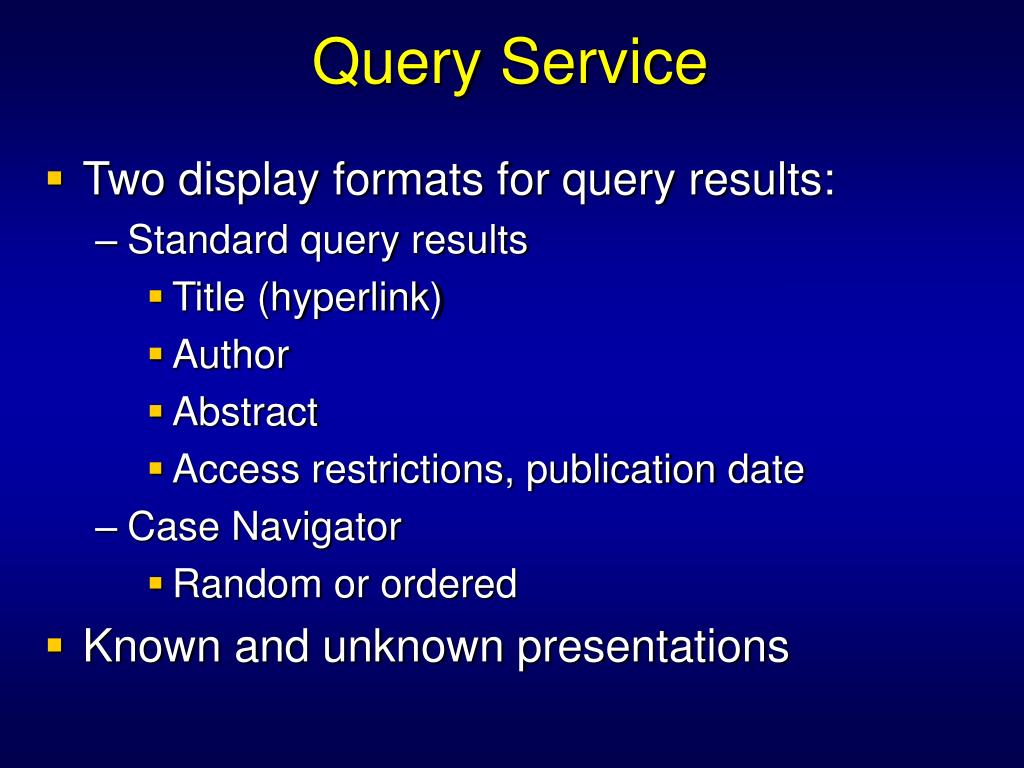

  13. Query Service • Two display formats for query results: • Standard query results • Title (hyperlink) • Author • Abstract • Access restrictions, publication date • Case Navigator • Random or ordered • Known and unknown presentations

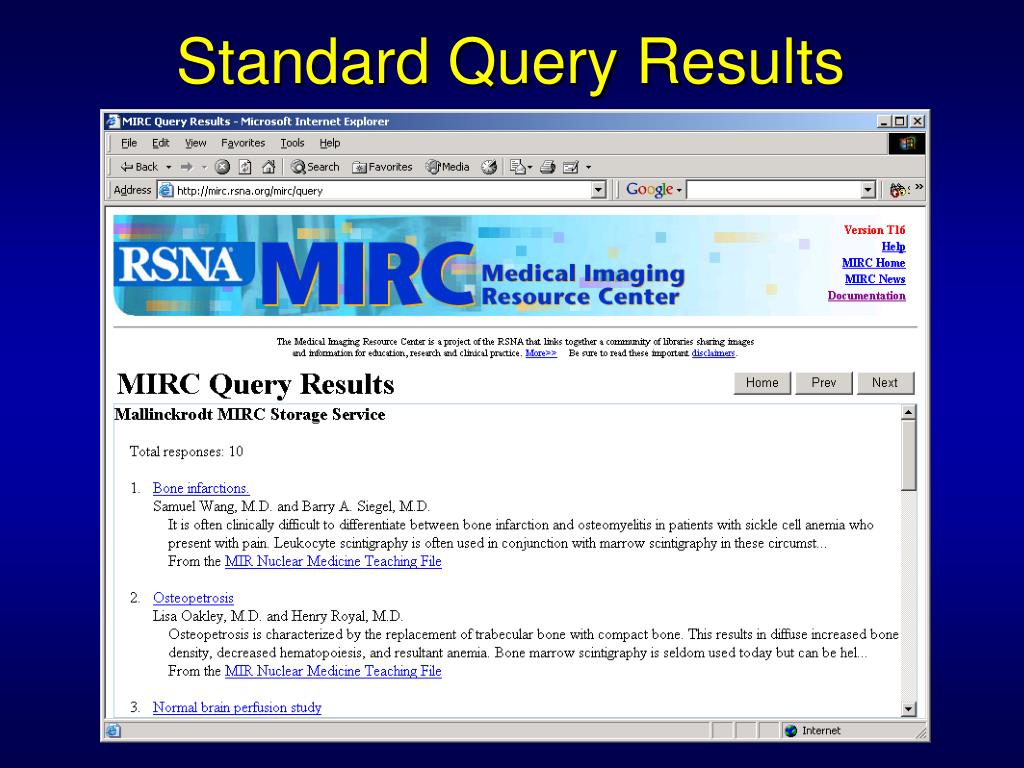

  14. Standard Query Results

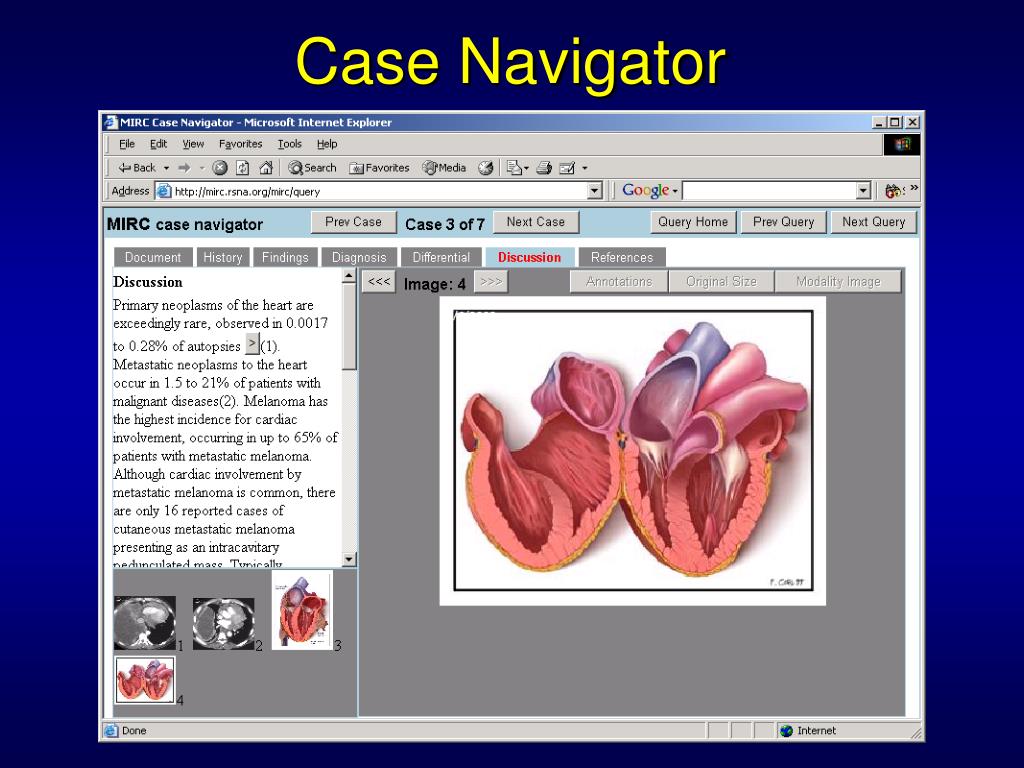

  15. Case Navigator

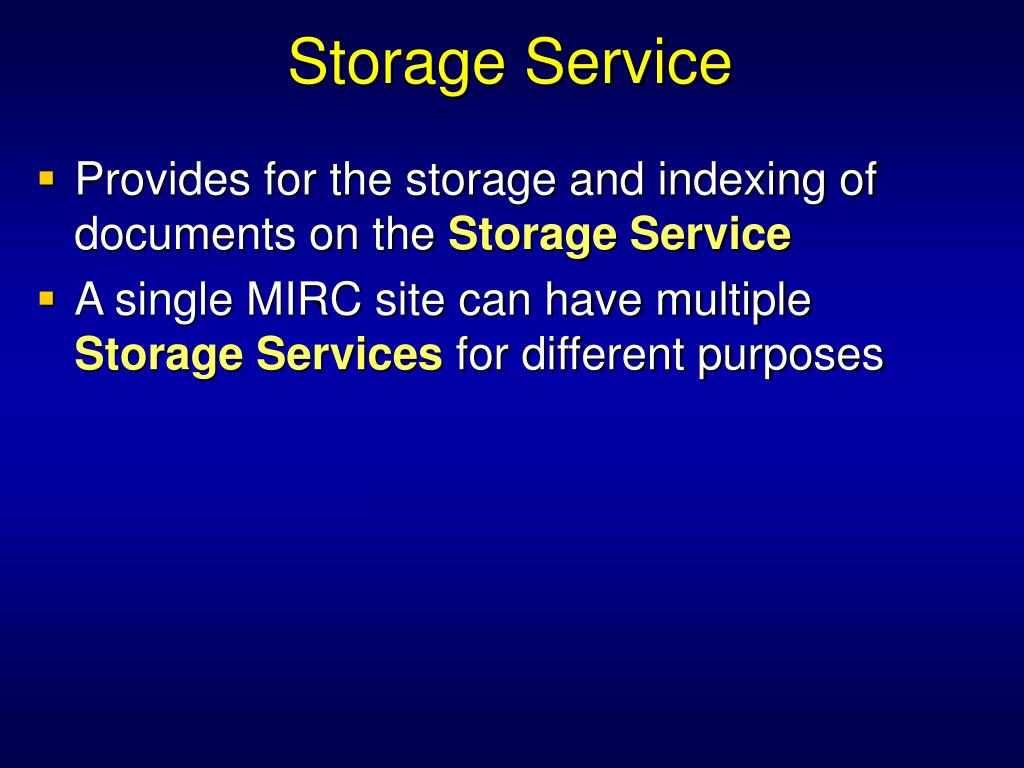

  16. Storage Service • Provides for the storage and indexing of documents on the Storage Service • A single MIRC site can have multiple Storage Services for different purposes

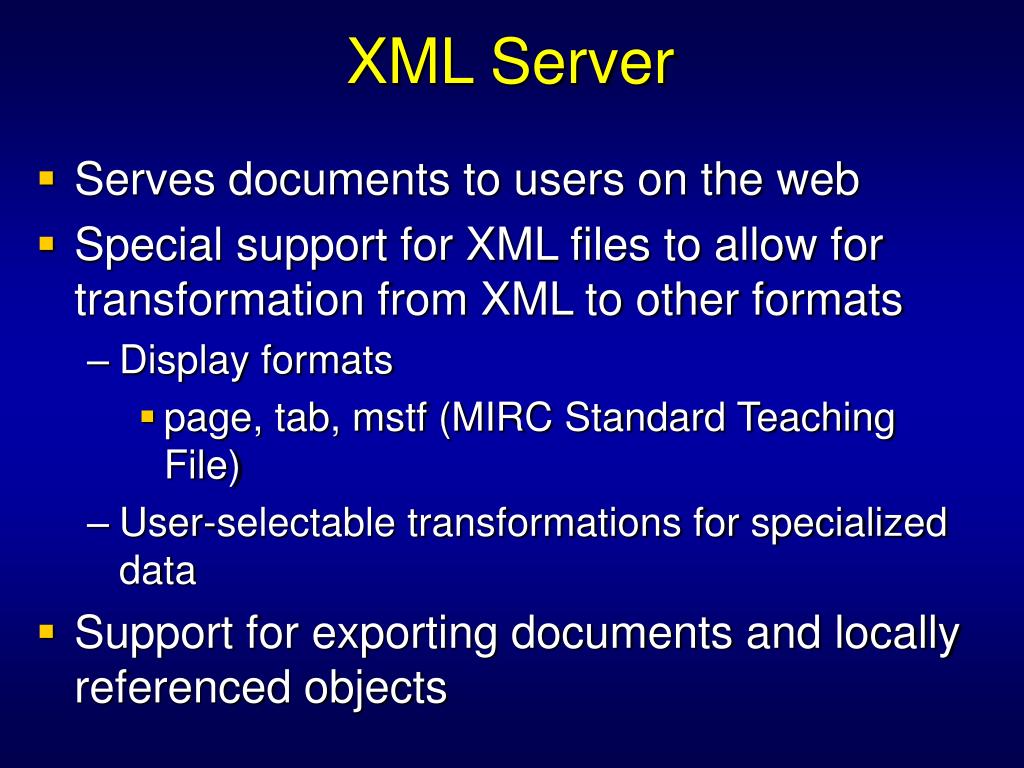

  17. XML Server • Serves documents to users on the web • Special support for XML files to allow for transformation from XML to other formats • Display formats • page, tab, mstf (MIRC Standard Teaching File) • User-selectable transformations for specialized data • Support for exporting documents and locally referenced objects

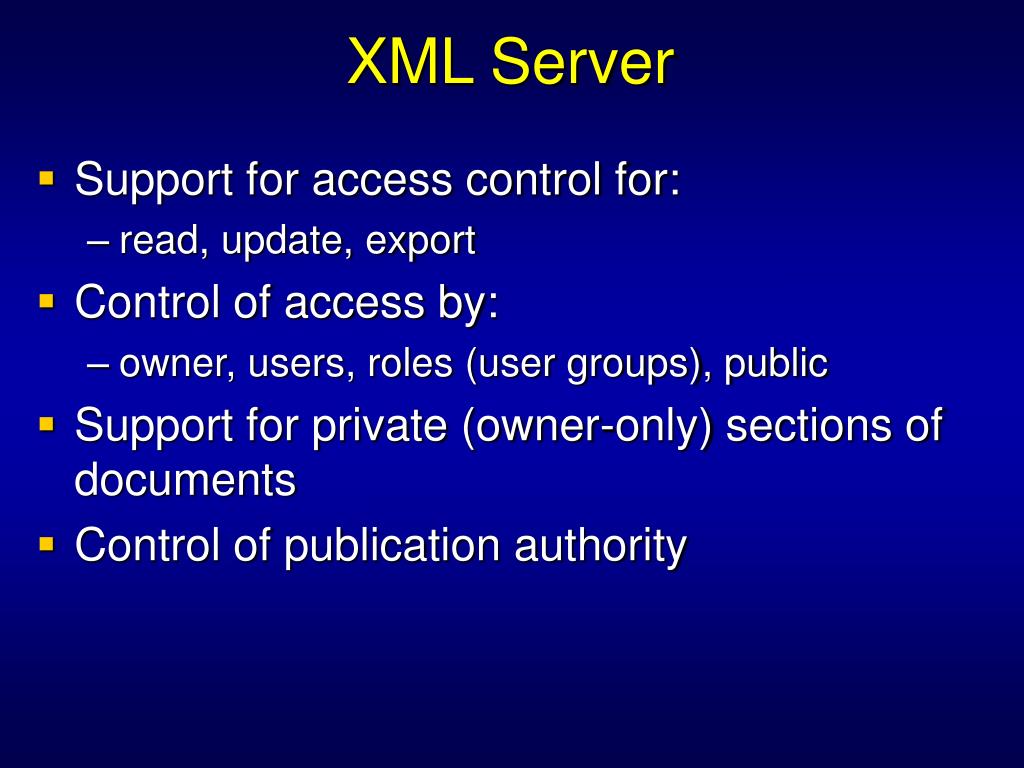

  18. XML Server • Support for access control for: • read, update, export • Control of access by: • owner, users, roles (user groups), public • Support for private (owner-only) sections of documents • Control of publication authority

  19. Submit Service • Allows clients to upload MIRC documents • Supports connections from client-side authoring tools • Supports uploading documents via a browser • Accepts uploads in the format exported by the XML Server

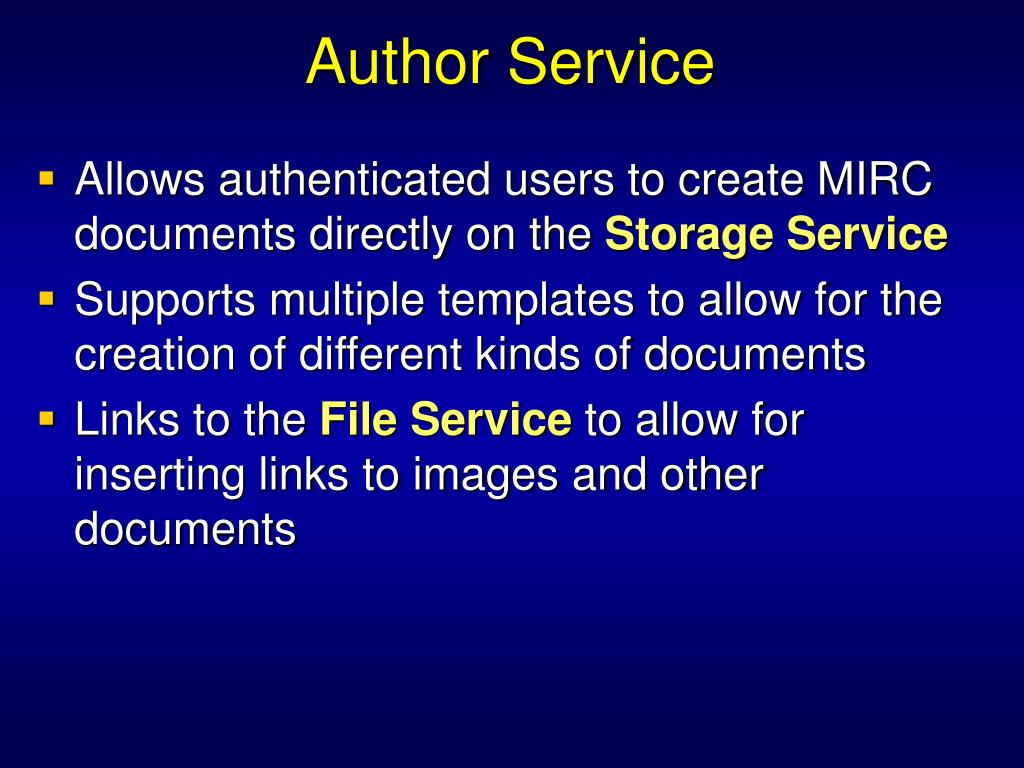

  20. Author Service • Allows authenticated users to create MIRC documents directly on the Storage Service • Supports multiple templates to allow for the creation of different kinds of documents • Links to the File Service to allow for inserting links to images and other documents

  21. DICOM Service • Storage Service Function • Receives DICOM objects from PACS, workstations, modalities, … • Automatic document generation • Images grouped into documents by study • Template-driven • Automatic JPEG generation from the DICOM • Programmable anonymization (de-identification)

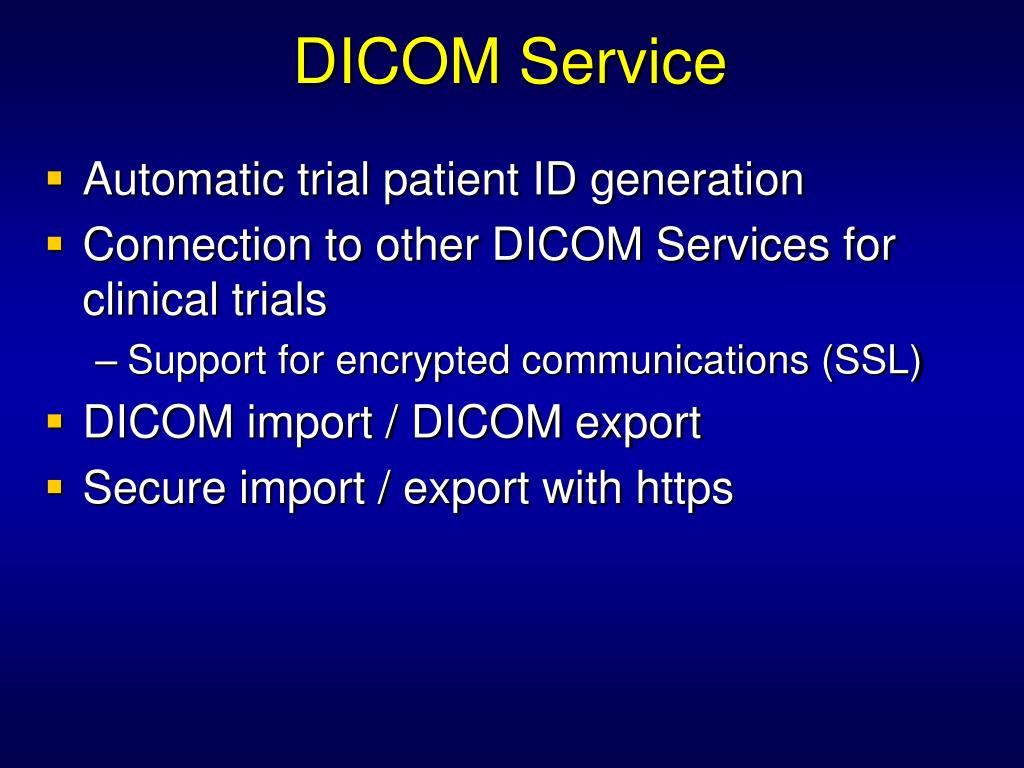

  22. DICOM Service • Automatic trial patient ID generation • Connection to other DICOM Services for clinical trials • Support for encrypted communications (SSL) • DICOM import / DICOM export • Secure import / export with https

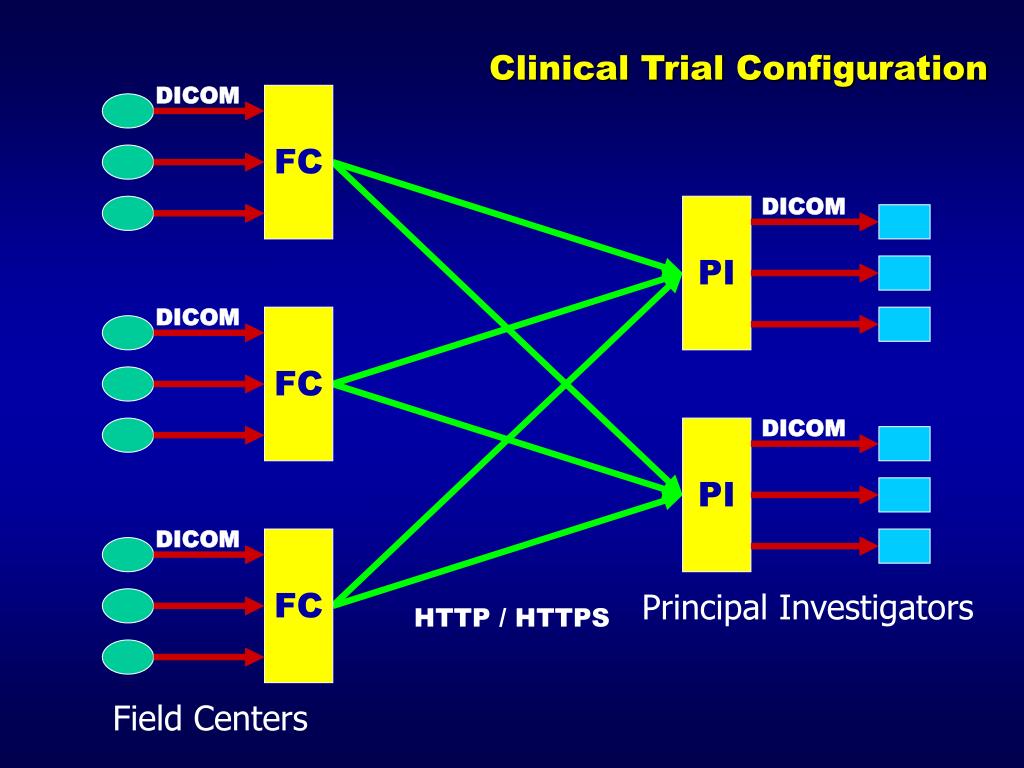

  23. Clinical Trial Configuration DICOM FC DICOM PI DICOM FC DICOM PI DICOM FC Principal Investigators HTTP / HTTPS Field Centers

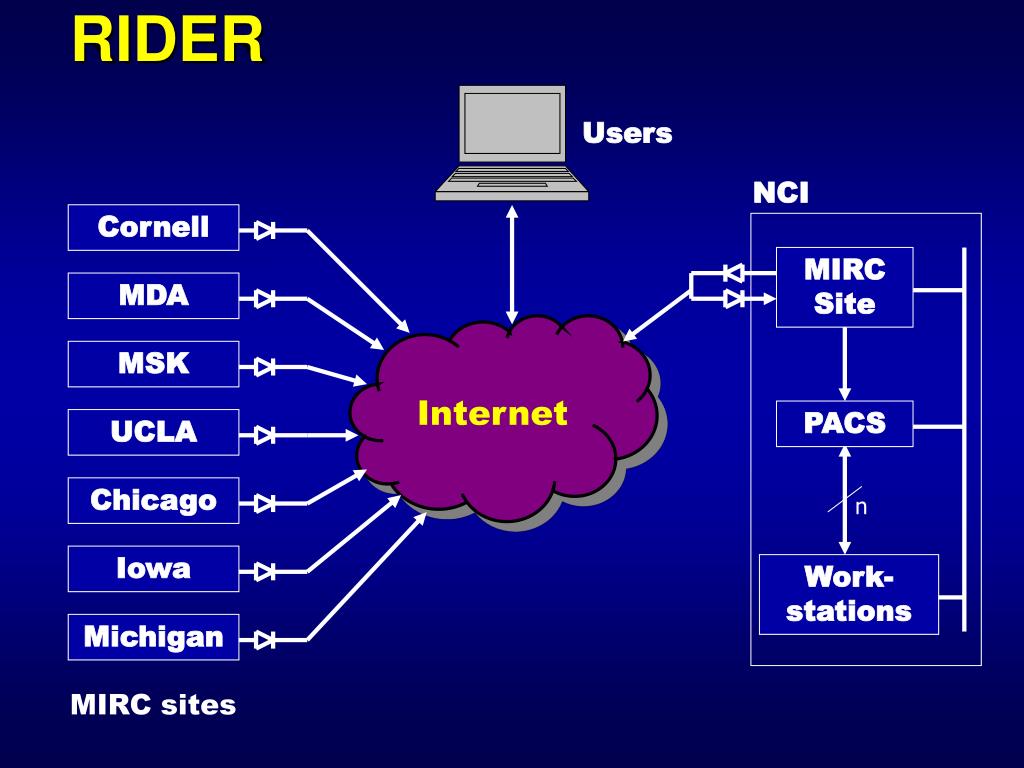

  24. RIDER Users NCI Cornell MIRC Site MDA Internet MSK PACS UCLA Chicago n Iowa Work-stations Michigan MIRC sites

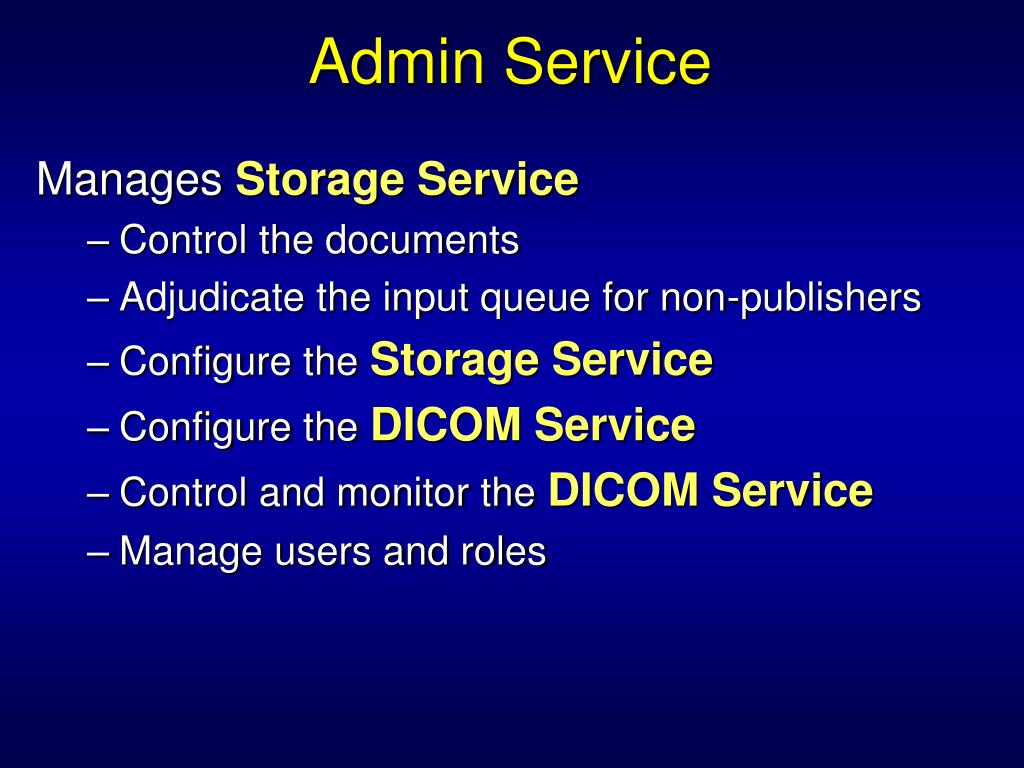

  25. Admin Service Manages Storage Service • Control the documents • Adjudicate the input queue for non-publishers • Configure the Storage Service • Configure the DICOM Service • Control and monitor the DICOM Service • Manage users and roles

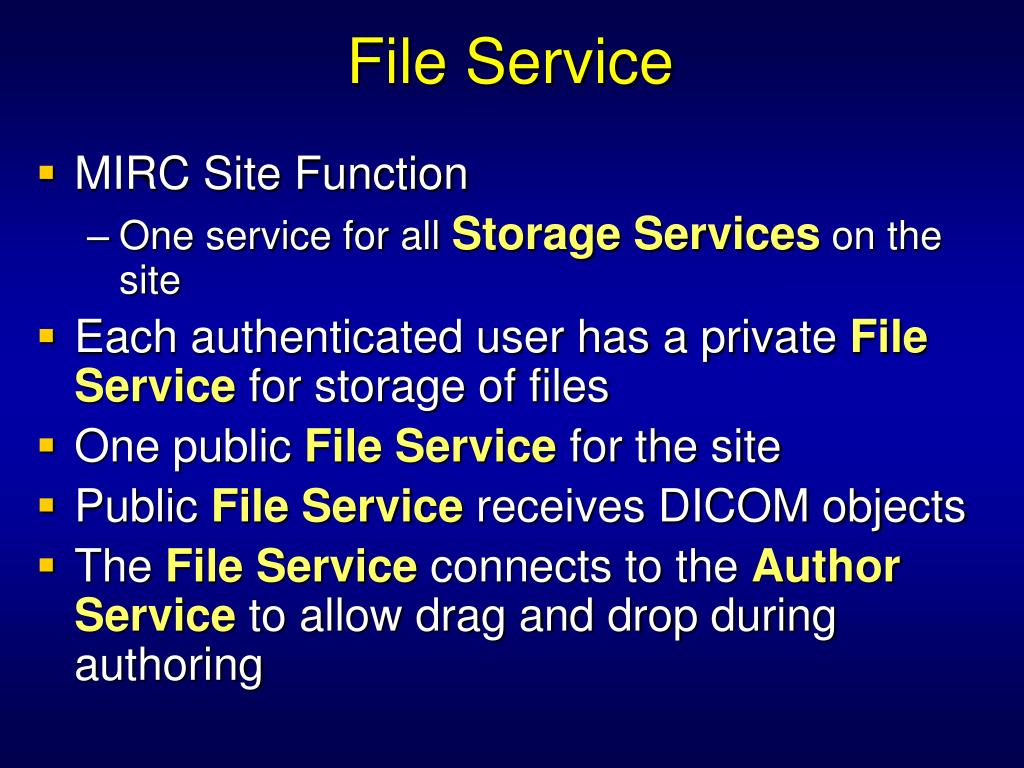

  26. File Service • MIRC Site Function • One service for all Storage Services on the site • Each authenticated user has a private File Service for storage of files • One public File Service for the site • Public File Service receives DICOM objects • The File Service connects to the Author Service to allow drag and drop during authoring

  27. Demonstration

  28. The RSNA MIRC Software • Available on the RSNA MIRC site • http://mirc.rsna.org • Click the Downloads link in the header

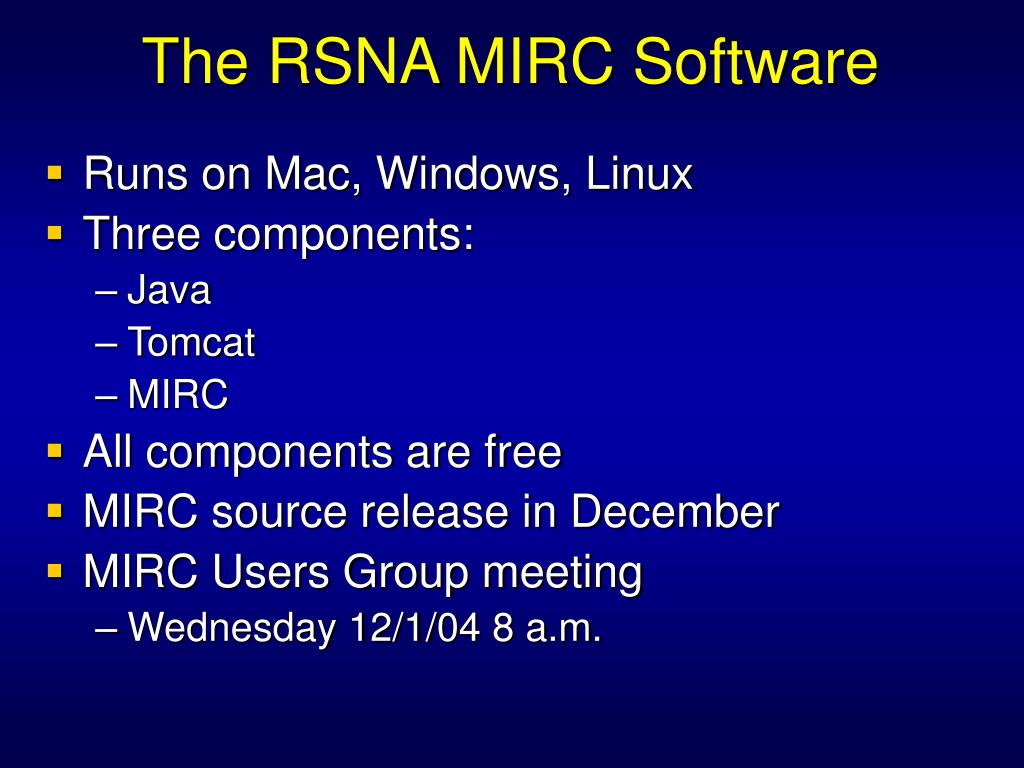

  29. The RSNA MIRC Software • Runs on Mac, Windows, Linux • Three components: • Java • Tomcat • MIRC • All components are free • MIRC source release in December • MIRC Users Group meeting • Wednesday 12/1/04 8 a.m.

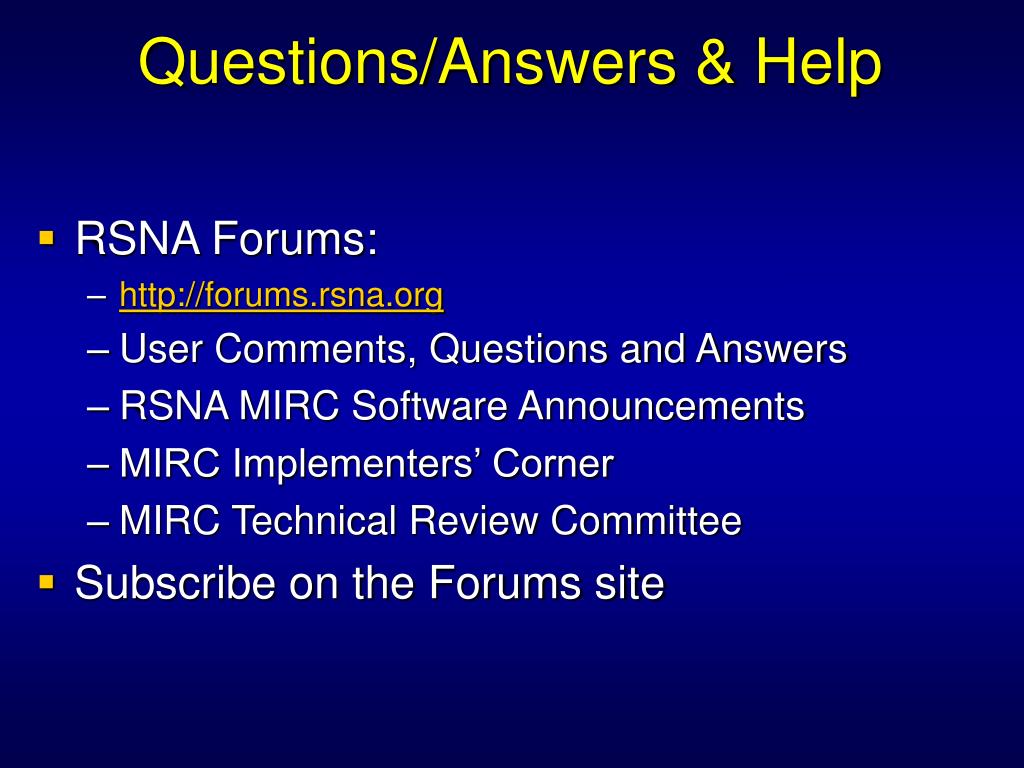

  30. Questions/Answers & Help • RSNA Forums: • http://forums.rsna.org • User Comments, Questions and Answers • RSNA MIRC Software Announcements • MIRC Implementers’ Corner • MIRC Technical Review Committee • Subscribe on the Forums site

  31. Thank You! http://mirc.rsna.org
