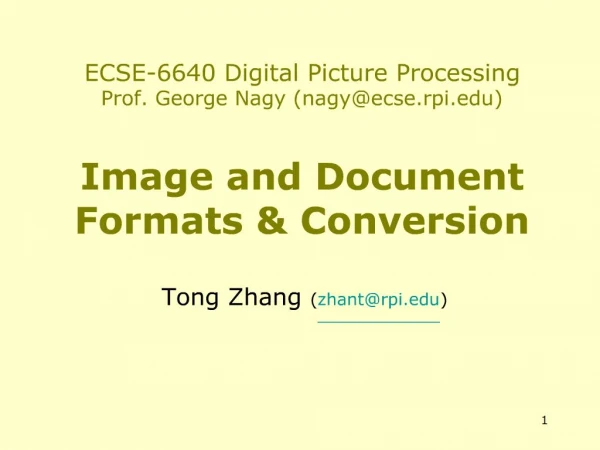

    1. 1 ECSE-6640 Digital Picture Processing Prof. George Nagy (nagy@ecse.rpi.edu) Image and Document Formats & Conversion Tong Zhang (zhant@rpi.edu)

    2. 2 Coverage Image representations with different formats (meta-information) GIF, BMP, JPEG, TIFF, PBM, PGM, PPM, PS, EPS Document representations that combine images, texts, music, video etc. Latex, SGML, XML, HTML, PDF (Portable Document Format), ODA (Office Document Architecture)

    3. 3 Outline Why discuss this topic? What are the categories? What are the common types of image formats? What are the tools to view and manipulate them? Which one should I pick to use? How to guess an image format? Document formats

    4. 4 1. Why discuss this topic? Understand the advantages and disadvantages of various image formats Know the available tools Aware of what’s going on when using these tools Choose the appropriate image format for your own work

    5. 5 2. What are the categories? One categorization: Raster Image Formats Vector Image Formats Another categorization: Binary Image Formats ASCII Image Formats

    6. 6 2.1 Raster Image Formats Breaks the image into a series of color dots called “pixels” The number of bits at each pixel determines the maximum number of colors 1 bits = 2 (21) colors 2 bits = 4 (22) colors 4 bits = 16 (24) colors 8 bits = 256 (28) colors 16 bits = 65,536 (216) colors 24 bits = 16,777,216 (224) colors!

    7. 7

    8. 8 Instead …

    9. 9 2.2 Vector Image Formats Break the image into a set of mathematical descriptions of shapes: curve, arc, rectangle, sphere etc. Resolution-independent: scalable without the problem of “pixelating”. Not all images are easily described in a mathematical form. How to describe a photograph?

    10. 10 2.3 Comparison Raster Resolution-dependent Suitable for photographs Smooth tones and subtle details Larger size Vector Resolution-independent Suitable for line drawings, CAD, logos Smooth curves Smaller size

    11. 11 3. What are the common types of image formats? Raster: GIF (Graphics Interchange Format), Bitmap, JPEG, TIFF, PBM (Portable Bit Map - binary), PGM (Portable Gray Map – grayscale), PPM(Portable Pixel Map - color), PNM (Portable Any Map – any three), PCD(Photo CD), PNG (Portable Network Graphics), etc. Vector: PS(Postscript), EPS (Embedded Postscript), CDW (CorelDraw), WMF (Windows Metafile), SVG (Scalable Vector Graphics), etc.

    12. 12 3.1 CompuServ GIF – Graphics Interchange Format First standardized in 1987 by CompuServ (called GIF87a) Updated in 1989 to include transparacy, interlacing, and animation (called GIF89a) Use the LZW (Lempel-Ziv Welch) algorithm for compression A maximum of 256 colors, so doesn’t work well for photographs Suitable for small images such as icons Simple animations Interlacing vs. non-interlacing Transparency: choose 1 color and blank it out, so what ever behind the image will show through. Non-interlacing: fill the image region from top to bottom, one line after another. Interlacing: first fill the odd lines from top to bottom, then fill the even lines, just like the television. Results are identical. But interlacing can first give a rough view of the image -> suitable for transmission of an image using a phone line.Transparency: choose 1 color and blank it out, so what ever behind the image will show through. Non-interlacing: fill the image region from top to bottom, one line after another. Interlacing: first fill the odd lines from top to bottom, then fill the even lines, just like the television. Results are identical. But interlacing can first give a rough view of the image -> suitable for transmission of an image using a phone line.

    13. 13 3.2 Bitmaps Can create great image with 24 or even 32 bits per pixel File size is large, for example, a bitmap image of size 1024x768 with 24 bits per pixel is at least 1024x768x3 = 2 MBs How to reduce size? Run Length Encoding (RLE) – lossless What about even smaller size? Lossy encoding such as JPEG.

    14. 14 3.3 JPEG (Joint Photographic Experts Group) Lossy encoding Like interlaced GIFs, there is progressive JPEGs Progressive as compared to sequentialProgressive as compared to sequential

    15. 15 3.4 TIFF (Tag Image File Format) Tag-based image format Originated in 1986 at Aldus Corp. (PageMaker), the latest version 6.0 Developed by Aldus and Microsoft Platform-independent Mostly used by scanners and desktop publishing http://www.libtiff.org/ for a TIFF library Support compressions of CCITT Fax 3 & 4, LZW, JPEG etc. Support multiple color spaces: Grayscale, RGB, YCbCr, CMYK etc.

    16. 16 Some details File Header Byte Order (2 bytes): MM or II Version (2 bytes): 42 (deep philosophical reason!) Pointer to first IFD (4 bytes) IFD (Image File Directory) Pointer count (2 bytes) Tagged Pointer 0 (12 bytes) Tagged Pointer 1 (12 bytes) …. Pointer to next IFD (if none, 0000) (4 bytes)

    17. 17 Some details - continued Tagged pointer (12 bytes) Tag code (2 bytes): in the specs Type of data (2 bytes): 1 (BYTE), 2 (ASCII), 3 (SHORT), 4 (LONG), 5 (rational) Length (4 bytes) Data pointer or data field

    18. 18 3.5 PBM, PGM, PPM (Portable Bit Map, Portable Gray Map, Portable Pixel Map) ASCII / Binary format Easy to edit a.pbm a.pgm a.ppm

    19. 19 3.6 PS (PostScript) A programming language from Adobe for printing graphics and text (stack based, interpreted language using RPN – Reverse Polish Notation) A page description language that is device-independent (introduced in 1985 by Adobe) Different levels: Level 1, 2, 3 Change coordinate system, scaling, translation, rotation, filling, clipping, etc. Main unit: point (1/72 of an inch)

    20. 20 3.7 EPS (Embedded PostScript) A Postscript with additional rules For putting postscript in a document Essential information: what is the size of the image

    21. 21 3.8 SVG (Scalable Vector Graphics) A language for describing 2D graphics and applications in XML SVG specification and current implementations: http://www.w3.org/TR/SVG/ Adobe SVG Viewer http://www.adobe.com/svg/main.html

    22. 22 4. What are the tools to view and manipulate them? Use image editors For raster image: Abobe Photoshop, Paint Shop Pro, xv For vector image:Adobe Freehand, Adobe Illustrator, ghostview, xfig For conversion between different image formats: ImageMagick (free with different platforms)

    23. 23 5. Which one should I use? No unique answer A small image like icons, a grayscale image – GIF A large image, photographs, an image with many colors – JPEG Scalability required – PS, EPS

    24. 24 6. How to guess an image format? Image magic words GIF: “GIF” TIFF: “II” or “MM” BMP: “BMP” JPEG: FF,D8 (hexadecimal) – Start of Image Marker (SOI) PS: %!PS-Adobe-3.0 EPS: %!PS-Adobe-3.0 EPSF-3.0

    25. 25 7. Document Representations Text: ASCII, UNICODE Page composition languages - Word processing (WYSIWYG), RTF - Typesetting (Tex, FrameMaker) Document Interchange Formats: DIF(Document Interchange Format), SGML, ODA (Office Document Architecture) Presentation Formats: HTML, PDF

    26. 26 7.1 Tex & LaTeX A high-quality typesetting system Designed to produce technical and scientific documentation Based on Donald E. Knuth's TeX typesetting language First developed in 1985 by Leslie Lamport Cross-platform Useful if you are writing your thesis!

    27. 27 7.2 DIF (Document Interchange Format) Text only, no graphics or complex structures ASCII stream of text and instructions (prefixed by ESC)

    28. 28 7.3 Office Document Architecture (ODA) A market code standard by ISO For actual coding, it has a companion called Office Document Interchange Format (ODIF) Describes the logical structure and layouts.

    29. 29 7.4 Standard Generalized Markup Language (SGML) “Meta” language: used to define markup languages Established by the International Standards Organization (ISO) in 1986 SGML is not a markup standard, but a framework for devising such a standard http://xml.coverpages.org/sgml.html

    30. 30 7.5 Hypertext Markup Language (HTML) A subset of SGML (an application of SGML) A HTML file is in ASCII Has standard codes Can be edited by a simple text editor, but dedicated authoring tools are usually much more convenient

    31. 31 7.6 Portable Document Format (PDF) Adobe’s de facto standard for secure and reliable distribution and exchange of electronic documents Can embed fonts, images, graphics, forms, controls, layouts, media, etc. Searchable, hyperlinks, digital signature, Application and platform independent http://partners.adobe.com/asn/tech/pdf/index.jsp

    32. 32 7.7 RTF (Rich Text Format) Microsoft Text & graphics Use ANSI, PC-8, Macintosh, or IBM PC character sets Currently the documents can be transferred between Windows and Macs
