Presentation Transcript
umass lowell computer science 91 404 analysis of algorithms prof karen daniels fall 2001

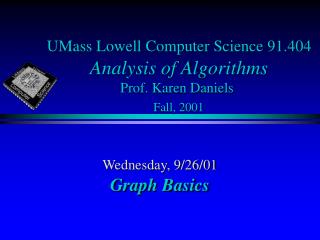

UMass Lowell Computer Science 91.404Analysis of AlgorithmsProf. Karen DanielsFall, 2001

Wednesday, 9/26/01

Graph Basics

introductory graph concepts

A

A

B

B

D

F

F

E

E

D

C

C

Introductory Graph Concepts
  • G= (V,E)
  • Vertex Degree
  • Self-Loops
  • Undirected Graph
    • No Self-Loops
    • Adjacency is symmetric
  • Directed Graph (digraph)
    • Degree: in/out
    • Self-Loops allowed

This treatment follows 91.503 textbook Cormen et al. Some definitions differ slightly from other graph literature.

introductory graph concepts representations

A

A

B

B

A B C D E F

A B C D E F

D

A

B

C

D

E

F

A BC

B CEF

C

D D

E BD

F E

A BC

B ACEF

C AB

D E

E BDF

F BE

A

B

C

D

E

F

F

F

E

E

D

C

C

Introductory Graph Concepts:Representations
  • Undirected Graph
  • Directed Graph (digraph)

Adjacency Matrix

Adjacency List

Adjacency List

Adjacency Matrix

This treatment follows 91.503 textbook Cormen et al. Some definitions differ slightly from other graph literature.

introductory graph concepts paths cycles

A

A

B

B

F

A

B

E

E

F

E

C

D

D

D

C

C

F

Introductory Graph Concepts:Paths, Cycles

path <A,B,F>

  • Path:
    • length: number of edges
    • simple: all vertices distinct
  • Cycle:
    • Directed Graph:
      • <v0,v1,...,vk > forms cycle if v0=vk and k>=1
      • simple cycle: v1,v2..,vk also distinct
      • self-loop is cycle of length 1
    • Undirected Graph:
      • <v0,v1,...,vk > forms (simple) cycle if v0=vk and k>=3
      • simple cycle: v1,v2..,vk also distinct

simple cycle <E,B,F,E>

simple cycle <A,B,C,A>= <B,C,A,B>

This treatment follows 91.503 textbook Cormen et al. Some definitions differ slightly from other graph literature.

introductory graph concepts connectivity

A

A

A

A

B

B

B

D

D

F

F

F

E

E

E

D

D

C

C

C

C

B

strongly connected component

F

E

Introductory Graph Concepts:Connectivity

connected

  • Undirected Graph: connected
    • every pair of vertices is connected by a path
    • one connected component
    • connected components:
      • equivalence classes under “is reachable from” relation
  • Directed Graph: strongly connected
    • every pair of vertices is reachable from each other
    • one stronglyconnected component
    • strongly connected components:
      • equivalence classes under “mutually reachable” relation

2 connected components

not strongly connected

This treatment follows 91.503 textbook Cormen et al. Some definitions differ slightly from other graph literature.
