UMass Lowell Computer Science 91.503 Analysis of Algorithms Prof. Karen Daniels Fall, 2001

1. UMass Lowell Computer Science 91.503Analysis of AlgorithmsProf. Karen DanielsFall, 2001 Lecture 9 Tuesday, 11/20/01 Parallel Algorithms Chapters 28, 30

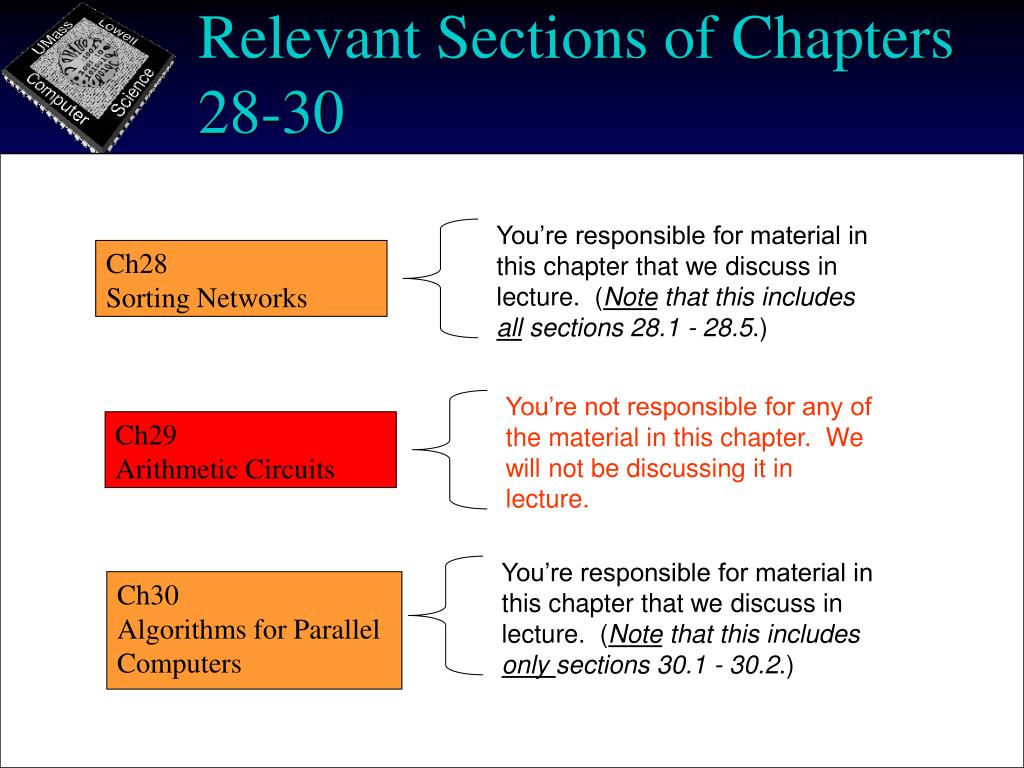

2. Relevant Sections of Chapters 28-30 You’re responsible for material in this chapter that we discuss in lecture. (Note that this includes all sections 28.1 - 28.5.) Ch28 Sorting Networks You’re not responsible for any of the material in this chapter. We will not be discussing it in lecture. Ch29 Arithmetic Circuits You’re responsible for material in this chapter that we discuss in lecture. (Note that this includes only sections 30.1 - 30.2.) Ch30 Algorithms for Parallel Computers

3. Overview • Sorting Networks • Comparison Networks • 0-1 Principle • Bitonic Sorting Network • Merging Network • Sorting Network • Algorithms for Parallel Computers • PRAM Model • Pointer Jumping • CRCW Algorithms vs. EREW Algorithms

4. Sorting NetworksChapter 28 Comparison Networks 0-1 Principle Bitonic Sorting Network Merging Network Sorting Network

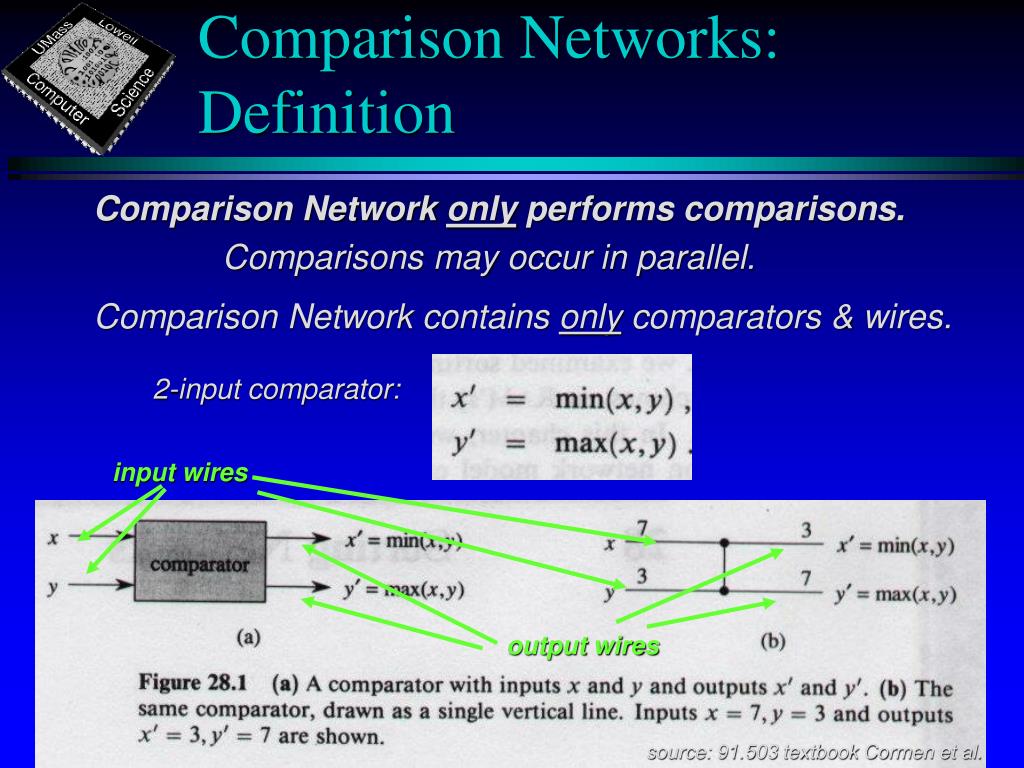

5. Comparison Networks:Definition Comparison Network only performs comparisons. Comparisons may occur in parallel. Comparison Network contains only comparators & wires. 2-input comparator: input wires output wires source: 91.503 textbook Cormen et al.

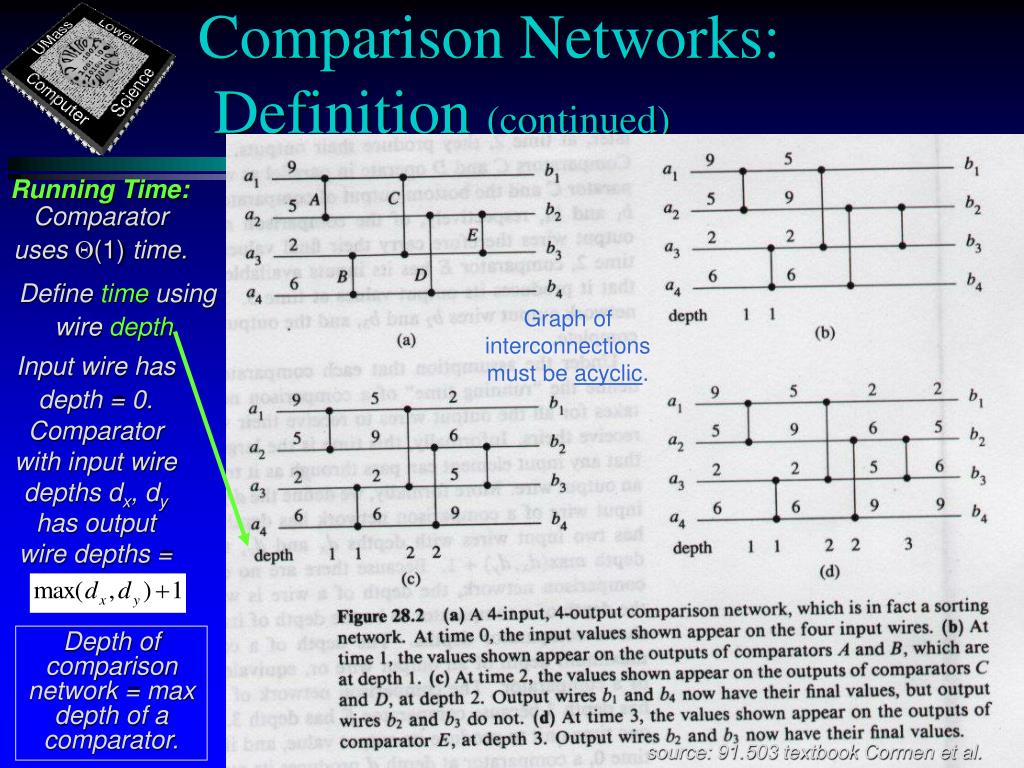

6. Comparison Networks: Definition (continued) Running Time: Comparator uses Q(1) time. Define time using wire depth. Graph of interconnections must be acyclic. Input wire has depth = 0. Comparator with input wire depths dx, dy has output wire depths = Depth of comparison network = max depth of a comparator. source: 91.503 textbook Cormen et al.

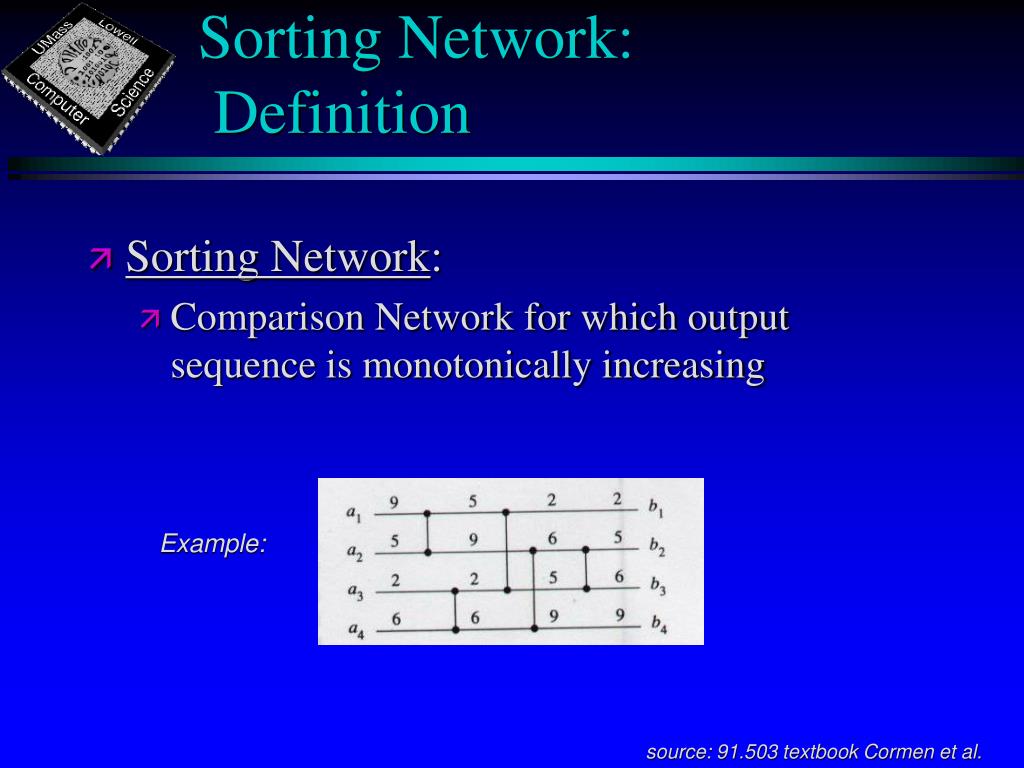

7. Sorting Network: Definition • Sorting Network: • Comparison Network for which output sequence is monotonically increasing Example: source: 91.503 textbook Cormen et al.

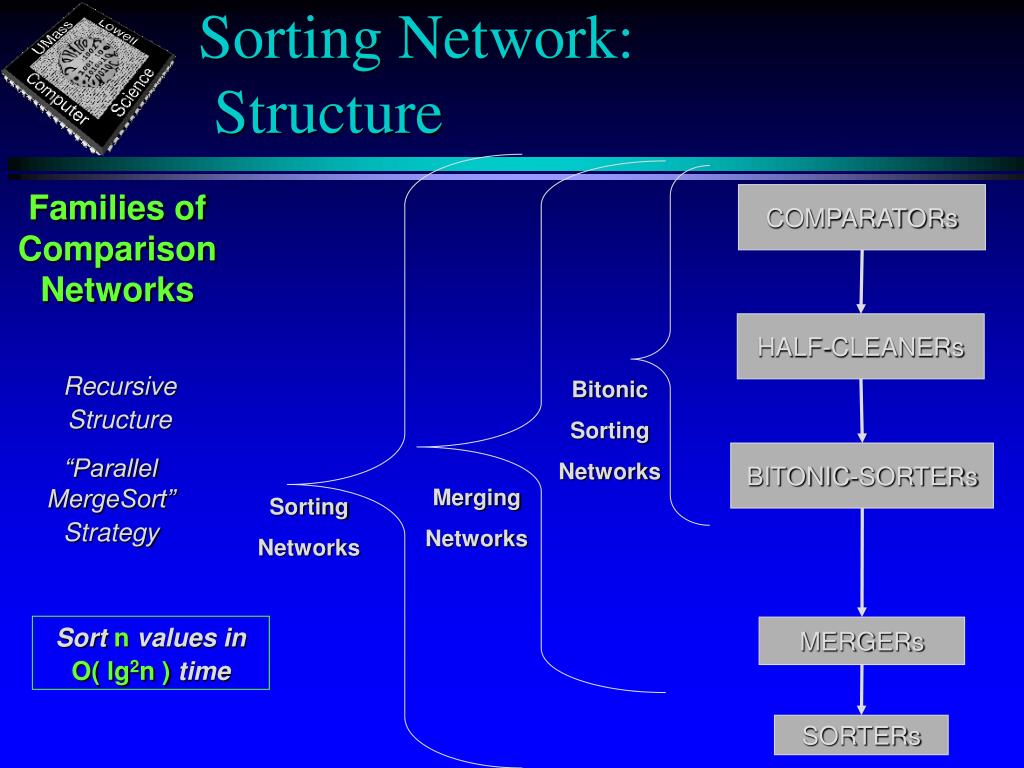

8. COMPARATORs HALF-CLEANERs Bitonic Sorting Networks BITONIC-SORTERs Merging Networks Sorting Networks MERGERs SORTERs Sorting Network: Structure Families of Comparison Networks Recursive Structure “Parallel MergeSort” Strategy Sort n values in O( lg2n ) time

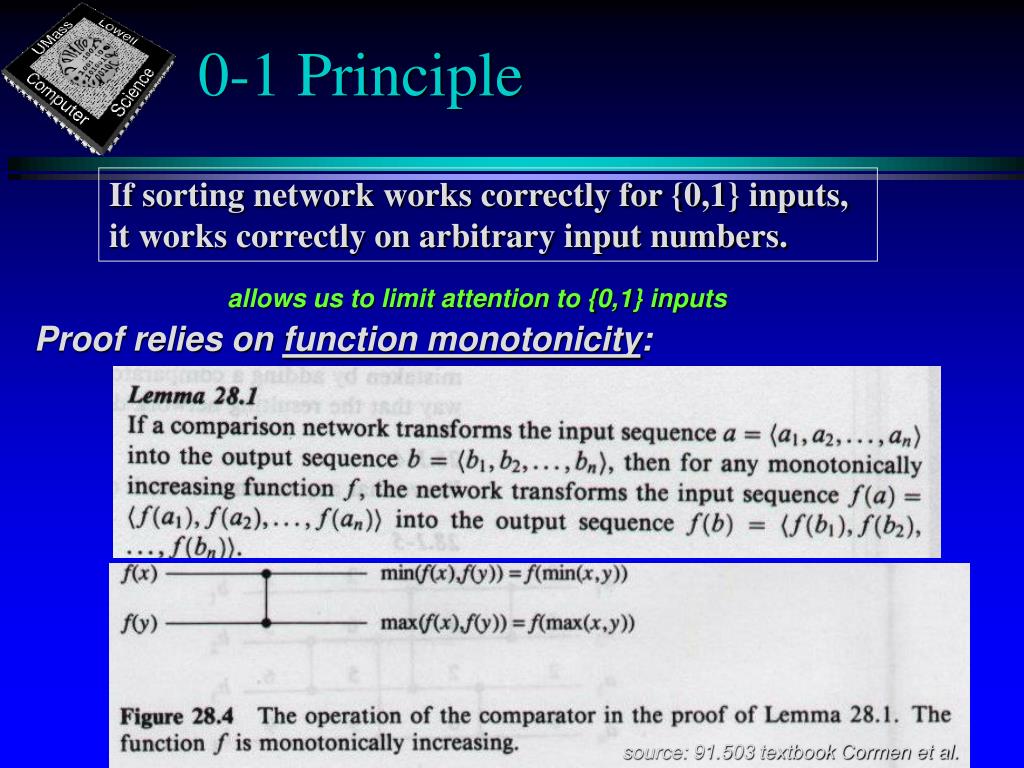

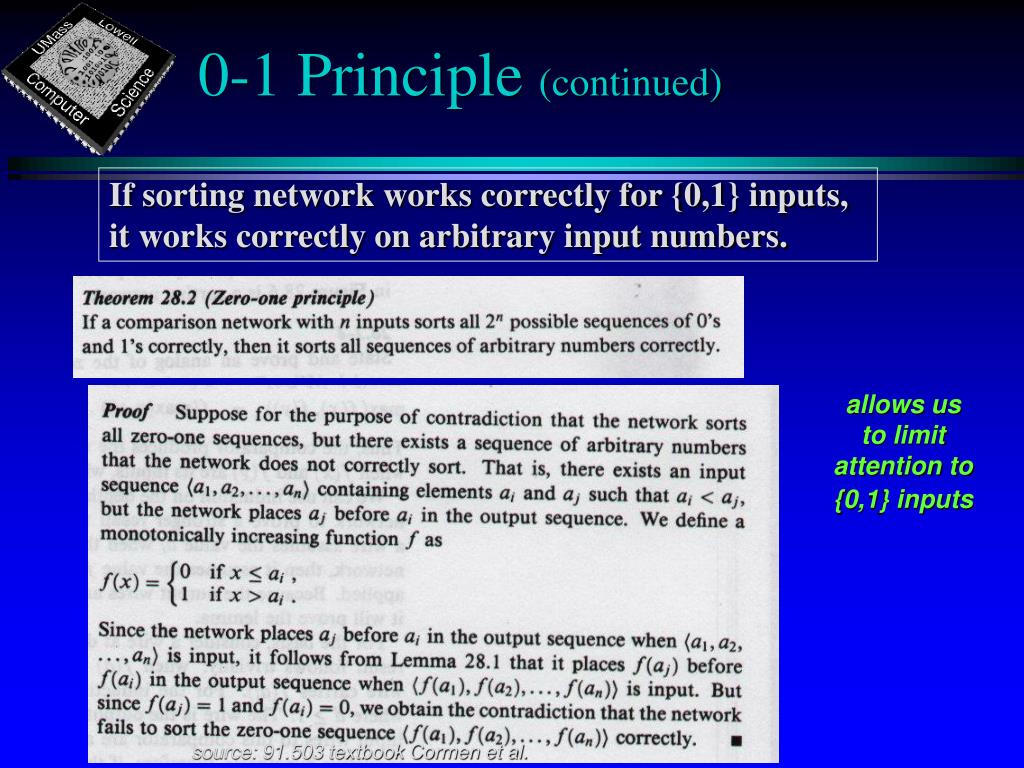

9. 0-1 Principle If sorting network works correctly for {0,1} inputs, it works correctly on arbitrary input numbers. allows us to limit attention to {0,1} inputs Proof relies on function monotonicity: source: 91.503 textbook Cormen et al.

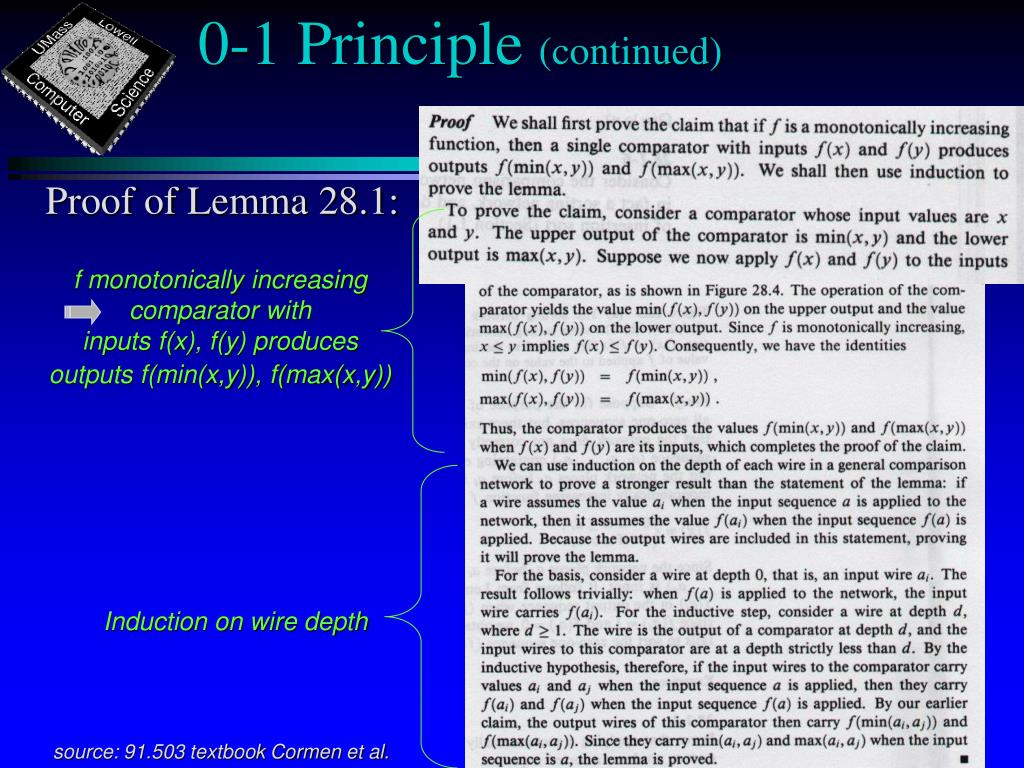

10. 0-1 Principle (continued) Proof of Lemma 28.1: f monotonically increasing comparator with inputs f(x), f(y) produces outputs f(min(x,y)), f(max(x,y)) Induction on wire depth source: 91.503 textbook Cormen et al.

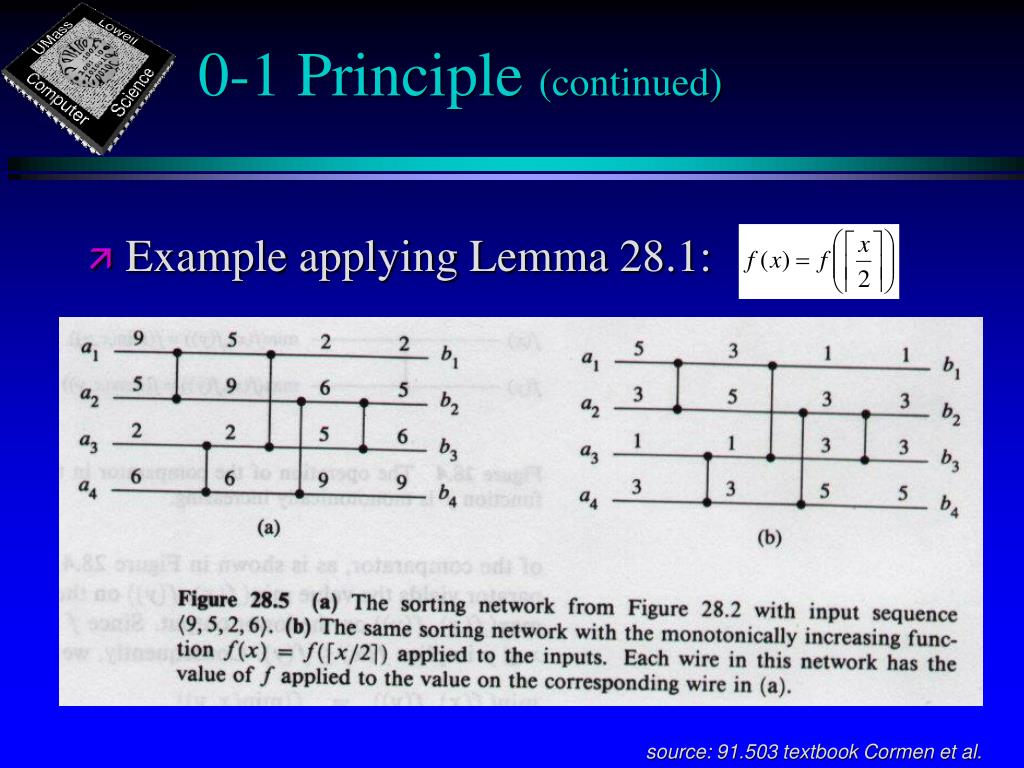

11. 0-1 Principle (continued) • Example applying Lemma 28.1: source: 91.503 textbook Cormen et al.

12. 0-1 Principle (continued) If sorting network works correctly for {0,1} inputs, it works correctly on arbitrary input numbers. allows us to limit attention to {0,1} inputs source: 91.503 textbook Cormen et al.

13. Sorting Network: Structure Families of Comparison Networks COMPARATORs HALF-CLEANERs Recursive Structure Bitonic Sorting Networks BITONIC-SORTERs “Parallel MergeSort” Strategy Merging Networks Sorting Networks Sort n values in O( lg2n ) time MERGERs SORTERs

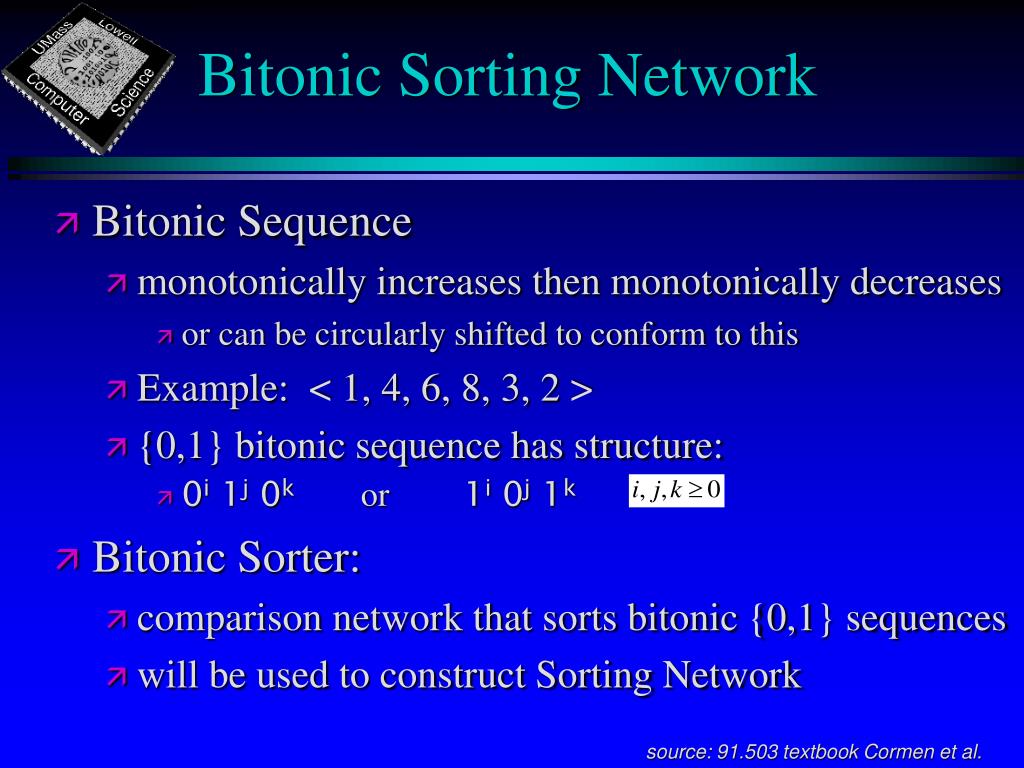

14. Bitonic Sorting Network • Bitonic Sequence • monotonically increases then monotonically decreases • or can be circularly shifted to conform to this • Example: < 1, 4, 6, 8, 3, 2 > • {0,1} bitonic sequence has structure: • 0i 1j 0kor 1i 0j 1k • Bitonic Sorter: • comparison network that sorts bitonic {0,1} sequences • will be used to construct Sorting Network source: 91.503 textbook Cormen et al.

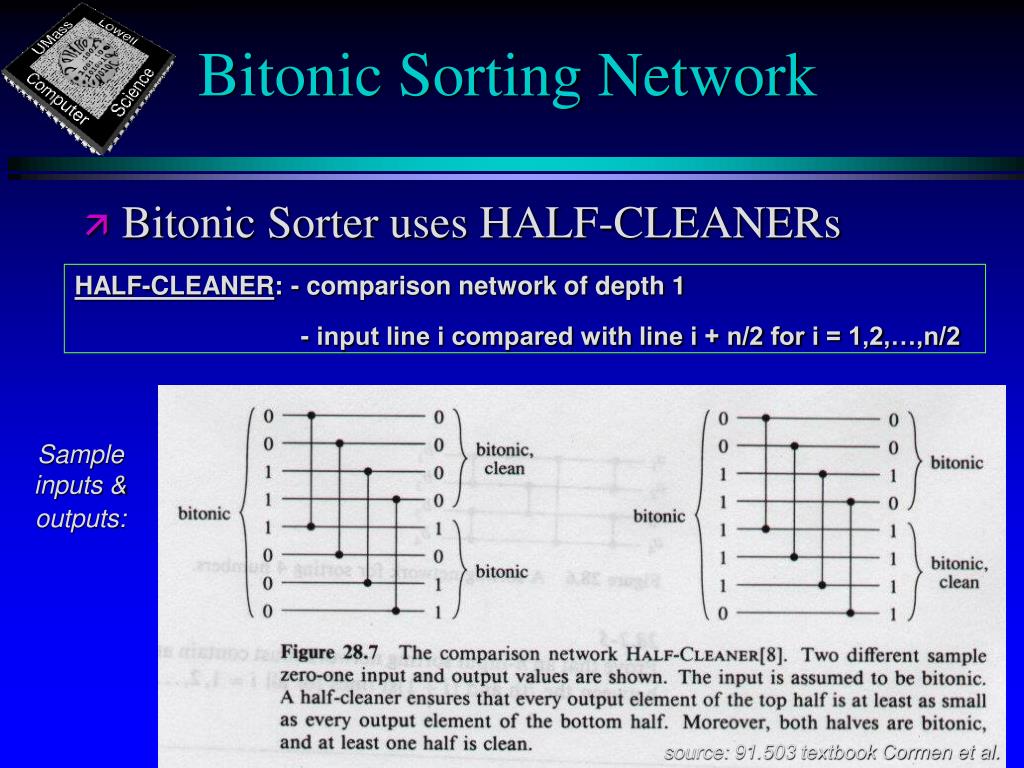

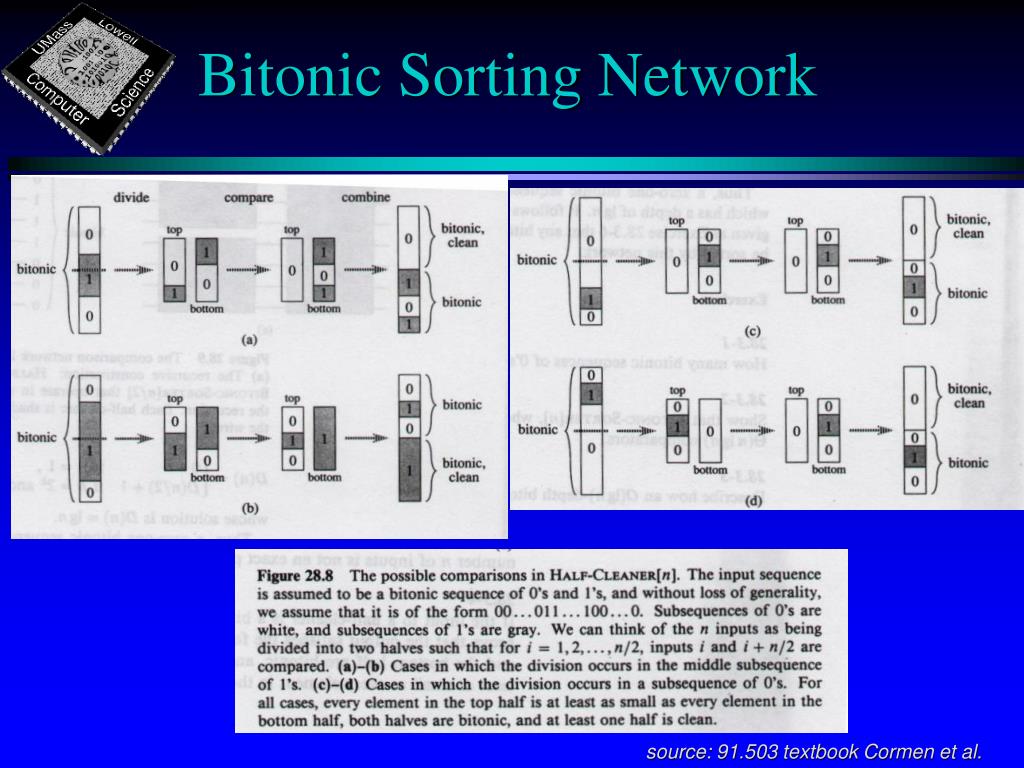

15. Bitonic Sorting Network • Bitonic Sorter uses HALF-CLEANERs HALF-CLEANER: - comparison network of depth 1 - input line i compared with line i + n/2 for i = 1,2,…,n/2 Sample inputs & outputs: source: 91.503 textbook Cormen et al.

16. Bitonic Sorting Network source: 91.503 textbook Cormen et al.

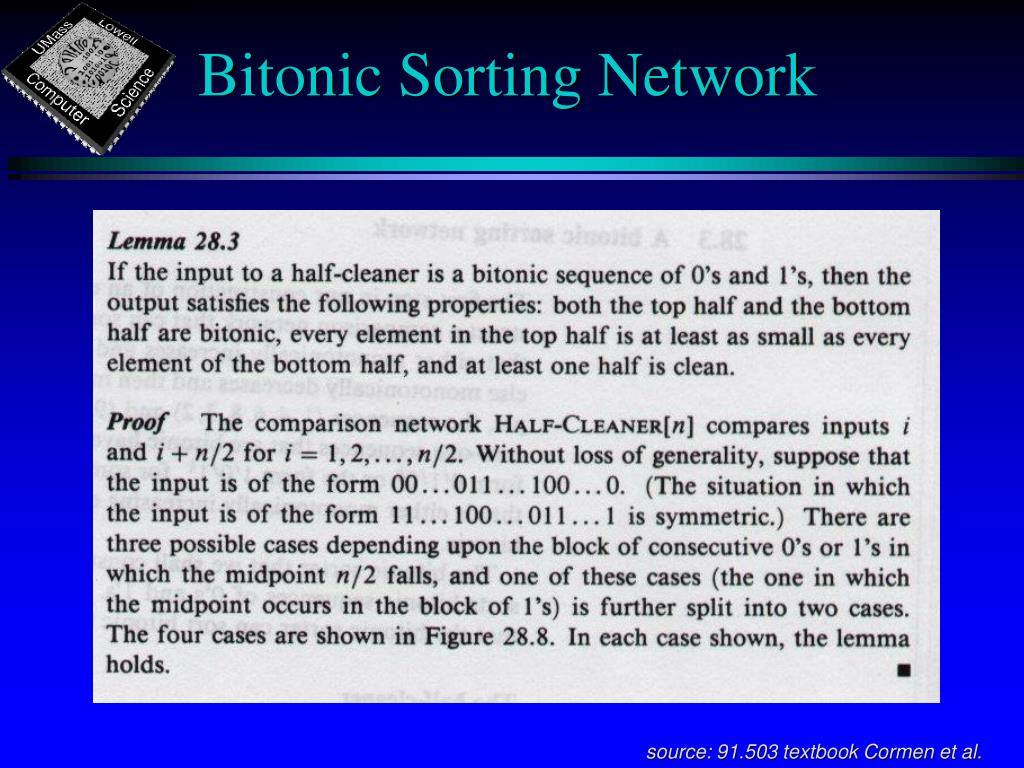

17. Bitonic Sorting Network source: 91.503 textbook Cormen et al.

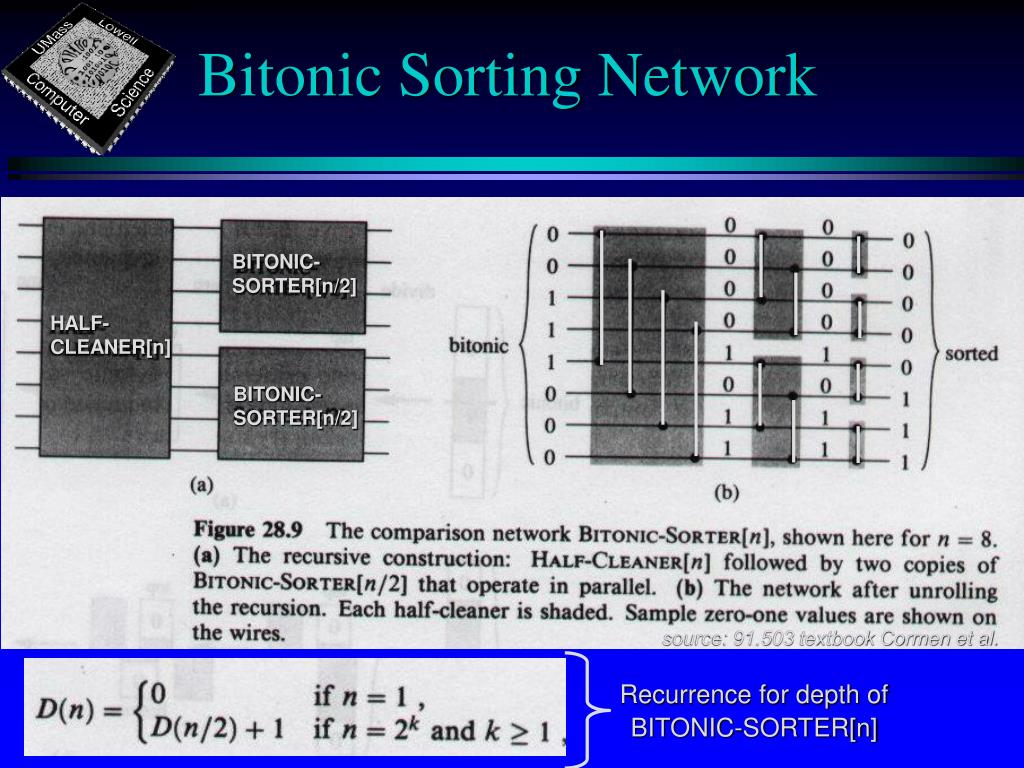

18. Bitonic Sorting Network BITONIC-SORTER[n/2] HALF-CLEANER[n] BITONIC-SORTER[n/2] source: 91.503 textbook Cormen et al. Recurrence for depth of BITONIC-SORTER[n]

19. Sorting Network: Structure Families of Comparison Networks COMPARATORs HALF-CLEANERs Recursive Structure Bitonic Sorting Networks BITONIC-SORTERs “Parallel MergeSort” Strategy Merging Networks Sorting Networks Sort n values in O( lg2n ) time MERGERs SORTERs

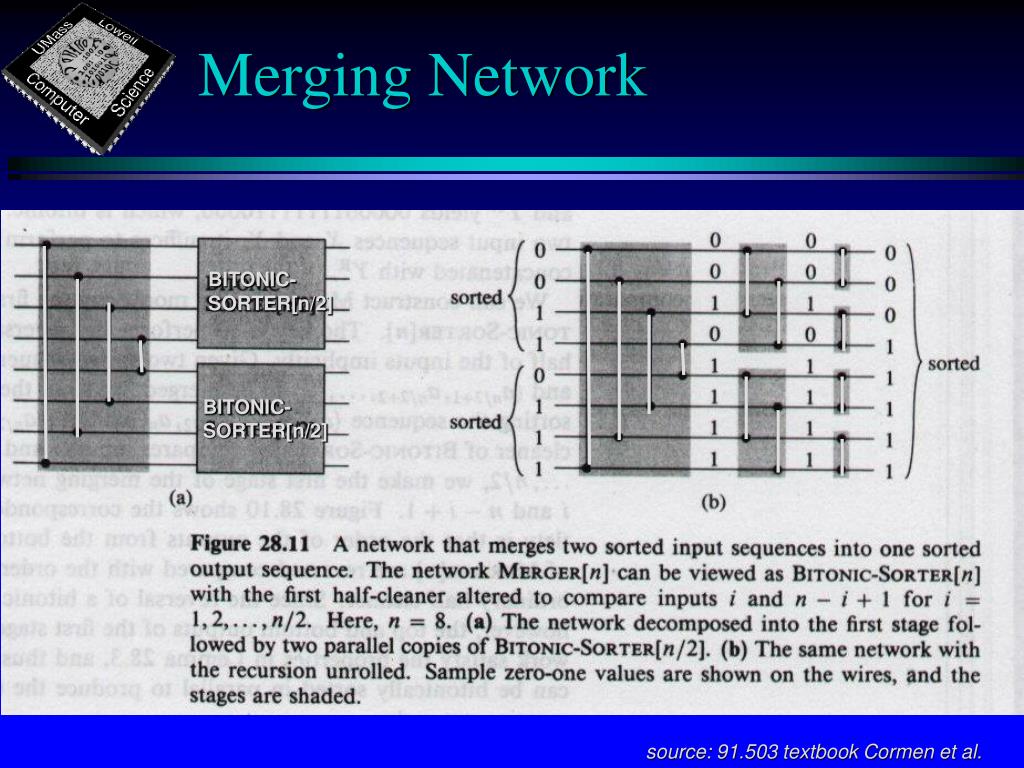

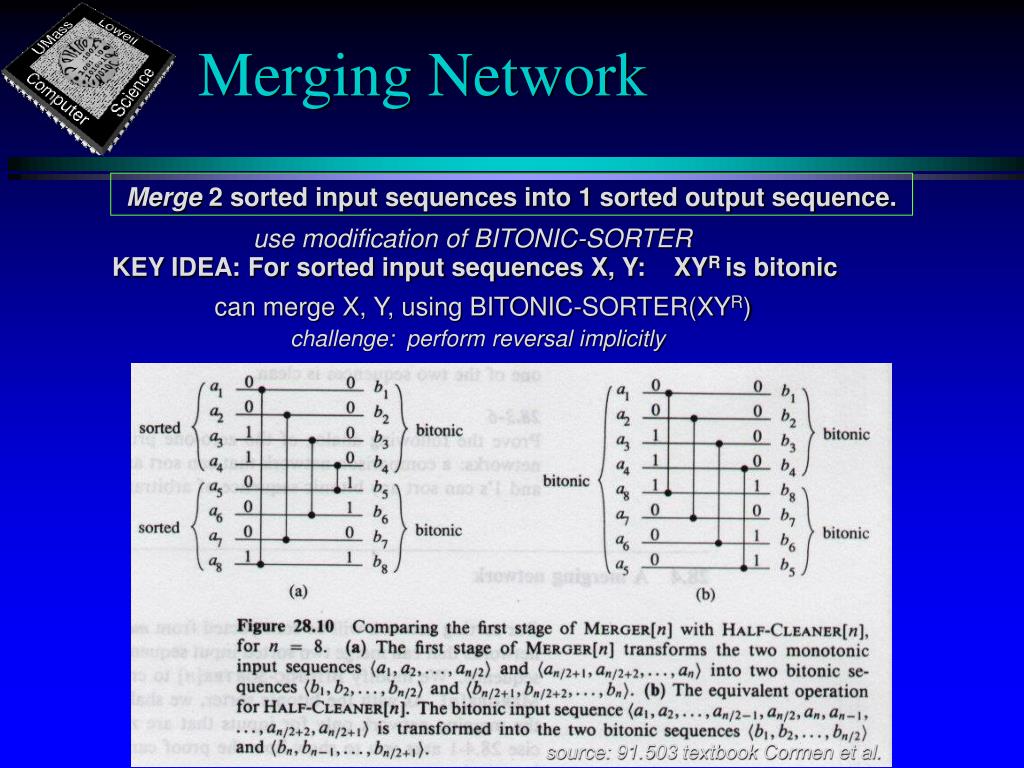

20. source: 91.503 textbook Cormen et al. Merging Network Merge 2 sorted input sequences into 1 sorted output sequence. use modification of BITONIC-SORTER KEY IDEA: For sorted input sequences X, Y: XYR is bitonic can merge X, Y, using BITONIC-SORTER(XYR) challenge: perform reversal implicitly

21. BITONIC-SORTER[n/2] BITONIC-SORTER[n/2] source: 91.503 textbook Cormen et al. Merging Network

22. Sorting Network: Structure Families of Comparison Networks COMPARATORs HALF-CLEANERs Recursive Structure Bitonic Sorting Networks BITONIC-SORTERs “Parallel MergeSort” Strategy Merging Networks Sorting Networks Sort n values in O( lg2n ) time MERGERs SORTERs

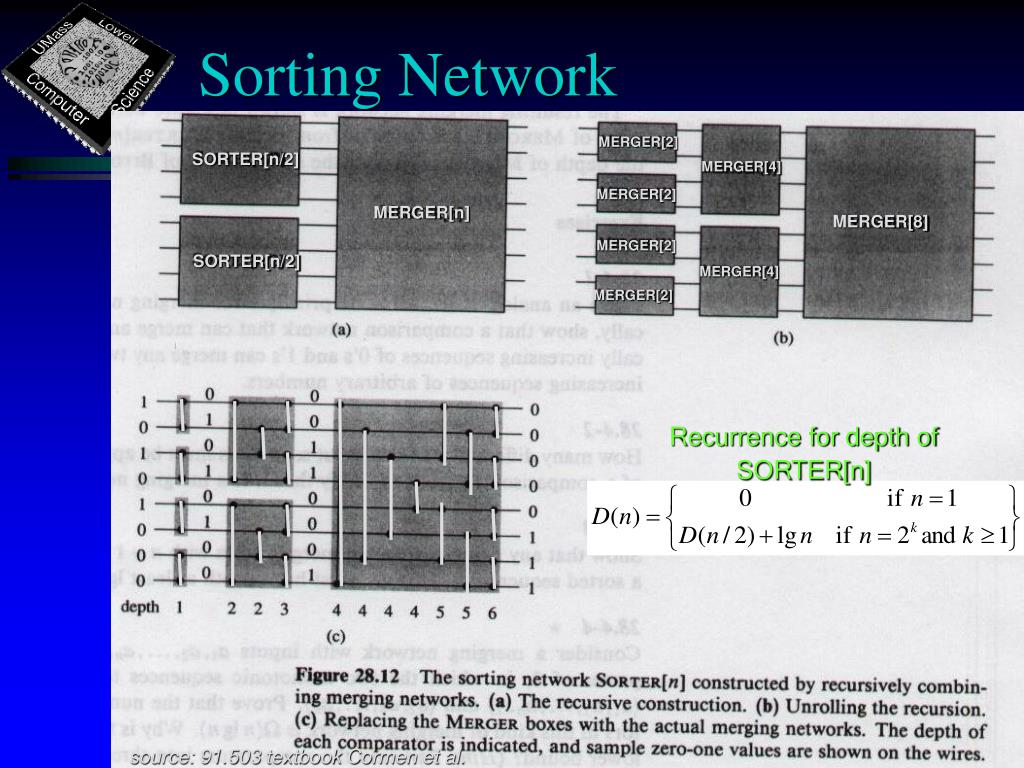

23. MERGER[2] SORTER[n/2] MERGER[4] MERGER[2] MERGER[n] MERGER[8] MERGER[2] SORTER[n/2] MERGER[4] MERGER[2] source: 91.503 textbook Cormen et al. Sorting Network Recurrence for depth of SORTER[n]

24. Algorithms for Parallel ComputersChapter 30 PRAM Model Pointer Jumping CRCW Algorithms vs. EREW Algorithms

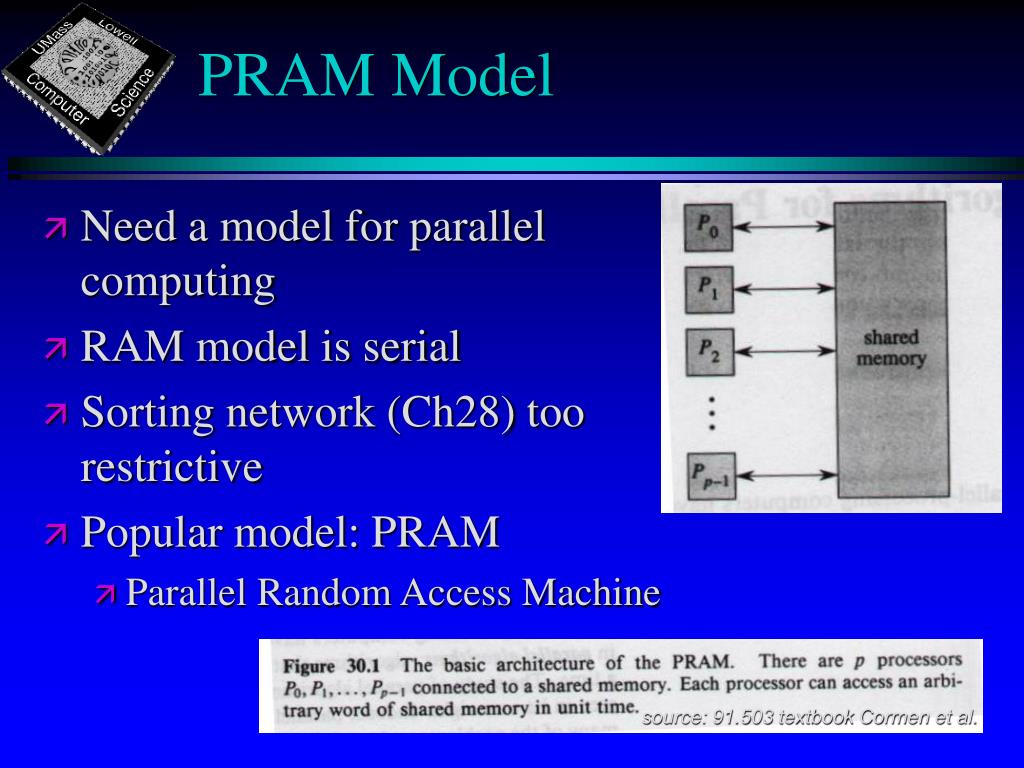

25. source: 91.503 textbook Cormen et al. PRAM Model • Need a model for parallel computing • RAM model is serial • Sorting network (Ch28) too restrictive • Popular model: PRAM • Parallel Random Access Machine

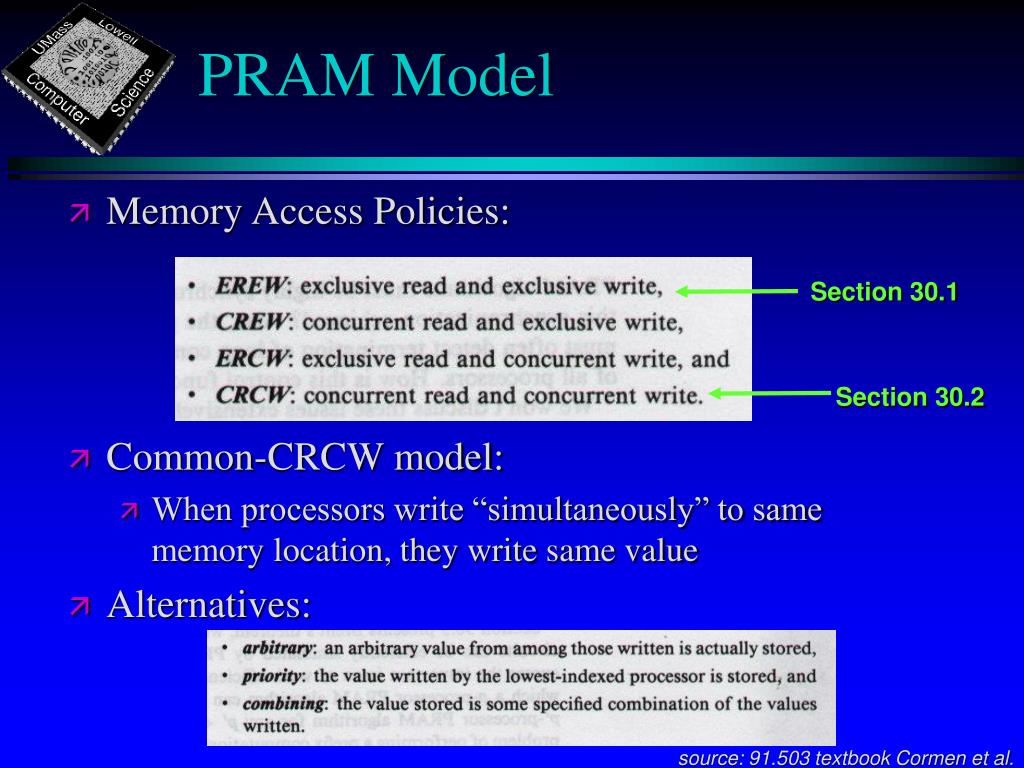

26. PRAM Model • Memory Access Policies: • Common-CRCW model: • When processors write “simultaneously” to same memory location, they write same value • Alternatives: Section 30.1 Section 30.2 source: 91.503 textbook Cormen et al.

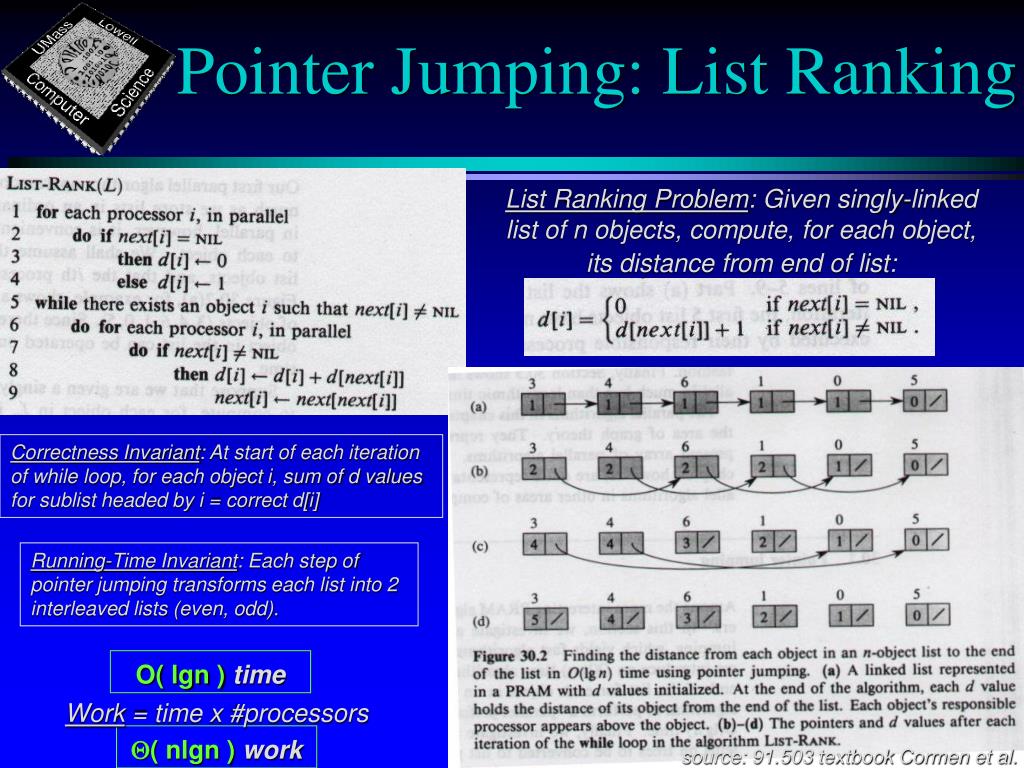

27. Pointer Jumping: List Ranking List Ranking Problem: Given singly-linked list of n objects, compute, for each object, its distance from end of list: Correctness Invariant: At start of each iteration of while loop, for each object i, sum of d values for sublist headed by i = correct d[i] Running-Time Invariant: Each step of pointer jumping transforms each list into 2 interleaved lists (even, odd). O( lgn ) time Work = time x #processors Q( nlgn ) work source: 91.503 textbook Cormen et al.

28. Pointer Jumping: Prefix start with x[i]=xk in each object i of the list Correctness Invariant: At end of tth iteration of while loop, kth processor stores [max(1,k-2t +1),k] Differences from LIST-RANK At each, if we perform prefix computation on each existing list, each object obtains correct value. O( lgn ) time source: 91.503 textbook Cormen et al.

29. Pointer Jumping: Euler Tour Problem: Compute depth of each node in n-node binary tree. 1) Construct Euler Tour of a graph: (cycle traversing each edge exactly once.) O(1) time 3 processors per node: 2) Initialize values for each of processor O(lgn) time 3) Parallel Prefix computation using + source: 91.503 textbook Cormen et al.

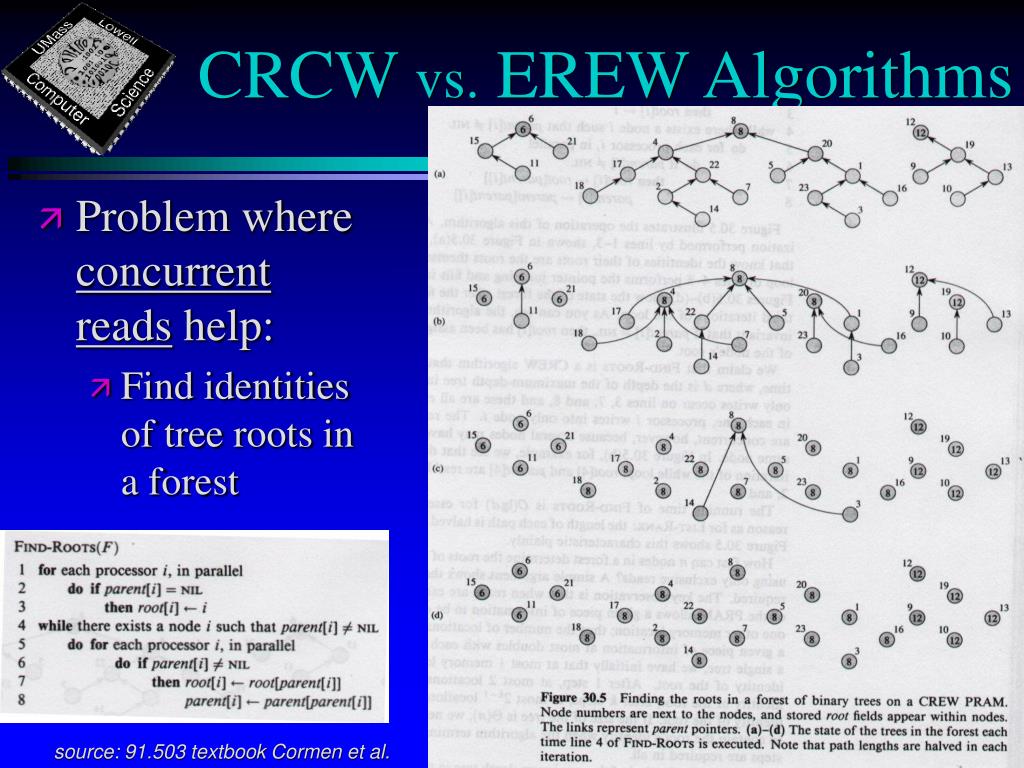

30. CRCW vs. EREW Algorithms • Problem where concurrent reads help: • Find identities of tree roots in a forest source: 91.503 textbook Cormen et al.

31. CRCW vs. EREW Algorithms • Problem where concurrent writes help: • Find maximum element in array of real numbers source: 91.503 textbook Cormen et al.

32. CRCW vs. EREW Algorithms source: 91.503 textbook Cormen et al.
