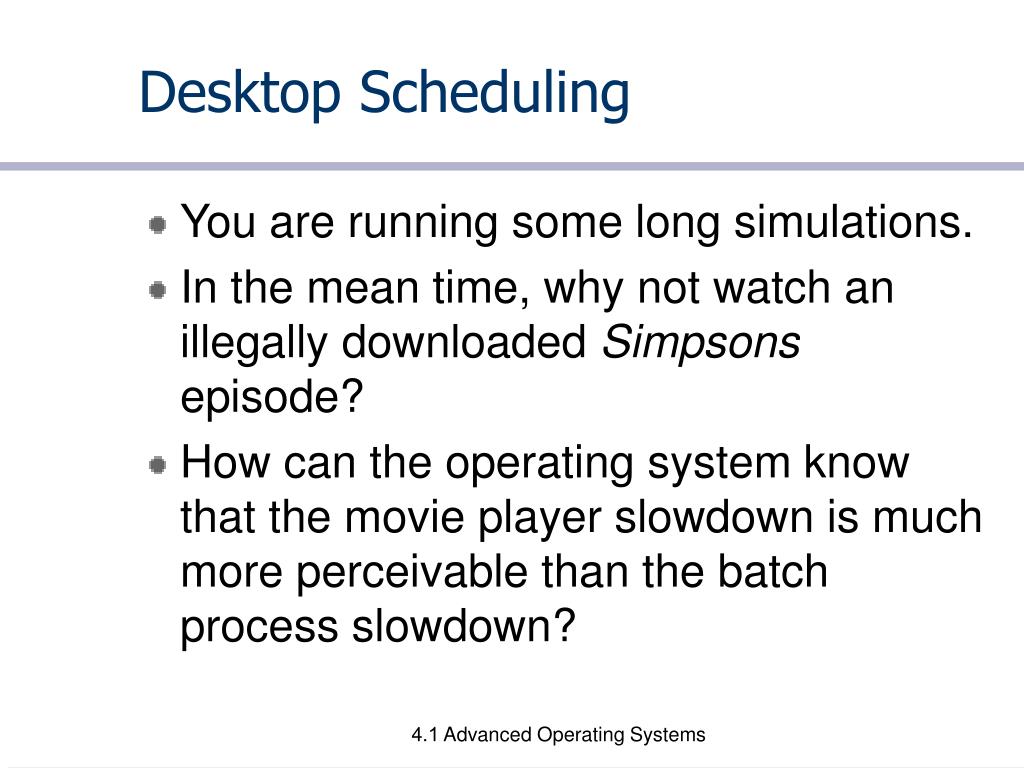

  1. Desktop Scheduling • You are running some long simulations. • In the mean time, why not watch an illegally downloaded Simpsons episode? • How can the operating system know that the movie player slowdown is much more perceivable than the batch process slowdown? 4.1 Advanced Operating Systems

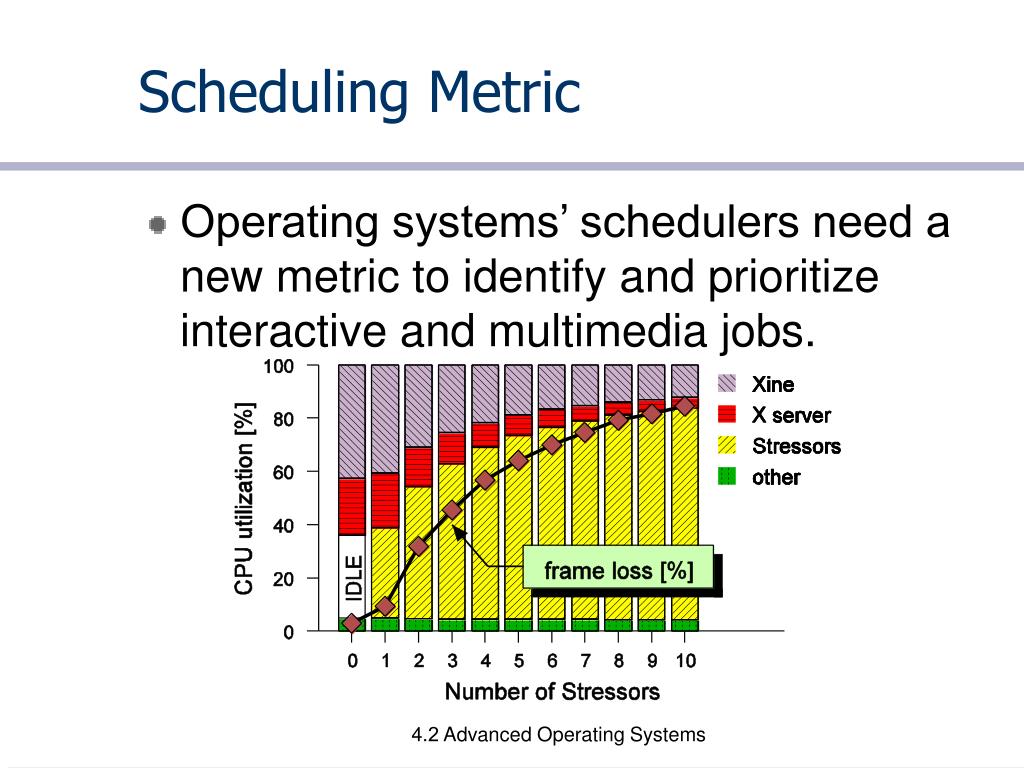

  2. Scheduling Metric • Operating systems’ schedulers need a new metric to identify and prioritize interactive and multimedia jobs. 4.2 Advanced Operating Systems

  3. Real-Time Priority • Most of UNIX and Windows versions support a real-time scheduling. • A real-time process is served before the other processes will be served. • In some OSes the real-time definition is set on coding time, while in some other OSes the definition can be set on running time. • Both shift the burden to the user/programmer 4.3 Advanced Operating Systems

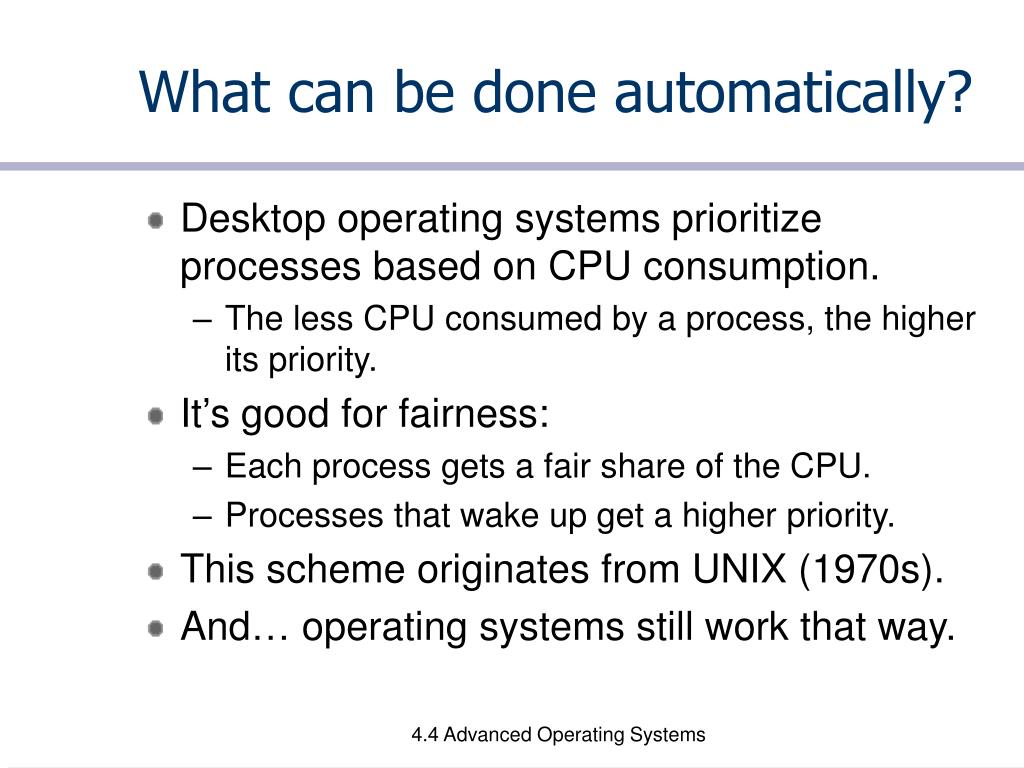

  4. What can be done automatically? • Desktop operating systems prioritize processes based on CPU consumption. • The less CPU consumed by a process, the higher its priority. • It’s good for fairness: • Each process gets a fair share of the CPU. • Processes that wake up get a higher priority. • This scheme originates from UNIX (1970s). • And… operating systems still work that way. 4.4 Advanced Operating Systems

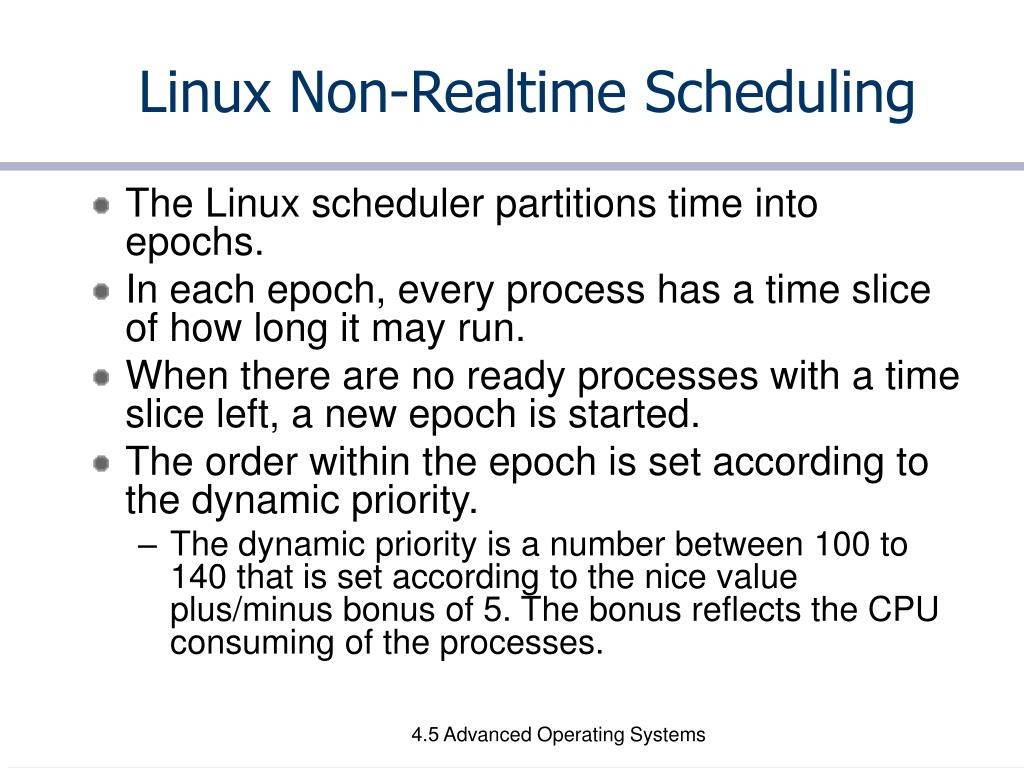

  5. Linux Non-Realtime Scheduling • The Linux scheduler partitions time into epochs. • In each epoch, every process has a time slice of how long it may run. • When there are no ready processes with a time slice left, a new epoch is started. • The order within the epoch is set according to the dynamic priority. • The dynamic priority is a number between 100 to 140 that is set according to the nice value plus/minus bonus of 5. The bonus reflects the CPU consuming of the processes. 4.5 Advanced Operating Systems

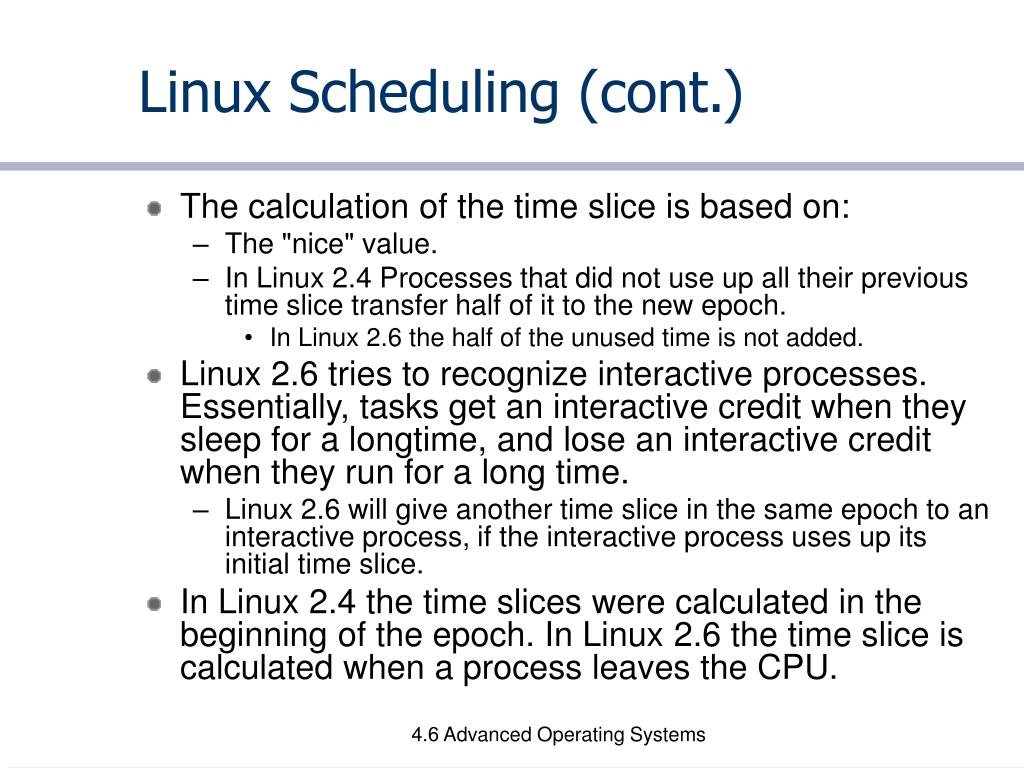

  6. Linux Scheduling (cont.) • The calculation of the time slice is based on: • The "nice" value. • In Linux 2.4 Processes that did not use up all their previous time slice transfer half of it to the new epoch. • In Linux 2.6 the half of the unused time is not added. • Linux 2.6 tries to recognize interactive processes. Essentially, tasks get an interactive credit when they sleep for a longtime, and lose an interactive credit when they run for a long time. • Linux 2.6 will give another time slice in the same epoch to an interactive process, if the interactive process uses up its initial time slice. • In Linux 2.4 the time slices were calculated in the beginning of the epoch. In Linux 2.6 the time slice is calculated when a process leaves the CPU. 4.6 Advanced Operating Systems

  7. Windows 2000 Scheduling • The "nice" value of Windows 2000 is called "thread's type". • There are also some dynamic rules: • Threads associated with the focus window get a triple quantum. • Multi-Media threads are not always in the focus window. • After an I/O wait, the priority is boosted by a factor that is inversely proportional to the speed of the I/O device. This is then decremented by one at the end of each quantum, until the original priority is reached again. • Keyboard and mouse are very slow; hence contribute a big boost. 4.7 Advanced Operating Systems

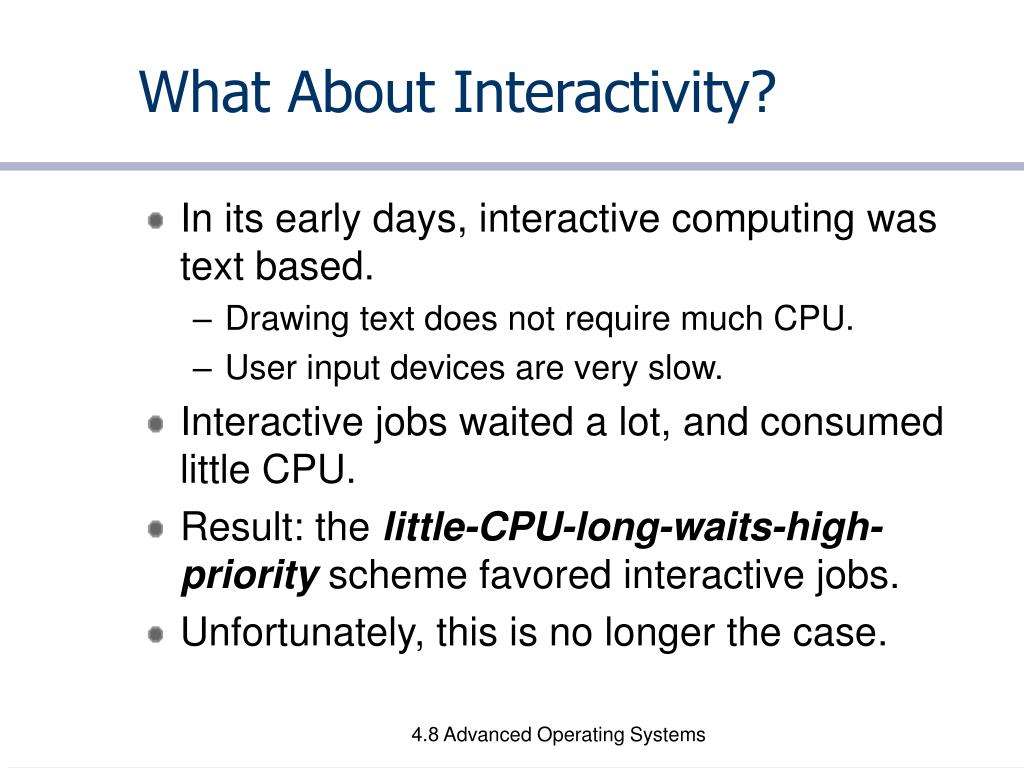

  8. What About Interactivity? • In its early days, interactive computing was text based. • Drawing text does not require much CPU. • User input devices are very slow. • Interactive jobs waited a lot, and consumed little CPU. • Result: the little-CPU-long-waits-high-priority scheme favored interactive jobs. • Unfortunately, this is no longer the case. 4.8 Advanced Operating Systems

  9. Contemporary Interactive Applications • Nowadays, applications use a lot of visual and audible means for user interaction e.g.: • Window based systems and the graphical user interface widgets. • Movie players with CPU intensive decompression. • Games based on CPU massive graphical engines. • Modern Interactive and multimedia applications consume substantial amounts of CPU cycles. • Let us denote such processes as Human-Centered, or HuC for short. 4.9 Advanced Operating Systems

  10. CPU Consumption • CPU consumption can no longer separate the HuC processes from the rest • Mplayer and Xine are movie players and Quake is a computer game. 4.10 Advanced Operating Systems

  11. Voluntary Context Switches • Switches that are induced by the process itself. • Does a HuC process relinquish the CPU voluntarily more often? • Reactive nature. • Block on device. • Wait for a timer. 4.11 Advanced Operating Systems

  12. Effective Quantum Length • Effective Quantum Length is the interval from when a process is allocated a CPU, until the CPU is relinquished. • Does a HuC process consume CPU time in small portions? 4.12 Advanced Operating Systems

  13. Huc Characteristic • Because CPU consumption patterns cannot automatically identify HuC processes, the correct way is to directly quantify the amount of user interaction for the various processes. • Devices that mediate between the user and a process will be called HuC devices e.g. keyboard, mouse, screen, joystick, speaker. • For now, we will focus on the first three… 4.13 Advanced Operating Systems

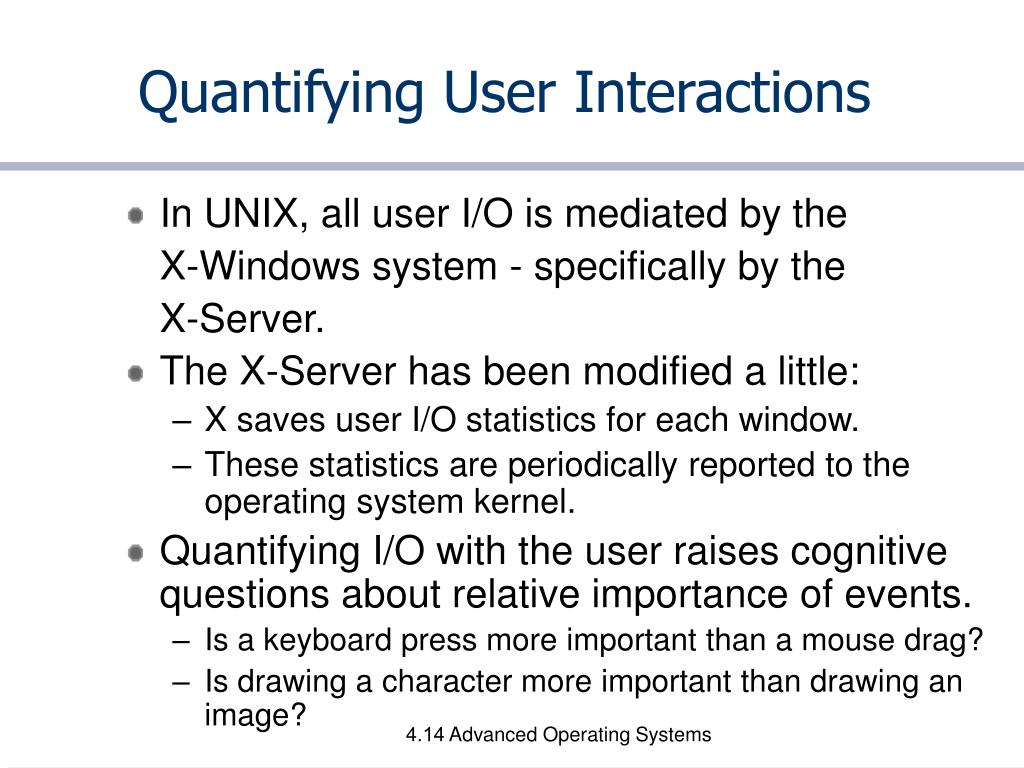

  14. Quantifying User Interactions • In UNIX, all user I/O is mediated by the X-Windows system - specifically by the X-Server. • The X-Server has been modified a little: • X saves user I/O statistics for each window. • These statistics are periodically reported to the operating system kernel. • Quantifying I/O with the user raises cognitive questions about relative importance of events. • Is a keyboard press more important than a mouse drag? • Is drawing a character more important than drawing an image? 4.14 Advanced Operating Systems

  15. The Simplest Solution • Input: • simply accumulate input events. • Dragging the mouse will generate multiple events, while clicking the mouse or a keyboard press are just one event. • The user is very slow! • Output: • quantify the changes produced by each graphical request. • In graphical shapes, count the pixels that have been changed. • In text, assume all of the pixels in the character's box have been changed. • Do not count changes in hidden portions of the window. 4.15 Advanced Operating Systems

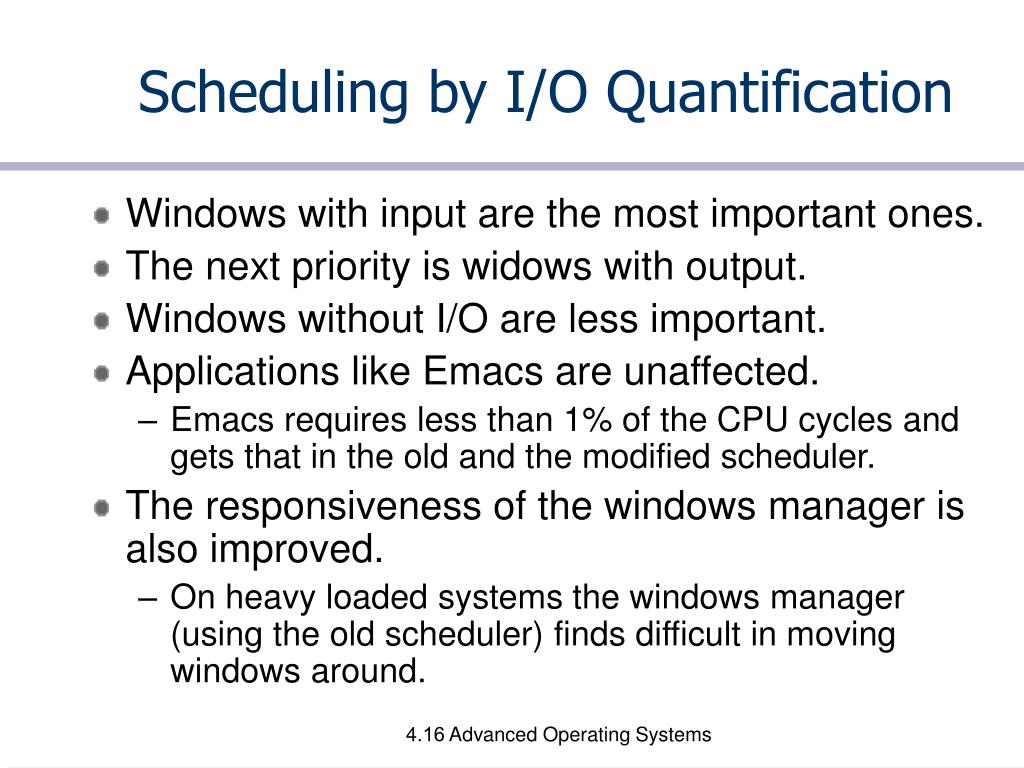

  16. Scheduling by I/O Quantification • Windows with input are the most important ones. • The next priority is widows with output. • Windows without I/O are less important. • Applications like Emacs are unaffected. • Emacs requires less than 1% of the CPU cycles and gets that in the old and the modified scheduler. • The responsiveness of the windows manager is also improved. • On heavy loaded systems the windows manager (using the old scheduler) finds difficult in moving windows around. 4.16 Advanced Operating Systems

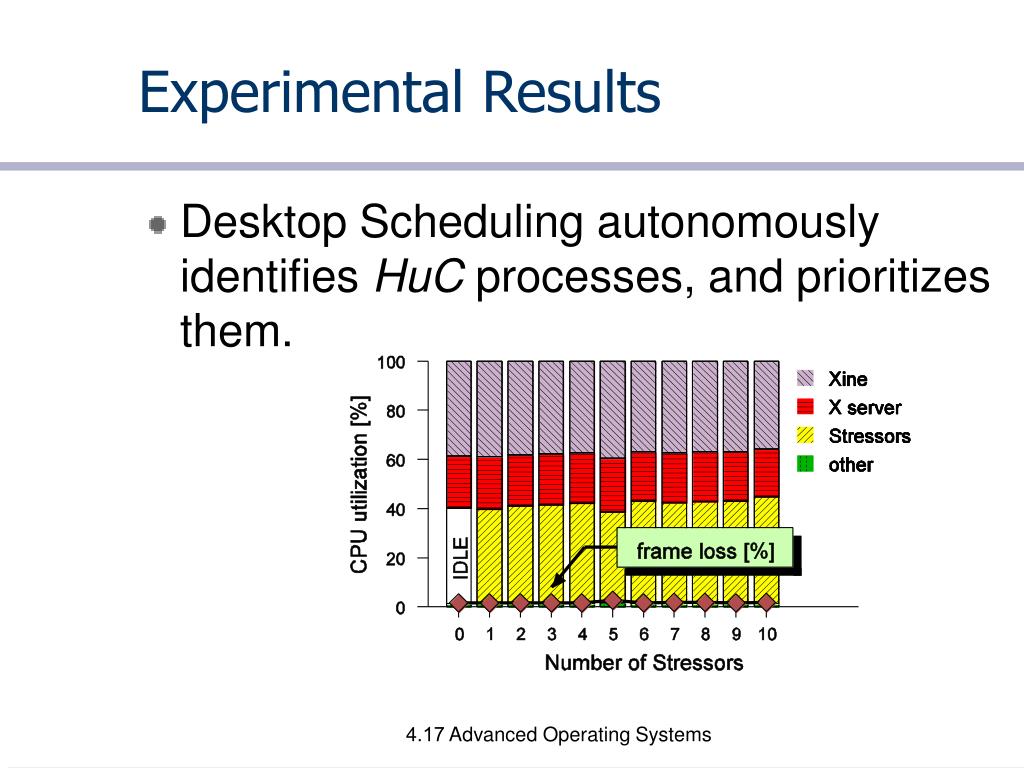

  17. Experimental Results • Desktop Scheduling autonomously identifies HuC processes, and prioritizes them. 4.17 Advanced Operating Systems

  18. Open Questions • Where does sound fit in? • Is it practical to measure network bandwidth in order to improve streaming? • How can other devices integrated into this model? 4.18 Advanced Operating Systems
