1 / 50

Parity-Violation with Electrons: Theoretical Perspectives

Parity-Violation with Electrons: Theoretical Perspectives. M.J. Ramsey-Musolf. 1970’s SLAC DIS Standard Model Atomic PV sin 2 q W ~ 10%. Prehistory. 1980’s Mainz 8 Be PV eq couplings MIT 12 C ~ 10%. PV: Past, Present, & Future. Modern Era.

michel
Download Presentation

Parity-Violation with Electrons: Theoretical Perspectives

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Parity-Violation with Electrons: Theoretical Perspectives M.J. Ramsey-Musolf

  2. 1970’s SLAC DIS Standard Model Atomic PV sin2qW ~ 10% Prehistory 1980’s Mainz 8Be PV eq couplings MIT 12C ~ 10% PV: Past, Present, & Future

  3. Modern Era 1990’s MIT GsE,M ~ few % JLab GA & rad corrections Mainz rn(r) APV sin2qW ~ 1% Anapole moment 2000’s SLAC Moller Standard Model & beyond JLab QWeak sin2qW < 1% APV Anapole moment JLab GAND Mainz HWI (DS=0): dD , Ag VVCS: An PV: Past, Present, & Future

  4. Future 2010’s JLab DIS-Parity Standard Model & beyond Moller (2) sin2qW < 1% 2020’s NLC Moller (3) sin2qW < 0.1% PV: Past, Present, & Future

  5. qq Mesons How does QCD make hadronic matter? PV & strange quarks Hybrids 2.5 exotic nonets 2.0 GPD’s: “Wigner Distributions” (X. Ji) mq-dependence of nuclear properties 1.5 1.0 L = 0 1 2 3 4 Pentaquark, Q+ Gluonic effects Quarks, Gluons, & the Light Elements Lattice QCD

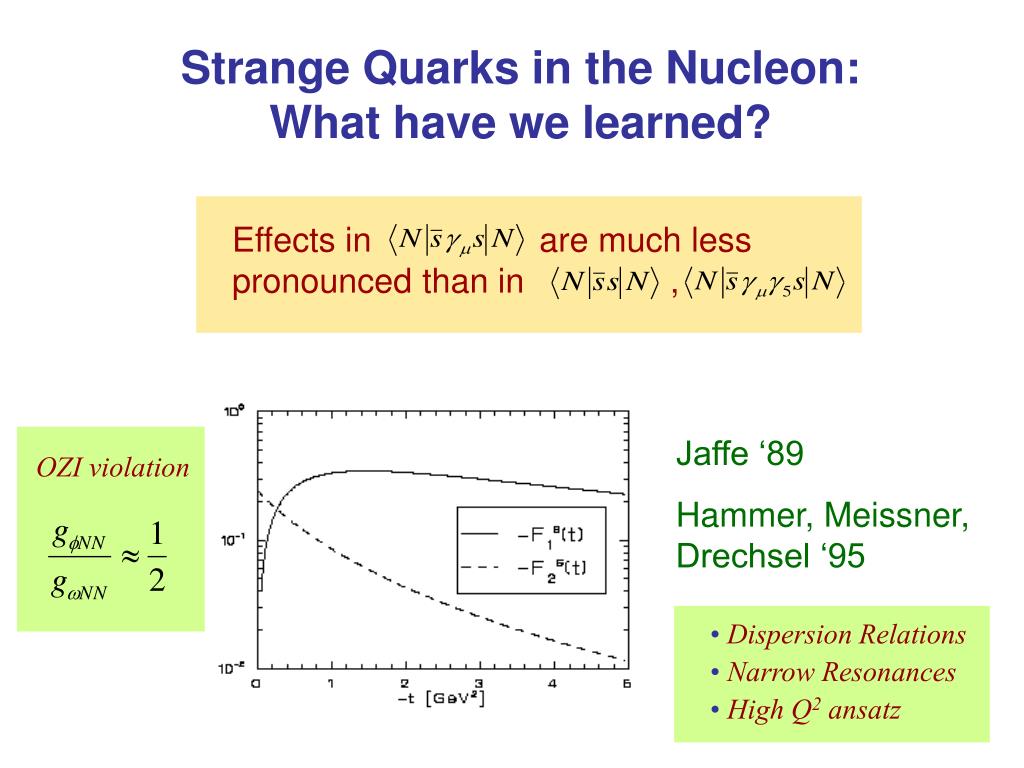

  6. Effects in are much less pronounced than in , OZI violation Strange Quarks in the Nucleon:What have we learned? Jaffe ‘89 Hammer, Meissner, Drechsel ‘95 • Dispersion Relations • Narrow Resonances • High Q2 ansatz

  7. Effects in are much less pronounced than in , HAPPEX SAMPLE Strange Quarks in the Nucleon:What have we learned?

  8. Theory: how do we understand dynamics of small ss effects in vector current channel ? Challenge to understand QCD at deep, detailed level Unknown constants Strange Quarks in the Nucleon: What have we learned? • Strange quarks don’t appear in Quark Model picture of the nucleon • Perturbation theory may not apply QCD / ms ~ 1 No HQET mK / c ~ 1/2 PT ? • Symmetry is impotent Js = JB + 2 JEM, I=0

  9. Happex projected G0 projected SAMPLE 2003 Lattice QCD theory Dispersion theory Chiral perturbation theory “reasonable range” for slope Q2 -dependenceof GsM

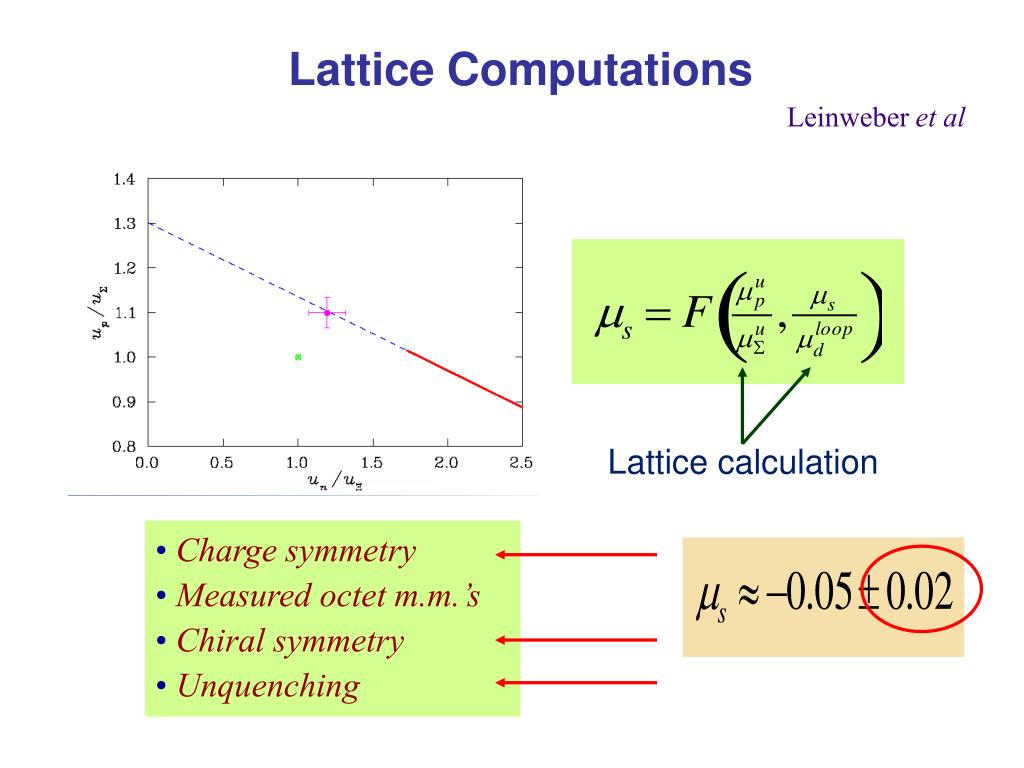

  10. See also Leinweber et al Lattice Computations Dong, Liu, & Williams (1998) Lewis, Wilcox, Woloshyn (2003) • Quenched QCD • Wilson fermions • 100 gauge configurations • 300-noise estimate/config • Quenched QCD • Wilson fermions • 2000 gauge configurations • 60-noise estimate/config

  11. Lattice calculation • Charge symmetry • Measured octet m.m.’s • Chiral symmetry • Unquenching Lattice Computations Leinweber et al

  12. Kaon loop contributions (calculable) Unknown low-energy constant (incalculable) What PT can (cannot) say Ito, R-M Hemmert, Meissner, Kubis Hammer, Zhu, Puglia, R-M Strange magnetism as an illustration

  13. NLO, unknown LEC { } LO, parameter free NLO, cancellation What PT can (cannot) say Strange magnetism as an illustration

  14. Slope of GMs Strong interaction scattering amplitudes e+ e- K+ K-, etc. Dispersion theory Jaffe Hammer, Drechsel, R-M

  15. All orders Perturbation theory (1-loop) Dispersion theory Hammer & R-M

  16. All orders  resonance • S-quarks are not inert • Non-perturbative effects dominate (LEC’s) Perturbation theory (1-loop) Dispersion theory Hammer & R-M

  17. Experiment & lattice will give an answer Can’t do the whole integral • Are there higher mass excitations of s s pairs? • Do they enhance or cancel low-lying excitations? ? Dispersion theory Models & exp’t suggest cancellations

  18. dRA “Reasonable range”: lattice & disp rel Combining PT, dispersion theory, & lattice QCD SAMPLE

  19. Radiative Corrections & the Hadronic Weak Interaction • GAe • N !D • PV p photo- and electro-production (threshold) • Vector analyzing power (gg)

  20. Models for s Radiative corrections at Q2=0.1 (GeV/c)2 • s-quarks contribute less than 5% (1s) to the proton’s magnetic form factor. • proton’s axial structure is complicated! R. Hasty et al., Science 290, 2117 (2000).

  21. “Anapole” effects : Hadronic Weak Interaction + Nucleon Green’s Fn : Analogous effects in neutron -decay, PC electron scattering… Axial Radiative Corrections

  22. Zhu et al. Zhu, Puglia, Holstein, R-M (cPT) Maekawa & van Kolck (cPT) Riska (Model) “Anapole” Effects Hadronic PV Can’t account for a large reduction in GeA

  23. Suppressed by ~ 1000 Nuclear PV Effects PV NN interaction Carlson, Paris, Schiavilla Liu, Prezeau, Ramsey-Musolf

  24. D2 200 MeV data Mar 2003 H2 Zhu, et al. Radiative corrections SAMPLE Results R. Hasty et al., Science 290, 2117 (2000). atQ2=0.1 (GeV/c)2 • s-quarks contribute less than 5% (1s) to the proton’s magnetic moment. 200 MeV update 2003: Improved EM radiative corr. Improved acceptance model Correction for p background 125 MeV: no p background similar sensitivity to GAe(T=1) E. Beise, U Maryland

  25. Zhu, R-M pN!pN ~ 5% O(p2) chiral corrections ~ few % Rad corrections, “anapole” ~ 25% Study GAND(Q2)/ GAND(0) Transition Axial Form Factor Off Diagonal Goldberger-Treiman Relation

  26. Axial response , GANDonly Nonzero ALR(Q2= 0) GAND & “dD”””, ALR ~ Q2 (1-2sin2qW) Zhu, Maekawa, Sacco, Holstein, R-M Measuring GAND(Q2)

  27. c symmetry not sufficient S-Wave: Parity-violating P-Wave: Parity-conserving Weak interactions of s-quarks are puzzling Hyperon weak decays

  28. E1 (PV) M1 (PC) Th’y Exp’t Weak interactions of s-quarks are puzzling

  29. S-Wave P-Wave Fit matrix elements Weak interactions of s-quarks are puzzling Resonance saturation Holstein & Borasoy S11 Roper

  30. S-Wave P-Wave Fit matrix elements Close gap with aBB’ S/P wave fit Weak interactions of s-quarks are puzzling Resonance saturation Holstein & Borasoy S11 Roper

  31. Is deviation from QCD-based expectations due to presence of s-quarks or more fundamental dynamics? Natural Fit Weak interactions of s-quarks are puzzling

  32. Low energy constant PV, E1 Amplitude PV Asymmetry Large NC , spin-flavor SU(4) Finite NC We have a DS=0 probe Use PV to filter out EM transition Zhu, Maekawa, Holstein, MR-M

  33. dD ~ gp dD ~ 25gp We have a DS=0 probe Naïve dimensional analysis (NDA) Resonance saturation

  34. dD= 0 , GANDonly dD= 100 gp , enhanced HWDS=0 ALR ~ Q2 (1-2sin2qW) Zhu, Maekawa, Sacco, Holstein, R-M Measuring dD

  35. Measure Q2-dependence of ALR to learn • dD • GAND(Q2)/ GAND(0) • RAD • MINERVA: GAND(0) ? N!D Transition

  36. What specifically could we learn? Vud Vector Analyzing Power • T-odd, P-even correlation • Doubly virtual compton scattering (VVCS): new probe of nucleon structure • Implications for radiative corrections in other processes: GEp/GMp, b-decay… • SAMPLE, Mainz, JLab experiments

  37. + Direct probe Vector Analyzing Power V=g: VVCS Re Mg*(Mggbox+Mggcross) Rosenbluth Im Mg*Mggbox VAP V=W,Z: Electroweak VVCS Re MV*(MVgbox+MVgcross) b-decay, RA,… Im MV*MVgbox b-decay T-violation

  38. q=1460 SAMPLE Mott: MN!1 kI=1, r2 EFT to O(p2) Diaconescu, R-M O(p0) O(p4) Vector Analyzing Power

  39. Dynamical p’s? q=300 Constrained by SAMPLE Vector Analyzing Power

  40. Theory for RA good to ~ 25% Further test of RAD ; dD & HWqq EFT for low energy good to ~ 25%; more tests! New window on electroweak VVCS: b-decay, sin2qW,… Radiative Corrections & the Hadronic Weak Interaction • GAe • N !D • PV p photo- and electro-production (threshold) • Vector analyzing power (gg)

  41. Atomic PV N deep inelastic sin2W e+e- LEP, SLD SLAC E158 (ee) JLab Q-Weak (ep) (GeV) Weak Mixing Angle: Scale Dependence Czarnecki, Marciano Erler, Kurylov, MR-M

  42. SUSY loops  SUSY dark matter ->e+e n is Majorana RPV 95% CL fit to weak decays, MW, etc. Comparing Qwe and QWp Kurylov, Su, MR-M

  43. QWP = 0.0716 QWe = 0.0449 Experiment SUSY Loops E6 Z/ boson RPV SUSY Leptoquarks SM SM Comparing Qwe and QWp Erler, Kurylov, R-M

  44. LinearCollider e-e- Atomic PV N deep inelastic DIS-Parity, JLab DIS-Parity, SLAC sin2W e+e- LEP, SLD SLAC E158 (ee) JLab Q-Weak (ep) Moller, JLab (GeV) Additional PV electron scattering ideas Czarnecki, Marciano Erler et al.

  45. SUSY loops E158 &Q-Weak Linear collider JLab Moller RPV 95% CL Comparing Qwe and QWp Kurylov, R-M, Su  SUSY dark matter

  46. e RPV Loops p SUSY effects Comparing AdDIS and Qwp,e

  47. “DIS Parity” SUSY loops E158 &Q-Weak Linear collider JLab Moller RPV 95% CL Comparing Qwe and QWp Kurylov, R-M, Su  SUSY dark matter

  48. ~0.4% Different PDF fits E=11 GeV q=12.50 Sacco, R-M preliminary Higher Twist “Pollution”

  49. Sacco & R-M preliminary Castorina & Mulders • Open issues • QCD evolution • Double handbag • Moment inversion Higher Twist “Pollution”

  50. Tasks for the “modern era” & future Strange quarks • Finish the experimental program • Credible, unquenched lattice calculations Rad corrections • Further tests of electroweak VVCS with N!D, VAP • Theory: quark mass (mp) dependence • Measure dD SM & new physics • DIS-Parity: Is there significant I-violation as suggested by NuTeV? • Theory: how big is twist pollution? • Theory: relating rn(r) & APV Hardronic PV • Lots of new exp’t & theory….
