  1. Development of a Modular Peristaltic Microfluidic Pump and Valve System BME 272 Group 20: Adam Dyess, Jake Hughey, Michael Moustoukas, Matt Pfister

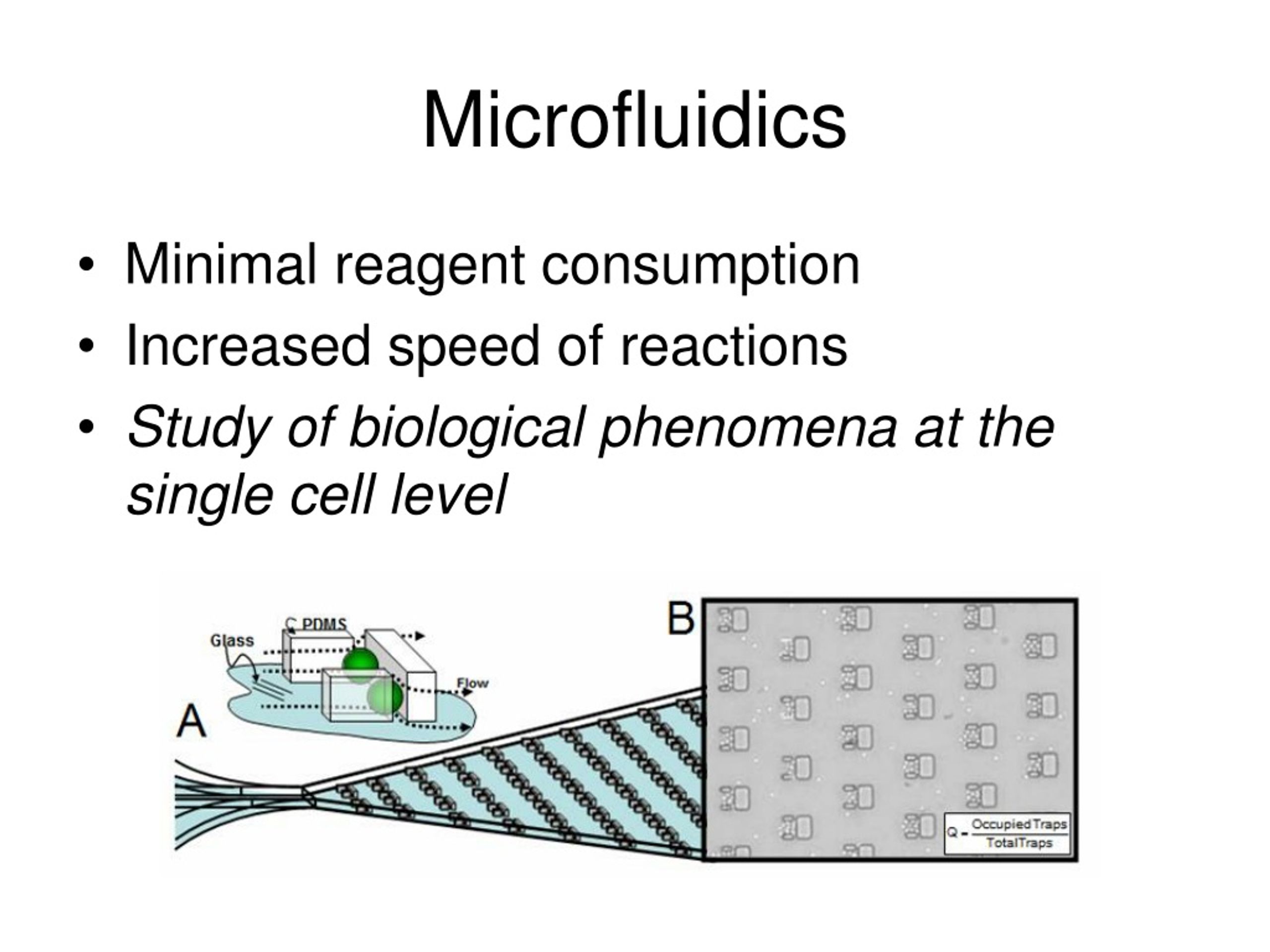

  2. Microfluidics • Minimal reagent consumption • Increased speed of reactions • Study of biological phenomena at the single cell level

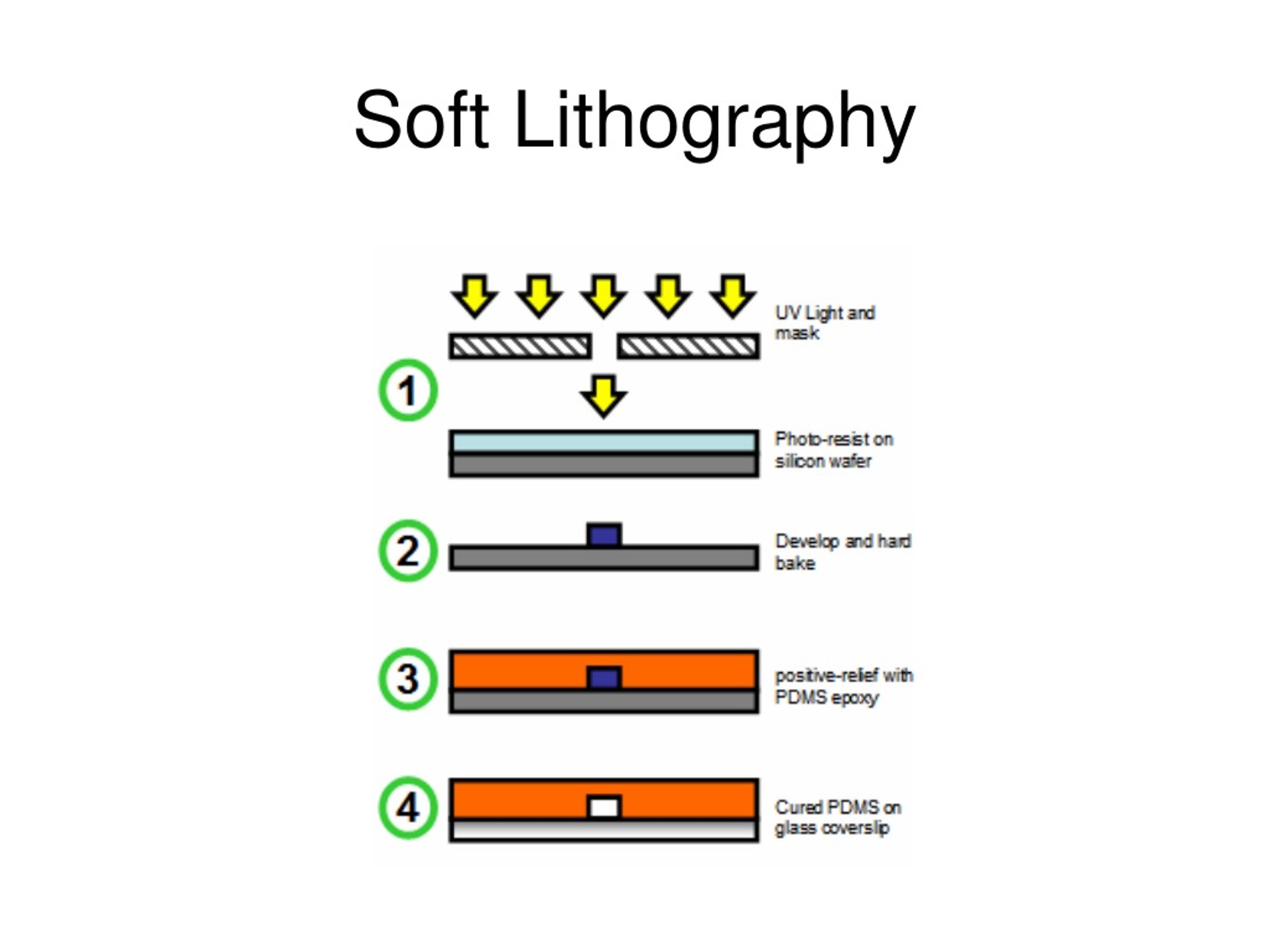

  3. Soft Lithography

  4. Current Pumps at VIIBRE • Harvard Pico Plus syringe pumps • $2,000 / pump • Limiting complexity of microfluidic devices

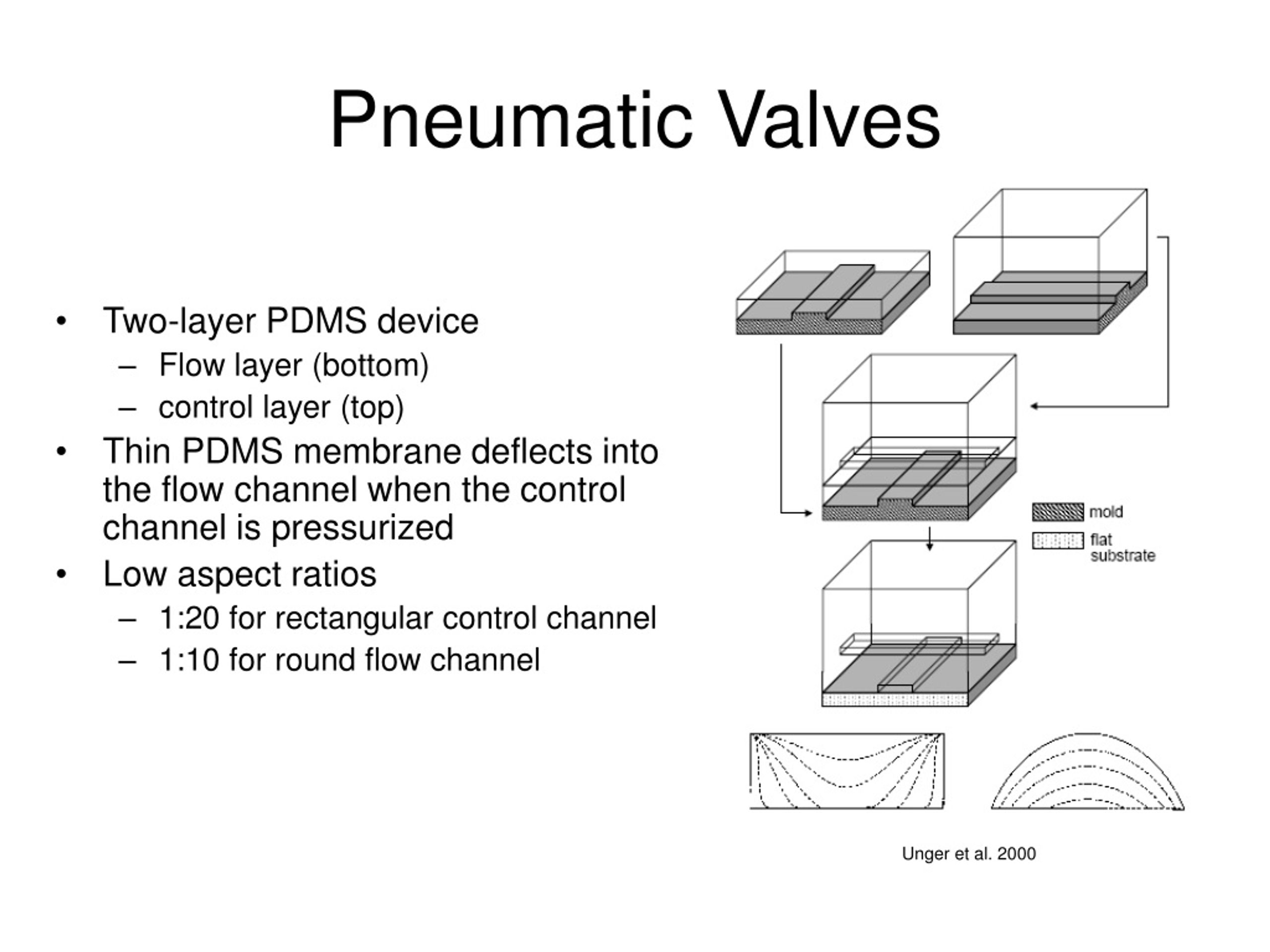

  5. Pneumatic Valves • Two-layer PDMS device • Flow layer (bottom) • control layer (top) • Thin PDMS membrane deflects into the flow channel when the control channel is pressurized • Low aspect ratios • 1:20 for rectangular control channel • 1:10 for round flow channel Unger et al. 2000

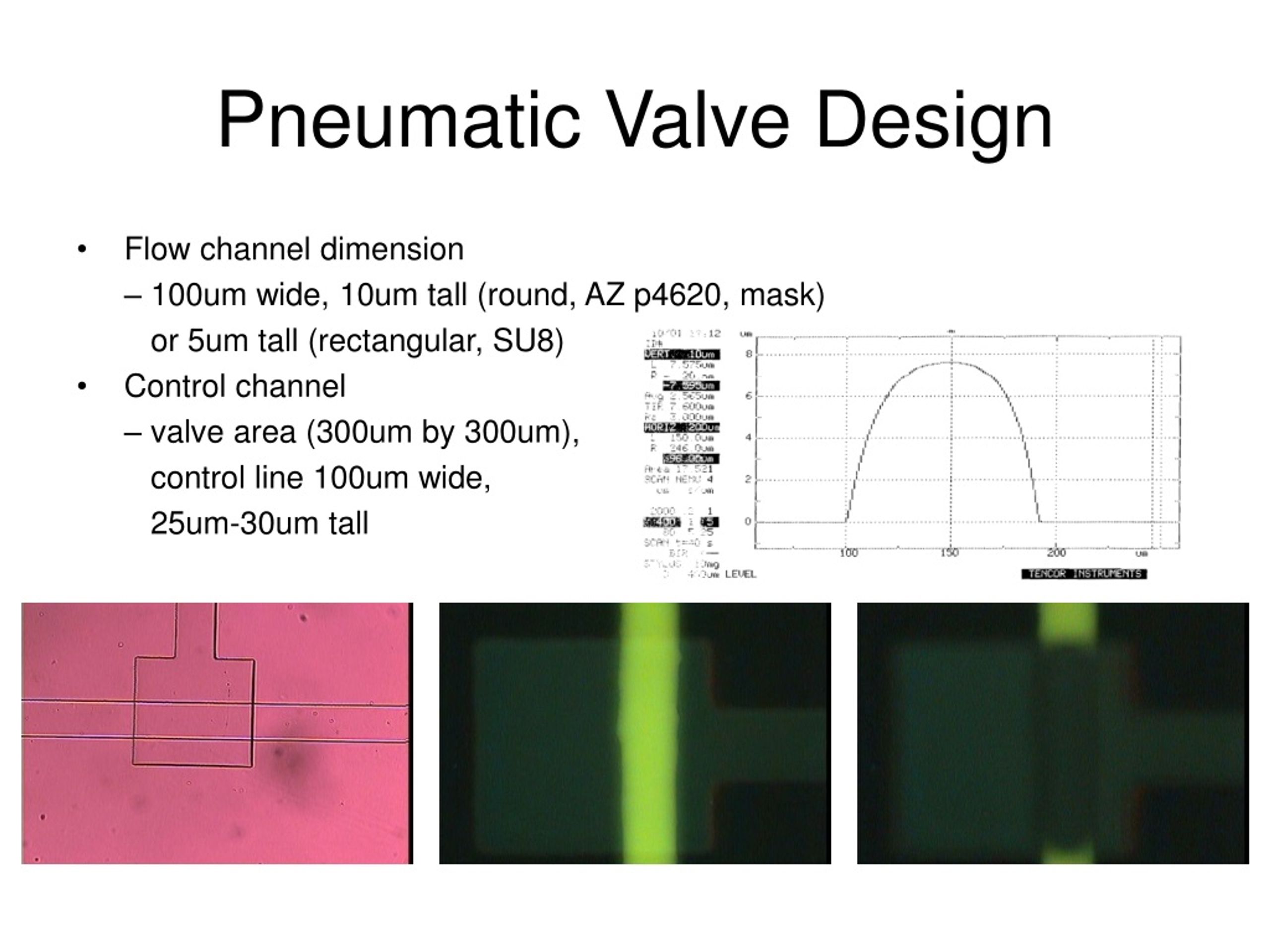

  6. Pneumatic Valve Design • Flow channel dimension – 100um wide, 10um tall (round, AZ p4620, mask) or 5um tall (rectangular, SU8) • Control channel – valve area (300um by 300um), control line 100um wide, 25um-30um tall

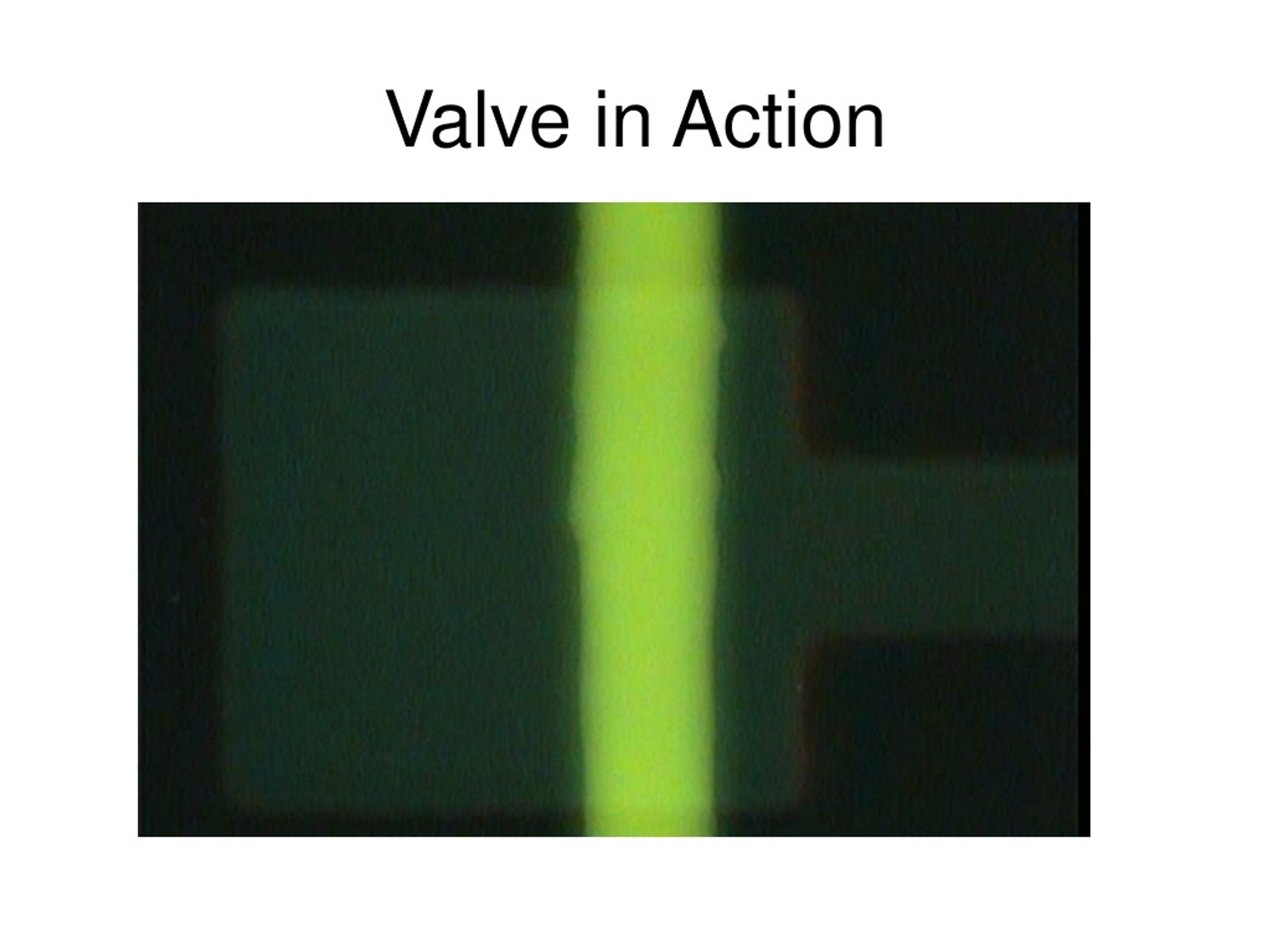

  7. Valve in Action

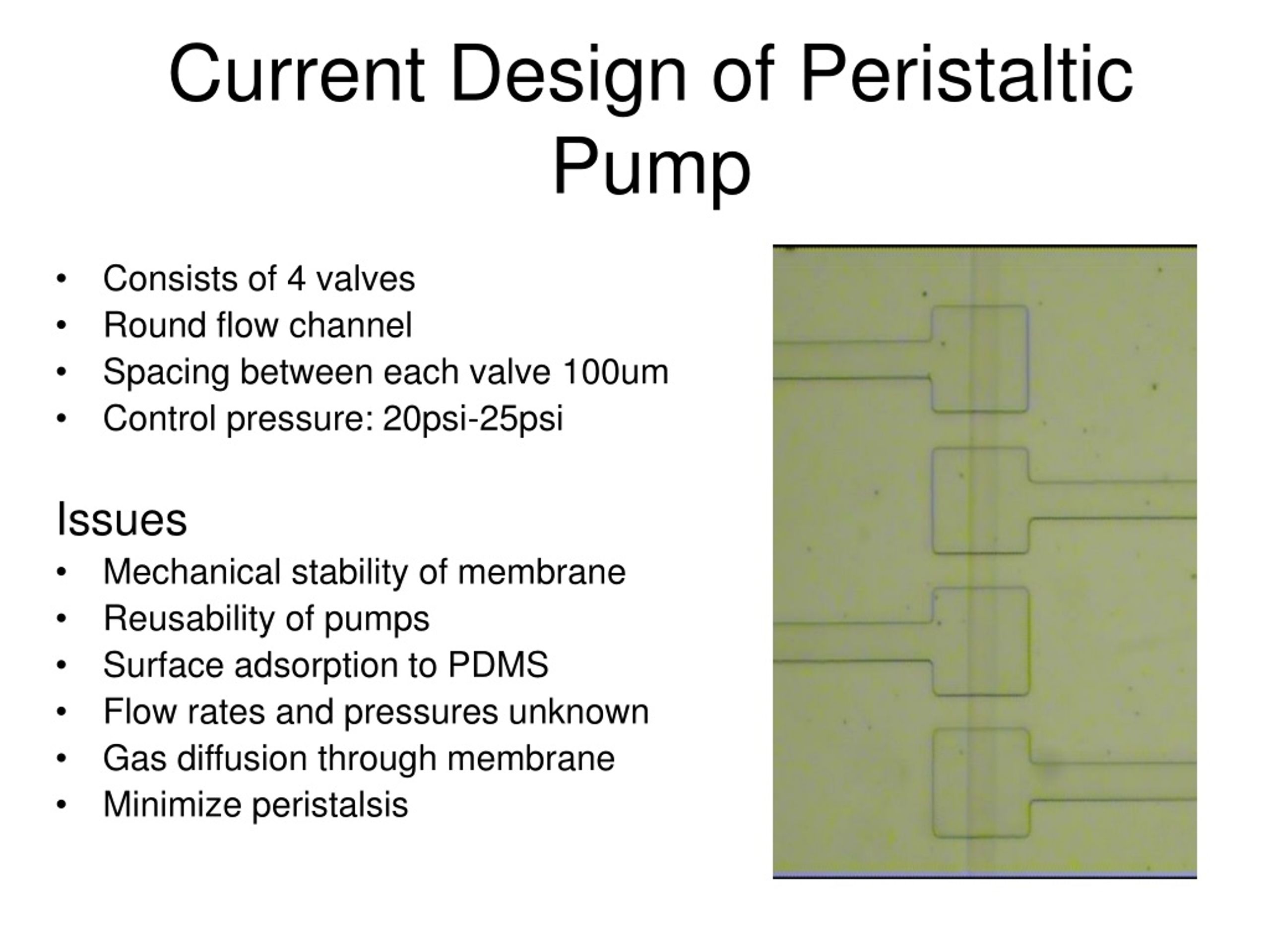

  8. Current Design of Peristaltic Pump • Consists of 4 valves • Round flow channel • Spacing between each valve 100um • Control pressure: 20psi-25psi Issues • Mechanical stability of membrane • Reusability of pumps • Surface adsorption to PDMS • Flow rates and pressures unknown • Gas diffusion through membrane • Minimize peristalsis

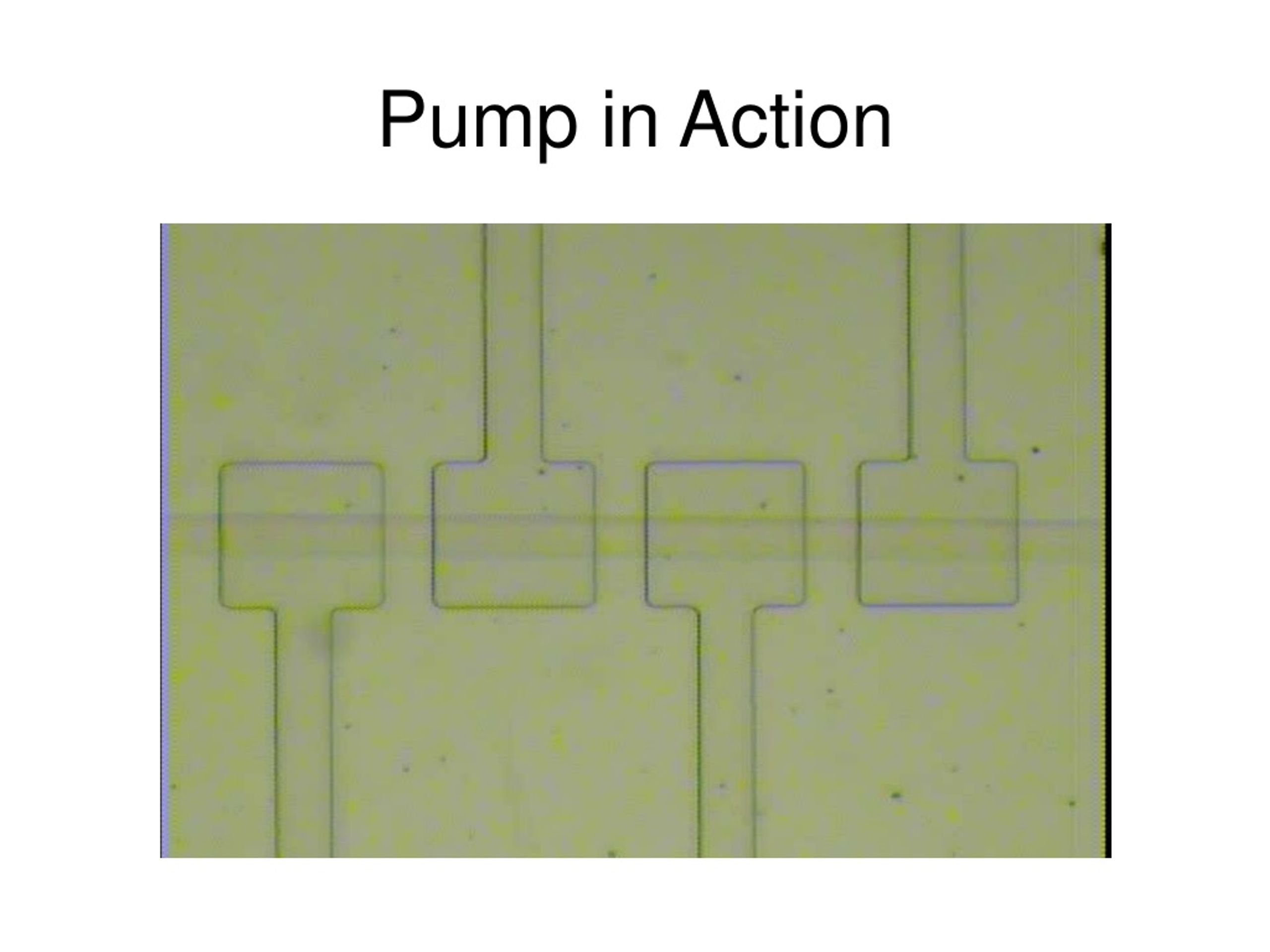

  9. Pump in Action

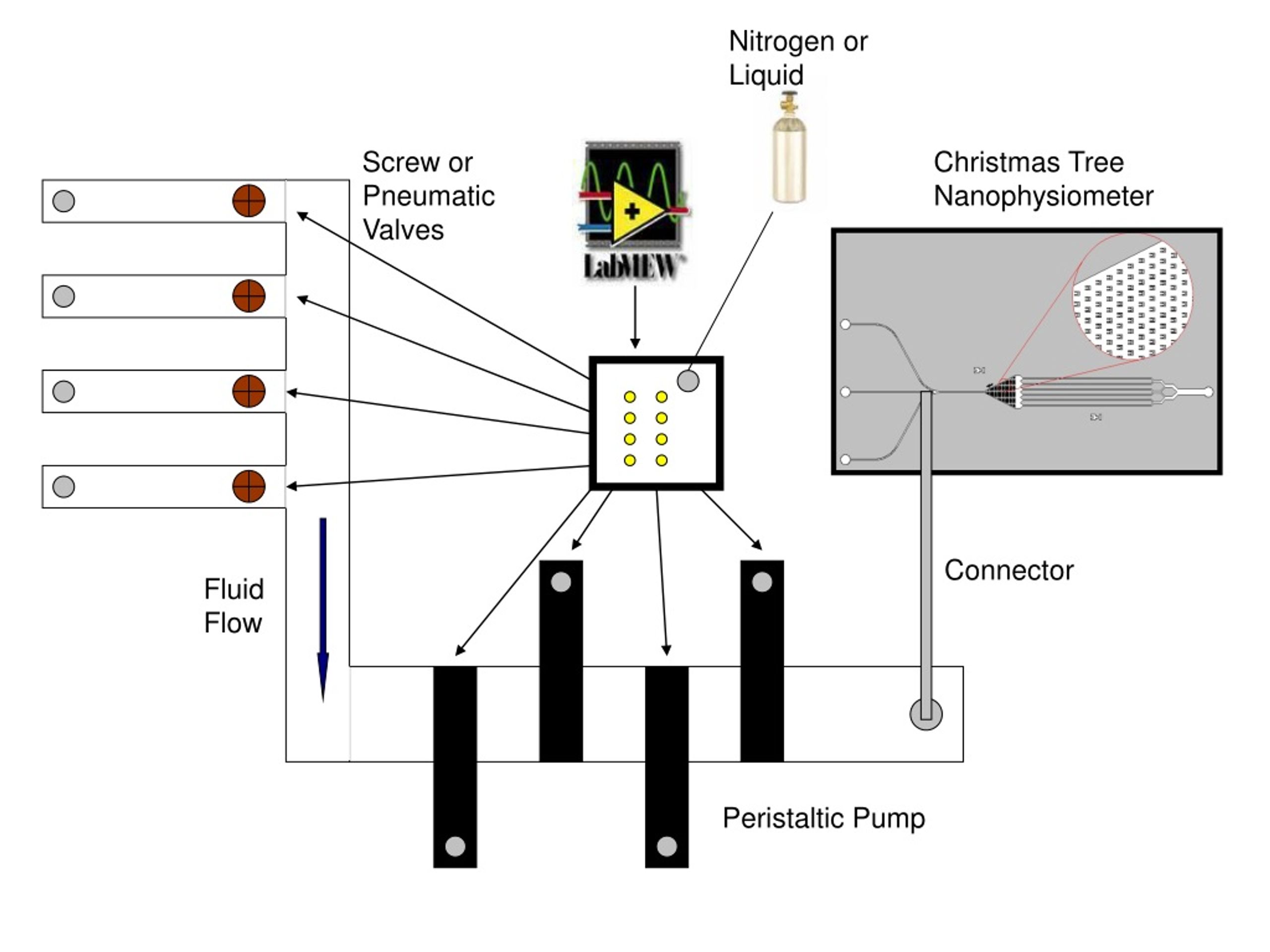

  10. Nitrogen or Liquid Screw or Pneumatic Valves Christmas Tree Nanophysiometer Connector Fluid Flow Peristaltic Pump

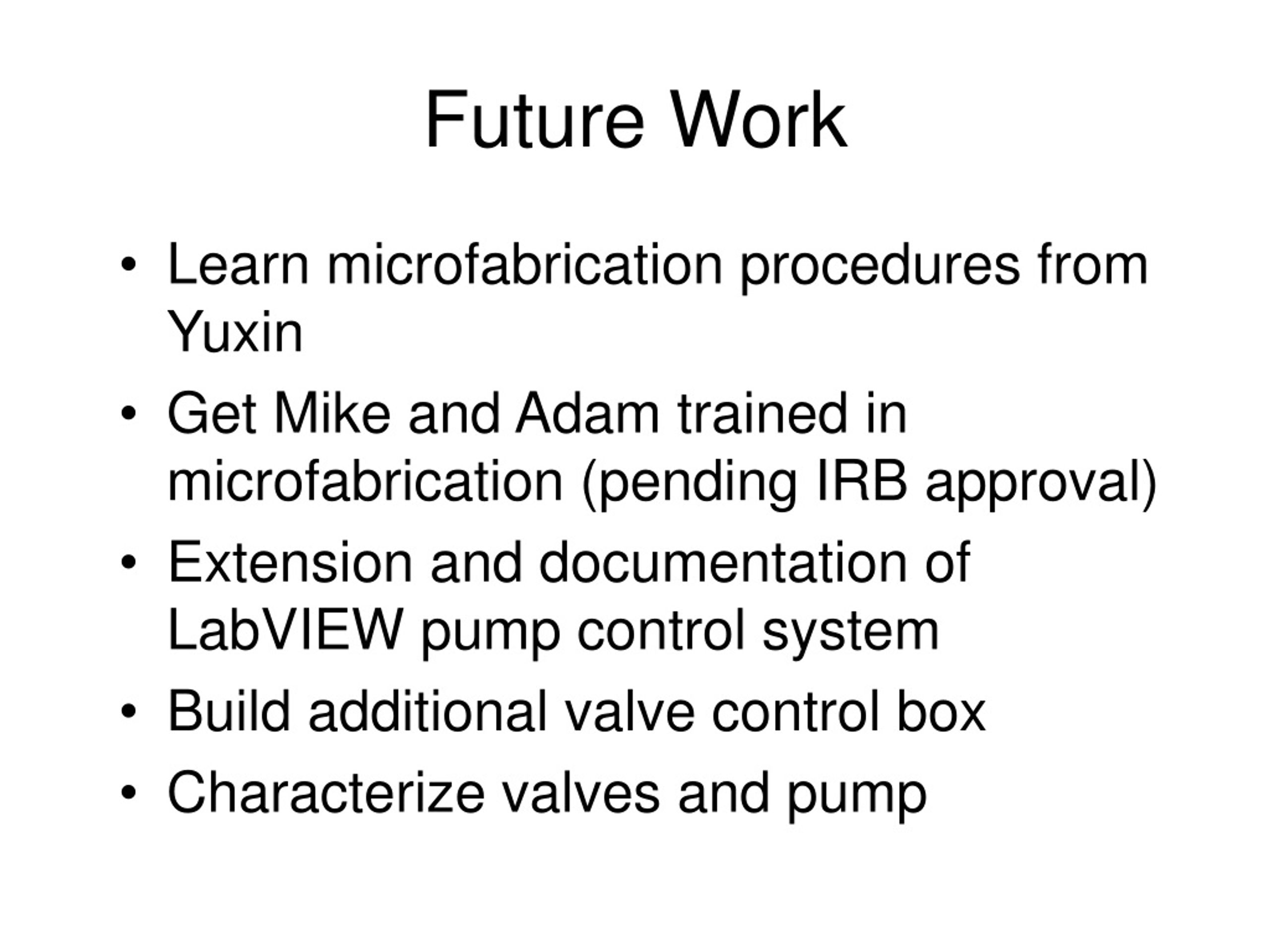

  11. Future Work • Learn microfabrication procedures from Yuxin • Get Mike and Adam trained in microfabrication (pending IRB approval) • Extension and documentation of LabVIEW pump control system • Build additional valve control box • Characterize valves and pump
