Global particle flow pattern

Global particle flow pattern. magnetosphere of Jupiter magnetosphere of Saturn. ????. Local time dependence of the flow pattern at Jupiter.

meryle
Download Presentation

Global particle flow pattern

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

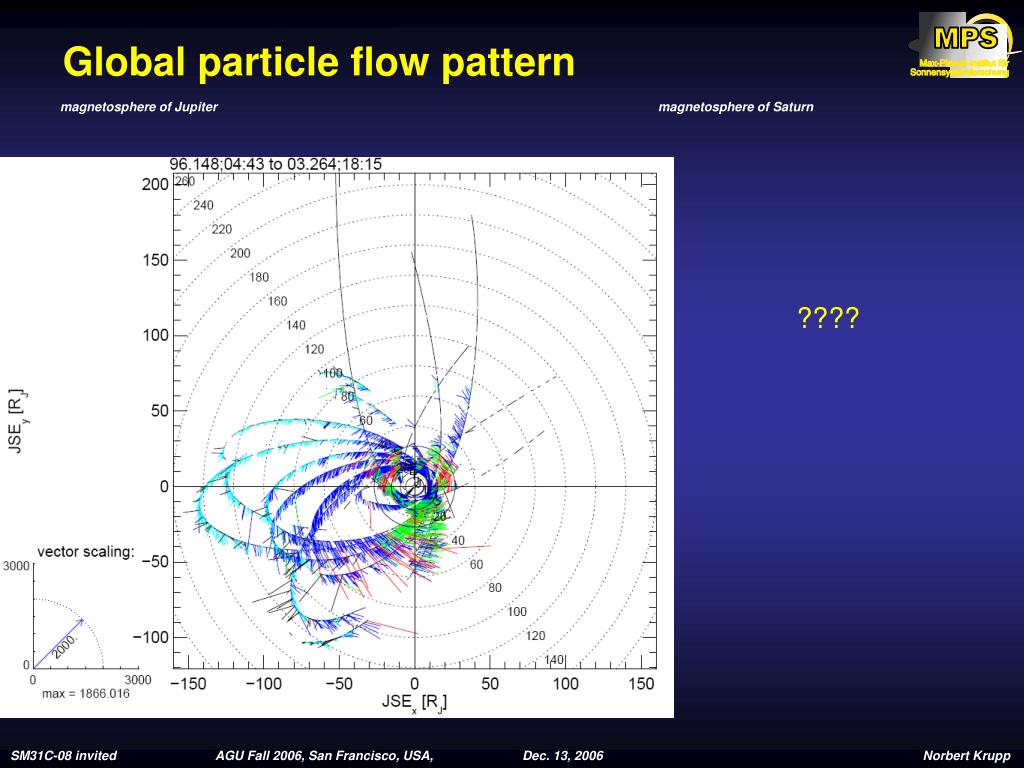

  1. Global particle flow pattern magnetosphere of Jupiter magnetosphere of Saturn ????

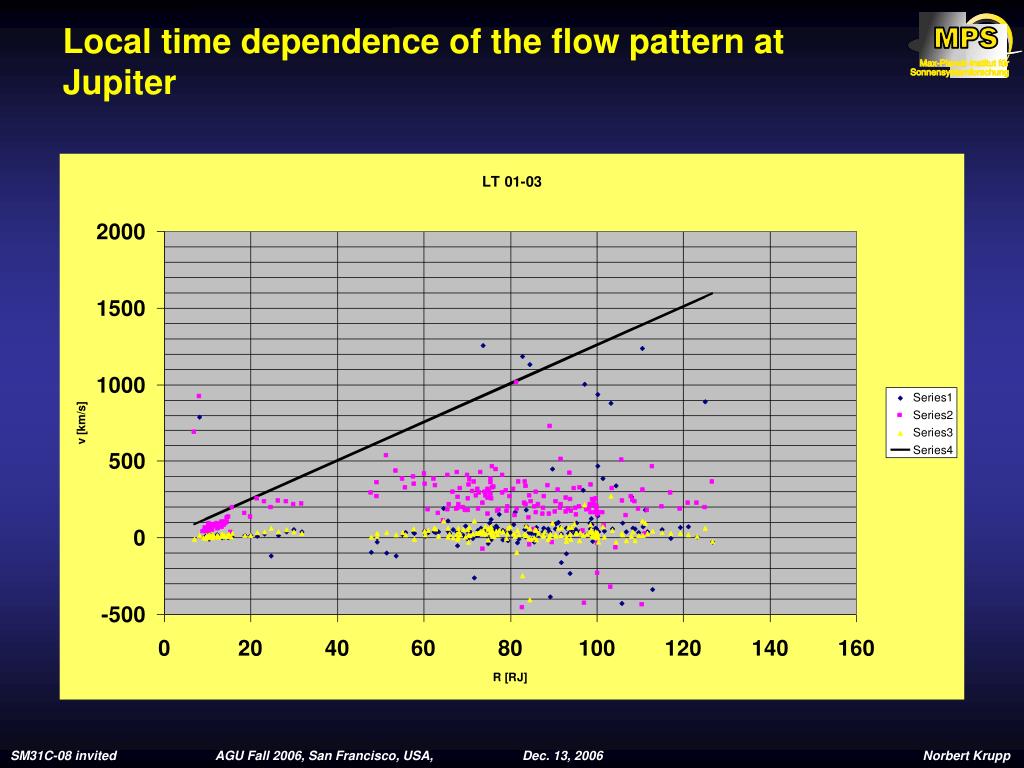

  2. Local time dependence of the flow pattern at Jupiter

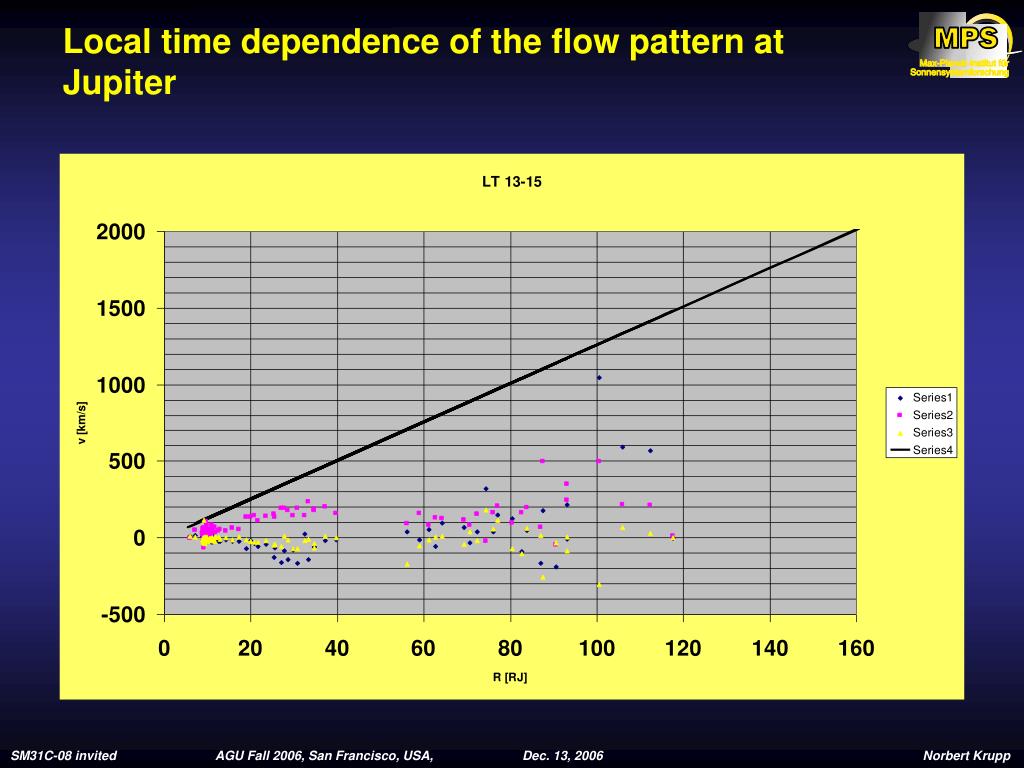

  3. Local time dependence of the flow pattern at Jupiter

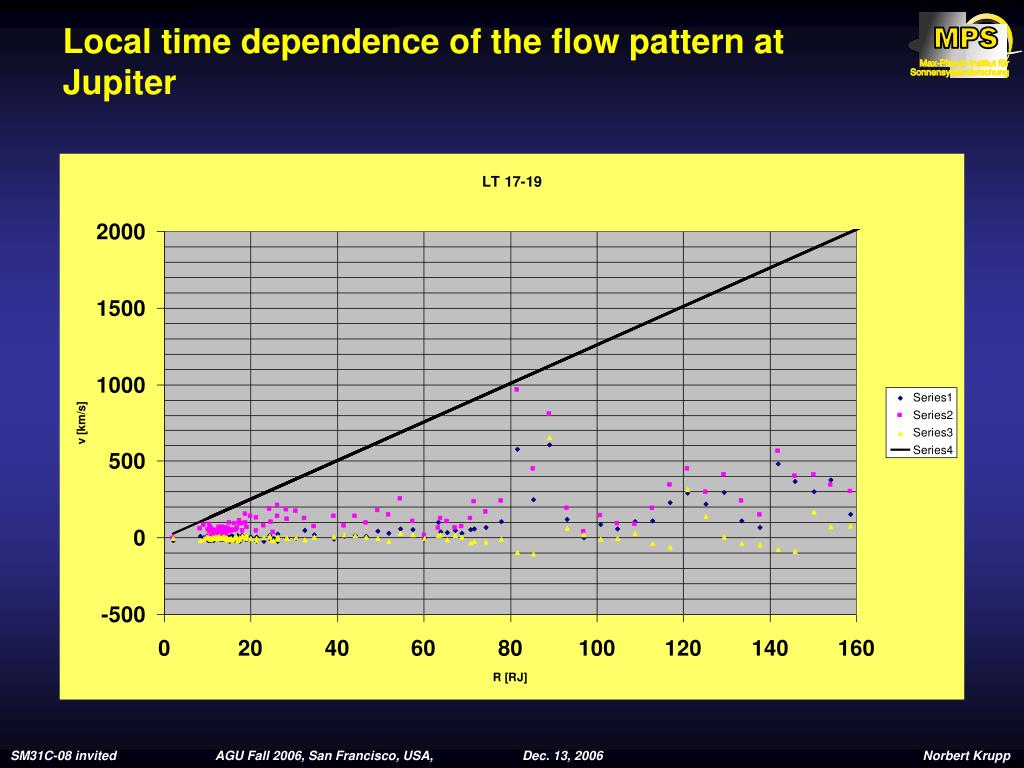

  4. Local time dependence of the flow pattern at Jupiter

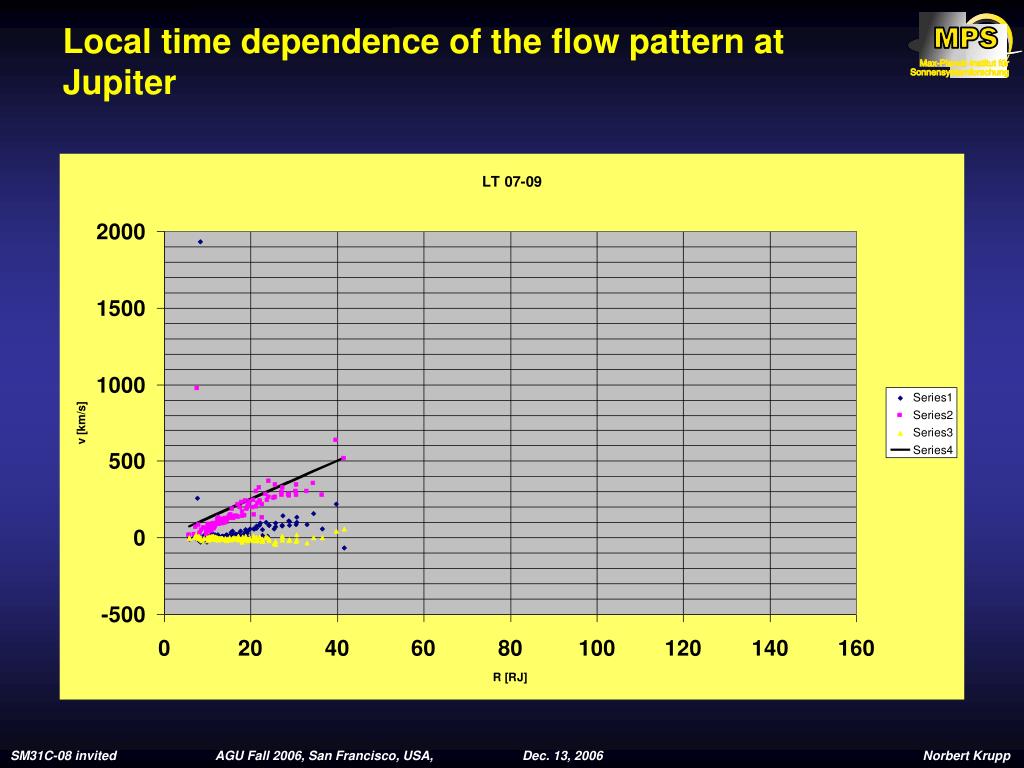

  5. Local time dependence of the flow pattern at Jupiter

  6. Local time dependence of the flow pattern at Jupiter

  7. Local time dependence of the flow pattern at Jupiter

  8. Local time dependence of the flow pattern at Jupiter

  9. Local time dependence of the flow pattern at Jupiter

  10. Local time dependence of the flow pattern at Jupiter

  11. Local time dependence of the flow pattern at Jupiter

  12. Local time dependence of the flow pattern at Jupiter

  13. Local time dependence of the flow pattern at Jupiter

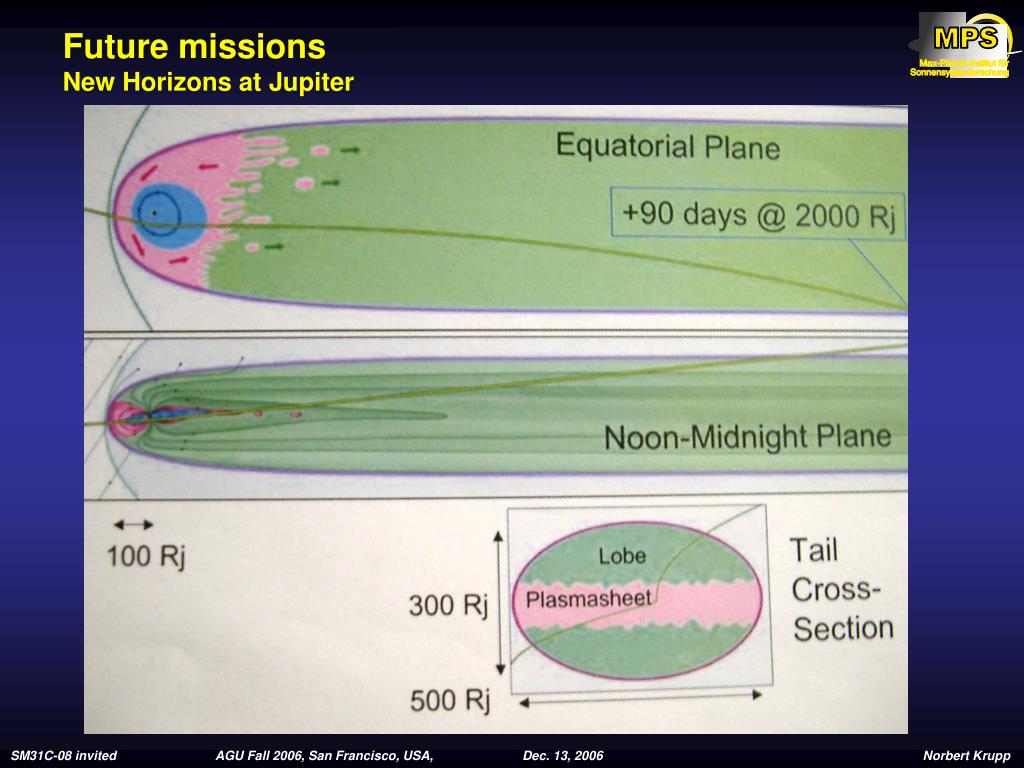

  14. Future missionsNew Horizons at Jupiter

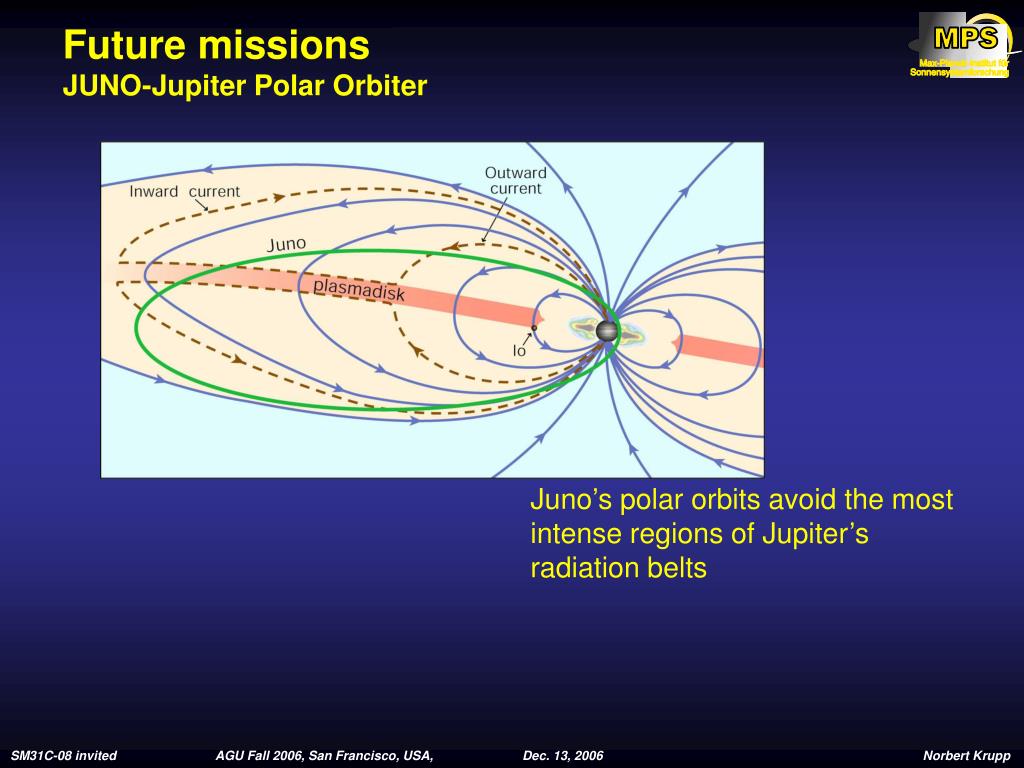

  15. Future missionsJUNO-Jupiter Polar Orbiter Juno’s polar orbits avoid the most intense regions of Jupiter’s radiation belts
