building games for windows phone 7
009

Rob Miles

University of Hull

rob@robmiles.com

twitter.com/RobMiles

robmiles.com

Building Games for Windows Phone 7

agenda
Agenda
  • Introducing the Windows Phone
    • The platform and the development tools
  • Writing games for Windows Phone
    • Game Development Options
    • Useful code samples
  • What to do now
    • How to Get Started
windows phone 7 series
Windows Phone 7 series
  • Windows Phone 7 series is a significant advance on previous generations
  • It provides a whole new way of interacting with mobile devices
  • You will find out more about this tomorrow at the keynote
    • For us it provides a compelling new platform to make great new applications and games
development options

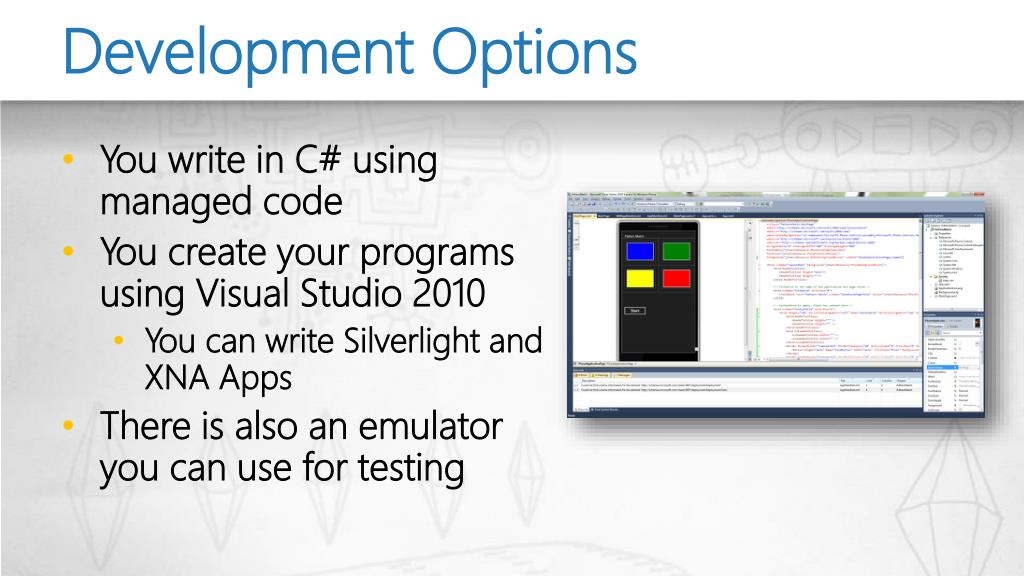

Development Options
  • You write in C# using managed code
  • You create your programs using Visual Studio 2010
    • You can write Silverlight and XNA Apps
  • There is also an emulator you can use for testing
windows phone for applications

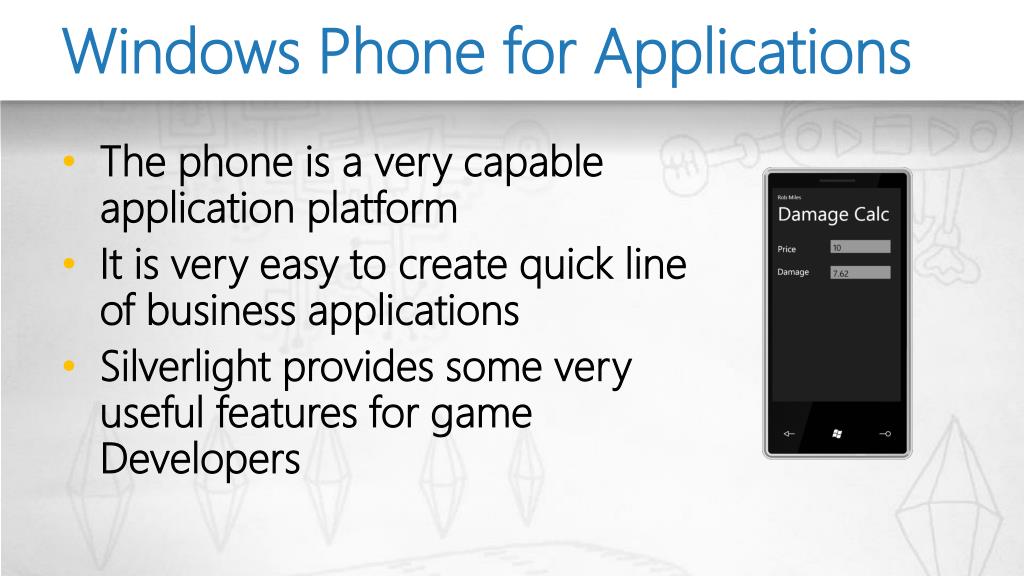

Windows Phone for Applications
  • The phone is a very capable application platform
  • It is very easy to create quick line of business applications
  • Silverlight provides some very useful features for game Developers
databinding indamagecalc

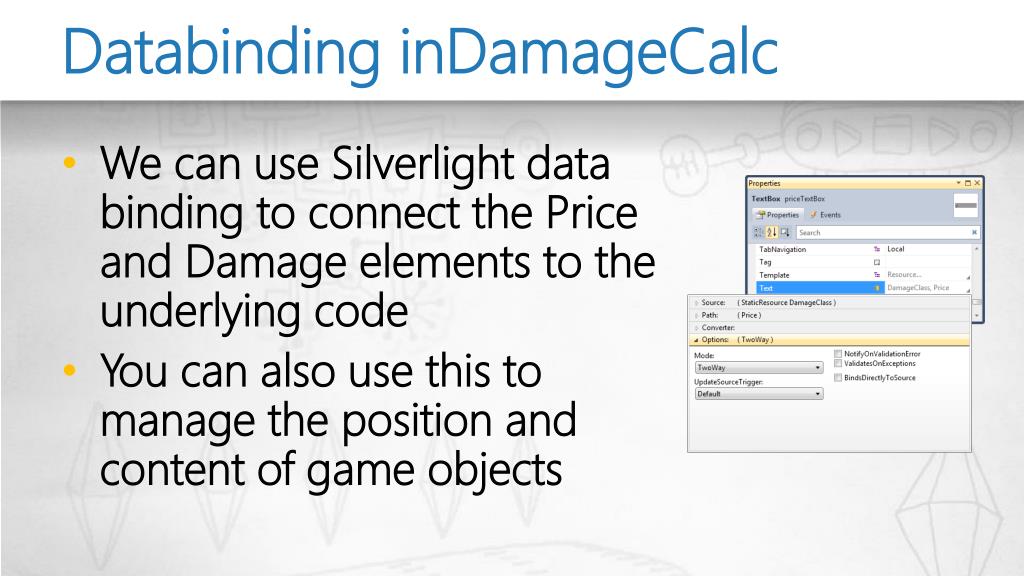

DatabindinginDamageCalc
  • We can use Silverlight data binding to connect the Price and Damage elements to the underlying code
  • You can also use this to manage the position and content of game objects
databound price property
Databound Price Property

set

{

if (priceChangeActive) return;

priceChangeActive = true;

latestPrice = value;

Damage = twoDecimalPlaces((value / exchangeRate) * taxRate);

if (PropertyChanged != null)

{

PropertyChanged(this, newPropertyChangedEventArgs("Damage"));

}

priceChangeActive = false;

}

  • This event is fired when the user changes the price
databound price property1
Databound Price Property

set

{

if (priceChangeActive) return;

priceChangeActive = true;

latestPrice = value;

Damage = twoDecimalPlaces((value / exchangeRate) * taxRate);

if (PropertyChanged != null)

{

PropertyChanged(this, newPropertyChangedEventArgs("Damage"));

}

priceChangeActive = false;

}

  • It calculates the new value of the Damage property
databound price property2
Databound Price Property

set

{

if (priceChangeActive) return;

priceChangeActive = true;

latestPrice = value;

Damage = twoDecimalPlaces((value / exchangeRate) * taxRate);

if (PropertyChanged != null)

{

PropertyChanged(this, newPropertyChangedEventArgs("Damage"));

}

priceChangeActive = false;

}

  • It fires a property changed event to update the Damage display
databound price property3
Databound Price Property

set

{

if (priceChangeActive) return;

priceChangeActive = true;

latestPrice = value;

Damage = twoDecimalPlaces((value / exchangeRate) * taxRate);

if (PropertyChanged != null)

{

PropertyChanged(this, newPropertyChangedEventArgs("Damage"));

}

priceChangeActive = false;

}

  • I use an interlock to stop updates from repeating
damage calc extensions

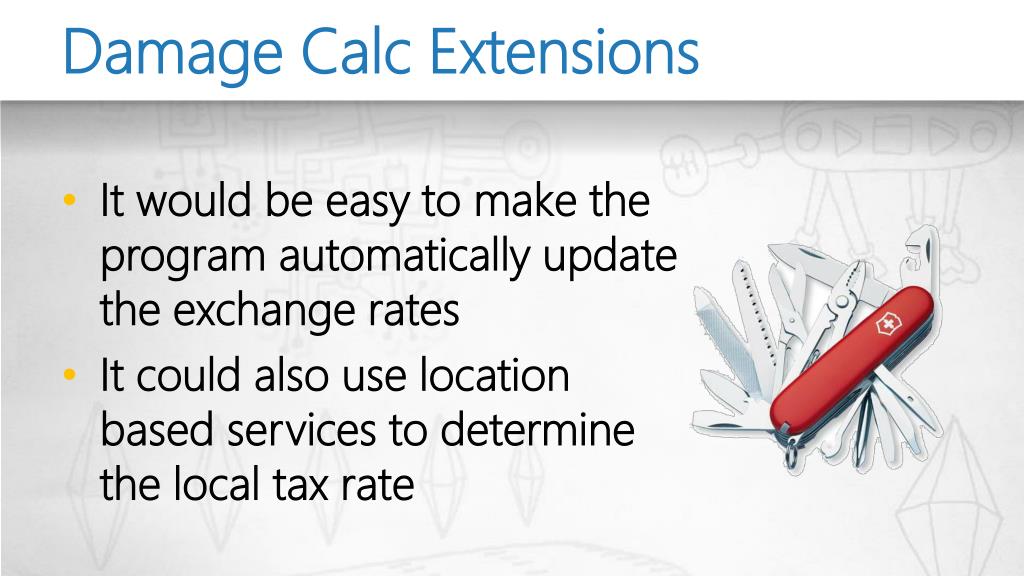

Damage Calc Extensions
  • It would be easy to make the program automatically update the exchange rates
  • It could also use location based services to determine the local tax rate

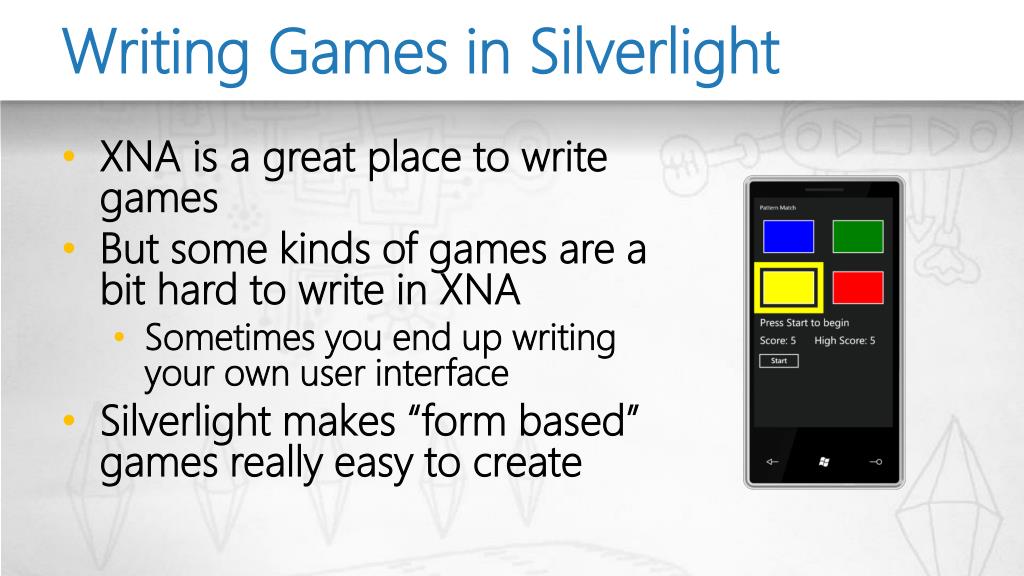

writing games in silverlight
Writing Games in Silverlight
  • XNA is a great place to write games
  • But some kinds of games are a bit hard to write in XNA
    • Sometimes you end up writing your own user interface
  • Silverlight makes “form based” games really easy to create

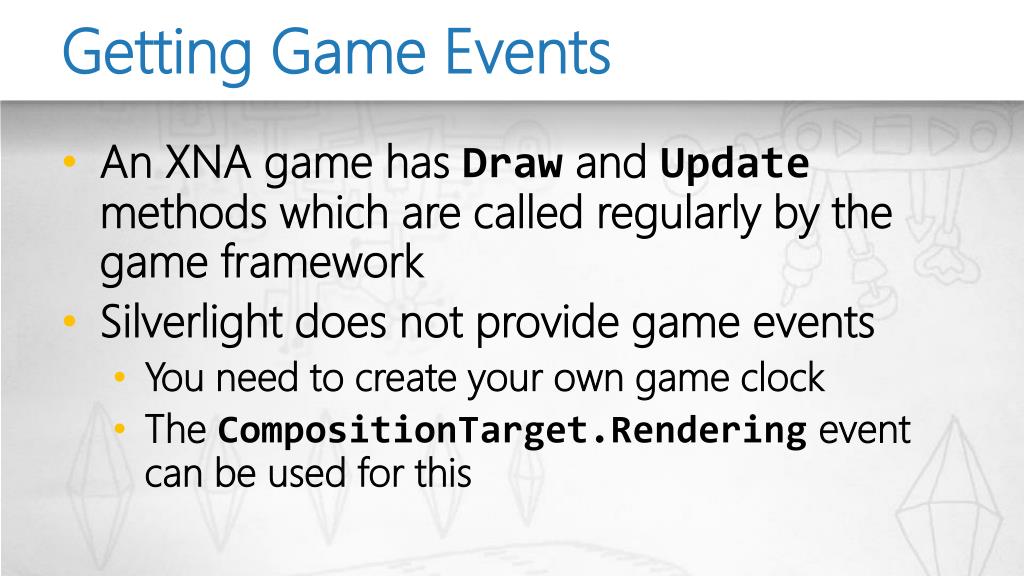

getting game events
Getting Game Events
  • An XNA game has Draw and Update methods which are called regularly by the game framework
  • Silverlight does not provide game events
    • You need to create your own game clock
    • The CompositionTarget.Rendering event can be used for this
catching the rendering event
Catching the Rendering Event
  • The Rendering event fires each time the form is rendered
  • This can be used as our game “tick”

CompositionTarget.Rendering += newEventHandler(CompositionTarget_Rendering);

creating an update behaviour

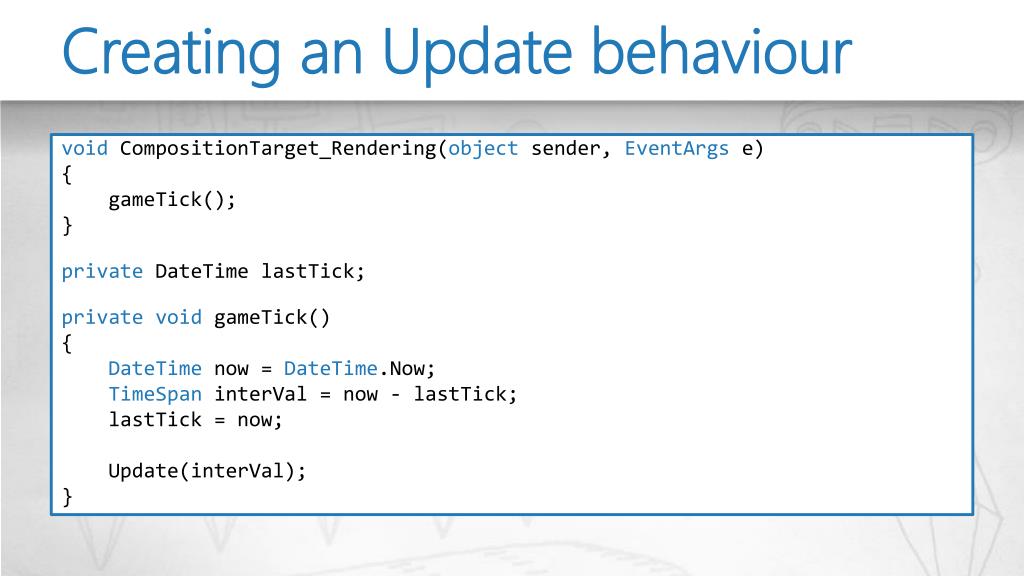

Creating an Update behaviour

voidCompositionTarget_Rendering(object sender, EventArgs e)

{

gameTick();

}

privateDateTimelastTick;

privatevoidgameTick()

{

DateTime now = DateTime.Now;

TimeSpaninterVal = now - lastTick;

lastTick = now;

Update(interVal);

}

the draw method

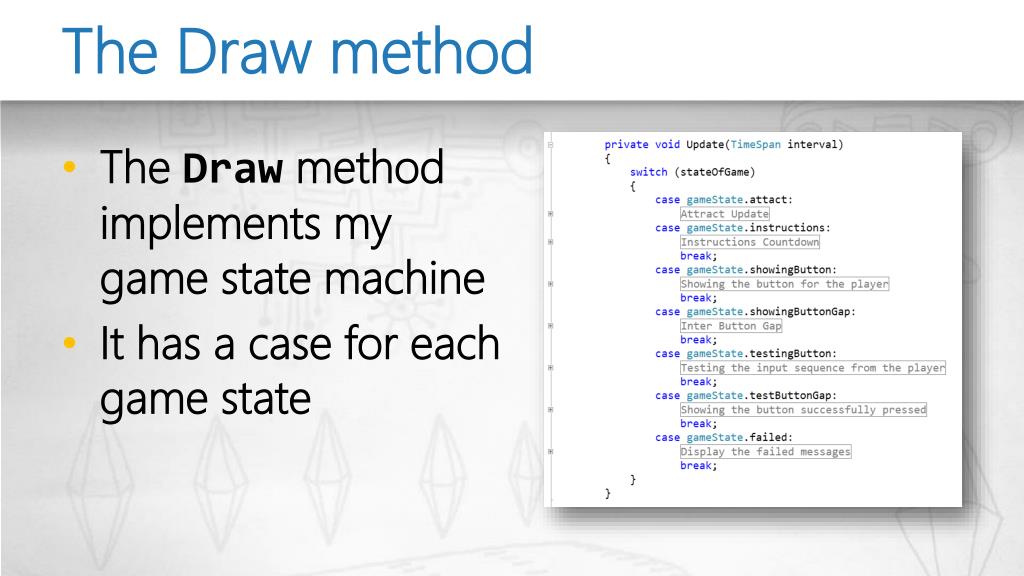

The Draw method
  • The Draw method implements my game state machine
  • It has a case for each game state
updating gameplay in silverlight
Updating Gameplay in Silverlight
  • Unlike an XNA game, the Update method will not be called at fixed intervals
  • Instead the game will need to use the TimeSpan value provided to the Update call to perform game timing
using the timestamps
Using the timestamps

private intcurrentWait = 0;

privatebooltestUpdateTime(TimeSpantimeStamp, intupdateDelay)

{

currentWait += timeStamp.Milliseconds;

if (currentWait < updateDelay)

{

returnfalse;

}

currentWait -= updateDelay;

returntrue;

}

  • The method returns true if the delay time has passed
flashing the buttons
Flashing the Buttons

private intflashInterval = 800;

...

if (testUpdateTime(interval, flashInterval))

{

// Update randomly flashing buttons

intoldLitButton = litButtonNo;

while (oldLitButton == litButtonNo)

{

litButtonNo = attractRand.Next(gameButtons.Length);

}

}

  • This update code changes the lit button every 800 ms
persisting state
Persisting State
  • Your games must automatically persist state information so that they resume where they left off
  • Windows Phone provides local storage to make this possible
  • Each application has its own area of isolated storage
storing a high score
Storing a High Score

private void saveHighScore()

{

IsolatedStorageFilemyStorage = IsolatedStorageFile.GetUserStoreForApplication();

IsolatedStorageFileStreamoutputStream =myStorage.OpenFile("HiScore",FileMode.CreateNew);

StreamWriter output = newStreamWriter(outputStream);

output.WriteLine(highScore.ToString());

output.Close();

myStorage.Dispose();

}

  • Each application has its own storage area
storing a high score1
Storing a High Score

private void saveHighScore()

{

IsolatedStorageFilemyStorage = IsolatedStorageFile.GetUserStoreForApplication();

IsolatedStorageFileStreamoutputStream =myStorage.OpenFile("HiScore",FileMode.CreateNew);

StreamWriter output = newStreamWriter(outputStream);

output.WriteLine(highScore.ToString());

output.Close();

myStorage.Dispose();

}

  • The game can create files and store values in them
loading a high score
Loading a High Score

IsolatedStorageFilemyStorage = IsolatedStorageFile.GetUserStoreForApplication();

IsolatedStorageFileStreaminputStream = myStorage.OpenFile("HiScore", FileMode.Open);

StreamReader input = newStreamReader(inputStream);

stringhighScoreText = input.ReadLine();

highScore = int.Parse(highScoreText);

highscorTextBlock.Text = "Score: " + highScore.ToString();

input.Close();

myStorage.Dispose();

  • The storage can be read when the game starts
windows phone navigation

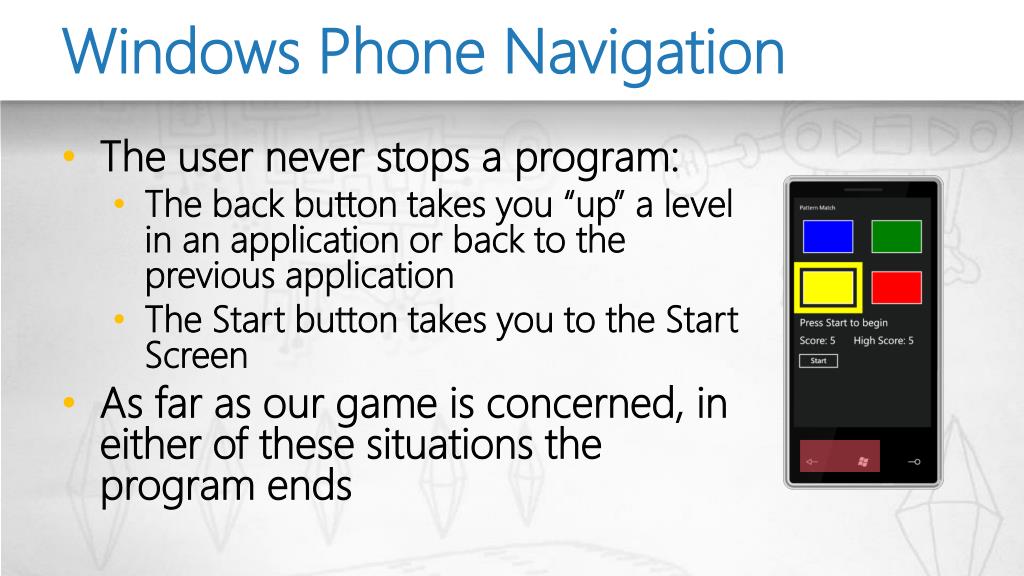

Windows Phone Navigation
  • The user never stops a program:
    • The back button takes you “up” a level in an application or back to the previous application
    • The Start button takes you to the Start Screen
  • As far as our game is concerned, in either of these situations the program ends
handling the back button

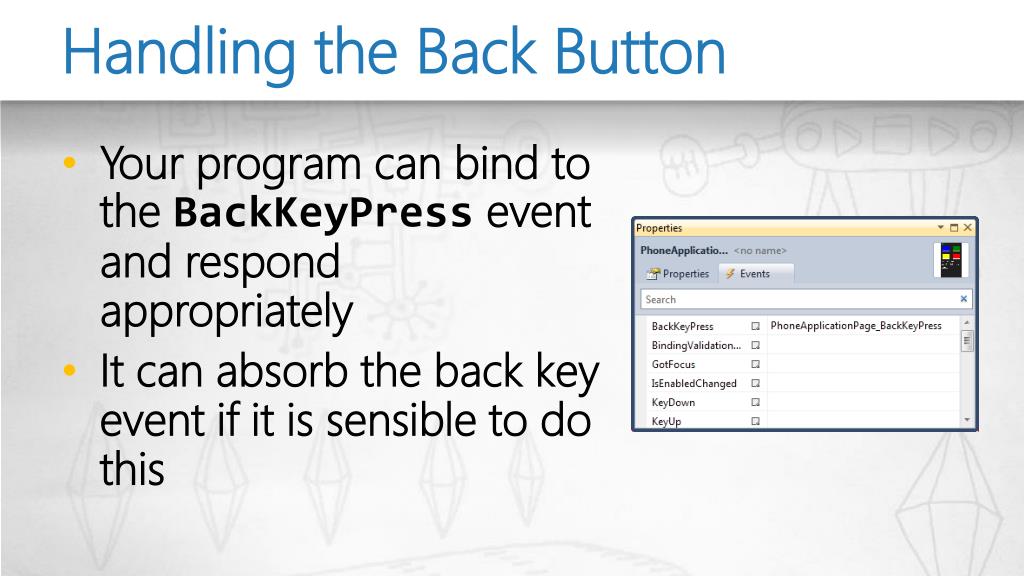

Handling the Back Button
  • Your program can bind to the BackKeyPress event and respond appropriately
  • It can absorb the back key event if it is sensible to do this
handling the exit event

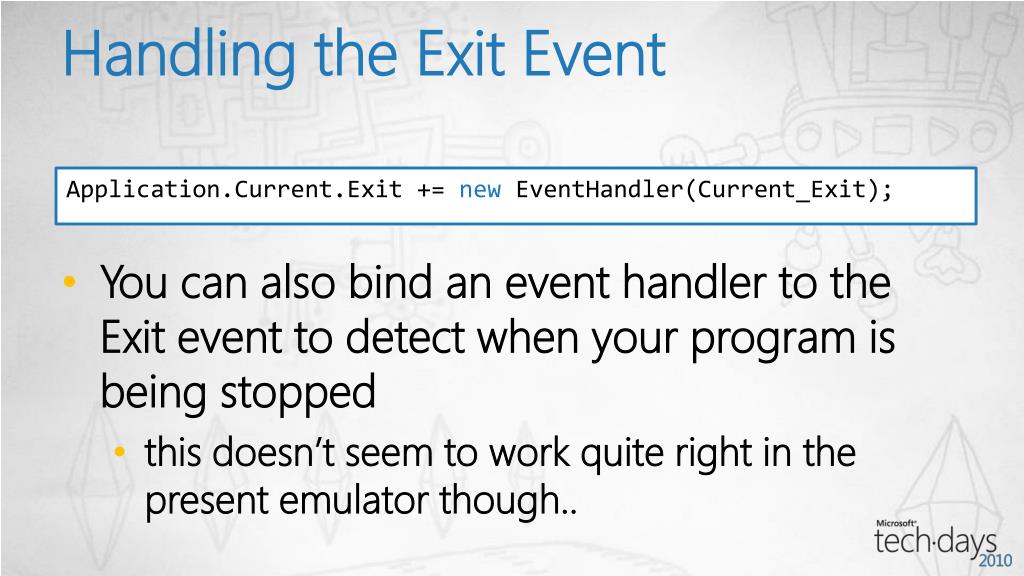

Handling the Exit Event

Application.Current.Exit += newEventHandler(Current_Exit);

  • You can also bind an event handler to the Exit event to detect when your program is being stopped
    • this doesn’t seem to work quite right in the present emulator though..
moving into xna

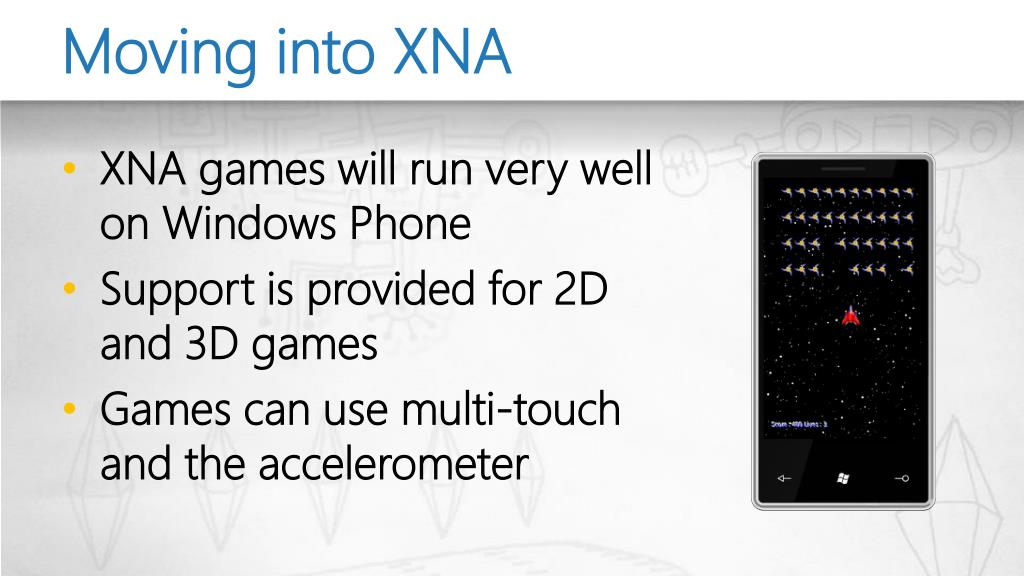

Moving into XNA
  • XNA games will run very well on Windows Phone
  • Support is provided for 2D and 3D games
  • Games can use multi-touch and the accelerometer

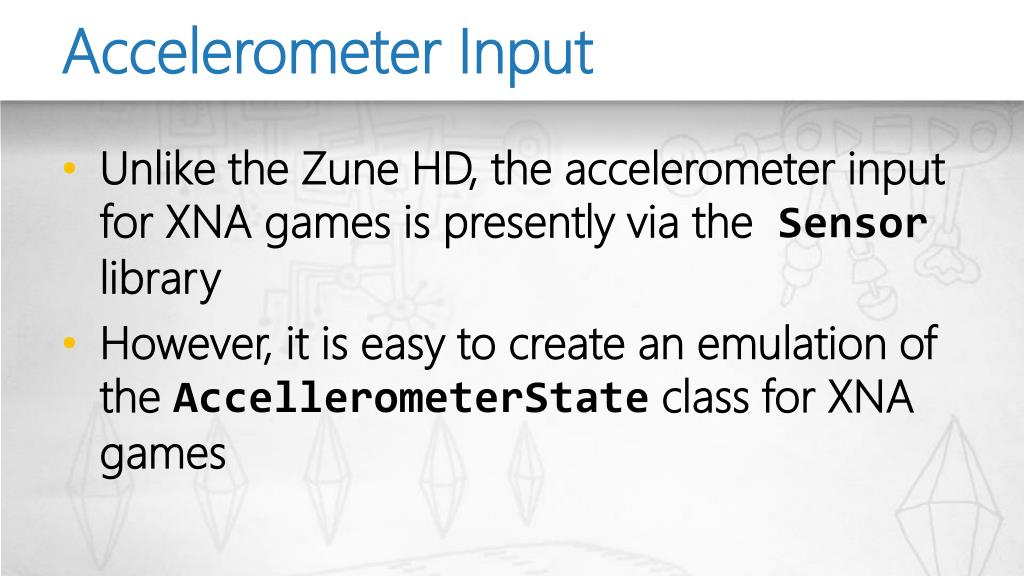

accelerometer input
Accelerometer Input
  • Unlike the Zune HD, the accelerometer input for XNA games is presently via the Sensor library
  • However, it is easy to create an emulation of the AccellerometerState class for XNA games

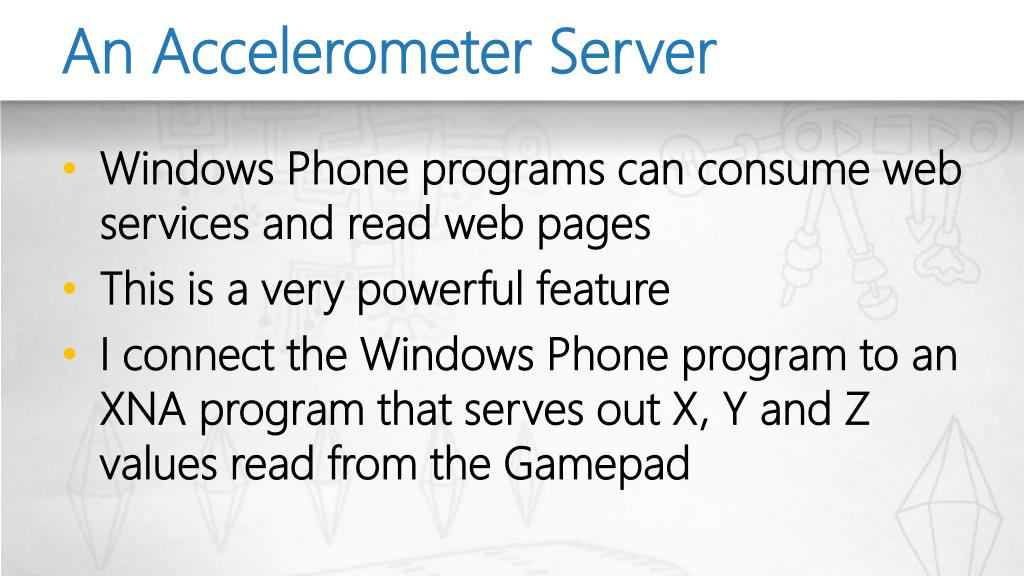

an accelerometer server
An Accelerometer Server
  • Windows Phone programs can consume web services and read web pages
  • This is a very powerful feature
  • I connect the Windows Phone program to an XNA program that serves out X, Y and Z values read from the Gamepad
reading a web page

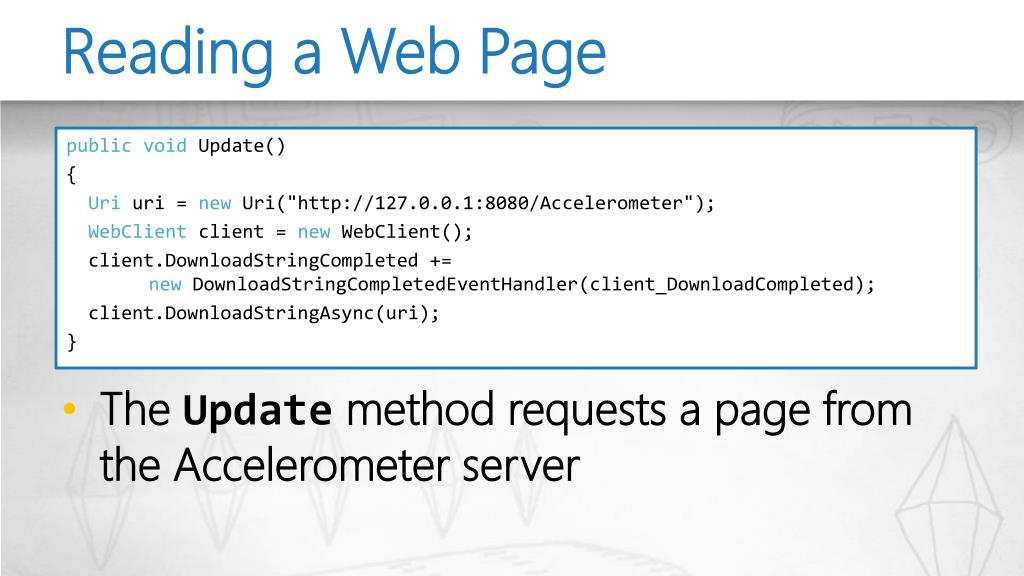

Reading a Web Page
  • The Update method requests a page from the Accelerometer server

public void Update()

{

Uriuri = new Uri("http://127.0.0.1:8080/Accelerometer");

WebClient client = newWebClient();

client.DownloadStringCompleted += newDownloadStringCompletedEventHandler(client_DownloadCompleted);

client.DownloadStringAsync(uri);

}

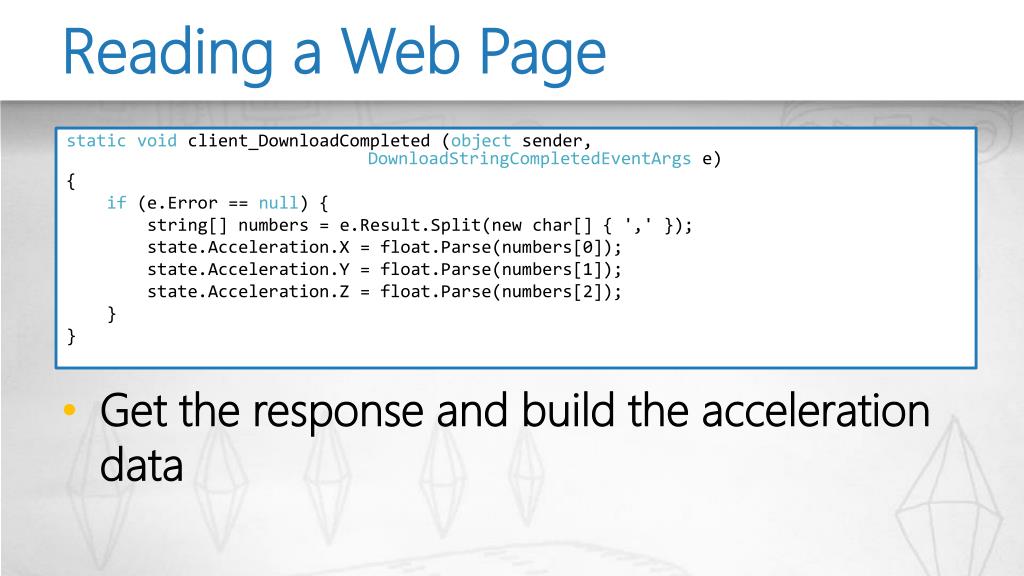

reading a web page1
Reading a Web Page
  • Get the response and build the acceleration data

static void client_DownloadCompleted (object sender, DownloadStringCompletedEventArgs e)

{

if (e.Error == null) {

string[] numbers = e.Result.Split(new char[] { ',' });

state.Acceleration.X = float.Parse(numbers[0]);

state.Acceleration.Y = float.Parse(numbers[1]);

state.Acceleration.Z = float.Parse(numbers[2]);

}

}

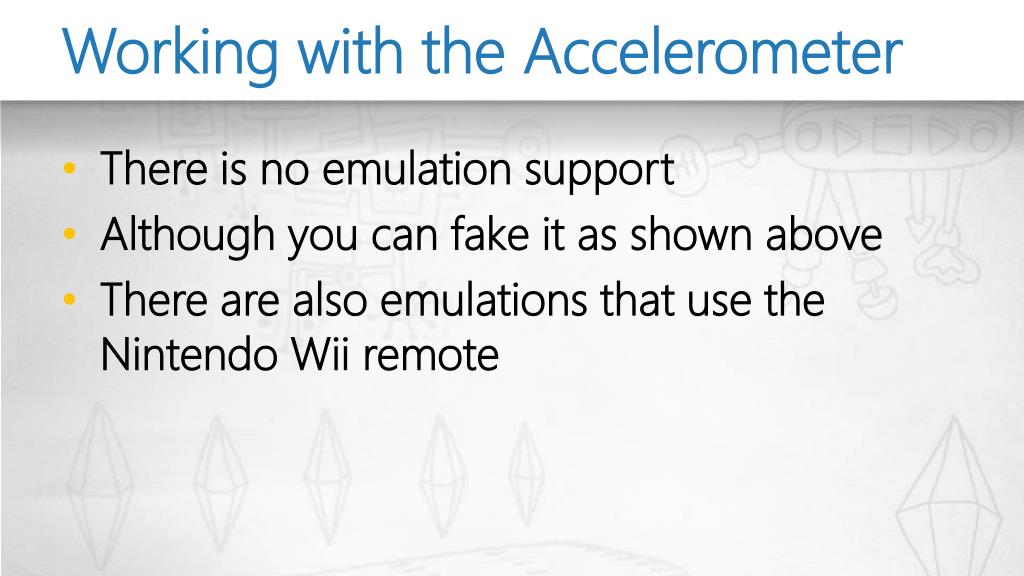

working with the accelerometer
Working with the Accelerometer
  • There is no emulation support
  • Although you can fake it as shown above
  • There are also emulations that use the Nintendo Wii remote
multi touch

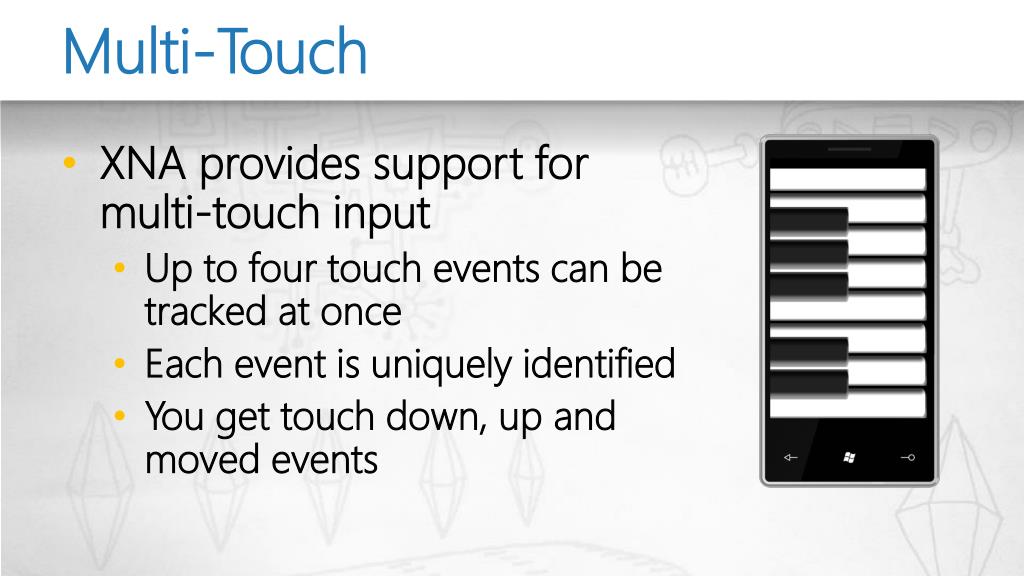

Multi-Touch
  • XNA provides support for multi-touch input
    • Up to four touch events can be tracked at once
    • Each event is uniquely identified
    • You get touch down, up and moved events

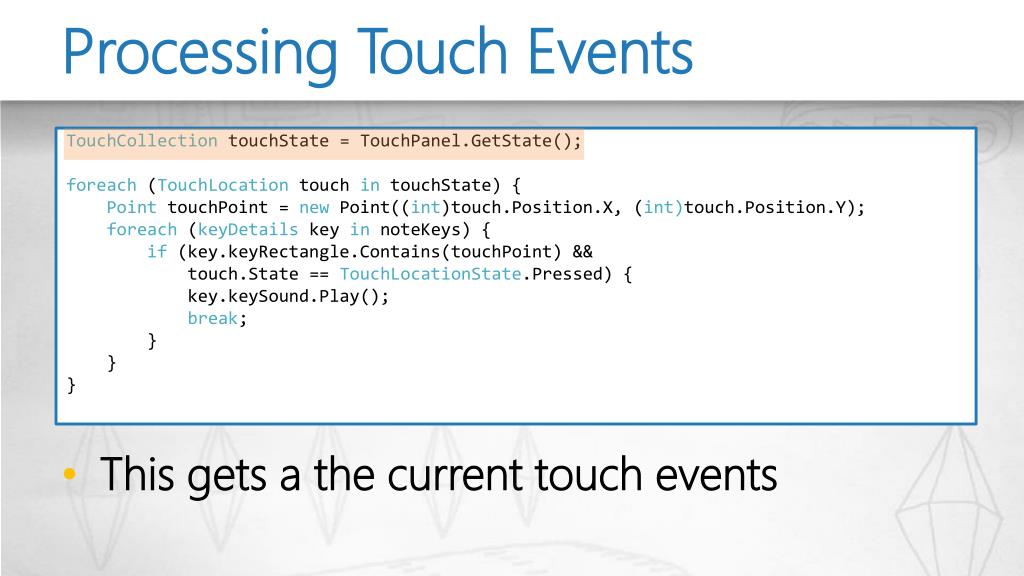

processing touch events
Processing Touch Events
  • This gets a the current touch events

TouchCollectiontouchState = TouchPanel.GetState();

foreach (TouchLocation touch intouchState) {

PointtouchPoint = new Point((int)touch.Position.X, (int)touch.Position.Y);

foreach (keyDetails key innoteKeys) {

if (key.keyRectangle.Contains(touchPoint) &&

touch.State == TouchLocationState.Pressed) {

key.keySound.Play();

break;

}

}

}

processing touch events1

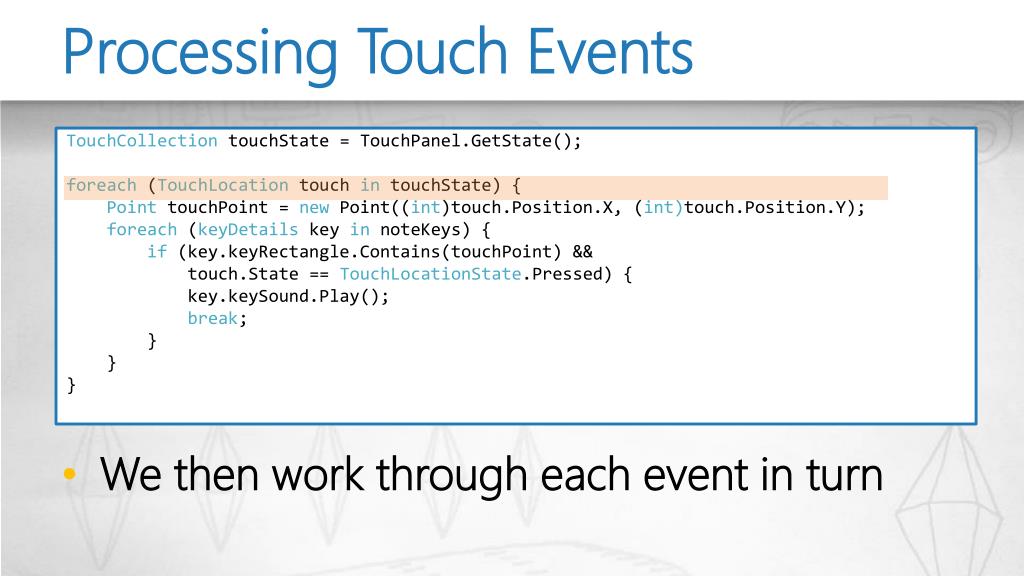

Processing Touch Events
  • We then work through each event in turn

TouchCollectiontouchState = TouchPanel.GetState();

foreach (TouchLocation touch intouchState) {

PointtouchPoint = new Point((int)touch.Position.X, (int)touch.Position.Y);

foreach (keyDetails key innoteKeys) {

if (key.keyRectangle.Contains(touchPoint) &&

touch.State == TouchLocationState.Pressed) {

key.keySound.Play();

break;

}

}

}

processing touch events2
Processing Touch Events
  • I use a keyDetails class which holds the key position as a Rectangle and the soundeffect to play when the key is pressed

TouchCollectiontouchState = TouchPanel.GetState();

foreach (TouchLocation touch intouchState) {

PointtouchPoint = new Point((int)touch.Position.X, (int)touch.Position.Y);

foreach (keyDetails key innoteKeys) {

if (key.keyRectangle.Contains(touchPoint) &&

touch.State == TouchLocationState.Pressed) {

key.keySound.Play();

break;

}

}

}

working with multi touch
Working with Multi-Touch
  • If you want to emulate multi-touch you can get a multi-touch monitor
    • Windows 7 multi-touch is used directly the emulator
  • There are some multi-touch emulators that use multiple mice
xna in 3d

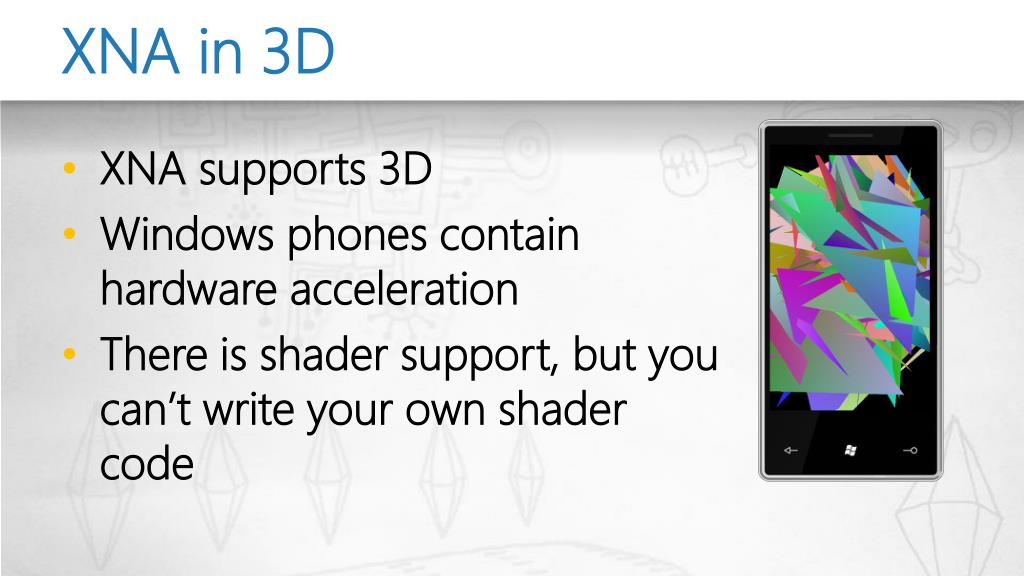

XNA in 3D
  • XNA supports 3D
  • Windows phones contain hardware acceleration
  • There is shader support, but you can’t write your own shader code
xna 4 0 changes
XNA 4.0 Changes
  • The way that you specify Vertices has changed in XNA 4.0
  • Do not be surprised if sample code for earlier versions of XNA fail to work
  • The new design is much easier to understand though
  • Samples are now available on the web
measuring performance

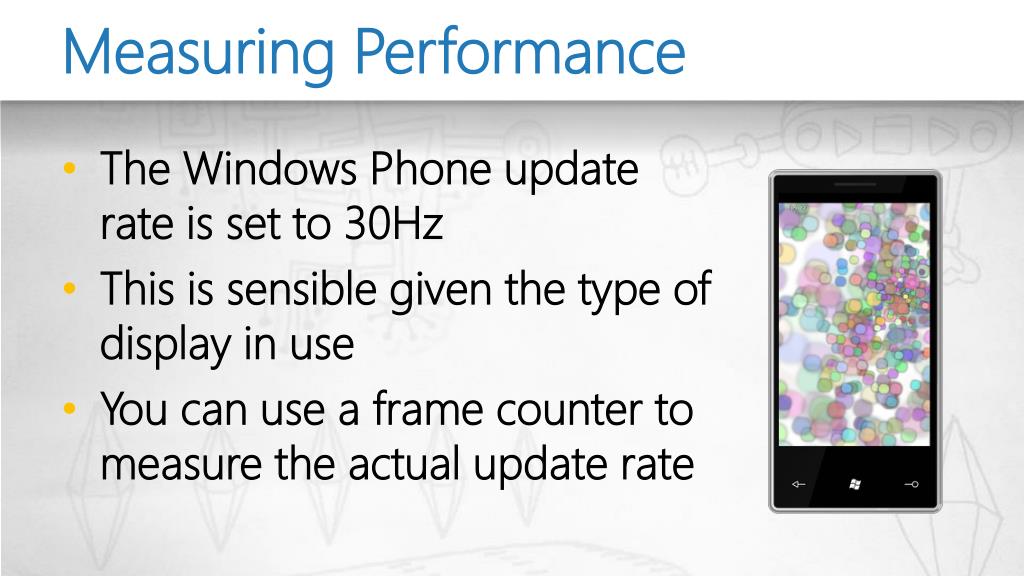

Measuring Performance
  • The Windows Phone update rate is set to 30Hz
  • This is sensible given the type of display in use
  • You can use a frame counter to measure the actual update rate
xna performance counter
XNA Performance Counter

public override void Update(GameTimegameTime)

{

elapsedTime += gameTime.ElapsedGameTime;

if (elapsedTime > TimeSpan.FromSeconds(1)) {

elapsedTime -= TimeSpan.FromSeconds(1);

frameRate = frameCounter;

frameCounter = 0;

}

}

  • This Update method clears the frame counter every second
  • The counter is increased each time Draw is called
sliverlight performance
Sliverlight Performance
  • It is easy to get a frame rate counter in Silverlight
  • Setting the above property in your program will display one

Application.Current.Host.Settings.EnableFrameRateCounter= true;

using the zune hd
Using the Zune HD
  • One way to get experience of Windows Phone XNA development is to get hold of a Zune HD
  • You can write XNA 3.1 games in 2D for this platform
  • It provides multi-touch and accelerometer support
what to do now
What To Do Now
  • Download the development environment and other cool stuff:

developer.windowsphone.com/

  • Read the sample chapters from the free ebook by Charles Petzold
  • Get writing code!
  • All samples, resources and links are on my blog:

www.robmiles.com
