IPv6 DNS Service Deploymentin Korea

November, 2005

Dr. Sir, Jae-Chul

sir@nida.or.kr

slide2

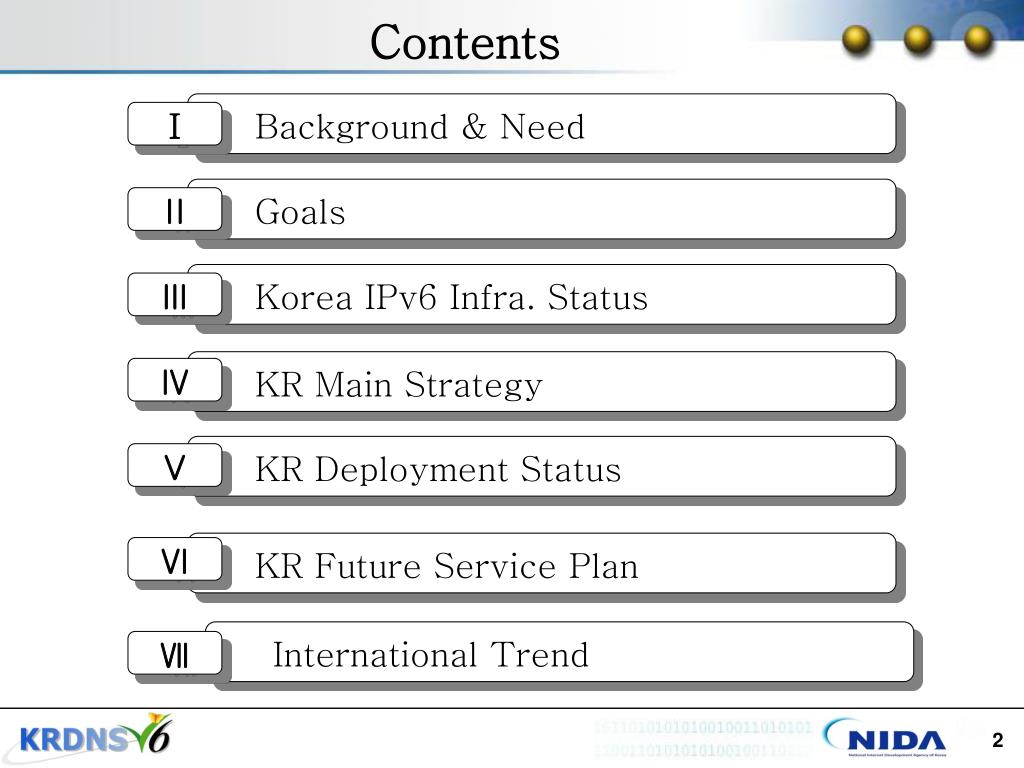

Contents

Background & Need

Goals

Korea IPv6 Infra. Status

KR Main Strategy

KR Deployment Status

KR Future Service Plan

International Trend

slide3

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

KR Main Strategy

KR Deployment Status

KR Future Service Plan

slide4

Background & Need

IPv4 DNS

IPv6 DNS

Need for systematic

.KR DNS and tech.

for early settlement of

local IPv6 DNS service

the importance of DNS protocol is increased under Internet environment, DNS tech. is advanced

Advent of IPv4 (Early 1980s)

Activated IPv4

(1990s)

Advent of IPv6

(1999)

Depletion of IPv4

(1994)

  • Activated hi-speed Internet service
  • Development of wireless/mobile tech.
  • Appearance of various new services
  • Advent of ubiquitous era
  • Arrangement for hi- performance IPv6 application test basis
  • Need for stable IPv6 DNS tech.
  • Increased Network/Host
  • Development of various application services
  • Early stage of Internet
  • Name-IP mapping table (hosts.txt file)
  • Needs for DNS
slide5

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

KR Main Strategy

KR Deployment Status

KR Future Service Plan

slide6

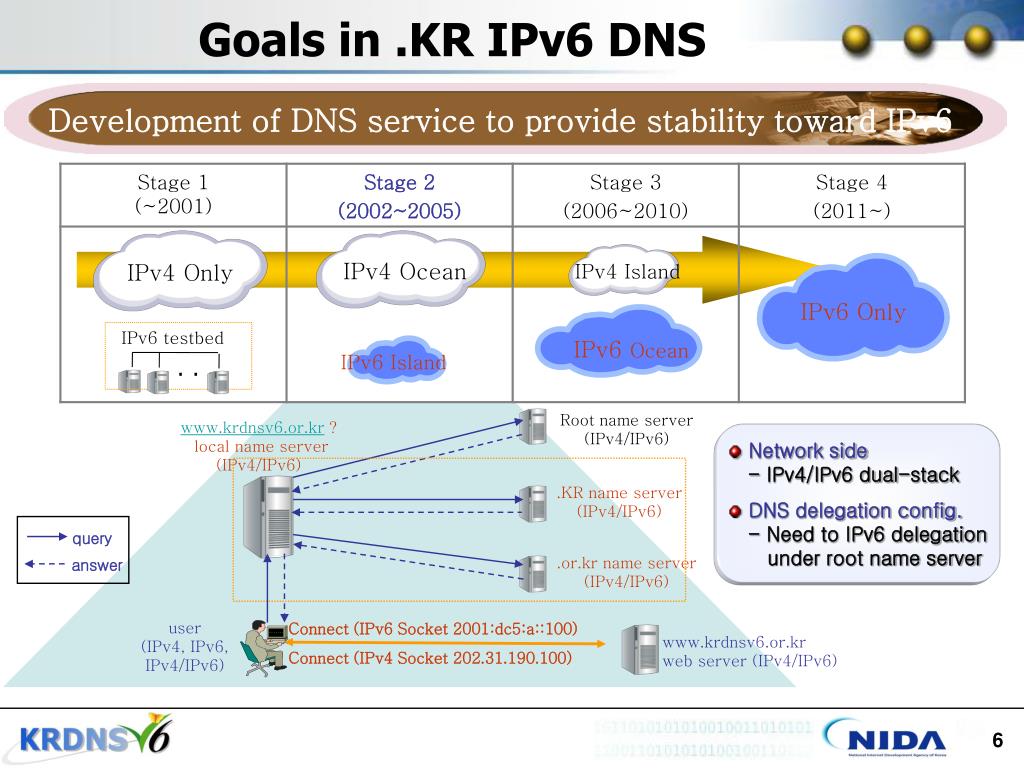

Goals in .KR IPv6 DNS

Development of DNS service to provide stability toward IPv6

IPv4 Ocean

IPv4 Only

IPv4 Island

IPv6 Only

IPv6 testbed

IPv6 Ocean

IPv6 Island

․ ․․

Root name server

(IPv4/IPv6)

www.krdnsv6.or.kr ? local name server

(IPv4/IPv6)

  • Network side - IPv4/IPv6 dual-stack
  • DNS delegation config. - Need to IPv6 delegation under root name server

.KR name server (IPv4/IPv6)

query

.or.kr name server (IPv4/IPv6)

answer

user

(IPv4, IPv6, IPv4/IPv6)

Connect (IPv6 Socket 2001:dc5:a::100)

www.krdnsv6.or.kr web server (IPv4/IPv6)

Connect (IPv4 Socket 202.31.190.100)

slide7

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

KR Main Strategy

KR Deployment Status

KR Future Service Plan

slide8

Korea IPv6 Infra. Status(1/4)

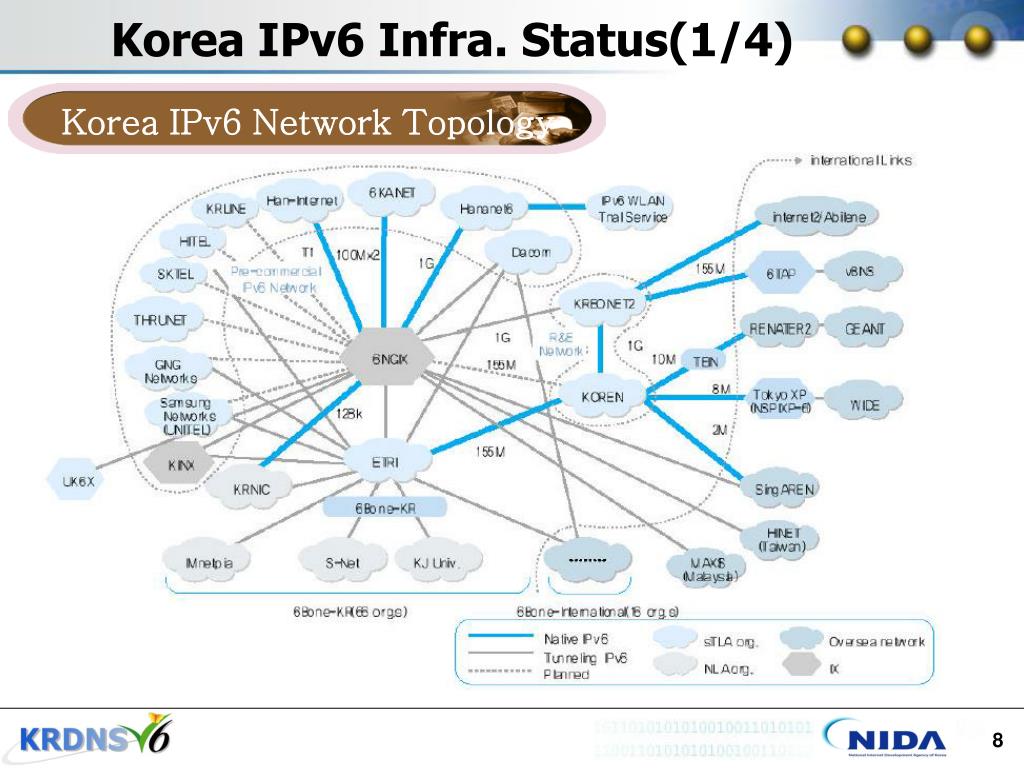

Korea IPv6 Network Topology

slide9

Korea IPv6 Infra. Status(2/4)

IPv6 Network Deployment in Korea

KOREAv6

TEIN IPv6 &6NGIX

  • Native IPv6 Trial Service Network in Korea
  • NIDA participates in this project for “TEST.KR” IPv6 trial DNS Service

KOREN &KREONET2 IPv6

  • TEIN (Trans Eurasia Information Network) : Continetal IPv6 network between Asia & Europe
  • 6NGIX : IPv6 Internet Exchange Point in Korea(by NCA)

6Bone-KR

  • KOREN, First native IPv6 network in Korea(by KT)
  • KREONET2(by KISTI)
  • R&D network
  • First IPv6 experimental network in Korea
  • 78+ org. has involved in 6Bone-KR
  • (www.6bone.ne.kr)

2004~

2001~

1999~

1998~

slide10

Korea IPv6 Infra. Status(3/4)

KRDNSv6 Service based on Korea IPv6 Infra.

KOREAv6

6KANET, KOREN, KREONET, 6NGIX, ISP

(IPv4/IPv6)

Internet

(IPv4)

a.dns.kr

(NIDA)

b.dns.kr

(KT)

Global IPv6 Network

c.dns.kr

(Dacom)

IPv6 firewall

IPv6 DNS

Testbed

(NIDA)

KRDNSv6

(IPv4/IPv6)

d.dns.kr

(Dacom)

e.dns.kr

(KISTI)

Web

TEST.KR

Local DNS for KOREAv6 Trial Service

g.dns.kr

(NIDA)

.KR DNS

(IPv4 only)

f.dns.kr

(Hanaro)

slide11

KREONET

6KANet

ISP

6NGIX

KOREN

Korea IPv6 Infra. Status(4/4)

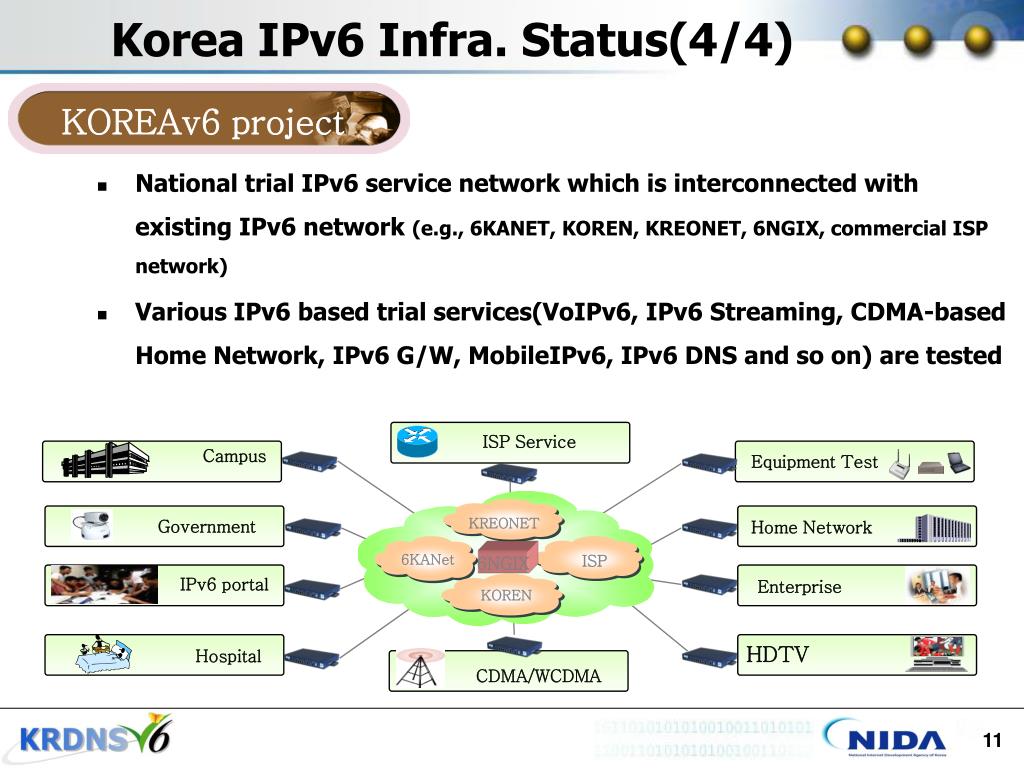

KOREAv6 project

  • National trial IPv6 service network which is interconnected with existing IPv6 network (e.g., 6KANET, KOREN, KREONET, 6NGIX, commercial ISP network)
  • Various IPv6 based trial services(VoIPv6, IPv6 Streaming, CDMA-basedHome Network, IPv6 G/W, MobileIPv6, IPv6 DNS and so on) are tested

ISP Service

Campus

Equipment Test

Government

Home Network

IPv6 portal

Enterprise

HDTV

Hospital

CDMA/WCDMA

slide12

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

KR Main Strategy

VI

KR Deployment Status

KR Future Service Plan

slide13

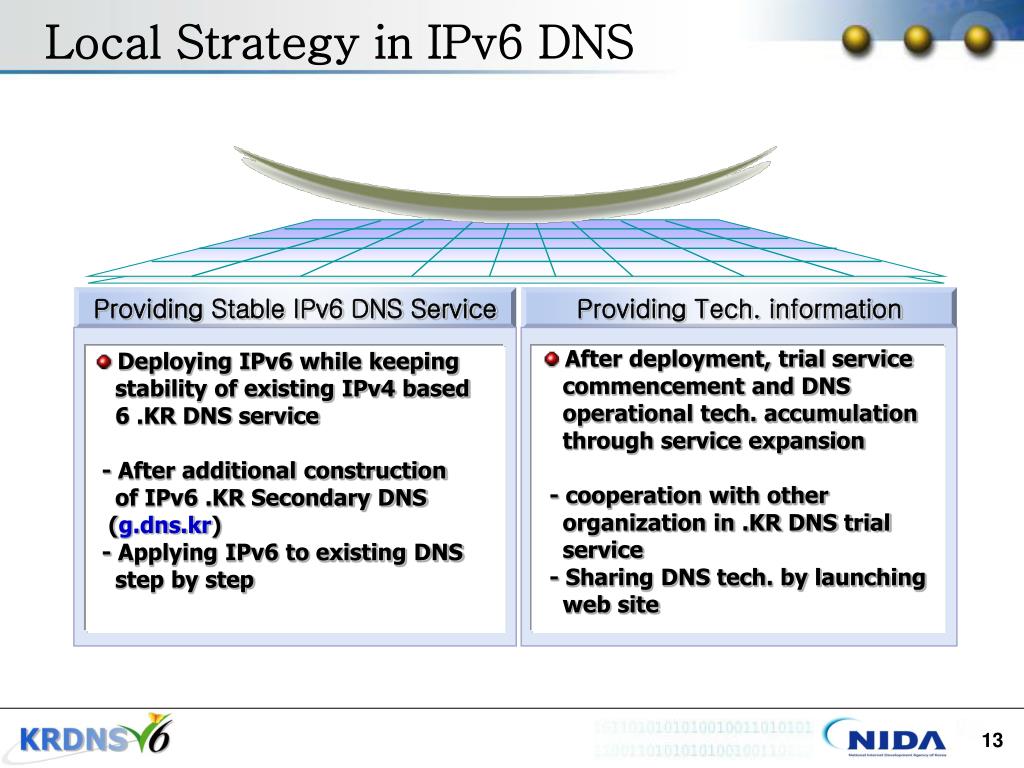

Local Strategy in IPv6 DNS

Providing Stable IPv6 DNS Service

Providing Tech. information

  • After deployment, trial service commencement and DNS operational tech. accumulation through service expansion - cooperation with other organization in .KR DNS trial service - Sharing DNS tech. by launching web site
  • Deploying IPv6 while keeping stability of existing IPv4 based 6 .KR DNS service - After additional construction of IPv6 .KR Secondary DNS (g.dns.kr) - Applying IPv6 to existing DNS step by step
slide14

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

KR Main Strategy

KR Deployment Status

V

KR Future Service Plan

slide15

IPv6 DNS Deployment Milestone

  • Construction of 7th .KR dual- stack server & network [KRDNSv6 test network]
  • Delegation of IPv6 AAAA of .kr name server to root DNS zone
  • Registration of IPv6 reverse of .kr name server to APNIC
  • Launching DNS web page (http://www.krdnsv6.or.kr)
  • Construction of tunneling IPv6 network & IPv4/IPv6 interoperability test
  • Construction of Native-IPv6 network
  • Construction of IPv6 DNS trial system & IPv4/IPv6 interoperability test
  • Education(NGI2 & IPv6 DNS workshop)
  • Publication of ‘DNS Guideline’

2004

2000 ~2003

slide16

Trial KRDNSv6 Service (1/3)

Trial IPv6 DNS Service through KRDNSv6

IPv4/IPv6 based local DNS network for IPv6 network

What

is

KRDNSv6

?

Construction of trial IPv6 service network

through trial IPv6 deployment to .kr domain in 2004

Construction of IPv4/IPv6 interoperable network

through cooperation with KOREAv6

Structure

of

KRDNSv6

Construction of ‘IPv6 DNS preliminary test network’

for IPv6 DNS related technical analysis

Fully equipped environment for technical analysis

in depth

slide17

Stabilized IPv6 DNS Service System

Trial KRDNSv6 Service (2/3)

.KR DNS IPv6 System Construction Status

IPv6 delegation to root DNS

IPv6 reverse registration to APNIC

Consistent domain name system

KR. NS a.dns.kr.

:

KR. NS g.dns.kr.

a.dns.kr. A 202.30.50.50 :

g.dns.kr. A 202.31.190.1

g.dns.kr.AAAA 2001:dc5:a::1

  • Registration of reverse delegation to APNIC in /32

a.dns.kr

b.dns.kr

c.dns.kr

d.dns.kr

e.dns.kr

f.dns.kr

g.dns.kr

IPv4 [6]

- IPv4/IPv6 [1]

slide18

Trial KRDNSv6 Service (3/3)

Trial KRDNSv6 Service Topology as of March. 2005

IPv4 (query/response)

IPv6 (query/response)

Root DNS

ROOT(.)

Trial KRDNSv6 network

KR

IPv4/IPv6 .KR DNS

PE

GO

OR

TEST

IPv4 .KR DNS

IPv4/IPv6 DNS

mic.go.kr

mic.go.kr

IPv4 DNS

IPv6

IPv4

IPv4

Application service

IPv4/IPv6 user

IPv4 user

IPv4 based application service

IPv4 Network

IPv4/IPv6 Network

slide19

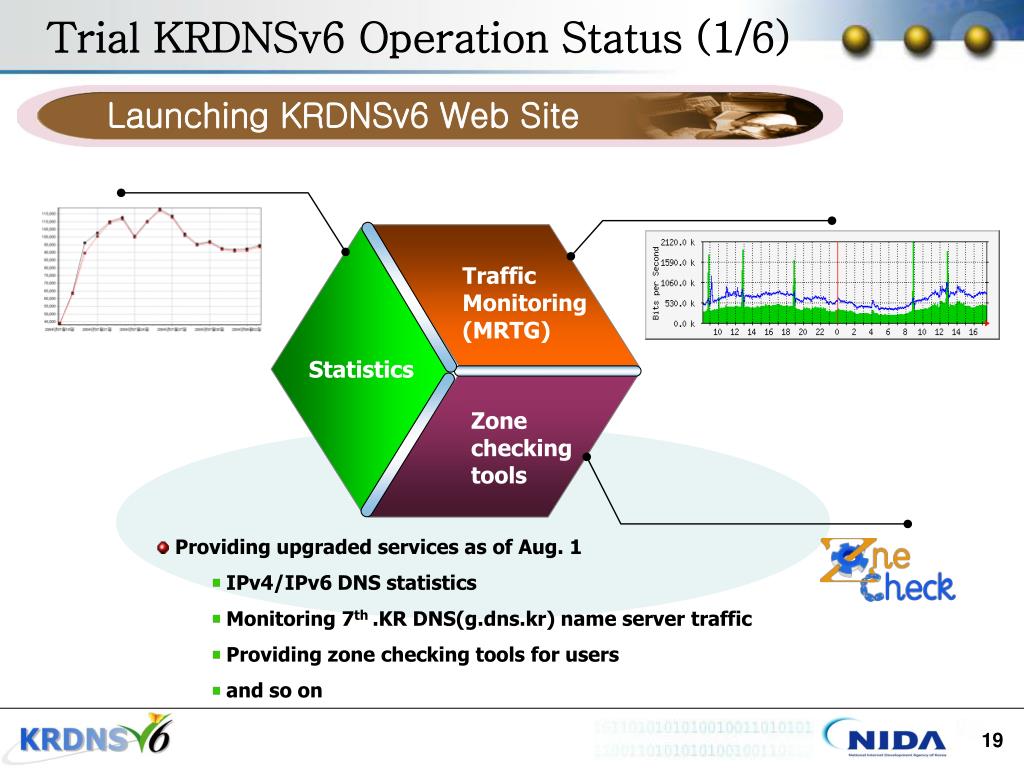

Trial KRDNSv6 Operation Status (1/6)

Launching KRDNSv6 Web Site

TrafficMonitoring (MRTG)

Statistics

Zone checking tools

  • Providing upgraded services as of Aug. 1
    • IPv4/IPv6 DNS statistics
    • Monitoring 7th .KR DNS(g.dns.kr) name server traffic
    • Providing zone checking tools for users
    • and so on
slide20

: IPv6 DNS Query Counter

: IPv6 DNS Response Counter

Trial KRDNSv6 Operation Status (2/6)

Statistics

  • .KR DNS (g.dns.kr) IPv6 delegation to root DNS zone
  • World first delegation to ccTLD (July 21, 2004)
  • IPv6-based DNS query/response increased as of July 21 (45,000 100,000)

100,000

45,000

slide21

Trial KRDNSv6 Operation Status (3/6)

Statistics

  • IPv6 DNS daily average query : 133,694
  • vs. IPv4 DNS daily average query : 50,175,656

<.KR IPv6 DNS daily average query in every month, (Aug. ~ Dec., 2004)>

slide22

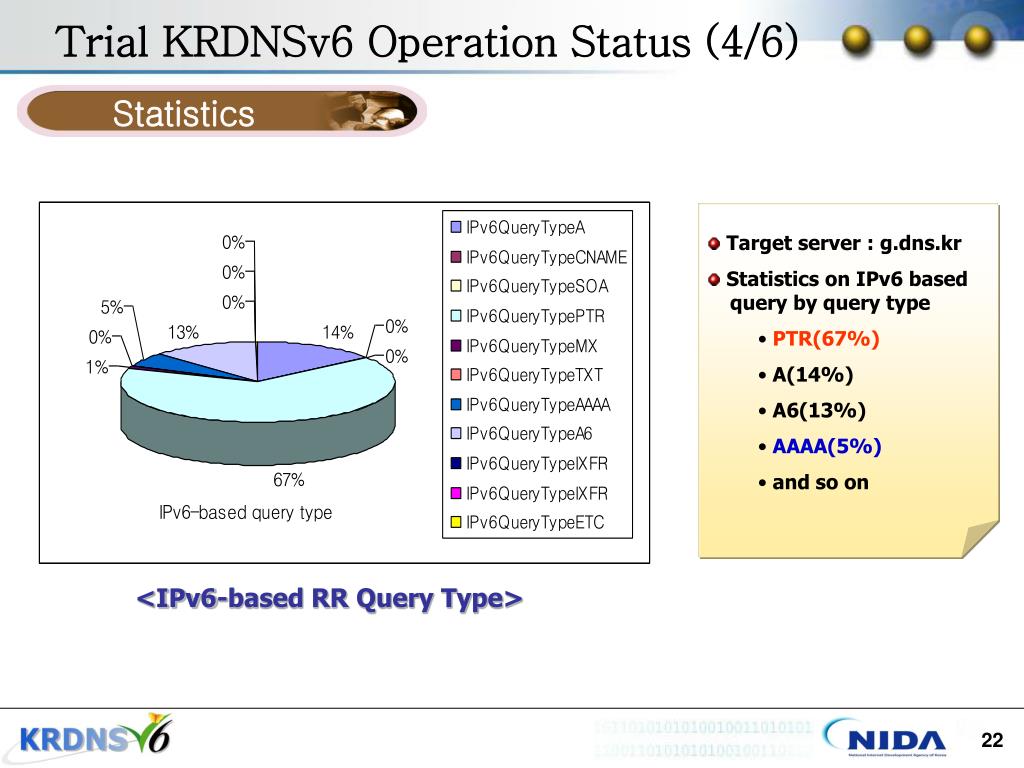

Trial KRDNSv6 Operation Status (4/6)

Statistics

  • Target server : g.dns.kr
  • Statistics on IPv6 based query by query type
    • PTR(67%)
    • A(14%)
    • A6(13%)
    • AAAA(5%)
    • and so on

<IPv6-based RR Query Type>

slide23

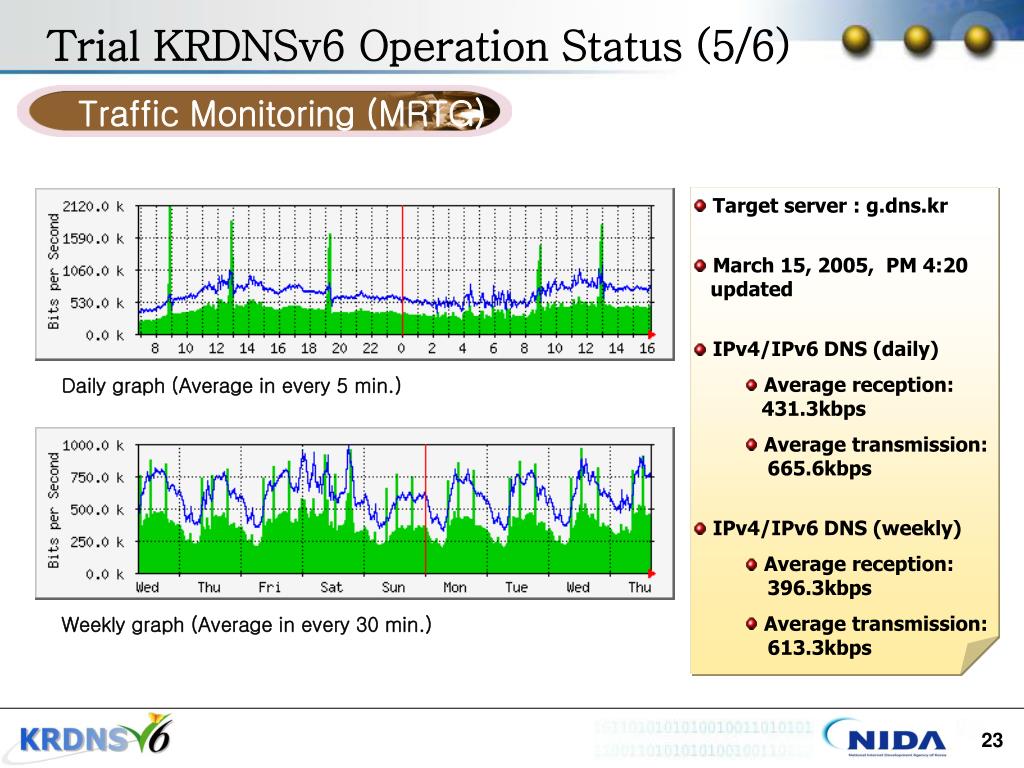

Trial KRDNSv6 Operation Status (5/6)

Traffic Monitoring (MRTG)

  • Target server : g.dns.kr
  • March 15, 2005, PM 4:20 updated
  • IPv4/IPv6 DNS (daily)
    • Average reception: 431.3kbps
    • Average transmission: 665.6kbps
  • IPv4/IPv6 DNS (weekly)
    • Average reception: 396.3kbps
    • Average transmission: 613.3kbps

Daily graph (Average in every 5 min.)

Weekly graph (Average in every 30 min.)

slide24

Trial KRDNSv6 Operation Status (6/6)

Zone Checking Tools

  • Providing checking tools for domain config.
  • Problems in DNS operation
    • DNS config. error
    • etc.
  • Constructing stabilized DNS by providing web based zone checking tools for DNS operators
slide25

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

KR Main Strategy

KR Deployment Status

KR Future Service Plan

VI

slide26

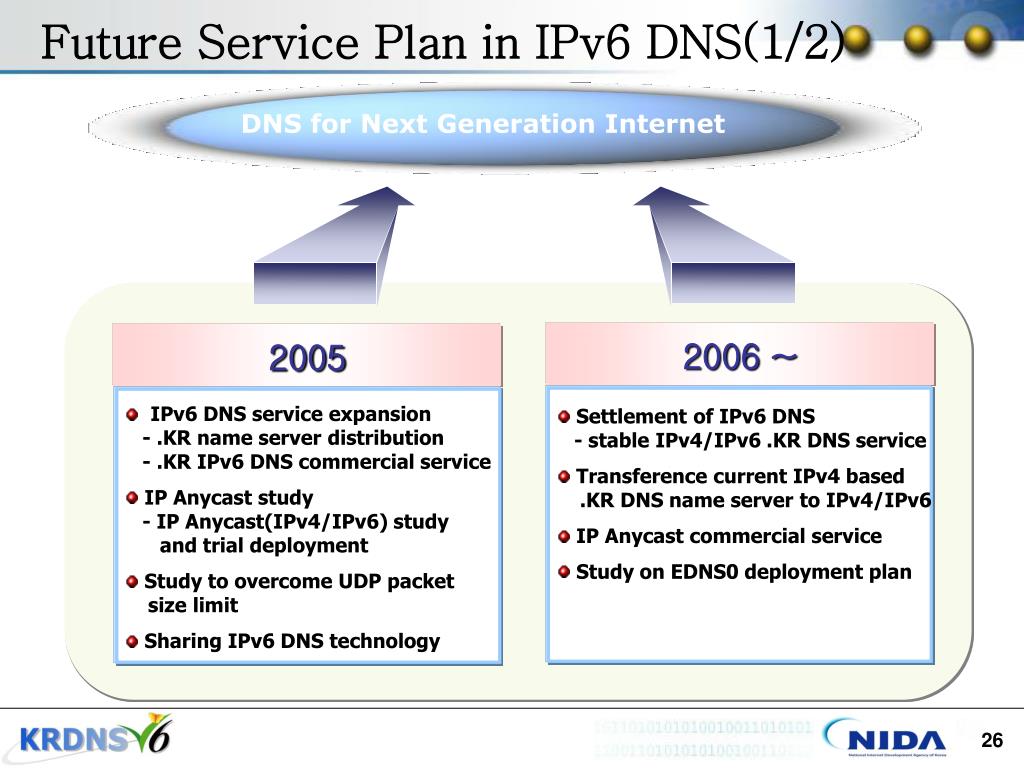

Future Service Plan in IPv6 DNS(1/2)

DNS for Next Generation Internet

2006 ~

2005

  • IPv6 DNS service expansion - .KR name server distribution - .KR IPv6 DNS commercial service
  • IP Anycast study - IP Anycast(IPv4/IPv6) study and trial deployment
  • Study to overcome UDP packet size limit
  • Sharing IPv6 DNS technology
  • Settlement of IPv6 DNS - stable IPv4/IPv6 .KR DNS service
  • Transference current IPv4 based .KR DNS name server to IPv4/IPv6
  • IP Anycast commercial service
  • Study on EDNS0 deployment plan
slide27

Future Service Plan in IPv6 DNS(2/2)

.KR IPv6 DNS expansion plan based on IP Anycast

< Now >

< 2005 Expansion Plan >

.KR DNS Servers

Europe / North America

Mirror DNS

a.dns.kr (NIDA, Seoul)

BGP &

BGP4+

b.dns.kr (KT, Seoul)

IPv4/IPv6

Router

IPv4/IPv6

a.dns.kr

mirror DNS

Globalization

IPv4/IPv6

c.dns.kr (DACOM, Anyang)

a.dns.kr

d.dns.kr (DACOM, SanJose)

Internet

IPv4/IPv6

e.dns.kr (KISTI, Daejon)

f.dns.kr (HANARO, Seoul)

Southern province of Korea

mirror DNS

Location Distribution

IPv4/IPv6

BGP &

BGP4+

KRDNSv6

: .KR Slave([b-f].dns.kr) DNS

: .KR Slave(a.dns.kr) DNS

g.dns.kr (NIDA, Seoul)

BGP &

BGP4+

IPv4/IPv6

Router

IPv4/IPv6

g.dns.kr

mirror DNS

: a.dns.kr Mirror DNS

: g.dns.kr IPv6 DNS

IPv4/IPv6

Router

g.dns.kr

: g.dns.kr Mirror DNS

IPv6

FW

IPv4/IPv6

: IPv4/IPv6 Router

: Reconfig. & Construction range

slide28

CONTACT

Dr. Sir, Jae-Chul ,Executive Director

Tel : +82-2-2186-4552

Fax : +82-2-2186-4495

Email : sir@nida.or.kr

National Internet Development Agency

of Korea

slide29

Background & Need

Goals

Korea IPv6 Infra. Status

International Trend

VII

KR Main Strategy

KR Deployment Status

KR Future Service Plan

slide30

H, Aberdeen, MD

I, Stockholm, Sweden

D, College Park, MD

C, Herndon,VA

M, Tokyo, Japan

E, Mt. View, CA

A, Dulles,VA

K, London, United Kingdom

B, Marina Del Rey, CA

J, Dulles,VA

L, Los Angeles

G, Vienna, VA

F, Palo Alto, CA

International Trend (1/6)

Worldwide Root DNS Servers : Total 13

slide31

International Trend (2/6)

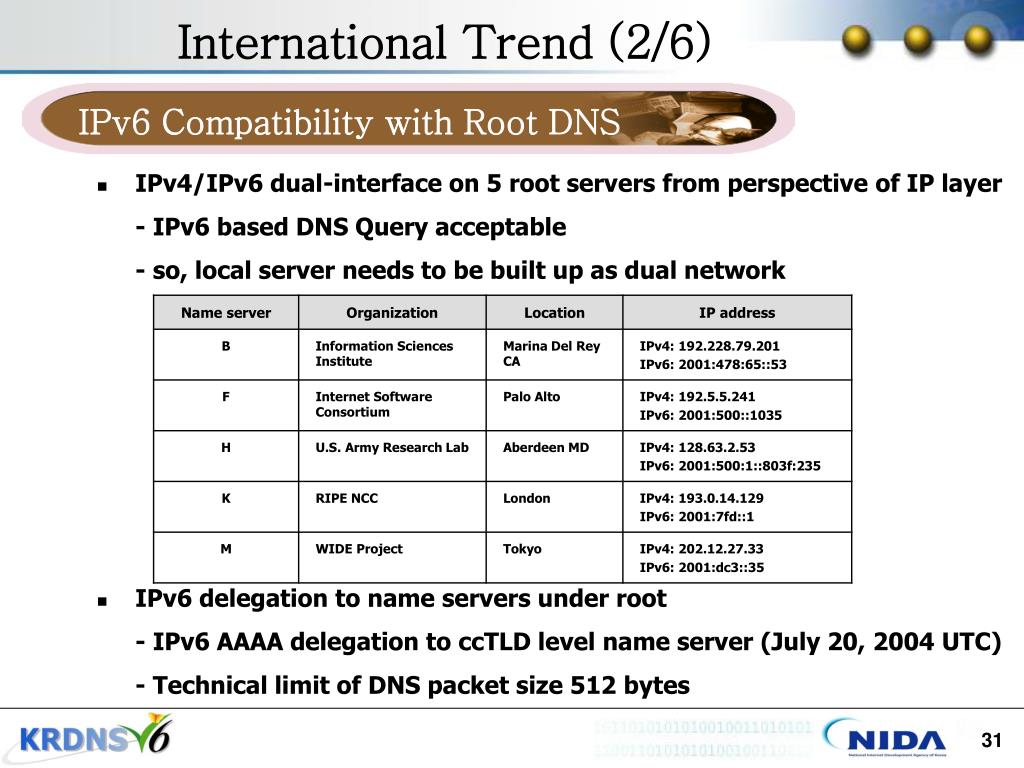

IPv6 Compatibility with Root DNS

  • IPv4/IPv6 dual-interface on 5 root servers from perspective of IP layer- IPv6 based DNS Query acceptable- so, local server needs to be built up as dual network
  • IPv6 delegation to name servers under root- IPv6 AAAA delegation to ccTLD level name server (July 20, 2004 UTC)- Technical limit of DNS packet size 512 bytes
slide32

International Trend (3/6)

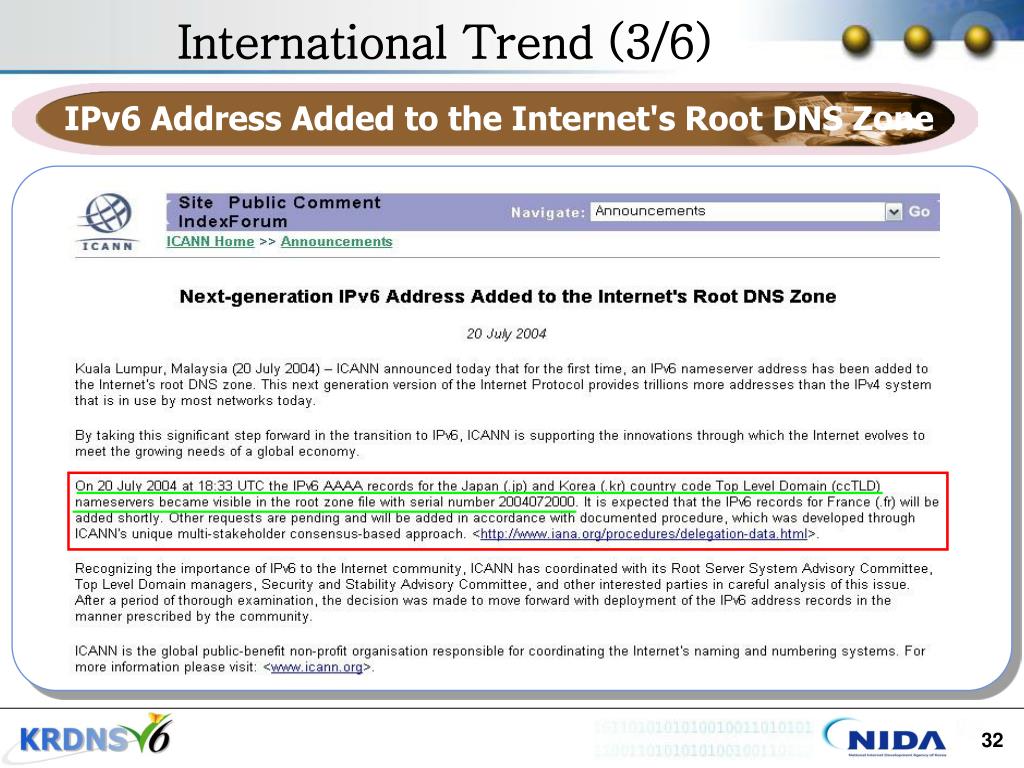

IPv6 Address Added to the Internet's Root DNS Zone

slide33

ROOT Zone

KR. NS a.dns.kr.

:

KR. NS g.dns.kr.

a.dns.kr. A 202.30.50.50:

g.dns.kr. A 202.30.190.1g.dns.kr. AAAA 2001:dc5:a::1

:

IPv6 Enabled

Name Servers

B.ROOT-SERVERS.NET

F.ROOT-SERVERS.NET

H.ROOT-SERVERS.NET

M.ROOT-SERVERS.NET

International Trend (4/6)

13 Root DNS ccTLD Delegation Services

As of March. 2005

Requests for Adding

IPv6 Glue Record

Domain Name Space

g.dns.kr. AAAA 2001:dc5:a::1

ROOT(.)

.KR IPv6 delegation to ROOT DNS

For the first time in the world

(Since July 20, 2004 UTC)

Delegation

Policy

COM

ORG

KR

JP

ARPA

IPv4/IPv6

IPv6 packet with DNS

DNS Query:

www.myshop.co.kr AAAA ?

GO

CO

NE

OR

IPv6 packet with DNS

DNS Response:

Refer to

KR. NS A.DNS.KR.

:KR. NS G.DNS.KR.

A.DNS.KR. A 202.30.50.50:

G.DNS.KR. A 202.31.190.1G.DNS.KR.AAAA 2001:dc5:a::1

MyCompany

MyShop

IPv6 user

slide34

International Trend (5/6)

Dual-stack Status of ccTLD Countries

slide35

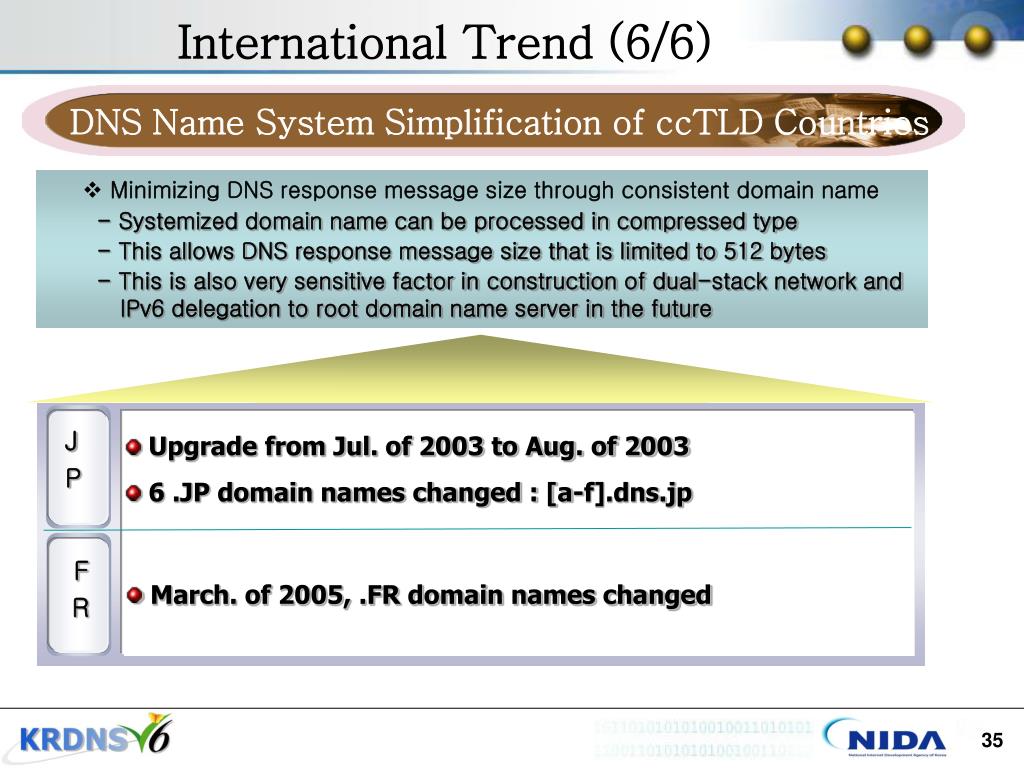

International Trend (6/6)

DNS Name System Simplification of ccTLD Countries

 Minimizing DNS response message size through consistent domain name

- Systemized domain name can be processed in compressed type

- This allows DNS response message size that is limited to 512 bytes

- This is also very sensitive factor in construction of dual-stack network and IPv6 delegation to root domain name server in the future

J

P

  • Upgrade from Jul. of 2003 to Aug. of 2003
  • 6 .JP domain names changed : [a-f].dns.jp

F

R

  • March. of 2005, .FR domain names changed
