Geometry in Space: Equations of Lines and Planes

Understand the equations of lines and planes in 3D space. Learn vector and scalar representations and solve applied problems with examples.

merritt-estes
Download Presentation

Geometry in Space: Equations of Lines and Planes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lines in Space

  2. z Equation of a Line Q P y x

  3. z Equation of a Line Q d P r0 y x

  4. z Equation of a Line Q’ Q d P r r0 y x

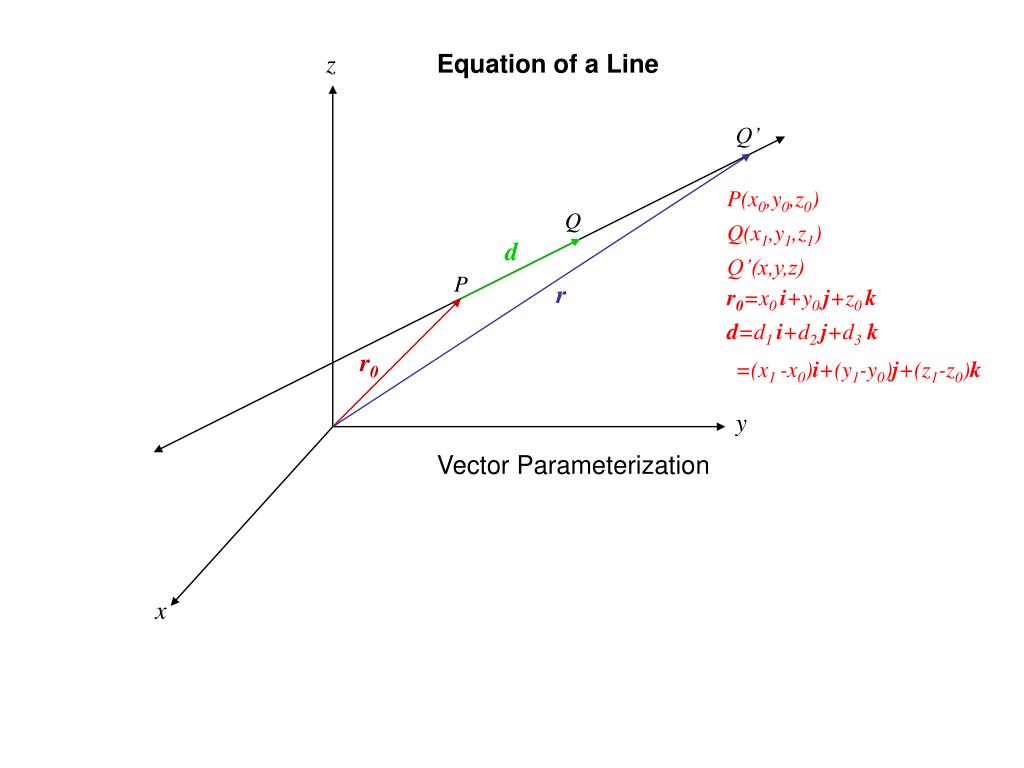

  5. z Equation of a Line Q’ P(x0,y0,z0) Q Q(x1,y1,z1) d Q’(x,y,z) P r r0=x0 i+y0 j+z0 k d=d1 i+d2 j+d3k r0 =(x1 -x0)i+(y1-y0)j+(z1-z0)k y x

  6. z Equation of a Line Q’ P(x0,y0,z0) Q Q(x1,y1,z1) d Q’(x,y,z) P r r0=x0 i+y0 j+z0 k d=d1 i+d2 j+d3k r0 =(x1 -x0)i+(y1-y0)j+(z1-z0)k y Vector Parameterization x

  7. z Equation of a Line Q’ P(x0,y0,z0) Q Q(x1,y1,z1) d Q’(x,y,z) P r r0=x0 i+y0 j+z0 k d=d1 i+d2 j+d3k r0 =(x1 -x0)i+(y1-y0)j+(z1-z0)k y Vector Parameterization x

  8. z Equation of a Line Q’ P(x0,y0,z0) Q Q(x1,y1,z1) d Q’(x,y,z) P r r0=x0 i+y0 j+z0 k d=d1 i+d2 j+d3k r0 =(x1 -x0)i+(y1-y0)j+(z1-z0)k y Vector Parameterization x

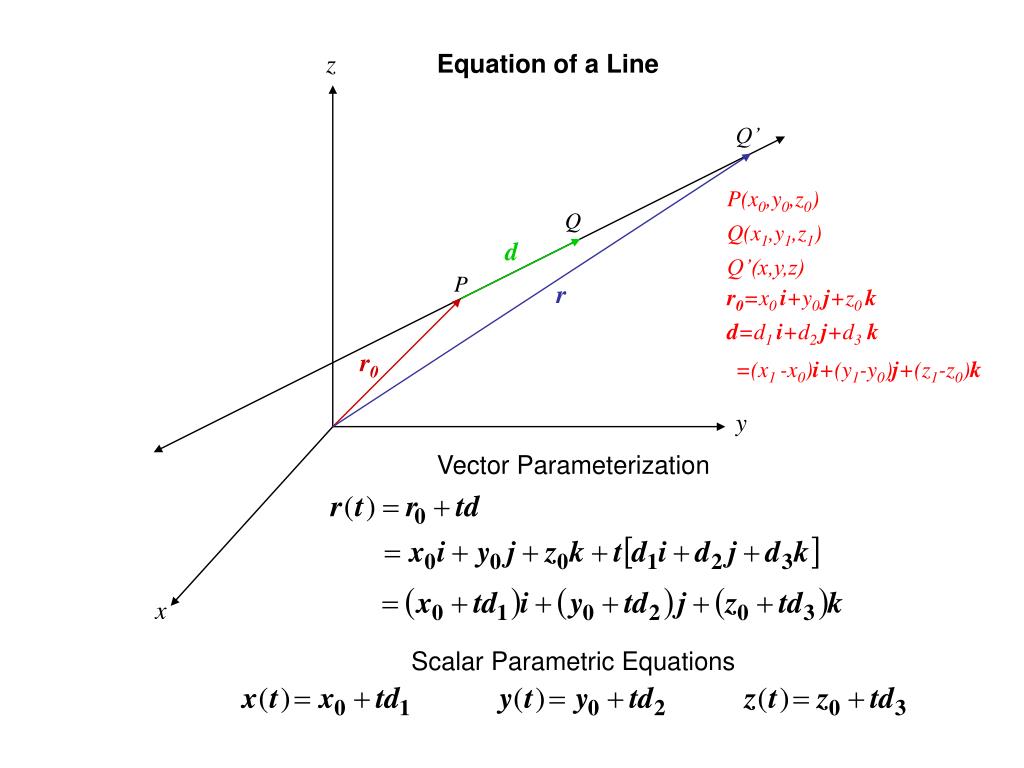

  9. z Equation of a Line Q’ P(x0,y0,z0) Q Q(x1,y1,z1) d Q’(x,y,z) P r r0=x0 i+y0 j+z0 k d=d1 i+d2 j+d3k r0 =(x1 -x0)i+(y1-y0)j+(z1-z0)k y Vector Parameterization x Scalar Parametric Equations

  10. Representations of a Line

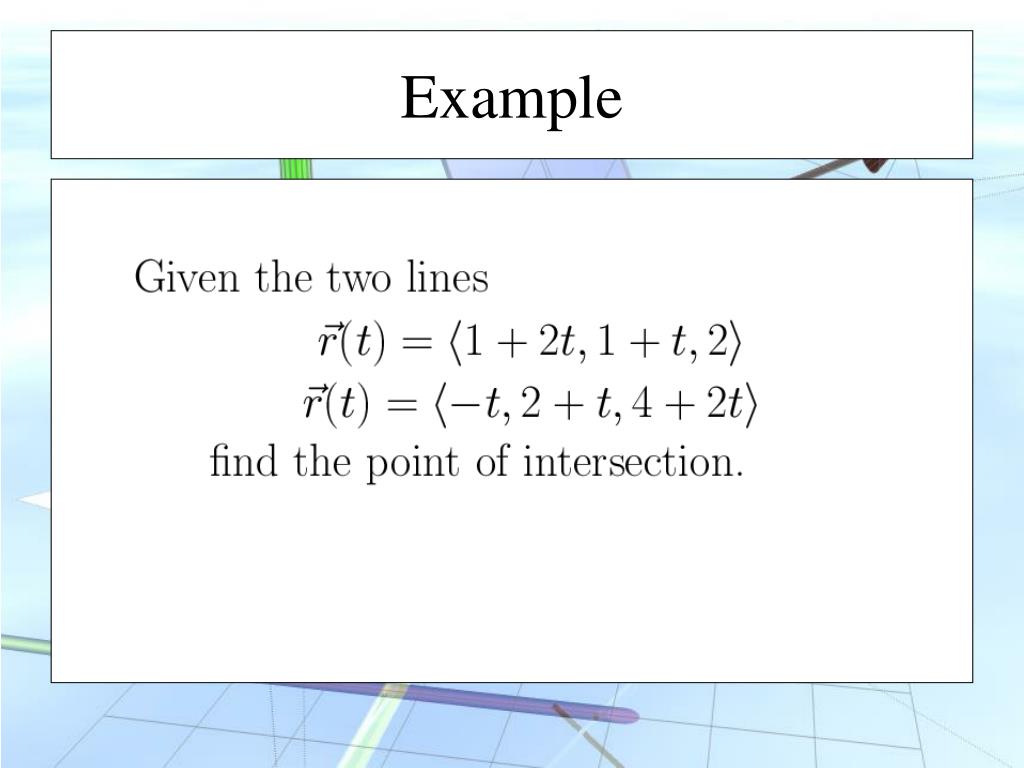

  11. Examples

  12. Planes in Space

  13. z Equation of a Plane y x

  14. z Equation of a Plane y x

  15. z Equation of a Plane y x

  16. z Equation of a Plane y x

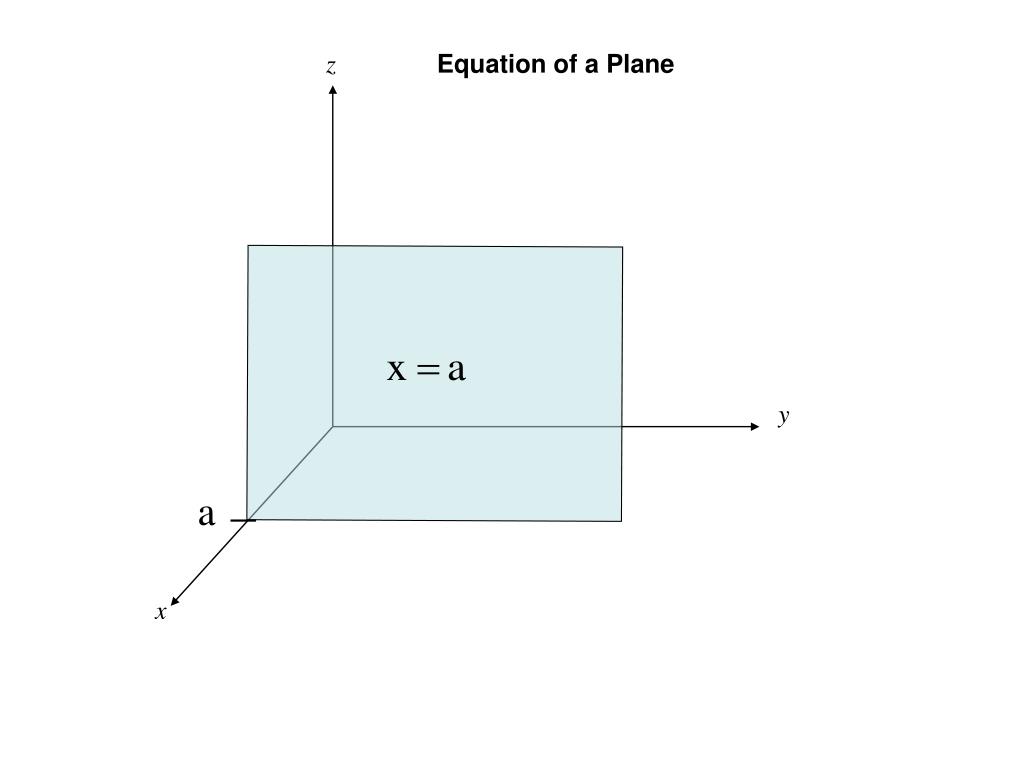

  17. z Equation of a Plane y b x

  18. z Equation of a Plane c y x

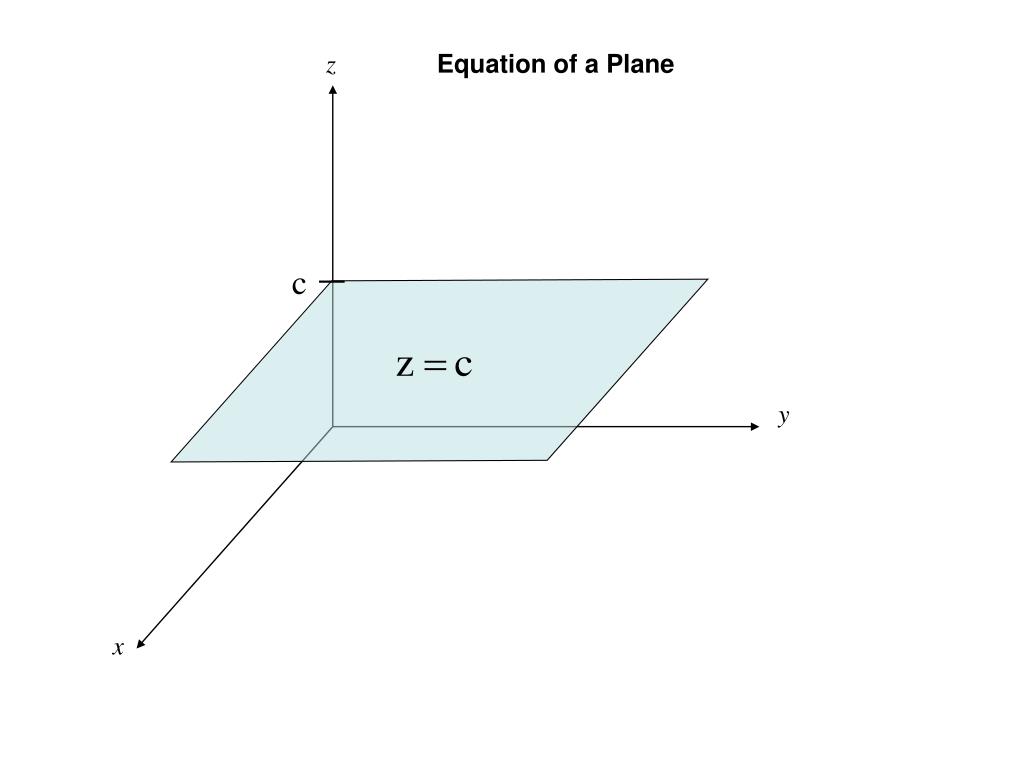

  19. z Equation of a Plane y x

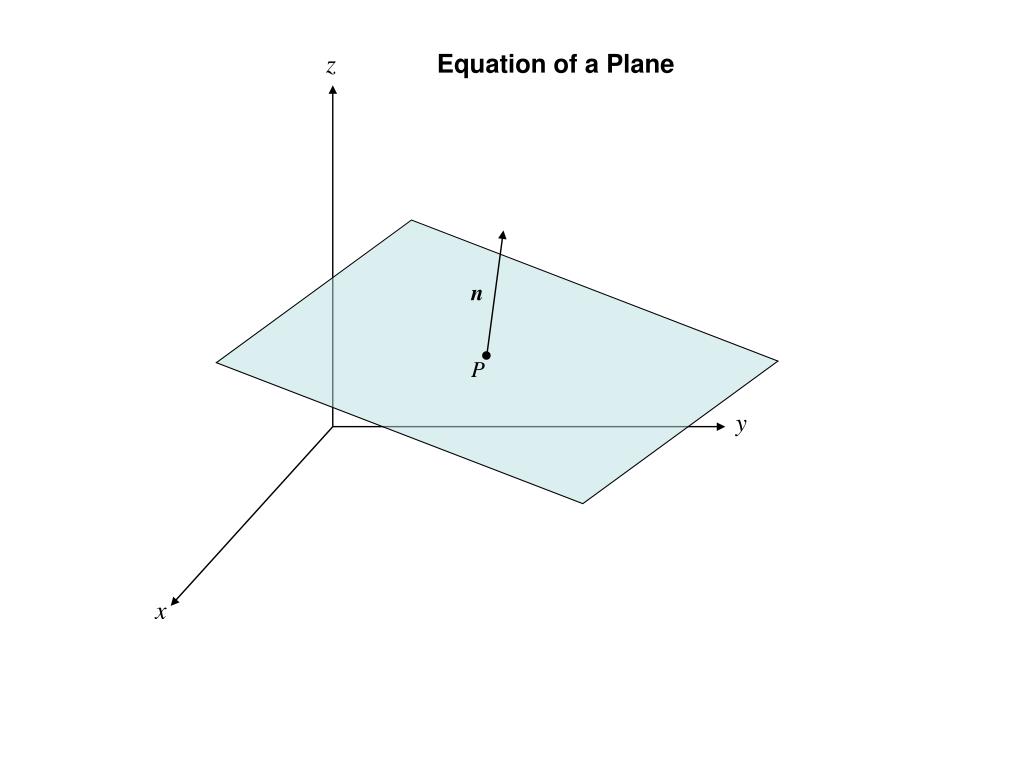

  20. z Equation of a Plane n P y x

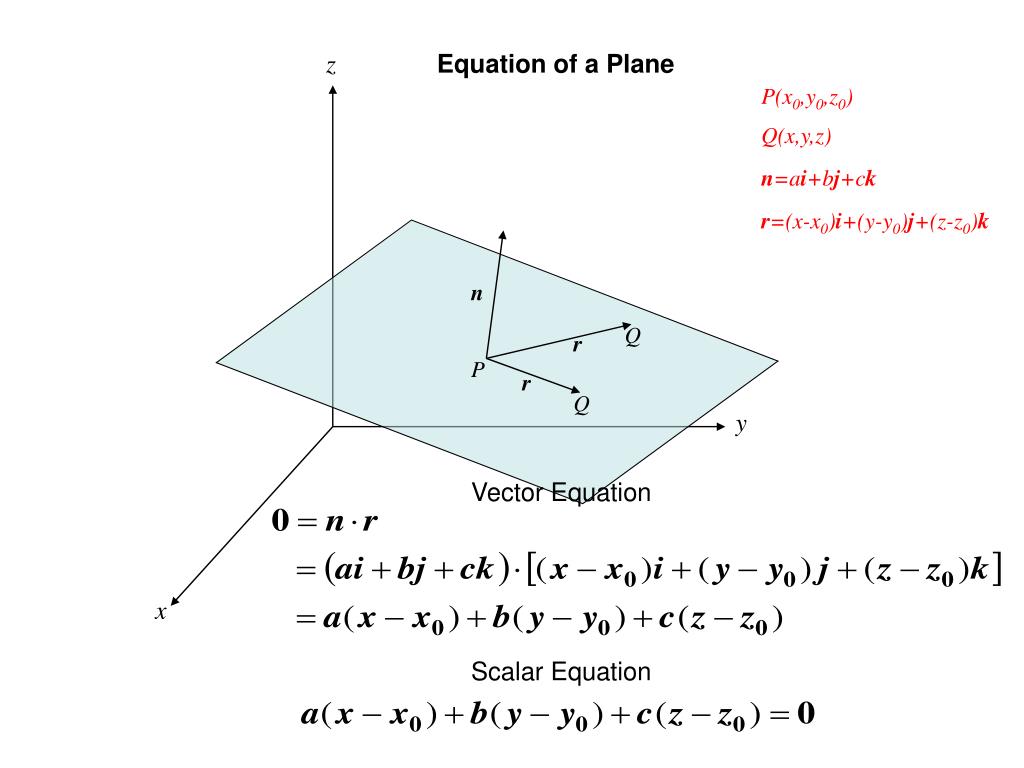

  21. z Equation of a Plane P(x0,y0,z0) Q(x,y,z) n=ai+bj+ck r=(x-x0)i+(y-y0)j+(z-z0)k n Q r P r Q y x

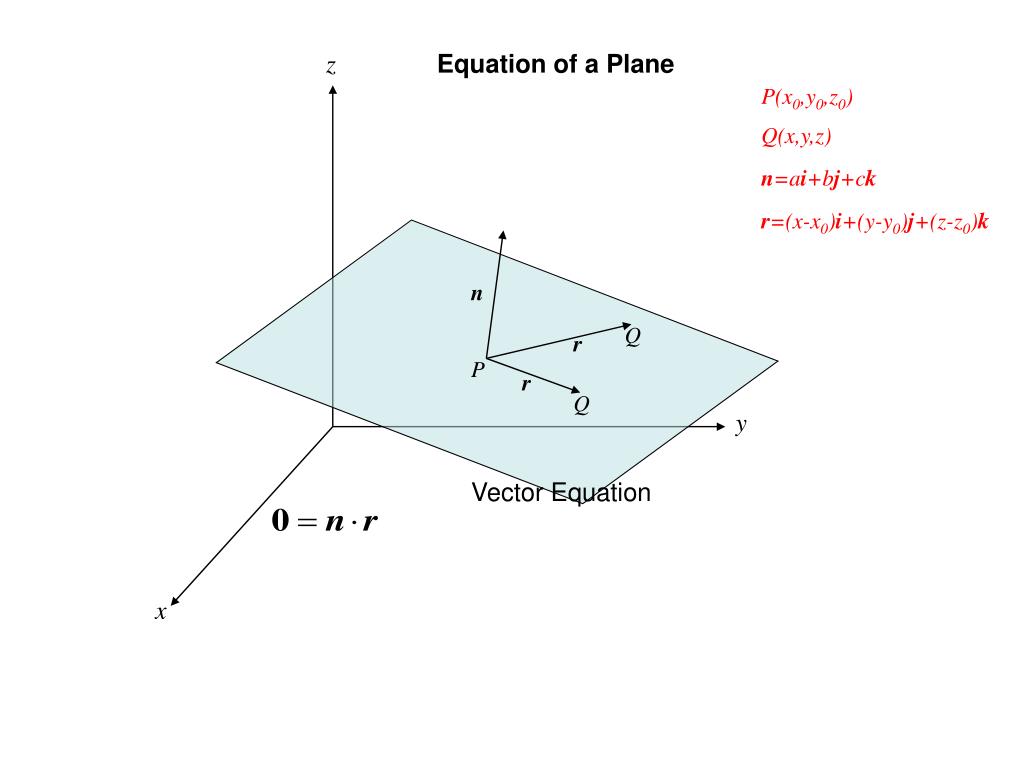

  22. z Equation of a Plane P(x0,y0,z0) Q(x,y,z) n=ai+bj+ck r=(x-x0)i+(y-y0)j+(z-z0)k n Q r P r Q y Vector Equation x Scalar Equation

  23. z Equation of a Plane P(x0,y0,z0) Q(x,y,z) n=ai+bj+ck r=(x-x0)i+(y-y0)j+(z-z0)k n Q r P r Q y Vector Equation x Scalar Equation

  24. z Equation of a Plane P(x0,y0,z0) Q(x,y,z) n=ai+bj+ck r=(x-x0)i+(y-y0)j+(z-z0)k n Q r P r Q y Vector Equation x Scalar Equation

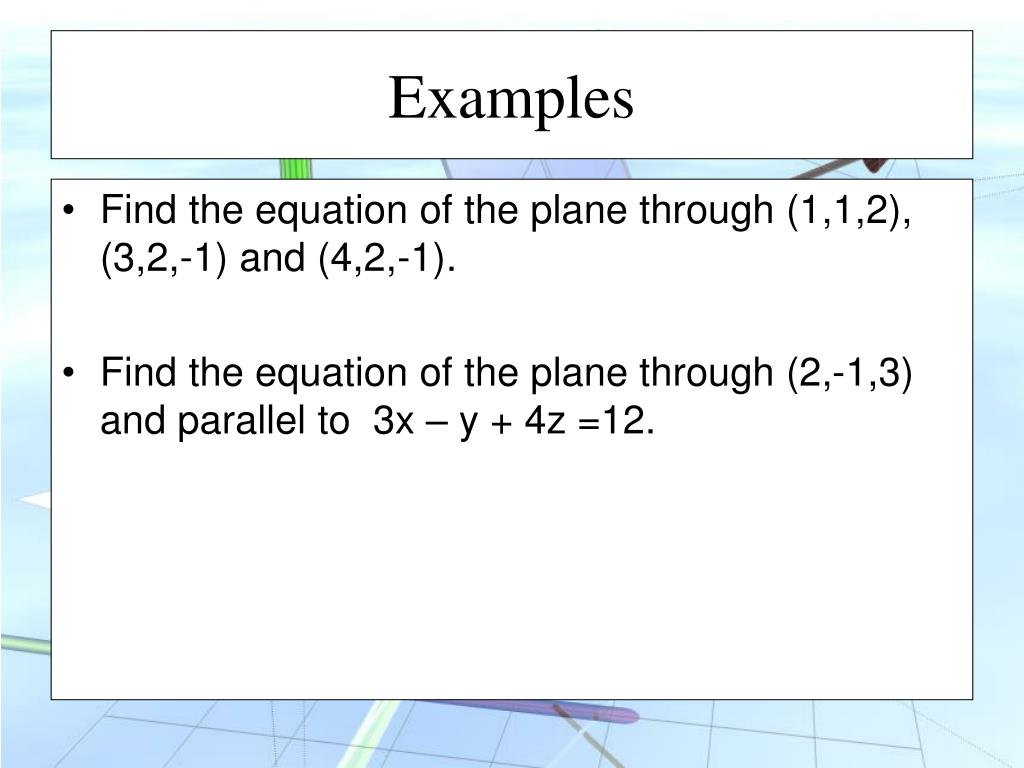

  25. Examples • Find the equation of the plane through (1,1,2), (3,2,-1) and (4,2,-1). • Find the equation of the plane through (2,-1,3) and parallel to 3x – y + 4z =12.

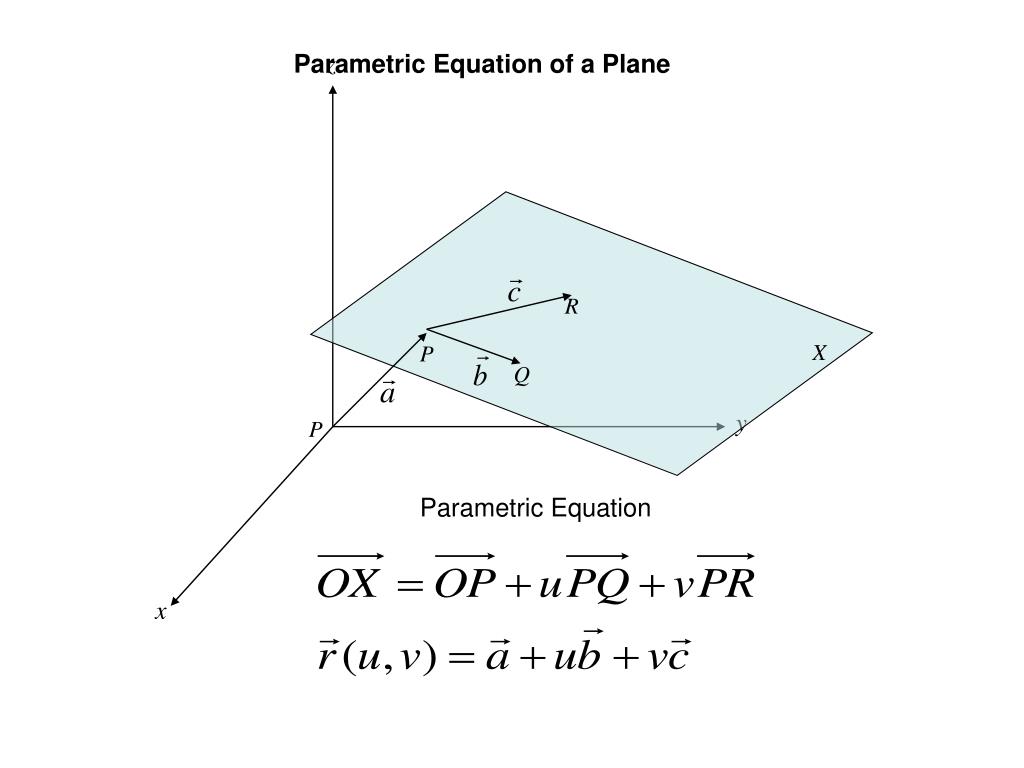

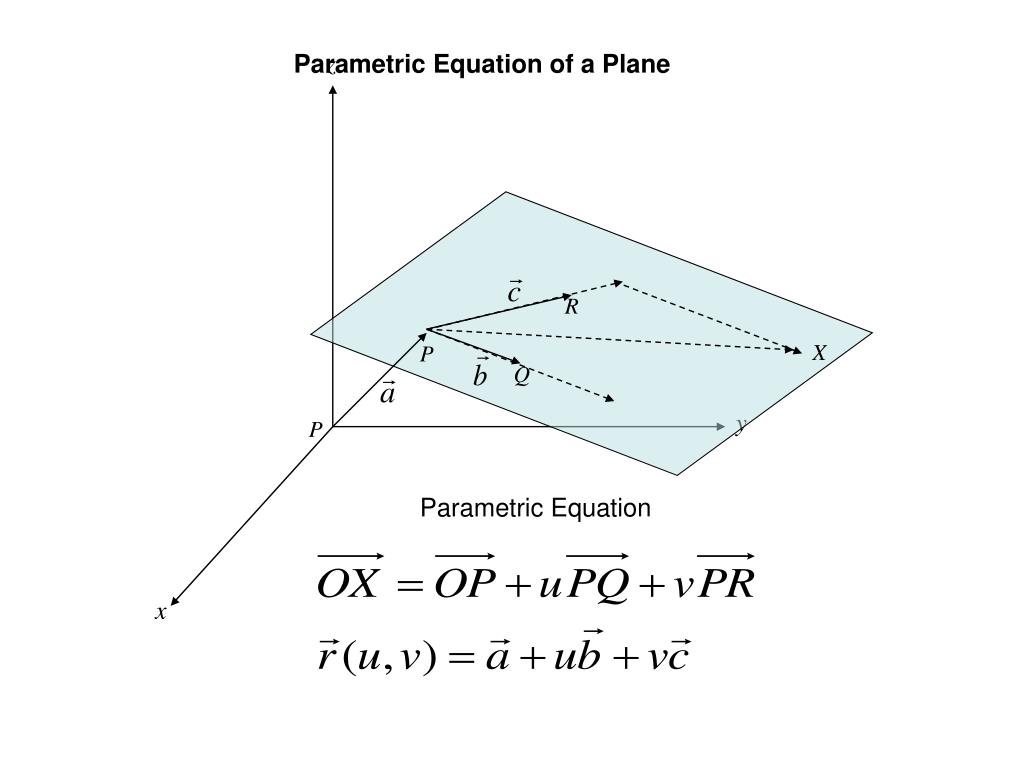

  26. Parametric Equation of a Plane z R X P Q y P Parametric Equation x

  27. Parametric Equation of a Plane z R X P Q y P Parametric Equation x

  28. Parametric Equation of a Plane z R X P Q y P Parametric Equation x

  29. Representations of a Plane Scalar Equation Parametric Equation

  30. Applications

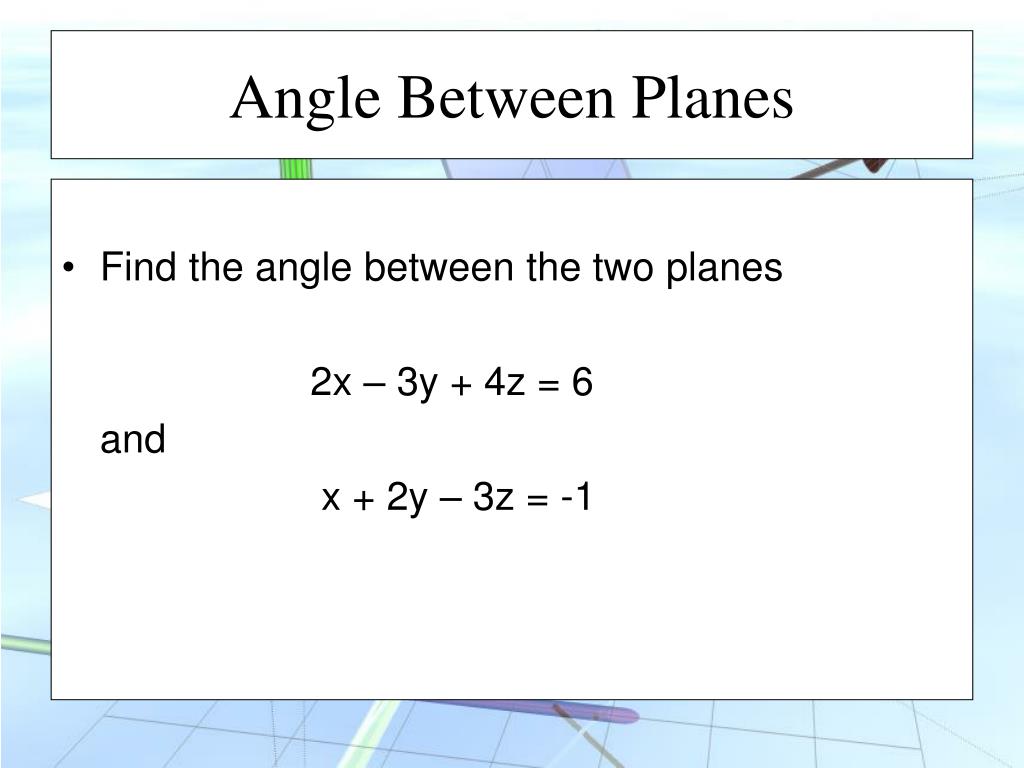

  31. Angle Between Planes • Find the angle between the two planes 2x – 3y + 4z = 6 and x + 2y – 3z = -1

  32. Example

  33. Example

  34. Graphing Planes • Find the intercepts of the planes 2x – 3y + z = 6 4y + 2x = 8 z = 3 • Sketch the planes. • Find the normals to the planes.

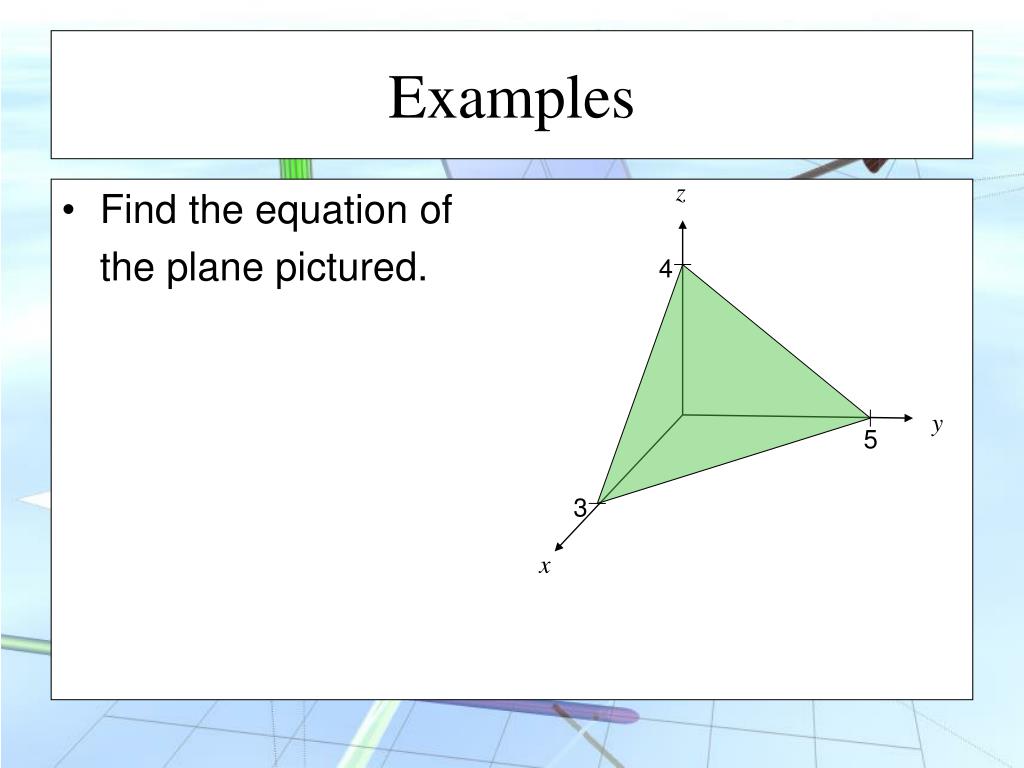

  35. Examples z • Find the equation of the plane pictured. 4 y 5 3 x
