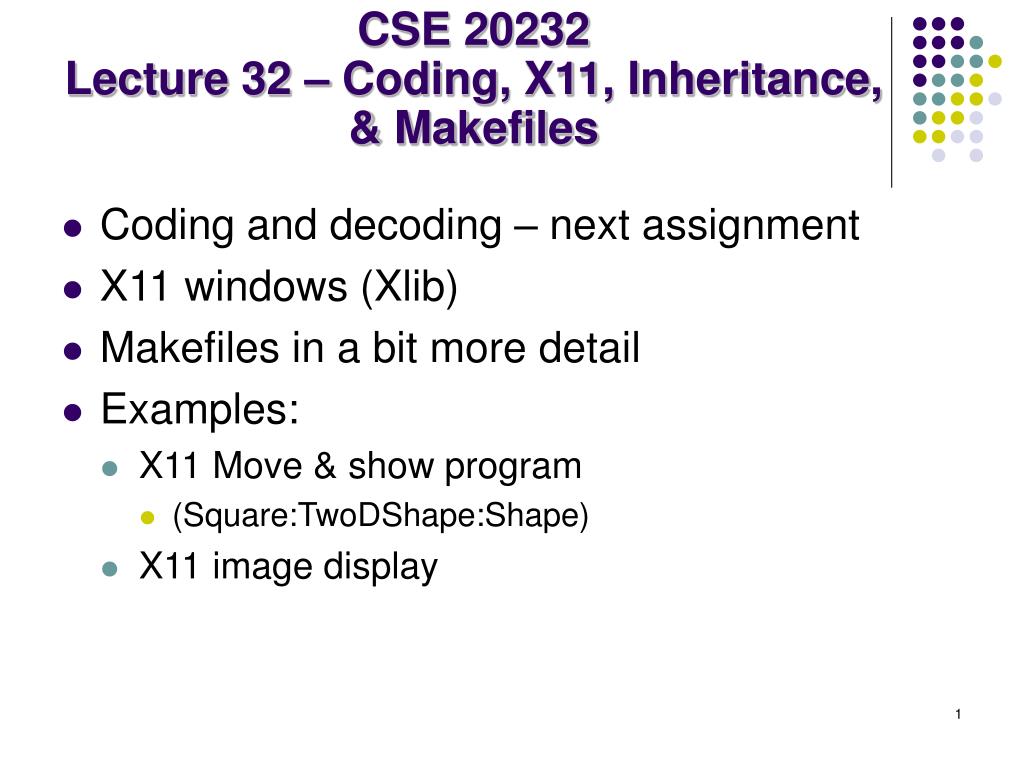

CSE 20232Lecture 32 – Coding, X11, Inheritance, & Makefiles
  • Coding and decoding – next assignment
  • X11 windows (Xlib)

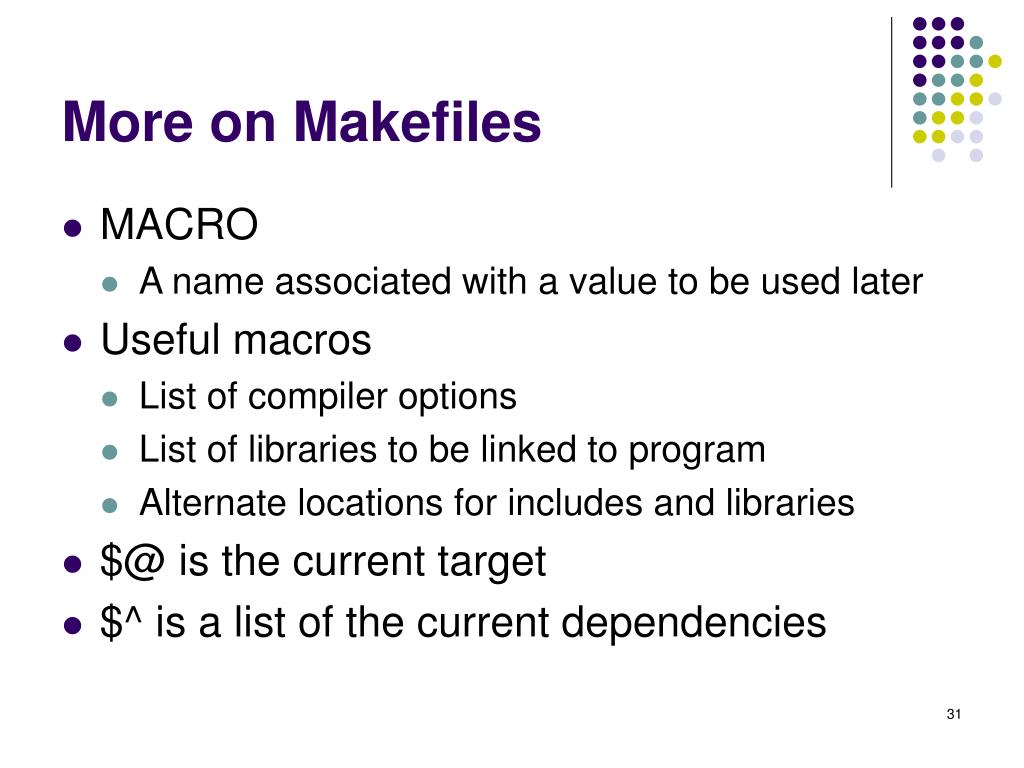

  • Makefiles in a bit more detail
  • Examples:
    • X11 Move & show program
      • (Square:TwoDShape:Shape)
    • X11 image display
next homework
Next homework
  • A simple encoder/decoder program
  • Uses string manipulation
    • You may use either C++ strings or C-style strings
    • You will probably need to use some of each
    • C-style will be required for handling the command line argument (argv)
  • The program will use a variation of a shift cipher along with randomly embedded distracters
coder
Coder
  • Usage
    • coder -c for encoding plain text
    • coder -d for decoding previously coded text
  • The program will be used with the Linux pipe (|) and I/O redirection (> < ) symbols so that there is no user interaction. See sample usage below.
    • coder –c < plain.txt
      • Encodes text from file “plain.txt” and outputs to screen
    • coder –d < coded.txt
      • Decodes text from file “coded.txt” and outputs to screen
    • cat plain.txt | coder –c
      • Output from cat is piped into coder where it is encoded and sent to screen
    • echo test it on this | coder –c > test.txt
      • “test it on this” is piped into coder, encoded, and sent to file “text.txt”
    • echo hello | coder –c | coder –d
      • “hello” is encoded and then decoded and then sent to the screen
coder1
Coder
  • Format of code is
    • [s][b]xx[block1]xx[block2]xx[block3]…….
  • [s] is a shift value 1..25
    • It is used to shift all letters up by that amount
    • The shift wraps around in the alphabet
    • Upper case and lower case maintain their case in the code
  • [b] is the block size
    • Each block is a group of characters from the original plain text
  • xx stands for two random characters with ASCII values 33..126 that are
    • Inserted between blocks when encoding
    • Skipped over during decoding
coder2
Coder

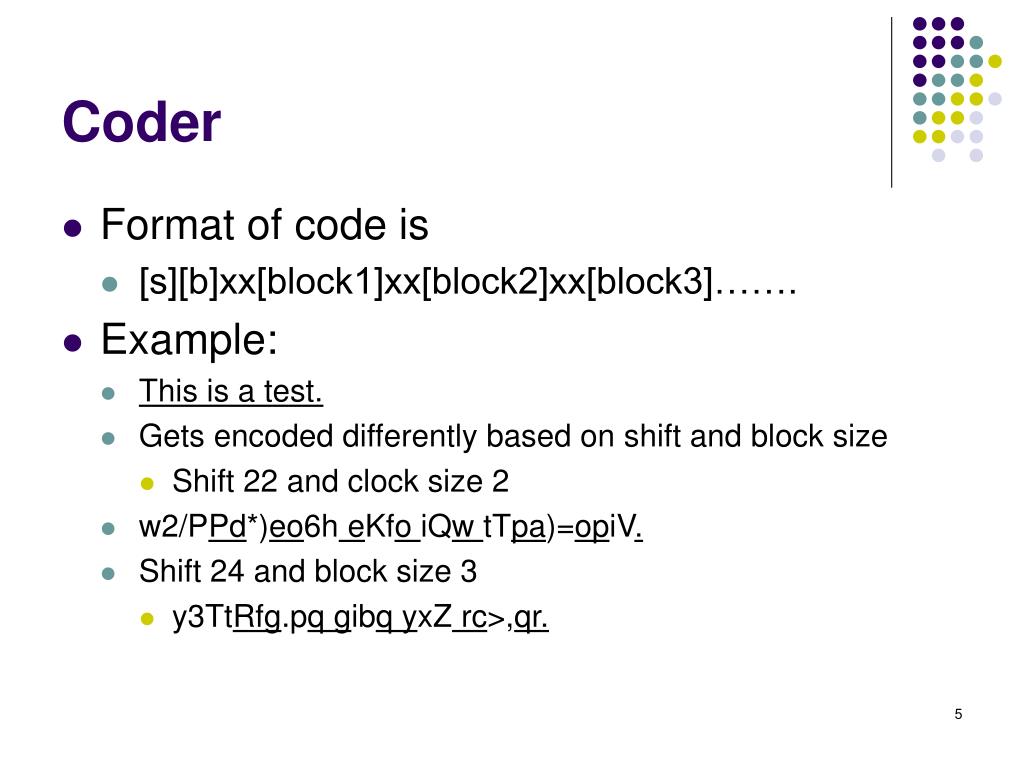

  • Format of code is
    • [s][b]xx[block1]xx[block2]xx[block3]…….
  • Example:
    • This is a test.
    • Gets encoded differently based on shift and block size
      • Shift 22 and clock size 2
    • w2/PPd*)eo6h eKfo iQw tTpa)=opiV.
    • Shift 24 and block size 3
      • y3TtRfg.pq gibq yxZ rc>,qr.
coding and decoding
Coding and Decoding

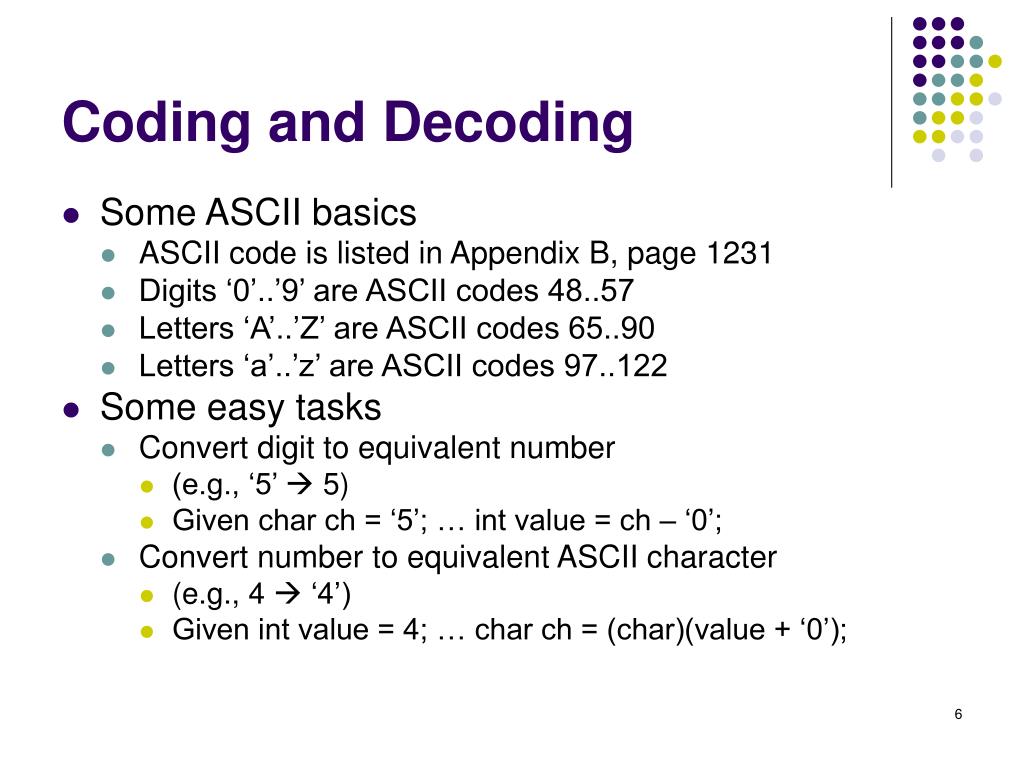

  • Some ASCII basics
    • ASCII code is listed in Appendix B, page 1231
    • Digits ‘0’..’9’ are ASCII codes 48..57
    • Letters ‘A’..’Z’ are ASCII codes 65..90
    • Letters ‘a’..’z’ are ASCII codes 97..122
  • Some easy tasks
    • Convert digit to equivalent number
      • (e.g., ‘5’  5)
      • Given char ch = ‘5’; … int value = ch – ‘0’;
    • Convert number to equivalent ASCII character
      • (e.g., 4  ‘4’)
      • Given int value = 4; … char ch = (char)(value + ‘0’);

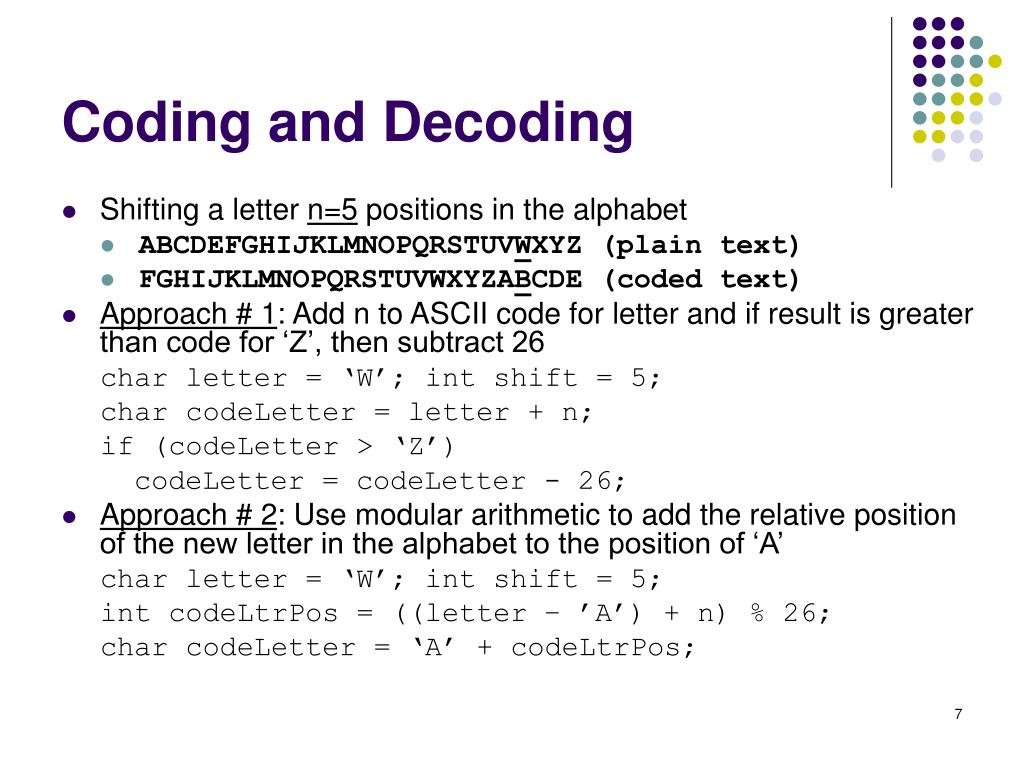

coding and decoding1
Coding and Decoding
  • Shifting a letter n=5 positions in the alphabet
    • ABCDEFGHIJKLMNOPQRSTUVWXYZ (plain text)
    • FGHIJKLMNOPQRSTUVWXYZABCDE (coded text)
  • Approach # 1: Add n to ASCII code for letter and if result is greater than code for ‘Z’, then subtract 26

char letter = ‘W’; int shift = 5;

char codeLetter = letter + n;

if (codeLetter > ‘Z’)

codeLetter = codeLetter - 26;

  • Approach # 2: Use modular arithmetic to add the relative position of the new letter in the alphabet to the position of ‘A’

char letter = ‘W’; int shift = 5;

int codeLtrPos = ((letter – ’A’) + n) % 26;

char codeLetter = ‘A’ + codeLtrPos;

coding and decoding2
Coding and Decoding

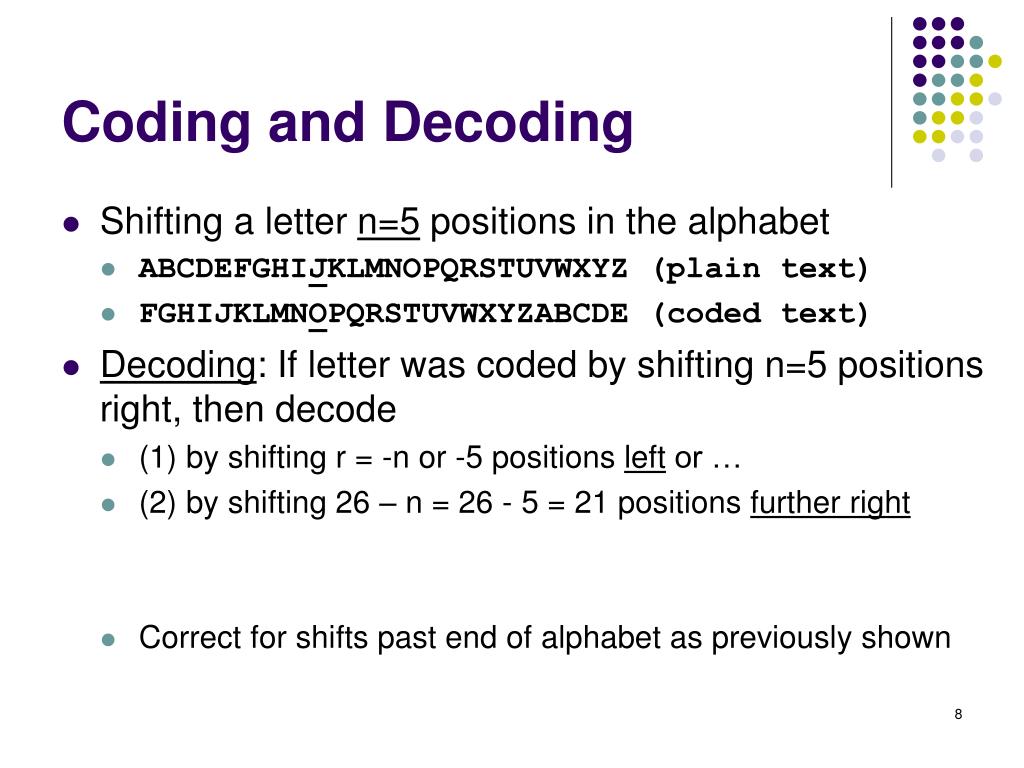

  • Shifting a letter n=5 positions in the alphabet
    • ABCDEFGHIJKLMNOPQRSTUVWXYZ (plain text)
    • FGHIJKLMNOPQRSTUVWXYZABCDE (coded text)
  • Decoding: If letter was coded by shifting n=5 positions right, then decode
    • (1) by shifting r = -n or -5 positions left or …
    • (2) by shifting 26 – n = 26 - 5 = 21 positions further right
    • Correct for shifts past end of alphabet as previously shown
xwindows x11
XWindows (X11)

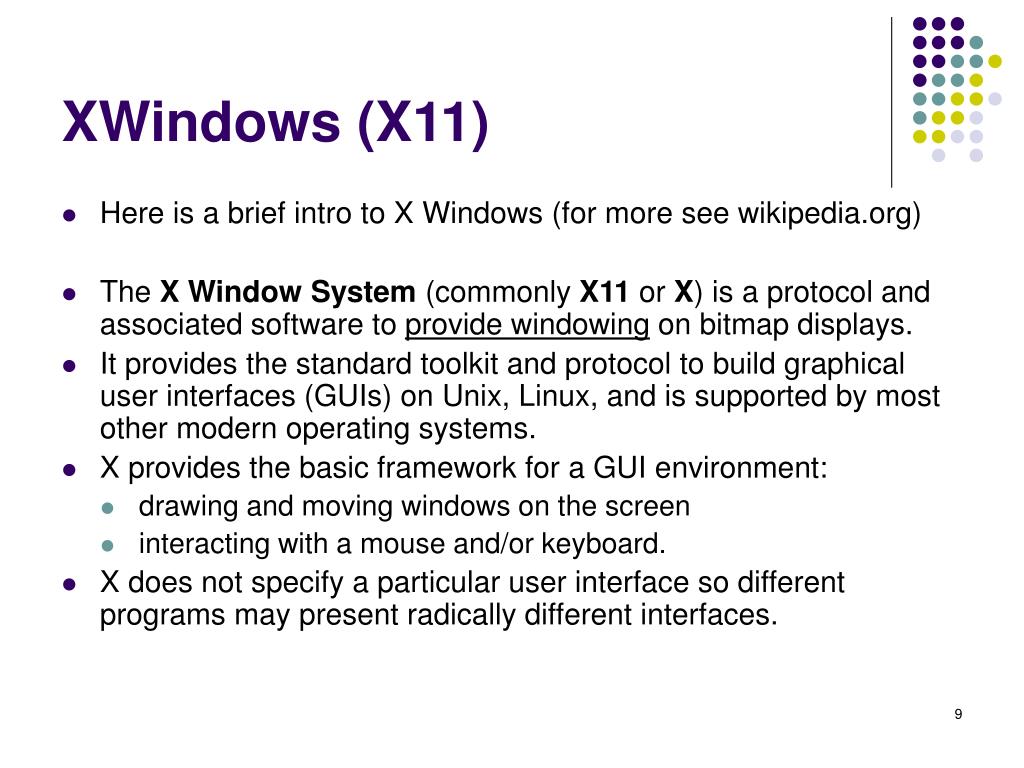

  • Here is a brief intro to X Windows (for more see wikipedia.org)
  • The X Window System (commonly X11 or X) is a protocol and associated software to provide windowing on bitmap displays.
  • It provides the standard toolkit and protocol to build graphical user interfaces (GUIs) on Unix, Linux, and is supported by most other modern operating systems.
  • X provides the basic framework for a GUI environment:
    • drawing and moving windows on the screen
    • interacting with a mouse and/or keyboard.
  • X does not specify a particular user interface so different programs may present radically different interfaces.
slide10
Xlib

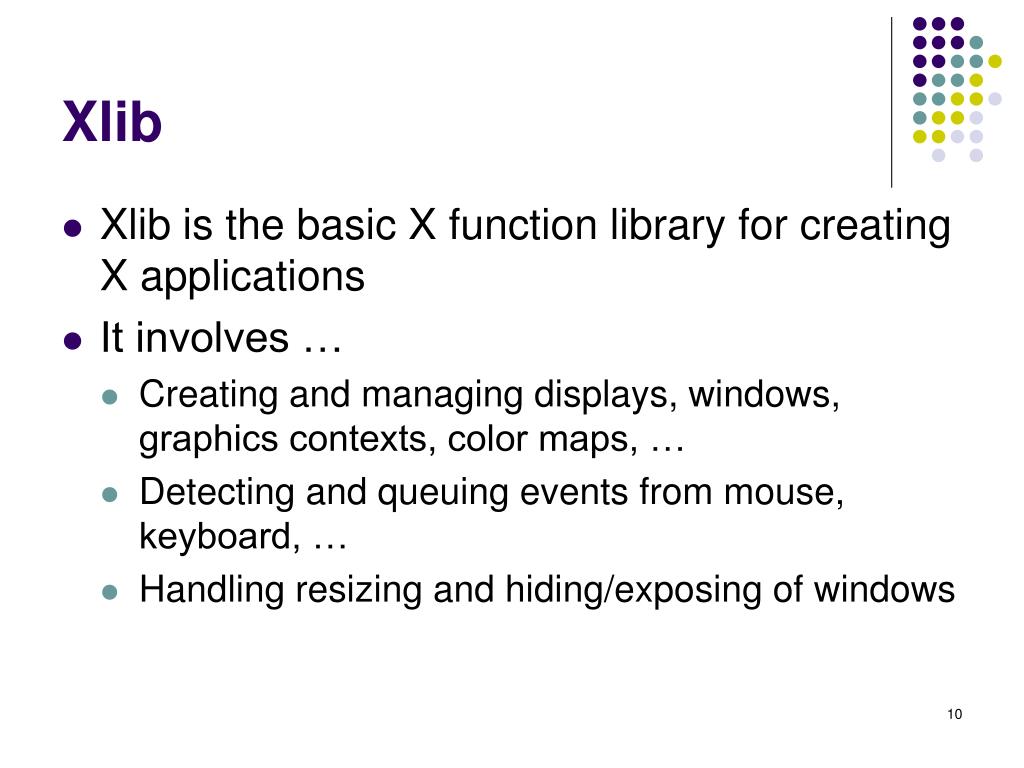

  • Xlib is the basic X function library for creating X applications
  • It involves …
    • Creating and managing displays, windows, graphics contexts, color maps, …
    • Detecting and queuing events from mouse, keyboard, …
    • Handling resizing and hiding/exposing of windows
ezxwindows
ezXwindows

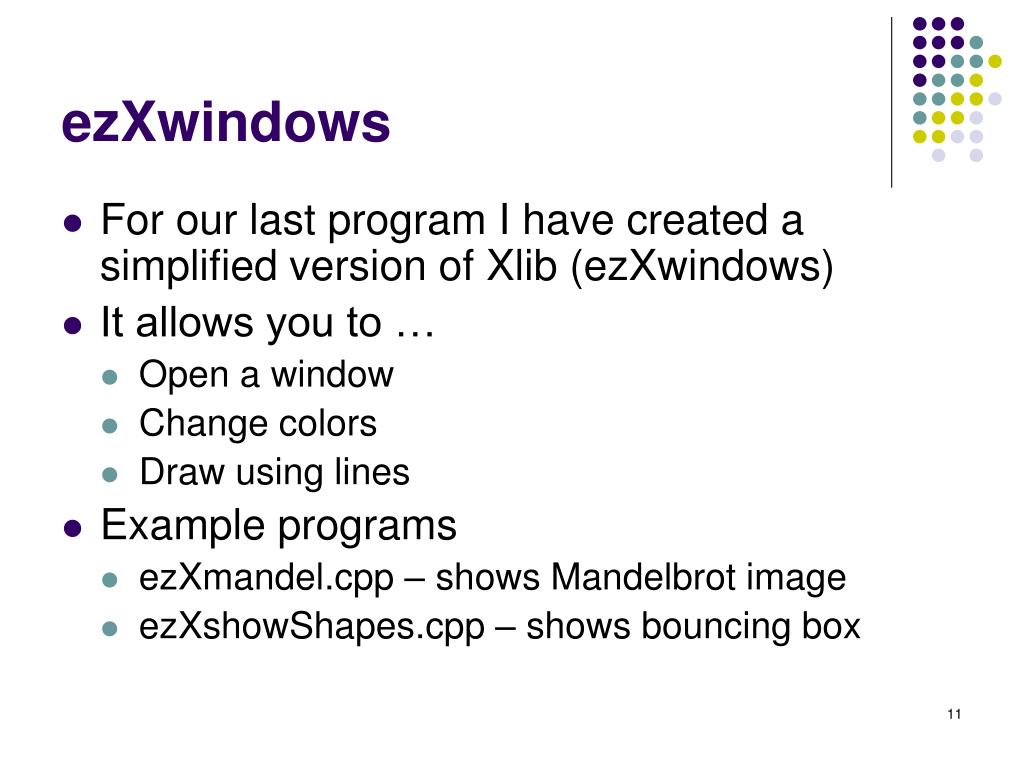

  • For our last program I have created a simplified version of Xlib (ezXwindows)
  • It allows you to …
    • Open a window
    • Change colors
    • Draw using lines
  • Example programs
    • ezXmandel.cpp – shows Mandelbrot image
    • ezXshowShapes.cpp – shows bouncing box

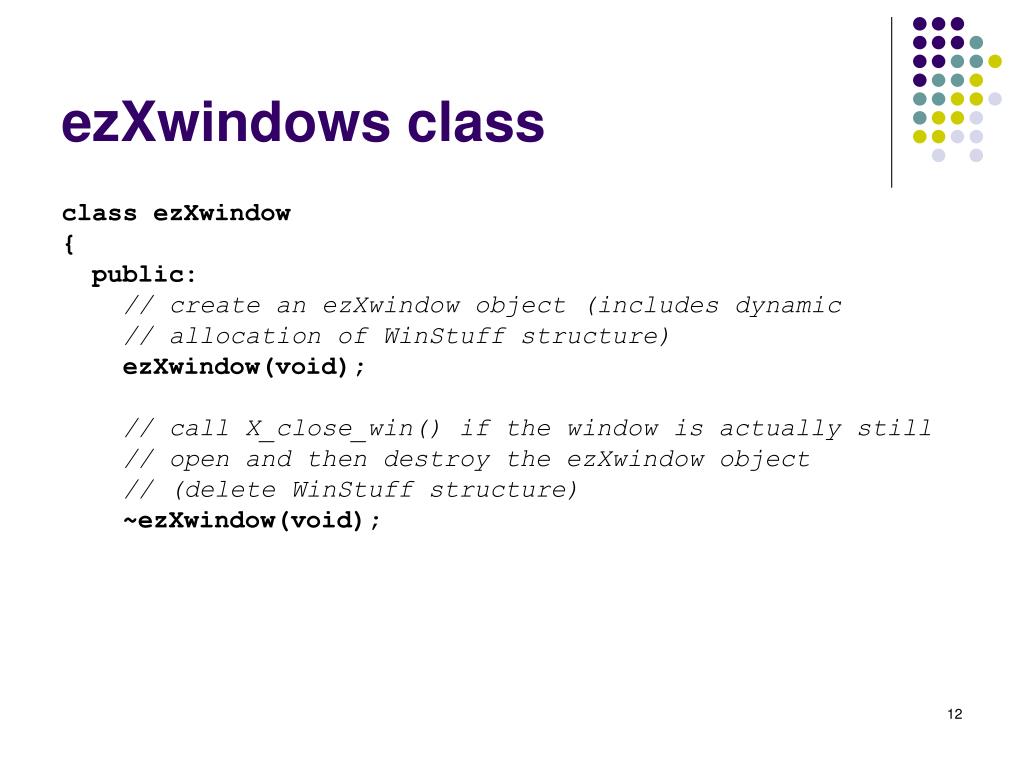

ezxwindows class
ezXwindows class

class ezXwindow

{

public:

// create an ezXwindow object (includes dynamic

// allocation of WinStuff structure)

ezXwindow(void);

// call X_close_win() if the window is actually still

// open and then destroy the ezXwindow object

// (delete WinStuff structure)

~ezXwindow(void);

ezxwindows class1
ezXwindows class

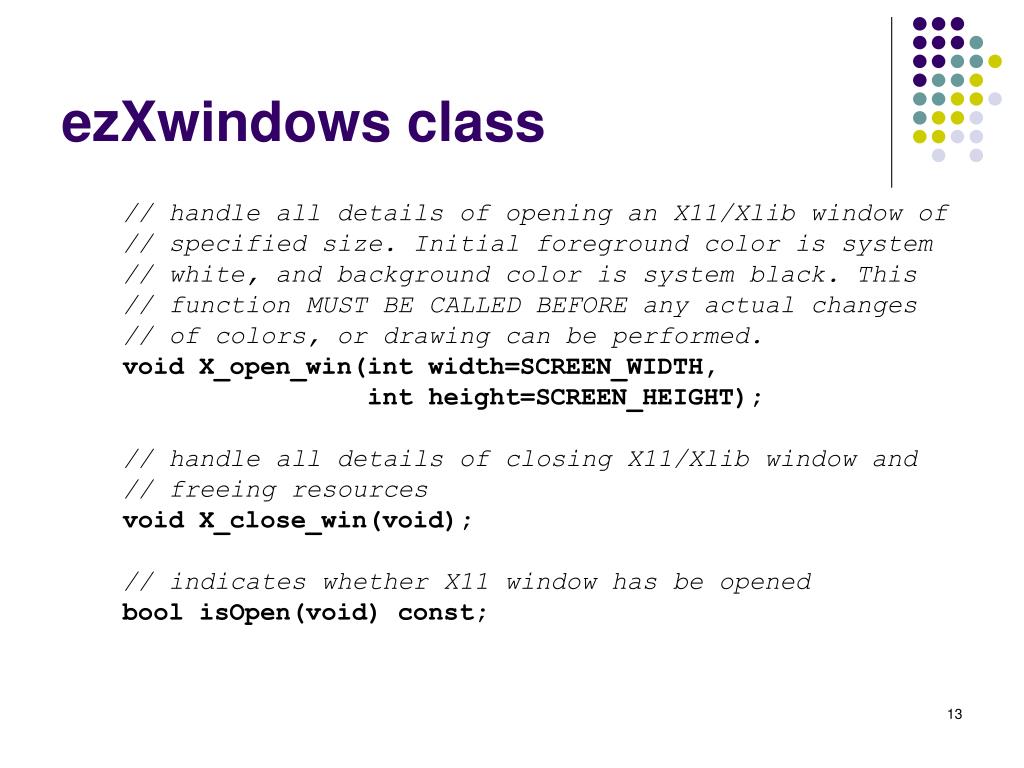

// handle all details of opening an X11/Xlib window of

// specified size. Initial foreground color is system

// white, and background color is system black. This

// function MUST BE CALLED BEFORE any actual changes

// of colors, or drawing can be performed.

void X_open_win(int width=SCREEN_WIDTH,

int height=SCREEN_HEIGHT);

// handle all details of closing X11/Xlib window and

// freeing resources

void X_close_win(void);

// indicates whether X11 window has be opened

bool isOpen(void) const;

ezxwindows class2
ezXwindows class

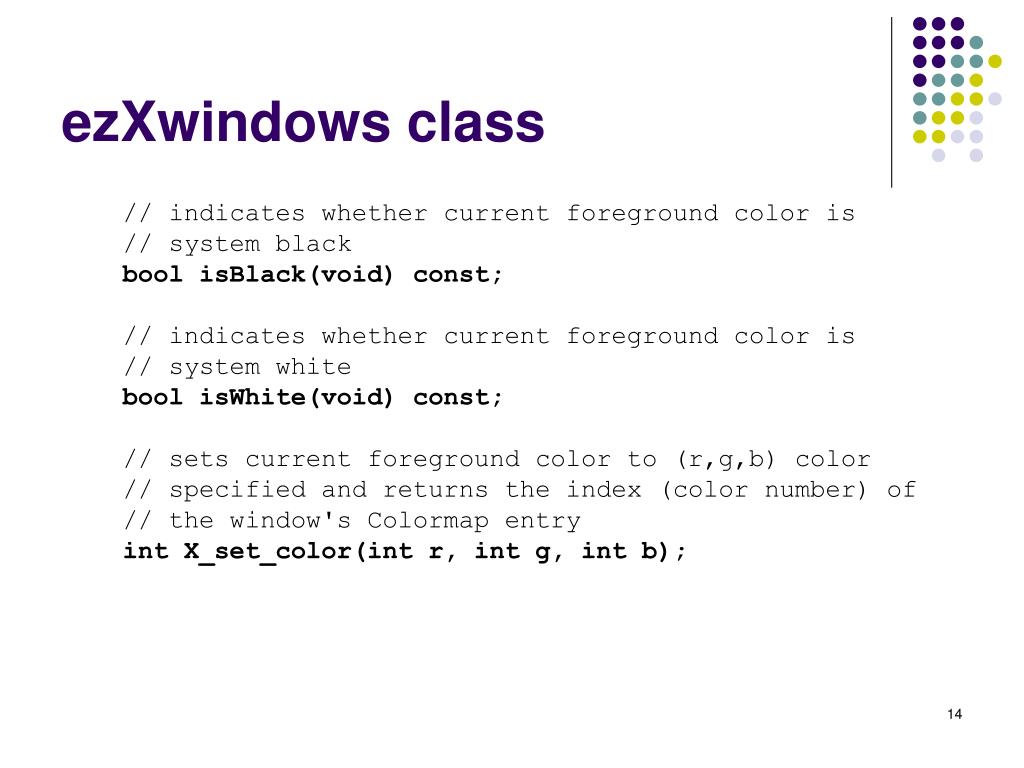

// indicates whether current foreground color is

// system black

bool isBlack(void) const;

// indicates whether current foreground color is

// system white

bool isWhite(void) const;

// sets current foreground color to (r,g,b) color

// specified and returns the index (color number) of

// the window's Colormap entry

int X_set_color(int r, int g, int b);

ezxwindows class3
ezXwindows class

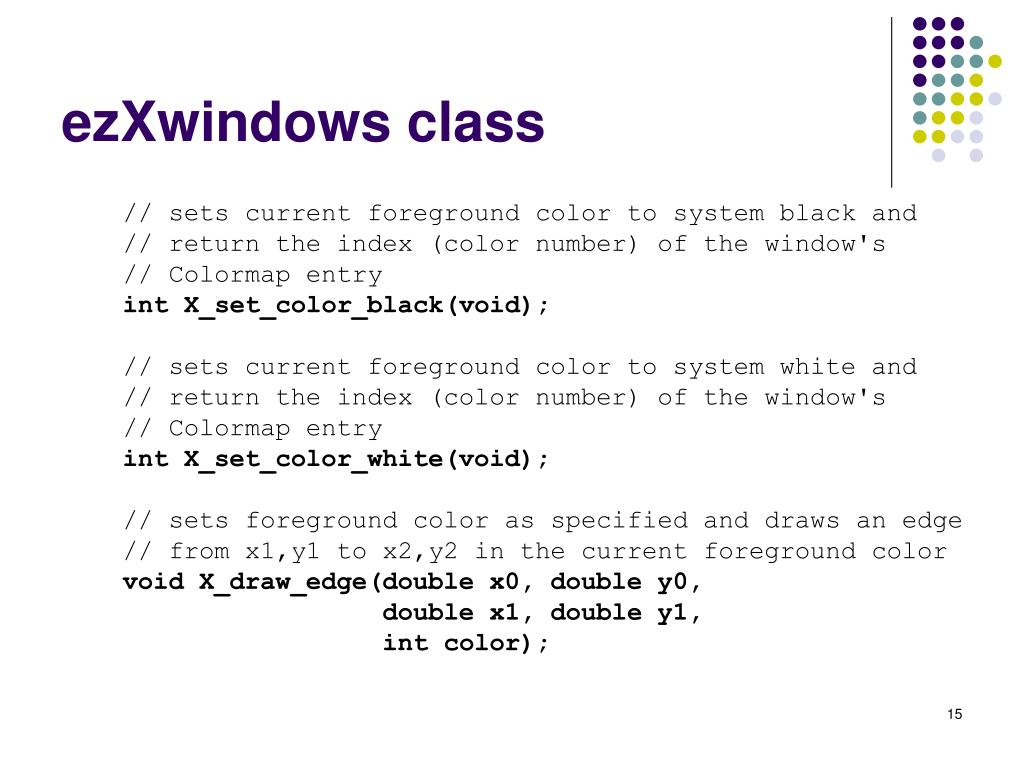

// sets current foreground color to system black and

// return the index (color number) of the window's

// Colormap entry

int X_set_color_black(void);

// sets current foreground color to system white and

// return the index (color number) of the window's

// Colormap entry

int X_set_color_white(void);

// sets foreground color as specified and draws an edge

// from x1,y1 to x2,y2 in the current foreground color

void X_draw_edge(double x0, double y0,

double x1, double y1,

int color);

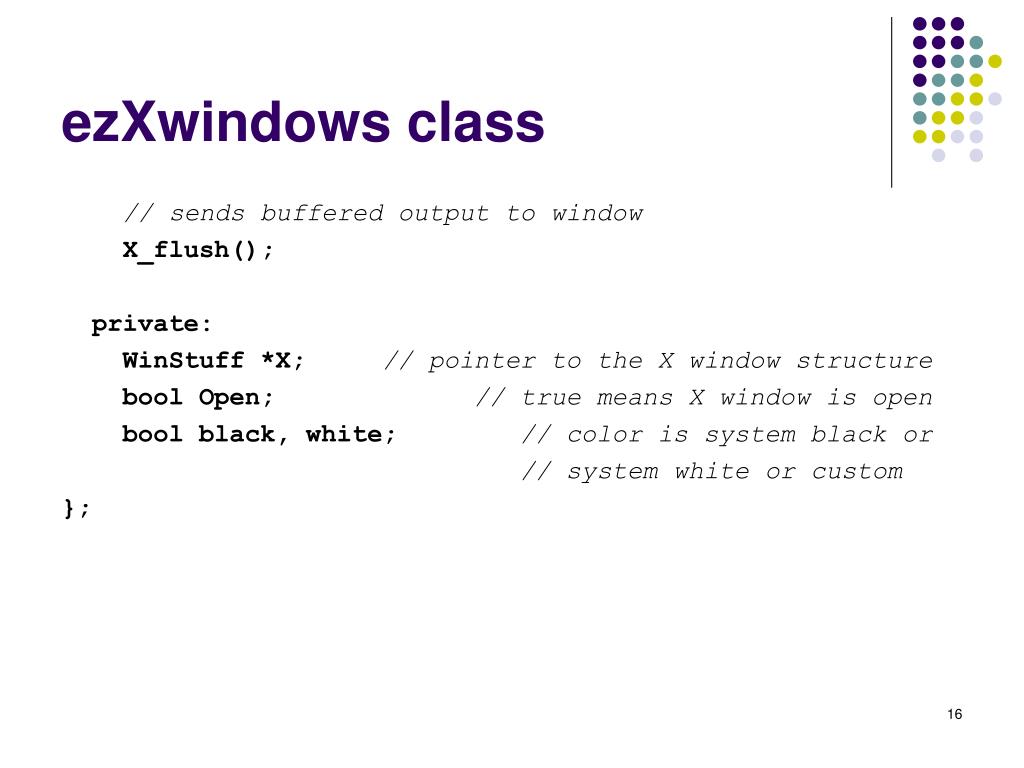

ezxwindows class4
ezXwindows class

// sends buffered output to window

X_flush();

private:

WinStuff *X; // pointer to the X window structure

bool Open; // true means X window is open

bool black, white; // color is system black or

// system white or custom

};

winstuff structure details

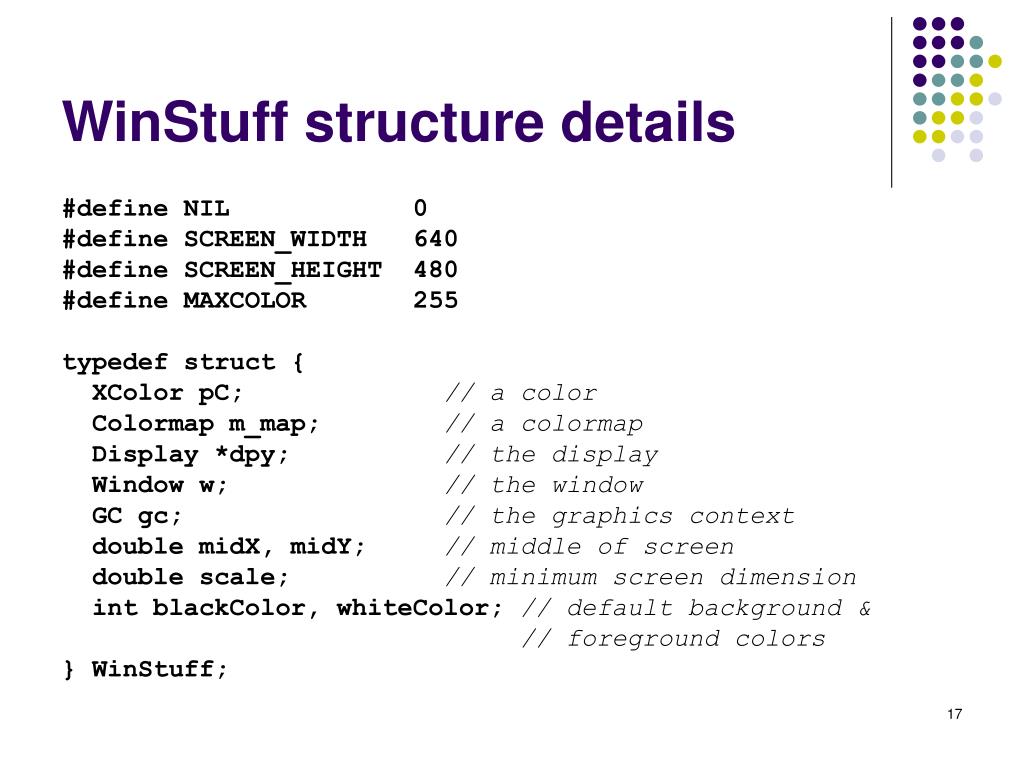

WinStuff structure details

#define NIL 0

#define SCREEN_WIDTH 640

#define SCREEN_HEIGHT 480

#define MAXCOLOR 255

typedef struct {

XColor pC; // a color

Colormap m_map; // a colormap

Display *dpy; // the display

Window w; // the window

GC gc; // the graphics context

double midX, midY; // middle of screen

double scale; // minimum screen dimension

int blackColor, whiteColor; // default background &

// foreground colors

} WinStuff;

shapes revisited x11 style

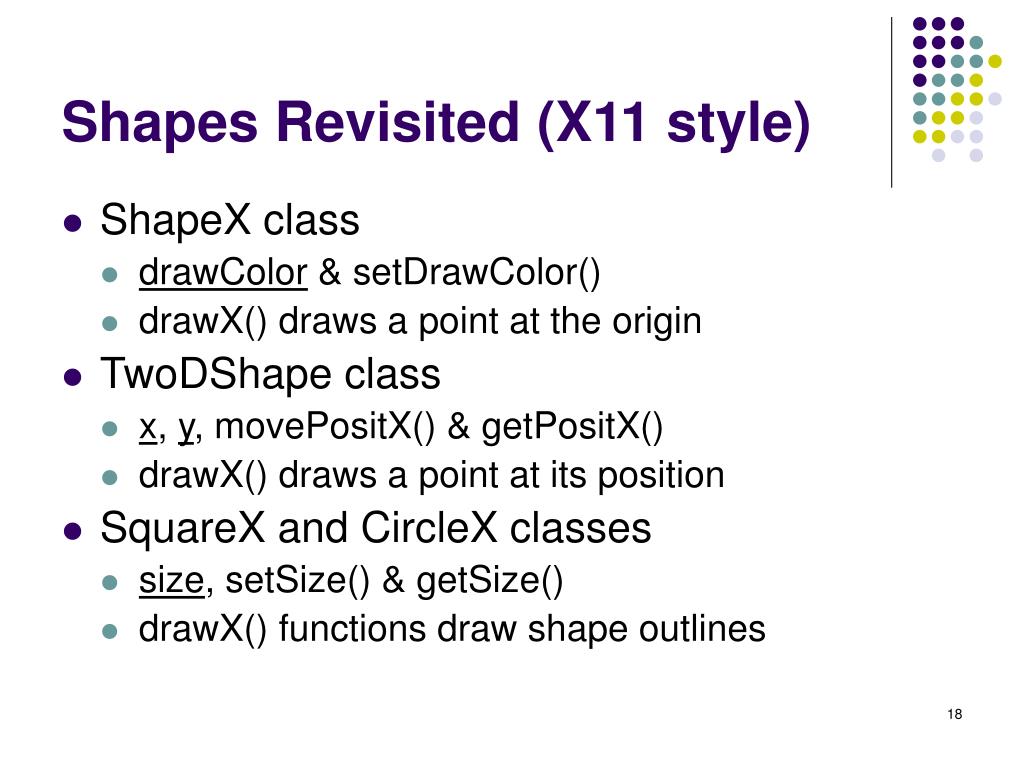

Shapes Revisited (X11 style)
  • ShapeX class
    • drawColor & setDrawColor()
    • drawX() draws a point at the origin
  • TwoDShape class
    • x, y, movePositX() & getPositX()
    • drawX() draws a point at its position
  • SquareX and CircleX classes
    • size, setSize() & getSize()
    • drawX() functions draw shape outlines
squarex drawx
SquareX::drawX(…)

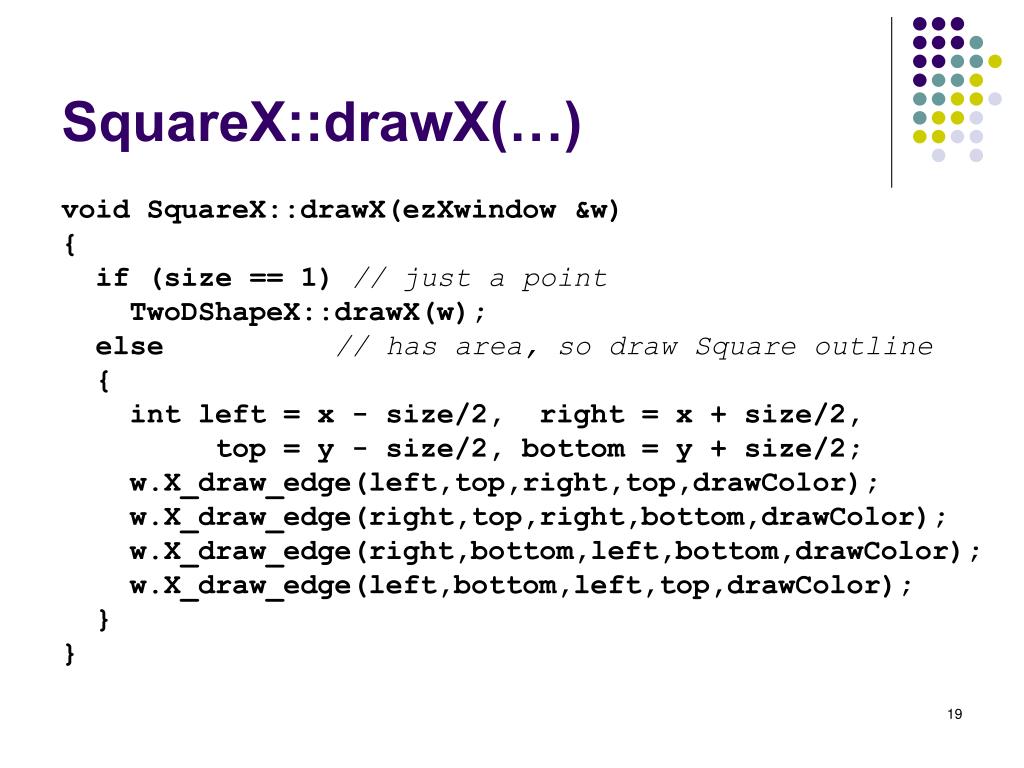

void SquareX::drawX(ezXwindow &w)

{

if (size == 1) // just a point

TwoDShapeX::drawX(w);

else // has area, so draw Square outline

{

int left = x - size/2, right = x + size/2,

top = y - size/2, bottom = y + size/2;

w.X_draw_edge(left,top,right,top,drawColor);

w.X_draw_edge(right,top,right,bottom,drawColor);

w.X_draw_edge(right,bottom,left,bottom,drawColor);

w.X_draw_edge(left,bottom,left,top,drawColor);

}

}

circlex drawx
CircleX::drawX(…)

void CircleX::drawX(ezXwindow &w)

{ if (size == 1) // it’s just a point

TwoDShapeX::drawX(w);

else // has area, so draw Circle outline

{ int inc(12), // must evenly divide 360

radius = size/2,

startX = x + radius, startY = y;

for (int a = inc; a <= 360; a += inc)

{ float angle = 3.14159*a/180.0;

int endX = (int)round(x + radius*cos(angle)),

endY = (int)round(y - radius*sin(angle));

w.X_draw_edge(startX,startY,endX,endY,drawColor);

startX = endX;

startY = endY;

}

}

}

a program using ezxwindow squarex circlex classes

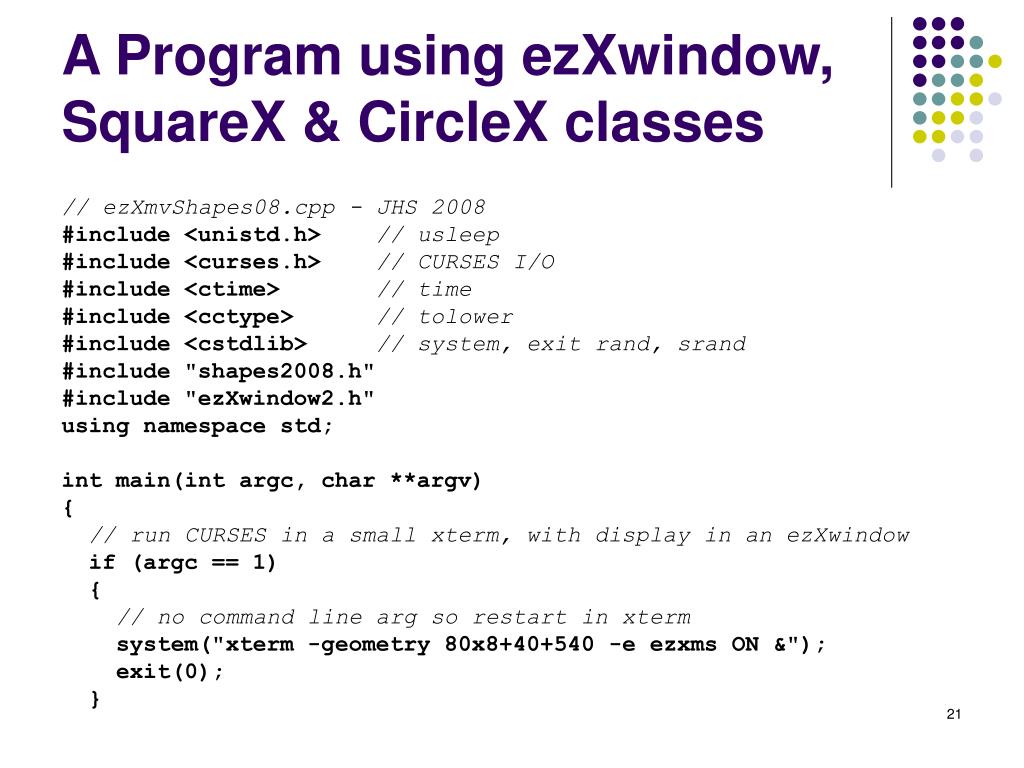

A Program using ezXwindow,SquareX & CircleX classes

// ezXmvShapes08.cpp - JHS 2008

#include <unistd.h> // usleep

#include <curses.h> // CURSES I/O

#include <ctime> // time

#include <cctype> // tolower

#include <cstdlib> // system, exit rand, srand

#include "shapes2008.h"

#include "ezXwindow2.h"

using namespace std;

int main(int argc, char **argv)

{

// run CURSES in a small xterm, with display in an ezXwindow

if (argc == 1)

{

// no command line arg so restart in xterm

system("xterm -geometry 80x8+40+540 -e ezxms ON &");

exit(0);

}

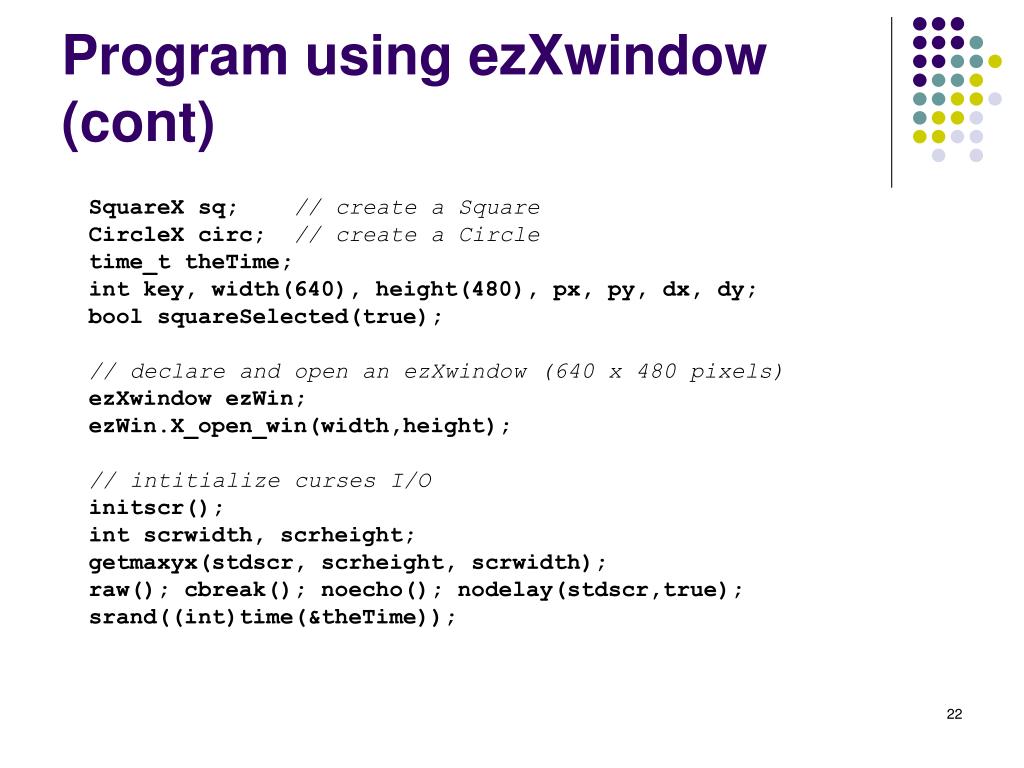

program using ezxwindow cont
Program using ezXwindow(cont)

SquareX sq; // create a Square

CircleX circ; // create a Circle

time_t theTime;

int key, width(640), height(480), px, py, dx, dy;

bool squareSelected(true);

// declare and open an ezXwindow (640 x 480 pixels)

ezXwindow ezWin;

ezWin.X_open_win(width,height);

// intitialize curses I/O

initscr();

int scrwidth, scrheight;

getmaxyx(stdscr, scrheight, scrwidth);

raw(); cbreak(); noecho(); nodelay(stdscr,true);

srand((int)time(&theTime));

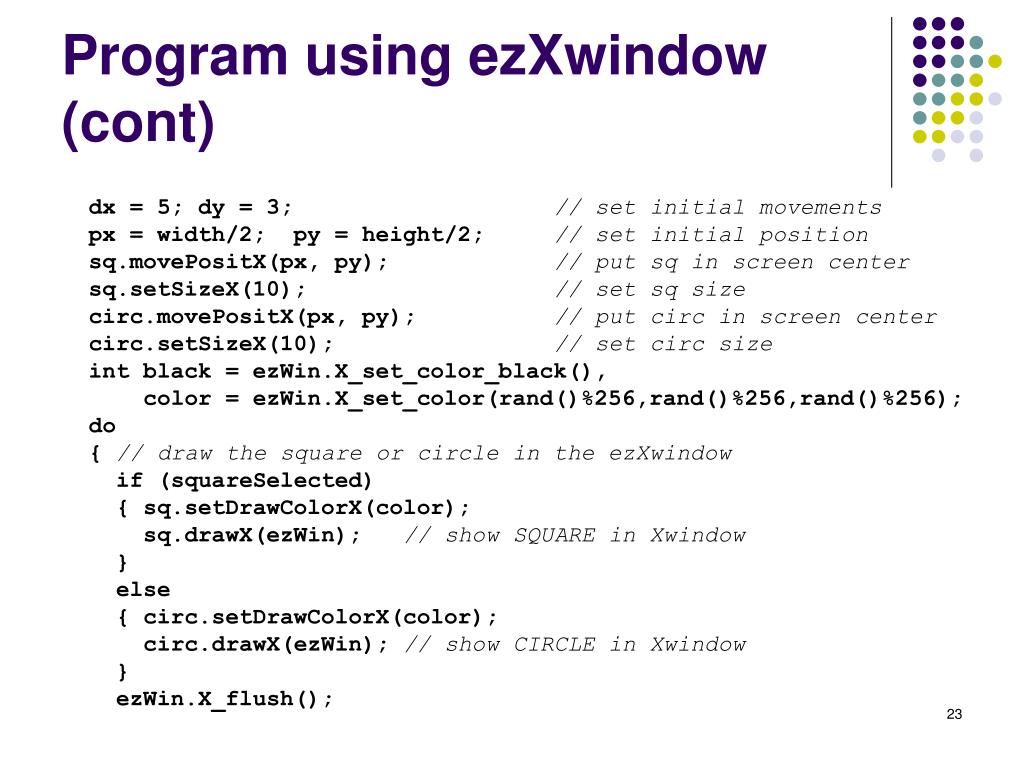

program using ezxwindow cont1
Program using ezXwindow(cont)

dx = 5; dy = 3; // set initial movements

px = width/2; py = height/2; // set initial position

sq.movePositX(px, py); // put sq in screen center

sq.setSizeX(10); // set sq size

circ.movePositX(px, py); // put circ in screen center

circ.setSizeX(10); // set circ size

int black = ezWin.X_set_color_black(),

color = ezWin.X_set_color(rand()%256,rand()%256,rand()%256);

do

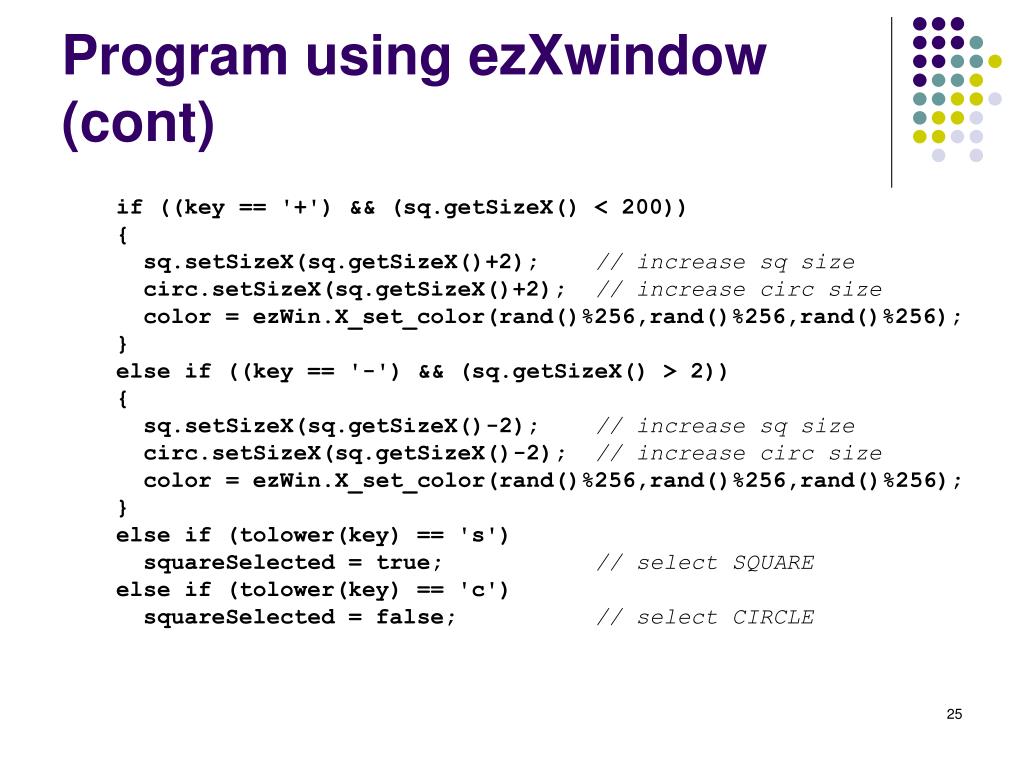

{ // draw the square or circle in the ezXwindow

if (squareSelected)

{ sq.setDrawColorX(color);

sq.drawX(ezWin); // show SQUARE in Xwindow

}

else

{ circ.setDrawColorX(color);

circ.drawX(ezWin); // show CIRCLE in Xwindow

}

ezWin.X_flush();

program using ezxwindow cont2
Program using ezXwindow(cont)

// update information on CURSES screen

clear();

mvprintw(0,0,"Shape:center(%3d,%3d)size(%3d)",px,py,sq.getSizeX());

mvprintw(0,scrwidth-38,"<< Shapes in ezXwindow (c) 2008 JHS >>");

mvprintw(scrheight-4,0,"(c) and (s) select circle or square");

mvprintw(scrheight-3,0,"(+) and (-) change size");

mvprintw(scrheight-2,0,"(q) quits!");

mvprintw(scrheight-1,0,"ENTER SELECTION --> ");

refresh(); usleep(50000); // pause 1/20th second

key = getch(); // check for keyboard input, but don't wait

// erase the square or circle in the ezXwindow

if (squareSelected)

{ sq.setDrawColorX(black);

sq.drawX(ezWin);

}

else

{ circ.setDrawColorX(black);

circ.drawX(ezWin);

}

program using ezxwindow cont3
Program using ezXwindow(cont)

if ((key == '+') && (sq.getSizeX() < 200))

{

sq.setSizeX(sq.getSizeX()+2); // increase sq size

circ.setSizeX(sq.getSizeX()+2); // increase circ size

color = ezWin.X_set_color(rand()%256,rand()%256,rand()%256);

}

else if ((key == '-') && (sq.getSizeX() > 2))

{

sq.setSizeX(sq.getSizeX()-2); // increase sq size

circ.setSizeX(sq.getSizeX()-2); // increase circ size

color = ezWin.X_set_color(rand()%256,rand()%256,rand()%256);

}

else if (tolower(key) == 's')

squareSelected = true; // select SQUARE

else if (tolower(key) == 'c')

squareSelected = false; // select CIRCLE

program using ezxwindow cont4

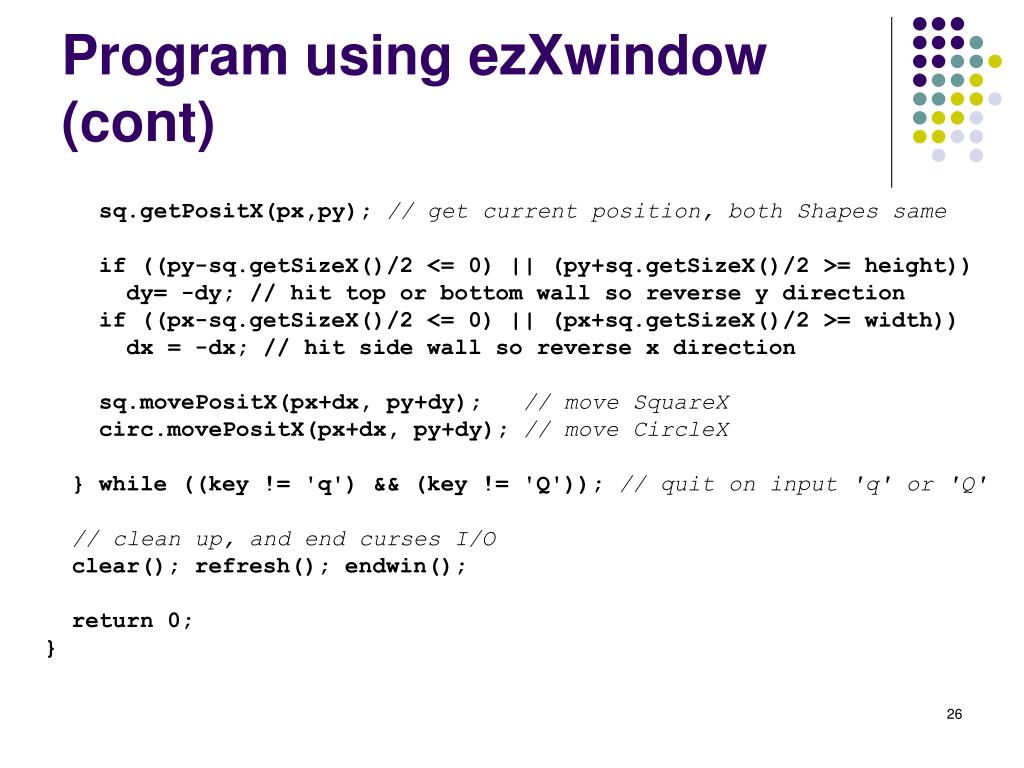

Program using ezXwindow(cont)

sq.getPositX(px,py); // get current position, both Shapes same

if ((py-sq.getSizeX()/2 <= 0) || (py+sq.getSizeX()/2 >= height))

dy= -dy; // hit top or bottom wall so reverse y direction

if ((px-sq.getSizeX()/2 <= 0) || (px+sq.getSizeX()/2 >= width))

dx = -dx; // hit side wall so reverse x direction

sq.movePositX(px+dx, py+dy); // move SquareX

circ.movePositX(px+dx, py+dy); // move CircleX

} while ((key != 'q') && (key != 'Q')); // quit on input 'q' or 'Q'

// clean up, and end curses I/O

clear(); refresh(); endwin();

return 0;

}

an ezxwindow program to display images

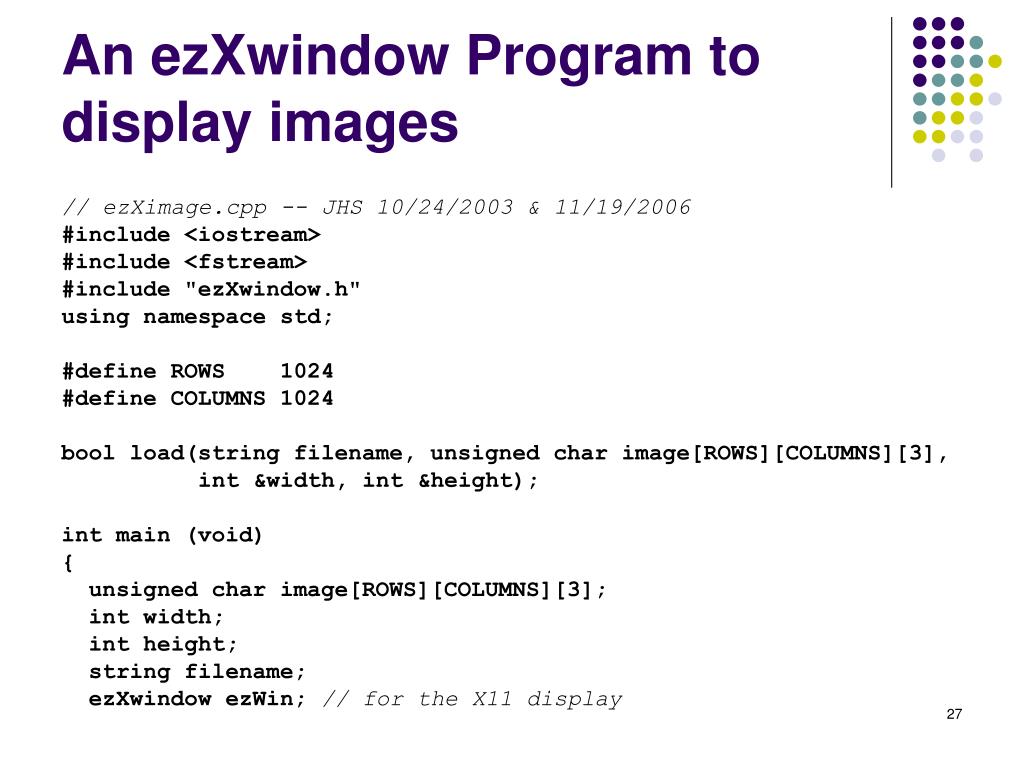

An ezXwindow Program to display images

// ezXimage.cpp -- JHS 10/24/2003 & 11/19/2006

#include <iostream>

#include <fstream>

#include "ezXwindow.h"

using namespace std;

#define ROWS 1024

#define COLUMNS 1024

bool load(string filename, unsigned char image[ROWS][COLUMNS][3],

int &width, int &height);

int main (void)

{

unsigned char image[ROWS][COLUMNS][3];

int width;

int height;

string filename;

ezXwindow ezWin; // for the X11 display

program to display images

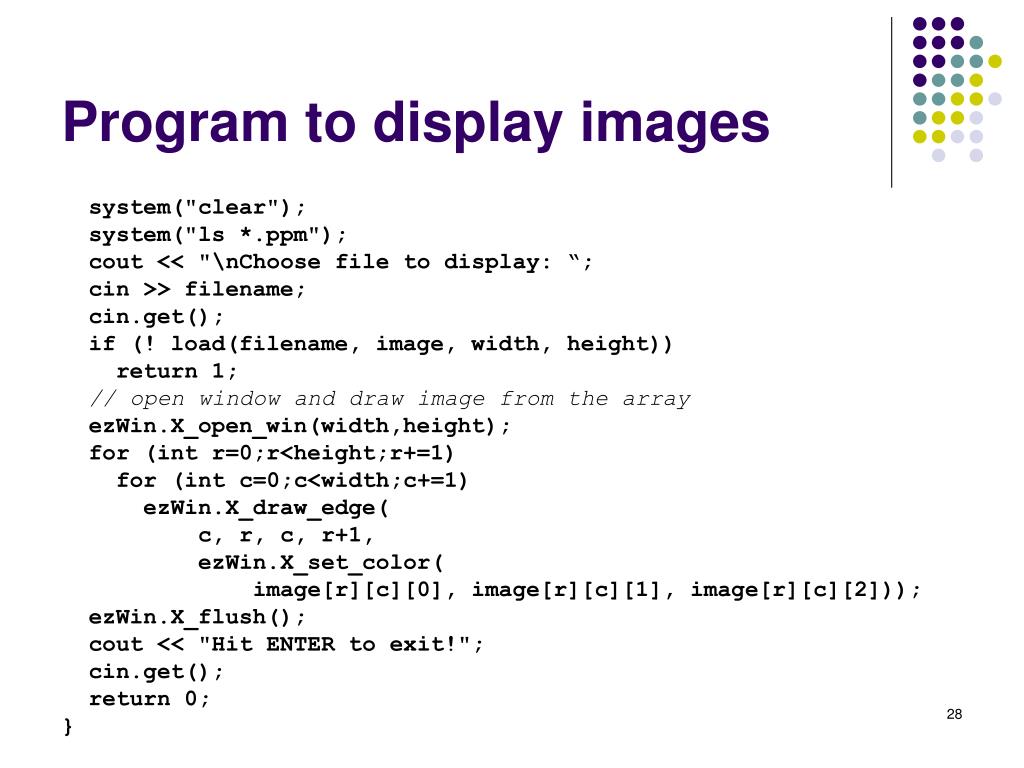

Program to display images

system("clear");

system("ls *.ppm");

cout << "\nChoose file to display: “;

cin >> filename;

cin.get();

if (! load(filename, image, width, height))

return 1;

// open window and draw image from the array

ezWin.X_open_win(width,height);

for (int r=0;r<height;r+=1)

for (int c=0;c<width;c+=1)

ezWin.X_draw_edge(

c, r, c, r+1,

ezWin.X_set_color(

image[r][c][0], image[r][c][1], image[r][c][2]));

ezWin.X_flush();

cout << "Hit ENTER to exit!";

cin.get();

return 0;

}

program to display images load function

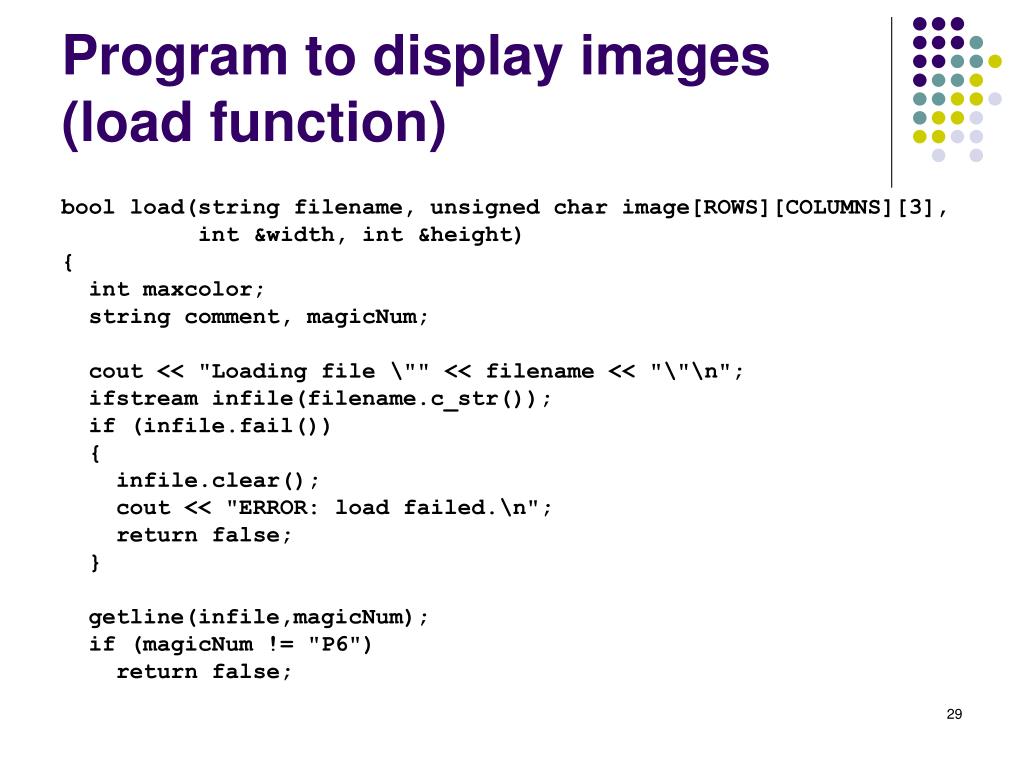

Program to display images(load function)

bool load(string filename, unsigned char image[ROWS][COLUMNS][3],

int &width, int &height)

{

int maxcolor;

string comment, magicNum;

cout << "Loading file \"" << filename << "\"\n";

ifstream infile(filename.c_str());

if (infile.fail())

{

infile.clear();

cout << "ERROR: load failed.\n";

return false;

}

getline(infile,magicNum);

if (magicNum != "P6")

return false;

program to display images load function1

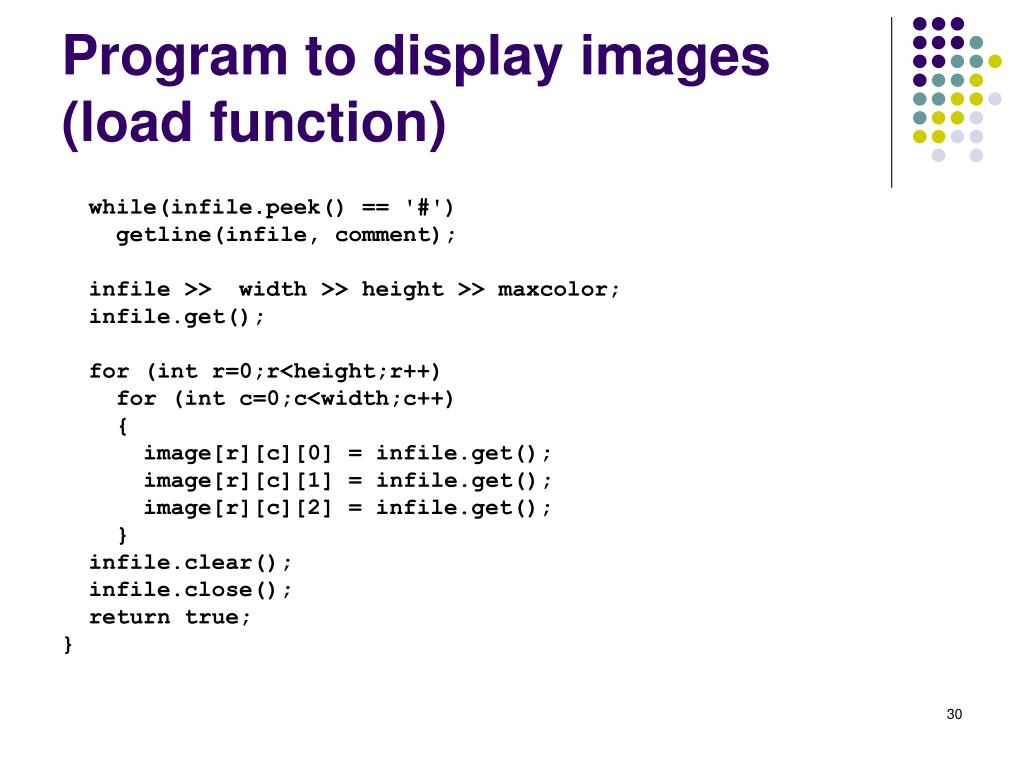

Program to display images(load function)

while(infile.peek() == '#')

getline(infile, comment);

infile >> width >> height >> maxcolor;

infile.get();

for (int r=0;r<height;r++)

for (int c=0;c<width;c++)

{

image[r][c][0] = infile.get();

image[r][c][1] = infile.get();

image[r][c][2] = infile.get();

}

infile.clear();

infile.close();

return true;

}

more on makefiles
More on Makefiles
  • MACRO
    • A name associated with a value to be used later
  • Useful macros
    • List of compiler options
    • List of libraries to be linked to program
    • Alternate locations for includes and libraries
  • $@ is the current target
  • $^ is a list of the current dependencies
sample makefile

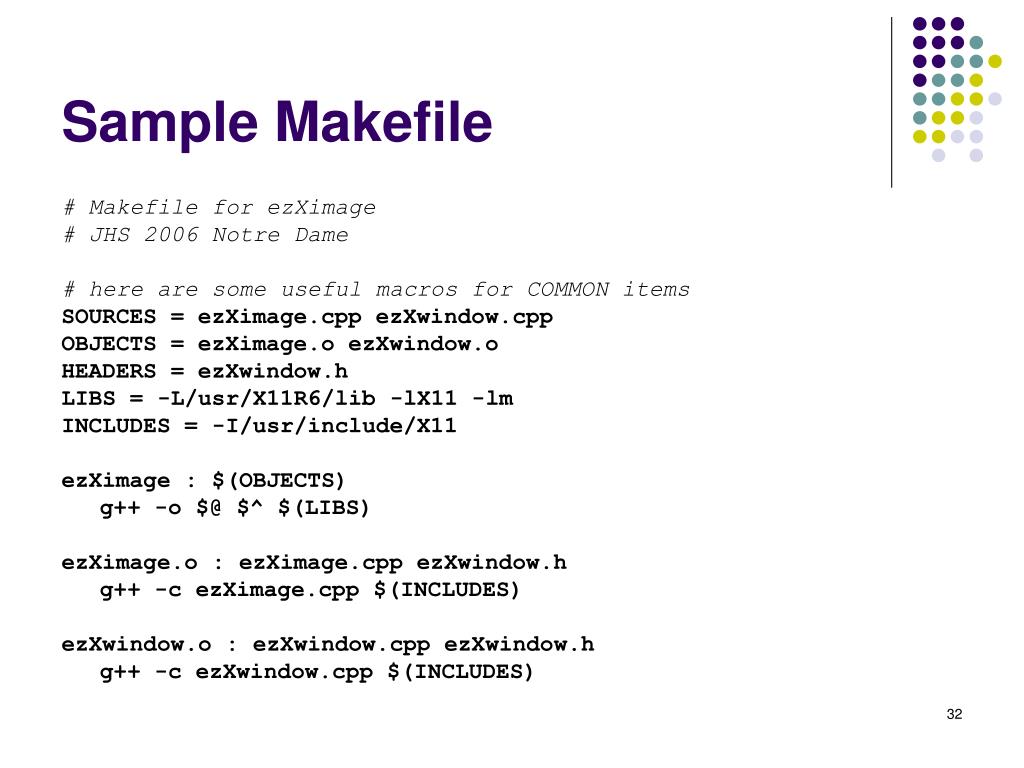

Sample Makefile

# Makefile for ezXimage

# JHS 2006 Notre Dame

# here are some useful macros for COMMON items

SOURCES = ezXimage.cpp ezXwindow.cpp

OBJECTS = ezXimage.o ezXwindow.o

HEADERS = ezXwindow.h

LIBS = -L/usr/X11R6/lib -lX11 -lm

INCLUDES = -I/usr/include/X11

ezXimage : $(OBJECTS)

g++ -o $@ $^ $(LIBS)

ezXimage.o : ezXimage.cpp ezXwindow.h

g++ -c ezXimage.cpp $(INCLUDES)

ezXwindow.o : ezXwindow.cpp ezXwindow.h

g++ -c ezXwindow.cpp $(INCLUDES)
