  1. Testing Methods for Composites Yiping Qiu

  2. Properties of Composites • Mechanical properties • Tensile • Compression • Bending • Shear • Impact

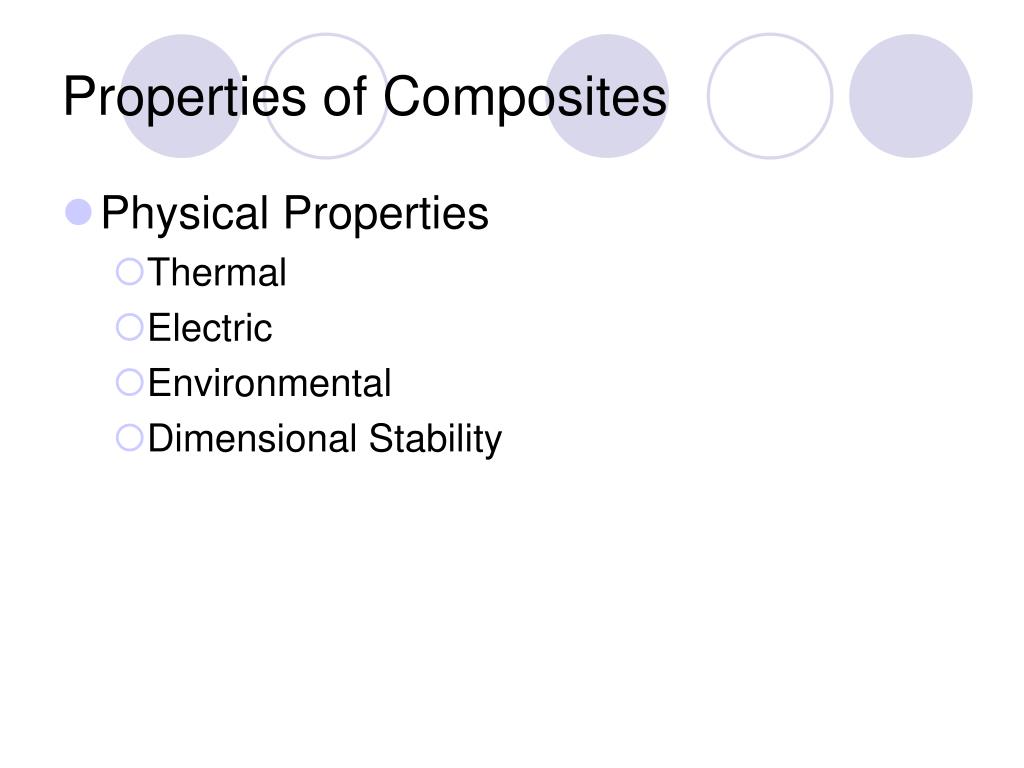

  3. Properties of Composites • Physical Properties • Thermal • Electric • Environmental • Dimensional Stability

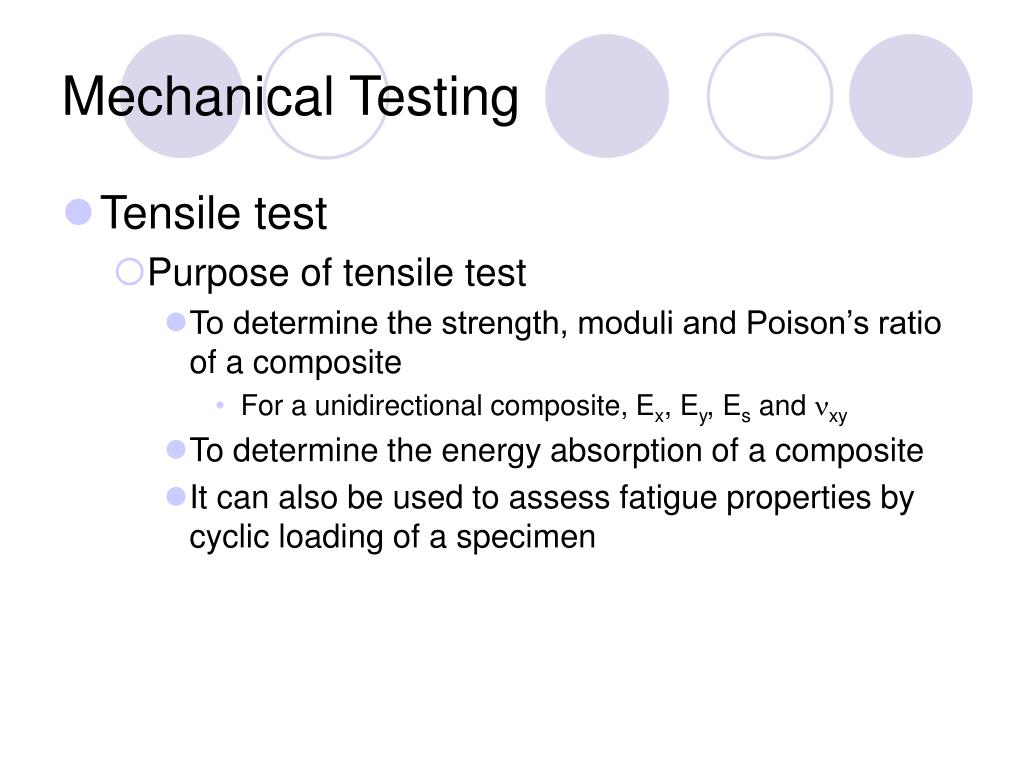

  4. Mechanical Testing • Tensile test • Purpose of tensile test • To determine the strength, moduli and Poison’s ratio of a composite • For a unidirectional composite, Ex, Ey, Es and nxy • To determine the energy absorption of a composite • It can also be used to assess fatigue properties by cyclic loading of a specimen

  5. Tensile testing • Single fiber tensile test • Fiber tow or yarn test • Composite tensile test

  6. Single fiber tensile test • Purpose • Sample preparation • Testing condition • Sample size or number of specimens • Analysis of results

  7. Yarn tensile test • Purpose • Sample preparation • Yarn as is • Resin impregnated • Testing conditions • Sample size • Analysis of results

  8. Composite Test • Sample size • Specimen shape • Protection of specimen ends • Testing devices: • Machine • Load cell • Strain gauge • Testing condition

  9. Shear test • Interlaminar shear: interlaminar bonding strength • In-plane shear: shear stiffness and strength

  10. Interlaminar shear test • Testing method • Testing device

  11. Bending test • Three point bending • Four point bending
