  1. Transformation of E/R Diagram to Relation

  2. Transformation of E/R Diagram to Relation • Primary keys allow entity sets and relationship sets to be expressed uniformly as relations • E/R diagram  collection of tables • For each entity set and each relationship set there is a unique table CSCE 520

  3. Transformation from E/R to Relation • Entity set: becomes a relation with the attributes of the entity set • Relationship: becomes a relation with attributes: • Key of connected entity sets • Attributes of the relationship CSCE 520

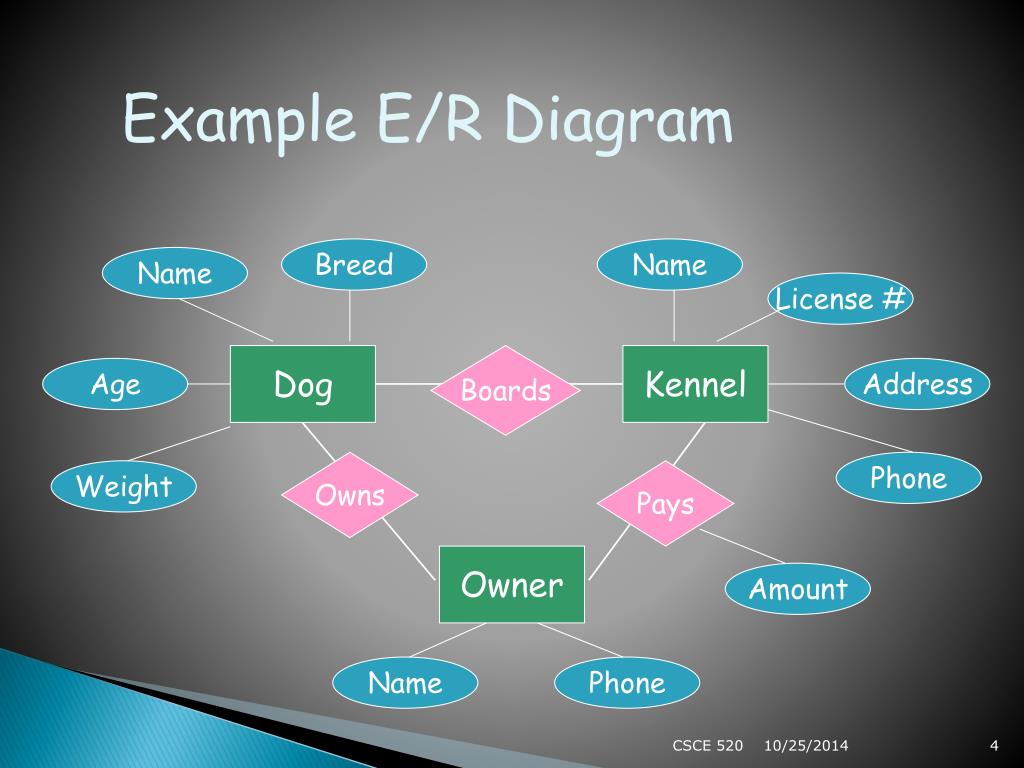

  4. Example E/R Diagram Breed Name Name License # Dog Boards Kennel Age Address Owns Phone Weight Pays Owner Amount Name Phone CSCE 520

  5. Entity Set to Relation Breed Name Dog Age Weight Dog(Name,Breed,Age,Weight) CSCE 520

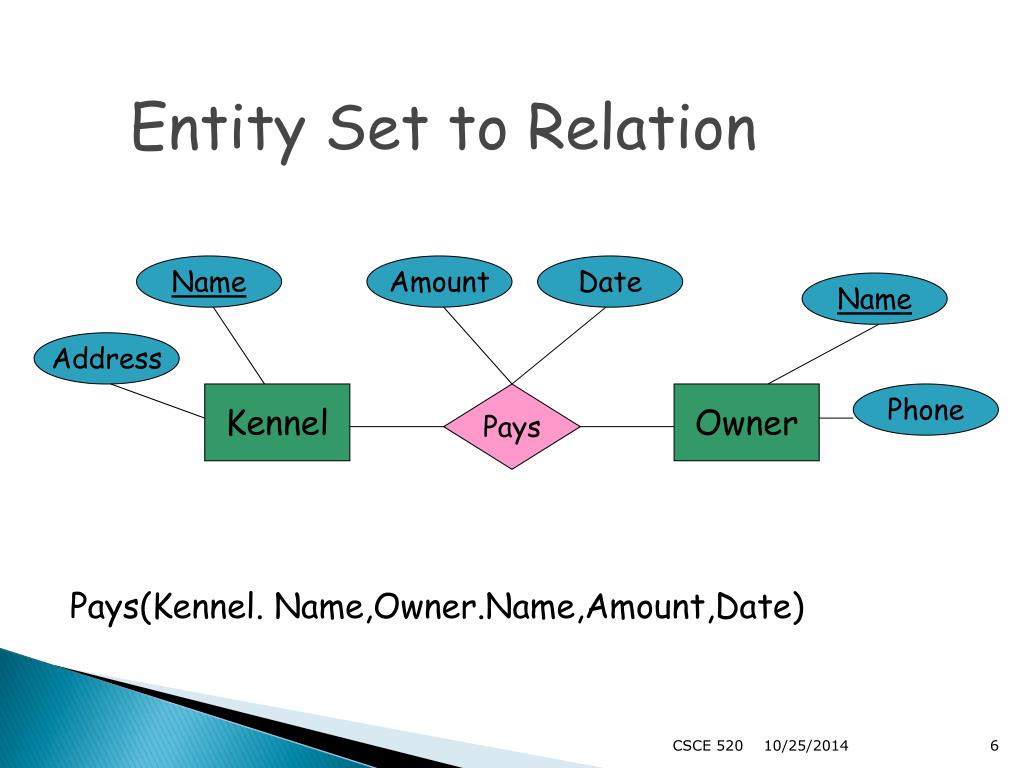

  6. Entity Set to Relation Name Amount Date Name Address Kennel Pays Owner Phone Pays(Kennel. Name,Owner.Name,Amount,Date) CSCE 520

  7. Combining Relations: Many-One Name Amount Date Name Address Kennel Pays Owner Phone Favorite Combine relation for entity of “many” side (Owner) with relationship set, i.e., Owner’s-favorite(Name,Phone,FavoriteKennel.Name) CSCE 520

  8. Combining Relations: Many-Many Name Name Address Kennel Pays Owner Phone Combining Owner with pays: Owner(Kennel.Name,Owner.Name,Phone) CSCE 520

  9. Many-many Relationship Redundancy CSCE 520

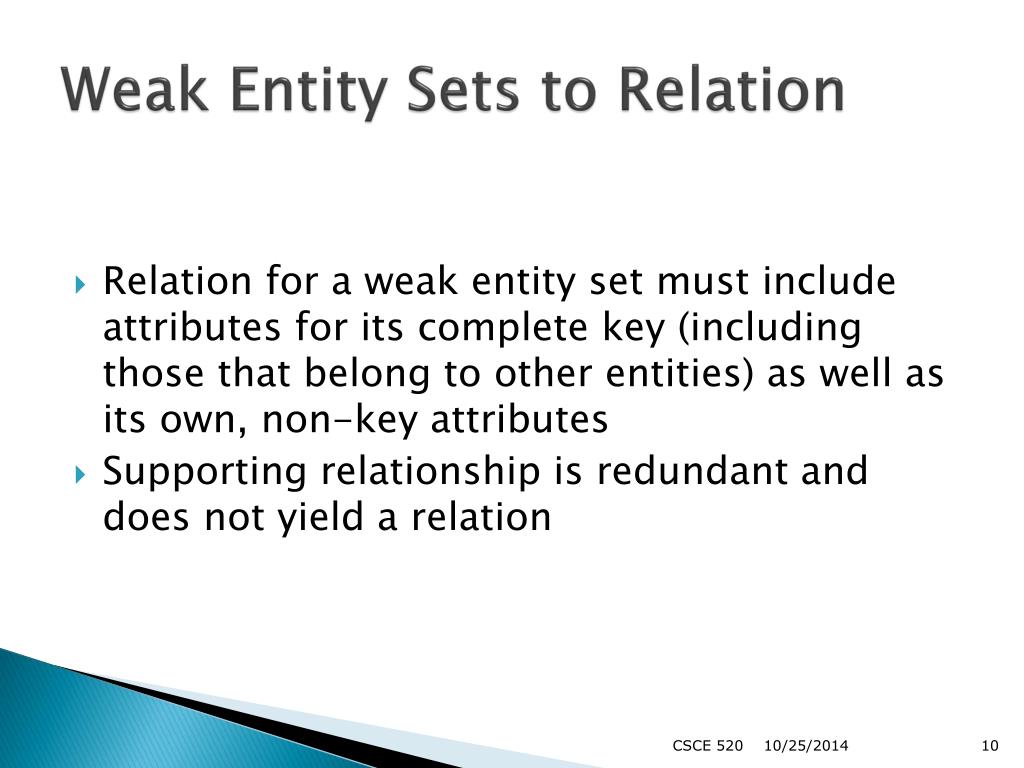

  10. Weak Entity Sets to Relation • Relation for a weak entity set must include attributes for its complete key (including those that belong to other entities) as well as its own, non-key attributes • Supporting relationship is redundant and does not yield a relation CSCE 520

  11. Example: Weak Entity Set Breed Name Name Dog Owns Owner Phone Age Owner(Owner.Name, Phone) Dog(Dog.Name,Owner.Name, Age,Breed) Owns(Dog.Name,Owner.Name1,Owner.Name2) Must be the same Already in Dog Redundant! CSCE 520

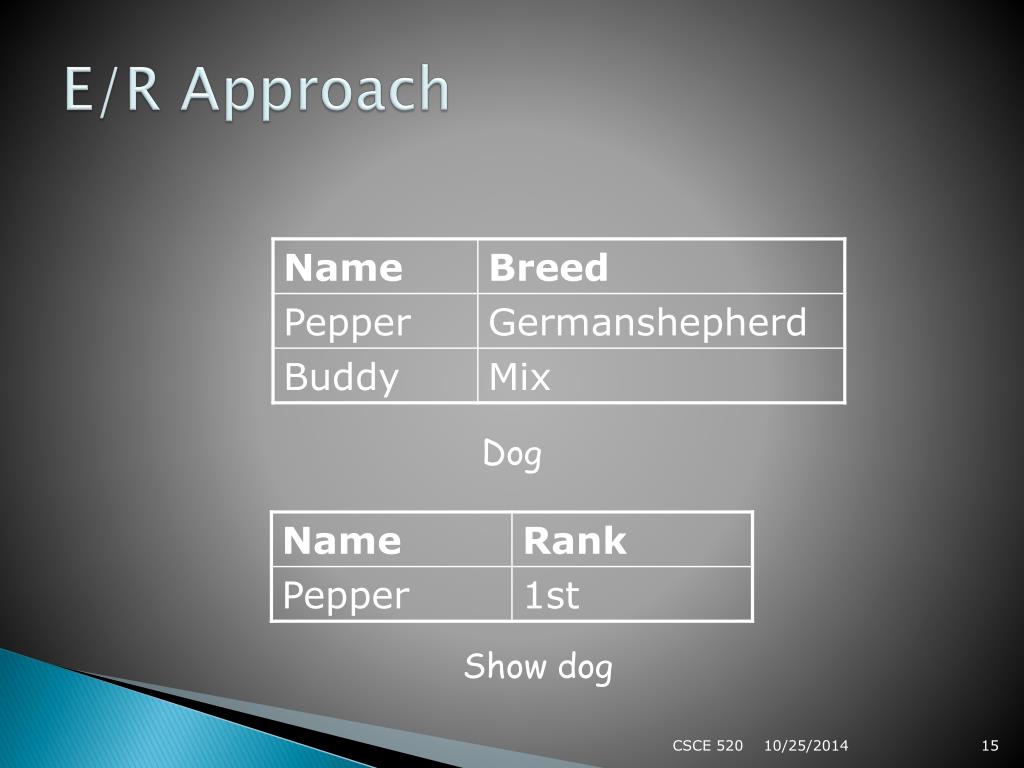

  12. Entity Sets with Subclasses Three approaches: • Object-oriented: each entity belongs to exactly one class. Create a relation for each class with all its attributes. • E/R style: create one relation for each subclass with only the key attributes and the attributes of the subclass. Entity is represented in all relations to whose subclass entity set it belongs. • Null values: create on relation with all attributes. Entities have null values in attributes that do not belong to them. CSCE 520

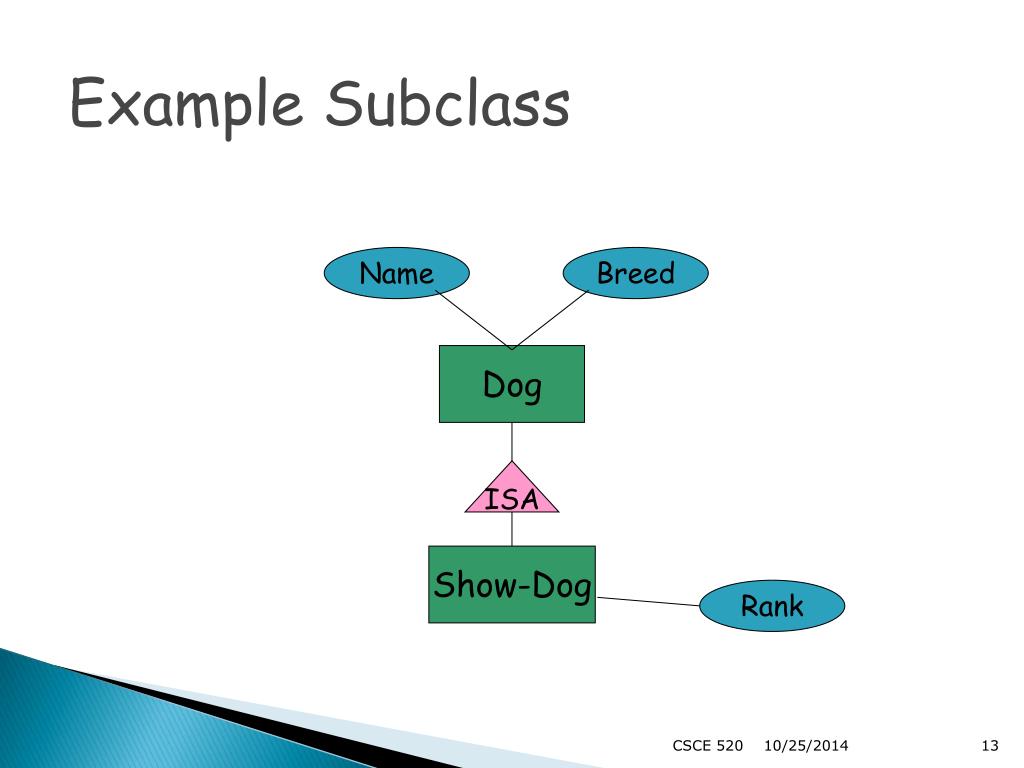

  13. Example Subclass Name Breed Dog ISA Show-Dog Rank CSCE 520

  14. Object-Oriented Approach Dog Show dog CSCE 520

  15. E/R Approach Dog Show dog CSCE 520

  16. Null Values Dog CSCE 520

  17. Comparisons • Object-Oriented: good for queries like “find all G.S. dogs that ranked 2nd or above”. • E/R: good for “find all G.S. dogs (regardless of being a show dog or not) • Null values: may save space, but not good if too many attributes with null values. CSCE 520
