  1. Applications of Machine Learning in Solving Vehicle Routing Problem RESEARCH TOPICS / Jussi Rasku Postgraduate seminar March 3rd 2011

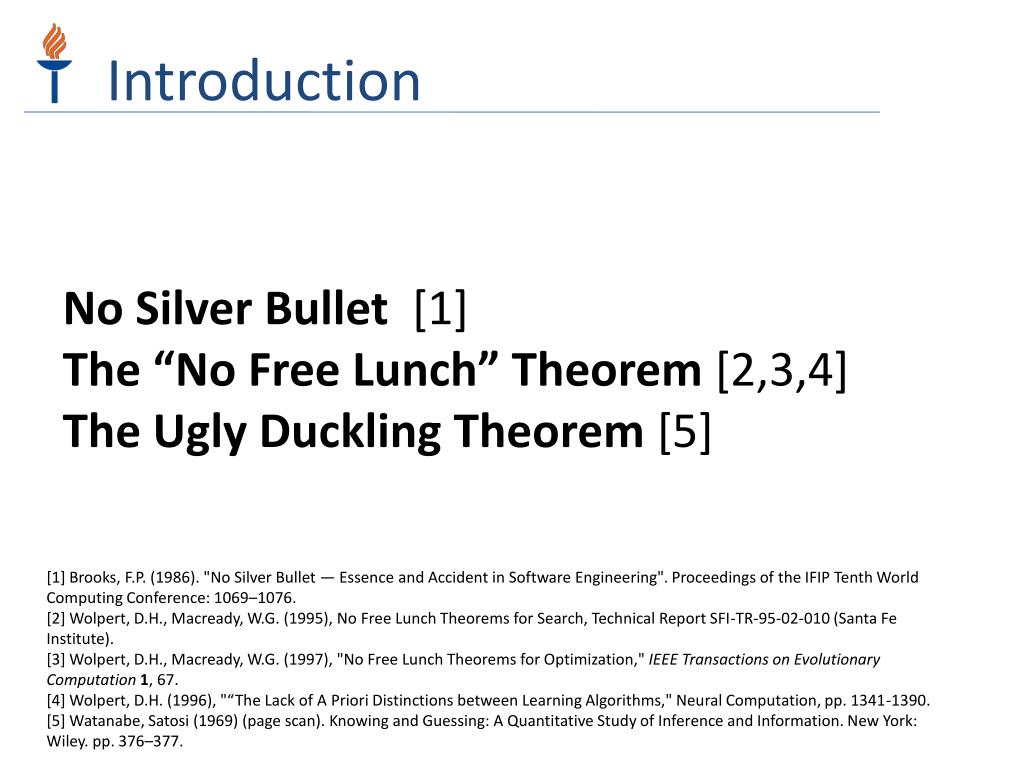

  2. Introduction No Silver Bullet [1] The “No Free Lunch” Theorem [2,3,4] The Ugly Duckling Theorem [5] [1] Brooks, F.P. (1986). "No Silver Bullet — Essence and Accident in Software Engineering". Proceedings of the IFIP Tenth World Computing Conference: 1069–1076. [2] Wolpert, D.H., Macready, W.G. (1995), No Free Lunch Theorems for Search, Technical Report SFI-TR-95-02-010 (Santa Fe Institute). [3] Wolpert, D.H., Macready, W.G. (1997), "No Free Lunch Theorems for Optimization," IEEE Transactions on Evolutionary Computation1, 67. [4] Wolpert, D.H. (1996), "“The Lack of A Priori Distinctions between Learning Algorithms," Neural Computation, pp. 1341-1390. [5] Watanabe, Satosi (1969) (page scan). Knowing and Guessing: A Quantitative Study of Inference and Information. New York: Wiley. pp. 376–377.

  3. Contents • Background • About the Researcher and Thesis • Vehicle Routing Problem • Machine Learning • 5-Phase Research Plan • Conclusions and Questions

  4. Applications of Machine Learning in Solving Vehicle Routing Problem Background

  5. About the Researcher • Jussi Rasku, DI, M.Sc. (Tech.) • Background in software industry (2001-2008) • 2001-2002 Windows application development. • 2002-2008 Machine vision quality control software development. • Working at University of Jyväskylä since 2/2009 – in the Research Group on Computational Logistics • Postgraduate studies • Started 7/2010 • Supervised by TommiKärkkäinen, Sami Äyrämö

  6. About the Thesis • Topic of my thesis is “Applications of Machine Learning in Solving Vehicle Routing Problem” • Aim is to discover ways to use intelligent methods of Machine Learning (ML) in solving Vehicle Routing Problems (VRP). • Thesis format will be collection of papers • First paper to be submitted before summer 2011. • Second paper by the end of the year 2011. • 2 more papers 2012-2014. • PhD, winter 2014.

  7. The Vehicle Routing Problem Depot Customer Route

  8. Vehicle Routing Problem Variants • VRP with time windows (VRPTW) • Fleet size and mix VRP (FSMVRP) • Open VRP (OVRP) • Multi-depot VRP (MDVRP) • Periodic VRP (PVRP) • VRP with backhauls (VRPB) • Pickup and delivery problem (PDP) • Dynamic VRP (DVRP) • VRP with stochastic demands (VRPSD) ...And combinations of these like MDVRPTWSD

  9. VRP Solving • VRP Solving (recognized issues) • Many different kind of problem variants to model and solve. • In literature there are variety of specialized solving methods for different VRP types. • Limited generalization ability and robustness of known solving methods. • It is not always clear which algorithms are best for given problem → Human expertise is needed.

  10. Machine Learning • Machine Learning • Allows computers to evolve behaviors based on previously seen data. • Can be used as expert systems that remove the human element to create fully automated systems. • Methods that allow us to build computer programs that improve their performance at some task through experience.

  11. Automating VRP solving XXVRPXX expert translates to MODEL SOLVER SOLUTION Intelligent methods automate this Machine learning allows exploiting the special structure of the problem. Better results are achieved by using suitable solution methods.

  12. Applications of Machine Learning in Solving Vehicle Routing Problem ResearchPlan

  13. Research Plan Outline • Adapting ML methods in VRP solving is done in 5 steps: • Phase 1: Feature extraction for VRP • Phase 2: Classification of VRP instances • Phase 3: Algorithm parameter prediction • Phase 4: Automatic selection of solving methods • Phase 5: Machine Learning Hyperheuristic

  14. Phase 1 : Features for VRP • How to describe the special structure of… • … VRP instance • … VRP solution • … VRP solving methods • Features are needed for determining similarity (for clustering, classification, prediction) • Existing feature extractors for VRP are charted • Adapting existing feature extraction methods from other fields like, • Graph similarity from graph theory • Molecule similarity from computational chemistry and biochemistry • Clusterability from mathematical analysis

  15. Phase 1: Article • Article:"Feature Descriptors for Rich Vehicle Routing Problems“ • Submitted Q2/2011 to “Mathematical Methods of Operations Research”, Springer.

  16. Phase 2 : Classification of Instances • Recognition of types using max π(R0) -formulation. • Methods that are specifically tuned to efficiently solve class prototype case are used to test hypothesis that solver can benefit from VRP case classification. • Perhaps unforeseen connections of different VRP types can be found (explorative analysis) Classification allows exploiting the special structure of the problem. Better results are achieved by using suitable solution methods.

  17. Phase 2 : Classification Process CASE 1 CASE 1 CASE CASE 1 CLASSIFIER CATEGORY 2 CATEGORY 1 PROTOTYPE CASE 1 CASE 1 CASE 3 CASE 1 SOLUTION Solving methods

  18. Phase 2 : Publishing Results • Can be used to prove the usability of descriptors of the phase 1. • Or, the results can be published as separate paper. • There could also be separate publication that verifies the manual taxonomy of VRP’s found in literature with statistical methods and clustering.

  19. Phase 3: Parameter Prediction • Heuristic VRP algorithms have parameters that adjust their behaviour. • But what are the right values? • Machine Learning methods can predict them from previously seen cases. • Data Mining, Bayesian learning, Neural Networks etc. PREDICTION ALGORITHM(x,y,z) = r(p) x, y, z CASEProblem p Solving Methods f(x,y,z,p) SOLUTION

  20. Phase 3: Challenges • Are the features of the Phase 1 usable for prediction? • We have to collect an knowledge database of problems we know how to solve and matching parameter values for those problem instances. • We need tools to find the right parameter values when there is lots of time and expertise present. • To produce enough learning data we need tools for distributed and batch solving and automation (Genetic Algorithms and/or Grid Search) • To test the prediction we need good test heuristic. Clustering insertion heuristic developed by research group could be good candidate.

  21. Phase 3: Research • I’m hoping to do part of the research aboard as visiting researcher during summer 2011. • IIASA / YSSP (already applied) with emphasis on • Problem modeling • Data warehouse / knowledge base • Distributed computing • LION (will contact ASAP) with emphasis on • Intelligent optimization • Reactive search • Tuning metaheuristics

  22. Phase 3: Articles • “An Adaptive VRP Construction Heuristic Based on Clustering and Statistical Prediction“ • Submitted Q4/2011 to “Computers & Operations Research”, Elsevier (Call for Papers “Hierarchical Optimization and its Application in Engineering”). • "An Framework for Adaptive Algorithms for Rich Vehicle Routing Problems Based on Statistical Prediction“ • Submitted Q2/2012 to "Mathematical Methods of Operations Research“, Springer.

  23. CLI ? SA ? ? Exch I1 ? ChI ? Eject ? Phase 4: Algorithm Selection Building heuristics 2-phase heuristics Local search heuristics Metaheuristics Cross Exch PA NN Or-opt I1 ACO k-opt R FI TS TBB Eject GRASP RFCS CLI λ-IC Reloc GA GA ChI CkT GAP GENI VNS CLP SA MA LNS SS HYPERHEURISTIC ? MODEL SOLUTION SOLVER

  24. Applications of Machine Learning in Solving Vehicle Routing Problem Phase 5: Bringing it all together

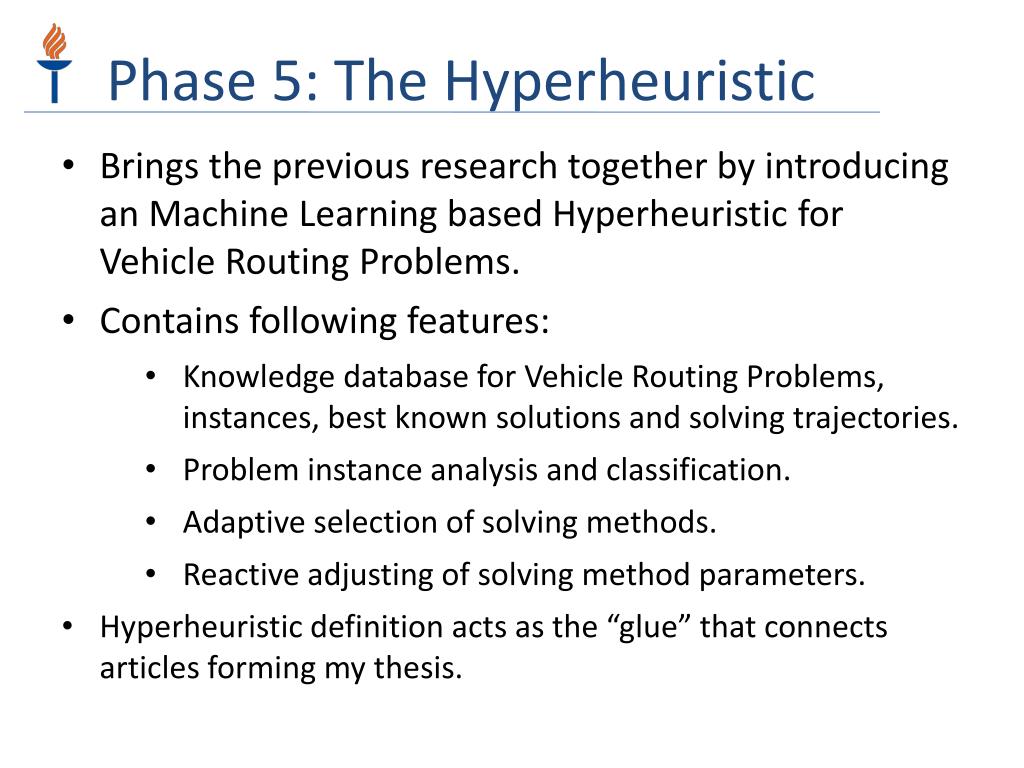

  25. Phase 5: The Hyperheuristic • Brings the previous research together by introducing an Machine Learning based Hyperheuristic for Vehicle Routing Problems. • Contains following features: • Knowledge database for Vehicle Routing Problems, instances, best known solutions and solving trajectories. • Problem instance analysis and classification. • Adaptive selection of solving methods. • Reactive adjusting of solving method parameters. • Hyperheuristic definition acts as the “glue” that connects articles forming my thesis.

  26. Conclusions • From previous TRANS-OPT project we have a solid modeling framework for Rich Vehicle Routing Problems. • By using my prior knowledge in statistics, machine learning and soft computing new advances in automating solving vehicle routing problems can be made. • Using intelligent methods should improve Robustness in VRP solving. This has been identified as an ongoing challenge in the VRP research field. Addressing this issue is the contribution of my thesis.

  27. Thank you for your attention I hope something similar to silver bullets, free lunches or ugly ducklings are found along the way.Any questions or comments?
