    1. The Tablet PC at Five Chuck Thacker Distinguished Engineer Microsoft Corporation July 20, 2005

    2. Talk outline • Tablet history • The Tablet today • Tablet futures • Limits on computers • What Moore actually said. • Implications for computers. • Other limits • What about software? • Conclusions

    3. Prehistory – before 2000 • Lots of earlier attempts – mostly failures. • DEC, Go, Newton, Pen Windows • Technology wasn’t ready • But vertical markets had limited success. • Needed: better UI, better handwriting recognition (without relying on it). • Key: Better digitizer (with hover).

    4. An earlier attempt -- 1983 • TRS 80 Model 100 • Reporters and students loved it • Ran for days on AA cells • Solved most computing needs for its (low aspiration) users.

    5. Another attempt -- 1993 • DEC Lectrice • 5.5 pounds • 1.5 hour battery • Wireless network • $5K LCD panel • VxWorks OS, X11 server optimized for reading

    6. Where we started: Internal MS (1999) • Microsoft proof of concept • Transmeta TM5800 • 256MB DRAM, 20GB HDD • 10.4” Slate • Good points: • Proved viability • Pushed the Power Efficiency Envelope • 5 Hours runtime, 200 Hours standby • Provided a development platform to get MS to Tablet PC launch. • On the Other Hand: • It was so sloooooow

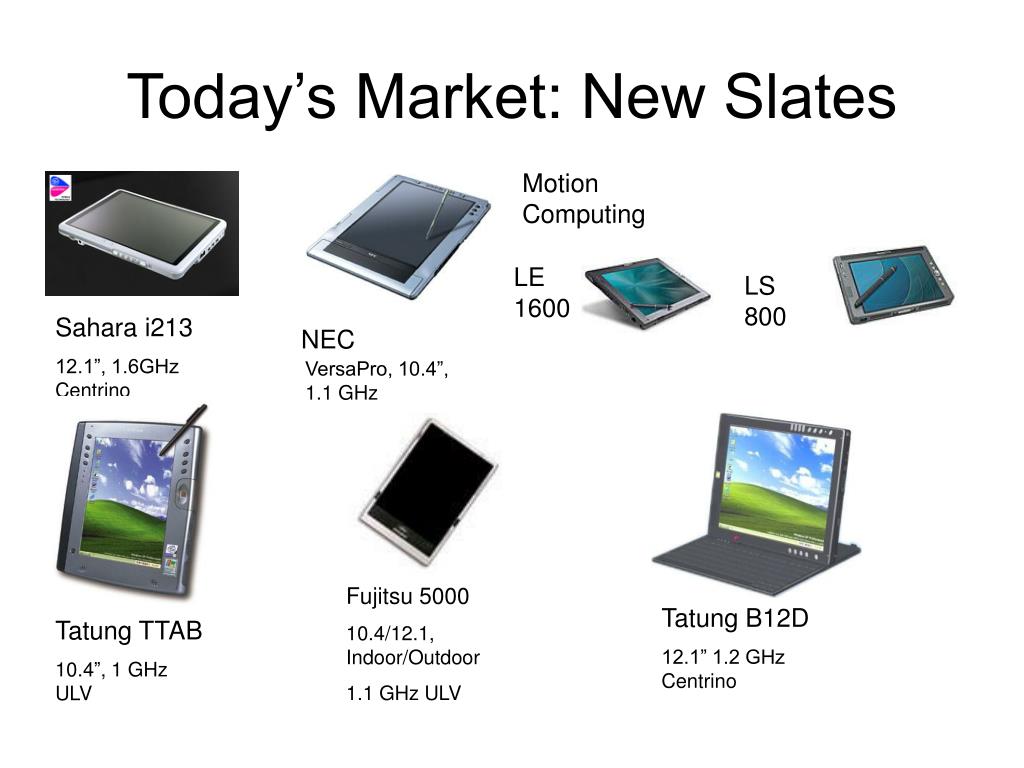

    7. Tatung B12D 12.1” 1.2 GHz Centrino Today’s Market: New Slates MotionComputing LE 1600 LS 800 Sahara i213 12.1”, 1.6GHz Centrino NEC VersaPro, 10.4”, 1.1 GHz Fujitsu 5000 10.4/12.1, Indoor/Outdoor 1.1 GHz ULV Tatung TTAB 10.4”, 1 GHz ULV

    8. Acer C1xx Gateway M275 14.1”, DVD 1.8 GHz Pentium-M C300 C250 SHARP Actius TN10W 12.1”, 1.1 GHz Today’s Market: New Convertibles Toshiba Averatec C3500 AMD 2200+ 12.1”, DVD M200, 12.1” SXGA+ 2 GHz Pentium-M Electrovaya 1.4 GHz Centrino 12.1”, Biometrics Scribbler SC-2200 Fujitsu T4000 HP tc4200 IBM ThinkPad x41 ViewSonic 12.1”, 1 GHz

    9. Today’s Market: New Hybrids & Ruggeds Ruggedized Hybrid Itronix 8.4”, 933 MHz ULV HP Compaq TC1100ULV Celeron or Pentium 10.4”, 1.1 GHz Walkabout Hammerhead 10.4”, 4.5 lbs 933 MHz P-III M Xplore iX104 10.4” 1.1 GHz ULV

    10. Concept Design: New hinge

    11. A Concept Tablet for Kids • Low power • (7W) • 8.4” display • Tethered pen • Rugged

    12. Other Form Factors Vulcan FlipStart OQO Model 1

    13. Today’s Market: Forecasts 2004 Market share 2006 Market share 2008 Market share • Mobile Market Projections (IDC) Consumers, Mobile Professionals CY08 Market: 2.5M, CAGR (04-08): 40% 0% 1% 3% Ultra-Mobile 0 to 1 spindle, 5-8” screen, < 2 lbs. Mobile Professionals, Information Workers CY08 Market: 28.4M, CAGR (04-08): 51.4%, Ultra-Portable 1 or 2 spindle,10-12” screen, 2-4 lbs. 8% 17% 31% Information Workers, Consumers CY08 Market: 51M, CAGR (04-08): 22% Thin & Light 2 spindle, 14-15” screen, 4-7 lbs. 63% 63% 56% Information Workers, Consumers CY08 Market: 8.9M, CAGR (04-08): -11% 30% 19% 10% Transportable 2 & 3 spindle, 14-17” screen, 7-12 lbs. Data source: IDC

    14. Moore’s Law (1967) • Not really a “law”, but an observation, intended to hold for “..the next few years”. • (Nt/A)(t1) = (Nt/A)(t0) * 1.58t1-t0(t in years) • Most exponential curves in the real world turn out to be “S” shaped, but Moore’s observation has held for 35 years.

    15. The Woolly Bear Book of VLSI scaling • Scaling requires lithography and process changes. • Get more and faster transistors in the same area. • Power per transistor goes down, power per unit area goes up (sometimes way up). • Power ≈ CV2f (plus leakage)

    16. How to use Moore’s Law • Lower cost: Same Nt, reduced A (“die shrinks”) used in video consoles. • More complex chips: Larger Nt, same A. • Lower the voltage and increase frequency • Add larger caches to overcome latency • Add architectural features to increase ILP • Superchips (SOC): Increase Nt and A.

    17. Moore’s Law for Memory • Capacity improvement: 1,000,000 X since 1970. • Bandwidth improvement: 100 X. • Latency reduction: only 10-20 X. • Dealing with latency is the largest problem for a computer system designer.

    18. Moore’s Law for Processors • More complex designs • More than one processor on a chip (homogeneous). • More than one processor, with specialized functions, e.g. graphics • Graphics performance is improving much faster than CPU performance.

    19. Thirty years of progress

    20. Possible Future Limits • Physical limits: • “Atoms are too large, and light is too slow” • Today, the problem isn’t making the transistors faster, it’s the time for signals to propagate on the wires (latency again). • Power. Lots of transistors => lots of power. Cooling is hard. • Design complexity: • Designing a billion-transistor chip takes a large team, even with good design tools. • The “junk DNA” problem. • Economics: • Factories are very expensive.

    21. Scaling Limits • Voltage scaling is about over. It’s very hard to operate below 1 volt. • Frequency increases are also difficult. • Intel runs out at 3 – 4 GHz. • Static leakage is also a big problem. • So, we’ll see more transistors in the future, but they won’t be better or faster transistors.

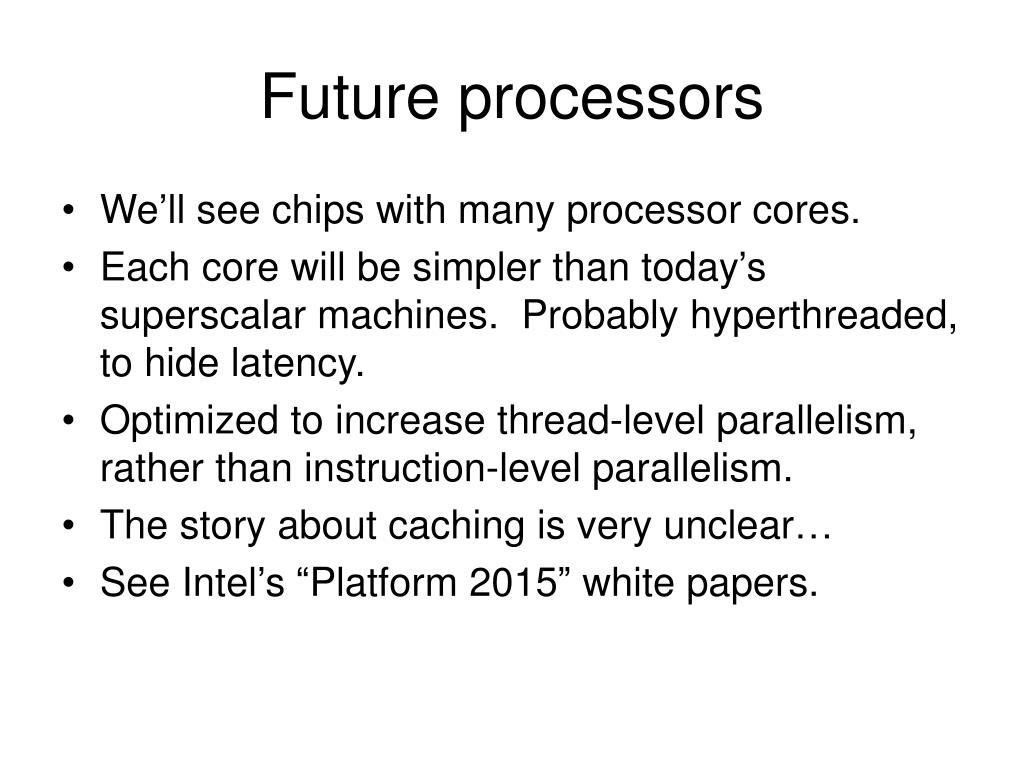

    22. Future processors • We’ll see chips with many processor cores. • Each core will be simpler than today’s superscalar machines. Probably hyperthreaded, to hide latency. • Optimized to increase thread-level parallelism, rather than instruction-level parallelism. • The story about caching is very unclear… • See Intel’s “Platform 2015” white papers.

    23. Other Limits • Not all technologies used in computers follow Moore’s Law • Disks don’t • Displays don’t • Batteries don’t • The bandwidth vs. latency problem. • See D. Patterson, “Latency Lags Bandwidth”, CACM, October 2004

    24. What about software? • For scientific computing and servers, the future seems fine. • There are lots of important problems that are embarrassingly parallel. • For client software, the picture is more bleak.

    25. Many-core challenges for clients • Windows doesn’t use threads well • Exceptions: Kernel, SQL • Competitors don’t do any better • Applications don’t use threads well • Outlook is the poster child • Until recently, inking on Tablet was problematic • Problems: • Writing multi-threaded code is hard • Threading model and primitives are overly complicated • Threads don’t compose • Debugging multi-threaded code is harder • Testing multi-threaded code is a crapshoot • Tool support isn’t very good

    26. Possible paths forward • Better language support for parallelism • Cω, Atomic transactions • Better tools • Analyze liveness and safety statically • Model checking • Dynamic race detection • Better libraries • Better education

    27. Conclusions • Popularity of portable devices, including Tablet PC, is growing • Much of the innovation in the industry is in this area. • Energy-efficiency can open up new markets. • Silicon trends favor the high end • There are lots of challenges and opportunities for new software.
