sequential reductions for verifying serializability

Sequential reductions for verifying serializability

Hagit Attiya Technion & EPFL

G. Ramalingam MSR India

Noam Rinetzky University of London

the goal
The goal

Verify concurrent data structures

      • Pre-execution static analysis

E.g., linked list with hand-over-hand locking

      • memory safety (no memory leaks)
      • shape invariants (it’s a list)
      • “atomicity” (serializability)

Find sequential reductions

  • Consider only sequential executions
  • But conclude that properties hold in all executions
back of envelop estimate of gain
Back-of-envelop estimate of gain

Static analysis of a linked-list algorithm

[Amit, Rinetzky, Reps, Sagiv, Yahav, CAV 2007]

  • Verifies e.g., memory safety, sortedness, pointed-to by a variable, heap sharing
serializability

~

~

~

~

~

~

~

~

~

Serializability

[Papadimitriou ‘79]

interleaved execution

operation

~ thread-local views

complete non-interleaved execution

serializability assists verification
Serializability assists verification

Concurrent code M

Π = all executions of M

cni-Π = all complete non-interleaved executions of M  Π

φ = some thread-local property

If M is serializable

Then Π ⊨ φ cni-Π ⊨ φ

slide6

How do we know that M is serializable,

w/o considering all executions?

I.e., by checking only cni-executions

If M is serializable

Then Π ⊨ φ cni-Π ⊨ φ

special and common case disciplined programming with locks
Special (and common) case: Disciplined programming with locks

Guard access to data with locks

Access data only after getting a lock for it (well-lockedness)

Follow a locking protocol that guarantees conflict serializability

E.g., two-phase locking (2PL) or tree locking (TL)

two phase locking

H

Two-phase locking

[Papadimitriou `79]

  • Locks acquire (grow) phase followed by locks release (shrink) phase
    • No lock is acquired after some lock is released

t2

t1

t1

t1

t1

tree hand over hand locking

H

Tree (hand-over-hand) locking

[Bayer & Scholnick ‘77] [Kedem & Sliberschatz ‘76] [Smadi ‘76]

  • Except for the first lock, acquire a lock only when holding the lock on its parent
  • No lock is acquired after being released

t2

t1

t1

t1

tree hand over hand locking1

H

Tree (hand-over-hand) locking

[Bayer & Scholnick ‘77] [Kedem & Sliberschatz ‘76] [Smadi ‘76]

  • Except for the first lock, acquire a lock only when holding the lock on its parent
  • No lock is acquired after being released

t2

t1

t1

t2

slide11

void p() {

acquire(B)

B = 0

int b = B

release(B)

if (b) Y = 2

acquire(A)

}

void q() {

acquire(B)

B = 1

release(B)

}

Not two-phase locked

But only in interleaved executions

Yes!

  • for databases
  • concurrency control monitor

ensures that M follows the

locking policy at run-time

 M is serializable

No!

  • for static analysis
  • no central monitor

How to (statically) verify that M follows a locking policy?

our approach
Our approach

Applies for local conflict-serializable (LCS) locking protocols

  • Use only thread-local information (see next)

E.g., two phase locking, tree locking, (dynamic) DAG locking…

But not protocols that rely on a concurrency control monitor!

thread local properties
Thread-local properties

A thread-owned view contains the values of thread’s local variables & global variables locked by it

A property φ is thread-localif it

  • Can be expressed in terms of thread-owned views
  • Is prefix closed

A thread-local property of an execution holds in every execution indistinguishable from it

our contribution easy step

non-interleaved execution

Our contribution: Easy step

cni-Π = all complete non-interleaved executions of M  Π

Two phase locking

Tree locking

Dynamic tree locking

Dynamic DAG locking

For any LCS locking policy LP

Π ⊨ LP ni-Π ⊨ LP

For any thread-local property φ

Π ⊨ φ ni-Π ⊨ φ

ni reduction proof sketch
Ni-reduction: Proof sketch

If all ni-executions follow LP  all executions follow LP

σ is the shortest execution that does not follow LP

  • σ’ follows LP, guarantees conflict-serializability
  • there is a ni-execution that is “equivalent” to σ’

(t,e)

σ

σ’

ni reduction proof sketch cont

σ’ni

(t,e)

σ’

(t,e)

Ni-reduction: Proof sketch (cont.)
  • there is a ni-execution that is “equivalent” to σ’
  • there is a ni-execution that is “equivalent” to σwhere LP is violated

σni

further reduction

almost complete non-interleaved execution

Further reduction

acni-Π = all almost-complete non-interleaved executions of M  Π

For any LCS locking policy LP

Π ⊨ LP acni-Π ⊨ LP

acni reduction a complication
Acni-reduction: A complication

Need to argue about termination

Observe

Y == 1 & violates 2PL

Y is set to 1 & the method enters an infinite loop

int X=0, Y=0

void p() {

acquire(Y)

y = Y

release(Y);

if (y ≠ 0)

acquire(X)

X = 3

release(X)

}

void q() {

if (random(5) == 3){

acquire(Y)

Y = 1

release(Y)

while (true) nop

}

}

acni reduction termination
Acni-reduction: Termination

 Can use sequential reduction to verify termination

For any “terminating” LCS locking policy LP

Π ⊨ LP acni-Π ⊨ LP

acni reduction proof ideas
Acni-reduction: Proof ideas

Start from a ni-execution (and rely on the previous, ni-reduction to get there)

Create its equivalent completion, if possible

Not always possible, e.g.,

Does not access variables accessed by later threads

v

t1:lock(v),

t1:lock(u),

t2:lock(u)

u

implications for statis analysis
Implications for statis analysis
  • Pessimistic analysis (over approximate)
    • Analyze a module from every possible state
  • Semi-optimistic analysis
    • Analyze a module only from states that occur after a sequence of modules ran one after the other
  • Optimistic analysis (precise)
    • Analyze a module only from states that occur after a sequence of modules ran to completion (one after the other)

Ni-reduction

Acni-reduction

initial analysis results
Initial analysis results

Shape analysis of hand-over-hand lists

* Does not verify sortedness of list and fails to verify linearizability in some cases

Shape analysis of hand-over-hand trees(for the first time)

what s next
What’s next?
  • Further extensions, esp., for software transactional memory
    • aborted transactions
    • non-locking non-conflict based serializability (e.g., using timestamps)
  • Combine with other reductions

[Guerraoui, Henzinger, Jobstmann, Singh]

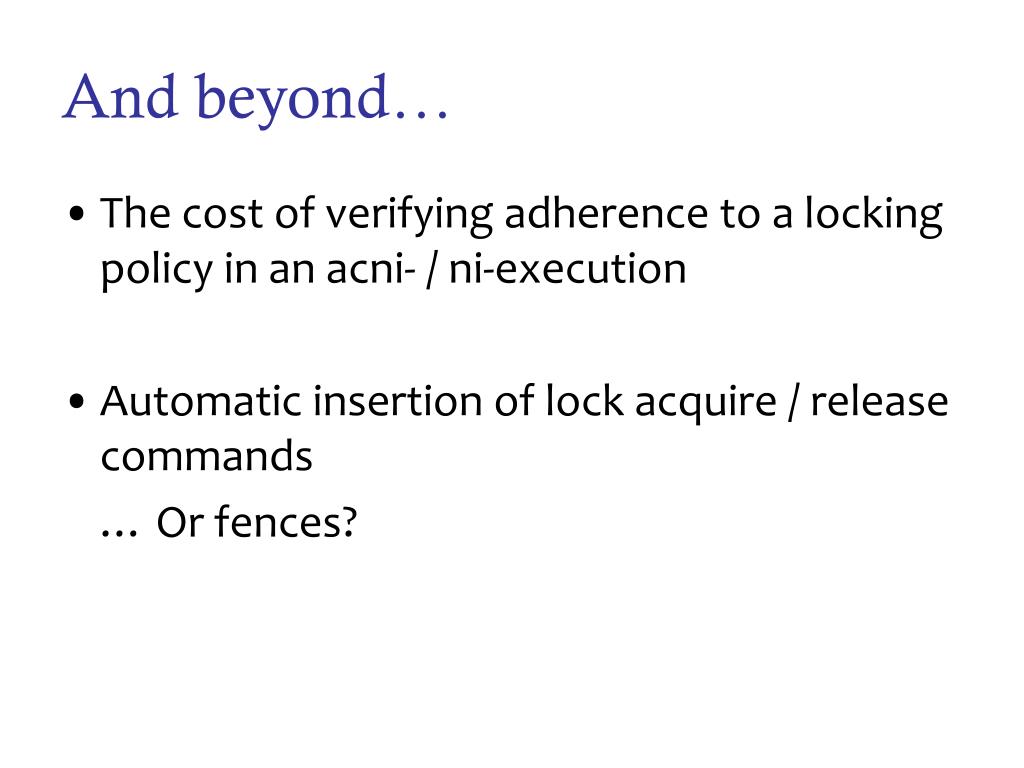

and beyond
And beyond…
  • The cost of verifying adherence to a locking policy in an acni- / ni-execution
  • Automatic insertion of lock acquire / release commands

… Or fences?
