Supporting legacy applications in associative overlay networks
Supporting Legacy Applications in Associative Overlay Networks

Shelley Zhuang, Ion Stoica

{shelleyz, istoica}@CS.Berkeley.EDU

Sahara Retreat

January 16-18, 2002

http://www.cs.berkeley.edu/~shelleyz/research/aon

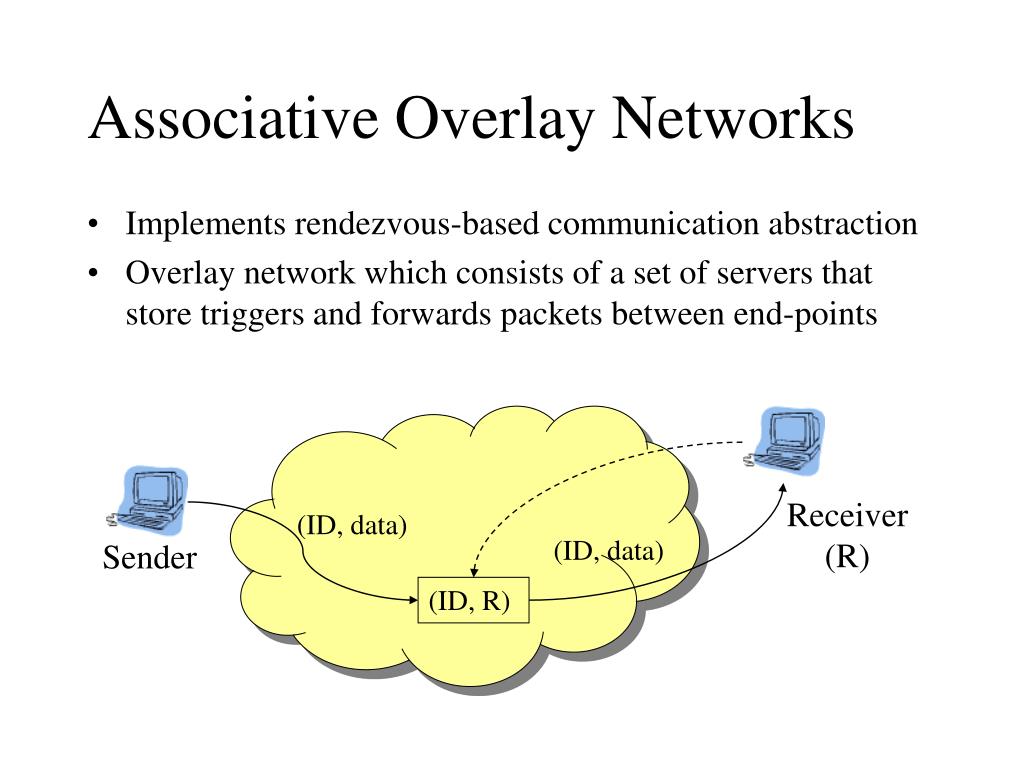

Associative overlay networks

(ID, data) Networks

(ID, data)

(ID, R)

Associative Overlay Networks

  • Implements rendezvous-based communication abstraction

  • Overlay network which consists of a set of servers that store triggers and forwards packets between end-points

Receiver

(R)

Sender


Aon native application

5 Networks

8

9

(IDS, S)

6

7

(IDC, C)

1

2

4

3

(IDP, S)

AON Native Application

  • Two types of triggers:  public and private

  • Server maintains a public trigger, IDP

  • Client creates a private trigger identifier IDC

  • Server creates a private trigger identifier IDS

  • Client and server insert the private triggers (IDC, IPC) and (IDS, IPS)

Client

(C)

Server

(S)


Legacy applications
Legacy Applications Networks

  • Design goals

    • User should be able to choose between an AON-aware application or regular application

    • Should not require changes to existing infrastructure such as IP network routers, DNS

  • Proposed solution

    • Configure existing applications to connect to a local AON proxy that translates and forwards packets transparently over AON

    • Run an AON proxy locally


Transparent application support
Transparent Application Support Networks

  • Example: telnet client-server application

  • TCP connection established via proxies:

    • Client (C)  Client Proxy (CP)  AON  Server Proxy (SP)  Server (S)

    • Private trigger identifiers (IDC, IDS) exchanged in 3-way handshake

  • Packets forwarded via proxies

    • Proxies rewrite TCP packets

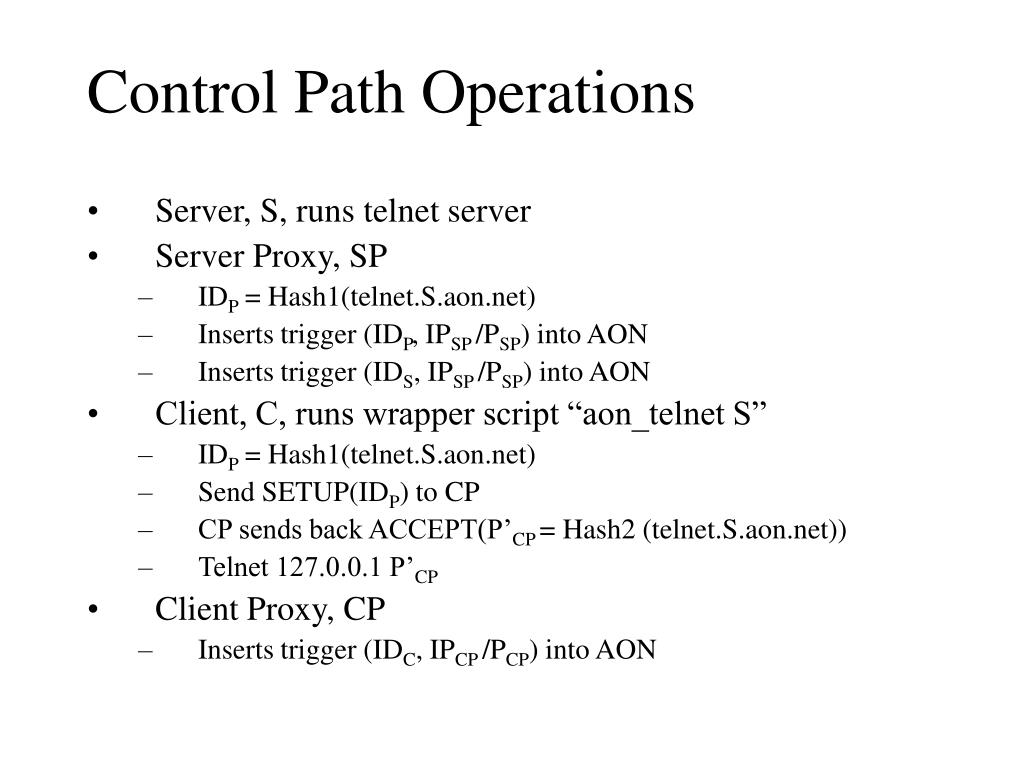

Control path operations
Control Path Operations Networks

  • Server, S, runs telnet server

  • Server Proxy, SP

    • IDP = Hash1(telnet.S.aon.net)

    • Inserts trigger (IDP, IPSP /PSP) into AON

    • Inserts trigger (IDS, IPSP /PSP) into AON

  • Client, C, runs wrapper script “aon_telnet S”

    • IDP = Hash1(telnet.S.aon.net)

    • Send SETUP(IDP) to CP

    • CP sends back ACCEPT(P’CP = Hash2 (telnet.S.aon.net))

    • Telnet 127.0.0.1 P’CP

  • Client Proxy, CP

    • Inserts trigger (IDC, IPCP /PCP) into AON


Pros and cons
Pros and Cons Networks

  • Advantages

    • Client can make multiple connections to the same service on S simultaneously

    • Client can use more than one service on S simultaneously

    • Client can use the same service on two different servers simultaneously

    • No changes to existing infrastructure

  • Limitations

    • Per-application script

    • Not as general as solutions based on LD_PRELOAD, LD_LIBRARY, or system call trapping


Discussion
Discussion Networks

  • End-to-end host mobility

    • Without changes to IP layer (Mobile IP)

    • Without changes to TCP protocol (MIGRATE)

    • Supports sender and receiver mobility

  • Server load balancing

  • Nearby server selection

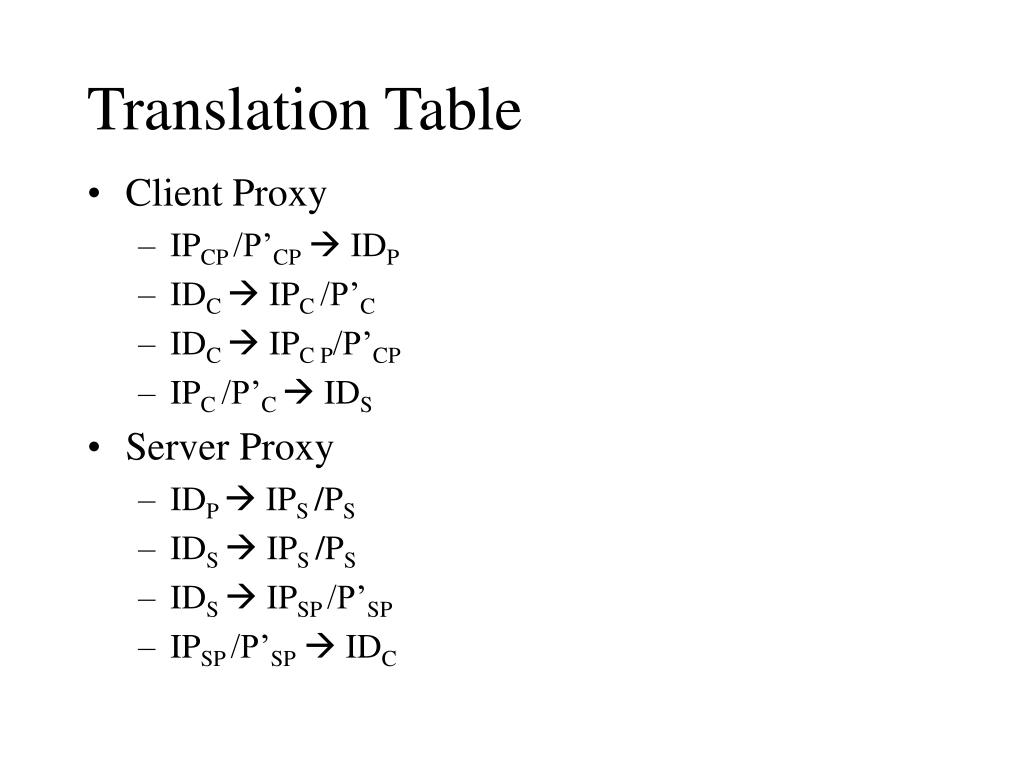

Translation table
Translation Table Networks

  • Client Proxy

    • IPCP /P’CP IDP

    • IDC  IPC /P’C

    • IDC  IPC P/P’CP

    • IPC /P’C  IDS

  • Server Proxy

    • IDP  IPS /PS

    • IDS  IPS /PS

    • IDS  IPSP /P’SP

    • IPSP /P’SP IDC
