Energy Cost Optimization in Water Distribution Systems Using Markov Decision Processes

1. University of Sao Paulo Department of Electrical and Computer Engineering Intelligent Techniques Laboratory Energy Cost Optimization in Water Distribution Systems Using Markov Decision Processes Paulo T. Fracasso, Frank S. Barnes and Anna H. R. Costa

2. Agenda • Anatomy of Water Distribution Systems • Problem relevancy • Markov Decision Process • Modeling a Water Distribution System as an MDP • Monroe Water Distribution System • Experiment results • Conclusions

3. Water distribution system • It is a complex system composed by pipes, pumps and other hydraulic components which provide water supply to consumers. Focus of my work

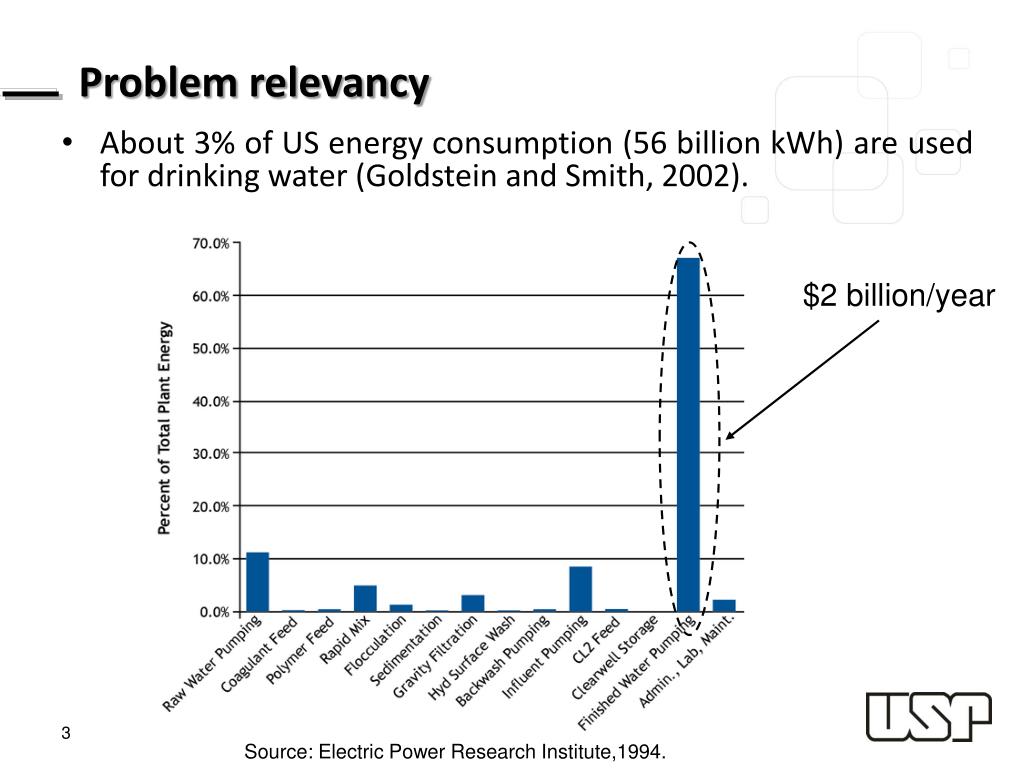

4. Problem relevancy • About 3% of US energy consumption (56 billion kWh) are used for drinking water (Goldstein and Smith, 2002). $2 billion/year Source: Electric Power Research Institute,1994.

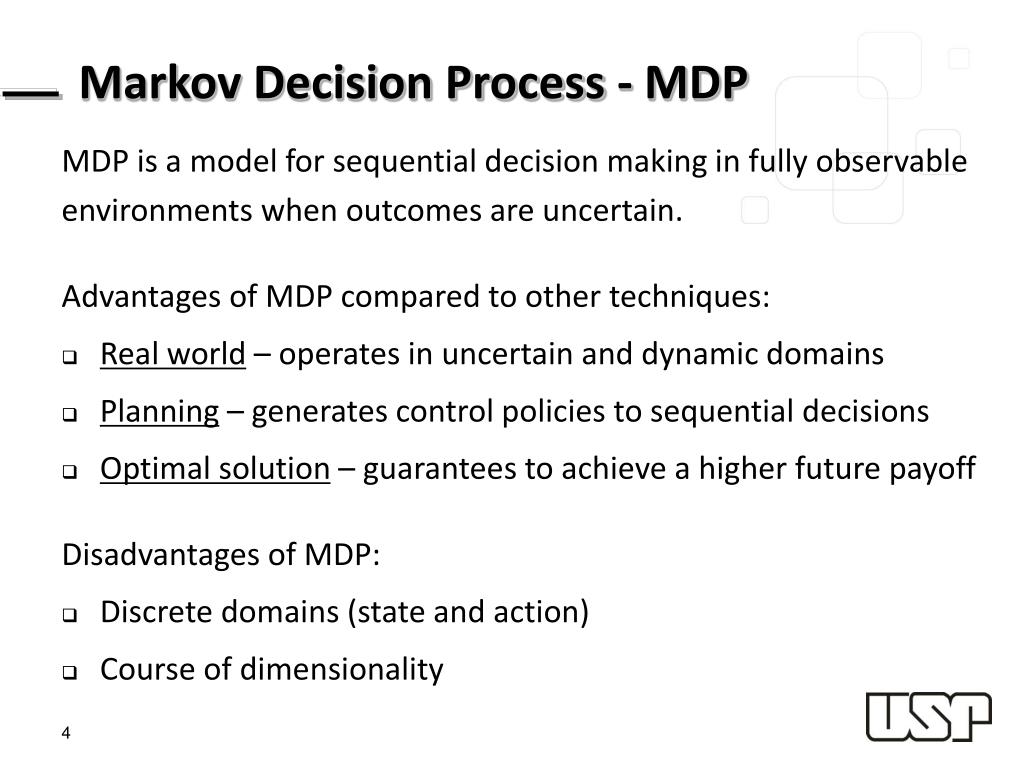

5. Markov Decision Process - MDP • MDP is a model for sequential decision making in fully observable environments when outcomes are uncertain. • Advantages of MDP compared to other techniques: • Real world – operates in uncertain and dynamic domains • Planning – generates control policies to sequential decisions • Optimal solution – guarantees to achieve a higher future payoff • Disadvantages of MDP: • Discrete domains (state and action) • Course of dimensionality

6. Markov Decision Process - MDP • MDP is defined as a tuple where: • S is a discrete set of states (can be factored in Nv features): • A is a discrete set of actions: • T is a transition function where • R is a reward function where

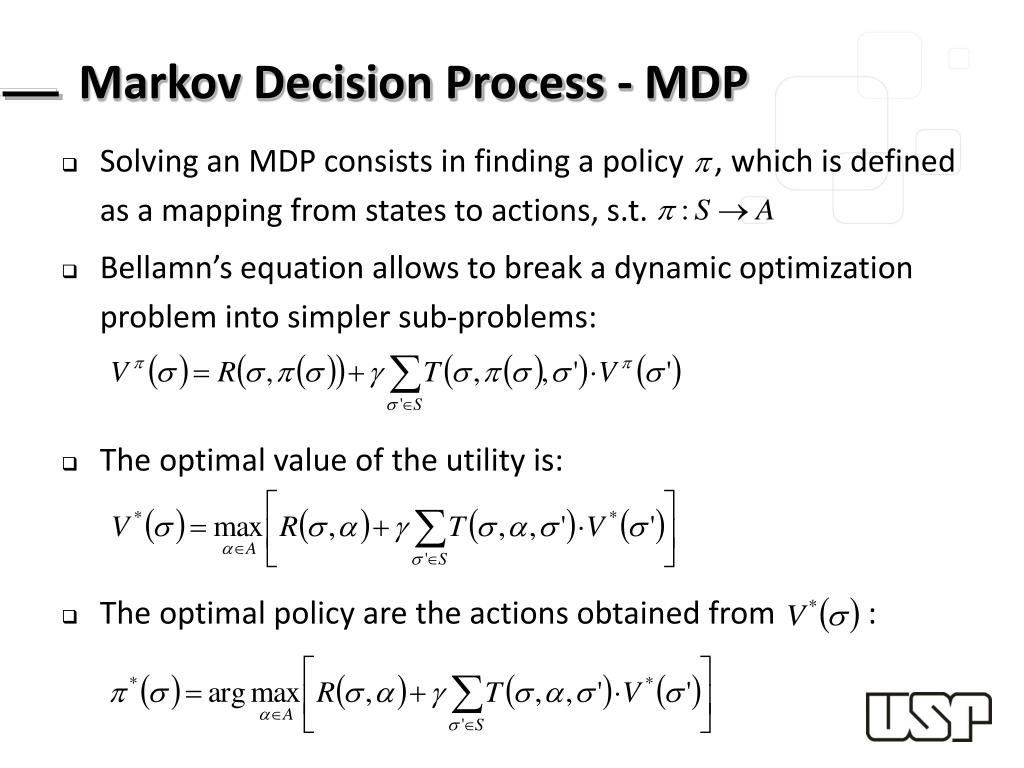

7. Markov Decision Process - MDP • Solving an MDP consists in finding a policy , which is defined as a mapping from states to actions, s.t. • Bellamn’s equation allows to break a dynamic optimization problem into simpler sub-problems: • The optimal value of the utility is: • The optimal policy are the actions obtained from :

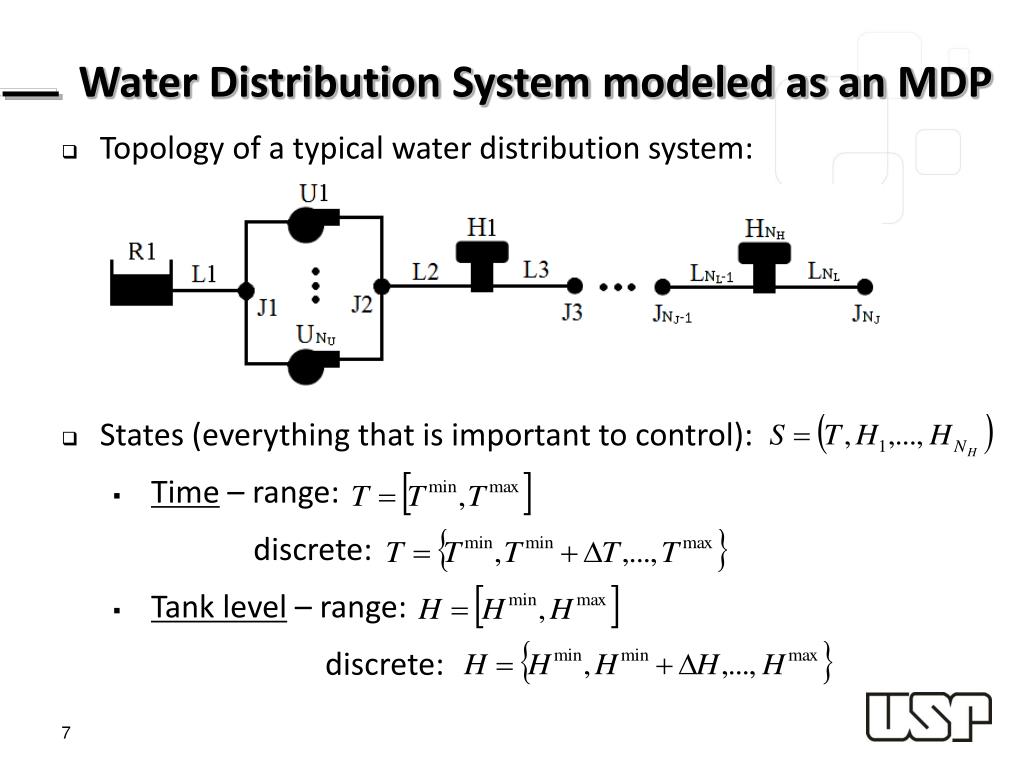

8. Water Distribution System modeled as an MDP • Topology of a typical water distribution system: • States (everything that is important to control): • Time – range: • discrete: • Tank level – range: • discrete:

9. Water Distribution System modeled as an MDP • Actions (what you can manipulate): • Triggered directly: • Associated with a VFD – range: • discrete: • Transition function (how the system evolves): • Calculated by EPANET • Reward function (how much an action cost): • Consumption: • Demand:

10. Water Distribution System modeled as an MDP Demand Final result: MarkovDecisionProcesses Electrical power Control policy Energy priceschema Constraints

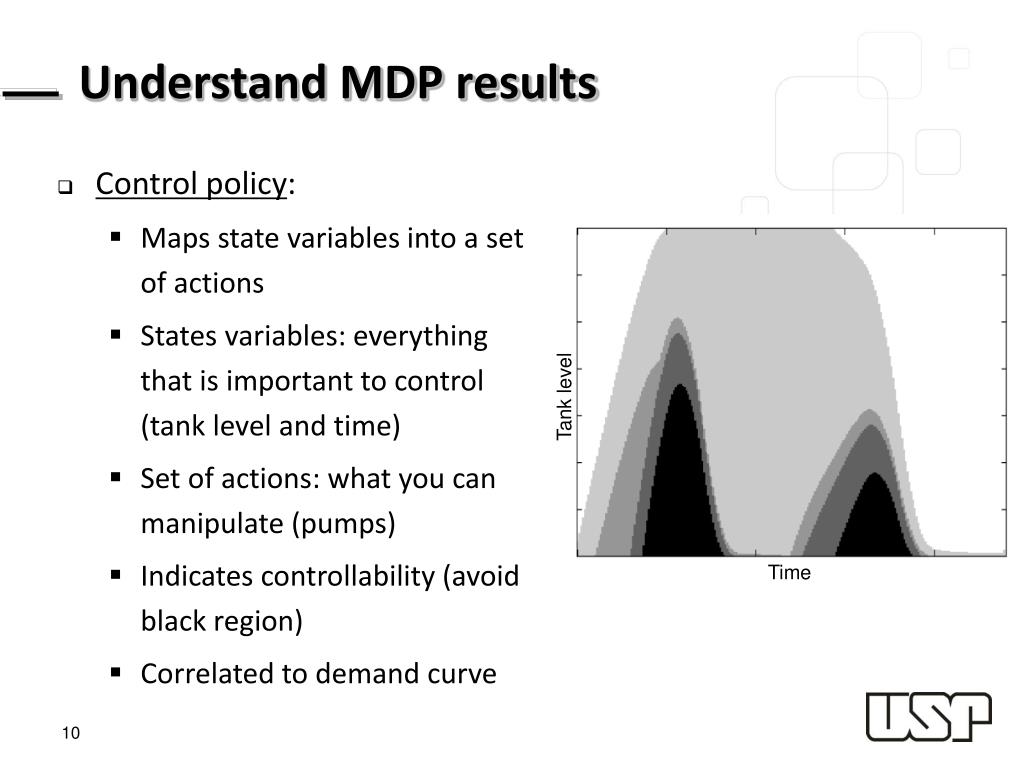

11. Understand MDP results • Control policy: • Maps state variables into a set of actions • States variables: everything that is important to control (tank level and time) • Set of actions: what you can manipulate (pumps) • Indicates controllability (avoid black region) • Correlated to demand curve Tank level Time

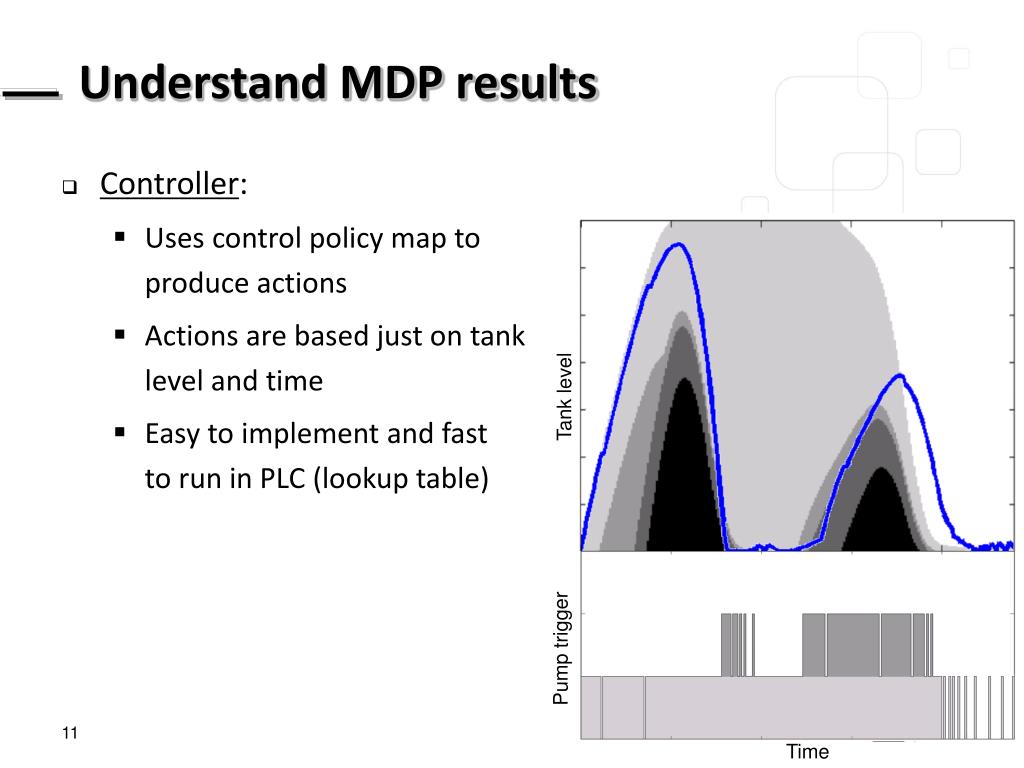

12. Understand MDP results • Controller: • Uses control policy map to produce actions • Actions are based just on tank level and time • Easy to implement and fast to run in PLC (lookup table) Tank level Pump trigger Time

13. Monroe Water Distribution System • Characteristics: • 11 pumps • 1 storage tank • 4 pressure monitoring • 40k people served • 182 miles of pipes • Diameters varyingfrom 2 to 42 inches

14. Monroe Water Distribution System • Demand curve (during summer season): • Average: 6700GPM • Minimum: 4188GPM • Maximum: 8389GPM • Pressure restrictions (in PSI): • J-6: 65 ≤ P ≤ 70 ▪ J-131: 45 ≤ P ≤ 55 • J-36: 50 ≤ P ≤ 60 ▪ J-388a: 40 ≤ P ≤ 90

15. Monroe Water Distribution System • Pumps (E2, E3, E4, E5, E6, E7, W8, W9, W10, W11 and W12): • Energy price schema: • On-peak (09:00 – 20:59): $0.04014/kWh • Off-peak (21:00 – 08:59): $0.03714/kWh • Demand (monthly): $13.75/kW

16. MDP apply to Monroe WDS • Mathematical model: • Set of states: where and • Set of actions: • Transition function: • Reward function: • Data flux diagram: .INP FILE EPANET DLL MATLAB

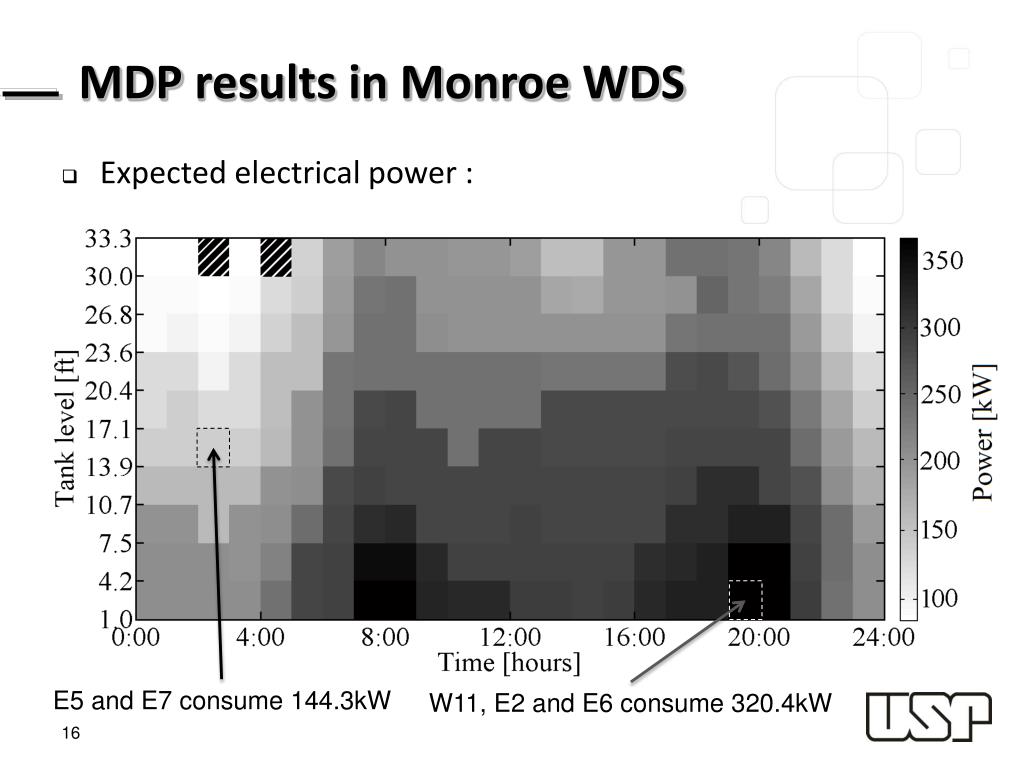

17. MDP results in Monroe WDS • Expected electrical power : E5 and E7 consume 144.3kW W11, E2 and E6 consume 320.4kW

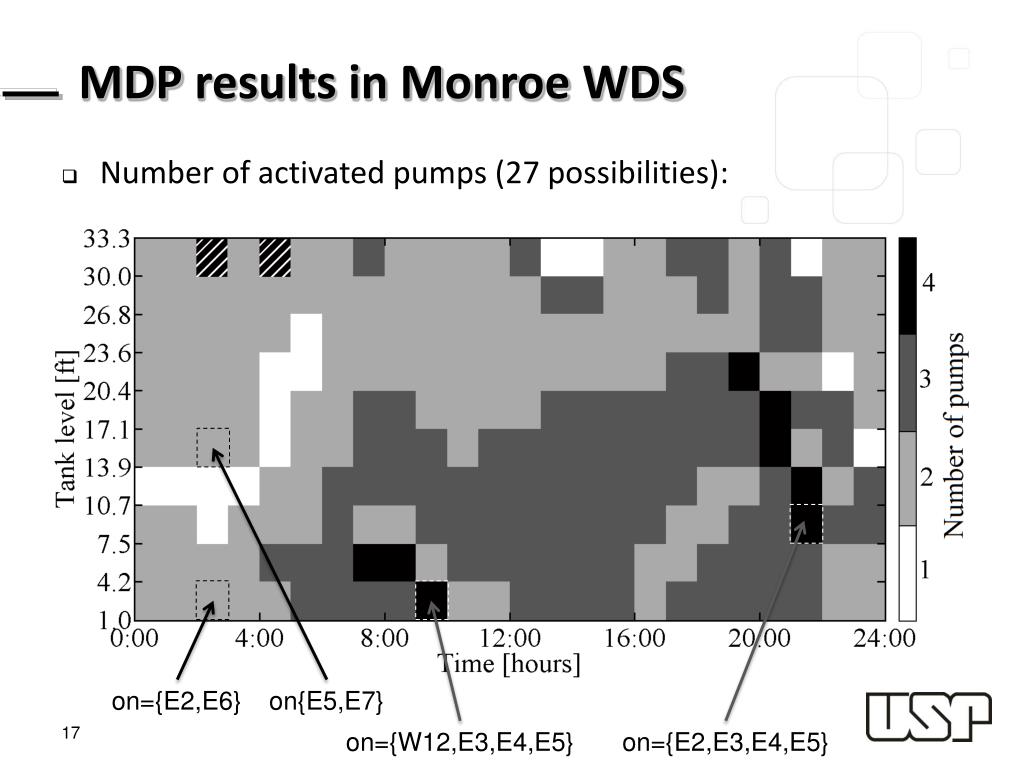

18. MDP results in Monroe WDS • Number of activated pumps (27 possibilities): on={E2,E6} on{E5,E7} on={W12,E3,E4,E5} on={E2,E3,E4,E5}

19. MDP results in Monroe WDS • SCADA records: • obtained from historical data (July 6th, 2010) • 75% of WTP consumption is considered to be used in pump • One day is extrapolated to one billing cycle (30 days) • Both approaches started in the same level (19.3 ft)

20. Conclusions • MDP avoids restrictions (level, pressure, and pumps) and reduces expenses with energy • To reduce energy consumption is different to reduce expenses with energy (demand is the biggest villain) • Summer season imposes small quantity of feasible actions • Verify if it is possible to reduce the number of pump combination • MDP policy is easy to implement in a non-intelligent device (PLC)
