  1. Let’s pretty it up!

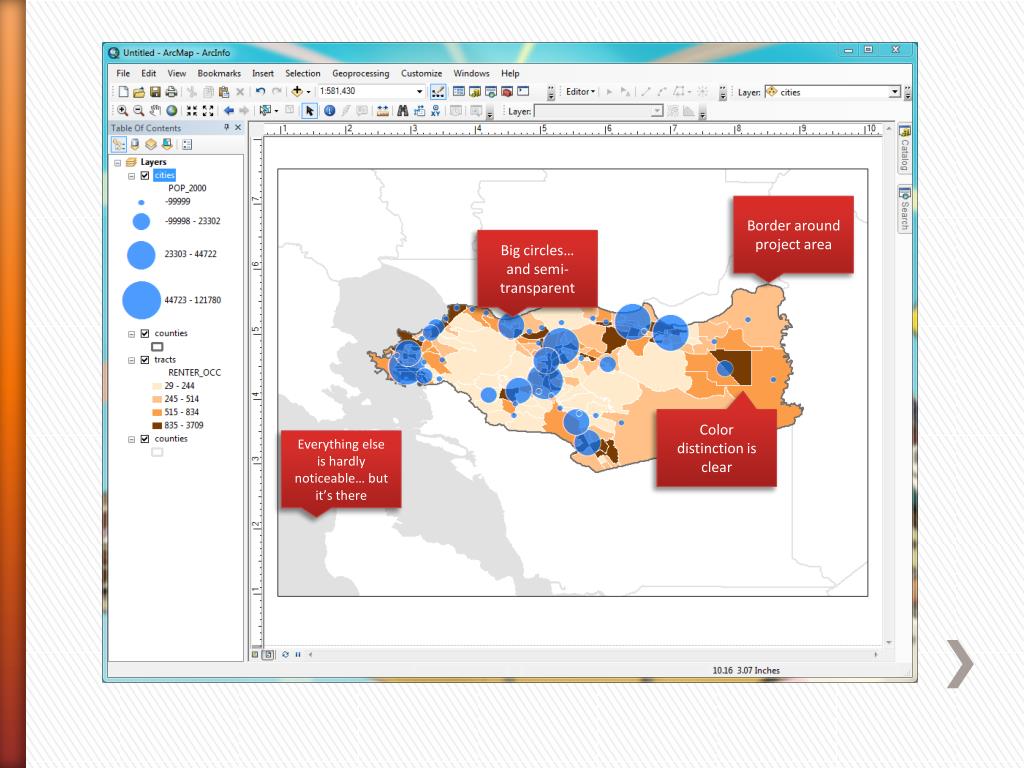

  2. Border around project area Big circles… and semi-transparent Color distinction is clear Everything else is hardly noticeable… but it’s there

  3. Introduction to GIS – Yoh Kawano Spatial Analysis

  4. Spatial analysis refers to the formal techniques to conduct analysis using their topological, geometric, or geographic properties. • In a narrower sense, spatial analysis is the process of analyzing geographic data. • Types of spatial analysis you have already been doing: • Buffering • Select by location Spatial Analysis

  5. Layers can be overlaid - placed one over the other based on a shared geographic reference – allows analysis of the relationships between layers

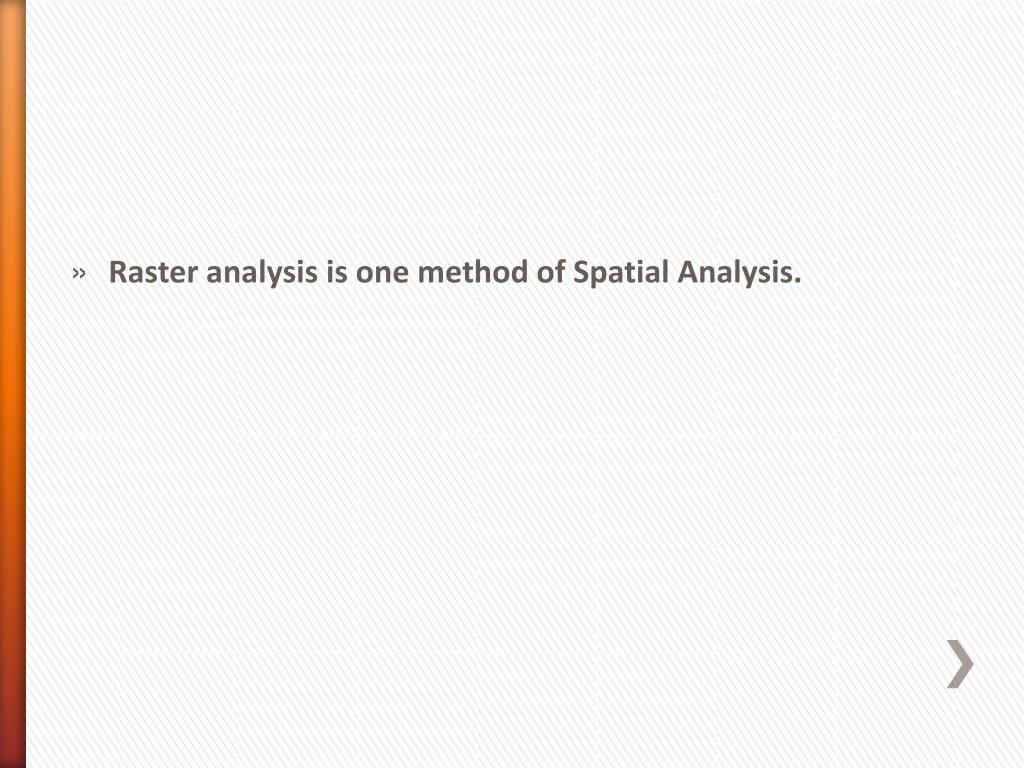

  6. Raster analysis is one method of Spatial Analysis.

  7. Why do we have to use raster data? • Vector data (points, lines and polygons) are limited to only certain spatial analyses • Point in polygon (which points are within • Line intersections • Vector data only knows about the space it occupies • Raster data covers the entire region • Provides a more powerful format for advanced spatial and statistical analysis Raster Data

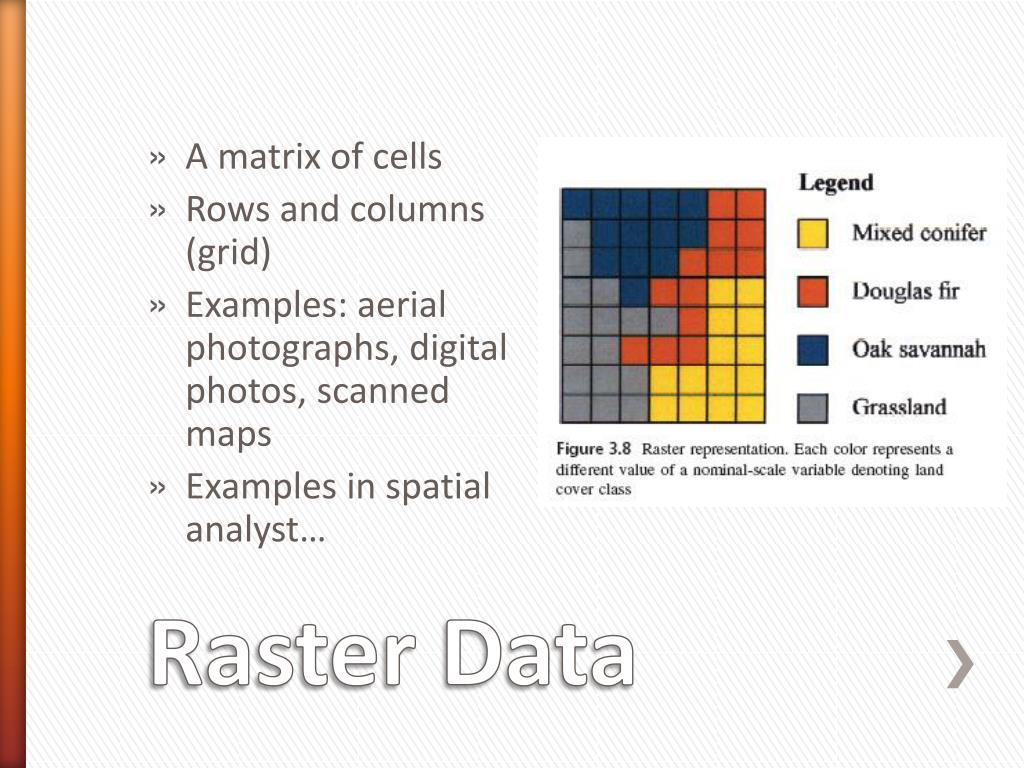

  8. A matrix of cells • Rows and columns (grid) • Examples: aerial photographs, digital photos, scanned maps • Examples in spatial analyst… Raster Data

  9. Vector vs Raster

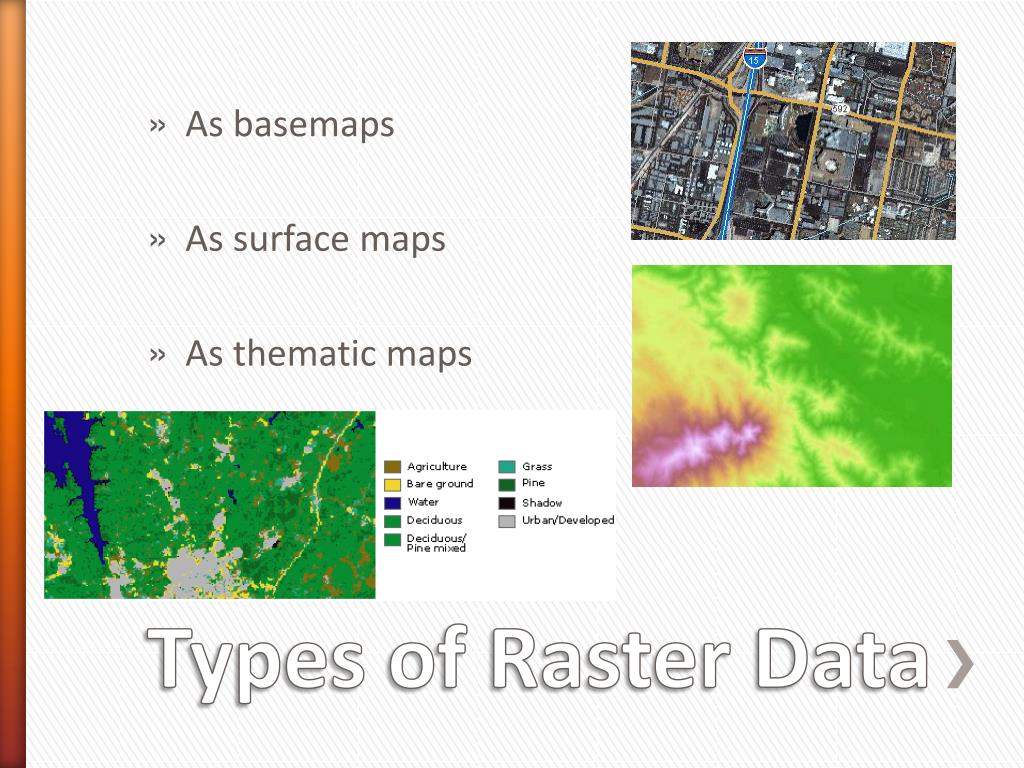

  10. As basemaps • As surface maps • As thematic maps Types of Raster Data

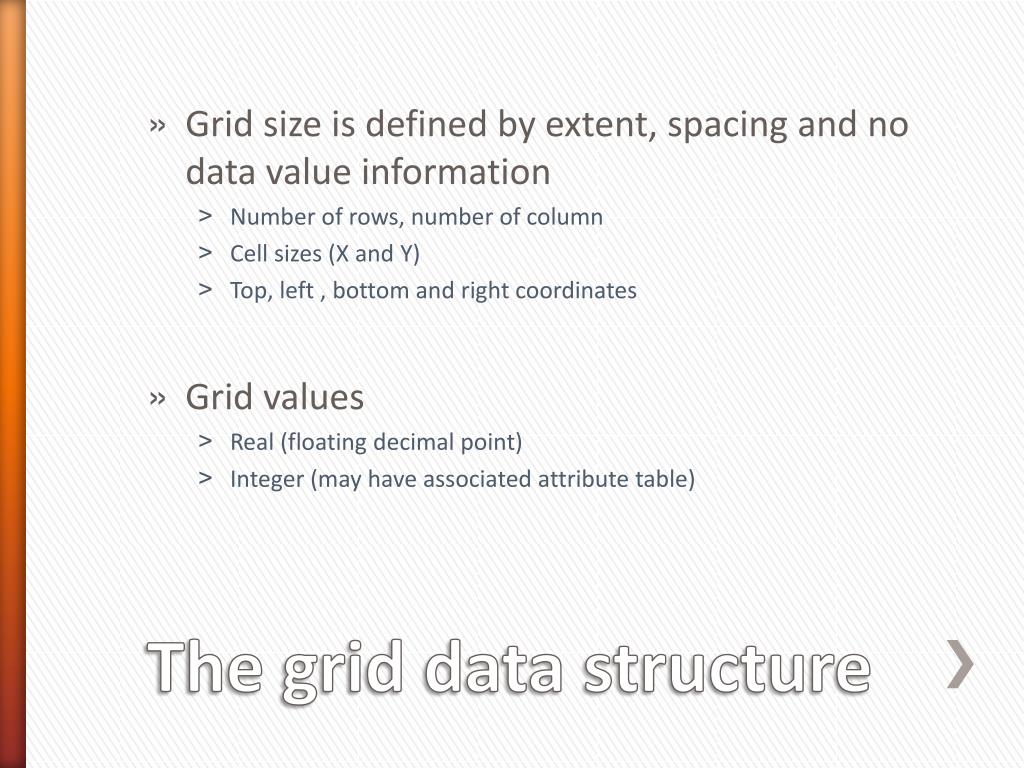

  11. Grid size is defined by extent, spacing and no data value information • Number of rows, number of column • Cell sizes (X and Y) • Top, left , bottom and right coordinates • Grid values • Real (floating decimal point) • Integer (may have associated attribute table) The grid data structure

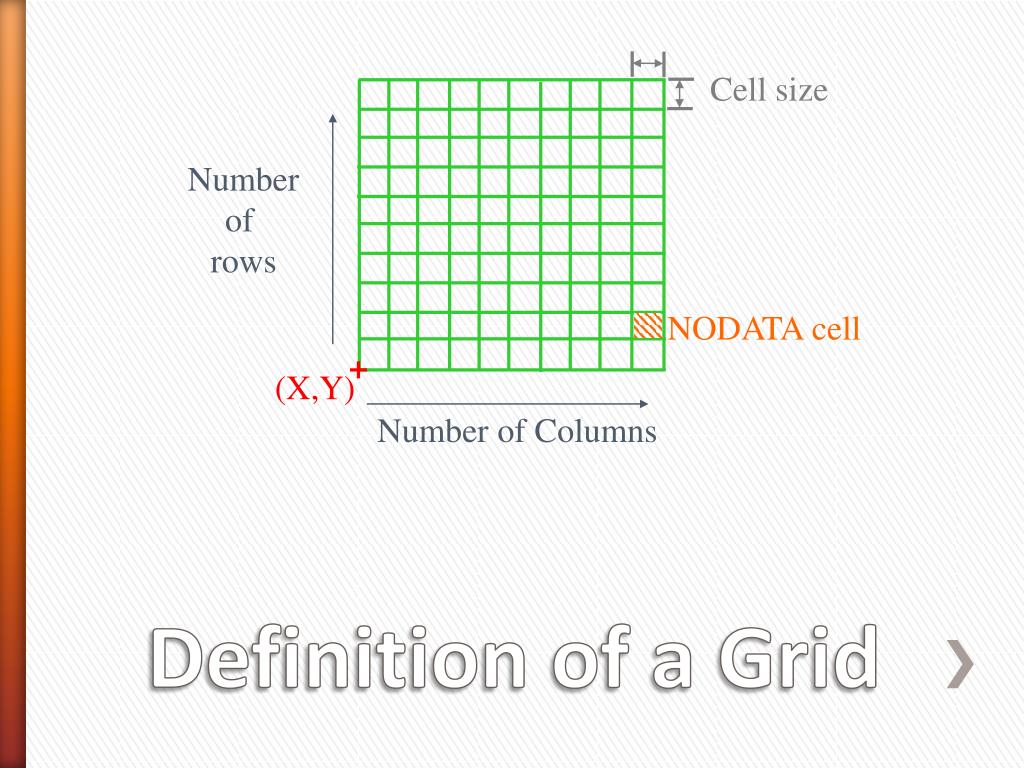

  12. Cell size Number of rows NODATA cell (X,Y) Number of Columns Definition of a Grid

  13. Value attribute table for categorical (integer) grid data

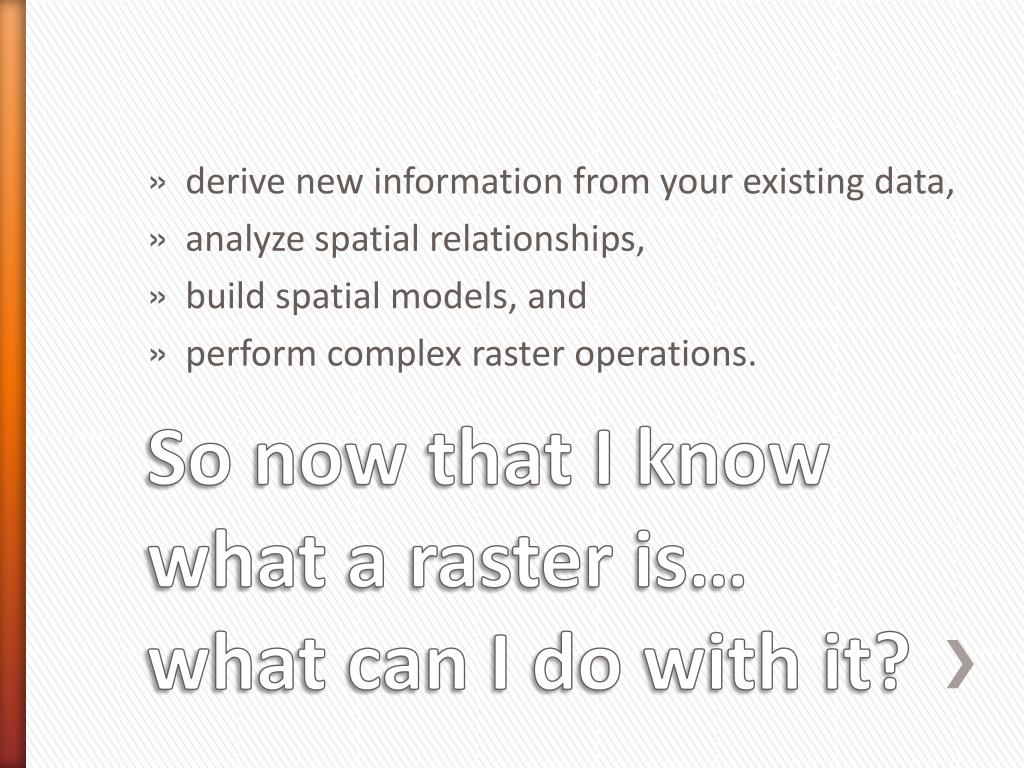

  14. derive new information from your existing data, • analyze spatial relationships, • build spatial models, and • perform complex raster operations. So now that I know what a raster is… what can I do with it?

  15. Find suitable locations • Model and visualize crime patterns • Analyze transportation corridors • Perform land use analysis • Conduct risk assessments • Predict fire risk • Determine erosion potential • Determine pollution levels • Perform crop yield analysis Applications of spatial analysis

  16. Step 1: State the Problem • Find the most suitable location for a new long-term care facility in Long Beach • Step 2: Identify the Parameters and Weight • Supply: needs to be far from existing facilities (weighted by number of beds in the facilities) (25%) • Demand: number of persons over 65 (50%) • Access: close to major streets (25%) • Step 3: Prepare Your Input Datasets • Long Beach Facilities (point) • Census Tracts – Age>65 (polygon) • Major Streets (line) • Step 4: Perform the Analysis How to find “suitable” locations

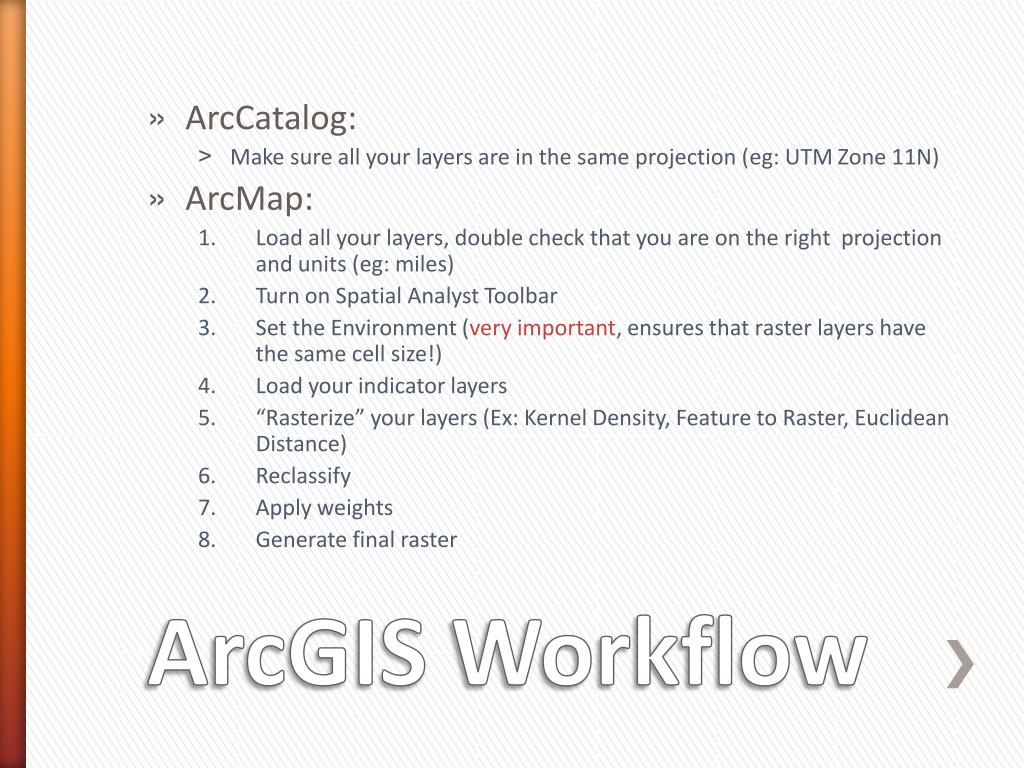

  17. ArcCatalog: • Make sure all your layers are in the same projection (eg: UTM Zone 11N) • ArcMap: • Load all your layers, double check that you are on the right projection and units (eg: miles) • Turn on Spatial Analyst Toolbar • Set the Environment (very important, ensures that raster layers have the same cell size!) • Load your indicator layers • “Rasterize” your layers (Ex: Kernel Density, Feature to Raster, Euclidean Distance) • Reclassify • Apply weights • Generate final raster ArcGIS Workflow

  18. Step 1 Ensure that each layer in your project has the SAME projection

  19. Step 2 Check the map units *Even if you change the “display” units, spatial analysis will be conducted using the “map” units

  20. Right click Step 3 Access ArcToolbox Environments

  21. Step 4 Set the environment Processing ExtentUsually set this to the extent of your project, or the largest layer Raster AnalysisCell size and Mask

  22. Best site for new facility 25% 50% 25% Far from existing facilities Close to areas with high numbers of senior citizens Close to major streets Kernel Density on Number of Beds Feature to Raster on Age>65 Euclidean Distance Long Beach Facilities Long Beach Census Tracts Long Beach Major Roads

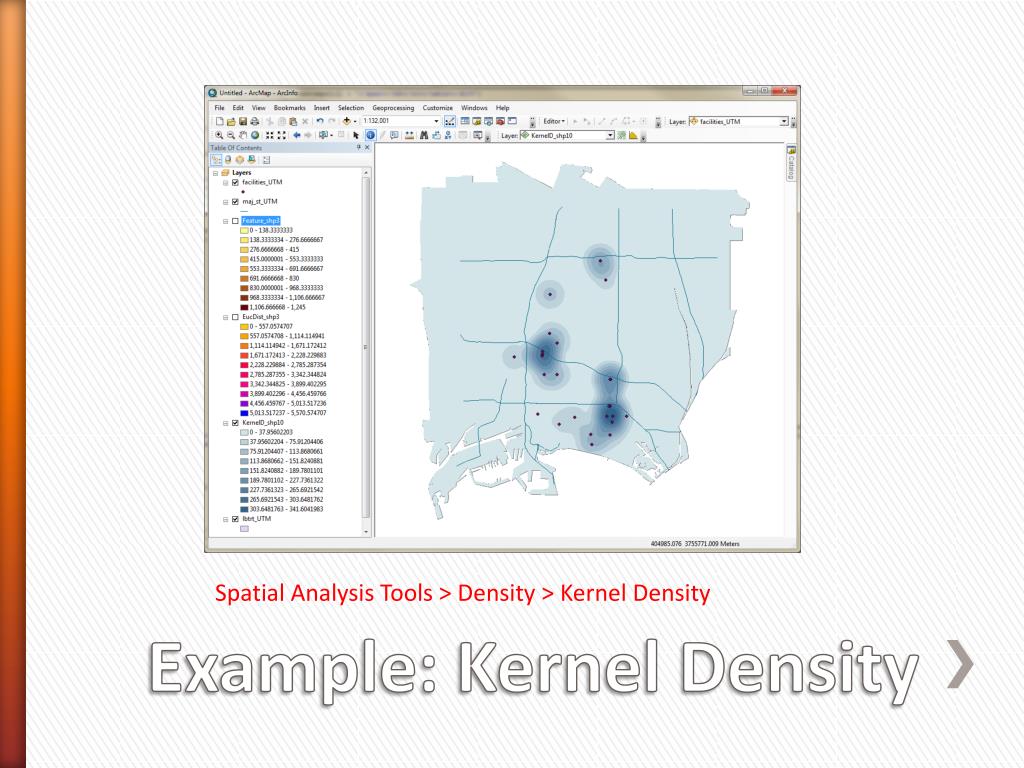

  23. Spatial Analysis Tools > Density > Kernel Density Example: Kernel Density

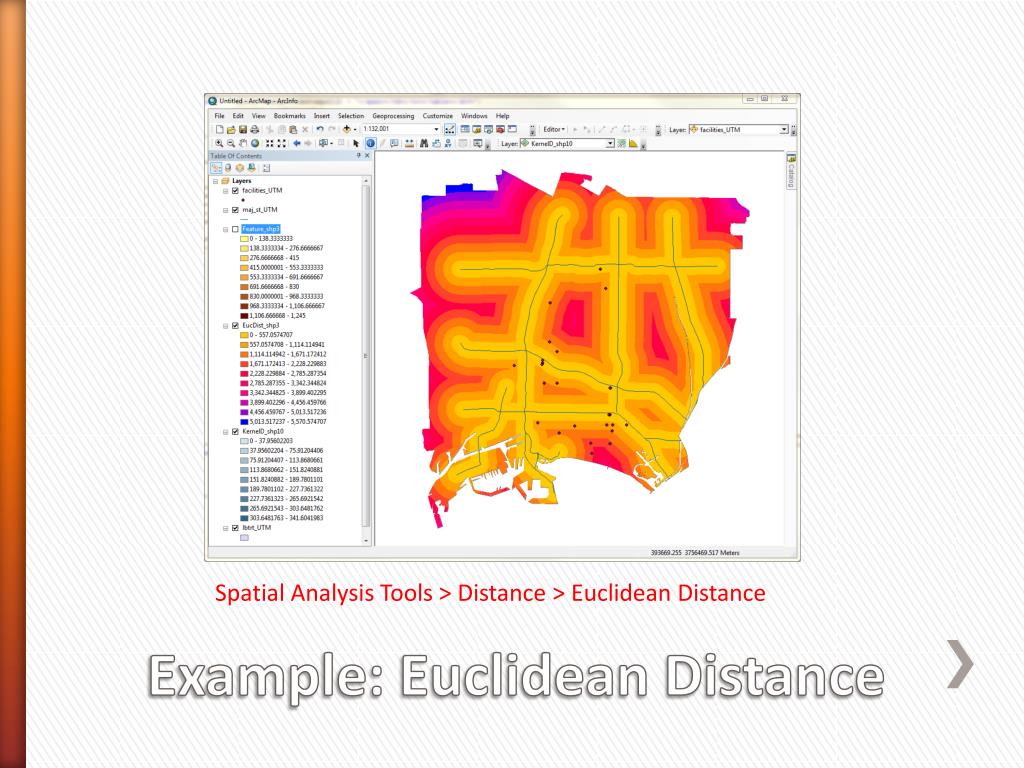

  24. Spatial Analysis Tools > Distance > Euclidean Distance Example: Euclidean Distance

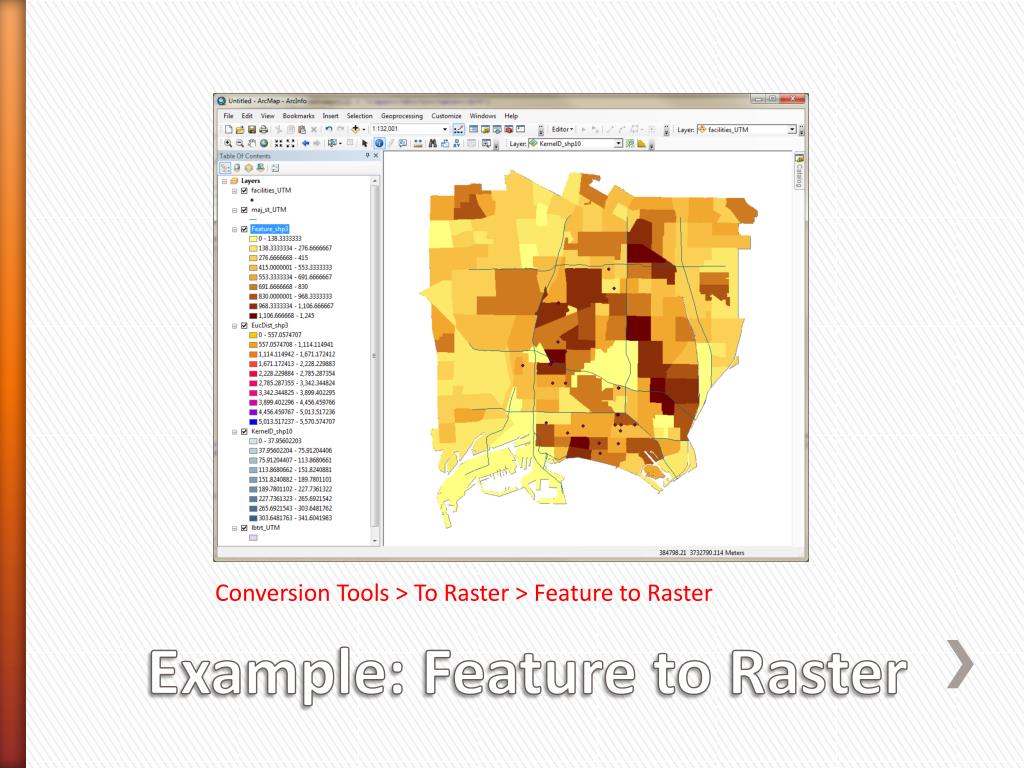

  25. Conversion Tools > To Raster > Feature to Raster Example: Feature to Raster
