Chapter 8: 网络安全

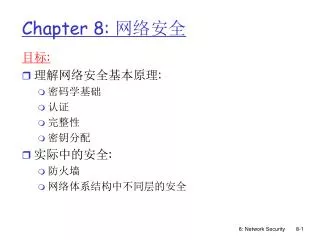

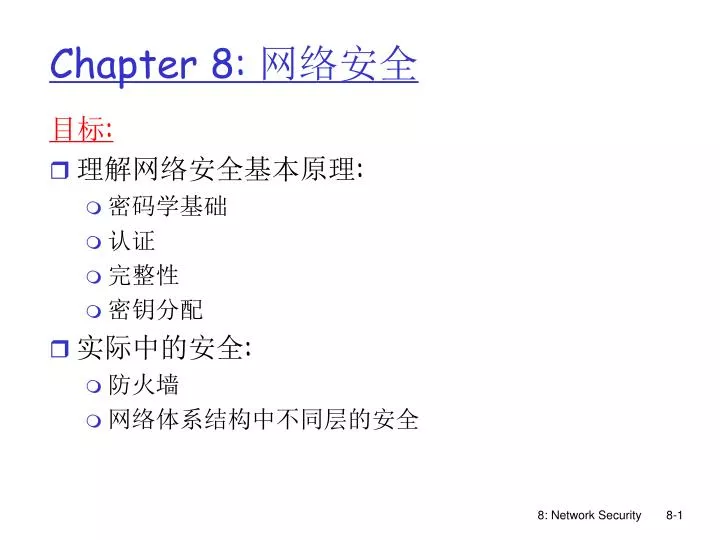

1. 目标: 理解网络安全基本原理: 密码学基础 认证 完整性 密钥分配 实际中的安全: 防火墙 网络体系结构中不同层的安全 Chapter 8: 网络安全 8: Network Security

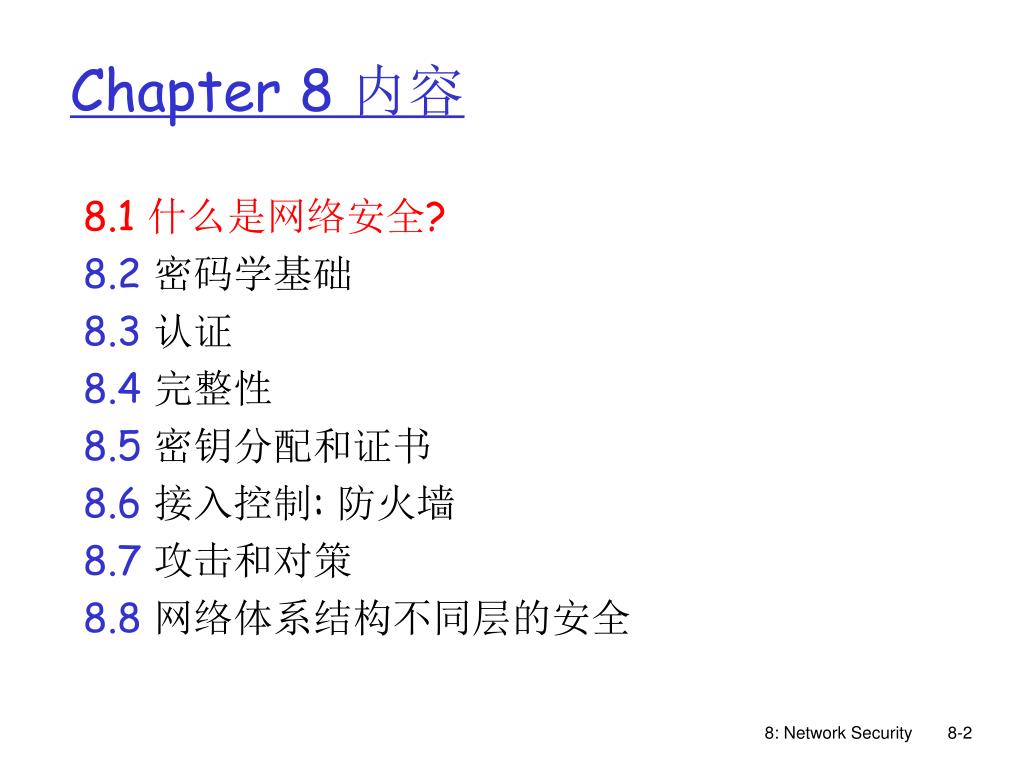

2. Chapter 8 内容 8.1 什么是网络安全? 8.2密码学基础 8.3认证 8.4完整性 8.5密钥分配和证书 8.6接入控制: 防火墙 8.7攻击和对策 8.8网络体系结构不同层的安全 8: Network Security

3. 什么是网络安全? 保密性:只有发送方和意定的接收方能够理解消息的内容 • 发送方加密消息 • 接收方解密消息 认证:发送方、接收方需要确认彼此的身份 消息完整性:发送方、接收方需要确保消息没有在无察觉情况下被改变 接入控制和可用性:用户必须能够接入并享用其应得的服务 8: Network Security

4. 朋友和敌人: Alice, Bob, Trudy • 网络安全界的名人 • Bob, Alice (lovers!) 需要”安全”通信 • Trudy (攻击者) 可以截获、删除、增加消息 Alice Bob data, control messages channel secure sender secure receiver data data Trudy 8: Network Security

5. Bob, Alice 在实际中可能是谁？ • … 首先, 实际生活中叫做Bobs 和 Alices的人 • Web 浏览器/服务器 进行电子交易 (e.g., 在线购物) • 在线银行的 client/server • DNS 服务器 • 路由器 交换路由表更新消息 • 其它例子? 8: Network Security

6. 坏家伙! Q:坏家伙可以做什么? A:许多! • 窃听 • 消息注入 • 假冒 • 劫持: • 拒绝服务 more on this later …… 8: Network Security

7. Chapter 8 内容 8.1 什么是网络安全? 8.2 密码学基础 8.3认证 8.4完整性 8.5密钥分配和证书 8.6接入控制: 防火墙 8.7攻击和对策 8.8网络体系结构不同层的安全 8: Network Security

8. K K A B 密码学术语 Alice’s 加密密钥 Bob’s 解密密钥 对称钥密码学: 发送方、接收方的密钥相同 公钥密码学: 公开的加密密钥, 秘密的解密密钥 encryption algorithm 密文 decryption algorithm 明文 明文 8: Network Security

9. 对称钥密码学 替换密码: substituting one thing for another • 单表密码: 用一个字母代替另外一个 明文表: abcdefghijklmnopqrstuvwxyz 密文表: mnbvcxzasdfghjklpoiuytrewq 例.: 明文: bob. i love you. alice 密文: nkn. s gktc wky. mgsbc • Q:破解该密码的难度?: • 强力破解 (多难?) • 其它方式? 8: Network Security

10. K K A-B A-B K (m) m = K ( ) A-B A-B 对称钥密码学 对称钥密码学: Bob 和 Alice 共享密钥: K • 例., 在单表密码中，密钥就是明文表和密文表进行替换的模式 • Q: Bob 和 Alice 如何共享密钥? 加密 算法 解密 算法 密文 明文 明文,m K (m) A-B A-B 8: Network Security

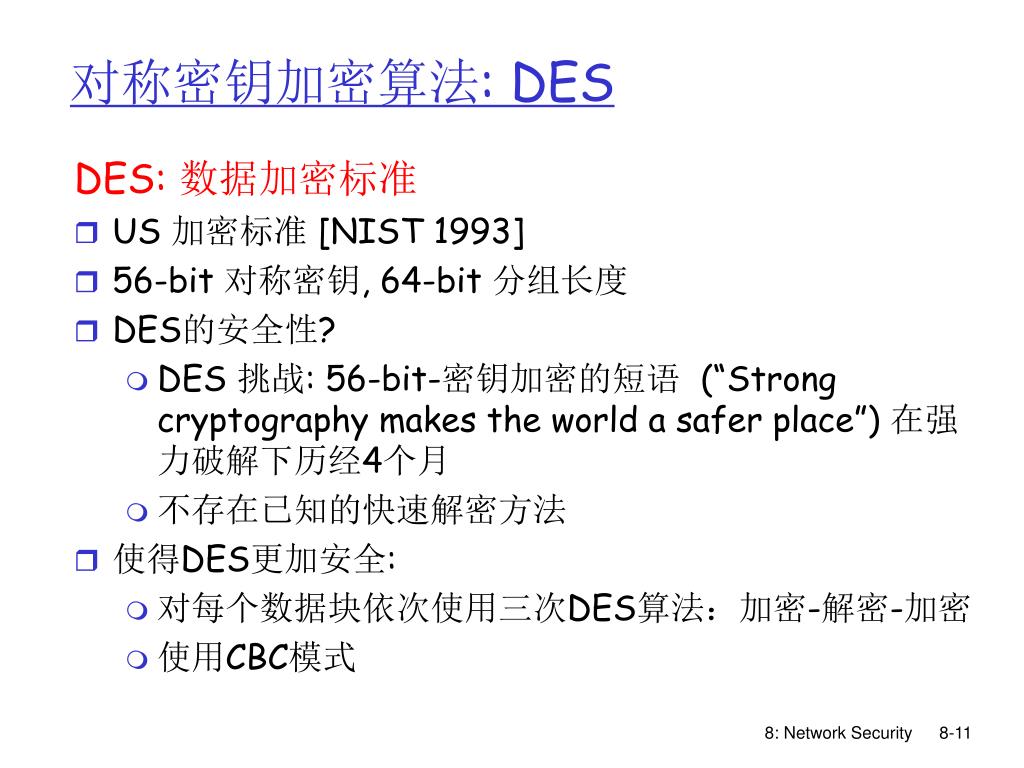

11. 对称密钥加密算法: DES DES: 数据加密标准 • US 加密标准 [NIST 1993] • 56-bit 对称密钥, 64-bit 分组长度 • DES的安全性? • DES 挑战: 56-bit-密钥加密的短语 (“Strong cryptography makes the world a safer place”) 在强力破解下历经4个月 • 不存在已知的快速解密方法 • 使得DES更加安全: • 对每个数据块依次使用三次DES算法：加密-解密-加密 • 使用CBC模式 8: Network Security

12. DES 操作 对称密钥算法: DES 初始置换 16 轮函数变换, 每一轮使用不同的48比特密钥 置换 8: Network Security

13. AES: 高级加密标准 • 2001年11月NIST公布的对称密钥加密标准，用于取代 • 分组长度为128比特 • 128, 192, or 256 bit 密钥 • 如果蛮力破解DES需要1 sec ，那么破解AES需要149 trillion years 8: Network Security

14. 公钥密码学 对称钥密码学 • 需要发送方和接收方预先知道共享的密钥 • Q: 共享密钥如何生成 (特别是两个人不会碰面的情况)? 公钥密码学 • 密码学发展的新方向 [Diffie-Hellman76, RSA78] • 发送方和接收方不共享密钥 • 公开的加密密钥任何人都可以知道 • 私有的解密密钥只有接收方知道 8: Network Security

15. + K (m) B - + m = K (K (m)) B B 公钥密码学 + Bob’s 公钥 K B - Bob’s 私钥 K B 加密算法 解密算法 明文消息 密文 明文消息M 8: Network Security

16. K (K (m)) = m B B - + 2 1 公钥加密算法 需求: : need K ( ) and K ( ) such that . . + - B B + given public key K , it should be impossible to compute private key K B - B RSA: Rivest, Shamir, Adelson algorithm 8: Network Security

17. + - K K B B RSA: 密钥设定 1.选择两个大素数 p, q. (e.g., 1024 bits each) 2.计算 n = pq, z = (p-1)(q-1) 3.选择 e (with e<n)与z互素 4.选择 d使得 ed mod z = 1 ). 5.Public key is (n,e).Private key is (n,d). 8: Network Security

18. 1.加密消息, m, 计算 d e m = c mod n c = m mod n e (i.e., remainder when m is divided by n) d e m = (m mod n) mod n RSA: 加密, 解密 0. Given (n,e) and (n,d) as computed above 2.解密密文, c, 计算 d (i.e., remainder when c is divided by n) Magic happens! c 8: Network Security

19. d e m = c mod n c = m mod n d c RSA 示例: Bob 选择 p=5, q=7. Then n=35, z=24. e=5 (so e, z relatively prime). d=29 (so ed-1 exactly divisible by z. e m m letter encrypt: l 17 1524832 12 c letter decrypt: 17 12 l 481968572106750915091411825223071697 8: Network Security

20. e d ed (m mod n) mod n = m mod n ed mod (p-1)(q-1) 1 = m = m mod n = m mod n y y mod (p-1)(q-1) d e x mod n = x mod n m = (m mod n) mod n RSA: Why is that 数论基础: If p,q素数，并且n = pq, 那么: (using number theory result above) (since we choseed to be divisible by (p-1)(q-1) with remainder 1 ) 8: Network Security

21. K (K (m)) = m - B B + K (K (m)) - + = B B RSA: 另外一个重要的属性 The following property will be very useful later: use private key first, followed by public key use public key first, followed by private key Result is the same! 8: Network Security

22. Chapter 8 内容 8.1 什么是网络安全? 8.2 密码学基础 8.3 认证 8.4完整性 8.5密钥分配和证书 8.6接入控制: 防火墙 8.7攻击和对策 8.8网络体系结构不同层的安全 8: Network Security

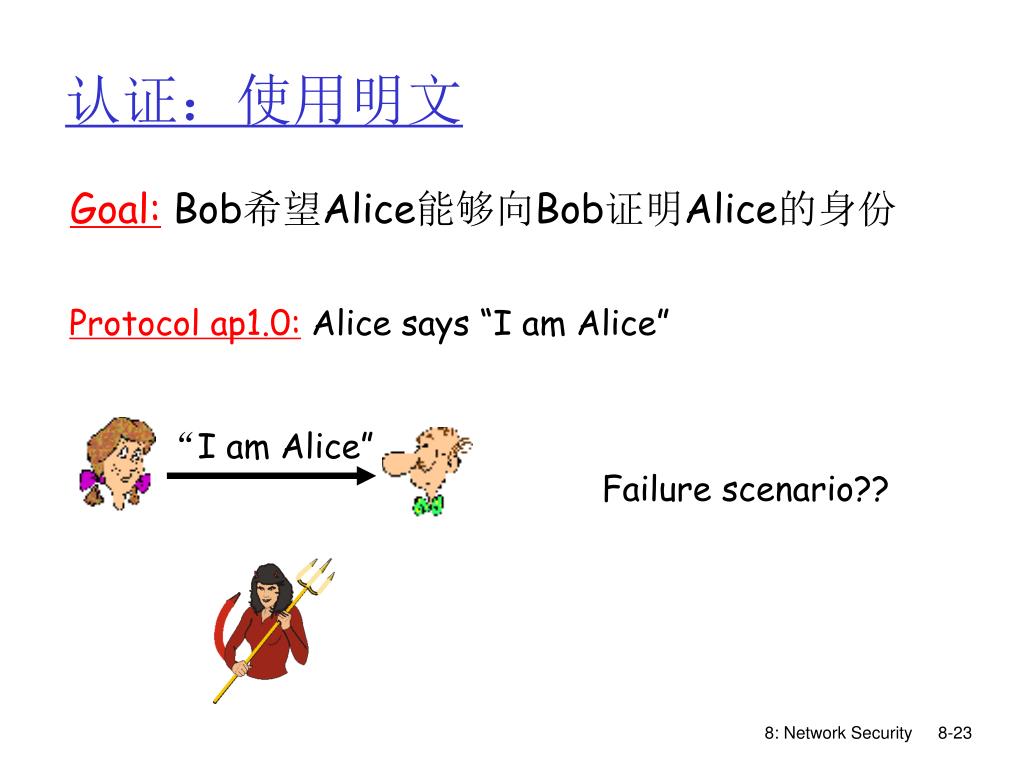

23. 认证：使用明文 Goal: Bob希望Alice能够向Bob证明Alice的身份 Protocol ap1.0:Alice says “I am Alice” “I am Alice” Failure scenario?? 8: Network Security

24. 认证：使用明文 Goal: Bob希望Alice能够向Bob证明Alice的身份 Protocol ap1.0:Alice says “I am Alice” in a network, Bob can not “see” Alice, so Trudy simply declares herself to be Alice “I am Alice” 8: Network Security

25. Alice’s IP address “I am Alice” 认证:使用IP地址 Protocol ap2.0:Alice says “I am Alice” in an IP packet containing her source IP address Failure scenario?? 8: Network Security

26. Alice’s IP address “I am Alice” 认证:使用IP地址 Protocol ap2.0:Alice says “I am Alice” in an IP packet containing her source IP address Trudy can create a packet “spoofing” Alice’s address 8: Network Security

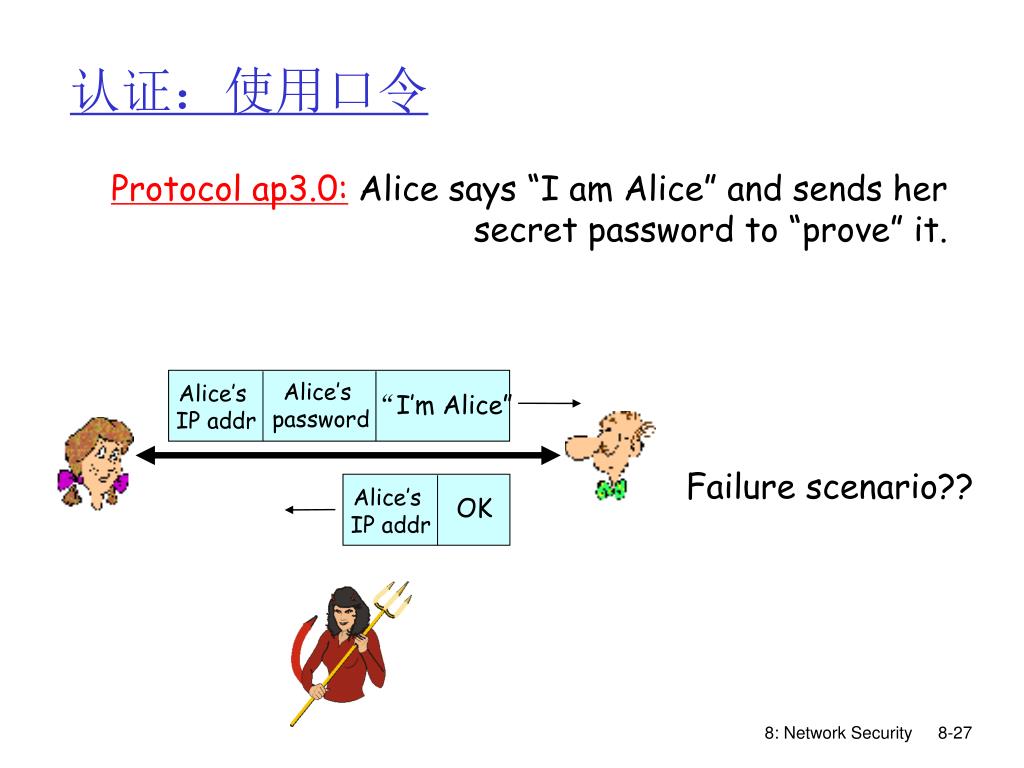

27. Alice’s password Alice’s IP addr “I’m Alice” Alice’s IP addr OK 认证：使用口令 Protocol ap3.0:Alice says “I am Alice” and sends her secret password to “prove” it. Failure scenario?? 8: Network Security

28. Alice’s password Alice’s IP addr “I’m Alice” Alice’s IP addr OK 认证：使用口令 Protocol ap3.0:Alice says “I am Alice” and sends her secret password to “prove” it. Alice’s password Alice’s IP addr “I’m Alice” playback attack: Trudy records Alice’s packet and later plays it back to Bob 8: Network Security

29. encrypted password Alice’s IP addr “I’m Alice” Alice’s IP addr OK 认证: 加密的口令 Protocol ap3.1:Alice says “I am Alice” and sends her encryptedsecret password to “prove” it. Failure scenario?? 8: Network Security

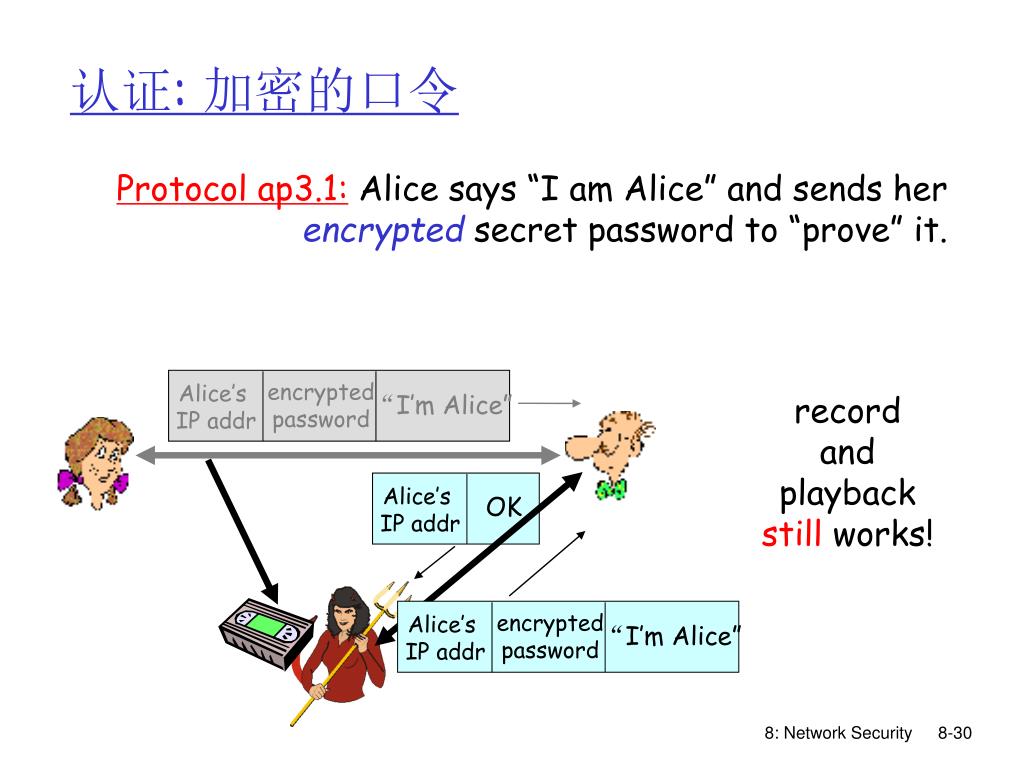

30. encrypted password Alice’s IP addr “I’m Alice” Alice’s IP addr OK 认证: 加密的口令 Protocol ap3.1:Alice says “I am Alice” and sends her encrypted secret password to “prove” it. encrypted password Alice’s IP addr “I’m Alice” record and playback still works! 8: Network Security

31. K (R) A-B 认证：使用Nonce＋对称密钥加密 Goal:避免重放攻击 Nonce:一次性随机数 ap4.0:to prove Alice “live”, Bob sends Alice nonce, R. Alice must return R, encrypted with shared secret key “I am Alice” R Alice is live, and only Alice knows key to encrypt nonce, so it must be Alice! Failures, drawbacks? 8: Network Security

32. - K (R) A + + K K A A - - + (K (R)) = R K (K (R)) = R A A A 认证: 使用Nonce+数字签名 ap4.0 需要共享密钥 • can we authenticate using public key techniques? ap5.0: use nonce, public key cryptography “I am Alice” Bob computes R and knows only Alice could have the private key, that encrypted R such that “send me your public key” 8: Network Security

33. - - K (R) K (R) A T + + K K A T - - + + m = K (K (m)) m = K (K (m)) + + A T A T K (m) K (m) A T ap5.0: 安全缺陷 Man (woman) in the middle attack: Trudy poses as Alice (to Bob) and as Bob (to Alice) I am Alice I am Alice R R Send me your public key Send me your public key Trudy gets sends m to Alice encrypted with Alice’s public key 8: Network Security

34. ap5.0: 安全缺陷 Man (woman) in the middle attack: Trudy poses as Alice (to Bob) and as Bob (to Alice) • Difficult to detect: • Bob receives everything that Alice sends, and vice versa. (e.g., so Bob, Alice can meet one week later and recall conversation) • problem is that Trudy receives all messages as well! 8: Network Security

35. Chapter 8 内容 8.1 什么是网络安全? 8.2 密码学基础 8.3 认证 8.4 完整性 8.5密钥分配和证书 8.6接入控制: 防火墙 8.7攻击和对策 8.8网络体系结构不同层的安全 8: Network Security

36. 类似于手写签名的密码技术 发送方 (Bob) 数字签署某份文档，例如例如Bob是某封邮件的发送着，可以数字签署该邮件，让别人相信该邮件确实是Bob发送的. 可验证, 不可否认:接收方 (Alice) 可以向其它人证明“ Bob曾经签署过这样一份文档，例如Bob曾经发送过某封邮件 数字签名 8: Network Security

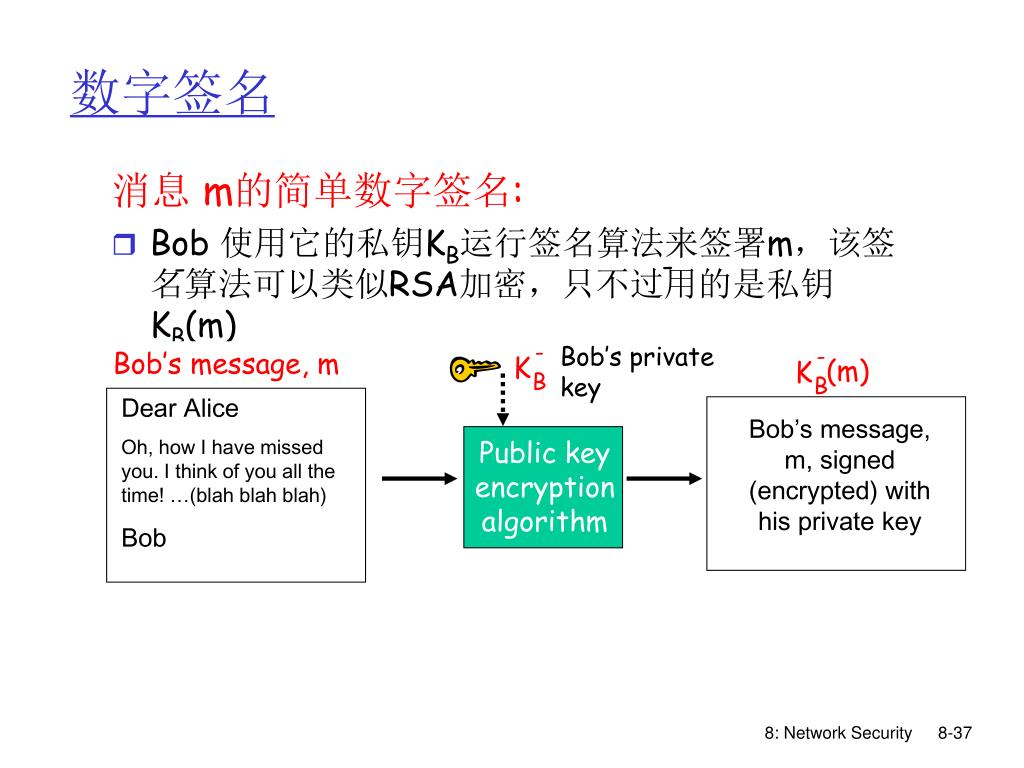

37. 消息 m的简单数字签名: Bob 使用它的私钥KB运行签名算法来签署m，该签名算法可以类似RSA加密，只不过用的是私钥 KB(m) - - K K B B 数字签名 - - Bob’s private key Bob’s message, m (m) Dear Alice Oh, how I have missed you. I think of you all the time! …(blah blah blah) Bob Bob’s message, m, signed (encrypted) with his private key Public key encryption algorithm 8: Network Security

38. Suppose Alice receives msg m, digital signature KB(m) Alice verifies m signed by Bob by applying Bob’s public key KB to KB(m) then checks KB(KB(m) ) = m. If KB(KB(m) ) = m, whoever signed m must have used Bob’s private key. Alice thus verifies that: Bob signed m. No one else signed m. Bob signed m and not m’. Non-repudiation: Alice can take m, and signature KB(m) to court and prove that Bob signed m. 数字签名 - - - + + - + - 8: Network Security

39. Computationally expensive to public-key-encrypt long messages Goal: fixed-length, easy- to-compute digital “fingerprint” apply hash function H to m, get fixed size message digest, H(m). Hash function properties: many-to-1 produces fixed-size msg digest (fingerprint) given message digest x, computationally infeasible to find m such that x = H(m) 消息摘要 large message m H: Hash Function H(m) 8: Network Security

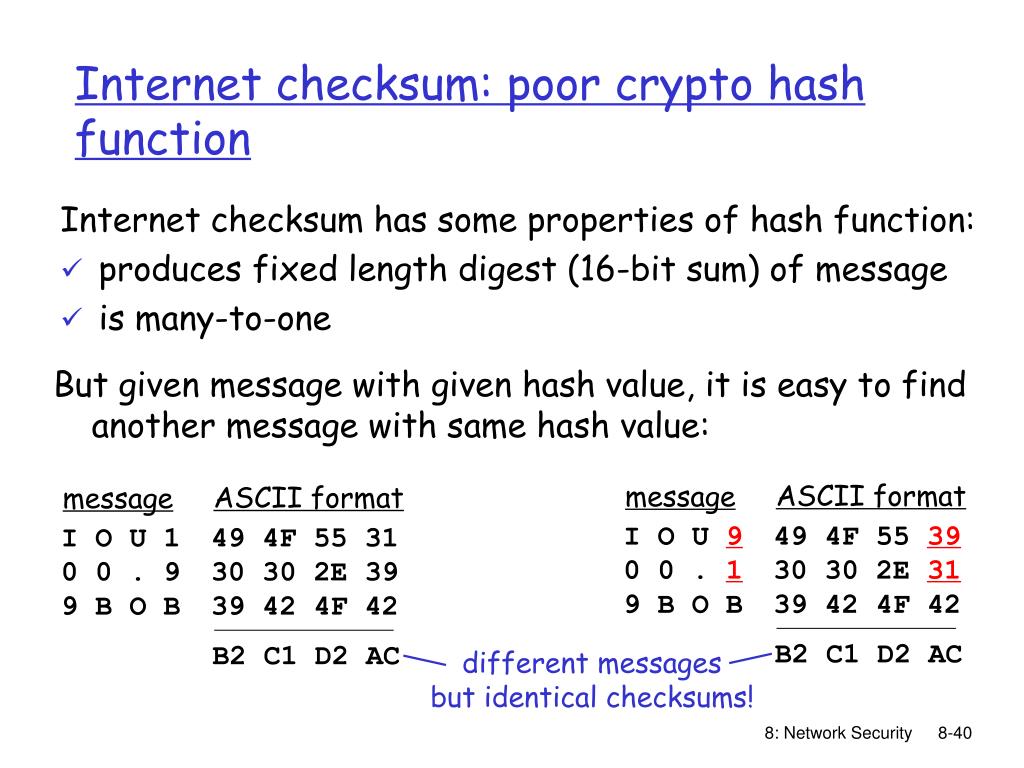

40. Internet checksum: poor crypto hash function Internet checksum has some properties of hash function: • produces fixed length digest (16-bit sum) of message • is many-to-one But given message with given hash value, it is easy to find another message with same hash value: ASCII format message ASCII format message I O U 9 0 0 . 1 9 B O B 49 4F 55 39 30 30 2E 31 39 42 4F 42 I O U 1 0 0 . 9 9 B O B 49 4F 55 31 30 30 2E 39 39 42 4F 42 B2 C1 D2 AC B2 C1 D2 AC different messages but identical checksums! 8: Network Security

41. Digital signature = signed message digest H: Hash function H: Hash function large message m large message m + - digital signature (decrypt) digital signature (encrypt) K K B B encrypted msg digest encrypted msg digest + - - KB(H(m)) KB(H(m)) H(m) H(m) Bob sends digitally signed message: Alice verifies signature and integrity of digitally signed message: H(m) Bob’s private key Bob’s public key equal ? 8: Network Security

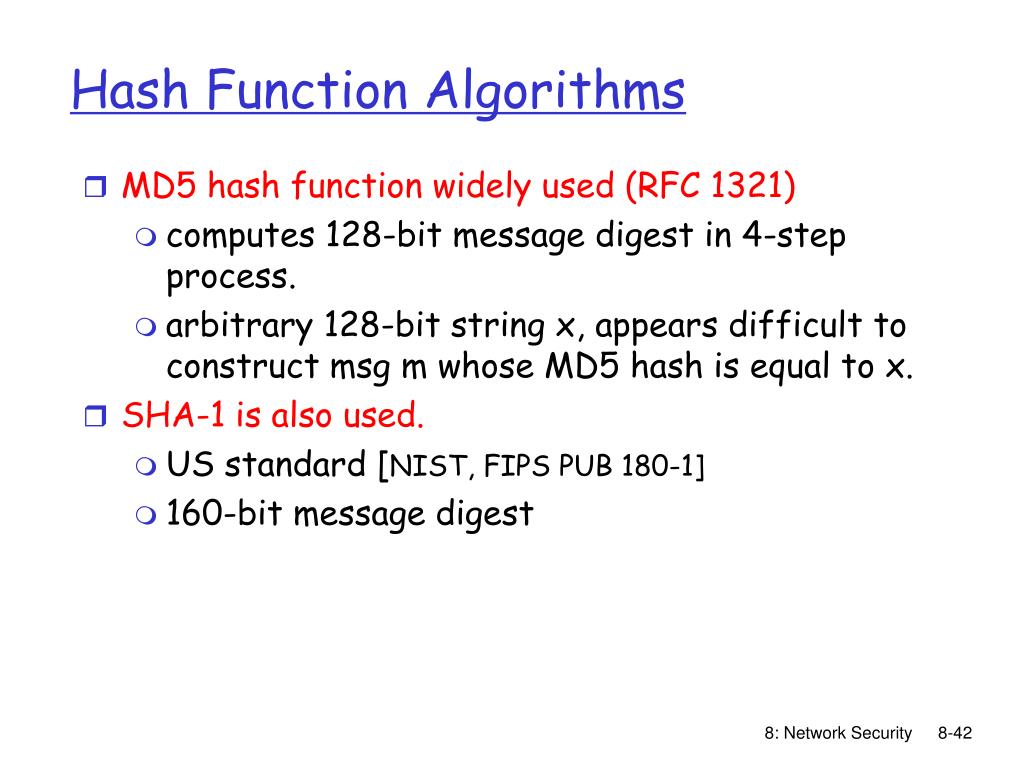

42. MD5 hash function widely used (RFC 1321) computes 128-bit message digest in 4-step process. arbitrary 128-bit string x, appears difficult to construct msg m whose MD5 hash is equal to x. SHA-1 is also used. US standard [NIST, FIPS PUB 180-1] 160-bit message digest Hash Function Algorithms 8: Network Security

43. Chapter 8 roadmap 8.1 What is network security? 8.2 Principles of cryptography 8.3 Authentication 8.4 Integrity 8.5 Key distribution and certification 8.6 Access control: firewalls 8.7 Attacks and counter measures 8.8 Security in many layers 8: Network Security

44. Symmetric key problem: How do two entities establish shared secret key over network? Solution: trusted key distribution center (KDC) acting as intermediary between entities Public key problem: When Alice obtains Bob’s public key (from web site, e-mail, diskette), how does she know it is Bob’s public key, not Trudy’s? Solution: trusted certification authority (CA) Trusted Intermediaries 8: Network Security

45. KB-KDC KX-KDC KY-KDC KZ-KDC KP-KDC KB-KDC KA-KDC KA-KDC KP-KDC Key Distribution Center (KDC) • Alice, Bob need shared symmetric key. • KDC: server shares different secret key with each registered user (many users) • Alice, Bob know own symmetric keys, KA-KDC KB-KDC , for communicating with KDC. KDC 8: Network Security

46. Key Distribution Center (KDC) Q: How does KDC allow Bob, Alice to determine shared symmetric secret key to communicate with each other? KDC generates R1 KA-KDC(A,B) KA-KDC(R1, KB-KDC(A,R1) ) Alice knows R1 Bob knows to use R1 to communicate with Alice KB-KDC(A,R1) Alice and Bob communicate: using R1 as session key for shared symmetric encryption 8: Network Security

47. + + digital signature (encrypt) K K B B K CA Certification Authorities • Certification authority (CA): binds public key to particular entity, E. • E (person, router) registers its public key with CA. • E provides “proof of identity” to CA. • CA creates certificate binding E to its public key. • certificate containing E’s public key digitally signed by CA – CA says “this is E’s public key” Bob’s public key CA private key certificate for Bob’s public key, signed by CA - Bob’s identifying information 8: Network Security

48. + + digital signature (decrypt) K K B B K CA Certification Authorities • When Alice wants Bob’s public key: • gets Bob’s certificate (Bob or elsewhere). • apply CA’s public key to Bob’s certificate, get Bob’s public key Bob’s public key CA public key + 8: Network Security

49. A certificate contains: • Serial number (unique to issuer) • info about certificate owner, including algorithm and key value itself (not shown) • info about certificate issuer • valid dates • digital signature by issuer 8: Network Security

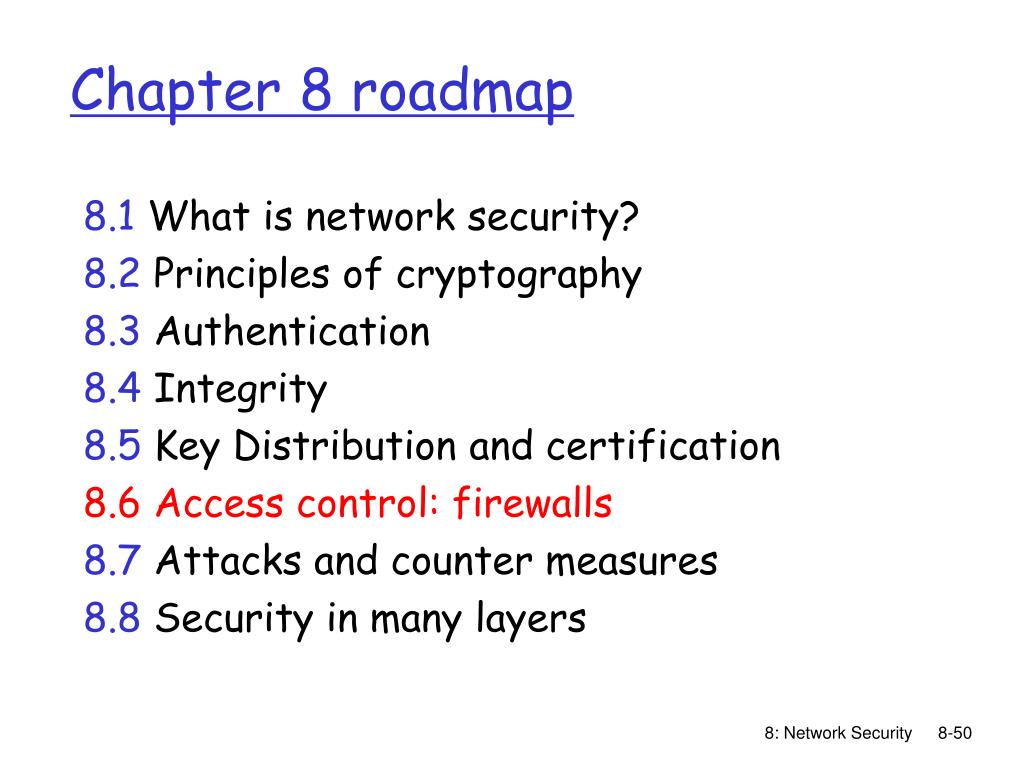

50. Chapter 8 roadmap 8.1 What is network security? 8.2 Principles of cryptography 8.3 Authentication 8.4 Integrity 8.5 Key Distribution and certification 8.6 Access control: firewalls 8.7 Attacks and counter measures 8.8 Security in many layers 8: Network Security
