presentation of practical exercise 1

Presentation of Practical Exercise 1

Threads in Java

Mutual exclusion in Java

TDT4186, H2008

thread concept

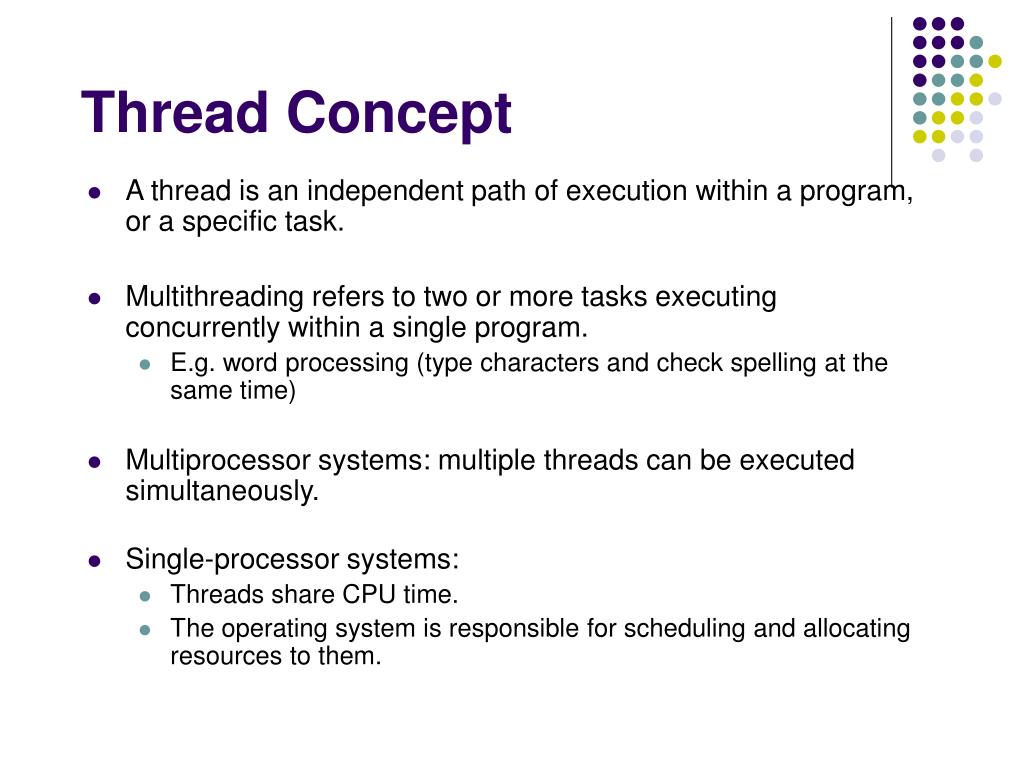

Thread Concept
  • A thread is an independent path of execution within a program, or a specific task.
  • Multithreading refers to two or more tasks executing concurrently within a single program.
    • E.g. word processing (type characters and check spelling at the same time)
  • Multiprocessor systems: multiple threads can be executed simultaneously.
  • Single-processor systems:
    • Threads share CPU time.
    • The operating system is responsible for scheduling and allocating resources to them.
thread concept1

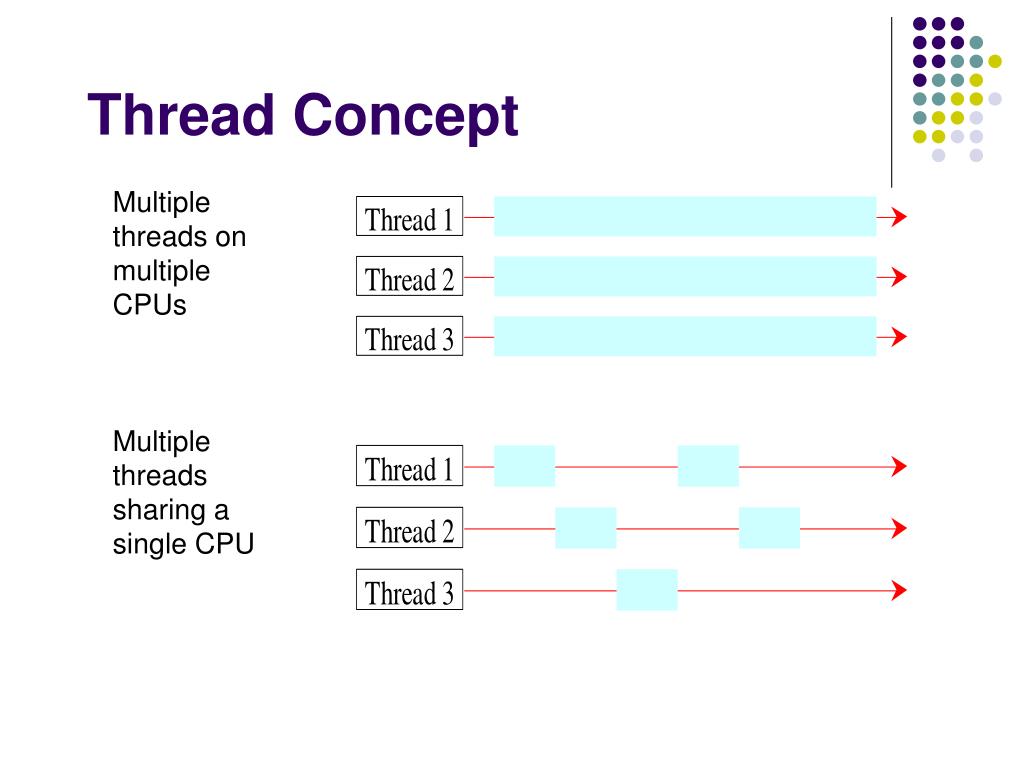

Thread Concept

Multiple threads on multiple CPUs

Multiple threads sharing a single CPU

thinking about threads
Thinking about threads
  • Threads are lightweight compared to processes.
  • Allow different tasks to be performed concurrently.
    • In reality, the different threads’ statements are interleaved.
  • Share the process’s resources, e.g. code, data and open files.
  • Context switching between threads is usually less expensive than between processes.
  • Intercommunication among threads is potentially problematic.
threads in java

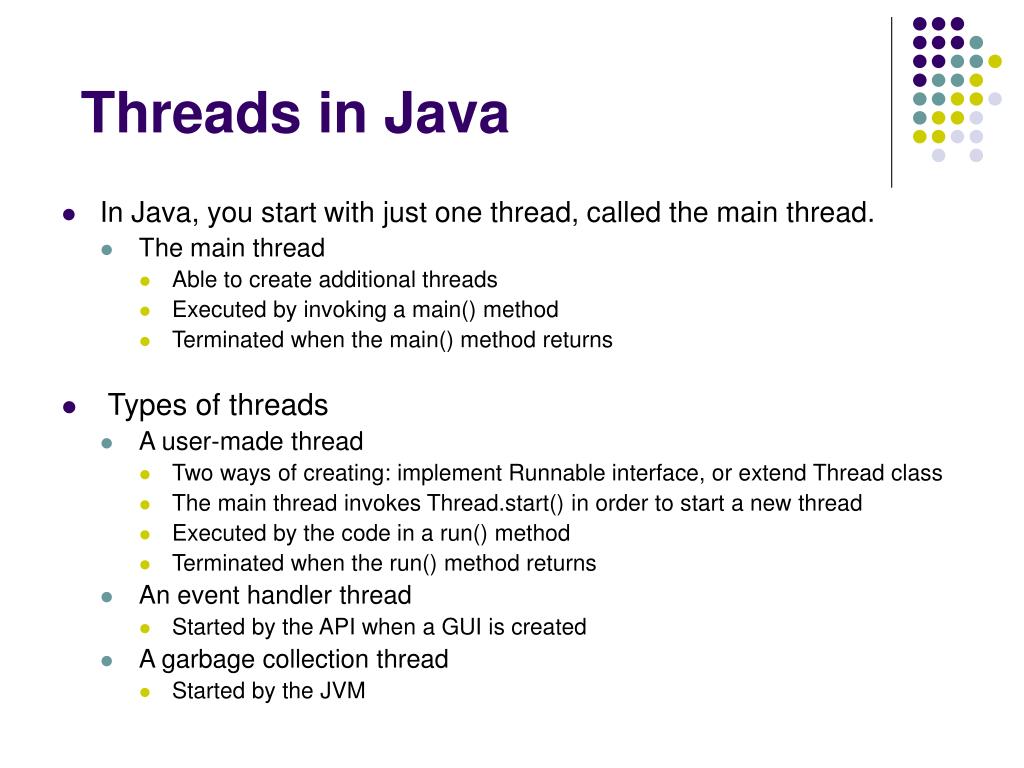

Threads in Java
  • In Java, you start with just one thread, called the main thread.
    • The main thread
      • Able to create additional threads
      • Executed by invoking a main() method
      • Terminated when the main() method returns
  • Types of threads
    • A user-made thread
      • Two ways of creating: implement Runnable interface, or extend Thread class
      • The main thread invokes Thread.start() in order to start a new thread
      • Executed by the code in a run() method
      • Terminated when the run() method returns
    • An event handler thread
      • Started by the API when a GUI is created
    • A garbage collection thread
      • Started by the JVM
creating a thread

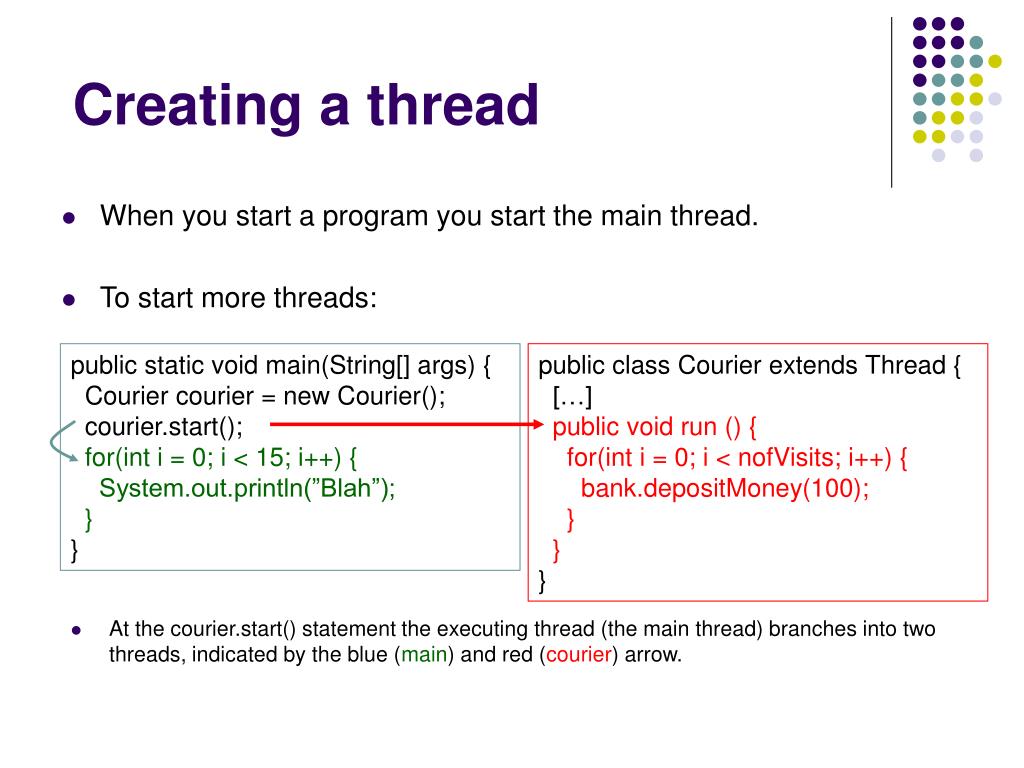

Creating a thread
  • When you start a program you start the main thread.
  • To start more threads:

public static void main(String[] args) {

Courier courier = new Courier();

courier.start();

for(int i = 0; i < 15; i++) {

System.out.println(”Blah”);

}

}

public class Courier extends Thread {

[…]

public void run () {

for(int i = 0; i < nofVisits; i++) {

bank.depositMoney(100);

}

}

}

  • At the courier.start() statement the executing thread (the main thread) branches into two threads, indicated by the blue (main) and red (courier) arrow.
slide9
Equivalent method:

public static void main(String[] args) {

Courier courier = new Courier();

Thread t = new Thread(courier);

t.start();

for(int i = 0; i < 15; i++) {

System.out.println(”Blah”);

}

}

public class Courier implements Runnable

{

[…]

public void run () {

for(int i = 0; i < nofVisits; i++) {

bank.depositMoney(100);

}

}

}

what is mutual exclusion
What is mutual exclusion?
  • Mutual exclusion is about guaranteeing that a resource is only accessed by one user at a time.
  • In our case, the resource is a code segment, and the users are threads.
  • Code that must be mutually exclusive is called critical code.
when is code critical

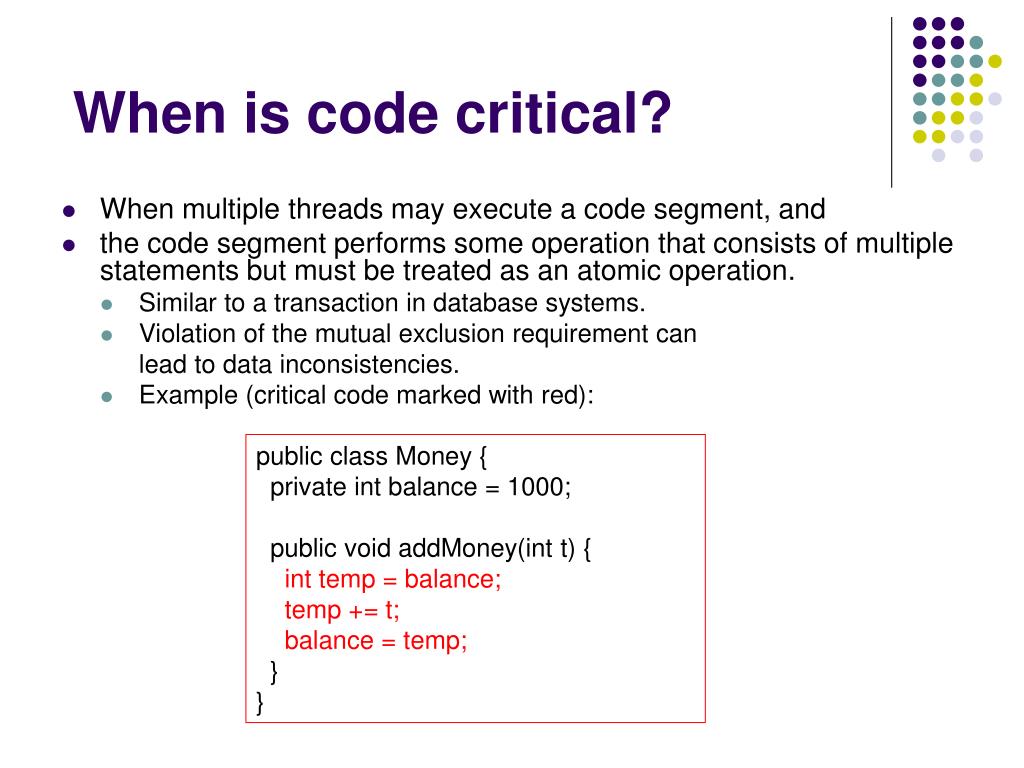

When is code critical?
  • When multiple threads may execute a code segment, and
  • the code segment performs some operation that consists of multiple statements but must be treated as an atomic operation.
    • Similar to a transaction in database systems.
    • Violation of the mutual exclusion requirement can

lead to data inconsistencies.

    • Example (critical code marked with red):

public class Money {

private int balance = 1000;

public void addMoney(int t) {

int temp = balance;

temp += t;

balance = temp;

}

}

slide13
The three statements in the addMoney() method are critical code. Example of what could go wrong if the code isn’t treated as an atomic unit:
slide14

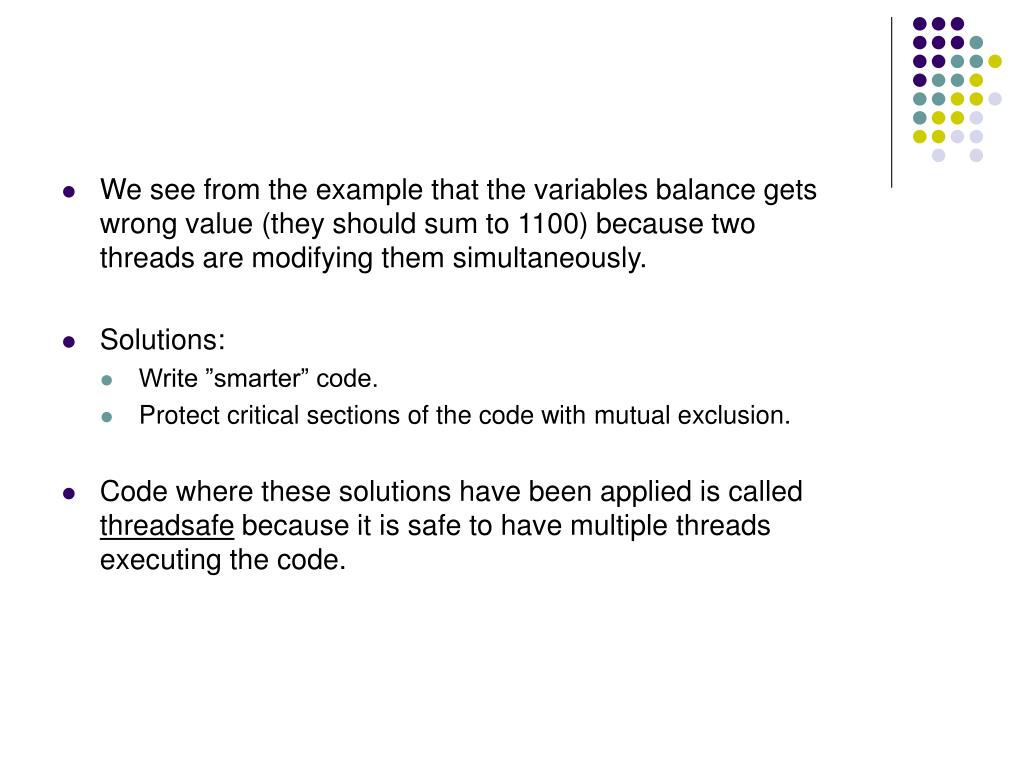

We see from the example that the variables balance gets wrong value (they should sum to 1100) because two threads are modifying them simultaneously.
  • Solutions:
    • Write ”smarter” code.
    • Protect critical sections of the code with mutual exclusion.
  • Code where these solutions have been applied is called threadsafe because it is safe to have multiple threads executing the code.
avoiding critical code
Avoiding critical code
  • In some cases it is possible to perform operations in such a way that interleaving of statements is not a problem.
    • Example:

public class Money {

private int balance = 1000;

public void addMoney(int t) {

balance += t;

}

}

enforcing mutual exclusion
Enforcing mutual exclusion
  • If critical code is unavoidable, mutual exclusion must be enforced with locks.
  • In Java, this is done using the synchronized keyword.

public class Money {

private int balance = 1000;

public synchronized void addMoney(int t) {

int temp = balance;

temp += t;

balance = temp;

}

}

the synchronized keyword
The synchronized keyword
  • Used to indicate that a thread must acquire a lock before proceeding.
  • When the thread leaves the section of the code marked as synchronized, it releases the lock, allowing waiting threads to enter.
  • Only one thread can have the lock at any time, so only one thread can be inside a synchronized block at any time.
  • Different synchronized blocks may use the same lock.
  • More on the synchronized keyword in exercise 2.
the exercise
The exercise
  • Your task is to inspect a small, multithreading program.
  • Couriers deposit money in a bank.
  • Each courier is a thread.
  • Somehow, the total amount of money deposited differs from the amount of money actually in the bank.
  • This is because the program isn’t threadsafe.
your task
Your task
  • Analyse the code, find out why it doesn’t work. Correct the error(s).
  • Compare the runtime of the correct solution to the runtime of the original code. Explain any differences.
  • Show examples of situations where the incorrect code leads to inconsistent money accounts.
hints
Hints
  • Take advantage of examples and information given in this presentation.
  • You should run the incorrect program to get an impression of what the program does, and to see for yourself that inconsistencies sometimes occur.
  • You can run the handed out code by running the P1.bat batch file.
