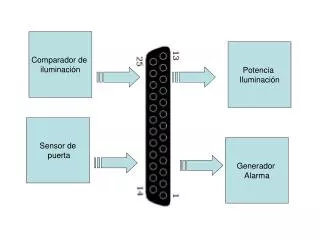

slide1

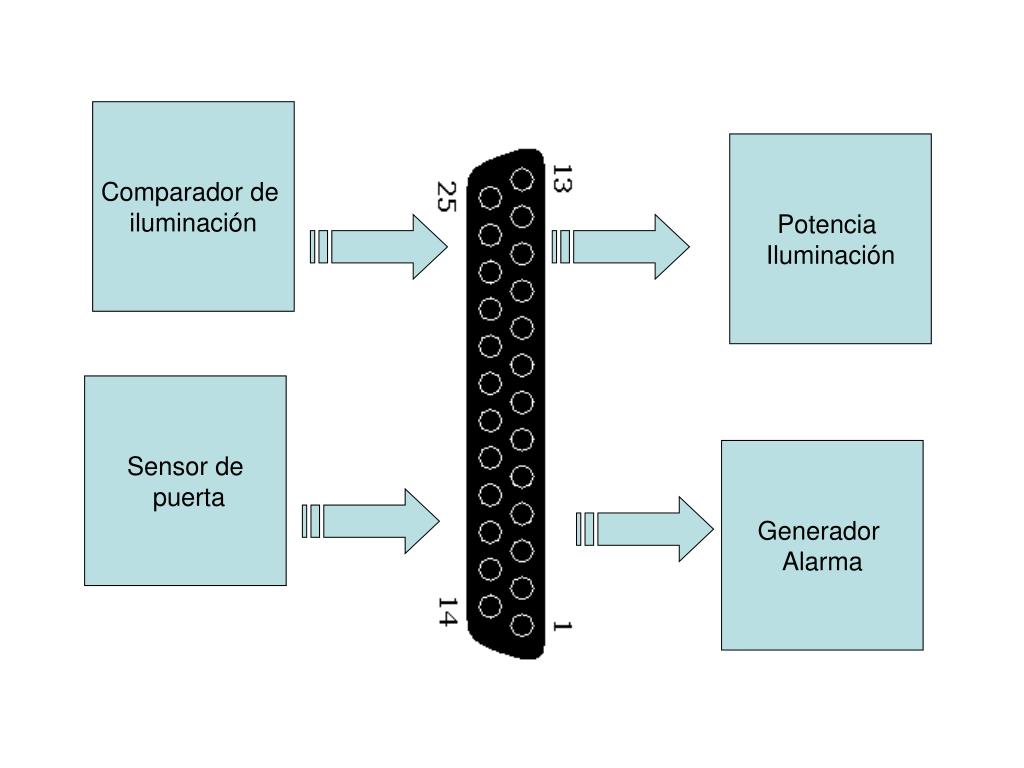

Comparador de

iluminación

Potencia

Iluminación

Sensor de

puerta

Generador

Alarma

slide4

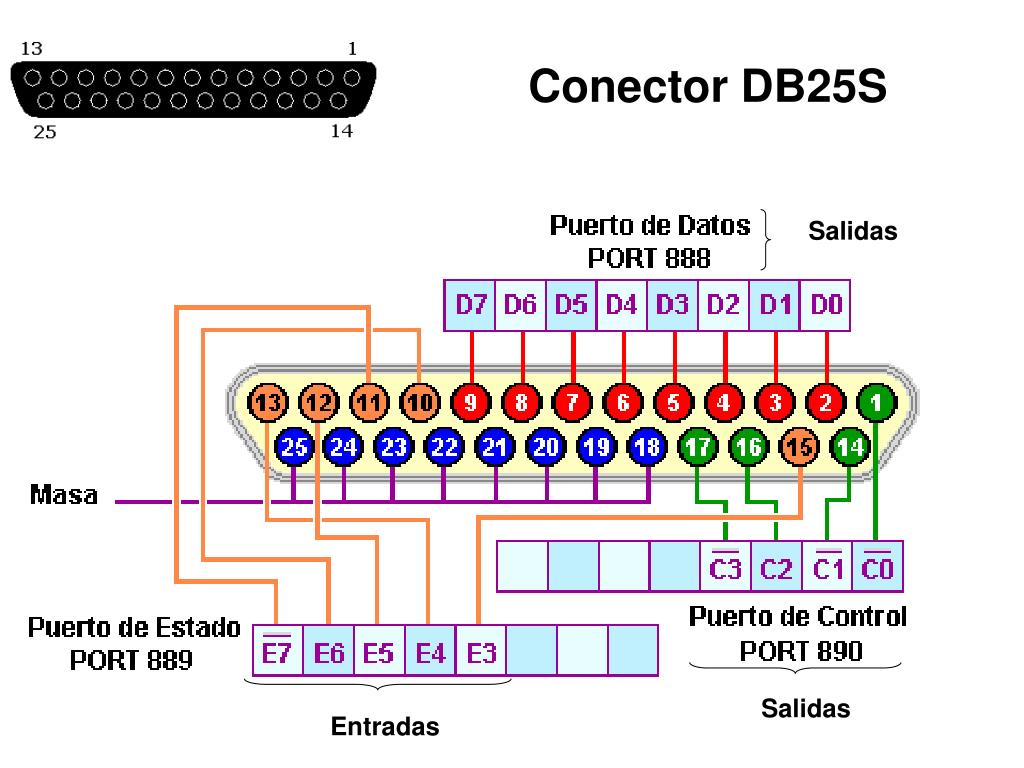

Conector DB25S

Salidas

Salidas

Entradas

slide5

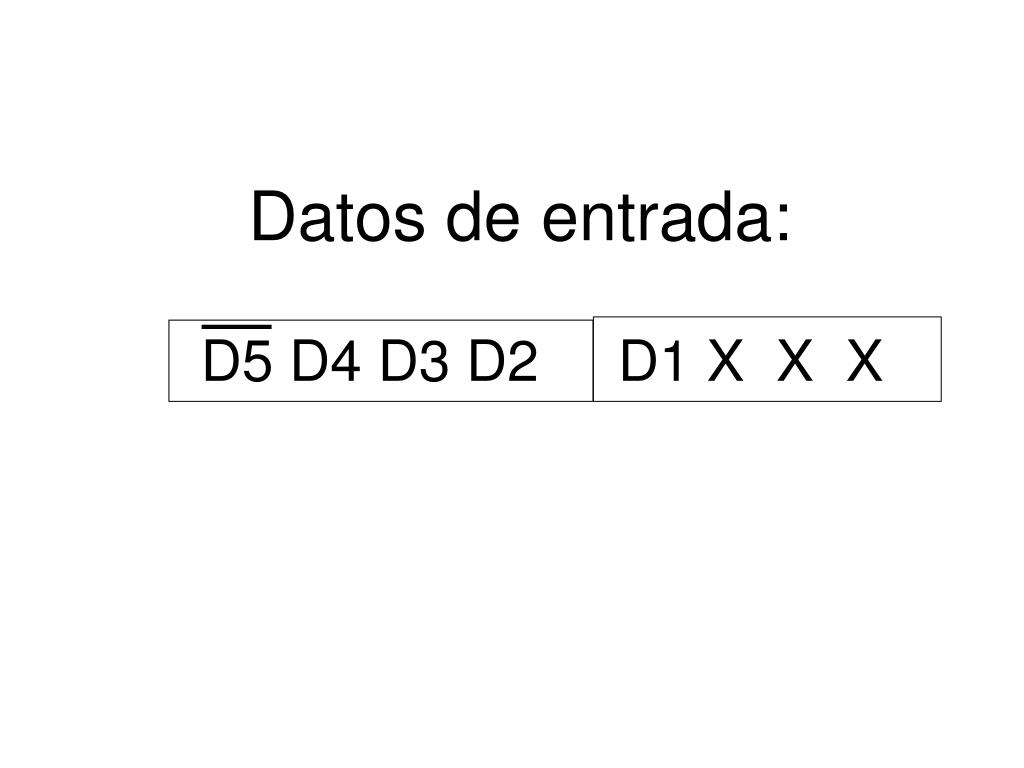

Datos de entrada:

D5 D4 D3 D2 D1 X X X

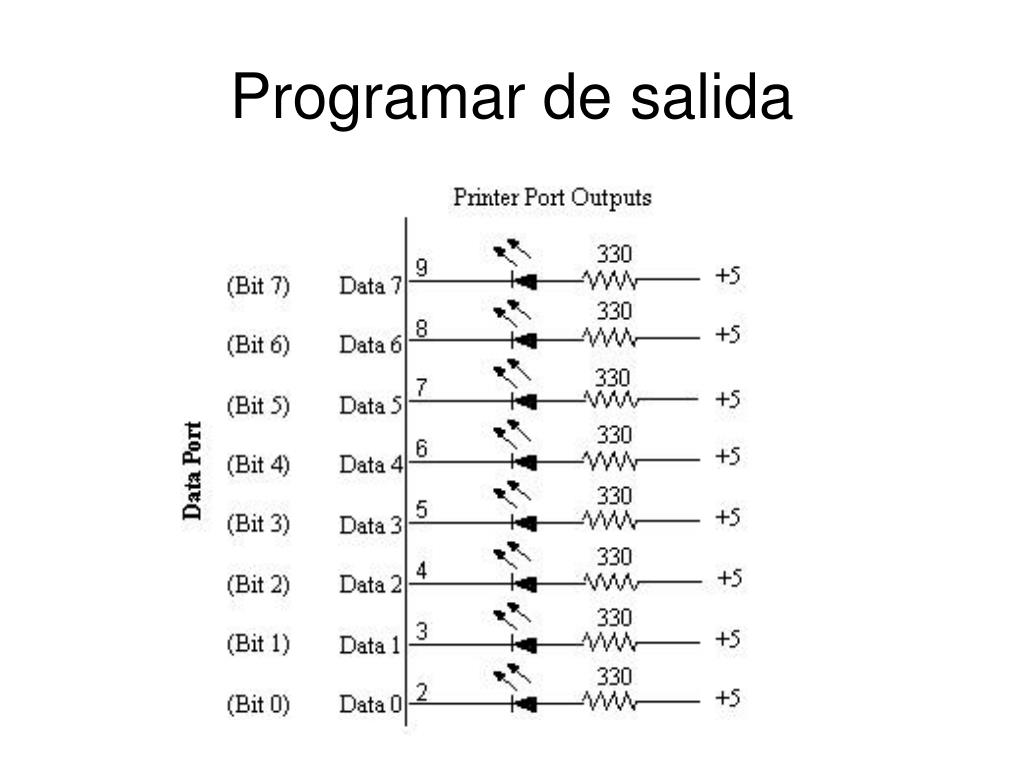

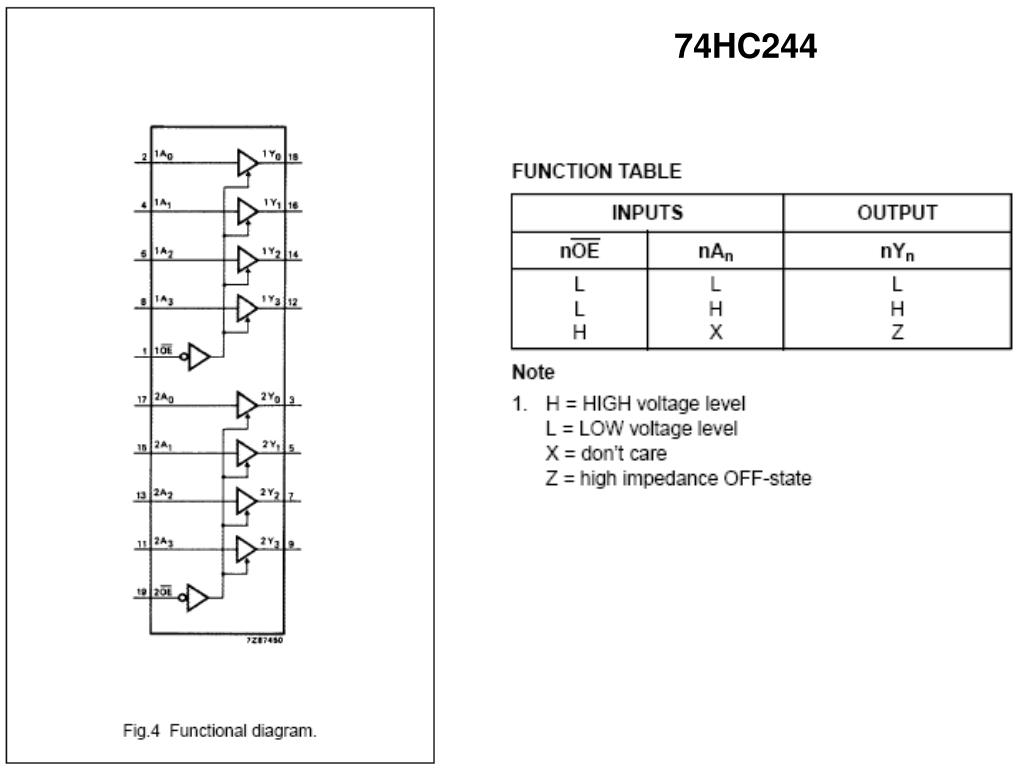

slide10

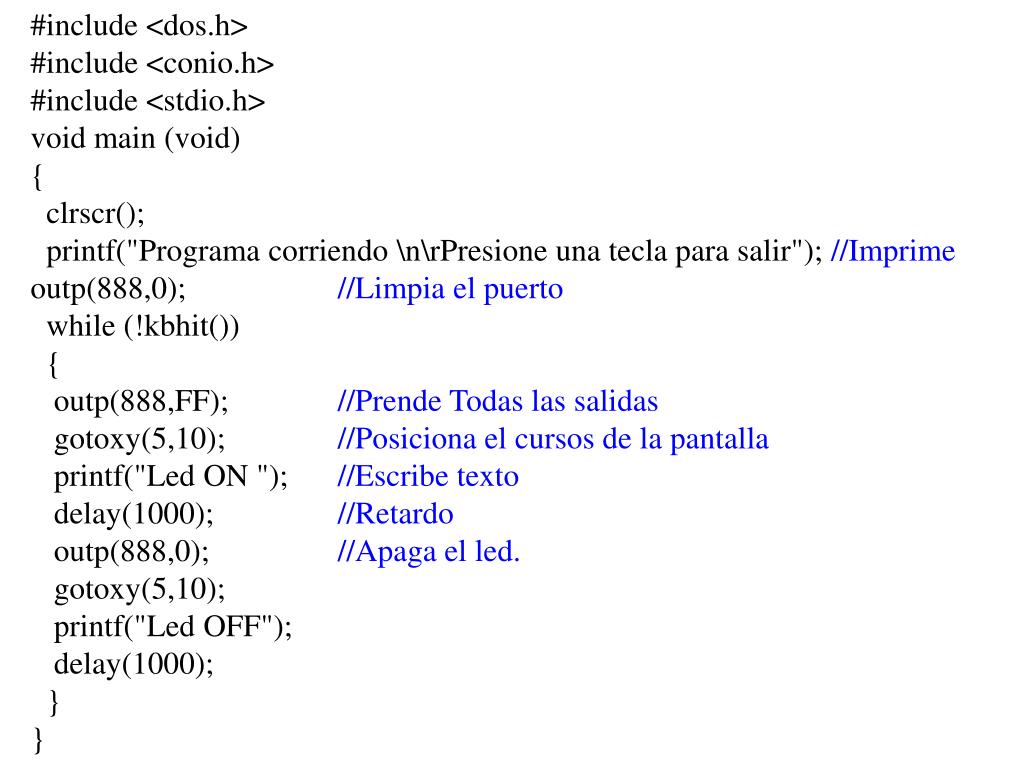

#include <dos.h>

#include <conio.h>

#include <stdio.h>

void main (void)

{

clrscr();

printf("Programa corriendo \n\rPresione una tecla para salir"); //Imprime outp(888,0); //Limpia el puerto

while (!kbhit())

{

outp(888,FF); //Prende Todas las salidas

gotoxy(5,10); //Posiciona el cursos de la pantalla

printf("Led ON "); //Escribe texto

delay(1000); //Retardo

outp(888,0); //Apaga el led.

gotoxy(5,10);

printf("Led OFF");

delay(1000);

}

}

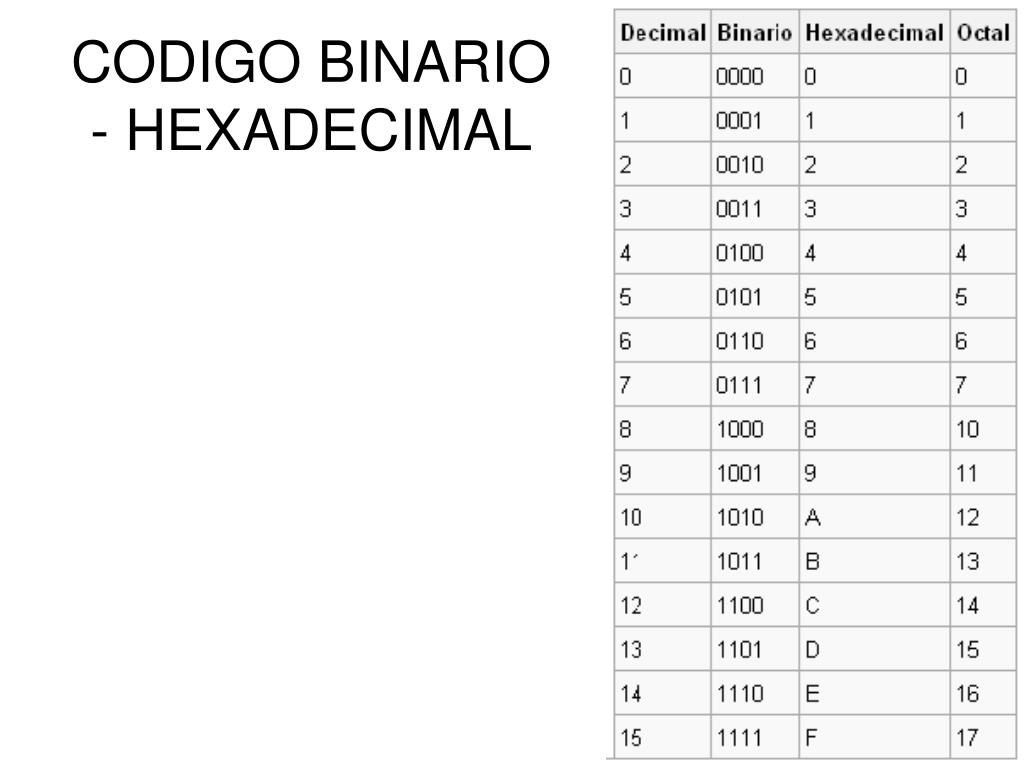

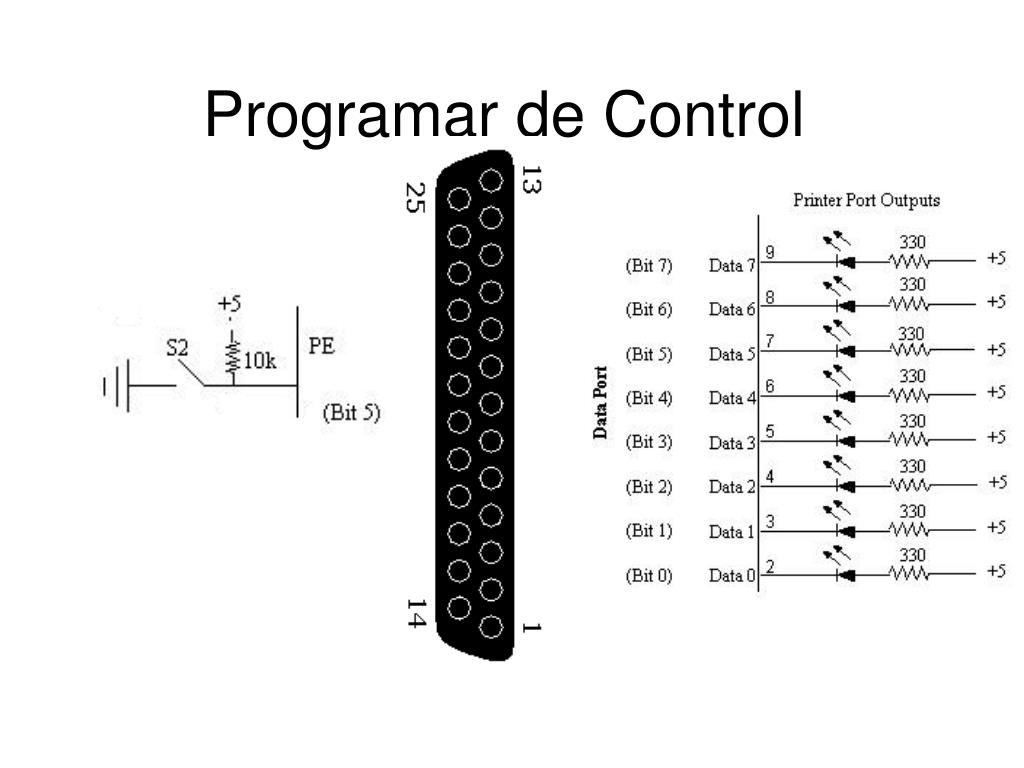

slide12

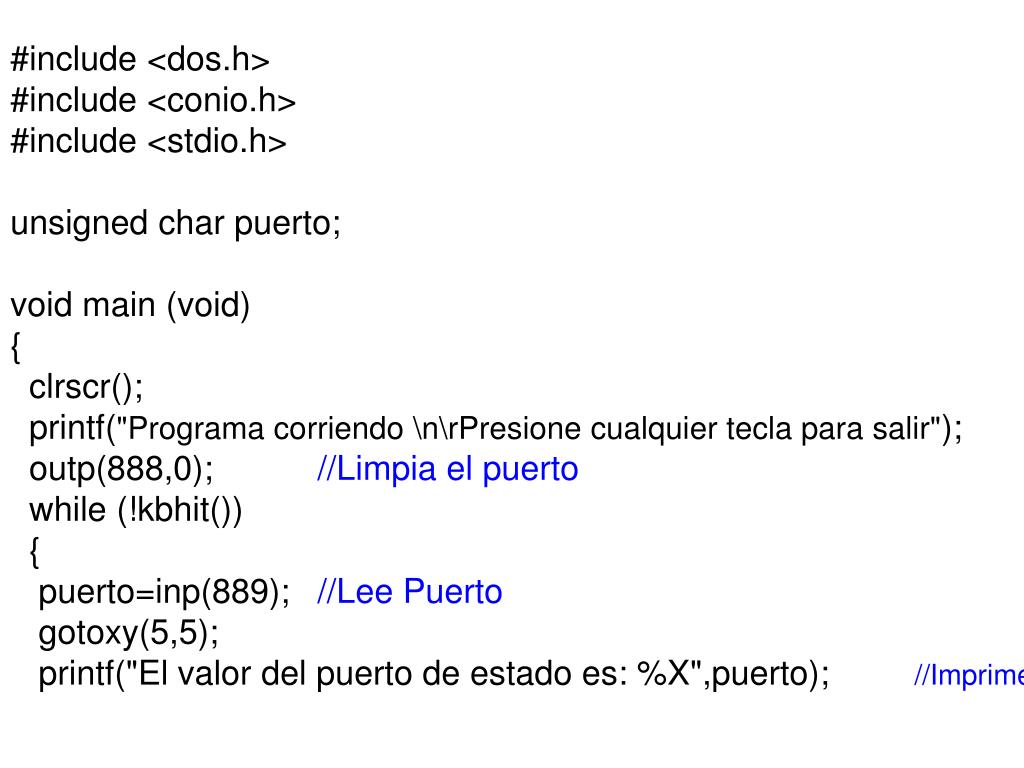

#include <dos.h>

#include <conio.h>

#include <stdio.h>

unsigned char puerto;

void main (void)

{

clrscr();

printf("Programa corriendo \n\rPresione cualquier tecla para salir");

outp(888,0); //Limpia el puerto

while (!kbhit())

{

puerto=inp(889); //Lee Puerto

gotoxy(5,5);

printf("El valor del puerto de estado es: %X",puerto); //Imprime

slide13

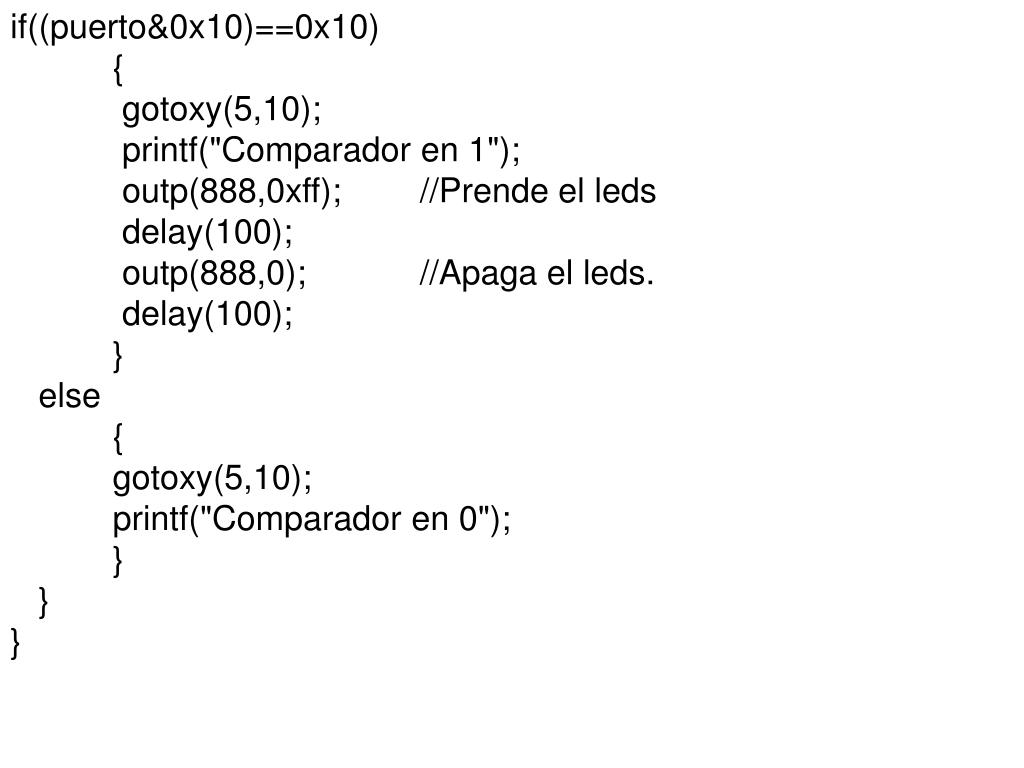

if((puerto&0x10)==0x10)

{

gotoxy(5,10);

printf("Comparador en 1");

outp(888,0xff); //Prende el leds

delay(100);

outp(888,0); //Apaga el leds.

delay(100);

}

else

{

gotoxy(5,10);

printf("Comparador en 0");

}

}

}

slide14

-

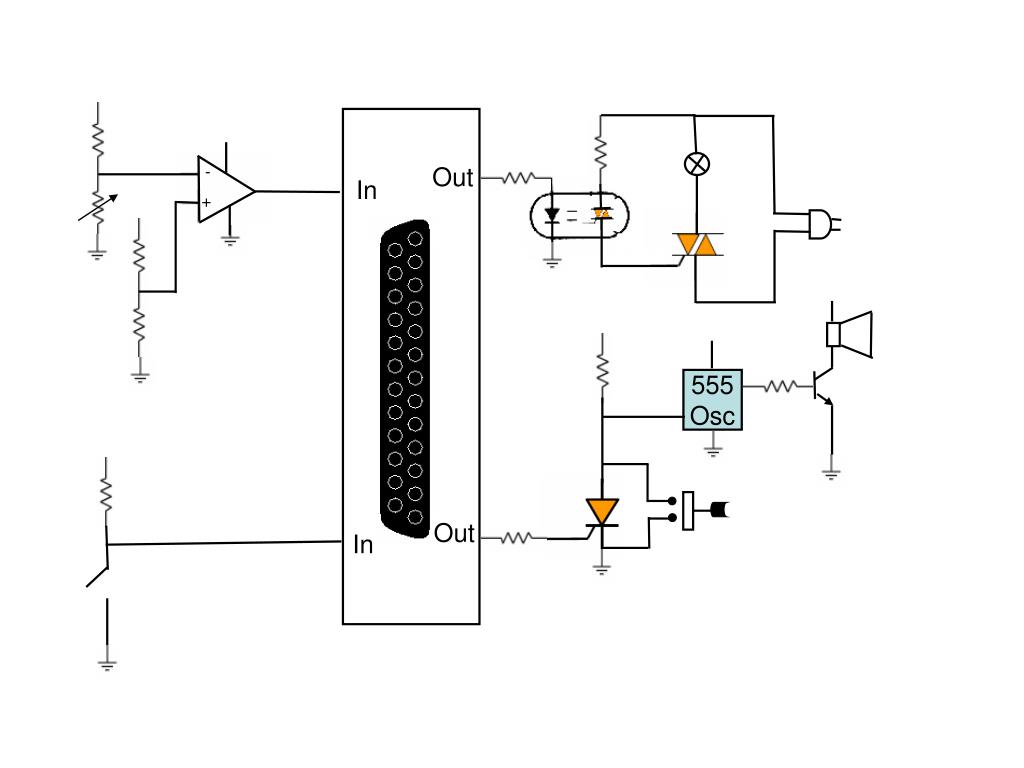

Out

In

+

555

Osc

Out

In
