Aluminum Translators Version 3.01 (I Think). Jennie Henthorn. Henthorn Environmental Services LLC. What is the purpose of an Al translator?. Permit limits are in terms of total recoverable aluminum Water quality criteria are in terms of dissolved aluminum

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Aluminum Translators Version 3.01 (I Think)' - maura

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
aluminum translators version 3 01 i think

Aluminum Translators Version 3.01 (I Think)

Jennie Henthorn

Henthorn Environmental Services LLC

what is the purpose of an al translator
What is the purpose of an Al translator?
  • Permit limits are in terms of total recoverable aluminum
  • Water quality criteria are in terms of dissolved aluminum
  • Applying the dissolved Al criteria as a total Al effluent limits can be overly restrictive
  • A translator is an attempt to fix the disparity between the dissolved criteria and total recoverable effluent limits
what are aluminum translators

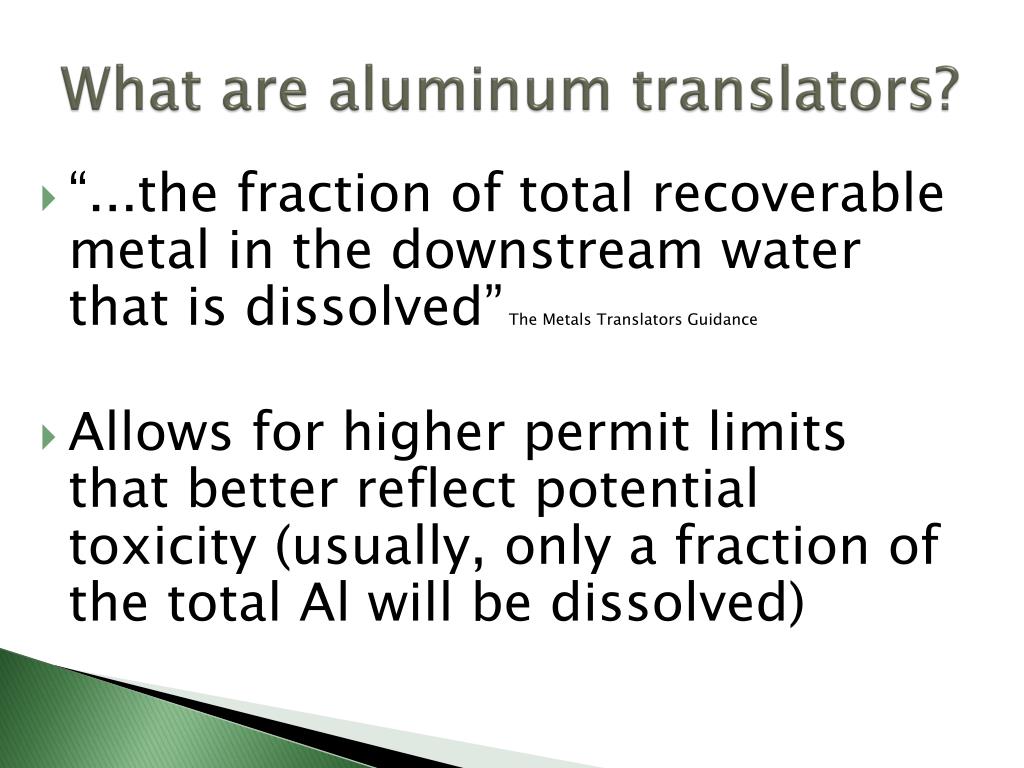

What are aluminum translators?
  • “...the fraction of total recoverable metal in the downstream water that is dissolved” The Metals Translators Guidance
  • Allows for higher permit limits that better reflect potential toxicity (usually, only a fraction of the total Al will be dissolved)
effluent limits simple version
Effluent Limits (Simple Version)
  • The translator is a fraction:

Fd = Cd/Ct

  • The effluent limits are divided by the translator to calculate the new limits
if only it were that simple
If only it were that simple…
  • Translators require a study with multiple samples
  • The spreadsheets used to calculate translators are changing (and hopefully will continue to do so…)
  • Study must be well designed
  • Decisions on how to proceed can be evasive.
epa guidance on critical flow studies

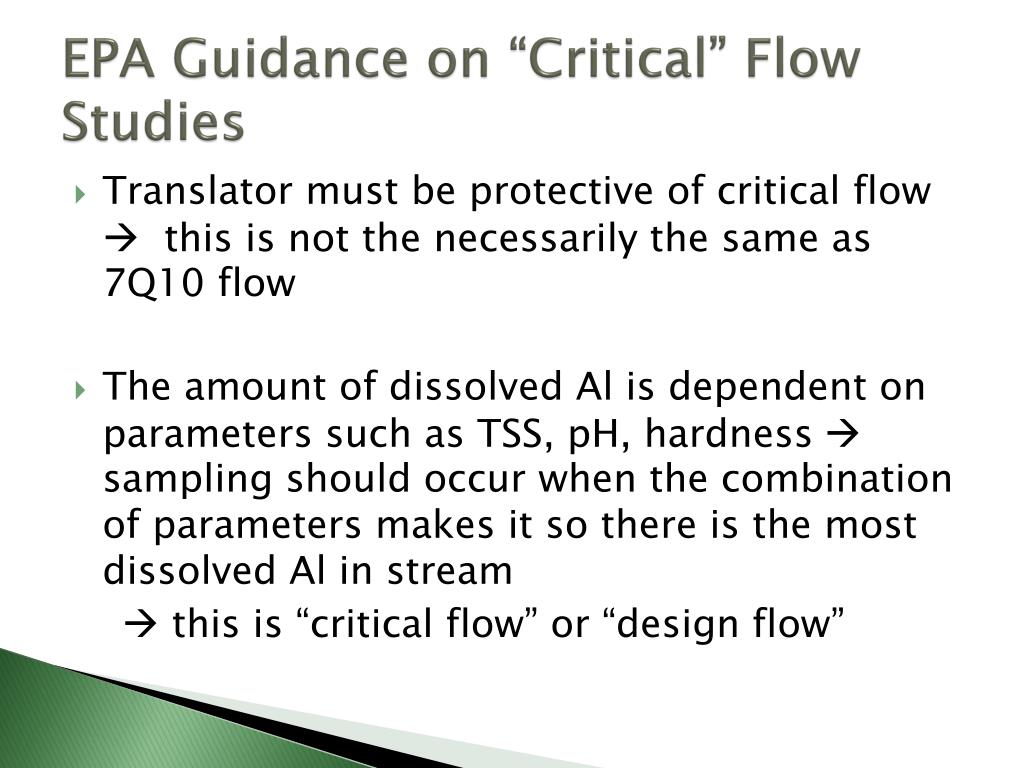

EPA Guidance on “Critical” Flow Studies
  • Translator must be protective of critical flow  this is not the necessarily the same as 7Q10 flow
  • The amount of dissolved Al is dependent on parameters such as TSS, pH, hardness  sampling should occur when the combination of parameters makes it so there is the most dissolved Al in stream

 this is “critical flow” or “design flow”

critical flow studies cont
“Critical” Flow Studies, cont.
  • But… no way to determine what these conditions are without a separate study – and results can be less than clear
  • DEP has determined that the default “critical” flow is when precipitation induced discharges are not occurring.
    • Low flow usually has low TSS = higher dissolved Al
    • Simplifies preparation and review of a study plan
determine study period for critical flow study

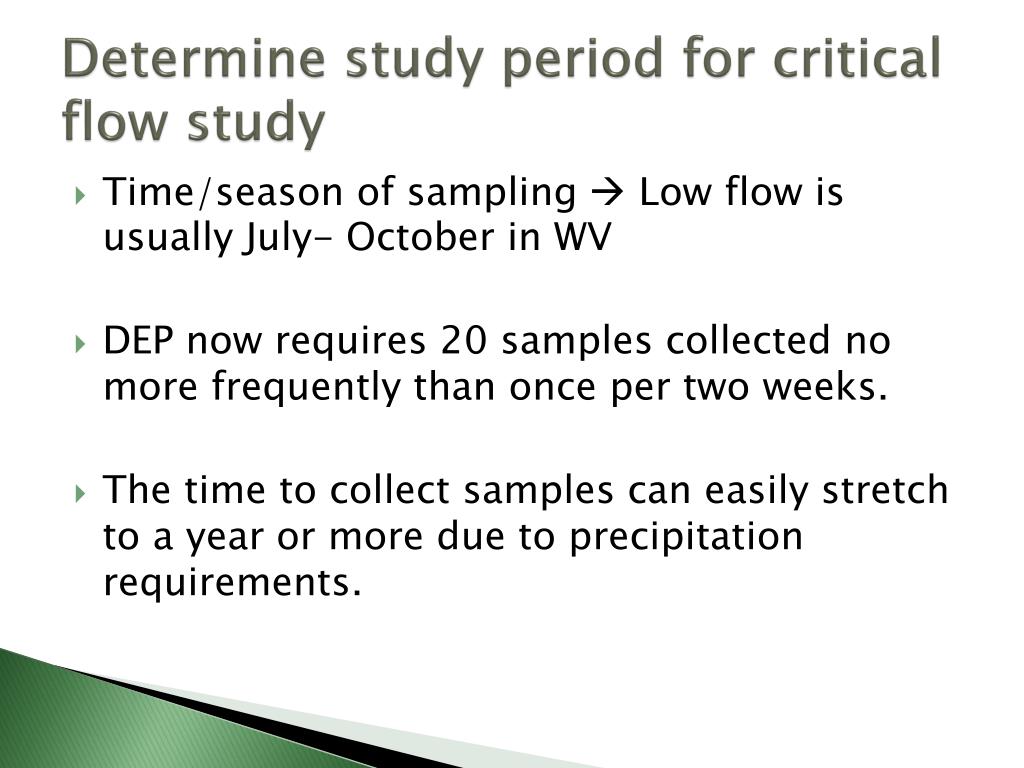

Determine study period for critical flow study
  • Time/season of sampling  Low flow is usually July- October in WV
  • DEP now requires 20 samples collected no more frequently than once per two weeks.
  • The time to collect samples can easily stretch to a year or more due to precipitation requirements.
where should i sample
Where should I sample?
  • EPA guidance suggest sampling should occur at edge or beyond mixing zone
  • But…in most circumstances for mining permits, no mixing zone is usually available (EOP limits)
  • Often, the nearest downstream monitoring point used for instream sampling is used.
  • Watershed approach may be more appropriate
get dep approval before you proceed
Get DEP approval before you proceed!
  • Take a sample or two – make some informed decisions
  • Prepare a sampling plan and get DEP’s approval
  • Remember, translators are not just for aluminum! Do you need to consider other parameters?

Choose your path carefully, or you may fall flat on your face (or worse)

what to measure all studies
What to measure – all studies
  • Dissolved Al
  • Total Al
  • TSS
  • Precipitation
  • Hardness
  • Others

“A complete data set allows for more complete understanding of the environmental fate and transport processes and may result in a more accurate permit limit because of reduced variability and uncertainties.” EPA guidance

calculating the translator

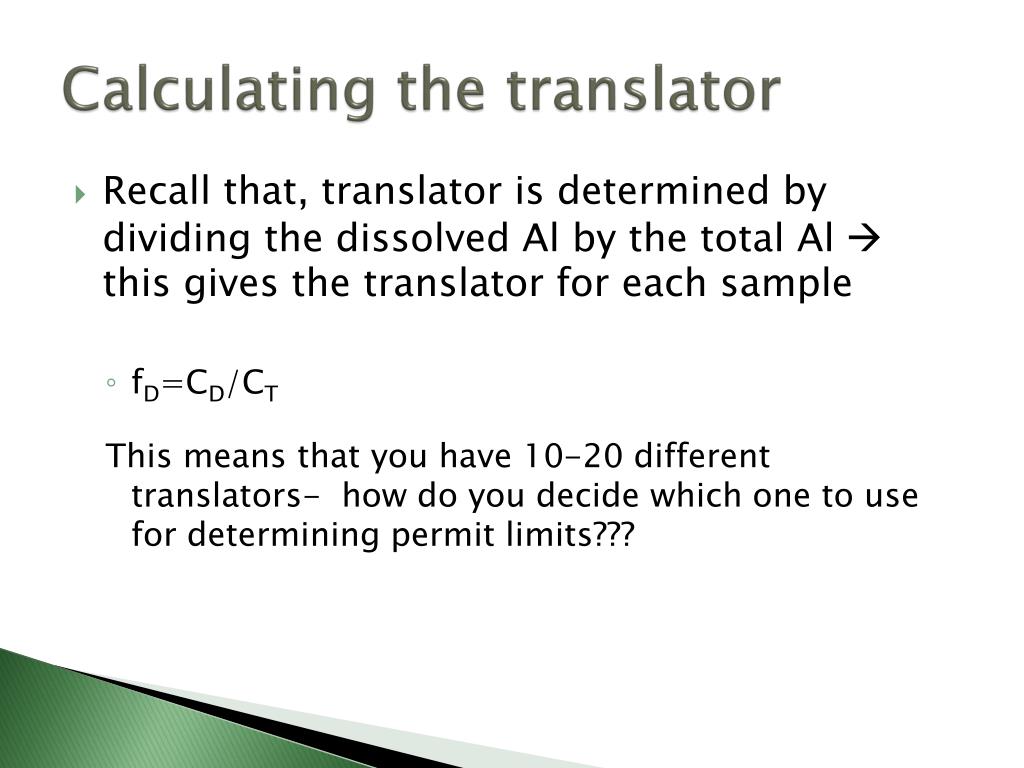

Calculating the translator
  • Recall that, translator is determined by dividing the dissolved Al by the total Al  this gives the translator for each sample
    • fD=CD/CT

This means that you have 10-20 different translators- how do you decide which one to use for determining permit limits???

calculating the translator cont
Calculating the translator (cont.)
  • Determine if translators are lognormally distributed (Shapiro-Wilks)
  • Determine if translators are TSS-dependent using regression analysis
    • If translators are lognormally distributed and are NOT TSS-dependent, use the geometric mean for permit limit caculations

But what if the translators are not log-normal????

non lognormal translators
Non-lognormal translators
  • Attempt to make translators lognormal by transforming the data (arcsine square root)
    • If translators are lognormal transformed and NOT TSS-dependent, use the transformed geometric mean for permit limit calculations


  • Use the 95th percentile of the translators

But what if the translators are TSS-dependent?

2 tss dependent translators
2. TSS dependent translators
  • Although sampled at low flow, translators will be used over a wide variety of flows and TSS concentrations
  • Translators can be developed relating dissolved Al to other parameters, such as pH or hardness
  •  TSS usually has the largest influence and therefore is the focus of EPA guidance
tss dependent translators
TSS-dependent translators
  • Develop regression equation relating TSS and translator
  • Use “critical TSS” in regression equation to determine appropriate translator
    • The critical TSS is representative of a TSS that would give the highest dissolved Al in the stream
    • The EPA guidance gives little information on how to determine critical TSS


  • Use the 95th percentile of the translators
and your permit limits are

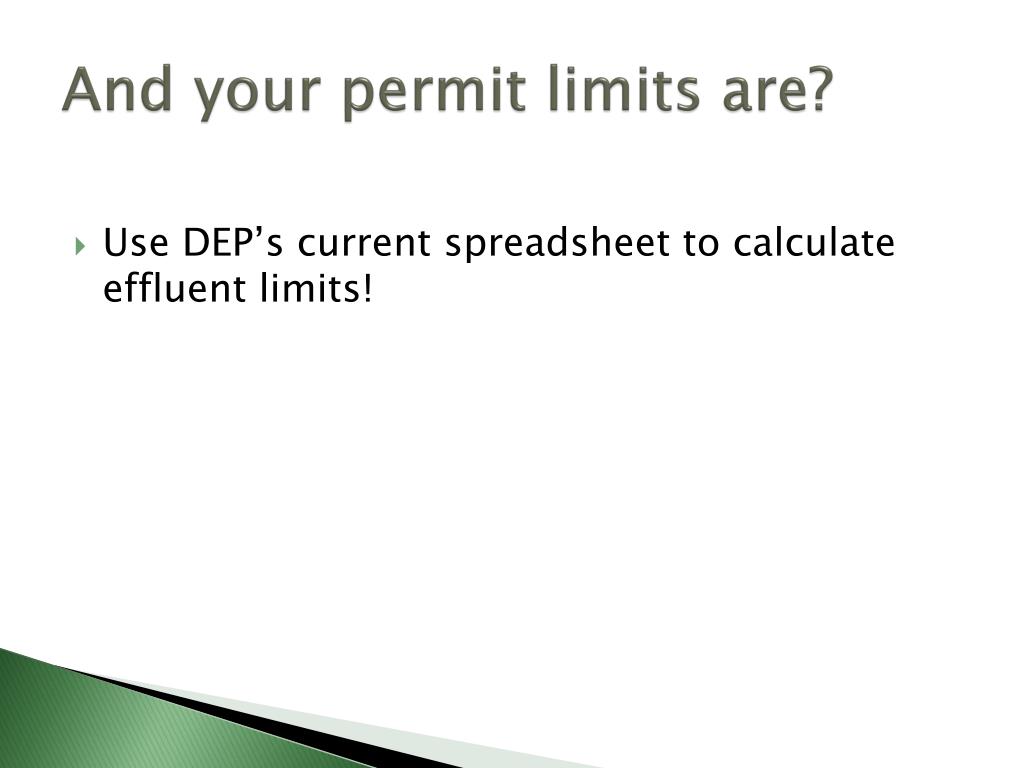

And your permit limits are?
  • Use DEP’s current spreadsheet to calculate effluent limits!
current wvdep spreadsheet

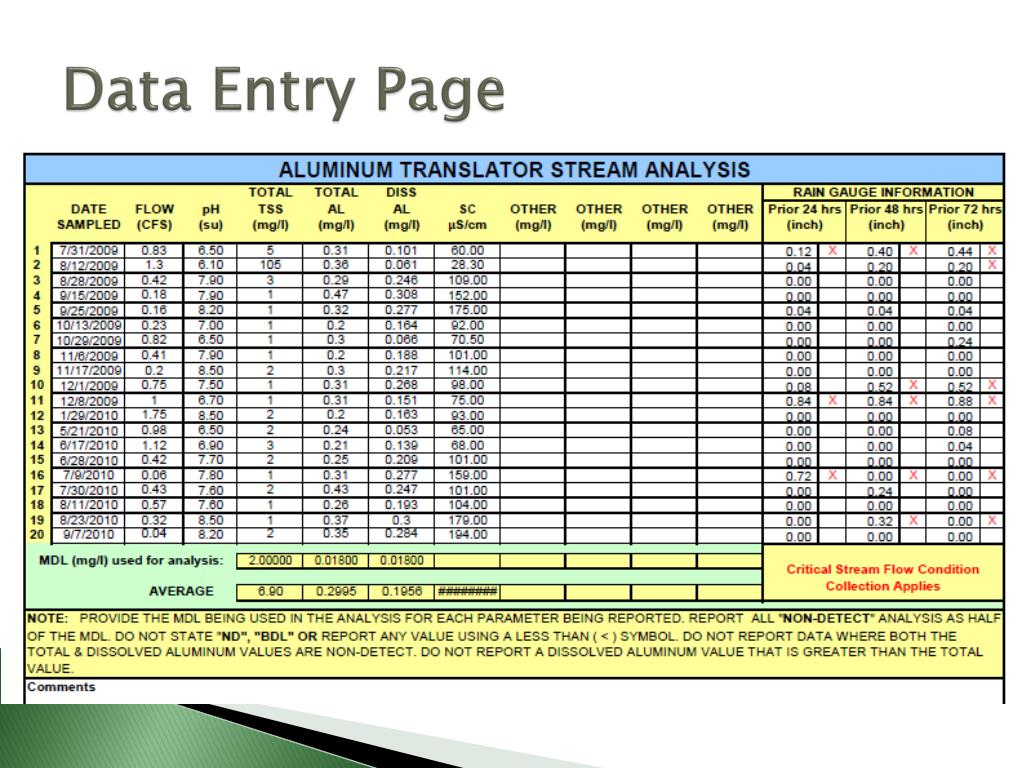

Current WVDEP spreadsheet
  • Requires 20 samples exactly
  • Determines if data is lognormal using Shapiro-Wilks
  • Determines if data are TSS-Dependent
  • Requires rain data to determine critical flow
limitations with the current spreadsheet
Limitations with the current spreadsheet
  • Only accepts data taken during critical flow
    • If a TSS-dependent equation is being developed, critical flow should not be used
    • Uses only one method for determining “critical” flow – other methods include TSS concentration, and 25th percentile of low-flow
  • Does not have a regression equation for TSS-dependent translators
    • If translators are TSS-dependent, it defaults to using the 95th percentile
limitations with the current spreadsheet continued
Limitations with the current spreadsheet (continued)
  • If data are not lognormal, spreadsheet does not determine if data are lognormal transformed

The combination of these problems amounts to using the 95th percentile as a default, when other values may be equally defensible (regression equation, transformed geometric mean).

changes being considered for the spreadsheet
Changes being considered for the spreadsheet
  • Addition of lognormal transformed calculation
  • Addition of regression analysis for TSS-dependent data sets
  • Potentially the addition of using the arithmetic mean when data are normally distributed (and not TSS-dependent)

These changes will determine translators that more accurately represent the stream!
