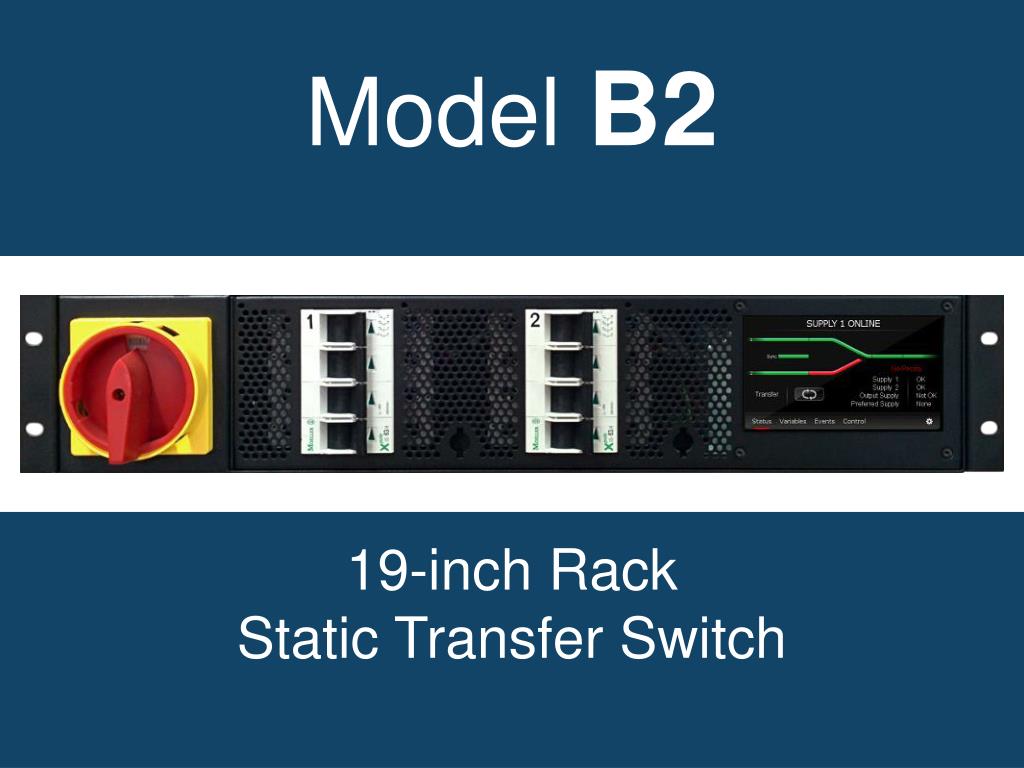

  1. Model B2 19-inch Rack Static Transfer Switch

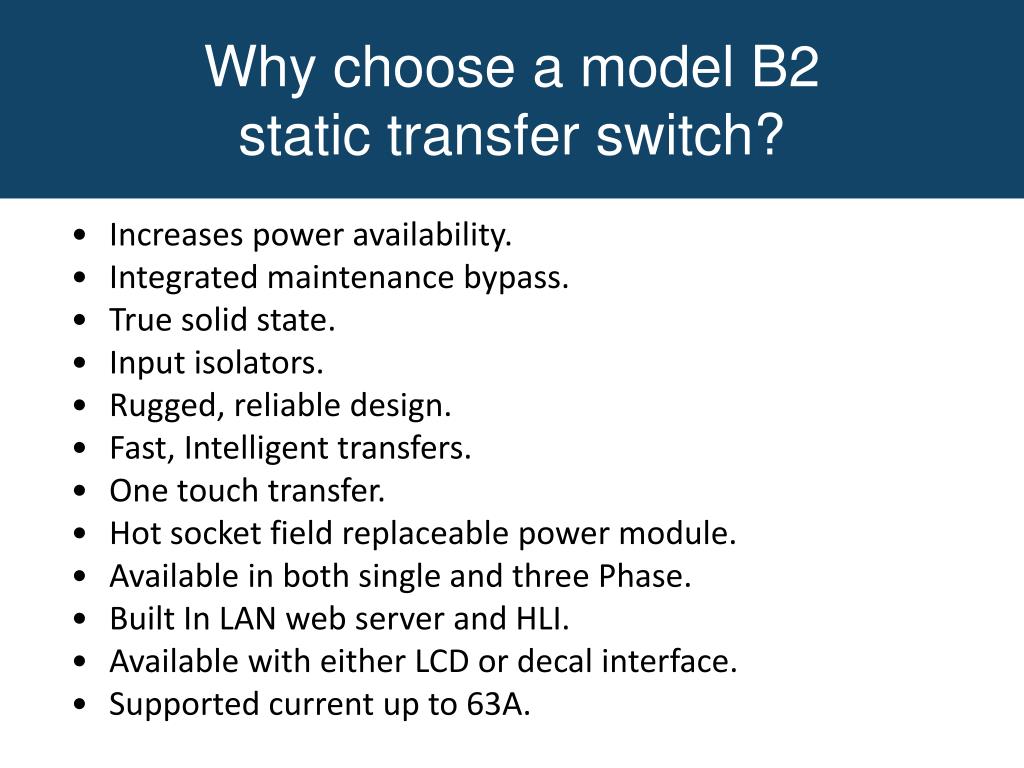

  2. Why choose a model B2static transfer switch? • Increases power availability. • Integrated maintenance bypass. • True solid state. • Input isolators. • Rugged, reliable design. • Fast, Intelligent transfers. • One touch transfer. • Hot socket field replaceable power module. • Available in both single and three Phase. • Built In LAN web server and HLI. • Available with either LCD or decal interface. • Supported current up to 63A.

  3. Features • Fast, reliable switching • Transparent transfer – less than ¼ cycle. • Solid state devices are far superior to their electro-mechanical equivalents. • Triple redundant internal power sources.

  4. Features • Real time monitoring • LCD mimic status. • Touch screen LCD shows input/output voltage and current. • Visual and audible alarm. • Ethernet web server.

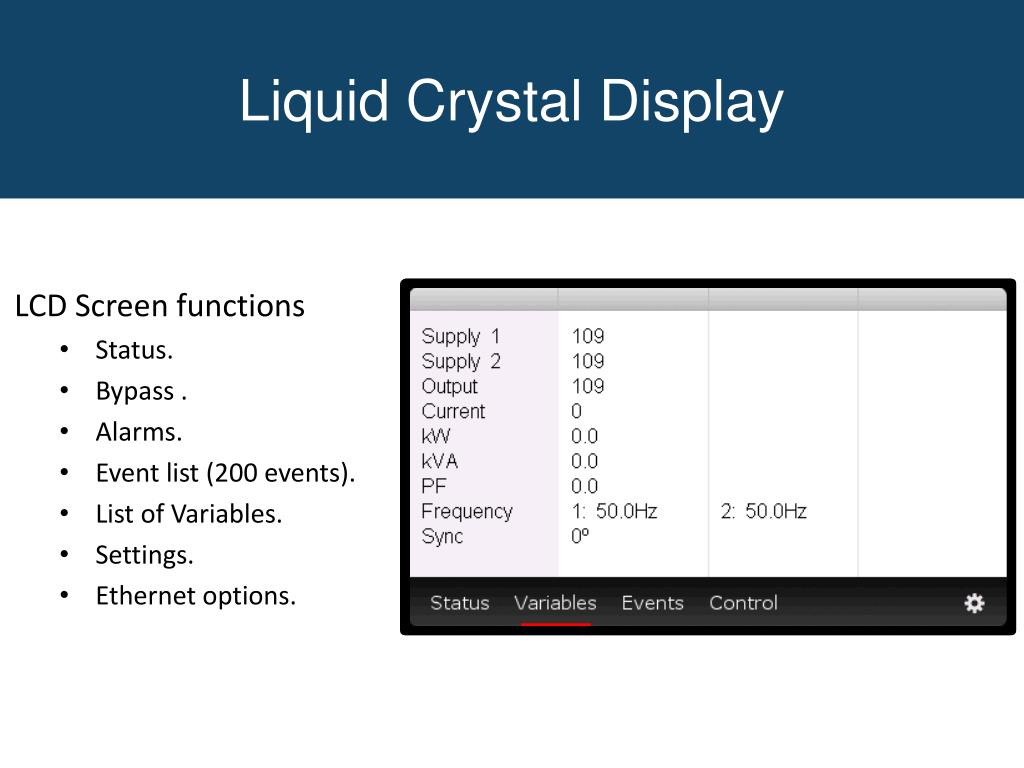

  5. Liquid Crystal Display LCD Screen functions • Status. • Bypass . • Alarms. • Event list (200 events). • List of Variables. • Settings. • Ethernet options.

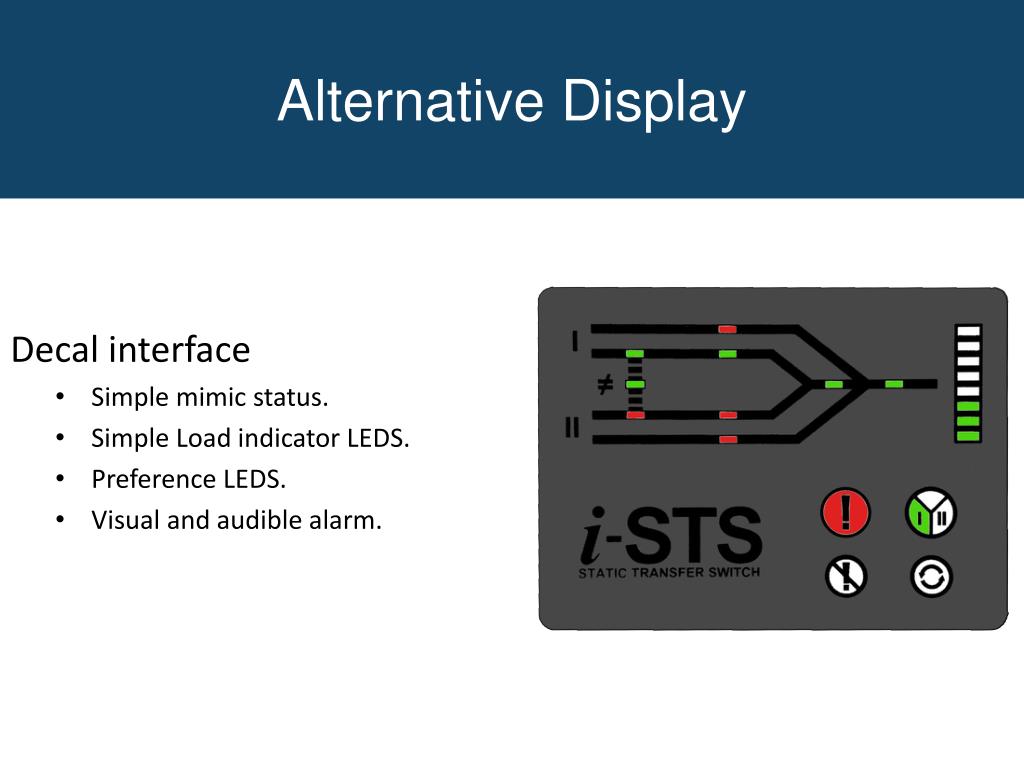

  6. Alternative Display ` Decal interface • Simple mimic status. • Simple Load indicator LEDS. • Preference LEDS. • Visual and audible alarm.

  7. Features • Multiple communications options • From Ethernet (IEEE802.3 10BaseT) • SNMP • MODBUS • HTTP - Web server • Email Alerts. • 5 relay outputs. • Pin 10 to 12 General Alarm • Pin 6 to 8 RLY-O/P Not in Synch • Pin 2 to 4 RLY-O/P Overloaded • Pin 1 to 3 RLY-O/P ON A • Pin 5 to 14 RLY-O/P ON B • 2 control inputs. • Pin 13 to Pin 7 Remote Transfer to S1 • Pin 11 to Pin 7 Remote Transfer to S2

  8. LAN interface Ethernet functions • Status. • Event list (200 events). • List of Variables. • Control panel. • Settings panel.

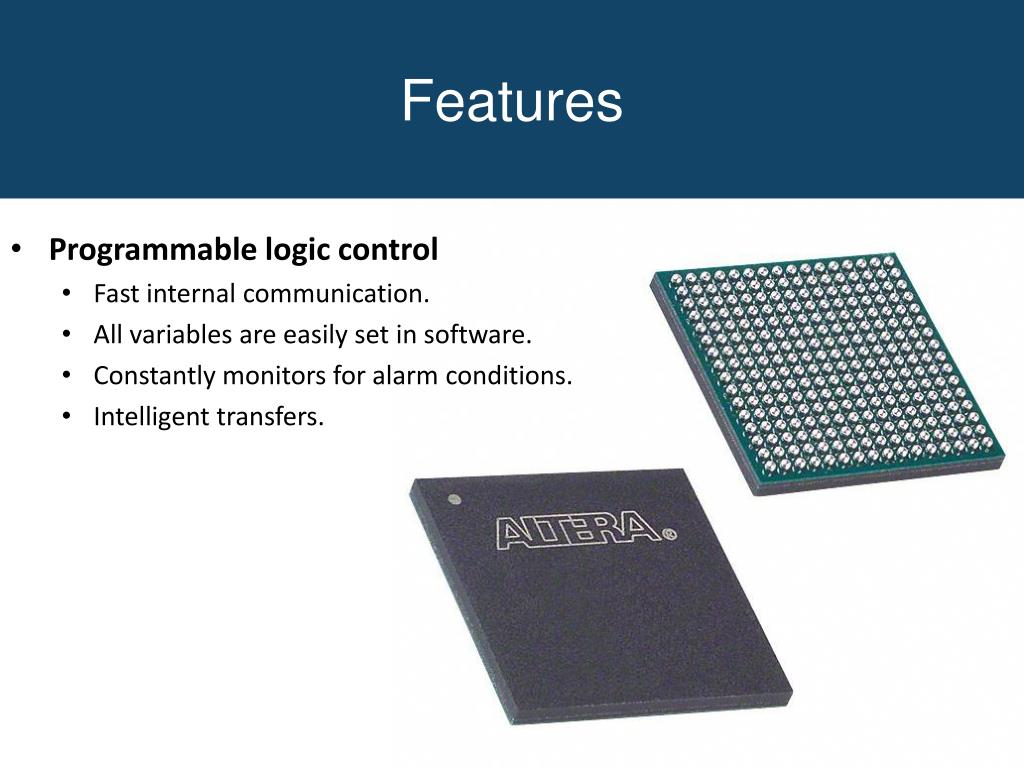

  9. Features • Programmable logic control • Fast internal communication. • All variables are easily set in software. • Constantly monitors for alarm conditions. • Intelligent transfers.

  10. Features • Flexible configurations • Screw Cage terminal (Up to 25mm2) for Input/output. • Hot socket field replaceable power module.

  11. Weight and Dimensions Width: 483mm, 19” Height: 88mm, 3.5” Depth: 520mm, 20.5” Weight (typical): 15Kg, 33 lbs

  12. Specification
