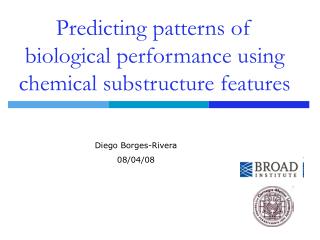

predicting patterns of biological performance using chemical substructure features

Predicting patterns of biological performance using chemical substructure features

Diego Borges-Rivera

08/04/08

introduction

10111010001010101000101101

01010001011011

Introduction
  • cheminformatics – allow us to computationally describe similarity
  • synthetic chemists – describe through visual inspection
  • we will describe compounds by the presence of chemical substructures
  • we will attempt to identify sets of substructures that predict biological performance
previous work

10

20

30

40

50

60

substructures

Previous work
  • Clemons/Kahne/Wagneret al. -- disaccharide profiling in multiple cell states
  • found sets of substructures relevant to biological activity patterns
  • substructures highly specific to disaccharides
biological performance profile
Biological performance profile
  • 400 compounds, 8 assays in duplicate
  • tested for cell proliferation in 8 different cell lines
  • class labels are active (A) or inactive (I)

active compound

what are fingerprints
What are fingerprints?
  • compound collection fed into commercial software
  • each substructure = 1 bit
  • the fingerprint shows which substructures are present

substructure #7017

substructure #886

substructure #1725

overview of cheminformatic methods
Overview of cheminformatic methods
  • produced fingerprints  7700 total substructures
  • filtered set
  • left 2166 substructures
overview of computational methods
Overview of computational methods
  • two steps independent of each other

feature (substructure) selection to find predictive subsets

evaluate methods for predictive value

relieff substructure selection
ReliefF: substructure selection

Top 5

-1

0

+1

2166 weights

Bottom 5

similarity between compounds
Similarity between compounds
  • similarity between two fingerprints
  • Tanimoto coefficient
  • this is used twice:
    • in ReliefF
    • in knn

Example:

Compound a: 0 0 1

Compound b: 1 0 1

Tanimoto coefficient = 1 / 2 = .5

cross validation predictive accuracy

test set

training set

Cross-validation: predictive accuracy
  • 10 subsets
  • test set: one of the subsets
  • training set: the remaining subsets
picking parameters for methods
Picking parameters for methods
  • which parameters produce the best predictive accuracies
    • number of neighbors used in ReliefF {1, 2, 4, etc}
    • number of neighbors used in knn {1, 2, 4, etc}
    • number of ReliefF substructures used to predict classes in knn {1, 20, 100, etc}
picking number of substructures

1.0

.9

.8

.7

.6

.5

.4

.3

.2

.1

0.0

predictive accuracy

1 20 all

number of substructures used to predict

Picking number of substructures
future work
Future work
  • multi-class
  • different feature selection
acknowledgements
Acknowledgements

Computational Chemical Biology

Joshua Gilbert

Paul Clemons

Hyman Carrinski

Summer Research Program in GenomicsShawna Young

Lucia Vielma

Maura Silverstein
