  1. ICT 435 Senior Project Kenneth Anderson David Gonzales Logan Fernandez

  2. Police Headquarters it proposal Topics covered in proposal: Server Personal Computers Network Personal training

  3. The Outline of the Headquarters IT devices in the police headquarters: 65 IP telephones 29 IP printers 78 computers 2 servers

  4. ICT 435: Senior Project Workstation & Server report

  5. Server Hardware • It is a matter of note that the Server may be among the most important element of any computer network.

  6. Our Server has to:

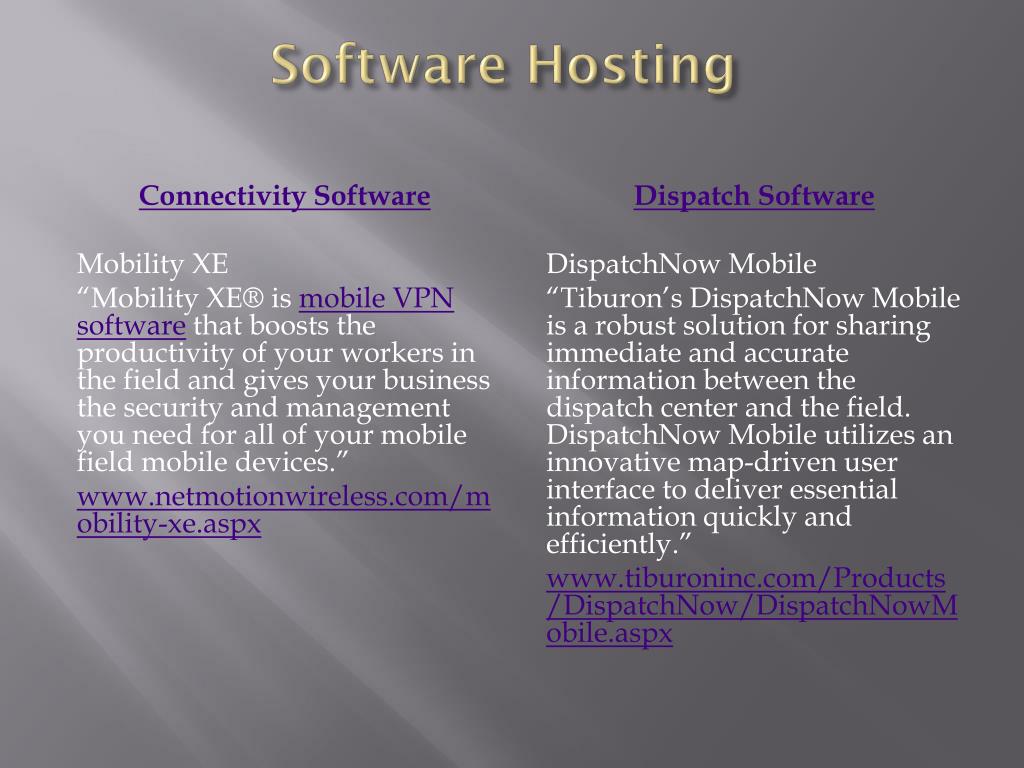

  7. Software Hosting  Connectivity Software Mobility XE “Mobility XE® is mobile VPN software that boosts the productivity of your workers in the field and gives your business the security and management you need for all of your mobile field mobile devices.” www.netmotionwireless.com/mobility-xe.aspx Dispatch Software DispatchNow Mobile “Tiburon’s DispatchNow Mobile is a robust solution for sharing immediate and accurate information between the dispatch center and the field. DispatchNow Mobile utilizes an innovative map-driven user interface to deliver essential information quickly and efficiently.” www.tiburoninc.com/Products/DispatchNow/DispatchNowMobile.aspx

  8. Software hosting We believe that these systems can be made to run most reliably in a virtualized environment on the Server.

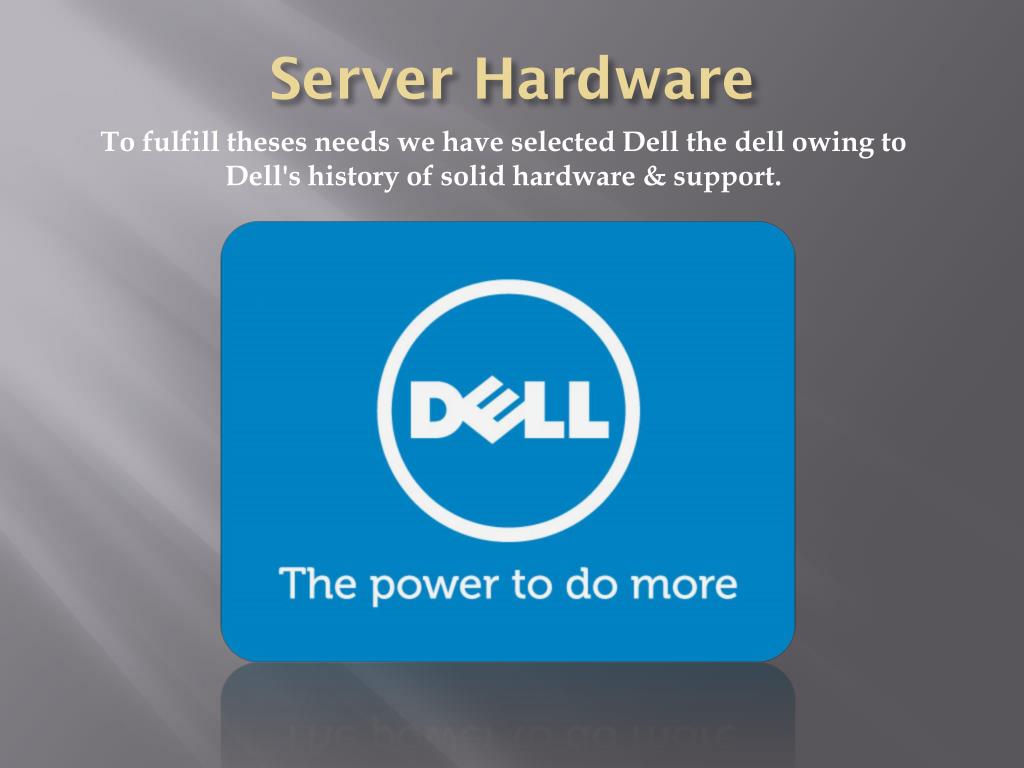

  9. Server Hardware To fulfill theses needs we have selected Dell the dell owing to Dell's history of solid hardware & support.

  10. Hardware After some discussion we decided to uses a Dell PowerEdge R520

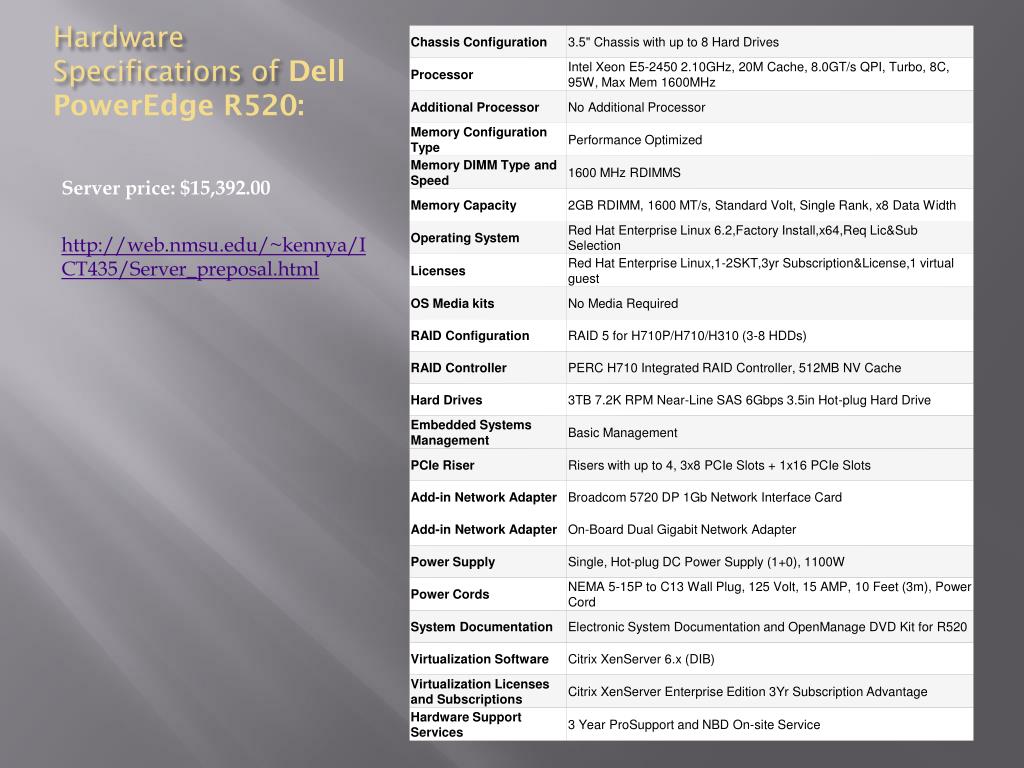

  11. Hardware Specifications of Dell PowerEdge R520: Server price: $15,392.00 http://web.nmsu.edu/~kennya/ICT435/Server_preposal.html

  12. Proposed Workstations While the Server may be the most important element of this computer network, the workstations are where the real day-to-day work takes place.

  13. We have identified a few basic needs for the workstations Interchangeability Upgradability Owing to the logistical and technical issues that result from managing a mishmash of different hardware & software. We have decided that if we are to start ‘cold turkey’ that it would be best if all our systems were as identical to each other as possible. Such homogeneity would facilitate a quick and cheap recovery in the event of a serious problem either in software or in hardware (Due to recovery & reuse of interchangeable parts). In order to meet a diversity of needs both now and in the next handful of years it is necessary that any generic system selected have the capacity to be upgraded.

  14. Proposed Hardware To fulfill theses needs we have selected the Dell Precision T1650 as our base system. Dell Precision T1650:

  15. Proposed Workstations Hardware specifications: To the right are the base System Hardware specifications We expect the base system to cost around: $708.00 For more advanced user system requirement we intend to simply upgrade theses machines in order to maintain the level of uniformity necessary to meet our goal of interchangeability.

  16. ProposedWorkstationsSoftware: No computer does anyone any good without software, as such no statement on workstations can be said to be compete without discussing some of the Standard software that each station will come equipped with.

  17. Java Oracle’s Java platform has become a standard for modern software applications both on the web(Java Script) and on system applications. It is therefore logical to include Java on all systems as Standard.

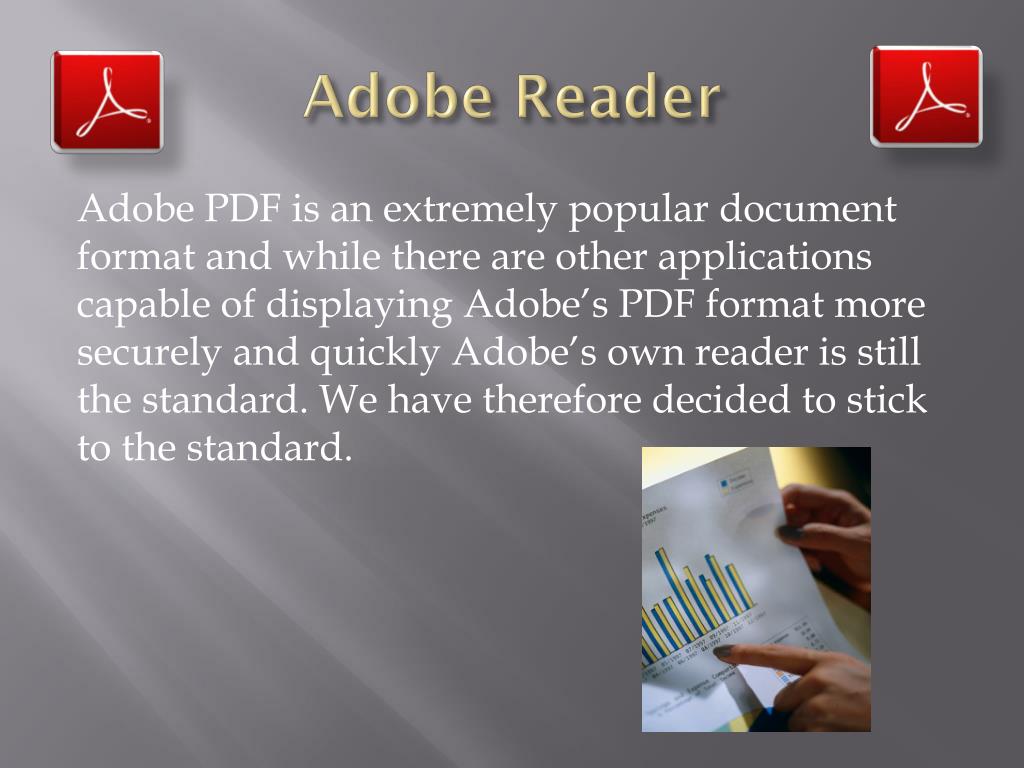

  18. Adobe Reader Adobe PDF is an extremely popular document format and while there are other applications capable of displaying Adobe’s PDF format more securely and quickly Adobe’s own reader is still the standard. We have therefore decided to stick to the standard.

  19. Adobe Flash Player While much of the web post IPhone boom has been moving away from flash based applications the number of Flash based websites is still quite significant and therefore Adobe Flash player is still a requirement. We have opted to include this application despite its security issues due to the need for functionality and compatibility.

  20. Firefox web browser Firefox is one of the most popular web browsers in uses today and is much more frequently updated (and therefore secure) than the default Window’s web browser Internet explorer. Given the number of web based application that the Sheriff’s office must employ on a regular basis we feel Firefox is a good pick as safe standard browser to meet their needs.

  21. Microsoft Office 2010 Professional It is difficult to find an office environments without an office productivity software suite. (Be it Microsoft Office, or Apache OpenOffice.) The sheriff’s department is no exception to this rule. So to fulfill the sheriff’s department's productivity software needs we have selected the popular Microsoft Office 2010 professional.

  22. ProposedWorkstationsSoftware: The standard software needed on the workstations are comparable with most business computers:

  23. Specialized Applications Specialized applications individual Officers may require will have to be installed on each users workstation by the Information Technology staff on a case by case basis.

  24. Network Configuration • Subnetting and separation of groups • Router choice • Switch choice

  25. IP Addresses Setting up a private address scheme: • Decided on a Class B address scheme: 172.16.0.1-172.31.255.254 /12 • This will provide IP addresses needed for all the subnets, and leave room for additional addresses. • VLSM will be used to preserve IP addresses

  26. Subnetting Groups are separated by function. The groups are: • Printers: 172.16.1.0-172.16.1.63 /26 62 hosts • Phones: 172.16.0.0-172.16.0.127 /35 126 hosts • Administrative: 172.16.128-172.16.159 /27 30 hosts • Non-administrative(general): 172.16.0.128-172.16.0.255 /25 126 hosts • Server/video camera:172.16.1.64-172.16.1.127 /26 62 hosts

  27. Network Hardware Requirements of hardware: • ACL capability • Subnet configuration • Trunking capability for multiple switches • DMZ capability to protect servers

  28. Router Cisco 3925E Integrated Service Router : • Capable of handling all subnetting and VLSM required. • Can make virtual DMZ for servers.

  29. Switches Cisco SGE2010 48-port gigabyte switch: • Six would be used with VTP • POE capable for IP phones • Fast enough to handle load, and VLAN capable

  30. Employee Policy Enforcement Systems:

  31. Sensitive Digital Storage All sensitive, classified, case, personnel, and administrative files will be stored on the server in a system of encrypted directory shared individually to only select password protected personnel user accounts. Access to these files will be granted on an individual & group (such as rank, division, ect.) basis by department management on a need to know basis.

  32. Active Directory • We can set permissions on a user basis or a computer basis. We can control what server drives computers are mapped to base on the OU they’re in. However file permissions may be our biggest use for this technology.

  33. Administrator Accounts • No administrator accounts for non-IT users. This will prevent employees from installing any non approved software. • Where necessary we could modify minor account rights. • The primary focus here is to prohibit the instillation of non-work • related software on work systems. • Possibly prevent viruses or Trojans from getting into the network.

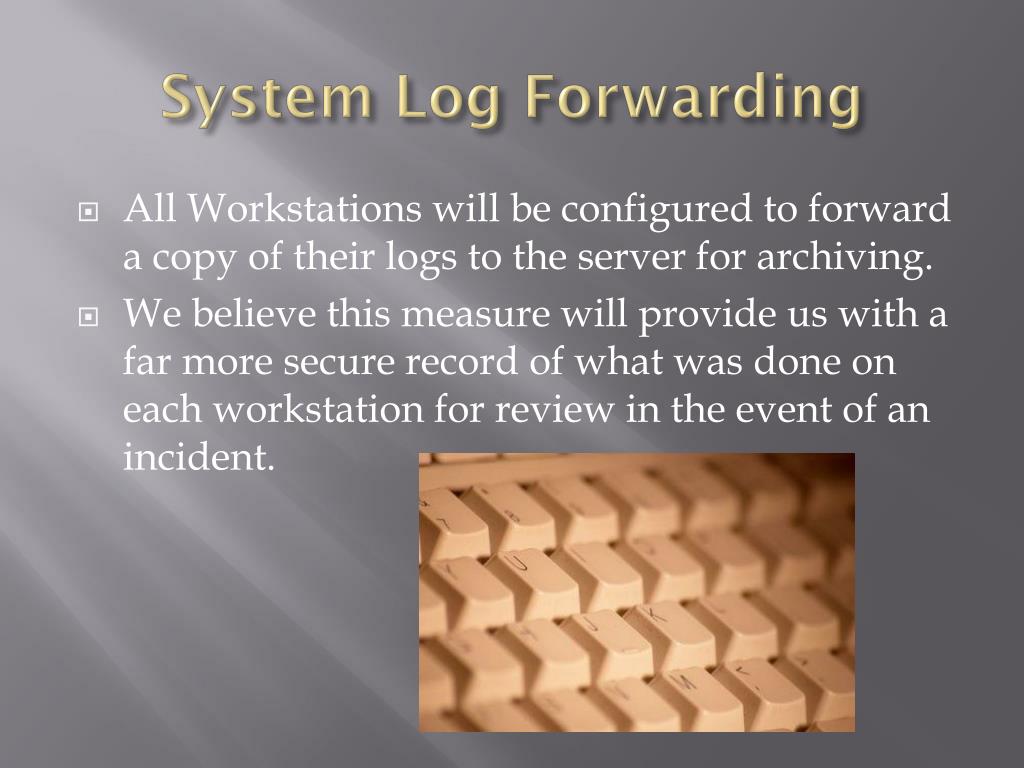

  34. System Log Forwarding • All Workstations will be configured to forward a copy of their logs to the server for archiving. • We believe this measure will provide us with a far more secure record of what was done on each workstation for review in the event of an incident.

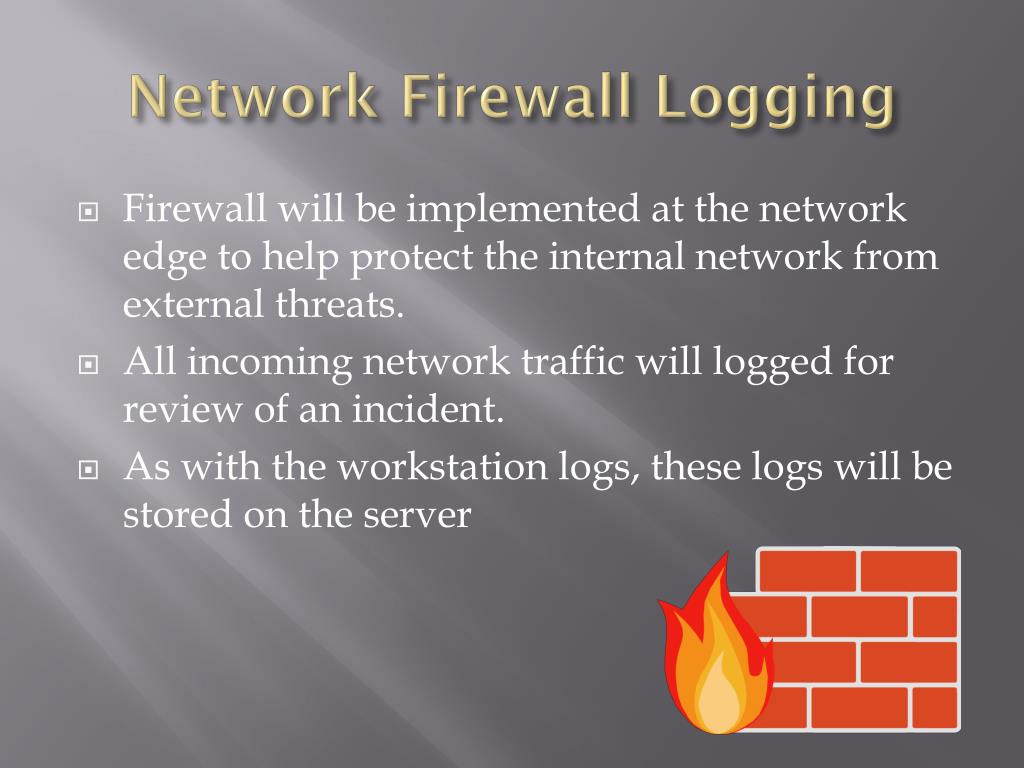

  35. Network Firewall Logging • Firewall will be implemented at the network edge to help protect the internal network from external threats. • All incoming network traffic will logged for review of an incident. • As with the workstation logs, these logs will be stored on the server

  36. Employee training

  37. Employee Training • It can be said without reservation that people are the most important part of any operation. That policy’s regarding the utilization of people is as such the cornerstone of any organized operation be it a fortune 500 company or a simple sheriffs department.

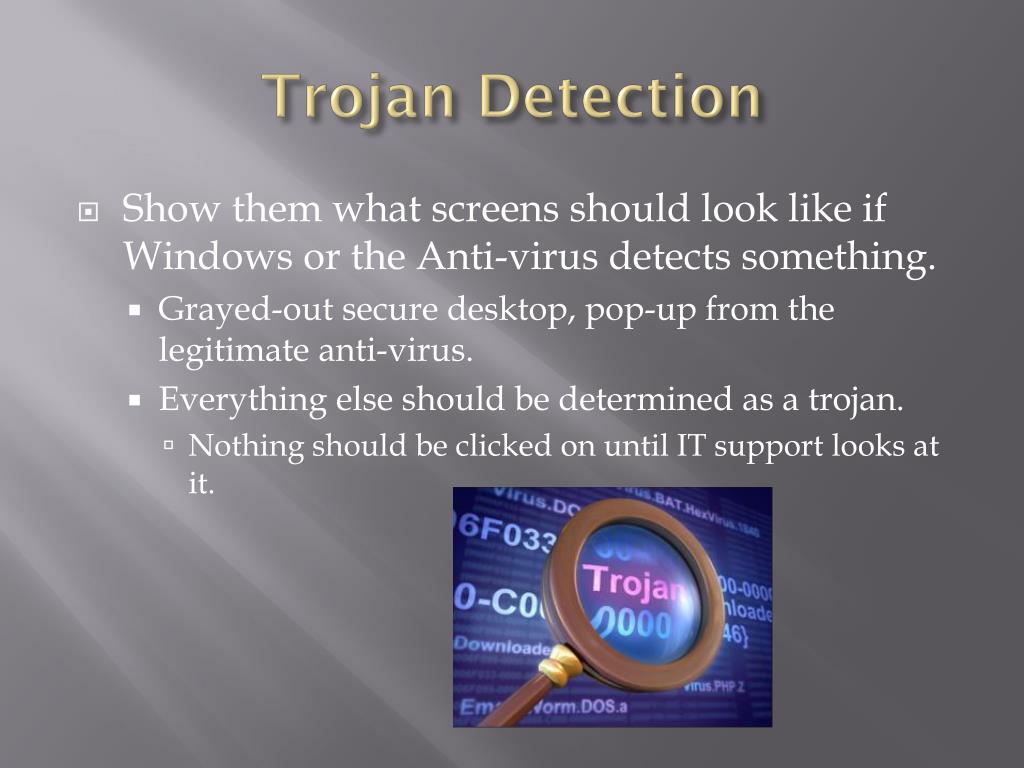

  38. Trojan Detection • Show them what screens should look like if Windows or the Anti-virus detects something. • Grayed-out secure desktop, pop-up from the legitimate anti-virus. • Everything else should be determined as a trojan. • Nothing should be clicked on until IT support looks at it.

  39. Email Safety • If you receive an email from an unknown address: • Do not open any attachment or click any links. • Do not send any information back. • Verify the address with your supervisor or with IT before doing anything.

  40. Flash Drive Safety • Scan flash drives for viruses before opening anything on the flash drive. • It does not take that much time. • By doing so you can root out some basic viruses. • Autoruns will be disabled be default.

  41. Social Media Safety • Do not use social media sites while at work. • Be careful what information you share while at home. • The information you share can used to attack you and the office • Even if you share with those that are friends or family. • Accounts can be hacked and personal details shared can be used to aid hackers in compromising other systems.

  42. File Securty • Get approval from your supervisor before taking copies of any work files home. • Files deemed as evidence are monitored and all activity is logged. • All file transfers from computers are also monitored and all activity is logged.

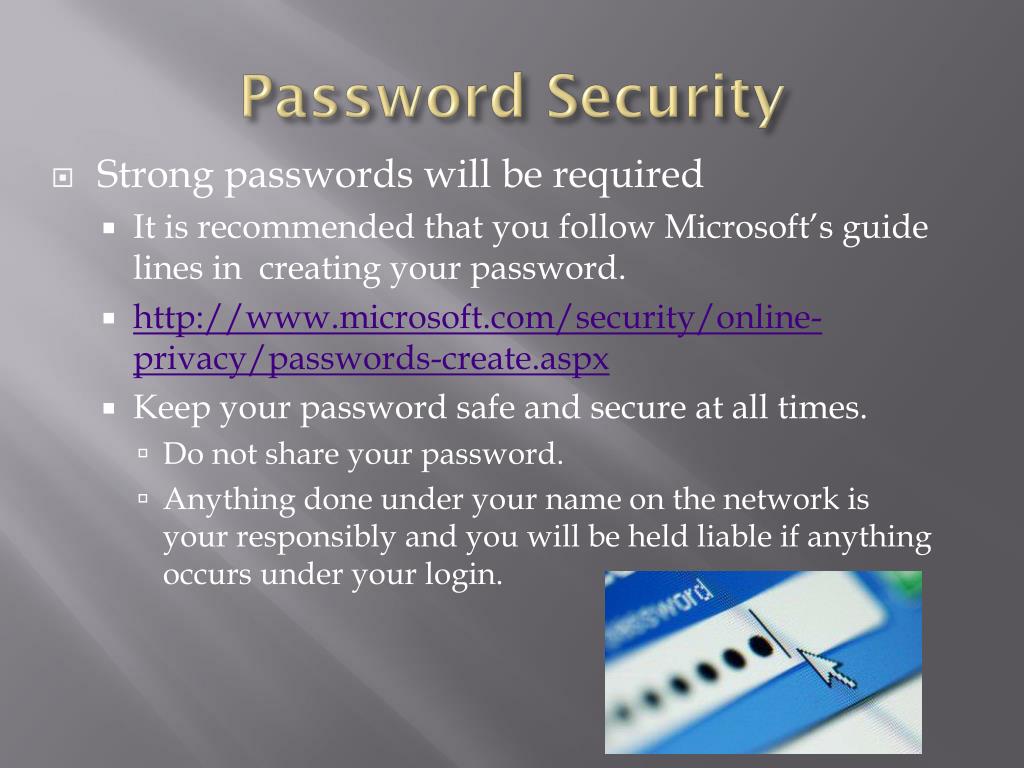

  43. Password Security • Strong passwords will be required • It is recommended that you follow Microsoft’s guide lines in creating your password. • http://www.microsoft.com/security/online-privacy/passwords-create.aspx • Keep your password safe and secure at all times. • Do not share your password. • Anything done under your name on the network is your responsibly and you will be held liable if anything occurs under your login.
