Present MFT planes layout

Present MFT planes layout. Reduction of MFT detector planes inner diameter could produce ineterference with the bellows and the beampipe support during the installation phase. 16.5mm. 100mm. 16.5mm ( vertical movement toto be done in less the 40mm-space between two bellow ).

martha
Download Presentation

Present MFT planes layout

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Present MFT planes layout Reductionof MFT detector planesinnerdiametercould produce ineterferencewith the bellows and the beampipesupportduring the installationphase

  2. 16.5mm 100mm

  3. 16.5mm (verticalmovement toto bedone in less the 40mm-space betweentwobellow) D=54mm D=60mm D=40mm Planesbetweeenbellows 54 mm diameterhole detector planeneedstoclear 60mm Bellowsdiameter (and 60mm diameter BP Al section)

  4. MFT vs ITS

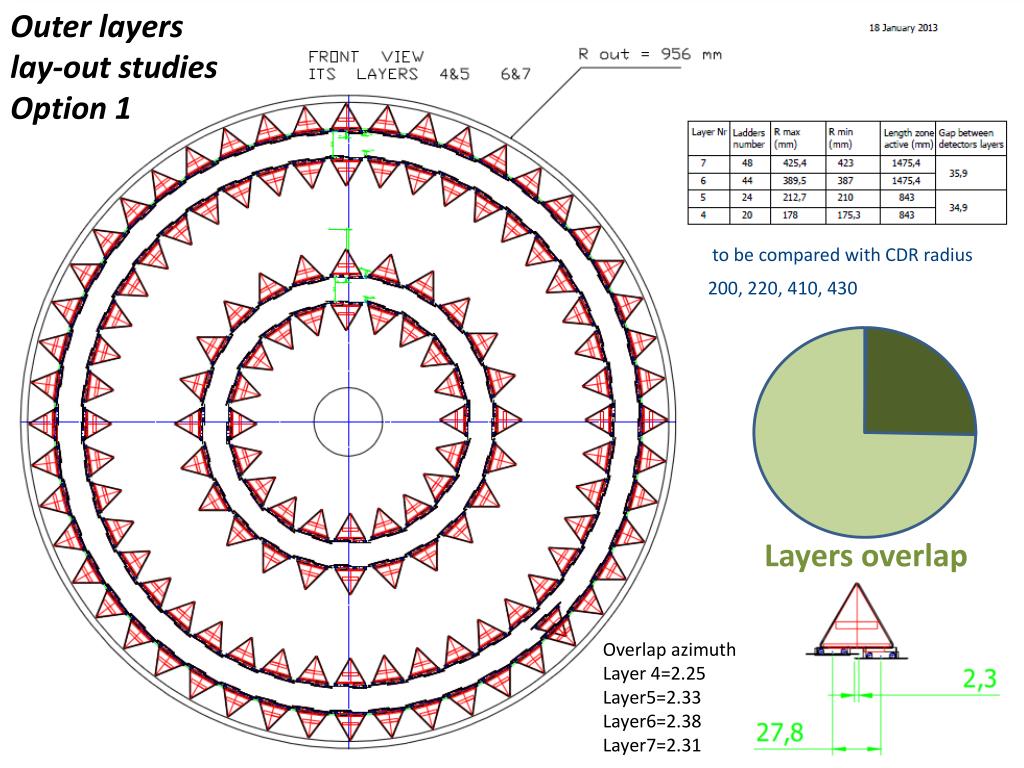

  5. Outer layers lay-out studies Option 1 to be compared with CDR radius 200, 220, 410, 430 Layersoverlap Overlap azimuth Layer 4=2.25 Layer5=2.33 Layer6=2.38 Layer7=2.31

  6. Outer layers Geometrical lay-out studies Option 2 to be compared with CDR radius 200, 220, 410, 430 Layersoverlap Overlap azimuth Layer 4=2,11 Layer5=2,33 Layer6=2,30 Layer7=2,32

  7. Outer layers Geometrical lay-out studies Option 3 to be compared with CDR radius 200, 220, 410, 430 Layersoverlap Overlap azimuth Layer 4=2.19 Layer 5=2.33 Layer 6=2.31 Layer 7=2.31

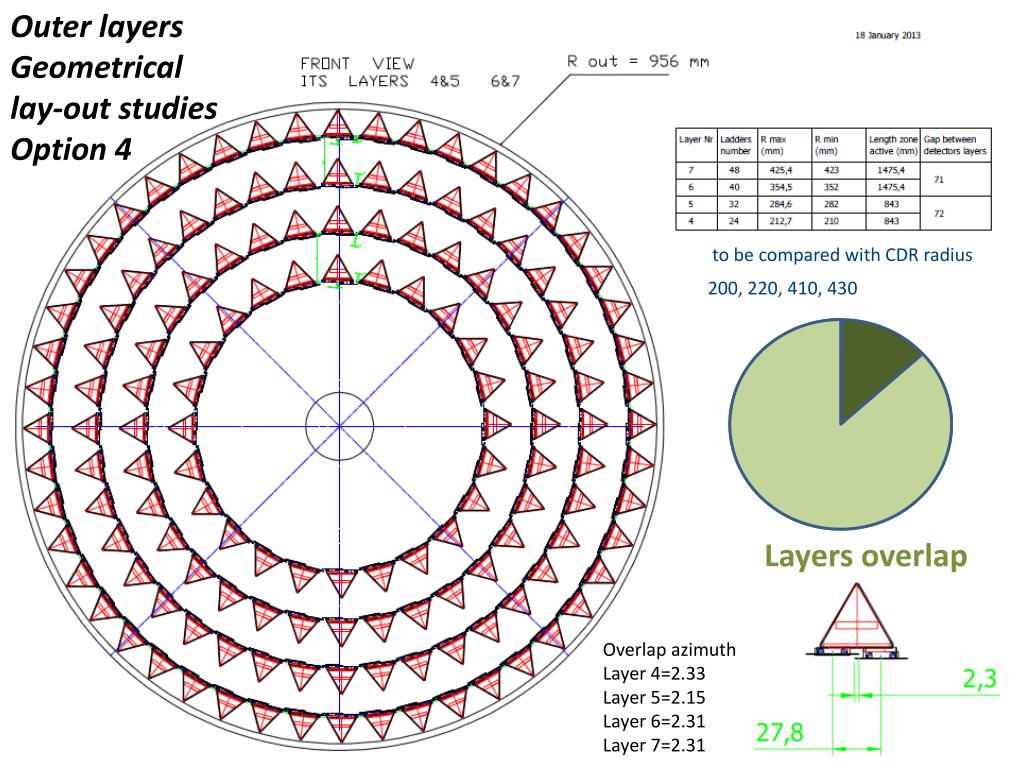

  8. Outer layers Geometrical lay-out studies Option 4 to be compared with CDR radius 200, 220, 410, 430 Layersoverlap Overlap azimuth Layer 4=2.33 Layer 5=2.15 Layer 6=2.31 Layer 7=2.31

  9. Outer layers Geometrical lay-out studies Option 5 to be compared with CDR radius 200, 220, 410, 430 Layersoverlap

  10. Layer 6 & 7 Layer 4 & 5

  11. SERVICES WAY OUT A-Side

  12. NEW ITS INTEGRATION DETECTOR BARREL SERVICE BARREL MFT ITS LAYER 4,5,6,7 ITS LAYER 1,2,3 CAGE BEAM PIPE TPC OD= 1130mm CAGE OD= 1100mm MFT OD= 1030mm ITS OUT BARREL OD= 920mm
