  1. Customized form for feature: Selection, Information display, Zooming, Panning , Full Extent scale reset __________________________ David Jaquet GIS Customization (32-640-01) Fall 2005

  2. Background The California State Enterprise Zone (EZ) Hiring Tax Credit is a state income tax credit for employers who hire job seekers from targeted groups. Employers can claim up to $31,605 in tax credits over a five-year period when they hire qualified employees. Employees must perform at least 50% of their work within the boundaries of the Zone. Employers must have an EZ Voucher to claim the credit.  Only businesses located in San Francisco's Enterprise Zone are eligible to participate. Information obtained from Private Industry Council of San Francisco San Francisco Enterprise Zone (Area in black)

  3. Objectives Create a form that contains: • A macro command to launch the form • Checkboxes for selecting each Landuse Planning attribute type within the San Francisco Business Enterprise Zone. The selected LUP attribute type corresponds to a map feature. Upon selecting a checkbox the corresponding map feature get selected after clicking the update button. Upon clicking the exit button on the form the all selected features are deselected, and form exits. • A Zoom feature like the one from the class exercises allowing the user to zoom in/out from selected LUP attribute type(s). • A Full extent tool to reset map scale. • A Pan feature like the one from the class exercises allowing the user to pan in different directions at current zoom scale or at full extent.

  4. Objective Results -1 • Run macro to launch form

  5. Objective Results -2 • Update button to refresh selection for display Exit button to exit form, also deselects all features • Checkboxes to select features to be displayed

  6. Objective Results -3 • A zoom in/zoom out tool to set map scale

  7. Objective Results -4 • A Full extent tool to reset map scale

  8. Objective Results -5 • Pan features to pan around map • with selected or deselected features

  9. Difficulties Difficulties were encountered while integrating new codes with codes learned from class, and modifying these new codes to make them behave as needed.

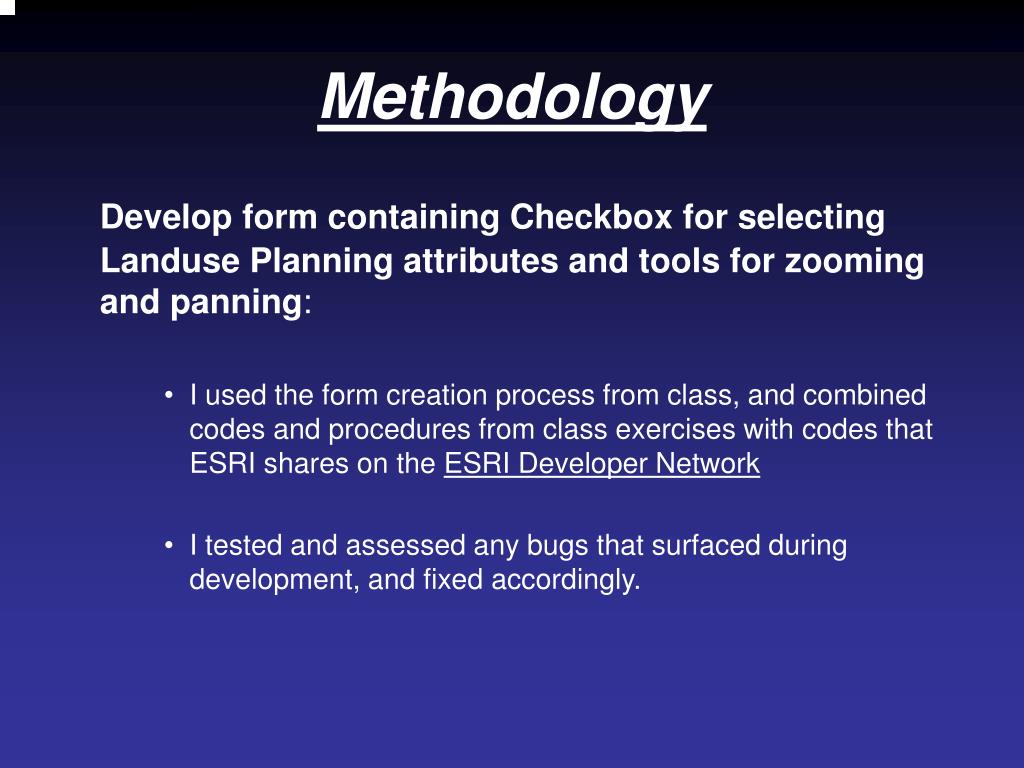

  10. Methodology Develop form containing Checkbox for selecting Landuse Planning attributes and tools for zooming and panning: • I used the form creation process from class, and combined codes and procedures from class exercises with codes that ESRI shares on the ESRI Developer Network • I tested and assessed any bugs that surfaced during development, and fixed accordingly.

  11. Time Table • Day 1-2: Brainstorm and research any necessary new codes to build new custom form for selecting Landuse Planning attribute types. Have tools function together seamlessly. • Day 3-6: Create form and code with new codes and familiar codes. Test bugs and fix bugs during development. • Day 7:Finalizing testing under various scenarios and fix any unwanted outcomes.

  12. Results A bug free form tool that allowa me to: • Select Landuse planning attribute types located within the San Francisco Enterprise Zone. • Upon selection the tool allows me to zoom in/out and pan in all directions at current or full extent scale.

  13. Potential Benefits Allow a user interested in the benefits of the San Francisco Enterprise zone to obtain business opportunity information, both qualitative and quantitative, quickly and efficiently.
