  1. Fractal Technologies FreePDK45nm Library Validation Fractal Technologies Confidential

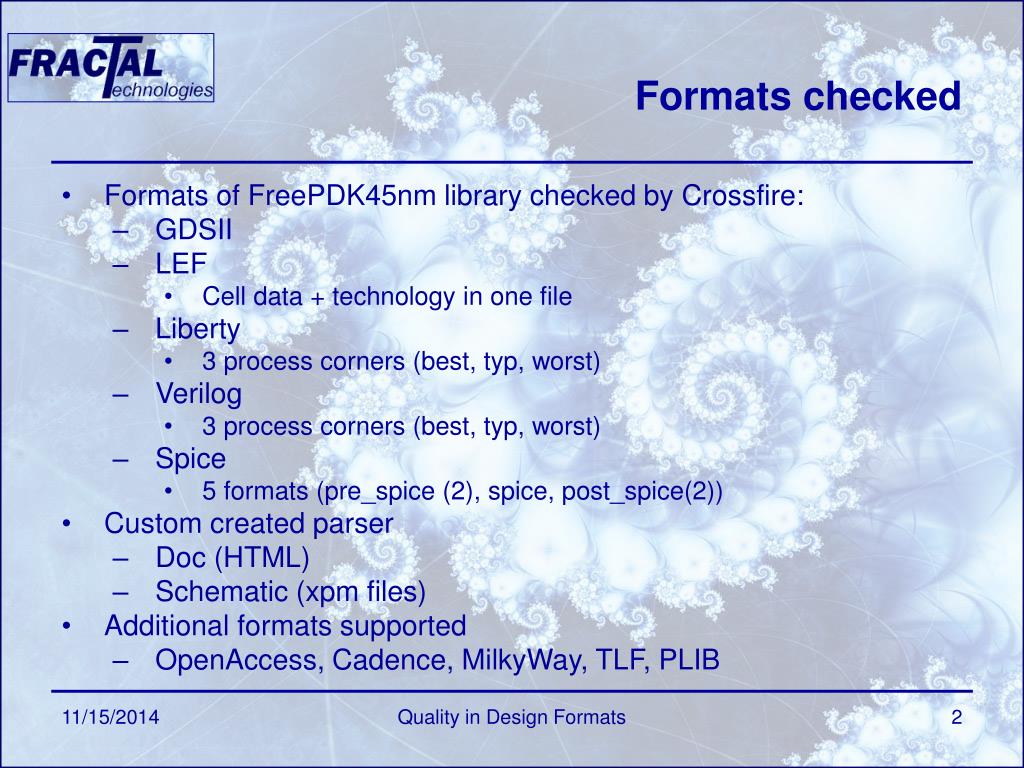

  2. Formats checked • Formats of FreePDK45nm library checked by Crossfire: • GDSII • LEF • Cell data + technology in one file • Liberty • 3 process corners (best, typ, worst) • Verilog • 3 process corners (best, typ, worst) • Spice • 5 formats (pre_spice (2), spice, post_spice(2)) • Custom created parser • Doc (HTML) • Schematic (xpm files) • Additional formats supported • OpenAccess, Cadence, MilkyWay, TLF, PLIB Quality in Design Formats

  3. Cell-presence (1) • Using cell-lists provided with library: • Schematics.lst (107 cells) • Fills.lst (6 cells) • Cell presence check • GDSII: • Found all Schematic and Fill cells • LEF • Found all Schematic and Fill cells + Via1 Via2 (from technology) • Liberty • Best: Found all Schematic and Fill cells • Typ: Found all Schematic and Fill cells • Worst: Found all Schematic and Fill cells • Verilog • Best: Found all Schematic and Fill cells • Typ: Found all Schematic and Fill cells • Worst: Found all Schematic and Fill cells • Spice • Pre (single file + cell based): Found all Schematic and Fill cells • (cell based): Found all Schematic and Fill cells • Post (single file + cell based): Found all Schematic and Fill cells • Docs • All schematic and all Fill cells found Quality in Design Formats

  4. Terminals & Pins • Are the same pins defined in all formats? • Used Verilog (Typ) as Golden Reference • Pins of the same name and direction found in: • Liberty (3 corners) • Verilog (3 corners) • Cell Documentation • VDD/VSS terminals are additional in : • LEF • Spice ( 6 formats) • No pins: • GDSII Golden Reference Checked Format Quality in Design Formats

  5. Pin-Labels • Do pins defined in the GR have text labels in the checked formats • Used Veriliog (typ) as golden-reference • All pins from Verilog_typ are found as labels in: • GDSII • Has VDD, VSS labels but Verilog (Typ) has no VDD,VSS pins • All pins have labels in M1 (“11 0”) • All other formats have no text labels (no check needed) Quality in Design Formats

  6. Nets • There are no formats with a “net” concept. • Normally these are Cadence-DFII and MilkyWay Quality in Design Formats

  7. Layout vs. layout • Checks identity between polygons: layout-vs-layout or abstract-vs-layout • Performs Boolean mask XOR operations • Detailed check example: • “M1 drawing”+”M1 pin” in layout == “M1 net”+”M1 boundary” in abstract • Performed only 1 check for M1 • GDSII vs LEF • M1 in GDSII is equal to M1 in LEF • Other formats not relevant (no layout information) Quality in Design Formats

  8. LEF cells Check • Checks if LEF cells have the correct size acc. To LEFtech • ALL cells OK • Parsing issues for LEF 5.6 • NAMECASESENSITIVE, DIRECTION in VIARULE and turn-via are obsolete in LEF 5.6 Quality in Design Formats

  9. Routability • Checks if signal-pins can be routed to cell-boundary • Uses fast internal gridded maze router • Users select layers (e.g. M1 only) or special rules (e.g. double-via’s on outputs of high-drive cells) • Technology settings (rules, vias, pitch) read from LEF technology • All pins of all cells routable in M1 and M2 • Totally 113 cells with 461 pins • M1 only: 373 pins are not routable • M1 and M2: 312 pins not routable (not on grid) Quality in Design Formats

  10. Abutment • All cells checked for self-symmetry and left/right abutment (alignment on cell-boundary) with reference cell (FILLCELL_X1): • layers: M1 CONTACT NWELL PWELL PIMPL NIMPL DIFF M2 • Formats: GDSII • No errors found Quality in Design Formats

  11. Functional Equivalence(1) • Verified functional equivalence between Verilog, SPICE, and Liberty • Checks equivalence of Boolean expressions from different databases • For SPICE, expressions are automatically extracted from the circuit • All Verilog files are equal for the functions • All Liberty files are equal for the functions • Liberty_typ is equal to Verilog_typ Quality in Design Formats

  12. Functional Equivalence(2) • Verilog_typ/Liberty vs spice • DFFRS_X1 flipflop has non matching QN output with Verilog/Liberty when SN and RN are low and CK 0->1 • Verilog UDP table • table • // SN RN nextstate CK NOTIFIER : @IQ : IQ • 1 ? 0 r ? : ? : 0; • ? 1 1 r ? : ? : 1; • 1 ? 0 * ? : 0 : 0; // reduce pessimism • ? 1 1 * ? : 1 : 1; // reduce pessimism • 1 1 * ? ? : ? : -; // Ignore all edges on nextstate • 1 1 ? f ? : ? : -; // Ignore non-triggering clock edge • ? 0 ? ? ? : ? : 0; // RN activated • 1 * ? ? ? : 0 : 0; // Cover all transitions on RN • 0 1 ? ? ? : ? : 1; // SN activated • * 1 ? ? ? : 1 : 1; // Cover all transitions on SN • ? ? ? ? * : ? : x; // Any NOTIFIER change • endtable • endprimitive • This means when RN = 0 (and SN = 0) => IQ = 0 Quality in Design Formats

  13. Functional Equivalence(3) • Verilog netlist is: • seq4(IQ, SN, RN, nextstate, CK, NOTIFIER); • and(IQN, i_352, i_353); • not(i_352, IQ); • not(i_353, i_354); • and(i_354, i_355, i_356); • not(i_355, RN); • not(i_356, SN); • buf(Q, IQ); • buf(QN, IQN); • buf(nextstate, D); • This means QN is anded with RN so QN should remain 0 when RN=0 • Crossfire output • V:lib0791: 'DFFRS_X1': Equations for terminal 'QN' of format 'pre_spice_1file': • QN=!RN*SN + !RN*CK + SN*CK*!z51 + SN*!CK*z56 • z51=!SN + D*!CK + RN*CK*z51 • z56=!RN + SN*CK*!z51 + SN*!CK*z56 • E:xpr0301: 'DFFRS_X1': Result for output 'QN' is different in '2' situations, • e.g. when 'CK 0->1‘ • This means that QN 0->1 when CK 0->1 and RN is 0 Quality in Design Formats

  14. Functional Equivalence(4) • Just to be sure this was simulated with a spice simulator • Plots Q and QN • SN and RN = 0 • CK 0->1 • Same for: • DFFRS_X2 • SDFFRS_X1 • SDFFRS_X2 Quality in Design Formats

  15. Functional Equivalence(5) • Advantage of functional equivalence checker • Not simulation based • No test vectors needed. • Completeness • Runs much faster than simulation based. • Seconds instead of hours Quality in Design Formats

  16. Timing Characterization (1) • Check if all timing arcs exists • Identical timing arcs for all Liberty files • Identical timing arcsfor all Verilog files • Liberty misses many conditional timing arcs compared to verilog_worst, verilog_best • 88 cells miss conditional timing arcs in Liberty • All liberty formats have same conditional timing arcs as Verilog_typ. • But verilog file is called “conditional” while data is non conditional? Quality in Design Formats

  17. Timing Characterization (2) • Missing liberty conditional timing arcs (e.g. XOR2_X2) • Verilog (best): (Line 3218) • if((B == 1'b0)) (A => Z) = (0.1, 0.1); • if((B == 1'b1)) (A => Z) = (0.1, 0.1); • if((A == 1'b1)) (B => Z) = (0.1, 0.1); • if((A == 1'b0)) (B => Z) = (0.1, 0.1); • Liberty (best): (Line 36103) • Has unconditional positive unate nagetive unate • Can negative/positive unate arcs in liberty backanotate to conditionalarcs in Verilog. • We think not if it can this is not really an error Quality in Design Formats

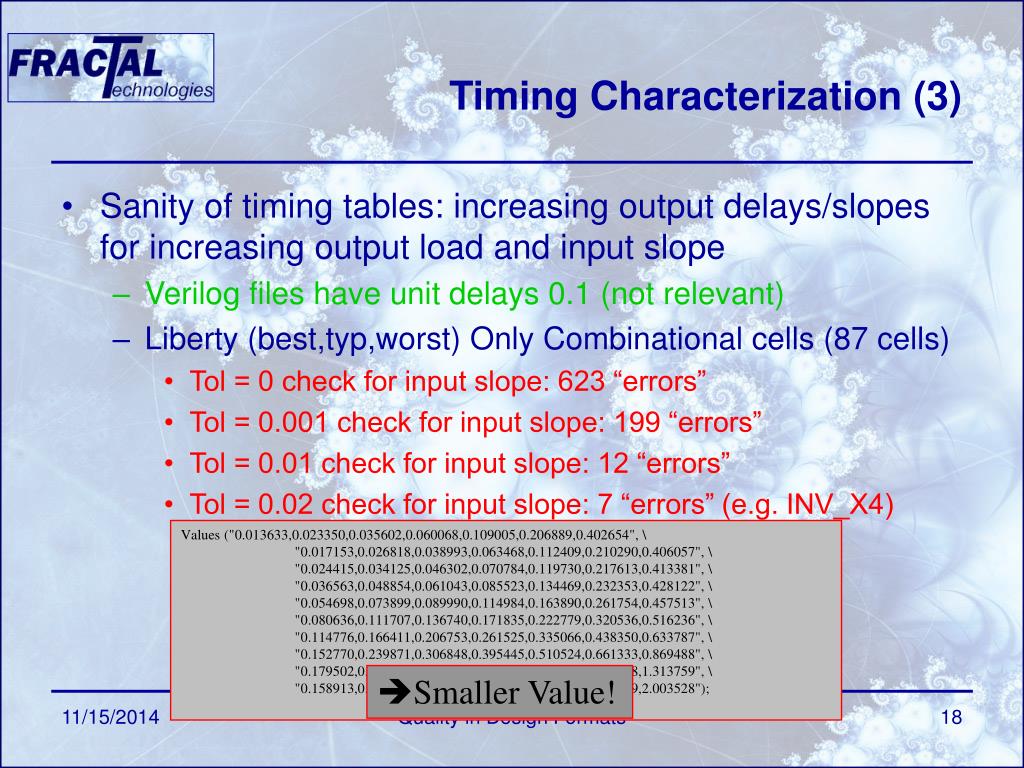

  18. Timing Characterization (3) • Sanity of timing tables: increasing output delays/slopes for increasing output load and input slope • Verilog files have unit delays 0.1 (not relevant) • Liberty (best,typ,worst) Only Combinational cells (87 cells) • Tol = 0 check for input slope: 623 “errors” • Tol = 0.001 check for input slope: 199 “errors” • Tol = 0.01 check for input slope: 12 “errors” • Tol = 0.02 check for input slope: 7 “errors” (e.g. INV_X4) Values ("0.013633,0.023350,0.035602,0.060068,0.109005,0.206889,0.402654", \ "0.017153,0.026818,0.038993,0.063468,0.112409,0.210290,0.406057", \ "0.024415,0.034125,0.046302,0.070784,0.119730,0.217613,0.413381", \ "0.036563,0.048854,0.061043,0.085523,0.134469,0.232353,0.428122", \ "0.054698,0.073899,0.089990,0.114984,0.163890,0.261754,0.457513", \ "0.080636,0.111707,0.136740,0.171835,0.222779,0.320536,0.516236", \ "0.114776,0.166411,0.206753,0.261525,0.335066,0.438350,0.633787", \ "0.152770,0.239871,0.306848,0.395445,0.510524,0.661333,0.869488", \ "0.179502,0.325039,0.437882,0.585366,0.771983,1.008238,1.313759", \ "0.158913,0.393652,0.581726,0.829933,1.141021,1.524609,2.003528"); Smaller Value! Quality in Design Formats

  19. Timing Characterization (4) • In general: timing table values increase with increasing output loads. • Tol = 0 Check for output cap only: 0 “errors” (all liberty files) Quality in Design Formats

  20. Custom defined DS – Document • Document format parser was created in an hour (python) <Cell Name="AND2_X1" CornerName="typical_conditional.lib" LibFile="liberty_typical_conditional.lib.xml"> <Schematic>images/AND2_X1.png</Schematic> <Navigation> <Parent Name="Table of Contents" Link="../CornerList.xml"/> <Next Name="AND2_X2" Link="AND2_X2_typical_conditional.lib.xml"/> </Navigation> <GenChars> <Strength> 1</Strength> <Type> Combinational</Type> <Input> A1</Input> <Input> A2</Input> <Output> ZN</Output> </GenChars> <Name> "AND2_X1"</Name> if (len(words) >= 2) and (words[0:2] == ['Cell', 'Name']): cellList = [] cellname = words[2] print 'CellName: ', cellname cellList = cellList + [cellname] outputs = [] if cellname not in CELLLIST: CELLLIST = CELLLIST + [cellname] cell[cellname] = library.addCell( cellname ) cv[cellname] = cell[cellname].addCellview ( '' ) if ((l>=2) and ((words[1] == '/Input') or (words[1] == '/Output') or (words[1] == "/InOut"))): for cellname in cellList: pin = words[0] pin_dir = words[1] print 'Pin: ', pin, pin_dir DIR = 'UNKNOWN' if pin_dir == '/Input' : DIR = 'INPUT' if pin_dir == '/Output' : DIR = 'OUTPUT' if not pin in outputs: outputs = [pin] + outputs if pin_dir == '/InOut' : DIR = 'BIDIRECTIONAL' term = cv[cellname].addTerminal( pin ) term.setDirection(DIR) pin = term.addPin() Quality in Design Formats

  21. Conclusions • Quality of this library looks pretty good. • FreePDK45nm library contains very few inconsistencies if any • LEF 5.6 obsolete statements • Functional Difference between spice verilog/liberty (S)DFFRS_X1/2 • Liberty vs Verilog timing arc issues • Decreasing value entries in the liberty timing tables • Grid-less router needed Quality in Design Formats
