  1. Data Mining: Staying Ahead in the Information Age A Tutorial in Data Mining, YOR11, Cambridge, 29th March 2000. Robert Burbidge Computer Science, UCL, London, UK. robert.burbidge@ptp.sira.co.uk http://www.cs.ucl.ac.uk/staff/r.burbidge

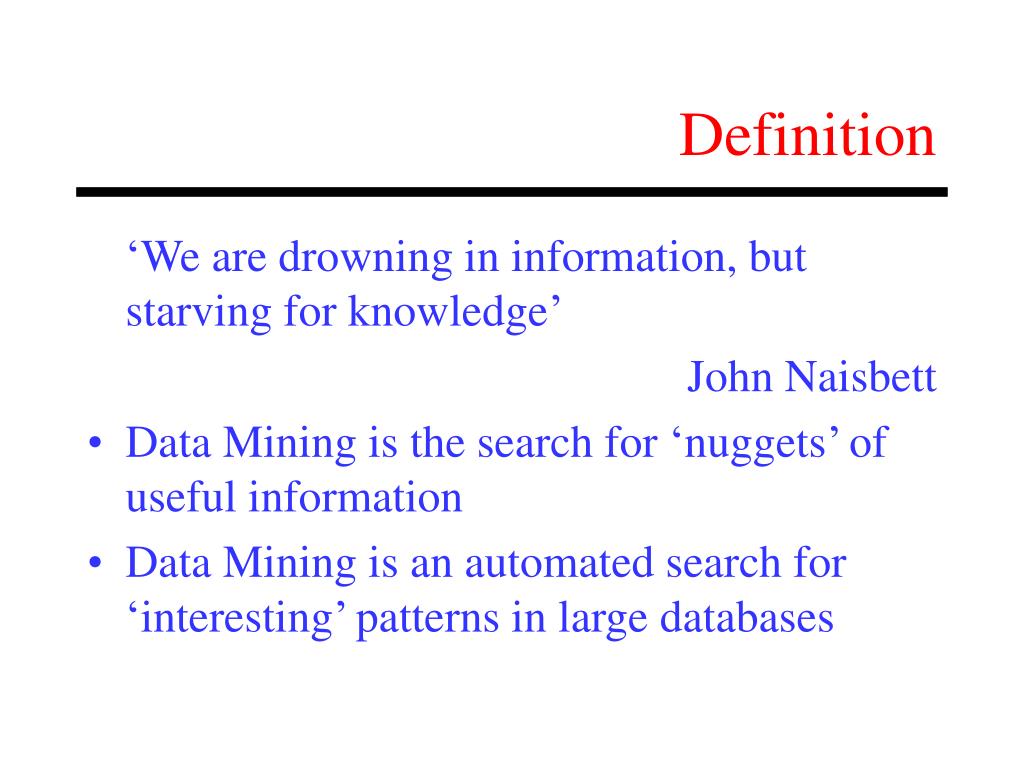

  2. Definition ‘We are drowning in information, but starving for knowledge’ John Naisbett • Data Mining is the search for ‘nuggets’ of useful information • Data Mining is an automated search for ‘interesting’ patterns in large databases

  3. Overview Aims Data Pre- Processing Analysis Business Solutions Domain Knowledge

  4. Before We Begin ... • Getting the Data • Assessing Usefulness of the Data • Noise in the Data • Volume of Available Data • Domain Knowledge and Expertise

  5. Are the data easily available? What format are the data in? Are the data in a live database or a data warehouse? Are the data online? variables 7 8 3 2 1 0 .... 9 4 3 2 3 4 .... .. .... ...... .. . ..... .. .. ... . .. objects Getting the Data 00011002210 ID0Xc2 GRsa4 Jones, H., 24 1010111....

  6. Assessing Usefulness of the Data • Are the available data relevant to the task at hand? • E.g. to predict ice-cream sales information about the FTSE would (probably) not be useful • Are there missing factors which are likely to be predictive? • E.g. temperature is likely to be predictive of ice-cream sales

  7. Noise in the Data • Are the data contaminated by noise? • E.g. experimental error, typing mistakes, corrupted storage media • Can this be eliminated? • E.g. improved experimental set up, data cleaning • How seriously is this likely to affect the results?

  8. Volume of Available Data • Are there enough data ... • ... to learn a useful concept? • ... to give statistically significant results? • Should more data be collected? • More examples • More information about the examples • Meta data

  9. Domain Knowledge • Domain knowledge can be incorporated into some techniques • To choose priors in Bayesian analysis • To encode invariances in the data • Expert systems • Use of expertise can avoid blind search • Feature selection • Building a model

  10. Résumé 1 • Before we begin we must • Obtain the data • Make sure it’s useful • Make sure there’s enough • Identify available expert knowledge • This is all pretty obvious • If you don’t do this you’re headed for trouble

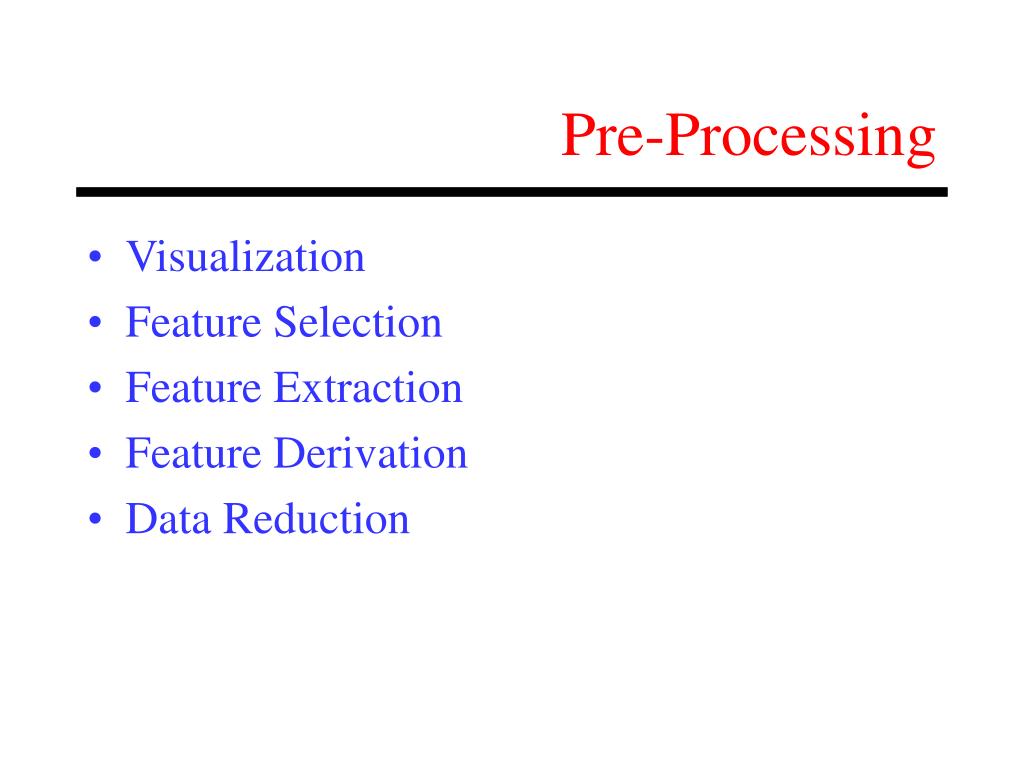

  11. Pre-Processing • Visualization • Feature Selection • Feature Extraction • Feature Derivation • Data Reduction

  12. Histogram plots Identify Distributions Clustering k-means Kohonen nets Relational Hierarchical Outlier detection Visualization

  13. Performance Measures Filters Wrappers Search Algorithms Exhaustive Branch-and-bound Mathematical Programming Stochastic variables variables 7 8 3 2 1 0 .... 9 4 3 2 3 4 .... 7 3 2 1 9 3 2 3 objects objects Feature Selection

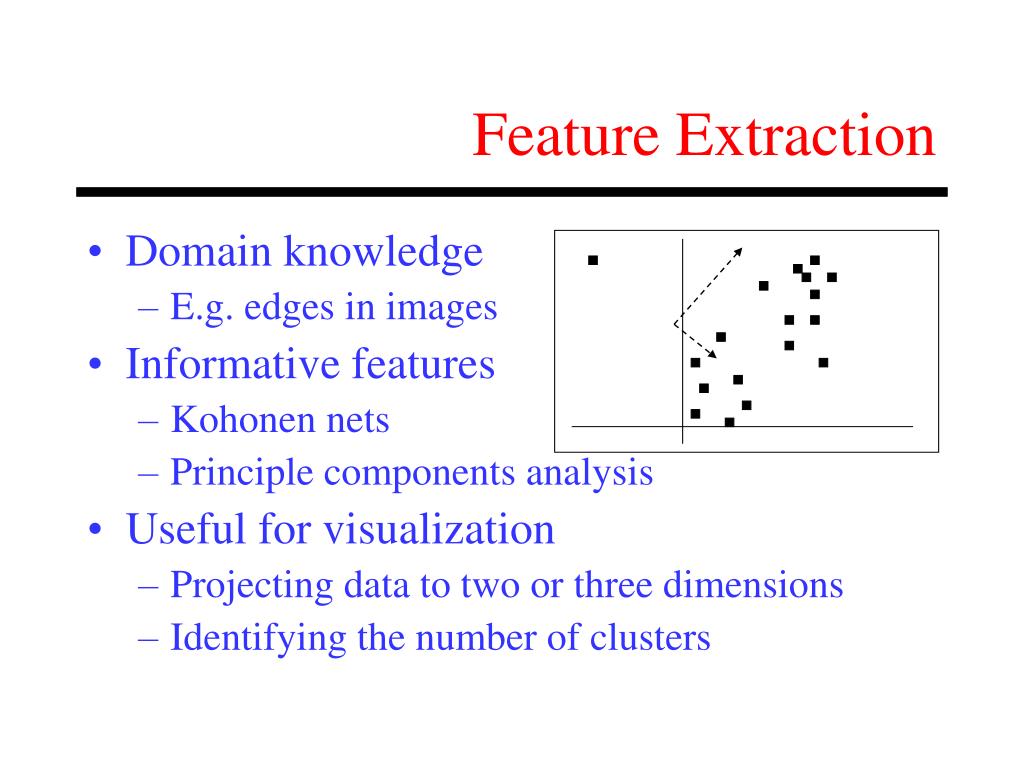

  14. Feature Extraction • Domain knowledge • E.g. edges in images • Informative features • Kohonen nets • Principle components analysis • Useful for visualization • Projecting data to two or three dimensions • Identifying the number of clusters

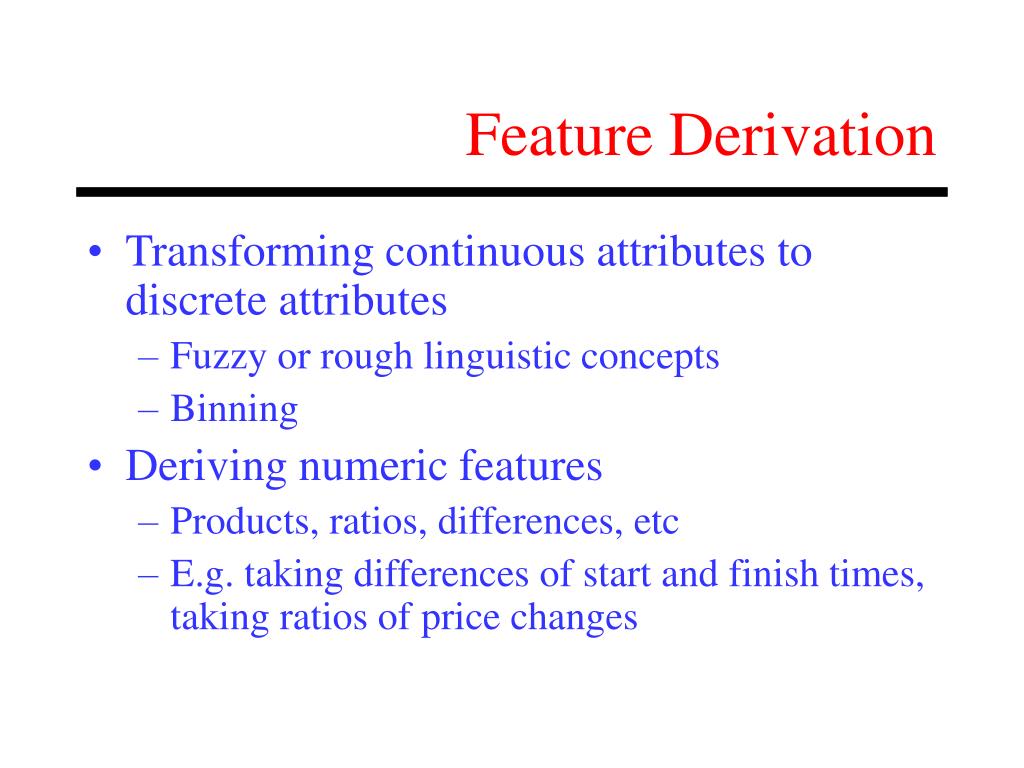

  15. Feature Derivation • Transforming continuous attributes to discrete attributes • Fuzzy or rough linguistic concepts • Binning • Deriving numeric features • Products, ratios, differences, etc • E.g. taking differences of start and finish times, taking ratios of price changes

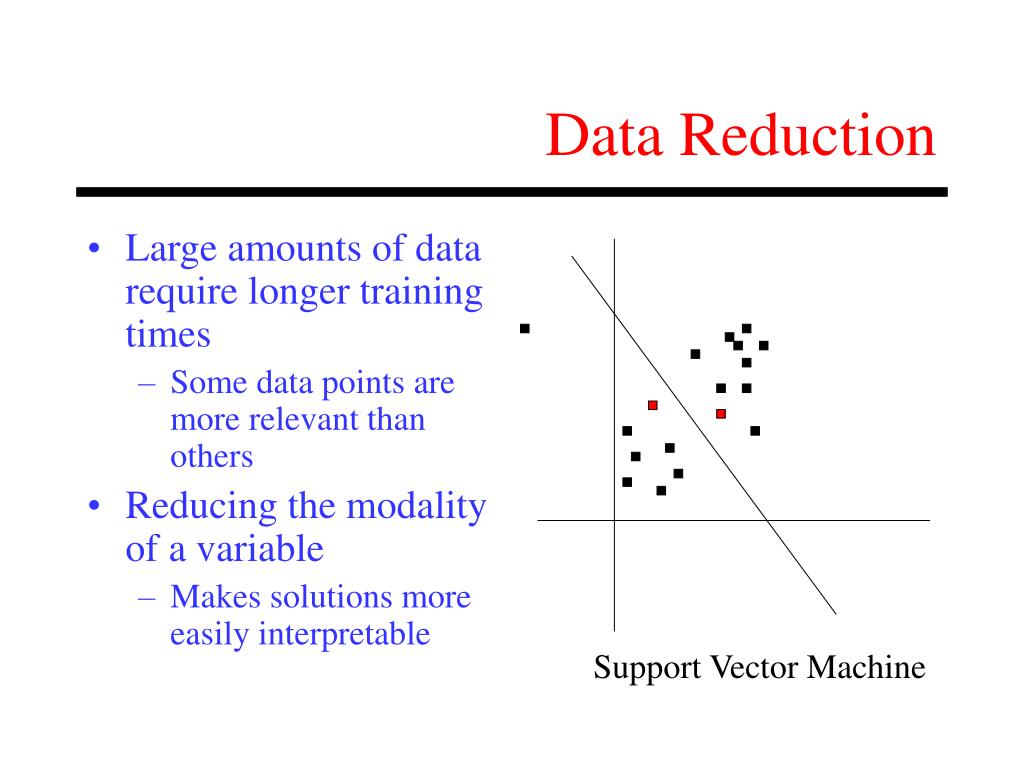

  16. Large amounts of data require longer training times Some data points are more relevant than others Reducing the modality of a variable Makes solutions more easily interpretable Data Reduction Support Vector Machine

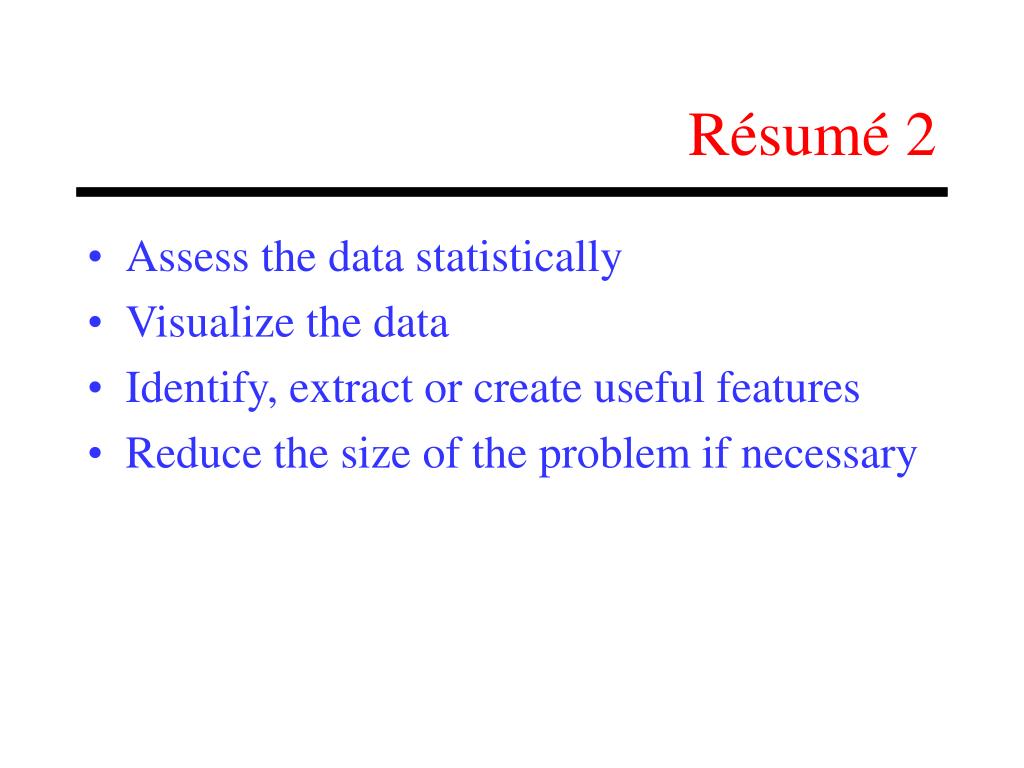

  17. Résumé 2 • Assess the data statistically • Visualize the data • Identify, extract or create useful features • Reduce the size of the problem if necessary

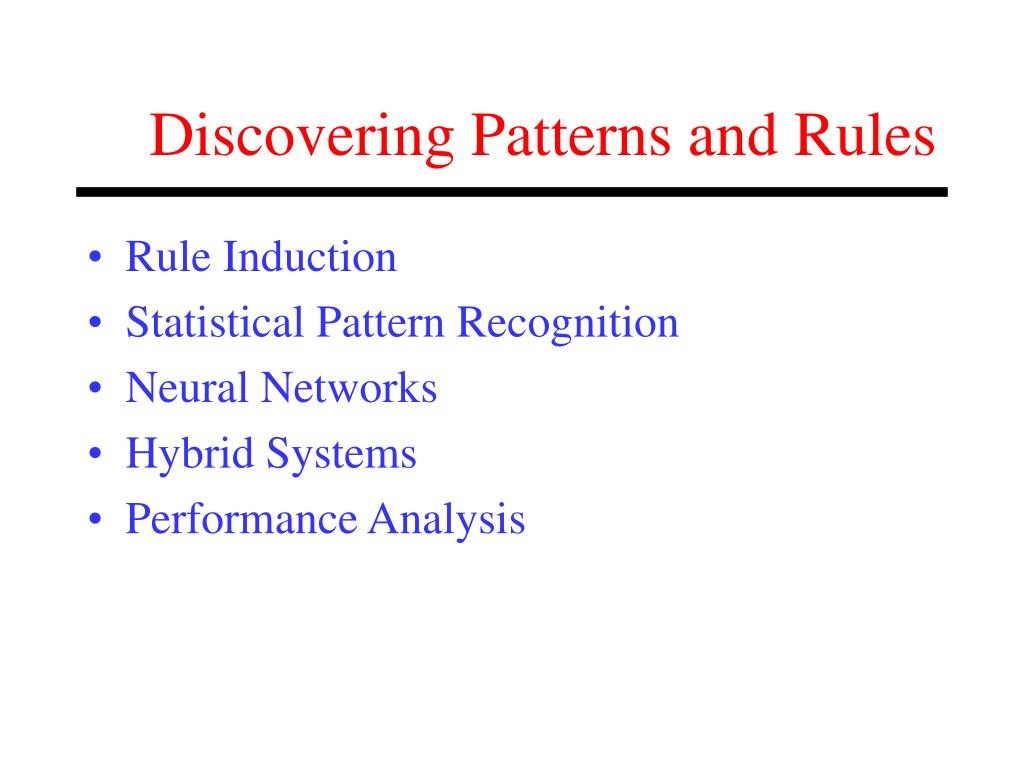

  18. Discovering Patterns and Rules • Rule Induction • Statistical Pattern Recognition • Neural Networks • Hybrid Systems • Performance Analysis

  19. Rule Induction • Discover rules that describe the data • e.g. marketing – who buys what? • IF age > 55 AND income > 20 000 THEN holiday • IF age < 40 AND age > 20 THEN pension • Easy to understand • identifies important features • Can be fuzzified • IF age_low AND income_high THEN car_high

  20. Statistical Pattern Recognition • Model the underlying distribution • Classification • Bayesian solution is optimal • Gives confidence values • Regression • Identifies useful features • Robust techniques to handle noise • Difficult in many practical applications

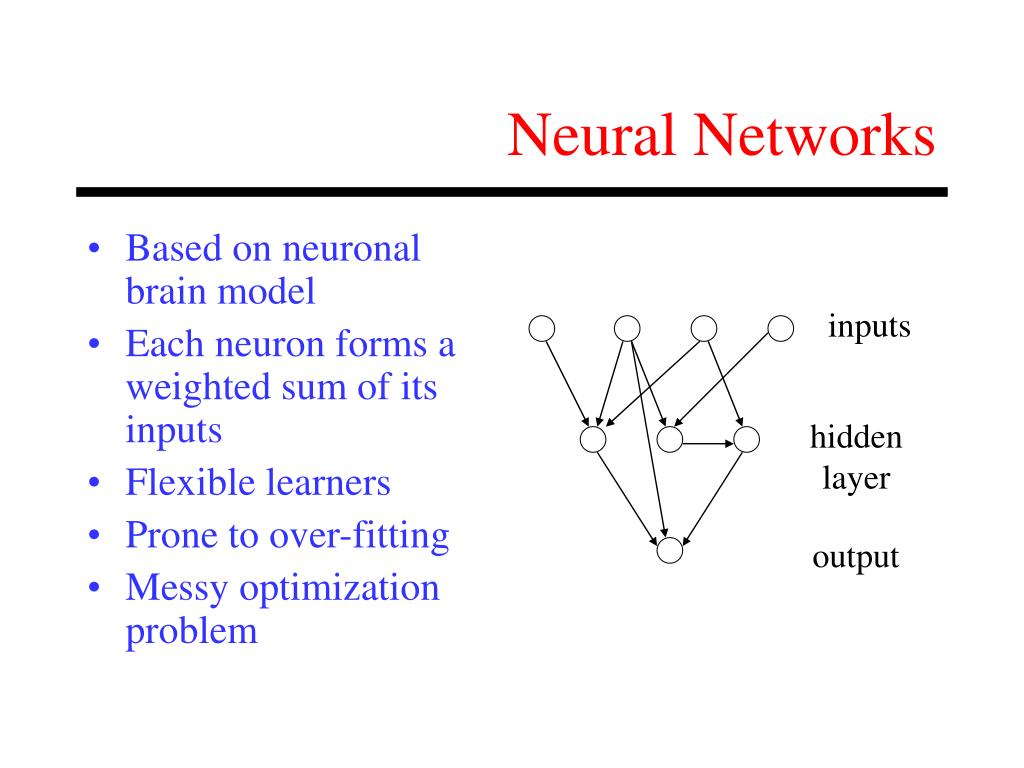

  21. Neural Networks • Based on neuronal brain model • Each neuron forms a weighted sum of its inputs • Flexible learners • Prone to over-fitting • Messy optimization problem inputs hidden layer output

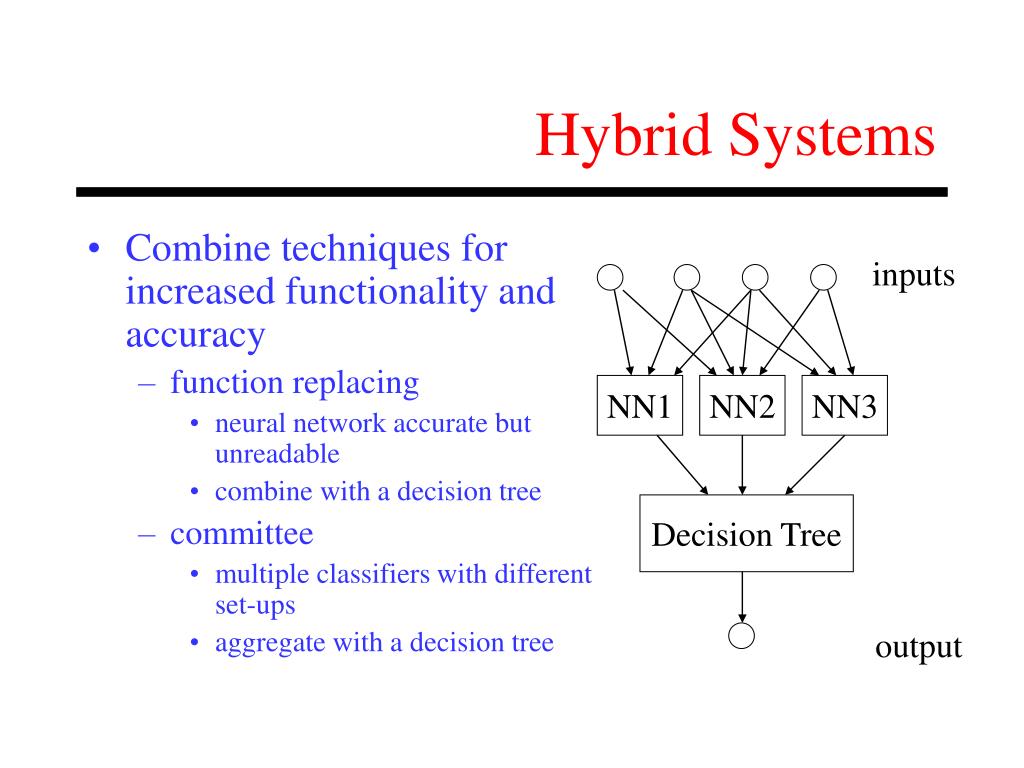

  22. Hybrid Systems • Combine techniques for increased functionality and accuracy • function replacing • neural network accurate but unreadable • combine with a decision tree • committee • multiple classifiers with different set-ups • aggregate with a decision tree inputs NN1 NN2 NN3 Decision Tree output

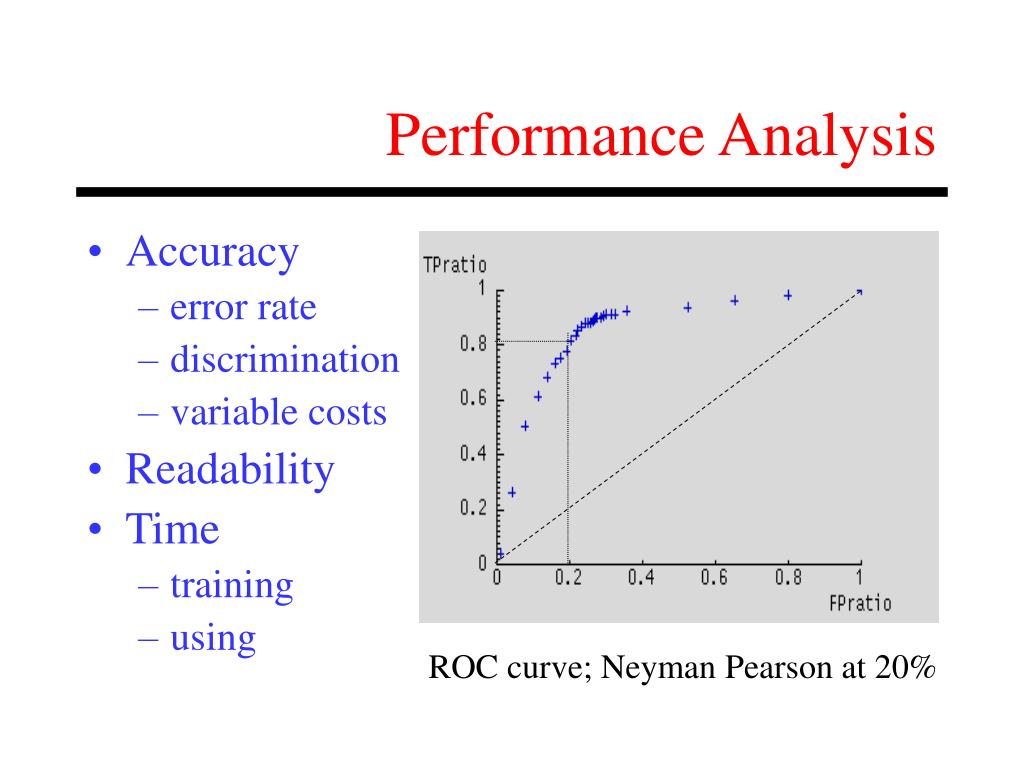

  23. Performance Analysis • Accuracy • error rate • discrimination • variable costs • Readability • Time • training • using ROC curve; Neyman Pearson at 20%

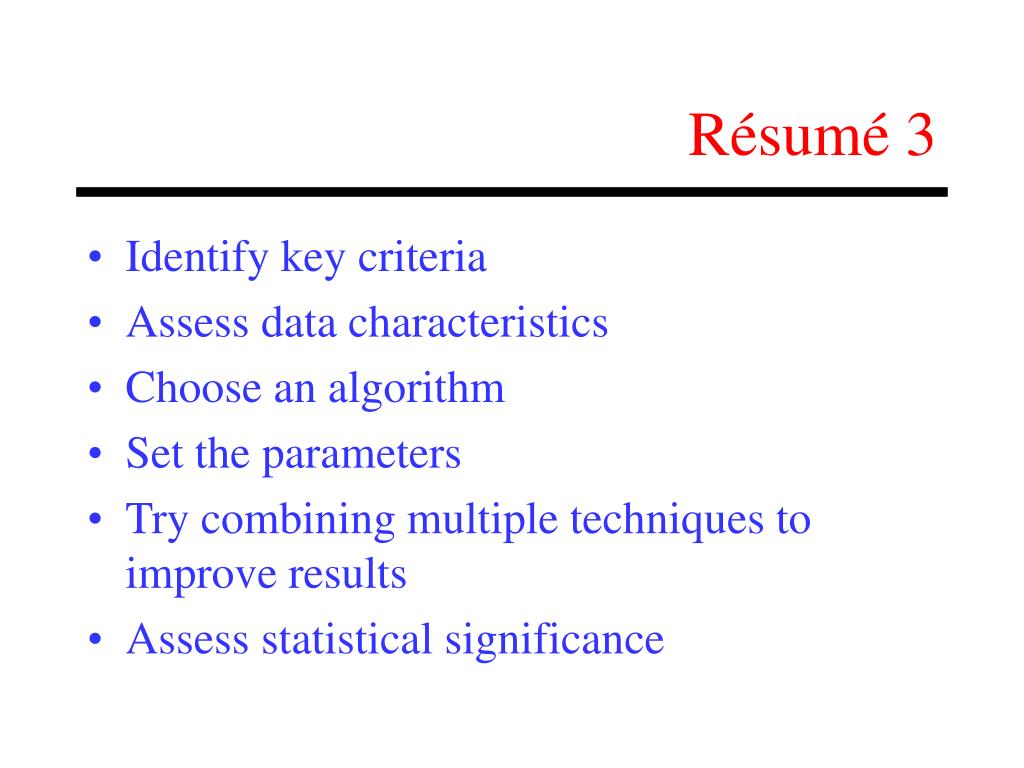

  24. Résumé 3 • Identify key criteria • Assess data characteristics • Choose an algorithm • Set the parameters • Try combining multiple techniques to improve results • Assess statistical significance

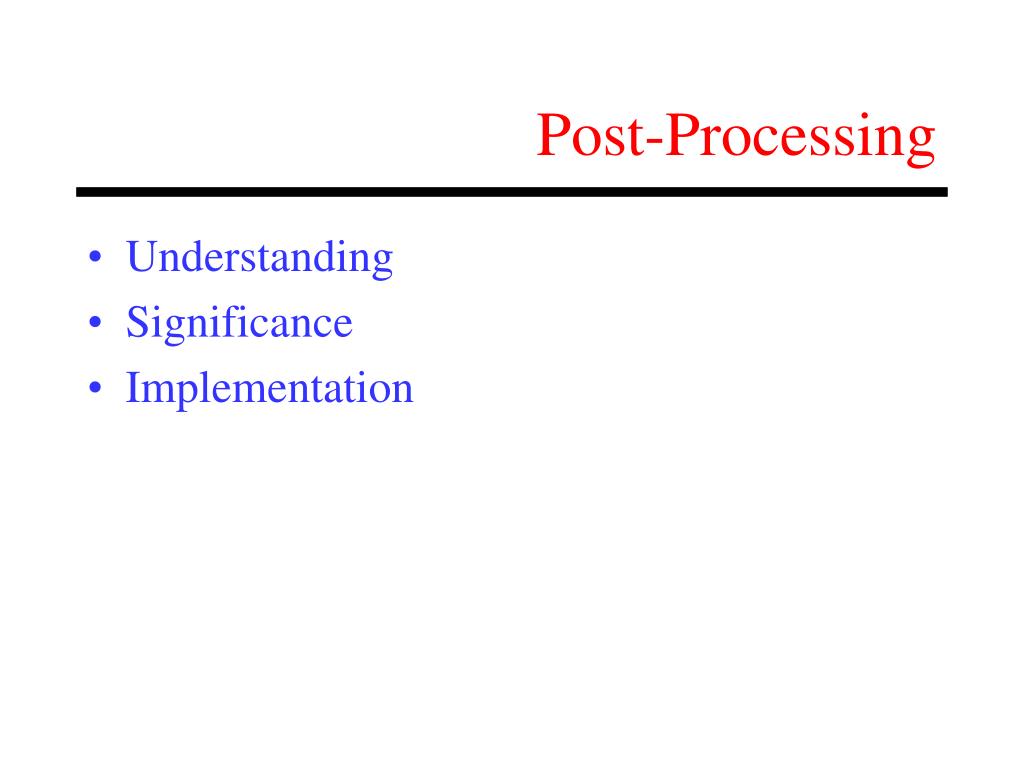

  25. Post-Processing • Understanding • Significance • Implementation

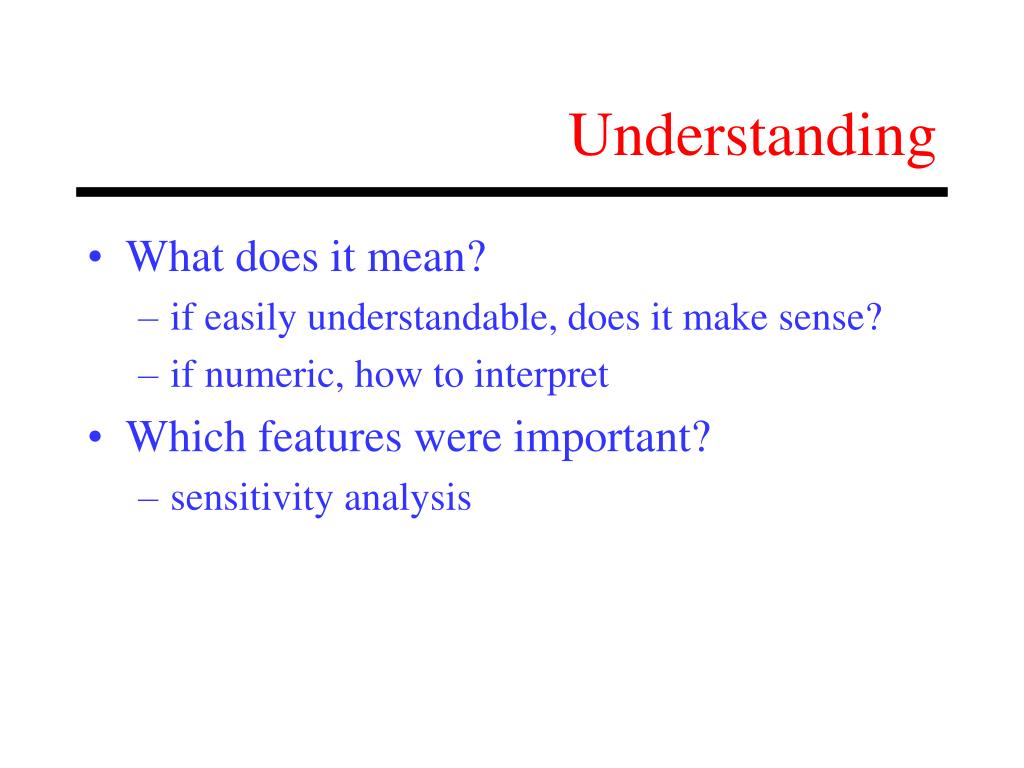

  26. Understanding • What does it mean? • if easily understandable, does it make sense? • if numeric, how to interpret • Which features were important? • sensitivity analysis

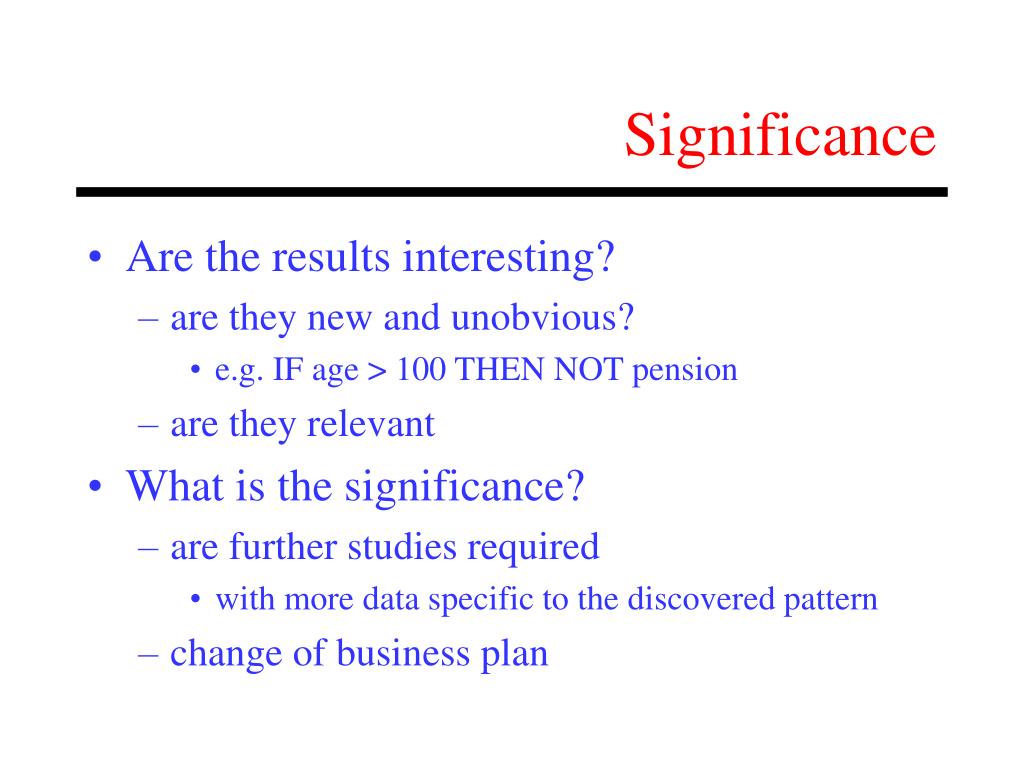

  27. Significance • Are the results interesting? • are they new and unobvious? • e.g. IF age > 100 THEN NOT pension • are they relevant • What is the significance? • are further studies required • with more data specific to the discovered pattern • change of business plan

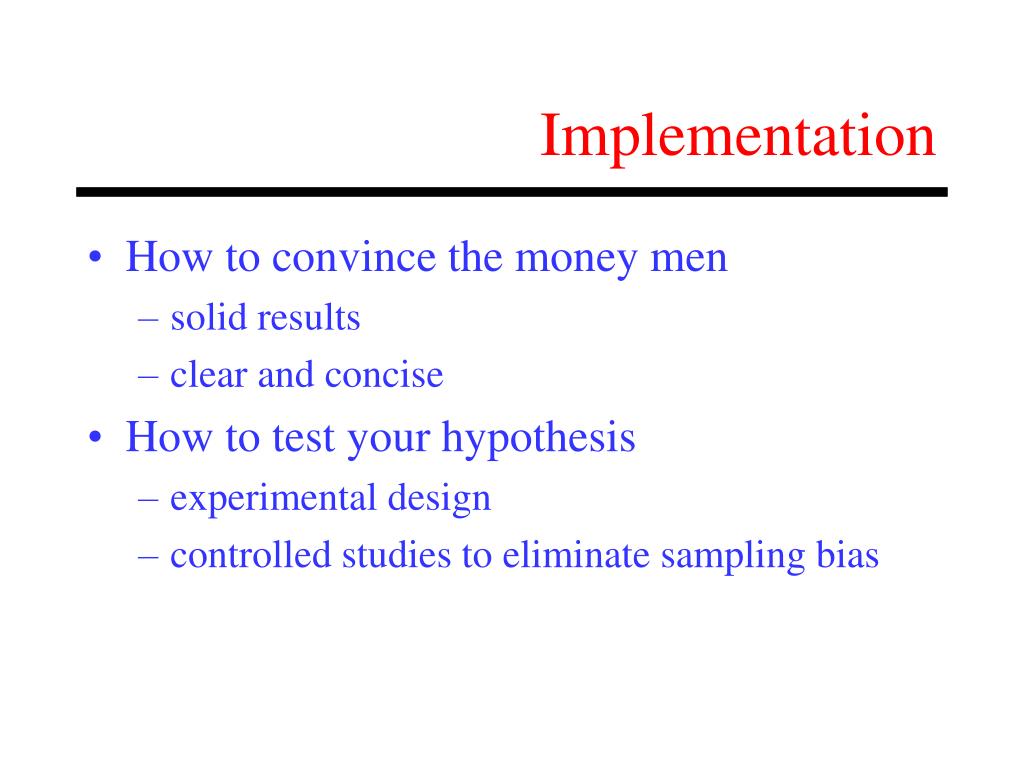

  28. Implementation • How to convince the money men • solid results • clear and concise • How to test your hypothesis • experimental design • controlled studies to eliminate sampling bias

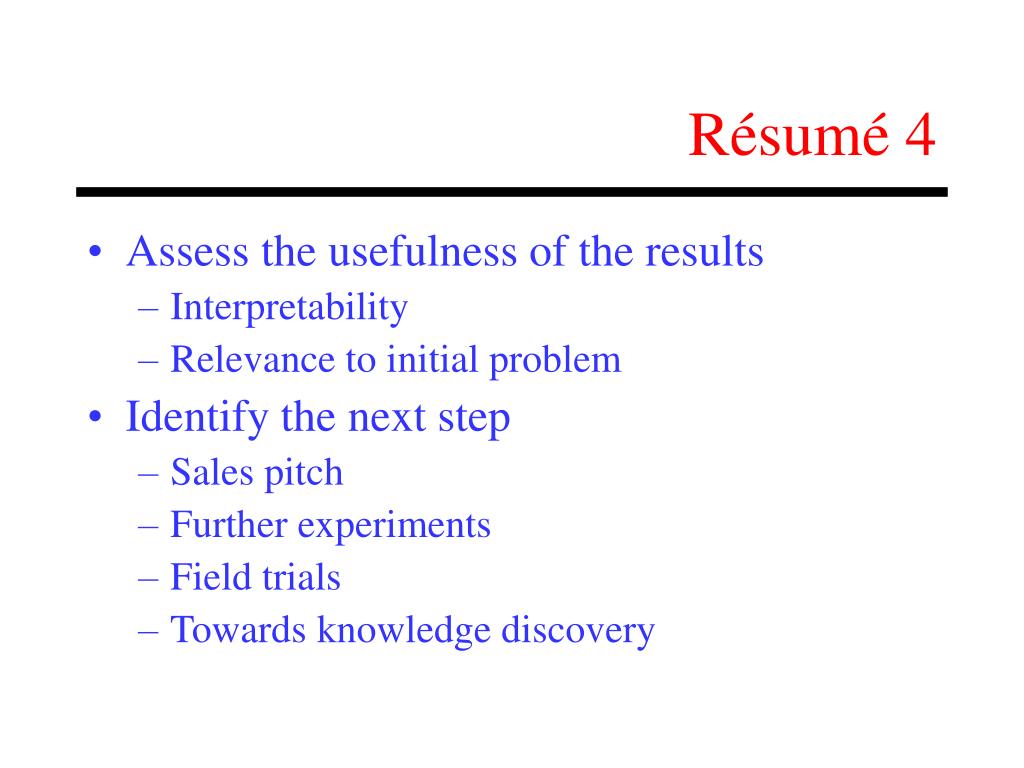

  29. Résumé 4 • Assess the usefulness of the results • Interpretability • Relevance to initial problem • Identify the next step • Sales pitch • Further experiments • Field trials • Towards knowledge discovery

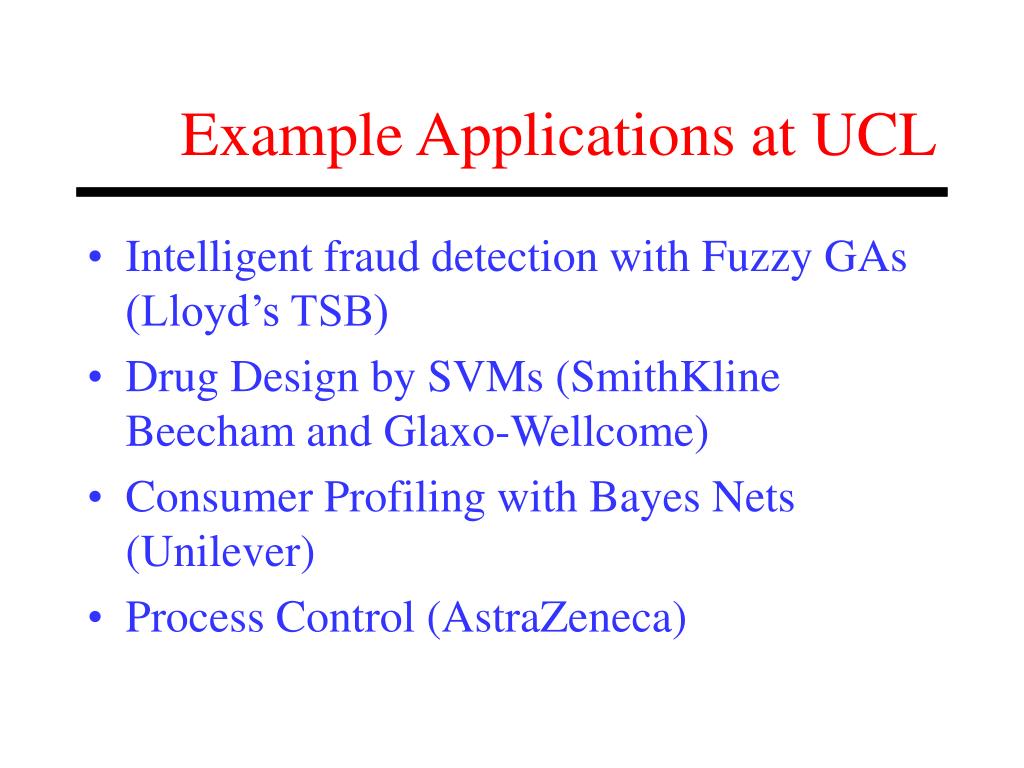

  30. Example Applications at UCL • Intelligent fraud detection with Fuzzy GAs (Lloyd’s TSB) • Drug Design by SVMs (SmithKline Beecham and Glaxo-Wellcome) • Consumer Profiling with Bayes Nets (Unilever) • Process Control (AstraZeneca)

  31. ‘Data Snooping’ – A Warning • Artefacts – ‘patterns’ that aren’t there • Sampling bias • Statistical tests may not show significance • this does not mean results aren’t significant • The extremum of a collection of Gaussians is highly skewed – beware coincidence • Data mining is a dangerous tool in the wrong hands

  32. Summary • Get the right data • Use domain knowledge • Pre-process the data • Discover patterns and rules • machine learning • statistics • Analyze results – but be wary

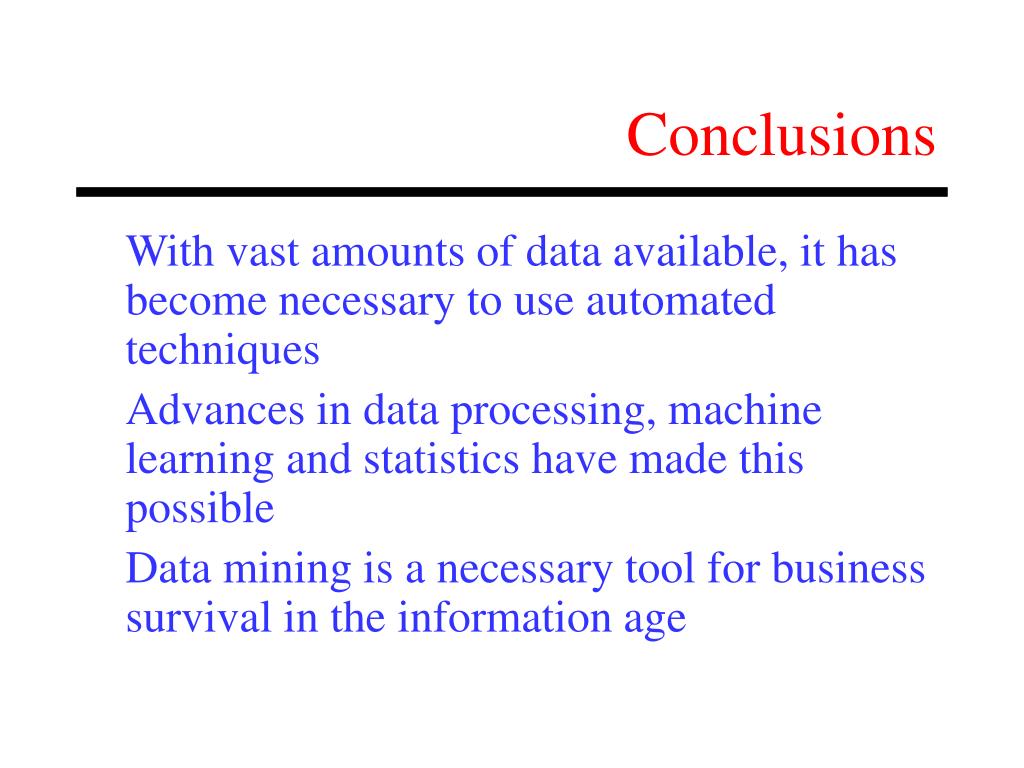

  33. Conclusions With vast amounts of data available, it has become necessary to use automated techniques Advances in data processing, machine learning and statistics have made this possible Data mining is a necessary tool for business survival in the information age

  34. Internet Resources • www.kdnuggetts.com • www.data-miners.com • www.crisp-dm.org • www.research.microsoft.com/profiles/fayyad • www.cs.sfu.ca/~han • etc...
