Kinematic Viscosity Bath LB-40

Labotronics Kinematic Viscosity Bath offers precise fluid testing with an 8L cold bath, operating from 20u00b0C to -60u00b0C. It ensures accurate measurements with a Pt100 platinum resistor sensor and u00b10.1u00b0C temperature accuracy. Its slot holes enable easy setup for demanding viscosity applications.

mariahconner
Download Presentation

Kinematic Viscosity Bath LB-40

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

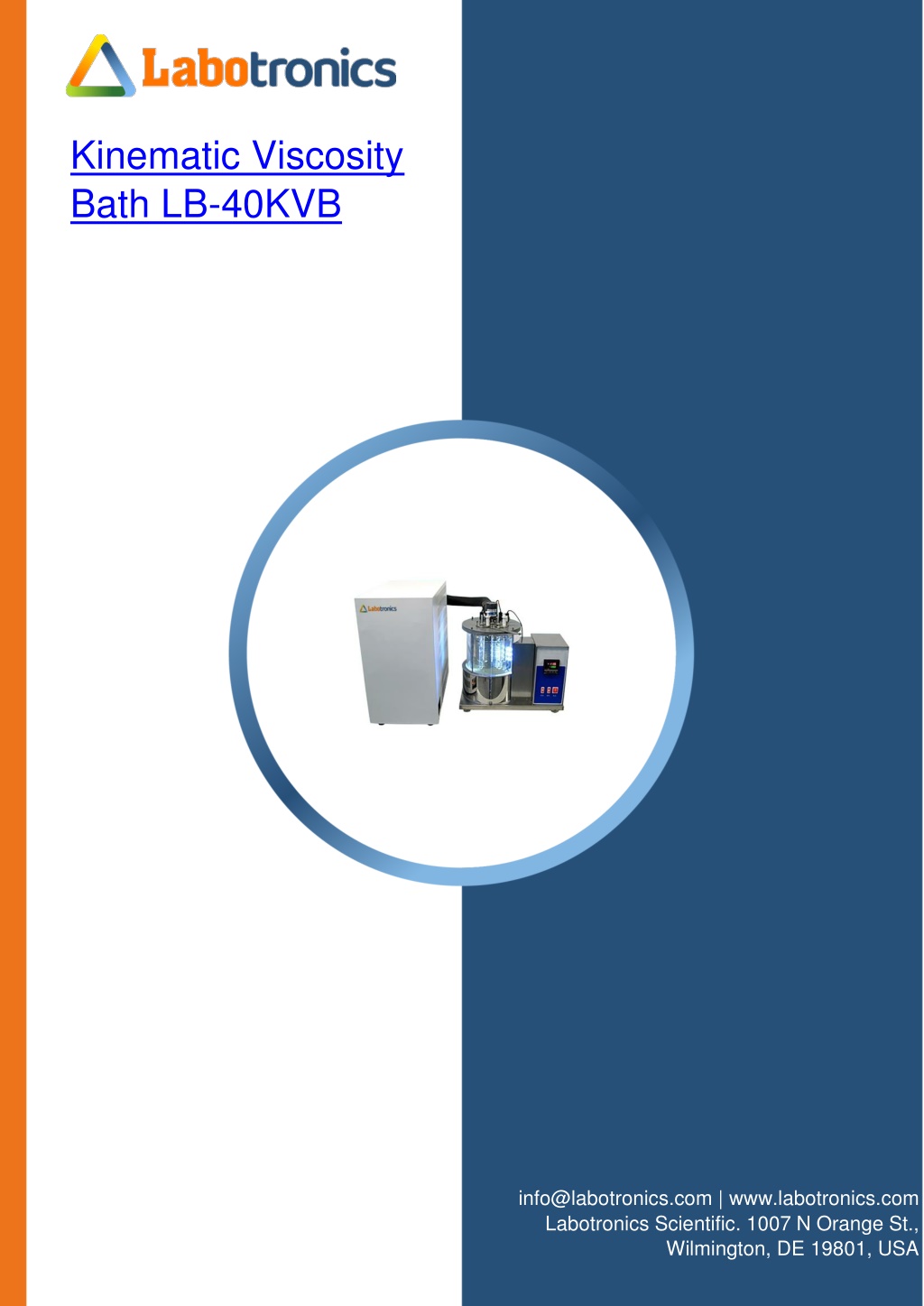

  1. Kinematic Viscosity Bath LB-40KVB info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

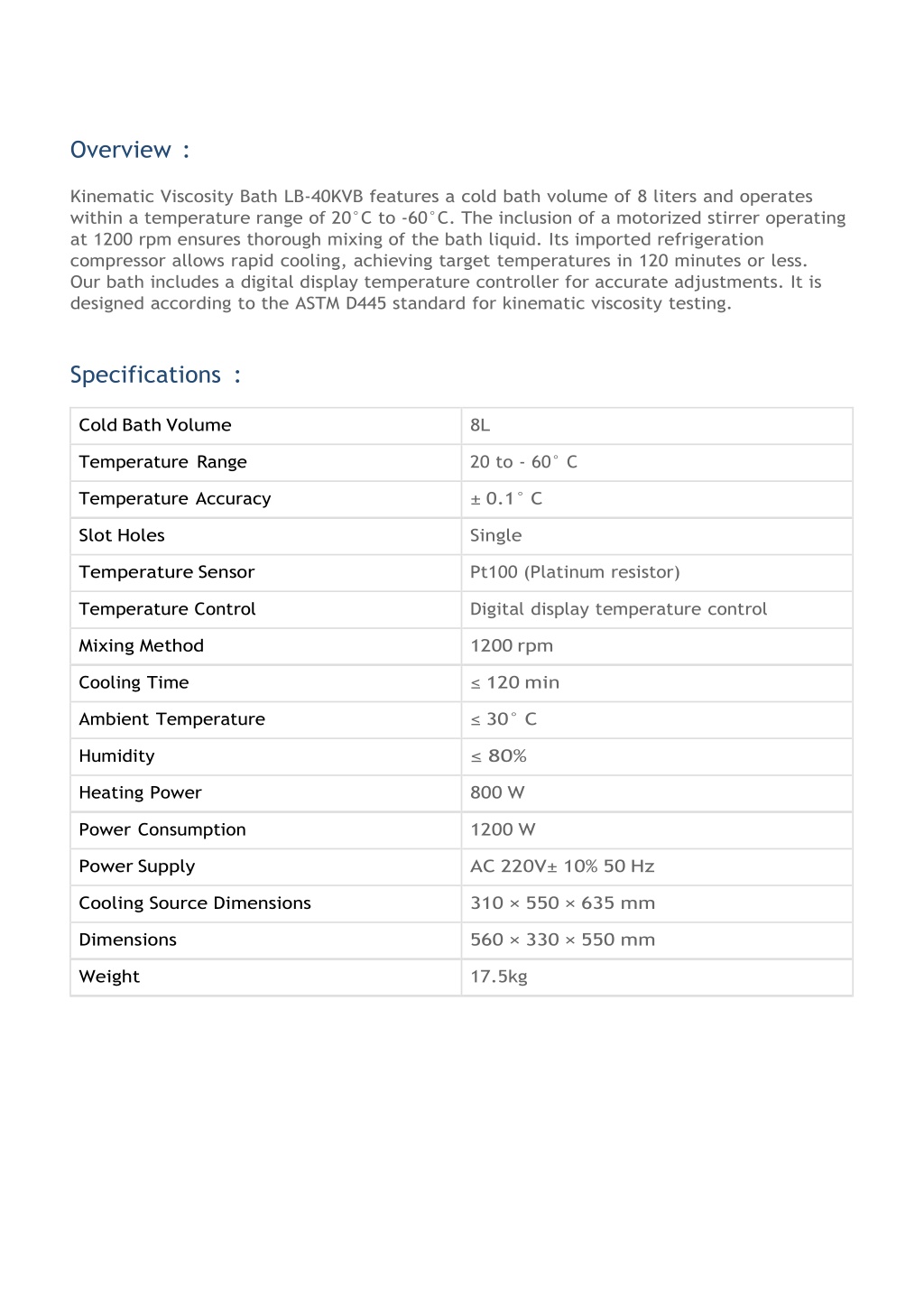

  2. Overview : Kinematic Viscosity Bath LB-40KVB features a cold bath volume of 8 liters and operates within a temperature range of 20°C to -60°C. The inclusion of a motorized stirrer operating at 1200 rpm ensures thorough mixing of the bath liquid. Its imported refrigeration compressor allows rapid cooling, achieving target temperatures in 120 minutes or less. Our bath includes a digital display temperature controller for accurate adjustments. It is designed according to the ASTM D445 standard for kinematic viscosity testing. Specifications : Cold Bath Volume 8L Temperature Range 20 to - 60° C Temperature Accuracy ± 0.1° C Slot Holes Single Temperature Sensor Pt100 (Platinum resistor) Temperature Control Digital display temperature control Mixing Method 1200 rpm Cooling Time ≤ 120 min Ambient Temperature ≤ 30° C Humidity ≤ 80% Heating Power 800 W Power Consumption 1200 W Power Supply AC 220V± 10% 50 Hz Cooling Source Dimensions 310 × 550 × 635 mm Dimensions 560 × 330 × 550 mm Weight 17.5kg

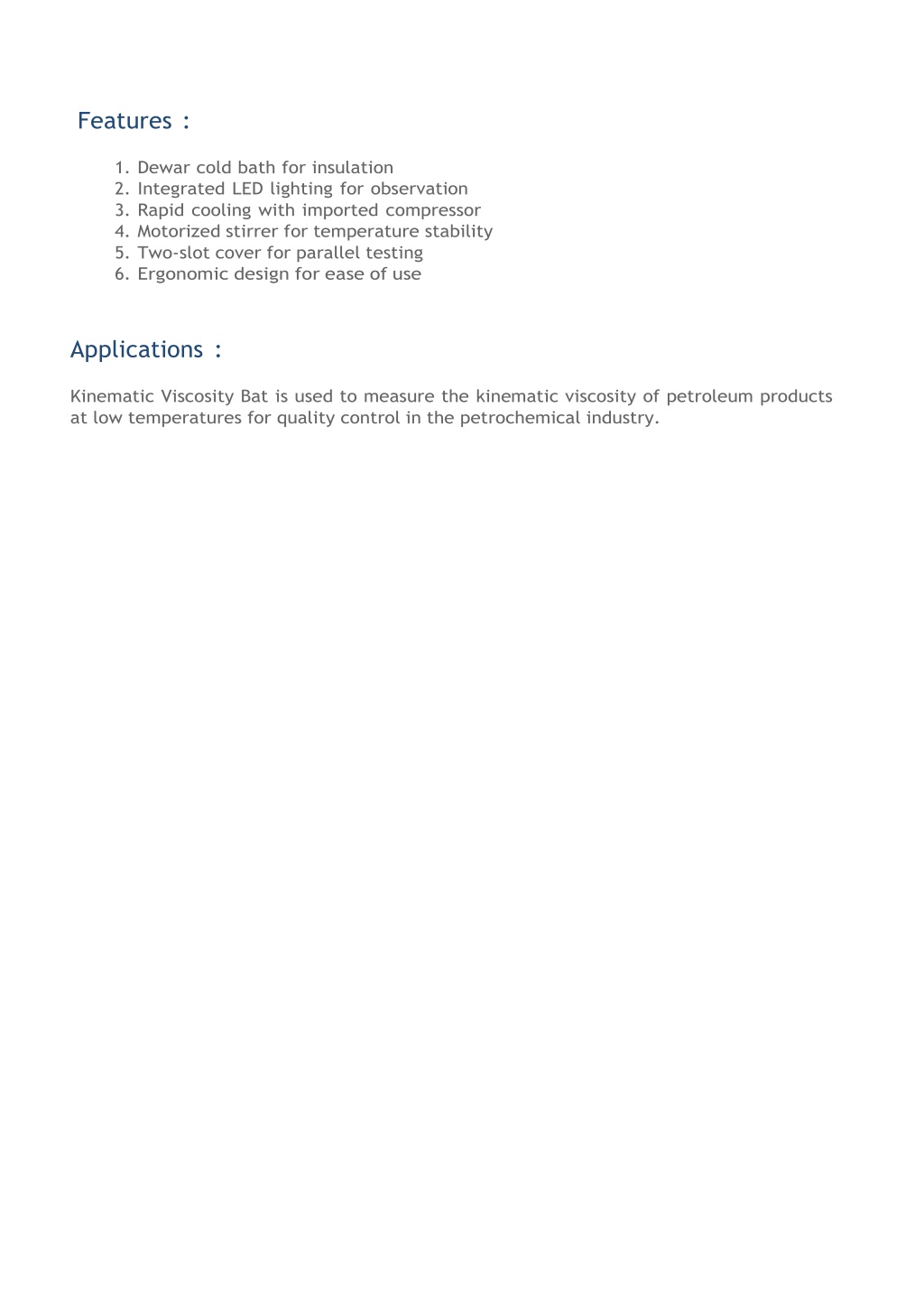

  3. Features : 1.Dewar cold bath for insulation 2.Integrated LED lighting for observation 3.Rapid cooling with imported compressor 4.Motorized stirrer for temperature stability 5.Two-slot cover for parallel testing 6.Ergonomic design for ease of use Applications : Kinematic Viscosity Bat is used to measure the kinematic viscosity of petroleum products at low temperatures for quality control in the petrochemical industry.
