Kinematic Viscosity Bath LB-10KVB.

Labotronics Kinematic Viscosity Bath is an ASTM D445 compliance high-homoeothermic water bath for oil viscosity testing with a temperature range of -60u00b0C to 99u00b0C. It holds 4 samples, supports viscosity testing from 0.5 mmu00b2/s to 20,000 mmu00b2/s, and features motor stirring at u00b10.1u00b0C accuracy.u00a0

mariahconner
Download Presentation

Kinematic Viscosity Bath LB-10KVB.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

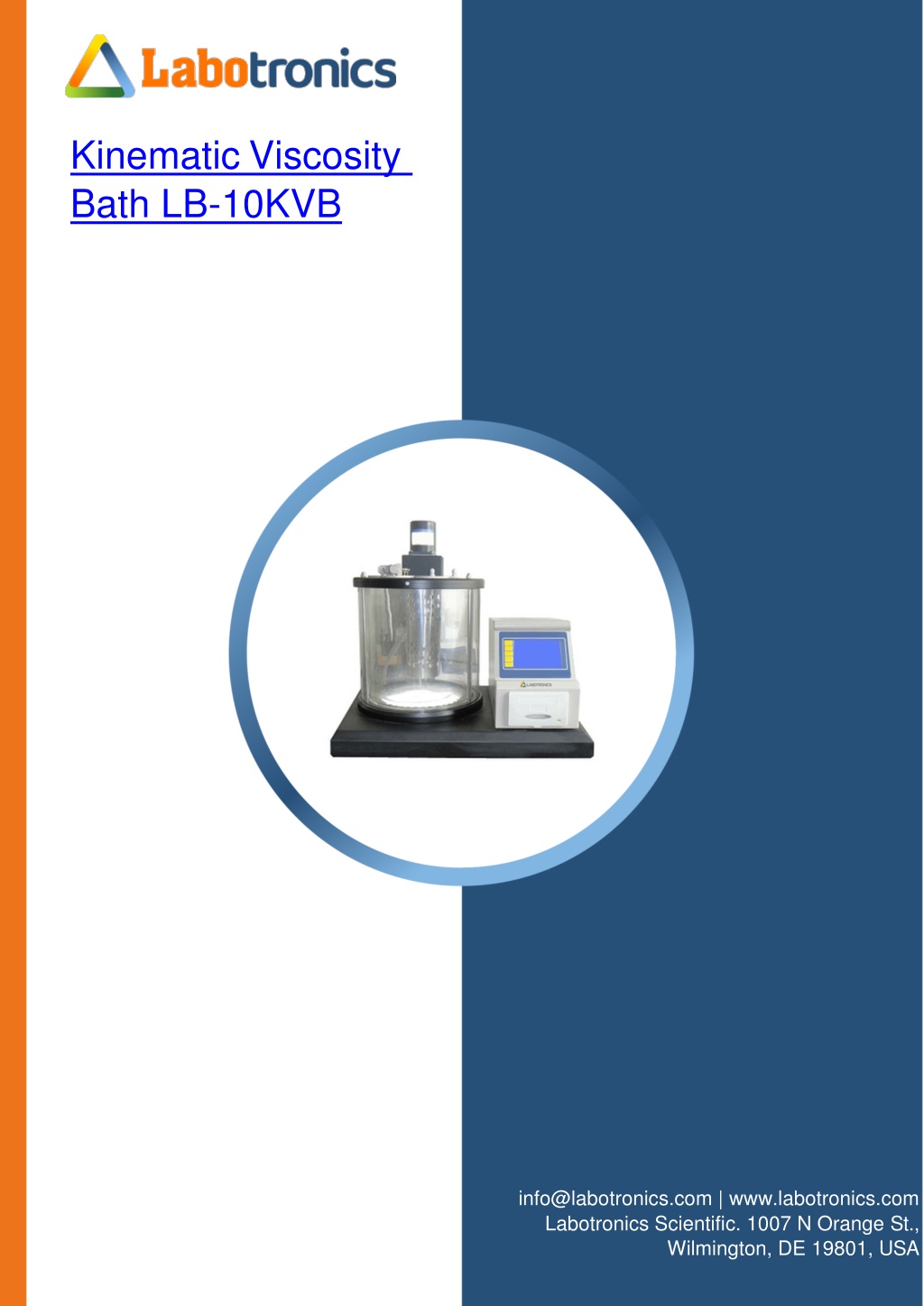

  1. Kinematic Viscosity Bath LB-10KVB info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

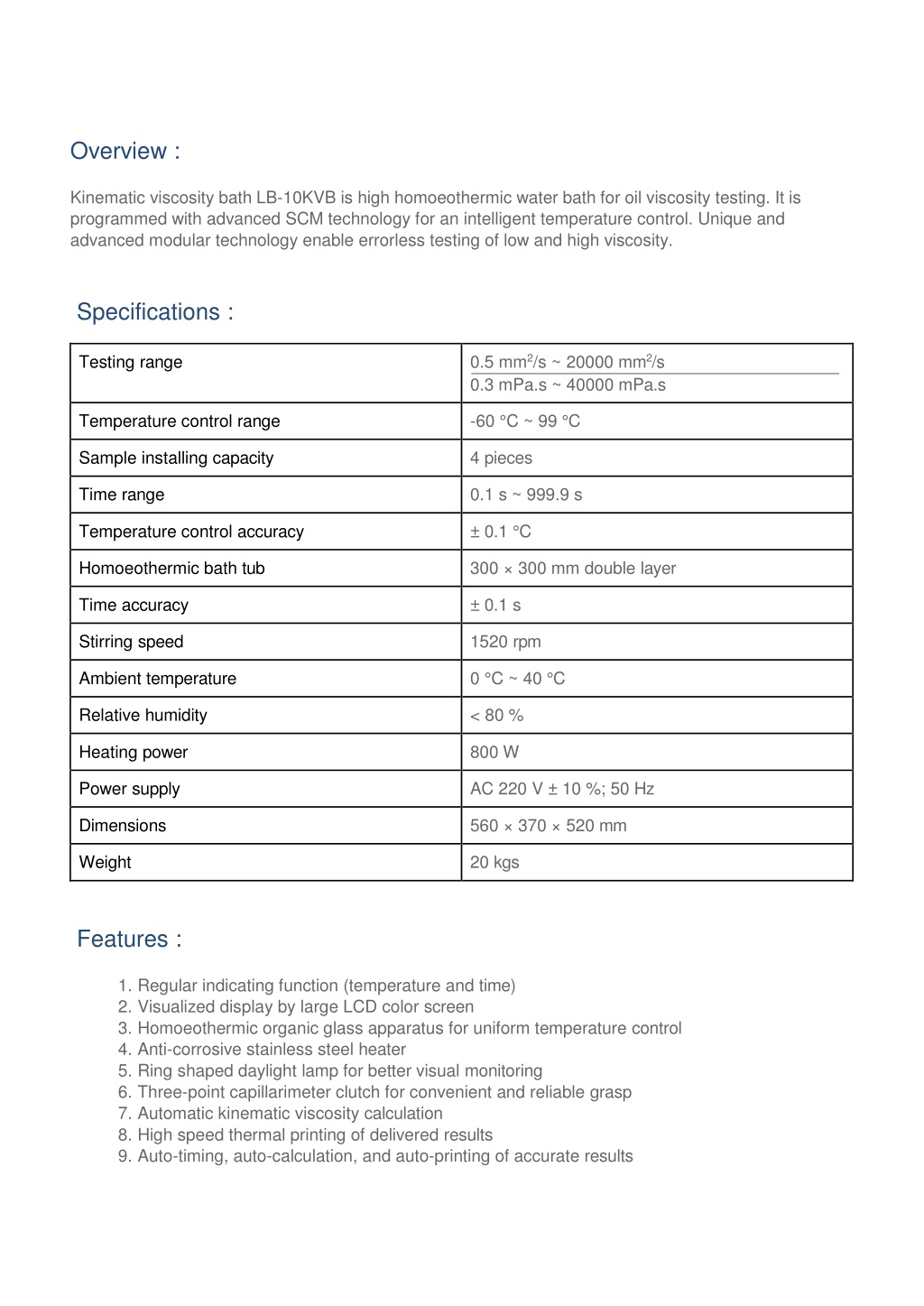

  2. Overview : Kinematic viscosity bath LB-10KVB is high homoeothermic water bath for oil viscosity testing. It is programmed with advanced SCM technology for an intelligent temperature control. Unique and advanced modular technology enable errorless testing of low and high viscosity. Specifications : 0.5 mm2/s ~ 20000 mm2/s 0.3 mPa.s ~ 40000 mPa.s Testing range Temperature control range -60 °C ~ 99 °C Sample installing capacity 4 pieces Time range 0.1 s ~ 999.9 s Temperature control accuracy ± 0.1 °C Homoeothermic bath tub 300 × 300 mm double layer Time accuracy ± 0.1 s Stirring speed 1520 rpm Ambient temperature 0 °C ~ 40 °C Relative humidity < 80 % Heating power 800 W Power supply AC 220 V ± 10 %; 50 Hz Dimensions 560 × 370 × 520 mm Weight 20 kgs Features : 1. Regular indicating function (temperature and time) 2. Visualized display by large LCD color screen 3. Homoeothermic organic glass apparatus for uniform temperature control 4. Anti-corrosive stainless steel heater 5. Ring shaped daylight lamp for better visual monitoring 6. Three-point capillarimeter clutch for convenient and reliable grasp 7. Automatic kinematic viscosity calculation 8. High speed thermal printing of delivered results 9. Auto-timing, auto-calculation, and auto-printing of accurate results

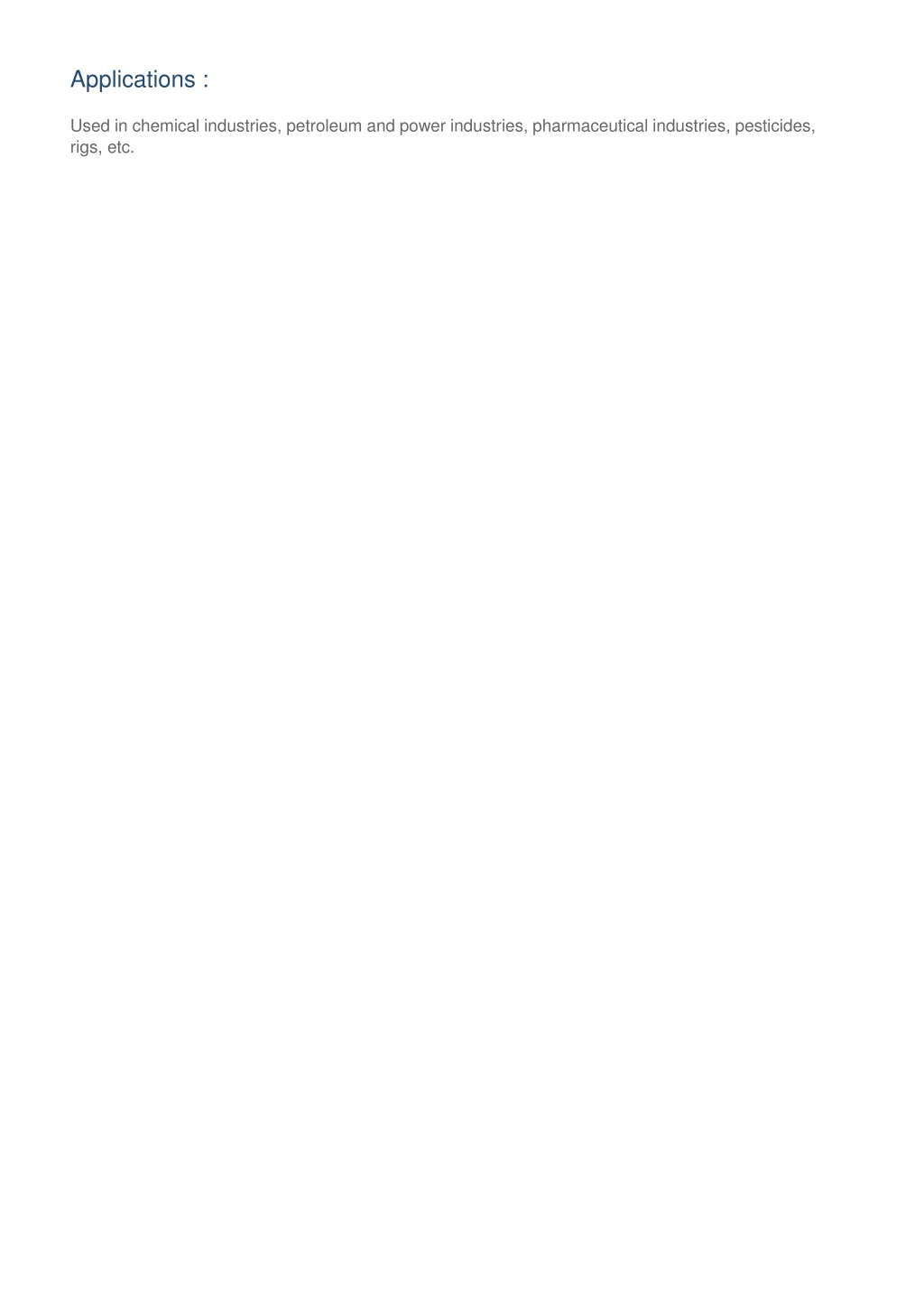

  3. Applications : Used in chemical industries, petroleum and power industries, pharmaceutical industries, pesticides, rigs, etc.
