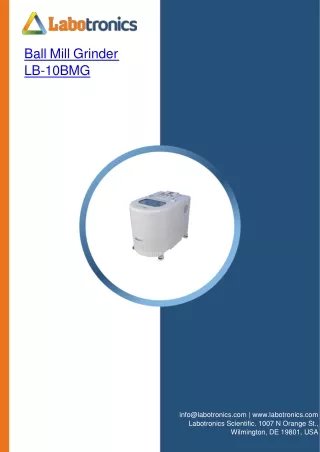

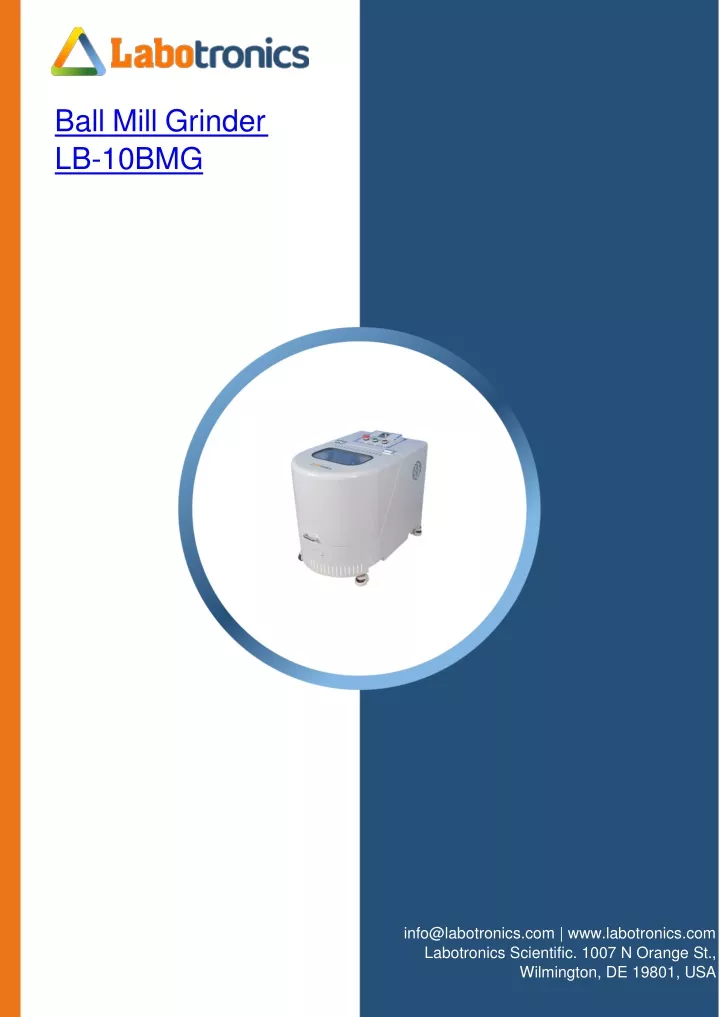

  1. Ball Mill Grinder LB-10BMG info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

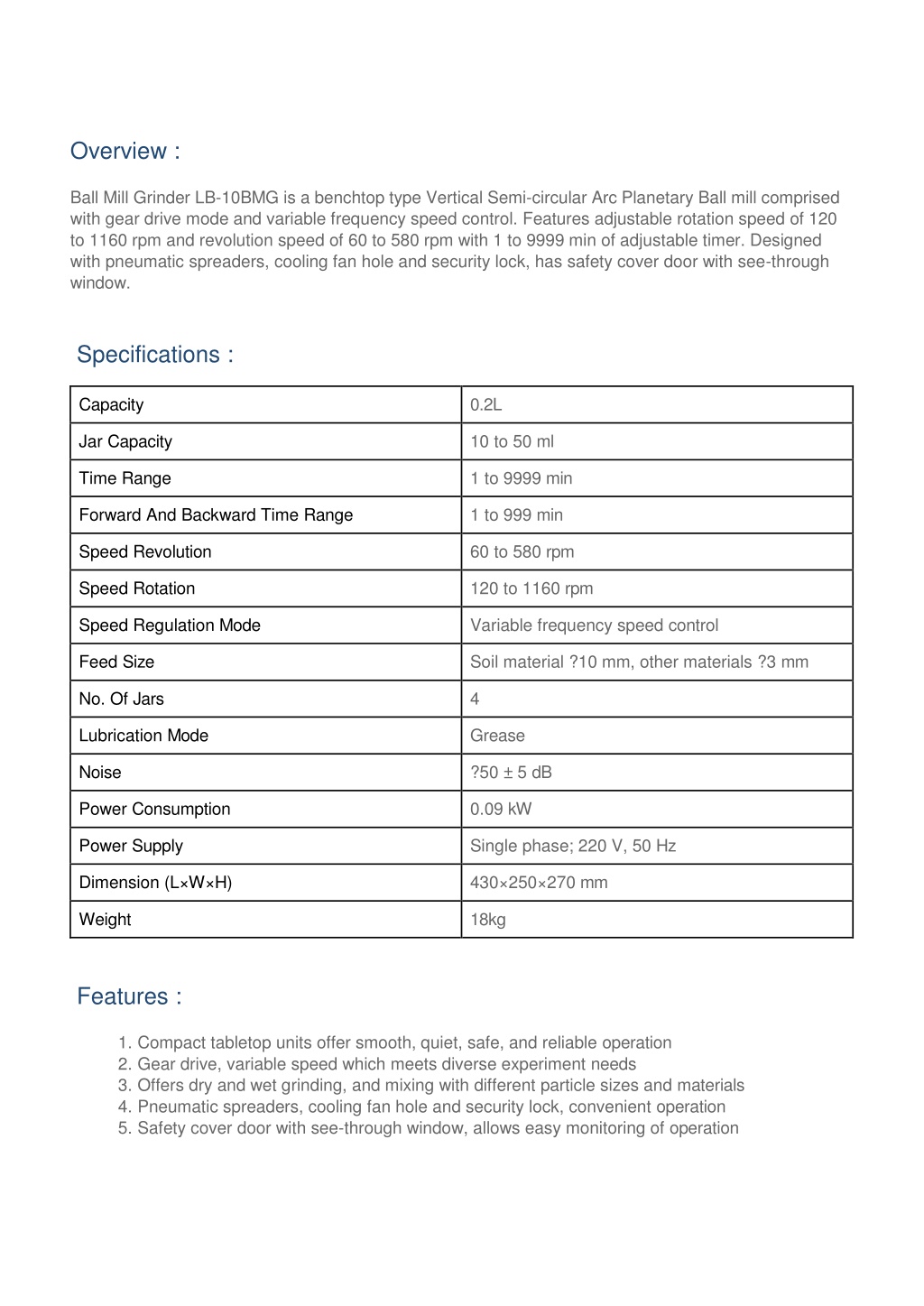

  2. Overview : Ball Mill Grinder LB-10BMG is a benchtop type Vertical Semi-circular Arc Planetary Ball mill comprised with gear drive mode and variable frequency speed control. Features adjustable rotation speed of 120 to 1160 rpm and revolution speed of 60 to 580 rpm with 1 to 9999 min of adjustable timer. Designed with pneumatic spreaders, cooling fan hole and security lock, has safety cover door with see-through window. Specifications : Capacity 0.2L Jar Capacity 10 to 50 ml Time Range 1 to 9999 min Forward And Backward Time Range 1 to 999 min Speed Revolution 60 to 580 rpm Speed Rotation 120 to 1160 rpm Speed Regulation Mode Variable frequency speed control Feed Size Soil material ?10 mm, other materials ?3 mm No. Of Jars 4 Lubrication Mode Grease Noise ?50 ± 5 dB Power Consumption 0.09 kW Power Supply Single phase; 220 V, 50 Hz Dimension (L×W×H) 430×250×270 mm Weight 18kg Features : 1. Compact tabletop units offer smooth, quiet, safe, and reliable operation 2. Gear drive, variable speed which meets diverse experiment needs 3. Offers dry and wet grinding, and mixing with different particle sizes and materials 4. Pneumatic spreaders, cooling fan hole and security lock, convenient operation 5. Safety cover door with see-through window, allows easy monitoring of operation

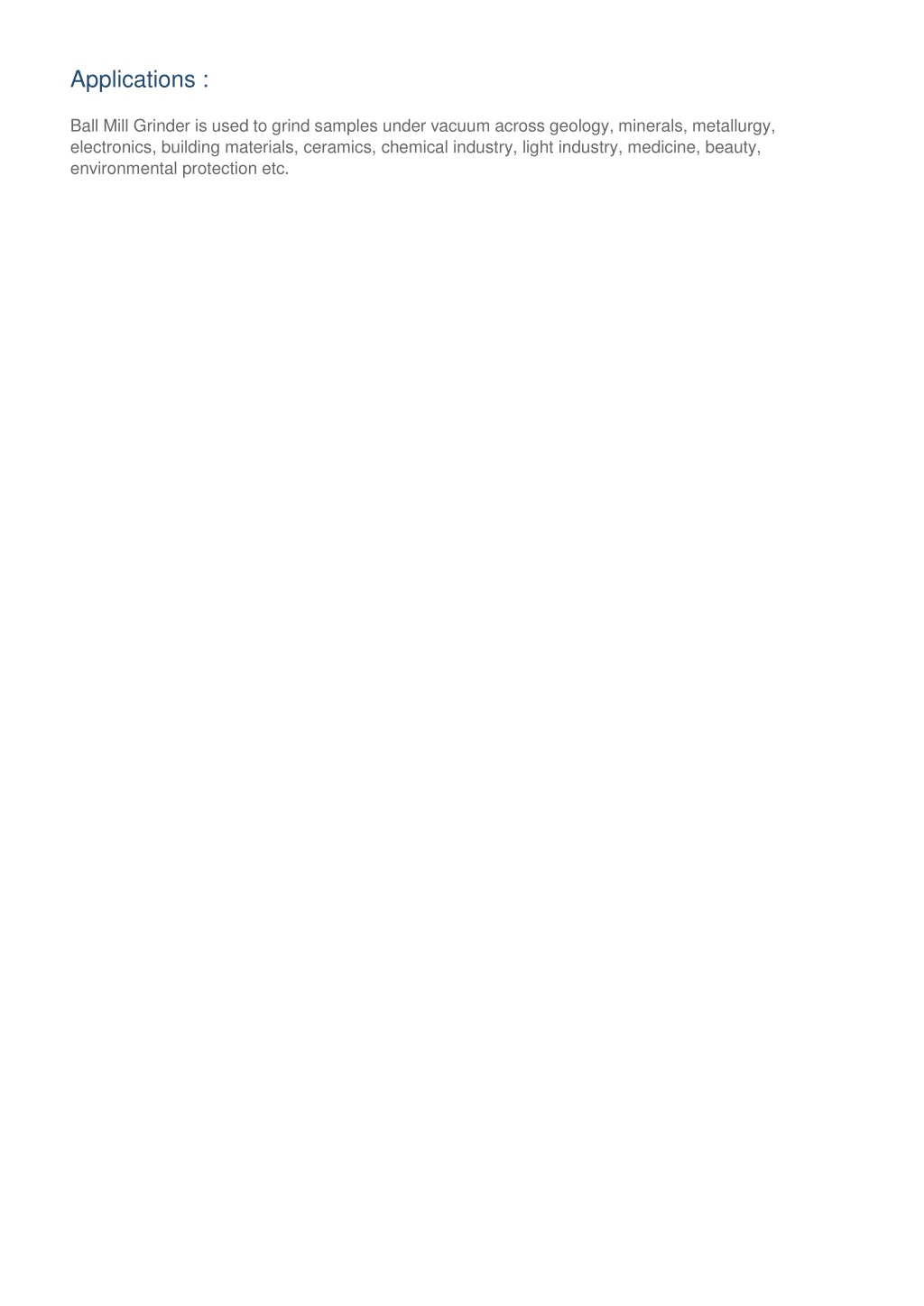

  3. Applications : Ball Mill Grinder is used to grind samples under vacuum across geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection etc.
