Automatic Potentiometric Titrator 40kg

Labotronics Automatic Potentiometric Titrator offers a wide measuringc range from -2000 to 2000 mV and -20 to 20 pH with high resolution and precision. It supports multiple titration modes, including acid-base, REDOX, and non-aqueous, featuring a multi-channel unit for accurate results.

mariahconner
Download Presentation

Automatic Potentiometric Titrator 40kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

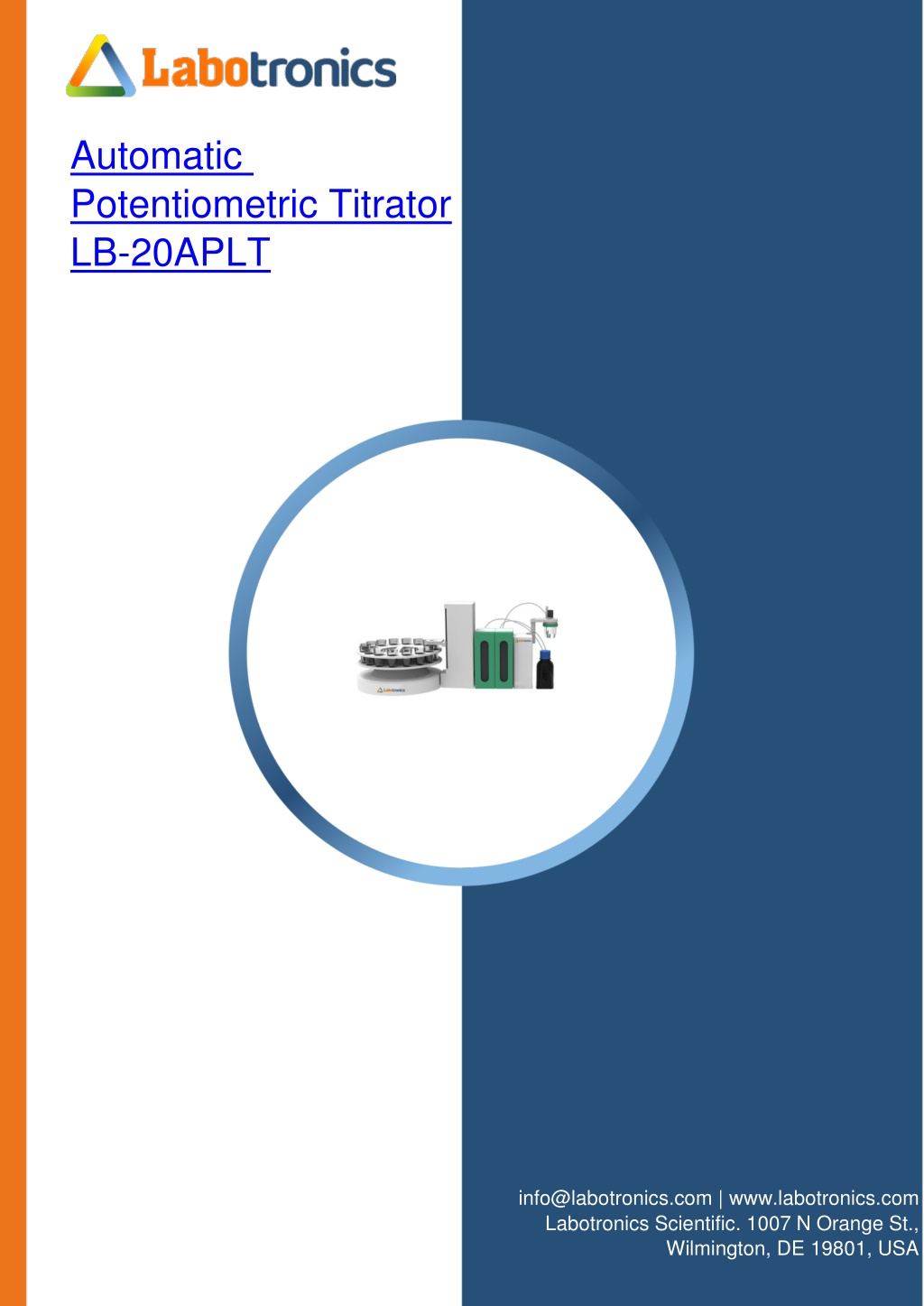

  1. Automatic Potentiometric Titrator LB-20APLT info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

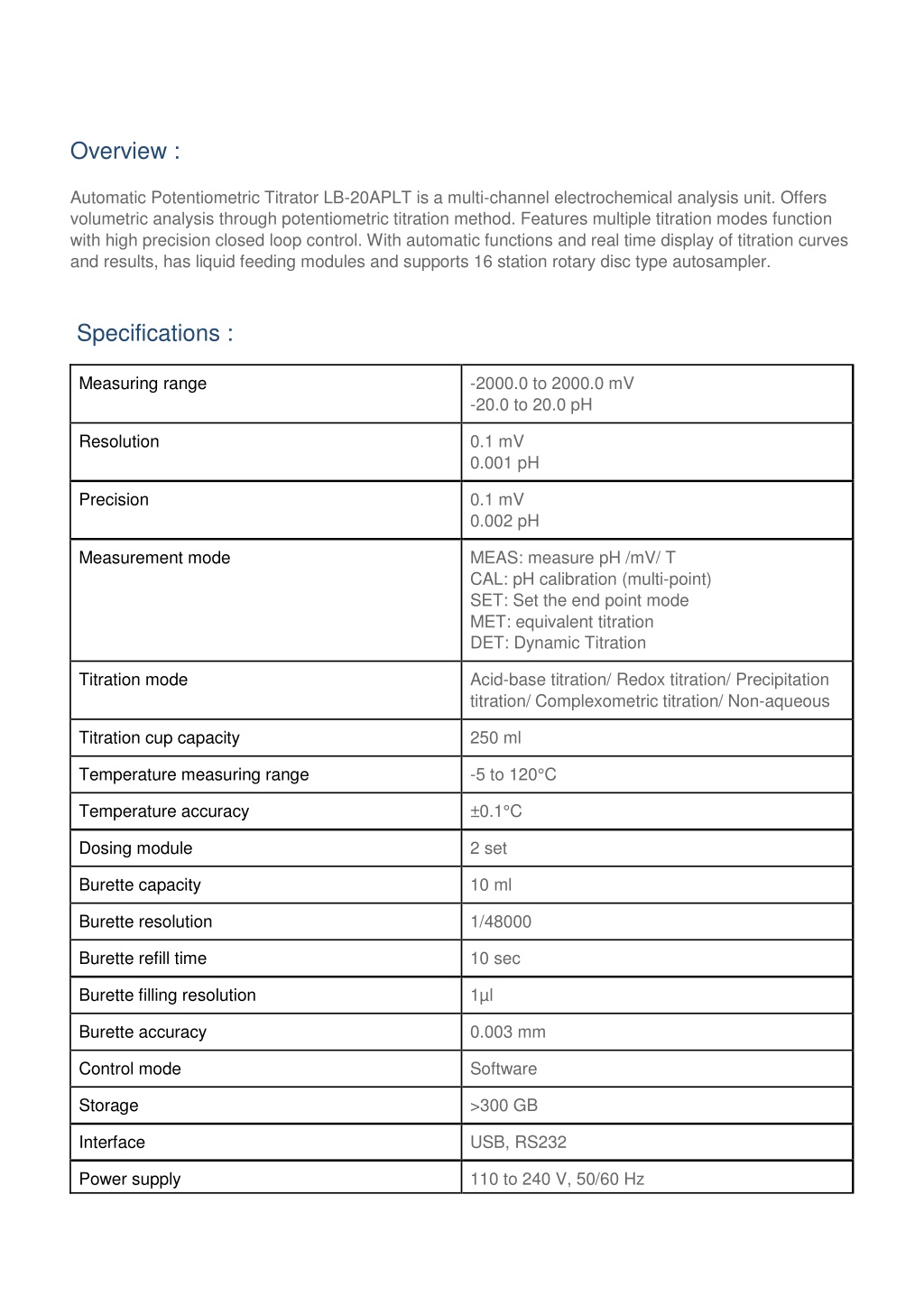

  2. Overview : Automatic Potentiometric Titrator LB-20APLT is a multi-channel electrochemical analysis unit. Offers volumetric analysis through potentiometric titration method. Features multiple titration modes function with high precision closed loop control. With automatic functions and real time display of titration curves and results, has liquid feeding modules and supports 16 station rotary disc type autosampler. Specifications : Measuring range -2000.0 to 2000.0 mV -20.0 to 20.0 pH Resolution 0.1 mV 0.001 pH Precision 0.1 mV 0.002 pH Measurement mode MEAS: measure pH /mV/ T CAL: pH calibration (multi-point) SET: Set the end point mode MET: equivalent titration DET: Dynamic Titration Titration mode Acid-base titration/ Redox titration/ Precipitation titration/ Complexometric titration/ Non-aqueous Titration cup capacity 250 ml Temperature measuring range -5 to 120°C Temperature accuracy ±0.1°C Dosing module 2 set Burette capacity 10 ml Burette resolution 1/48000 Burette refill time 10 sec Burette filling resolution 1µl Burette accuracy 0.003 mm Control mode Software Storage >300 GB Interface USB, RS232 Power supply 110 to 240 V, 50/60 Hz

  3. 01 Box packaging dimension (L×W×H) 750×560×420 mm 02 Box packaging dimension (L×W×H) 470×340×470 mm Total gross weight 40 kg Features : 1. Multi-channel Automatic Potentiometric Titrator 2. Liquid feeding module channels 3. High-precision closed loop control 4. Supports multiple titration methods 5. Software controlled unit ensure accuracy 6. Supports 16 position autosampler 7. Automatic functions to ensure accuracy Applications : Used across food, drug testing, disease control, commodity inspection, water treatment, petroleum, chemical, marine, electric power, environmental protection, new energy, teaching, scientific research etc. Standard Accessories: 16-position sampler Software Optional Accessories: Printer
