Automatic Potentiometric Titrator

Labotronics Automatic Potentiometric Titrator offers precise 15- to 25-ml volumetric titration capacity. It boasts an accuracy of u00b10.025 ml to u00b10.035 ml, repeatability of 0.002, and a u22640.2 mV repeatability error. The resolution is 1/20000 for the 15-ml burette and 1/10000 for the 25-ml burette.

mariahconner
Download Presentation

Automatic Potentiometric Titrator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

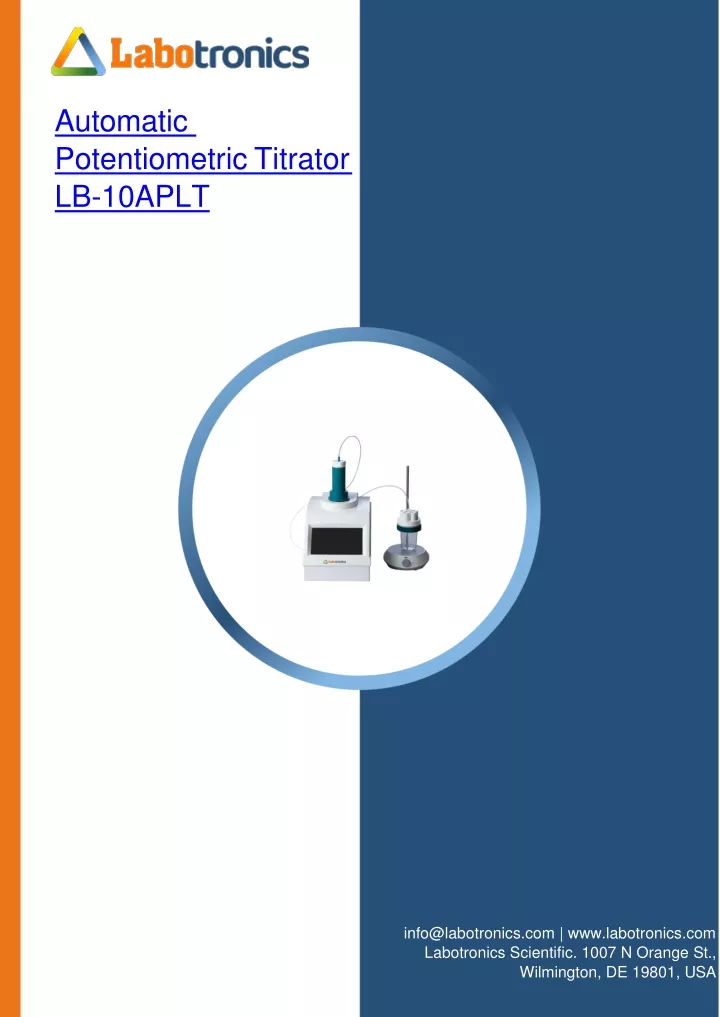

  1. Automatic Potentiometric Titrator LB-10APLT info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

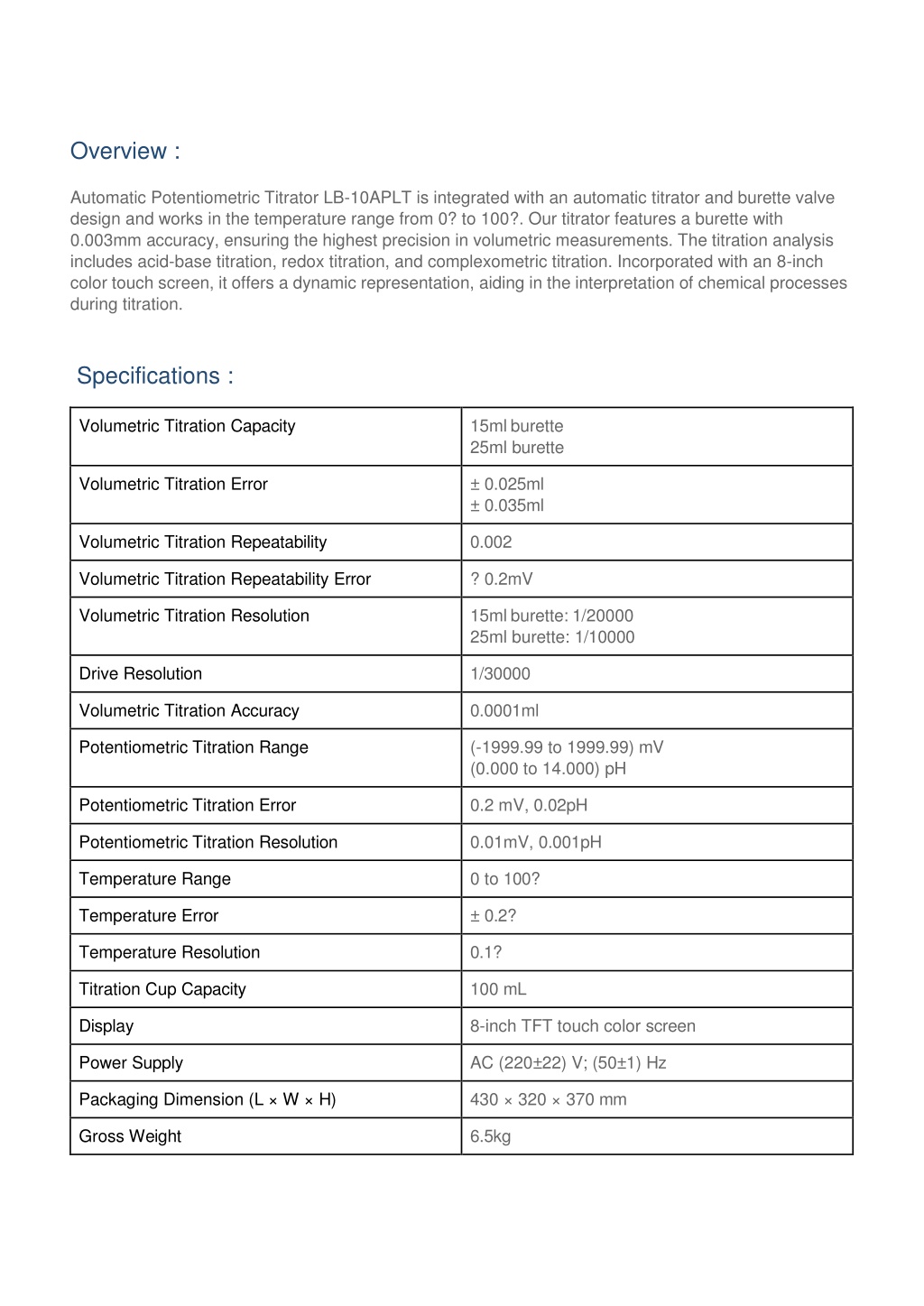

  2. Overview : Automatic Potentiometric Titrator LB-10APLT is integrated with an automatic titrator and burette valve design and works in the temperature range from 0? to 100?. Our titrator features a burette with 0.003mm accuracy, ensuring the highest precision in volumetric measurements. The titration analysis includes acid-base titration, redox titration, and complexometric titration. Incorporated with an 8-inch color touch screen, it offers a dynamic representation, aiding in the interpretation of chemical processes during titration. Specifications : Volumetric Titration Capacity 15ml burette 25ml burette Volumetric Titration Error ± 0.025ml ± 0.035ml Volumetric Titration Repeatability 0.002 Volumetric Titration Repeatability Error ? 0.2mV Volumetric Titration Resolution 15ml burette: 1/20000 25ml burette: 1/10000 Drive Resolution 1/30000 Volumetric Titration Accuracy 0.0001ml Potentiometric Titration Range (-1999.99 to 1999.99) mV (0.000 to 14.000) pH Potentiometric Titration Error 0.2 mV, 0.02pH Potentiometric Titration Resolution 0.01mV, 0.001pH Temperature Range 0 to 100? Temperature Error ± 0.2? Temperature Resolution 0.1? Titration Cup Capacity 100 mL Display 8-inch TFT touch color screen Power Supply AC (220±22) V; (50±1) Hz Packaging Dimension (L × W × H) 430 × 320 × 370 mm Gross Weight 6.5kg

  3. Features : 1. Enhance the process of sample injection through automation 2. Automated pipeline cleaning to prevent cross-contamination 3. Incorporating potent magnetic stirring for effective sample mixing 4. Burette designed with PTFE to resist corrosion 5. Featuring pH correction capabilities to guarantee precise titration results 6. Equipped with a closed-loop system that automatically adapts the titration process 7. Enabling instant data transfer and output through direct data printing 8. Users can create personalized titration methods based on their needs 9. Comply with GLP GMP certification Applications : The automatic potential titrator finds application in chemical analysis across various industries, including environmental and water testing, dairy, food additives, dyes and paints, oil, distilleries, cosmetics, pharmaceuticals, food production and scientific research Standard Accessories: pH electrode Magnetic stirring Silicone plug Anti-diffusion head Glass Stirrer Optional Accessories: Printer
