Automated blood culture system

Labotronic Automated Blood Culture System is a non-invasive, fully automated microbial culture device. It features a 50-cell capacity, an incubation temperature of 35 u00b0C u00b1 1.5 u00b0C, and an optical detection algorithm that monitors fluorescence with 90% TTP within 24 hours

mariahconner
Download Presentation

Automated blood culture system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

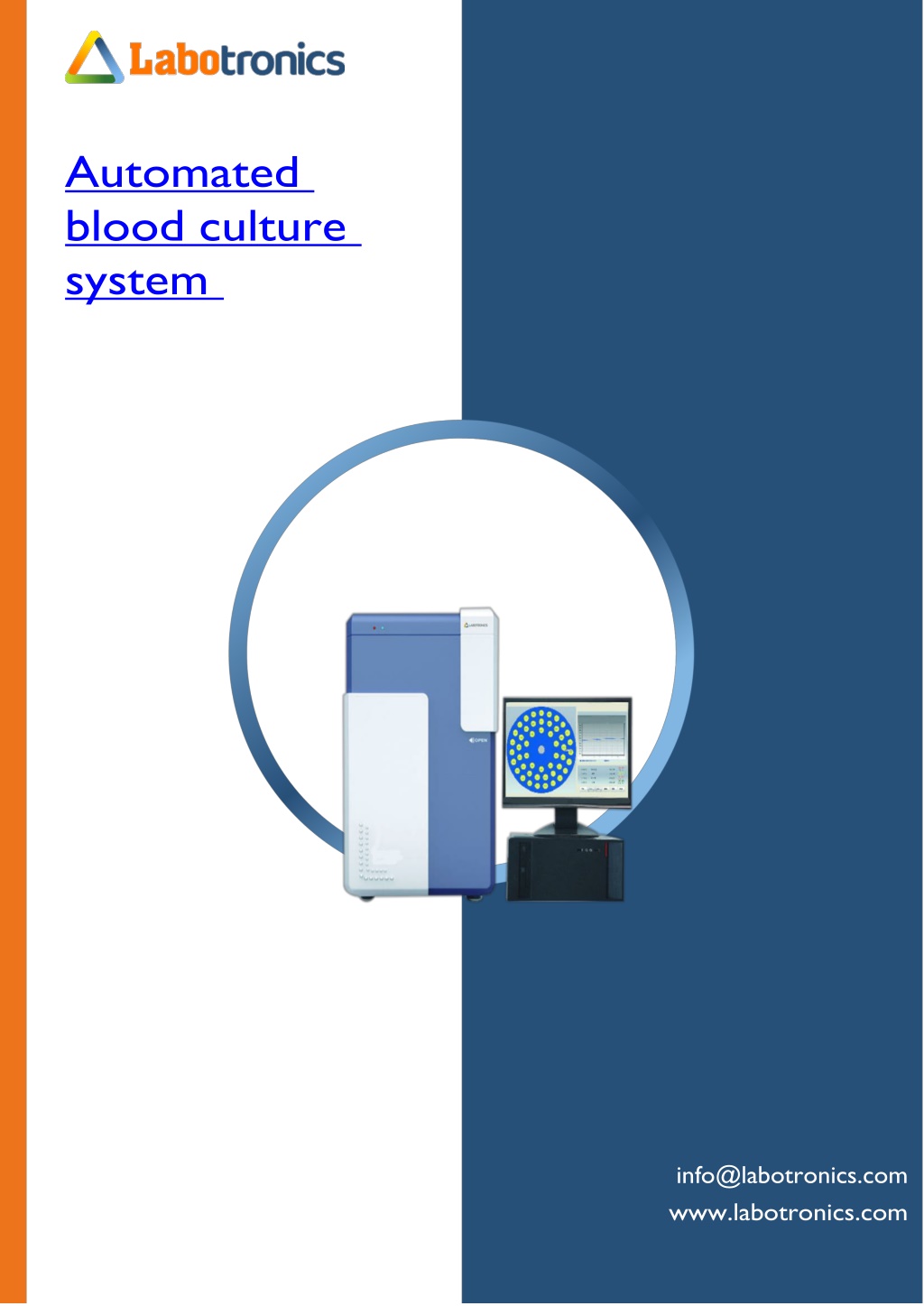

  1. Automated blood culture system info@labotronics.com www.labotronics.com

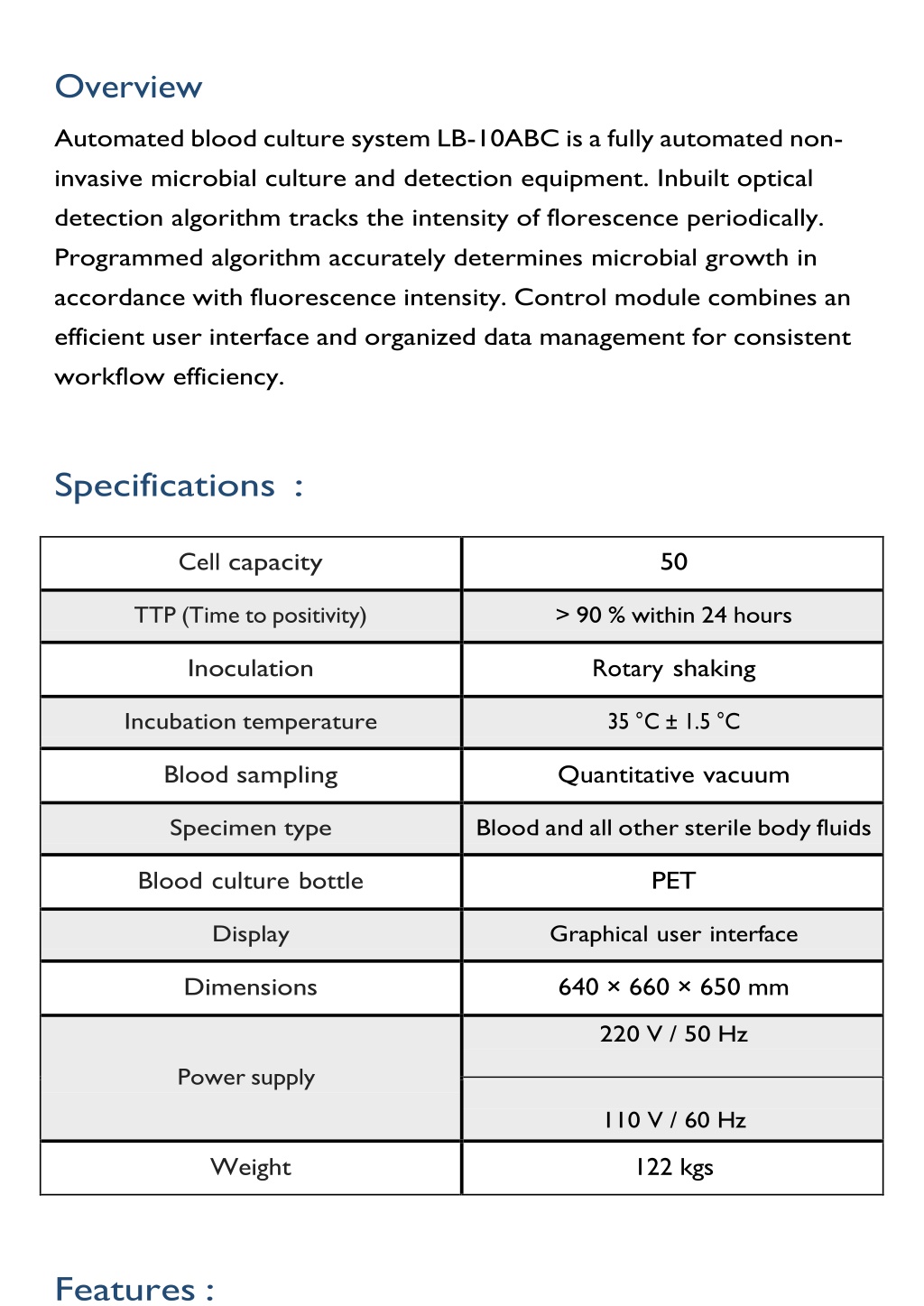

  2. Overview Automated blood culture system LB-10ABC is a fully automated non- invasive microbial culture and detection equipment. Inbuilt optical detection algorithm tracks the intensity of florescence periodically. Programmed algorithm accurately determines microbial growth in accordance with fluorescence intensity. Control module combines an efficient user interface and organized data management for consistent workflow efficiency. Specifications : Cell capacity 50 TTP (Time to positivity) > 90 % within 24 hours Inoculation Rotary shaking Incubation temperature 35 °C ± 1.5 °C Blood sampling Quantitative vacuum Specimen type Blood and all other sterile body fluids Blood culture bottle PET Display Graphical user interface Dimensions 640 × 660 × 650 mm 220 V / 50 Hz Power supply 110 V / 60 Hz Weight 122 kgs Features :

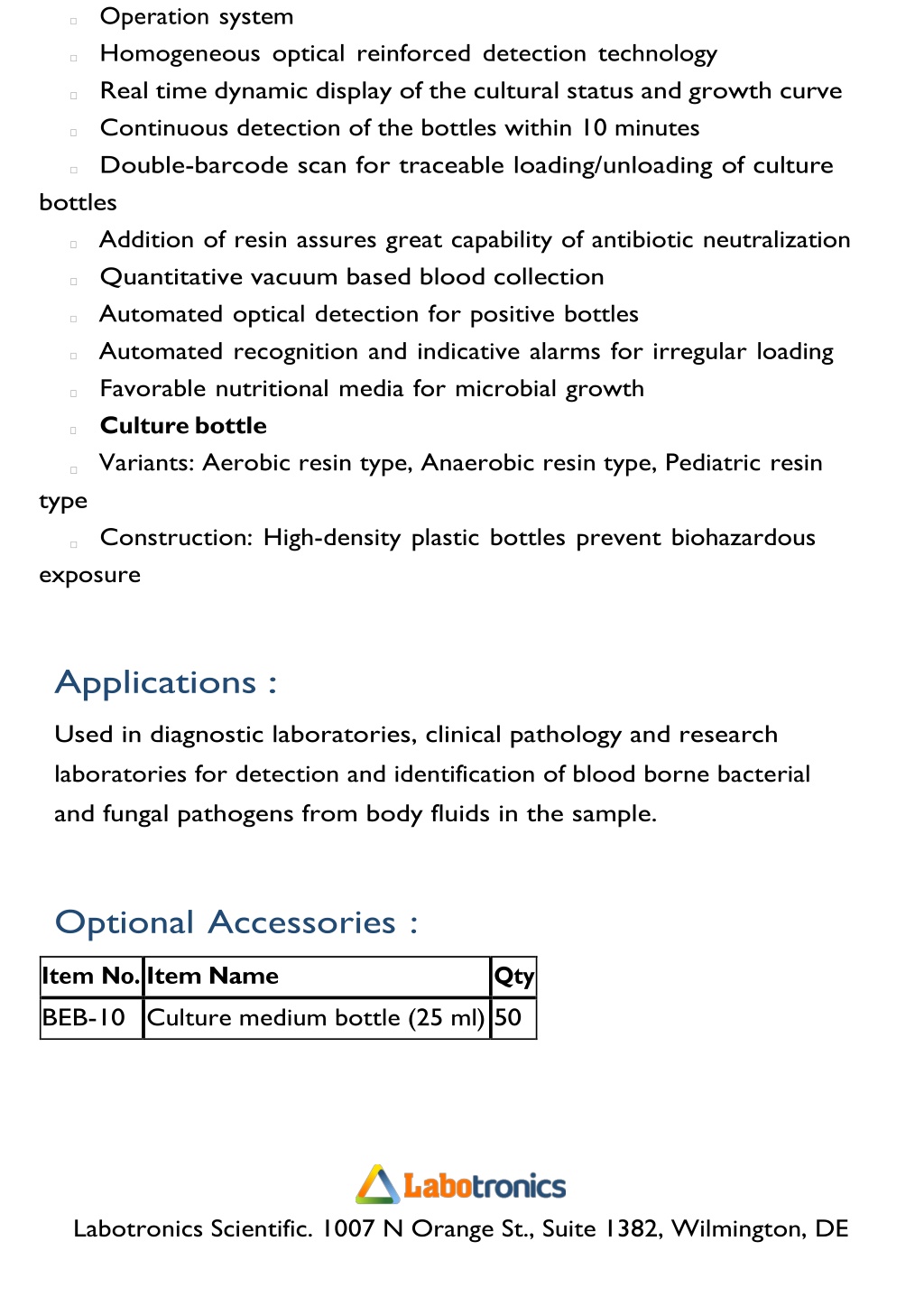

  3. Operation system Homogeneous optical reinforced detection technology Real time dynamic display of the cultural status and growth curve Continuous detection of the bottles within 10 minutes Double-barcode scan for traceable loading/unloading of culture bottles Addition of resin assures great capability of antibiotic neutralization Quantitative vacuum based blood collection Automated optical detection for positive bottles Automated recognition and indicative alarms for irregular loading Favorable nutritional media for microbial growth Culture bottle Variants: Aerobic resin type, Anaerobic resin type, Pediatric resin Construction: High-density plastic bottles prevent biohazardous exposure type Applications : Used in diagnostic laboratories, clinical pathology and research laboratories for detection and identification of blood borne bacterial and fungal pathogens from body fluids in the sample. Optional Accessories : ItemNo. Item Name BEB-10Culture medium bottle (25 ml)50 Qty Labotronics Scientific. 1007 N Orange St., Suite 1382, Wilmington, DE

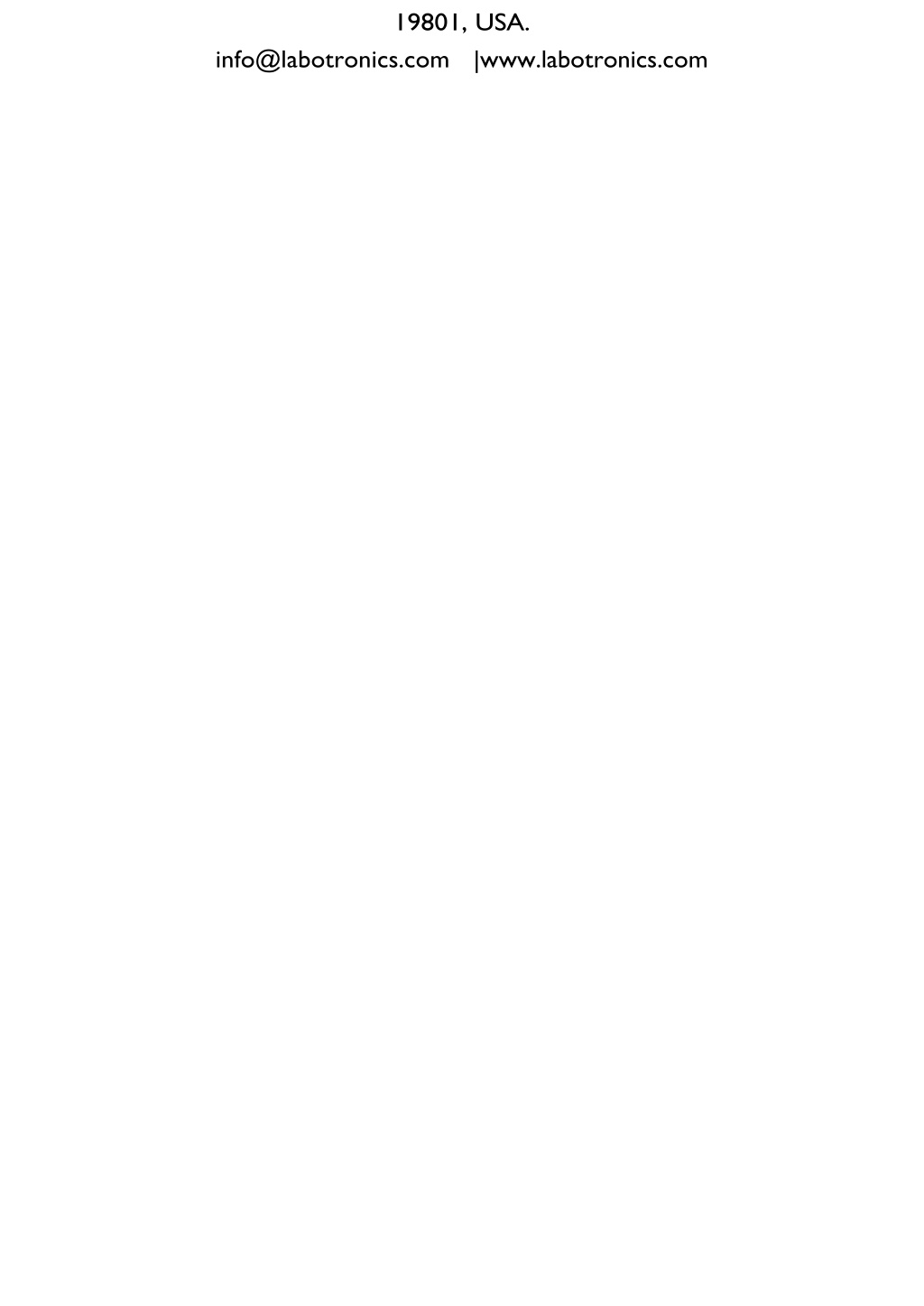

  4. 19801, USA. info@labotronics.com |www.labotronics.com
