Presentation Transcript
chapter 45 chemical signals in animals hormones and the endocrine system

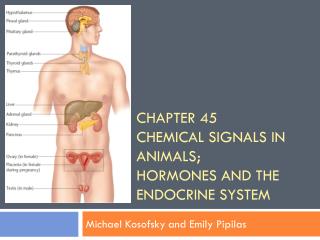

Chapter 45Chemical Signals in Animals;Hormones and the Endocrine System

Michael Kosofsky and Emily Pipilas


Endocrine System

  • Hormones travel in blood to target cells
  • Controls tissues
  • Regulates metabolism
  • Feedback in seconds to months

Nervous System

  • Electrical signals
  • Release neurotransmitters to synapse
  • Controls muscles and glands
  • Quick feedback
feedback mechanisms
Feedback Mechanisms
  • Negative Feedback
    • Primary mechanism of homeostasis
    • Change in physiological variable triggers response that counteracts initial ‘away from normal’ fluctuation
  • Positive Feedback
    • Physiological control mechanism
    • Change in variable triggers mechanisms to amplify that change
steroid model vs protein model
Steroid Model vs. Protein Model

Steroid Model

Protein Model

  • Diffuse through cell membrane
  • Receptors in nucleus
  • Response has slow onset
  • Long-lasting
  • Typically derived from cholesterol
  • Examples: Androgens, Estrogens, Progesterone
  • Don’t diffuse through cell membrane
  • Receptors on surface of cell
  • Response has quick onset
  • Short-lasting
  • Typically derived from amino acids
  • Examples: GH, Insulin, Glucagon
paracrine signaling local signaling between nearby cells within organ don t travel in blood
Paracrine Signaling: local signaling between nearby cells within organ (don’t travel in blood)
  • Endothelial cells of blood vessels release nitric oxide to help relax the smooth muscle in blood vessels, thus dilating blood vessels
  • Smooth muscle cells also produce prostoglandins, which aid in smooth muscle contraction
      • Examples: uterine wall contractions
3 stages of cell signaling
3 Stages of Cell Signaling
  • Reception: occurs when signal molecule binds to specific receptor protein
      • Receptor proteins are built into the plasma membrane of the target cell or located inside the target cell
      • Target cell: Cell that responds to a regulatory signal such as a hormone
  • Signal Transduction: events within the target cell that are triggered from the binding of a signal molecule to a receptor protein
  • Response: change in the cell’s behavior
  • Ligand: molecule that binds specifically to the receptor site of another molecule
  • 3 Models for Ligand/Receptor Interactions
    • G-Protein Linked Receptors
    • Tyrosine-Kinase Receptors
    • Ion-Channel Receptors
    • Intracellular Receptors
ligand gated channel
Ligand-Gated Channel
  • Protein pores in the plasma membrane that open or close in response to a chemical signal, allowing the blocking or flow of specific ions such as sodium or calcium ions.
  • Bind to signal molecule as a ligand at a specific sight on their extracellular side.
  • The shape change produced in the channel protein immediately leads to a flow of particular ions along their concentration gradient through the channel.
steroid hormones
Steroid Hormones
  • Derived from cholesterol
  • Lipid soluble (able to diffuse through cell membrane)
  • Sex hormones
    • Progesterone
    • Estrogen
    • Testosterone
  • Adrenal Cortex Hormones
  • Actions
    • Hormone crosses membrane
    • Hormone combines with receptor in nucleus
    • Attaches to section of DNA
    • Transcription (synthesis of mRNA) activated
    • mRNA enters cytoplasm to ribosome to create protein
second messenger
Second Messenger
  • Chemicals that transfer and amplify the signal from the receptor to proteins
  • Cause a specific response
calcium ions and inositol triphosphate ip 3 in signaling secondary messengers
Calcium Ions and InositolTriphosphate IP3 in Signaling (Secondary Messengers)
  • Signal molecule (first messenger) binds to G-protein-linked receptor, leads to activation of phospholipase C
  • Phospholipase C cleaves a plasma membrane phospholipid called PIP2 into DAG and IP3
  • DAG functions as a second messenger in other pathways
  • IP3 diffuses through cytosol, binds to a ligand-gated calcium channel in the ER membrane, causing it to open.
  • Calcium ions flow out of ER (down concentration gradient) raising calcium ion level in cytosol
  • Calcium ions activate the next protein in more signaling pathways, often acting via calmodulin, a calcium ion-binding protein
cellular response to cell signaling pathway
Cellular Response to Cell-Signaling Pathway
  • Response of liver cells to signaling by the hormone epinephrine
    • Helps regulate cellular energy metabolism
    • Activates the enzyme that catalyzes the breakdown of glycogen
duct vs ductless glands
Duct vs. Ductless Glands

Duct Glands

Ductless Glands

  • Exocrine
  • Secrete their products into ducts
  • Lead directly to external environment
  • Examples: sweat glands, salivary glands, mammary glands
  • Endocrine
  • Do not possess any ducts by which secretions are discharged
  • Secrete hormones directly into bloodstream
  • Examples: thyroid, parathyroid, thymus, pituitary body, pineal body
anterior pituitary hormones
Anterior Pituitary Hormones
  • Growth Hormone (GF)
  • Endorphins
  • Prolactin (PRL)
  • Follicle-Stimulating Hormone (FSH)
  • Luteinizing Hormone (LH)
  • Thyroid Stimulating Hormone (TSH)
  • Adrenocorticotropic Hormone (ACTH)
  • Melanocyte-Stimulating Hormone (MSH)

Hypothalamus-region of lower brain that recieves information from nerves throughout the body and from other parts of the brain then initiates endocrine signals appropriate to environmental conditions -secretes hormoones of the posterior pituitary and releasing factors, which regulate the anterior pituitary

  • Neurosecretory cells
    • Influence the pituitary gland which integrate endocrine and neural function
      • Posterior Pituitary: extension of hypothalamus that stores and release two hormones (oxytocin and antidiuretic hormone)
      • Anterior Pituitary: Releases and inhibits hormones conveyed by portal vessels in the hypthalamus. Hormones include: TSH, FSH, LH, GH, PRL, ACTH, MSH, endorphins
antidiuretic hormone
Antidiuretic Hormone
  • Release of ADH from the anterior pituitary is inhibited by drinking alcochol
  • How would this affect urination?

Thyroid Gland

  • Releases Calcitonin when blood calcium levels are too high, lowering calcium levels in the blood
  • Osteoblasts build bone
  • Produces T3 and T4 (iodine-containing hormones)
    • Stimulate metabolism
    • Influence development and maturation

Parathyroid Gland

  • Secretes Parathyroid Hormone (PTH)
    • Raises calcium levels in blood plasma when they are below normal
    • Works with calcitonin to maintain blood calcium homeostasis
    • Stimulates kidneys to activate Vitamin D, which causes intestines to increase uptake of calcium from food
iodine deficiency in diet
Iodine Deficiency in Diet
  • Results in goiter
    • Enlargement of thyroid
    • In the absence of sufficient iodine, thyroid gland cannot synthesize adequate amounts of T3 and T4
      • Leads to continuous secretions of TSH, which then leads to an enlarged thyroid
thymus gland
Thymus Gland
  • Active in establishing the immune system
  • Secretes thymosins
  • Promotes the development of white blood cells (lymphocytes)
    • Stimulate T cells (immunity)
pancreatic hormones the regulation of blood sugar negative feedback
Pancreatic Hormones & the Regulation of Blood Sugar (Negative Feedback)



  • Released when blood sugar levels are high
  • Stimulates cells to
    • Perform cellular respiration
    • Turn glucose into glycogen (where it is stored)
    • Turn excess glucose into fat
    • Take in amino acids for protein synthesis
    • Convert fatty acids into lipids
  • Released when blood sugar is low
  • Liver- change glycogen into glucos
  • Adipose (fat) tissue- breakdown of fats and proteins to form glucose
stimulation of the adrenal gland
Stimulation of the Adrenal Gland
  • Hypothalamus
  • Neural Signals
  • Sympathetic Impulses
  • Adrenal Medulla (medial)
  • Epinephrine and Norepinephrine Released
  • Short term “fight or flight” or alarm stage
  • Hypothalamus
  • CHR Released
  • Anterior Pituitary
  • Releases ACTH
  • Adrenal Cortex (lateral)
  • Releases Cortisol
  • Long term Adjustment or Resistance Stage
  • Causes short term “fight or flight” or alarm stage
    • Blood glucose increases
    • Blood glycerol and fatty acids increase
    • Heart rate increases
    • Blood pressure rises
    • Breathing rate increases
    • Air passages dilate
    • Pupils dilate
    • Blood flow redistributes, leading to increased alertness and decreased digestive and kidney activity
gonadotropic hormones
Gonadotropic Hormones



  • Stimulates gamete formation
    • Female: follicle, egg-maturation in ovary, release of estrogen
    • Male: sperm production in tubes of testes, release of testosterone
  • Negative Feedback: Release of Gonadotropin Releasing Hormone (GnRH) from the hypothalamus-decreased when levels of progesterone and testosterone rise
  • Stimulates ovulation in the ovary (female)
  • Ovulation causes release of progesterone
  • Causes production of testosterone in testes (male)
  • Negative Feedback: Hypothalamus decreases its release of GnRH when levels of progesterone and testosterone rise
secondary sex traits
Secondary Sex Traits

Secreted by Ovaries (Female)

Secreted by Testes (Male)

  • Estrogen
    • Support egg maturation
    • Controls period
  • Testosterone
    • Sperm production
    • Protein synthesis in muscle
