  1. IPv6 Industrial Applications by use of EMIT Matsushita Electric Works, Ltd. Noriaki Fujiwara Feb. 25, 2003

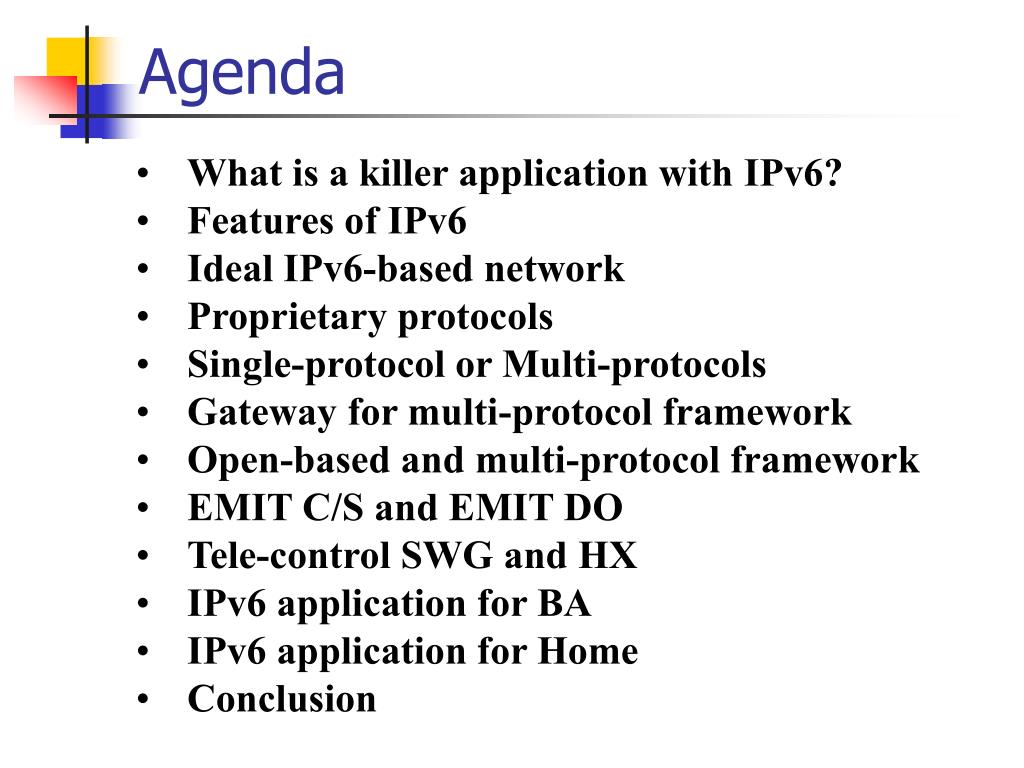

  2. Agenda • What is a killer application with IPv6? • Features of IPv6 • Ideal IPv6-based network • Proprietary protocols • Single-protocol or Multi-protocols • Gateway for multi-protocol framework • Open-based and multi-protocol framework • EMIT C/S and EMIT DO • Tele-control SWG and HX • IPv6 application for BA • IPv6 application for Home • Conclusion

  3. What is a killer application? IPv6 infrastructure has been ready. Users have set up PC environment. Market requires killer applications. • What is a killer application? • Applications for home users? • Applications for building automation?

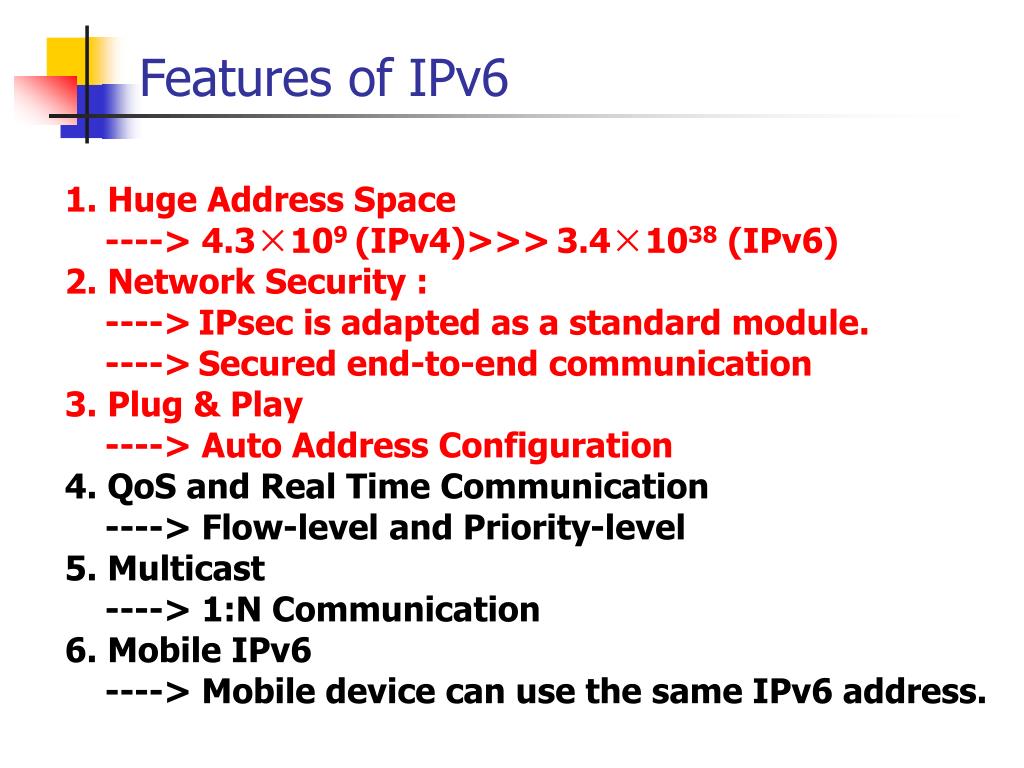

  4. Features of IPv6 1. Huge Address Space ----> 4.3×109 (IPv4)>>>3.4×1038(IPv6) 2. Network Security : ---->IPsec is adapted as a standard module. ---->Secured end-to-end communication 3. Plug & Play ----> Auto Address Configuration 4. QoS and Real Time Communication ----> Flow-level and Priority-level 5. Multicast ----> 1:N Communication 6. Mobile IPv6 ----> Mobile device can use the same IPv6 address.

  5. Ideal IPv6-based Network Remote maintenance Remote control Remote monitoring Data communication Bi-direction Peer-to-Peer communication Center Internet IPｖ６ Building Mobile devices Apartments Home

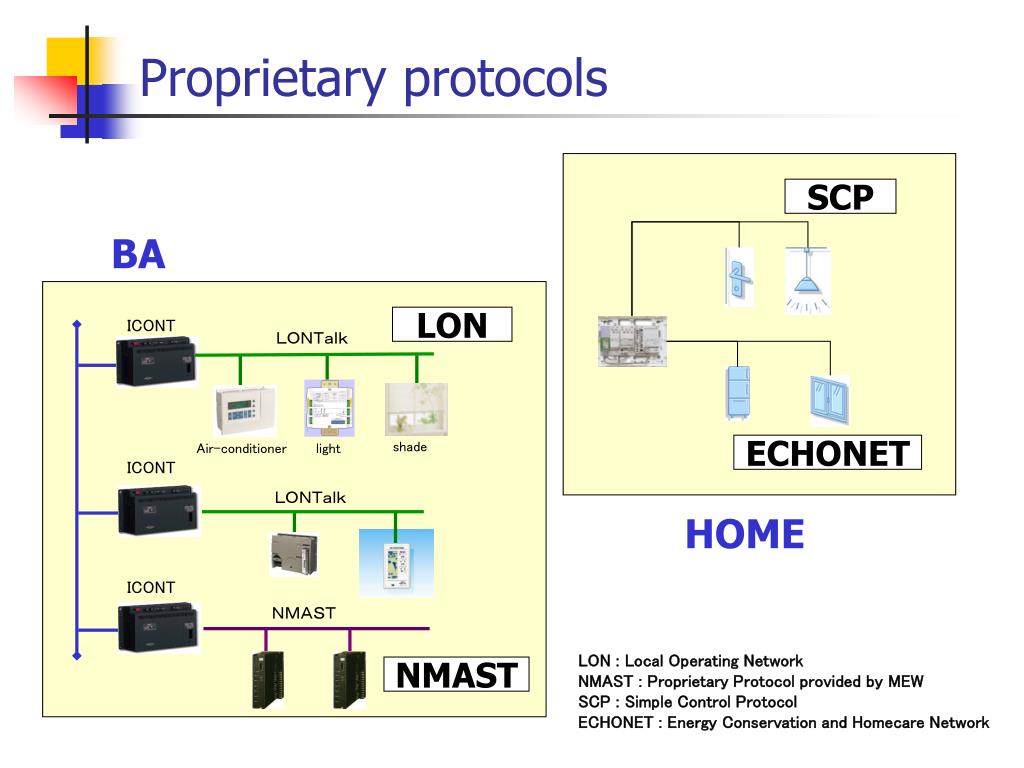

  6. Proprietary protocols SCP BA LON ICONT ＬＯＮＴａｌｋ shade Air-conditioner light ECHONET ICONT ＬＯＮＴａｌｋ HOME ICONT ＮＭＡＳＴ LON : Local Operating Network NMAST : Proprietary Protocol provided by MEW SCP : Simple Control Protocol ECHONET : Energy Conservation and Homecare Network NMAST

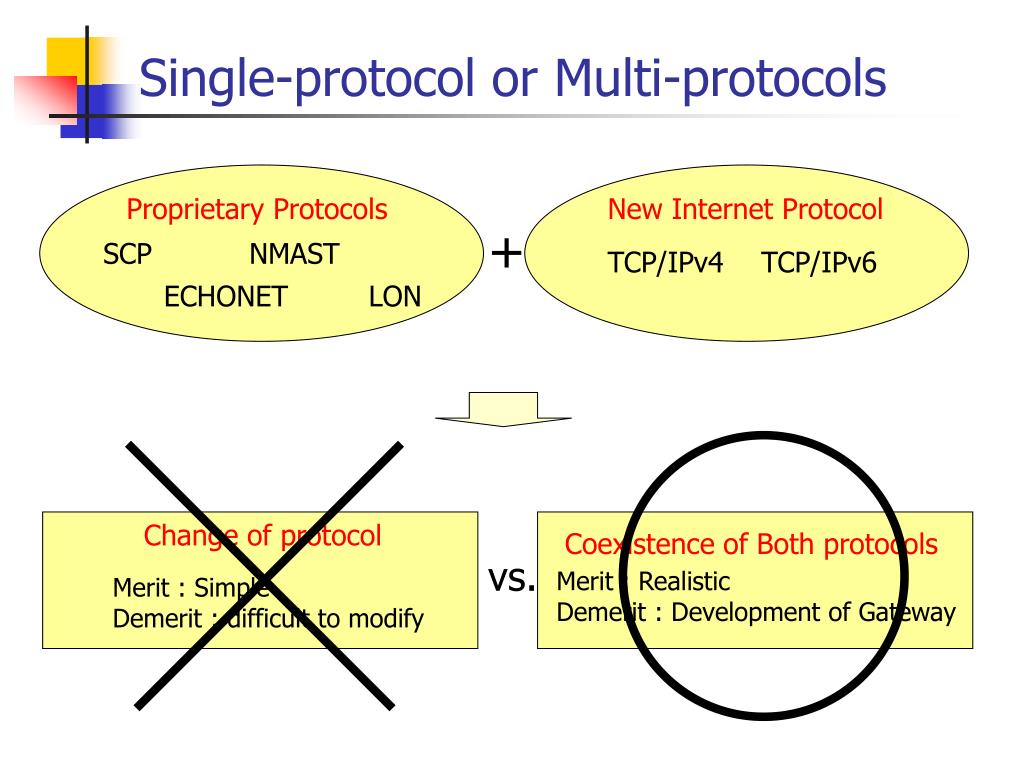

  7. Single-protocol or Multi-protocols Proprietary Protocols New Internet Protocol + SCP NMAST TCP/IPv4 TCP/IPv6 ECHONET LON Change of protocol Coexistence of Both protocols vs. Merit : Realistic Demerit : Development of Gateway Merit : Simple Demerit : difficult to modify

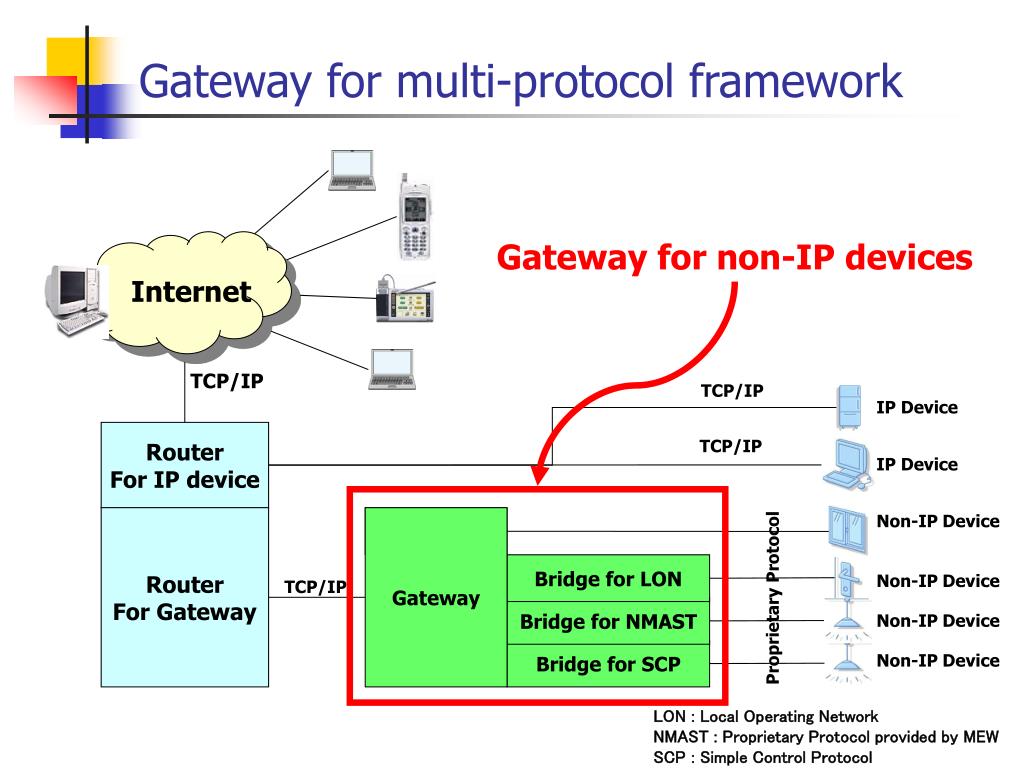

  8. Internet Gateway for multi-protocol framework Gateway for non-IP devices TCP/IP TCP/IP IP Device Router For IP device TCP/IP IP Device Non-IP Device Router For Gateway Gateway Bridge for emNet Bridge for LON Non-IP Device TCP/IP Proprietary Protocol Bridge for NMAST Non-IP Device Bridge for SCP Non-IP Device LON : Local Operating Network NMAST : Proprietary Protocol provided by MEW SCP : Simple Control Protocol

  9. Open-based & multi-protocol framework EMIT（Embedded Micro Internetworking Technology） EMIT is a software technology to make devices accessible to Internet. Feature 1 : Low cost communication module Feature 2 : Multi-protocols gateway-devices communication Feature 3 : TCP/IP based communication for clients EMIT Internet TCP/IP based Multi-protocols

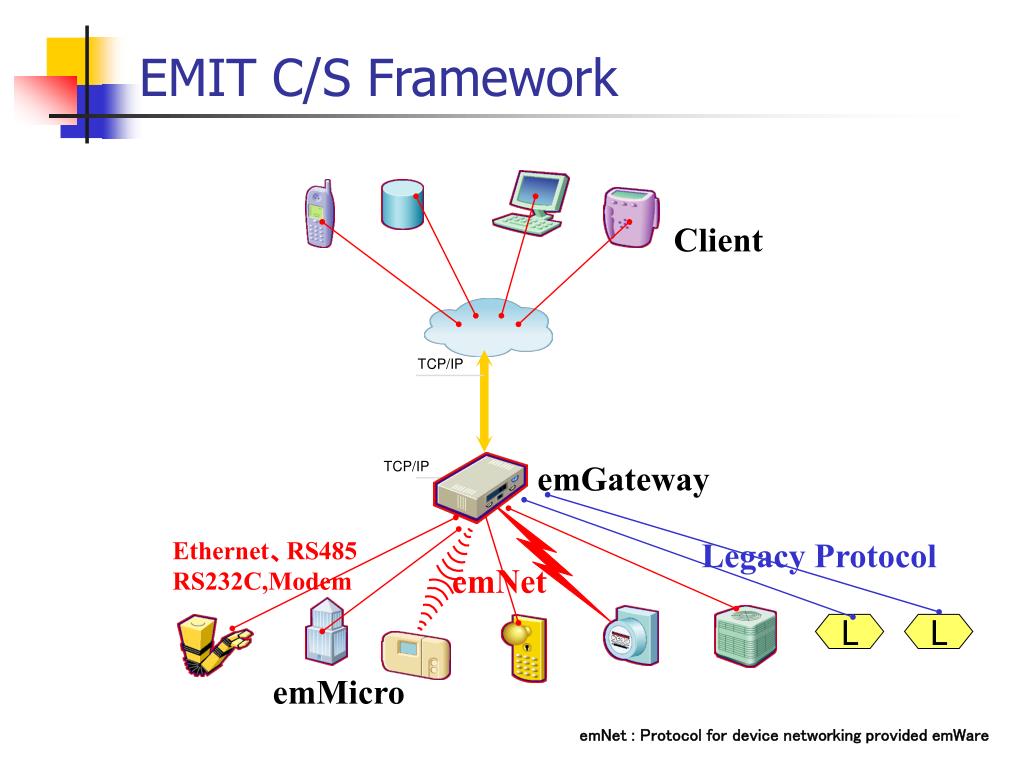

  10. EMIT C/S Framework Click to edit Master text styles Client TCP/IP TCP/IP emGateway Ethernet、RS485 RS232C,Modem Legacy Protocol emNet L L emMicro emNet : Protocol for device networking provided emWare

  11. EMIT DO Framework Client EMG Gateway Device Legacy-Device L Firewall F/W I/F Module I/F Control & Monitoring by Management Center with F/W Enterprise Device Networking with EMG F/W Internet Control & Monitoring inside LAN F/W HUB LAN HUB HUB HUB HUB I/F L L L P2P communication without gateway Control & Monitoring by Local Center P2P communication Communication with legacy devices

  12. Organization of IPv6 Promotion Council Tele-control SWG

  13. Applicable Systems by Tele-control SWG

  14. DB Center Power Meter (future) Circuit Breaker Box IPv6 Home eXchange Internet IPv6 HX HX Media Converter IPv6 Client emNet Media Converter Ethernet or Power line IP Device Home Gateway IPv6 IPv6 EMIT-enabled Device Controller Gas Meter Water Meter Non IP Device IPv6 Air Cond. Device Fridge PC LPG Water Future Option Devices for utilities Home appliance HX(Home eXchange) Standard Framework for Utilities and other devices with IPv6

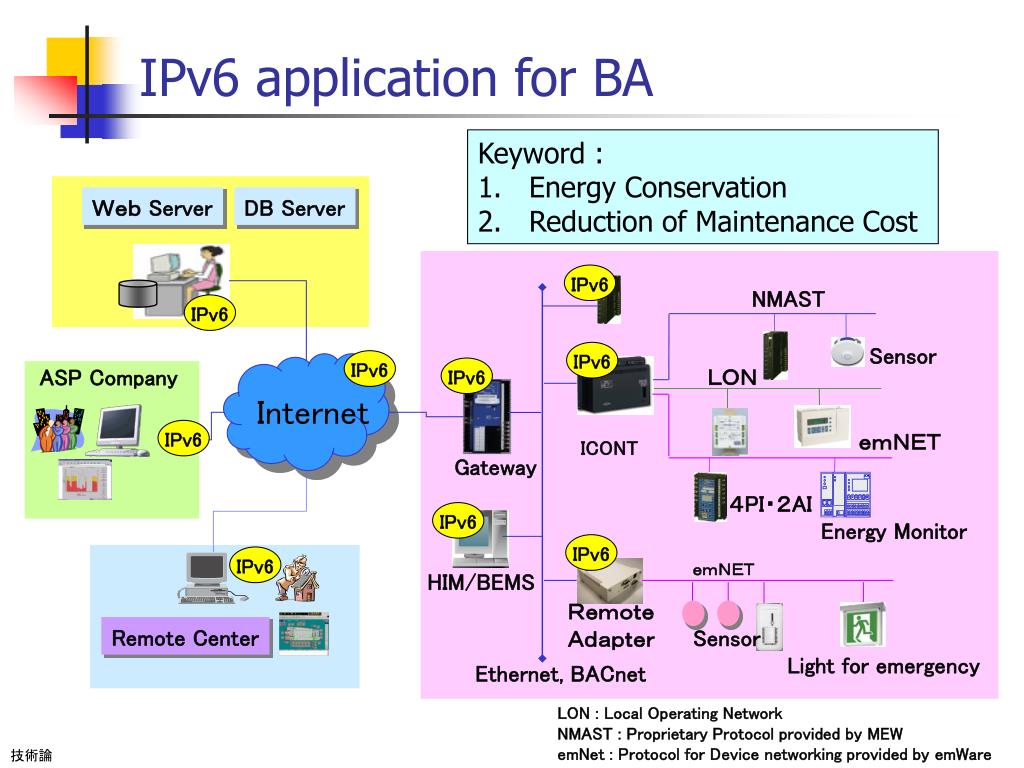

  15. IPv6 application for BA • Keyword : • Energy Conservation • Reduction of Maintenance Cost Ｗｅｂ Server DB Server IPv6 NMAST IPv6 Sensor IPv6 IPv6 ＬＯＮ ASP Company IPv6 Internet IPv6 ｅｍＮＥＴ ICONT Gateway ４PI・２AI IPv6 Energy Monitor IPv6 IPv6 ｅｍＮＥＴ HIM/BEMS Ｒｅｍｏｔｅ Ａｄａｐｔｅｒ Remote Center Sensor Light for emergency Ethernet, BACnet LON : Local Operating Network NMAST : Proprietary Protocol provided by MEW emNet : Protocol for Device networking provided by emWare 技術論

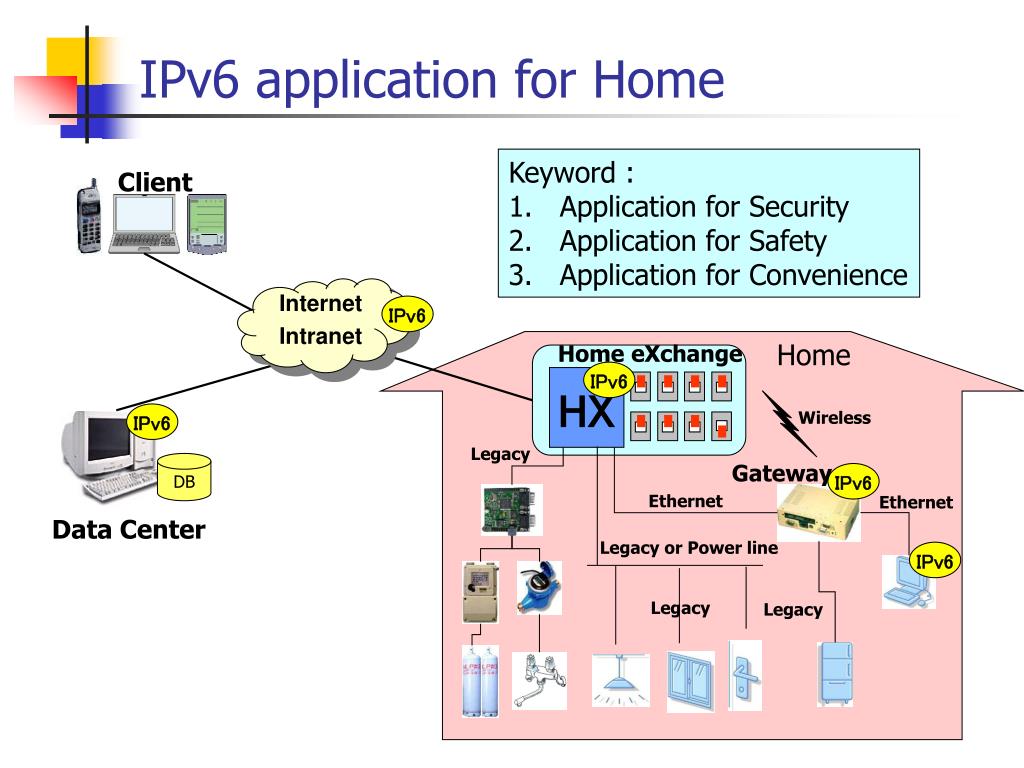

  16. IPv6 application for Home Client Internet Intranet • Keyword : • Application for Security • Application for Safety • Application for Convenience IPv6 Home Home eXchange IPv6 HX Wireless IPv6 Legacy DB Gateway IPv6 Ethernet Ethernet Data Center Legacy or Power line IPv6 Legacy Legacy

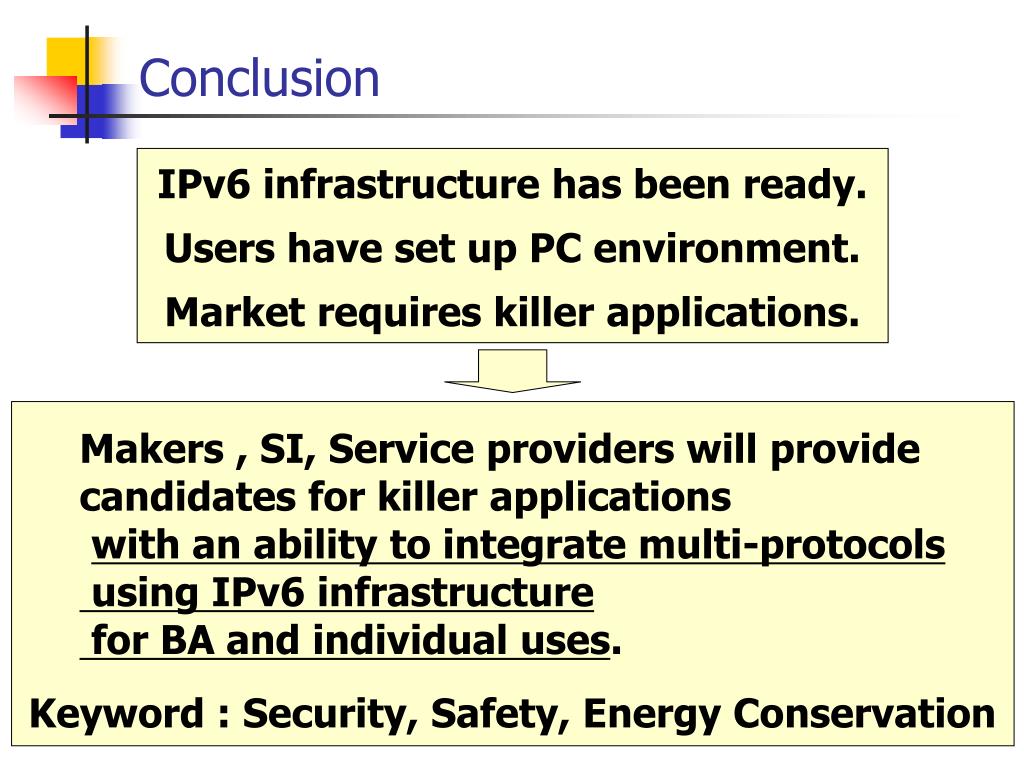

  17. Conclusion IPv6 infrastructure has been ready. Users have set up PC environment. Market requires killer applications. Makers , SI, Service providers will provide candidates for killer applications with an ability to integrate multi-protocols using IPv6 infrastructure for BA and individual uses. Keyword : Security, Safety, Energy Conservation
